5 Troubleshooting

Review the sections below for troubleshooting tips and techniques on installing and configuring the Exadata plug-in.

5.1 Establish SSH Connectivity

For Release 12.1.0.1, the SSH key location is <EMDROOT>/.ssh where EMDROOT is the installation directory of the Enterprise Manager agent. For example:

/u01/app/oracle/product/gc12/agent/core/12.1.0.1.0

Note:

Some metric collection has a dependency on ~/.ssh/known_hosts.

For Release 12.1.0.2, the SSH key location is $HOME/.ssh of the agent user.

To set up SSH connectivity between the computer where Agent is running and the Oracle Exadata Storage Server, as the Agent user:

Log in to the computer where the Enterprise Manager Agent is running, open a terminal, and run the following commands as the Agent user to generate a pair of the SSH private/public keys if they are not present:
- For Release 12.1.0.1:
```
cd <EMDROOT>/.ssh
ssh-keygen -t dsa -f id_dsa
```
  Where <EMDROOT> is the installation directory of the Enterprise Manager Agent.
- For Release 12.1.0.2:
```
cd $HOME/.ssh
ssh-keygen -t dsa -f id_dsa
```
  Where $HOME is the home directory of the Agent user.
Copy the public key (id_dsa.pub) to the /tmp directory on the storage cell:
```
scp id_dsa.pub root@<cell_ipaddress>:/tmp
```
Add the contents of the id_dsa.pub file to the authorized_keys file in the .ssh directory within the home directory of the cellmonitor user:
```
ssh -l root <cell_ipaddress> "cat /tmp/id_dsa.pub >> ~cellmonitor/.ssh/authorized_keys"
```
Note:
If the authorized_keys file does not exist, then create one by copying the id_dsa.pub file to the .ssh directory within the home directory of the user cellmonitor:
```
ssh -l root <cell_ipaddress> "cp /tmp/id_dsa.pub ~cellmonitor/.ssh/authorized_keys; chown cellmonitor:cellmonitor ~cellmonitor/.ssh/authorized_keys"
```
Make sure that the .ssh directory and authorized_keys have the right file permission:
```
chmod 700 ~cellmonitor/.ssh
chmod 600 ~cellmonitor/.ssh/authorized_keys
```

5.2 Discovery Troubleshooting

Very often, the error message itself will include the cause for the error. Look for error messages in the OMS and agent logs (case insensitive search for dbmdiscovery) or in the Discovery window itself.

5.2.1 Compute Node Error Message

Problems with the compute node may generate the following error:

The selected compute node is not an existing host target managed by Enterprise Manager. Please add the compute node as managed target before you continue.

Possible causes for this error include:

The compute node was not added as an Enterprise Manager host target before the Exadata Database Machine discovery.
The host target name for compute node is an IP address. This problem can be an /etc/hosts or DNS issue.
The host target name is not fully qualified with domain name (for example, hostname.mycompany.com)

5.2.2 Cell is not Discovered

If the cell itself is not discovered, possible causes could be:

The installation of RDBMS Oracle Home Release 11.2 is incorrect.
The /etc/oracle/cell/network-config/cellip.ora file on the compute node is missing or unreadable by the agent user or cell not listed in that file.
The cell is not listed in the /etc/oracle/cell/network-config/cellip.ora file.
MS or cellsrv is down.
Cell management IP is changed improperly. Bouncing both cellsrv and MS may help.
To check that the cell is discovered with a valid management IP, run the following command on the compute node used for discovery:
```
$ORACLE_HOME/bin/kfod op=cellconfig
```

5.2.3 Compute Node or InfiniBand Switch is not Discovered

If there are problems with discovery of the compute node or the InfiniBand switch, possible causes could be:

The InfiniBand switch host name or nm2user password is incorrect.
The connection from the compute node to the InfiniBand switch through SSH is blocked by a firewall.
The InfiniBand switch is down or takes too long to respond to SSH.

To resolve problems with the compute node or InfiniBand switch discovery, try:

If the InfiniBand switch node is not discovered, the InfiniBand switch model or switch firmware may not be supported by EM Exadata. Run the ibnetdiscover command. Output should look like:
```
Switch 36 "S-002128469f47a0a0" # "Sun DCS 36 QDR switch xdb1swib3.us.oracle.com" enhanced port 0 lid 1 lmc 0
```
To verify discovery of the compute node, run the following command on the compute node used for discovery:
```
ssh <IB switch> -l nm2user ibnetdiscover
```
If the compute node is not discovered, run the ibnetdiscover command. Output should look like:
```
Ca 2 "H-00212800013e8f4a" # " xdb1db02 S 192.168.229.85 HCA-1“
```
A bug in the 11.2.2.2.2 compute node image shows “S” and the InfiniBand IP as missing. Output would look like:
```
Ca 2 " H-00212800013e8f4a " # "xdb1db02 HCA-1“
```
A workaround for this problem is to run the following command as root on the compute nodes:
```
/opt/oracle.cellos/ib_set_node_desc.sh
```

5.2.4 InfiniBand Network Performance Page Shows No Data

If the InfiniBand network performance page does not show data, double check that the files under the /opt/oracle.SupportTools/em/ directory on compute nodes should be publicly readable. Se Oracle Bug 13255511 for more information.

5.2.5 ILOM, PDU, KVM, or Cisco Switch is not Discovered

If the ILOM, PDU, KVM, or Cisco switch is not discovered, the most likely cause is that the Exadata Database Machine Schematic file cannot be read or has incorrect data. See Troubleshooting the Exadata Database Machine Schematic File.

5.2.6 Target Does not Appear in Selected Targets Page

Even though no error may appear during the Exadata Database Machine guided discovery, the target does not appear on the Select Components page. Possible causes and solutions include:

Check the All Targets page to make sure that the target has not been added as an Enterprise Manager target already:
- Log in to Enterprise Manager.
- Select Targets, then All Targets.
- On the All Targets page, check to see if the Oracle Exadata target appears in the list.
A target that is added manually may not be connected to the Exadata Database Machine system target through association. To correct this problem:
- Delete these targets before initiating the Exadata Database Machine guided discovery.
- Alternatively, use the emcli command to add these targets to the appropriate system target as members.

5.2.7 Target is Down or Metric Collection Error After Discovery

After the Exadata Database Machine guided discovery, an error that the target is down or that there is a problem with the metric collection may display. Possible causes and recommended solutions include:

For the cell or InfiniBand switch, the setup of SSH may not be configured properly. To troubleshoot and resolve this problem:
- The agent's SSH public key in the <AGENT_INST>/.ssh/id_dsa.pub file is not in the authorized_keys file of $HOME/.ssh for cellmonitor or nm2user.
- Verify permissions. The permission settings for .ssh and authorized_keys should be:
```
drwx------ 2 cellmonitor cellmonitor 4096 Oct 13 07:06 .ssh
-rw-r--r-- 1 cellmonitor cellmonitor 441842 Nov 10 20:03 authorized_keys
```
- Resolve a PerformOperationException error. See Troubleshooting the Exadata Database Machine Schematic File for more information.
If the SSH setup is confirmed to be properly configured, but the target status is still down, then check to make sure there are valid monitoring and backup agents assigned to monitor the target. To confirm, click the Database Machine menu and select Monitoring Agent. Figure 5-1 shows an example of the monitoring agents:

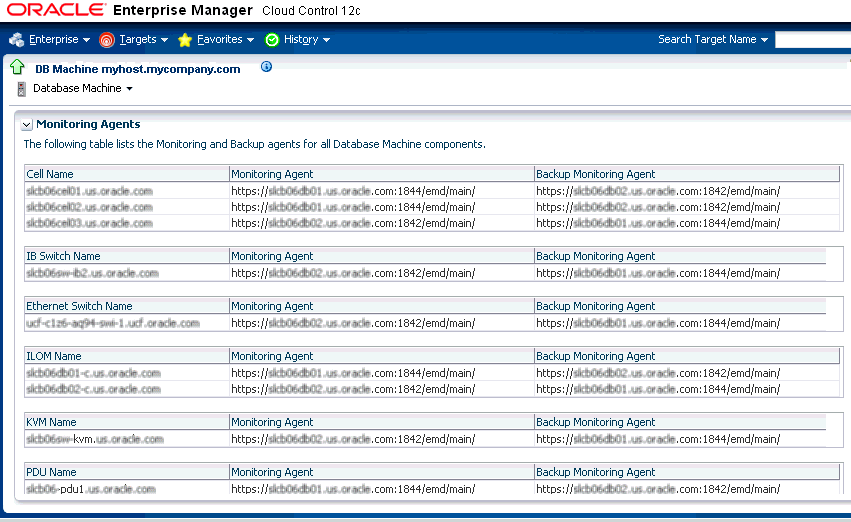

Figure 5-1 Monitoring Agents Example
For the ILOM, PDU, KVM, or Cisco switch, possible causes include:
- The Exadata Database Machine Schematic Diagram file has the wrong IP address.
- Monitoring Credentials is not set or incorrect. To verify:
  - Log in to Enterprise Manager.
  - Click Setup, then Security, and finally Monitoring Credentials.
  - On the Monitoring Credentials page, click the Oracle Exadata target type. Then set the monitoring credentials.

5.2.8 Troubleshooting the Exadata Database Machine Schematic File

The Exadata Database Machine Schematic file version 503 is required as a prerequisite for guided discovery. As part of any discovery troubleshooting, possible causes and recommended resolution with the schematic file can include:

The schematic file on the compute node is missing or is not readable by the agent user.
- For Exadata Release 11.2.3.2 and later, the schematic file is:
```
/opt/oracle.SupportTools/onecommand/catalog.xml
```
- For Exdata Release 11.2.3.1 and earlier, the schematic file is:
```
/opt/oracle.SupportTools/onecommand/databasemachine.xml
```

If a PerformOperationException error appears, the agent NMO is not configured for setuid-root:

From the OMS log:

2011-11-08 12:28:12,910 [[ACTIVE] ExecuteThread: '6' for queue: 'weblogic.kernel.Default (self-tuning)']
ERROR model.DiscoveredTarget logp.251 -
ERROR: NMO not setuid-root (Unix only) oracle.sysman.emSDK.agent.client.exception.PerformOperationException:

As root, run:
```
<AGENT_INST>/root.sh
```

In the /etc/pam.d file, pam_ldap.so is used instead of pam_unix.so on compute nodes.
- Even though the agent user and password are correct, this errors appears in the agent log:
```
oracle.sysman.emSDK.agent.client.exception.PerformOperationException:
ERROR: Invalid username and/or password
```
Schematic file has error because of a known Exadata Database Machine configurator bug:
- Verify that the Exadata Database Machine configurator is version 12.0
- Verify that the schematic file is version 503
- Older versions may or may not have the bug depending on the Exadata Database Machine rack type and partitioning.

5.3 Exadata Database Machine Management Troubleshooting

If data is missing in Resource Utilization graphs, then run a "view object" SQL query to find out what data is missing. Common problems include:

Schematic file is not loaded correctly.
Cluster, Database, and ASM are not added as Enterprise Manager targets.
Database or cell target is down or is returning metric collection errors.
Metric is collected in the Enterprise Manager repository, but has an IS_CURRENT != Y setting.

5.4 Exadata Derived Association Rules

Exadata derived association rules depend on Exadata and DB/ASM ECM data. This data may take up to 30 minutes to appear depending on metric collection schedule. To check for data availability:

From the Enterprise Manager Cloud Control console:
- Click Targets, then All Targets.
- On the All Targets page, click the Oracle Exadata target from the list.
- Click Database System, then Configuration, and finally Last Collected.
- On the Latest Configuration page, click Actions, then Refresh.

From the command line:

emctl control agent runCollection
target_name:target_type <collectionName>

Other troubleshooting tips include:

Verify that ECM data are collected and present in Enterprise Manager repository.
Verify that all data and conditions in query are met by running the query in SQL+.
Verify triggers by enabling debug logging to check for timing issues.
