This chapter covers the common self service operations that need to be performed before setting up DBaaS or MWaaS. It also describes the monitoring operations that can performed on DBaaS or MWaaS. It contains the following sections:
A PaaS Infrastructure Zone is a group of homogeneous resources such as hosts, or other targets. Each resource in a zone represents a location at which a service instance is to be deployed.
Before you enable or setup DBaaS or MWaaS, you must create a PaaS Infrastructure Zone which allows you to define the placement policy constraints for a specified set of targets and the users to whom this zone will be available.
Prerequisites
Before you create a PaaS Infrastructure Zone, you must ensure that the following prerequisites are met:
The EM_CLOUD_ADMINISTRATOR, EM_SSA_ADMINISTRATOR, and EM_SSA_USER roles must have been created.
The Software Library must have been configured.
Note:
To enable Administrators (or users) to access, and leverage an OMS Agent Filesystem Software Library Location, the owner of the Named Credential must ensure that an explicit View privilege is granted to all the Administrators accessing the OMS Agent location. To do so, you can either click Add Grant and add the names of the administrators while creating the Named Credential, or edit an existing Named Credential to grant privileges to other Administrators (or users) by following these steps:From the Setup menu, select Security, then select Named Credentials.
On the Named Credentials page, click Manage Access.
On the Manage Access page, click Add Grant to add a user, or Change Privilege to edit the privileges of an existing user. Click Save.
For example, if you have a Cloud Plug-in installed, and are using the Cloud features offered in Enterprise Manager, then ensure that the CLOUD_ENGINE_USER is also granted view privileges on credentials associated with Software Library. Since the CLOUD_ENGINE_USER is a hidden user account, the owner of the named credential will not be able to grant him View privileges from the Enterprise Manager UI. To handle this situation, (especially on a Windows host where OMS Agent Filesystem is the recommended approach for setting up Software Library) you can run the following EMCLI commands:
emcli login -username=<username -password =<>
emcli grant_privs -name=CLOUD_ENGINE_USER -privileges="GET_CREDENTIAL;CRED_ANME=<>:CRDED_OWNER=<>"
You must log in as a user with EM_CLOUD_ADMINISTRATOR privileges to create a PaaS Infrastructure Zone.
To create a PaaS Infrastructure Zone, follow these steps:
From the Enterprise menu, select Cloud, then select Middleware and Database Home.

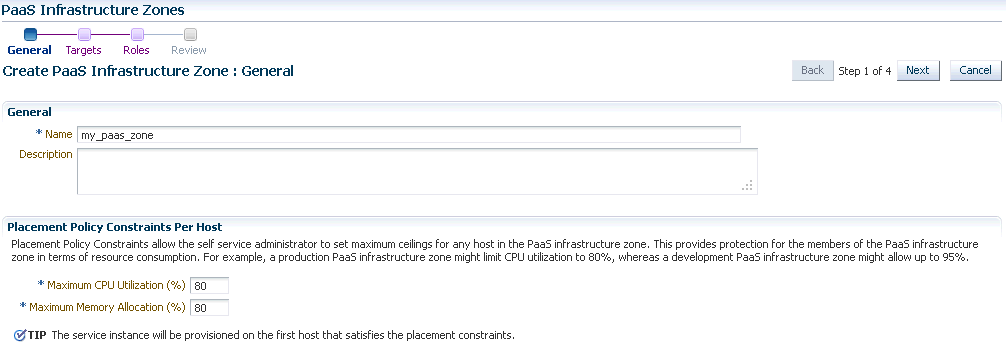

From the Middleware and Database Cloud menu, select Create PaaS Infrastructure Zone. The Create PaaS Infrastructure Zone: General page appears.
Enter a name and description for the zone, and specify appropriate values for placement policy constraints based on the resources available to the members. The EM_SSA_ADMINISTRATOR can use these placement policy constraints to set maximum ceilings for any host in the zone. Placement policy values are used during deployment to filter out hosts that are overburdened. You can define the following placement policy constraints for each host:
Maximum CPU Utilization: The average CPU utilization percentage over a specified period.
Maximum Memory Allocation: The average memory allocation over a specified period.

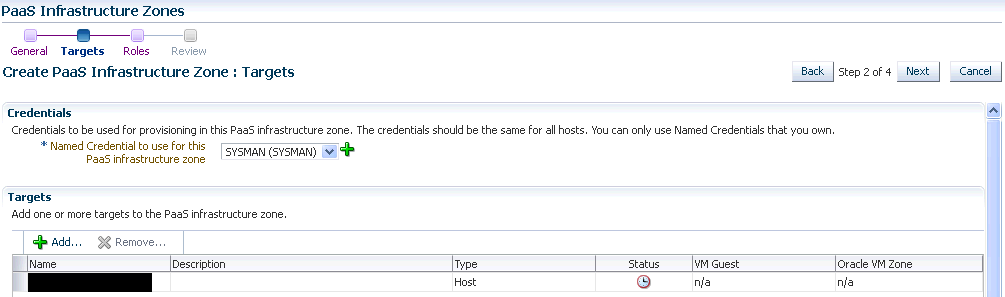

During provisioning, hosts with these constraints will not be considered for provisioning operations. Click Next. The Create PaaS Infrastructure Zone page appears.
Specify the Named Credentials to be used for provisioning all the targets in this zone. Click the + icon to add new named credentials. The credentials you specify must be the same for all the hosts in this zone.
In the Targets region, click Add to add one or more targets to the zone. A target can be a host or an OVM Zone. See Creating a Zone for details.

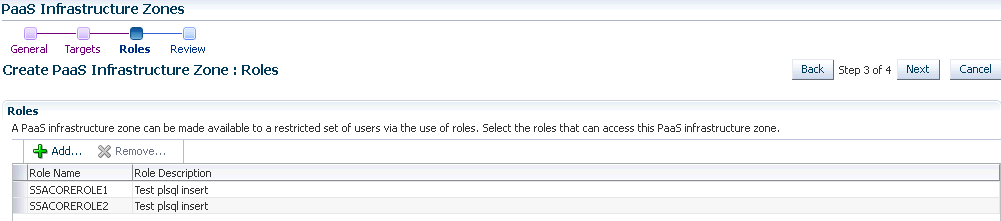

Click Next. The Create PaaS Infrastructure Zone: Roles page appears.
A PaaS Infrastructure Zone can be made available to a restricted set of users through the use of roles. Click Add to add and select the roles that can access this PaaS Infrastructure Zone.
Click Next. The Create PaaS Infrastructure Zone: Review page appears. Review the details of the zone being created and click Submit to create the zone. You will return to the Database and Cloud Home page.
To edit a PaaS Infrastructure Zone, follow these steps:
From the Enterprise menu, select Cloud, then select Middleware and Database Cloud Home.
Click on the PaaS Infrastructure Zones link in the General region to drill down to the PaaS Infrastructure Zones page.
Select a PaaS Infrastructure Zone from the list and click Edit.
Follow the steps in the wizard to edit the necessary parameters and click Submit to accept the changes.
To delete a PaaS Infrastructure Zone, follow these steps:
From the Enterprise menu, select Cloud, then select Middleware and Database Cloud Home.
Click on the PaaS Infrastructure Zone link to drill down to the PaaS Infrastructure Zones page.
Select a PaaS Infrastructure Zone from the list and click Delete.
A confirmation message is displayed. Click Delete PaaS Infrastructure Zone to delete the zone.

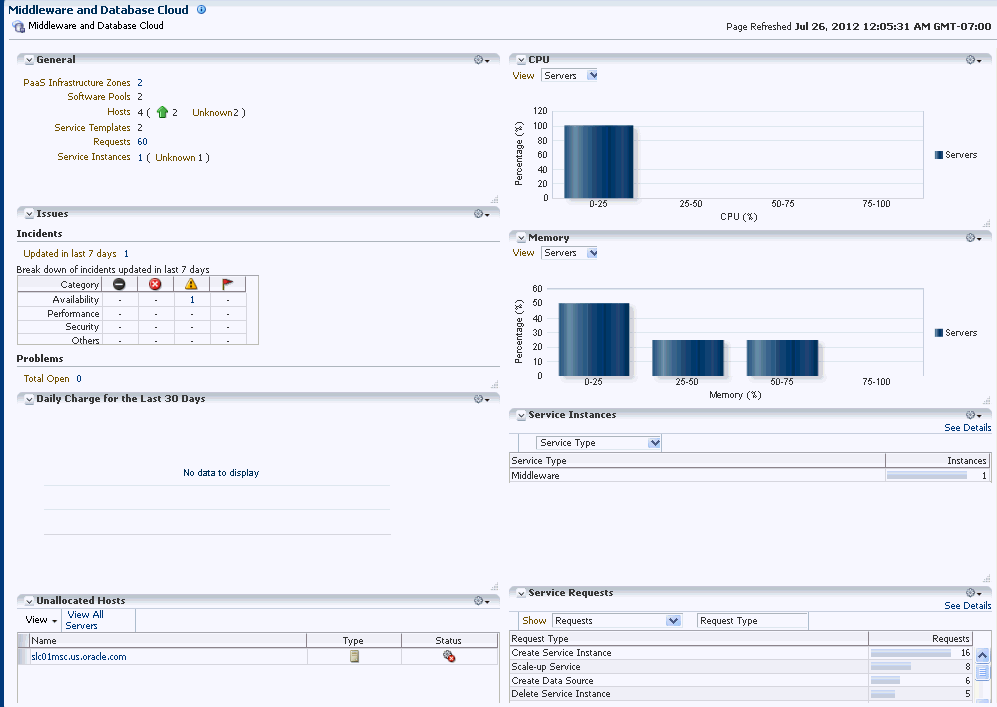

After the SSA_ADMINISTRATOR has completed DBaaS and MWaaS setup and one or more SSA users have submitted requests, a unified view of the DBaaS and MWaaS service types can be seen on the Middleware and Database Cloud Home page. To view the Middleware and Database Cloud Home page, from the Enterprise menu, select Cloud, then select Middleware and Database Cloud.
It contains the following regions:
General: This region contains the following:
PaaS Infrastructure Zone: The total number of PaaS Infrastructure zones that have been created is displayed. Click on the link to drill down to the PaaS Infrastructure Zones page.
Software Pools: The total number of software pools that have been defined across MWaaS and DBaaS.
Oracle VM Zones: The Oracle VM Zones associated with the PaaS Infrastructure zones.
Hosts: The physical hosts associated with the software pools.
Service Templates: The total number of service templates that have been defined.
Requests: The total number of requests for MWaaS and DBaaS. Click on the link to drill down to the All Requests page.
Service Instances: The total number of members that are up or down. Click on the link to drill down to the Service Instances page.
Issues: The availability, performance, security, and other incidents across all the zones.
Daily Charge for the Last 30 Days: Shows rolled up chargeback data across all service types.
CPU and Memory: The average CPU and memory titillations by all servers (virtual servers and physical hosts) across all zones.
Unallocated Hosts: The physical hosts that are not associated with any software pool are listed here. You can see the name of the host, type, and the status. Click View All Servers to drill down to the Servers page.
Service Instances: The total number of instances by service type, zone, service template, status or owner. Select a option from the View drop down list to see the rollup inventory for the type. Click See Details to view the Service Instance Details page. Click on the bar graph next to a service type to drill down to the detailed view of the selected service.
Service Requests: The Service Requests table lists requests by request type, zone, service type, service template, status, or owner. You can choose to view all the requests or for a specific period by selecting the appropriate option from the Show drop down list. Click See Details to view the Request Details page. Click on the bar graph next to a specific request to drill down to the detailed view of the selected request.
From the Middleware and Database Cloud menu, you can do the following:
Create PaaS Infrastructure Zone: You can launch the wizard to create the zone. See Creating a PaaS Infrastructure Zone for details.
Service Instances: You can view detailed information of all the members. See Viewing the Service Instances Page for details.
Request Dashboard: You can view all the database and middleware requests. See Viewing the Middleware and Database Request Dashboard Page for details.

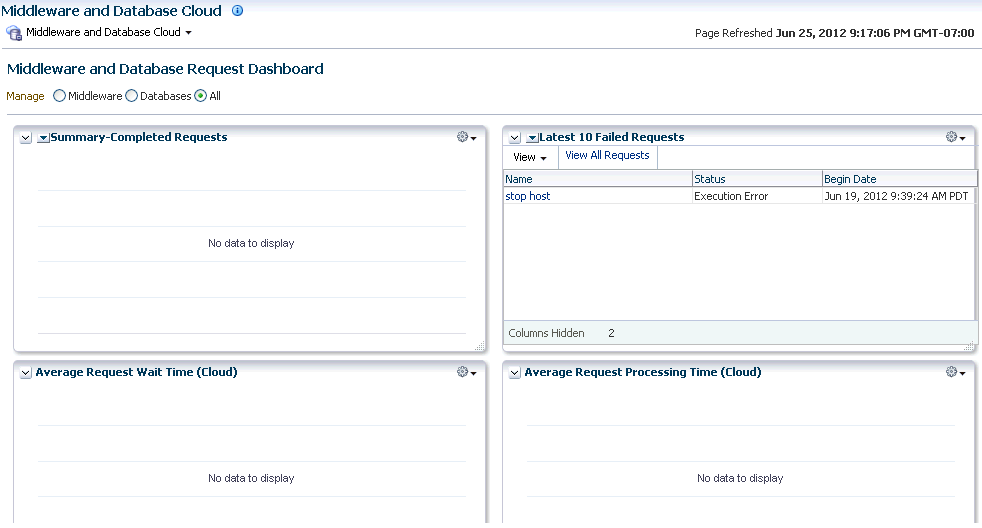

The SSA Administrator can use the Request Dashboard to track the status of all database and middleware requests. The SSA administrator can view the requests across all zones for all users. The requests the SSA user can view depends on his zone and his instance level privileges. You can choose to view Middleware, Databases, or All requests by clicking the appropriate radio button.
To view the Middleware and Database Request Dashboard, from the Enterprise menu, select Cloud, then select Middleware and Database Request Dashboard.
The following charts are displayed:
Summary: You can view a summary of all Completed Requests, Failed Requests, Successful Requests, and Partially Successful Requests.
Latest: You can view a list of the Latest 10 Failed Requests, Oldest 10 Running Requests, and Latest 10 Pending Requests. Click View All Requests to drill down to the All Requests page.
Average Request Wait Time (Zone): The average request wait time across all zones for the past 7 days.
Average Request Processing Time (Zone): The average request wait time across all zones for the past 7 days.
The All Requests page shows a list of requests made so far. You can choose to view database requests, middleware requests, or both. To view the All Requests page, click the View All Requests link in the Latest 10 Failed Requests region in the Middleware and Database Request Dashboard page. For each request, the name of the request, date and time on which was created, the type of request, user who created the request, and the status of the request are displayed.

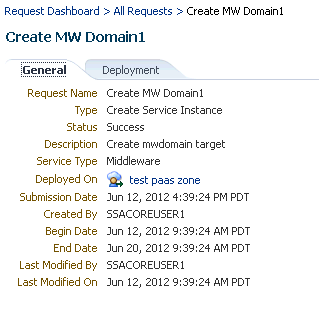

Click on the Name link to drill down to the Request Details page.
This page contains two tabs:
General: This tab shows details of the request such as Request Name, Request Type, Start Date, End Date, Status, and other details.
Deployment: This tab shows a list of the targets that have been deployed. Click on the link to view the details of the deployment procedure.

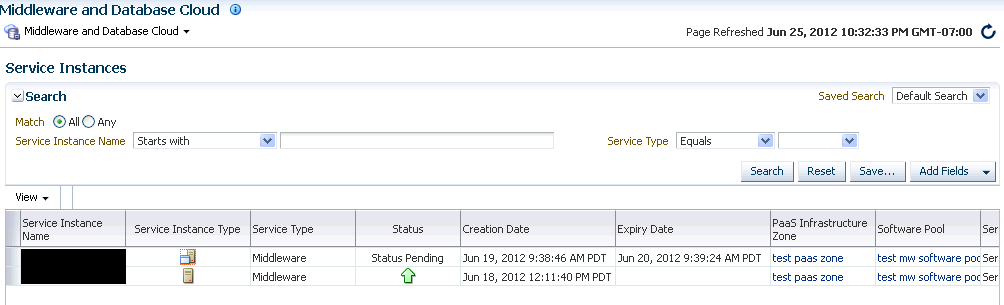

The Service Instance page shows the list of all service instances. To view this page, from the Enterprise menu, select Cloud, then select Middleware and Database Cloud. From the Middleware and Database Cloud menu, select Service Instances.
For each service instance, the following details are displayed:
Service Instance Name: The name associated with the service instance. Click on the link to drill down to the target home page.
Service Instance Type: The type of request (Middleware or Database).
Status: The status of the target.
Creation Date: The date on which the service was created.
Expiry Date: The date on which the service will expire and no longer be available.
PaaS Infrastructure Zone: The PaaS Infrastructure Zone in which this service instance was created. Click on the link to drill down to the Zone Home page.
Software Pool: The software pool to which this service instance was created. Click on the link to drill down to the Software Pool Home page.
Service Template: The service template that was used to create this service instance.
Incidents: Shows any incidents on the virtual servers and physical hosts present in the zone.
To view the Service Template Details page, click on the Service Template Name link in the Database / Middleware Cloud Self Service Portal Setup page. The following details are displayed:
Name and description of the service template.
The configuration details of the database or WebLogic Server instance being provisioned.
The PaaS Infrastructure Zone and the Software Pool in which the service template is being provisioned.
The users (roles) that can access this service template.

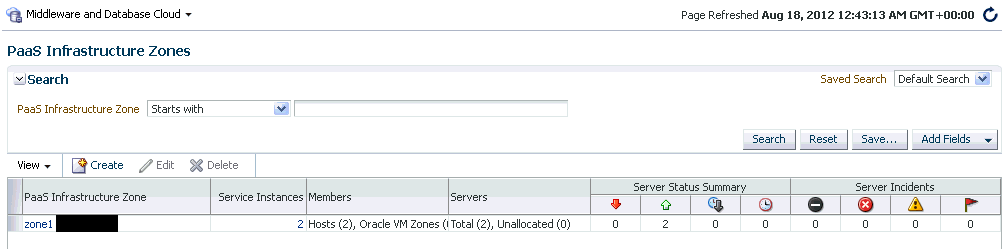

This page lists all the PaaS Infrastructure zones that have been created. To view this page, from the Enterprise menu, select Cloud, then select Middleware and Database Cloud. Click the PaaS Infrastructure Zones link in the General region to view this page. The name of the zone, the members, servers (total and unallocated), status, and incidents are shown for each zone.
You can do the following:
Create: Click Create to launch the Create PaaS Infrastructure Zone wizard. See Creating a PaaS Infrastructure Zone for details.
Edit: Select a zone from the list and click Edit to modify the details.
Delete: Select a zone form the list and click Delete to delete the details.
View: Click on the zone name link to drill down to the PaaS Infrastructure Zone Home page.
A zone is a logical entity that allows homogenous resources to be grouped together. These homogeneous resources consist of components (servers, storage, networks, operating systems, applications) that are required to create new services. To view this page, from the Enterprise menu, select Cloud, then select Middleware and Database Cloud. Click the PaaS Infrastructure Zones link in the General region to view this page. The PaaS Infrastructure Zones page appears. Click a PaaS Infrastructure Zone link to drill down to the PaaS Infrastructure Zone Home page.

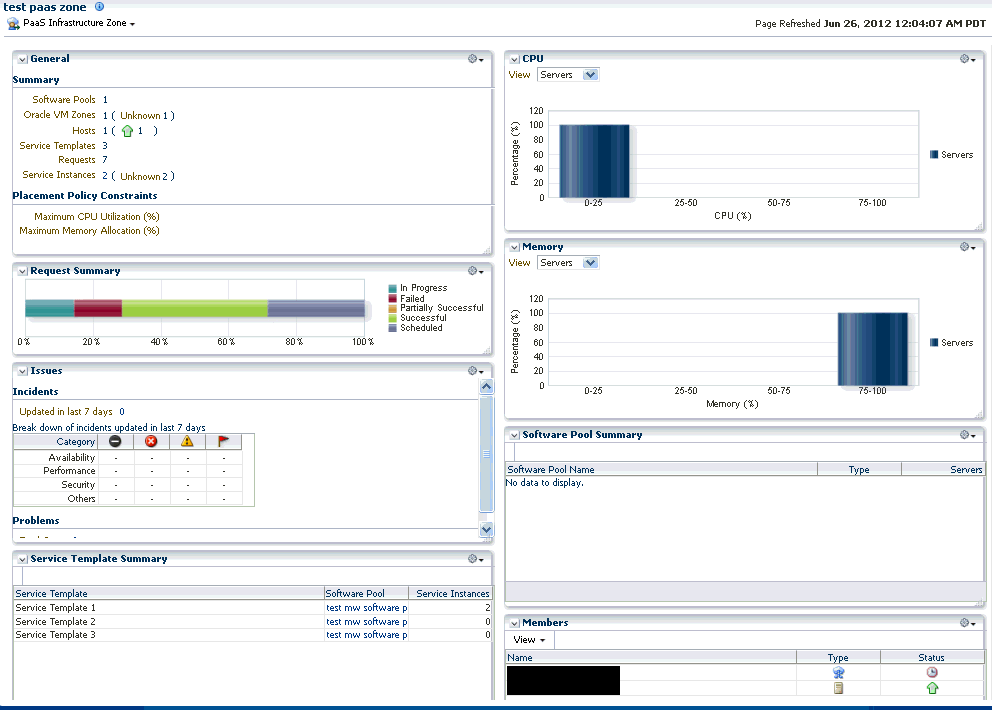

The PaaS Infrastructure Zone Home page contains the following regions:
General: This region lists the total number of Software Pools, Oracle VM Zones, Hosts, Servers, Service Templates, Requests, and Service Instances in the zone. It also shows the Placement Policy Constraints that have been defined for the zone.
Request Summary: Shows the percentage of requests that are in progress, failed, successful, partially successful, or scheduled.
CPU and Memory: Shows bar charts indicating the CPU and memory utilization distributed across all servers (virtual servers and physical hosts) in the zone.
Issues: Shows the outstanding incidents and problems for the target.
Software Pool Summary: Shows the name and type of each software pool in the zone. Click on the Software Pool Name link to drill down to the Software Pool Home page.
Unallocated Servers: The servers that are not associated with any software pool are listed here. You can see the name of the server, type (host or virtual server), and the status. Click View All Servers to drill down to the Servers page.
Members: Shows the members of the zones and the member type (Oracle VM Zone or Host). Click on the Name link to drill down to the target Home page.
Service Template Summary: Shows the service templates associated with the zone. The software pool associated with each service template and number of service instances in each resource pool is also displayed.
|
