2 Installing the Connector

The Oracle Enterprise Manager Connector Framework requires a web service interface for forwarding event information to Microsoft SCOM. To integrate with Enterprise Manager, a third-party SCOM web service front-end must be installed. In addition to the web service front-end, an Oracle SCOM Agent must also be installed. Both of these components are included in the Oracle Enterprise Manager SCOM connector installation package.

You can install the web service on any Unix or Windows system that has connectivity with the SCOM server. In addition to the SCOM web service front-end, you must also install a back-end Oracle SCOM Agent. The Oracle SCOM Agent is preconfigured and is also included in the Oracle Enterprise Manager SCOM connector installation package.

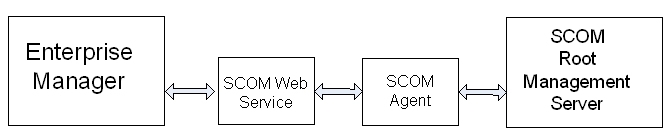

Figure 2–1 shows the communication between the various components of the SCOM Connector.

Figure 2-1 Connector Communication Between Components

Shows flowchart from EM to SCOM root management server

The following sections in this chapter discuss these topics:

Installation Platforms

You can install the SCOM web service on the following platforms that support Java JRE 1.6:

You can install the Oracle SCOM Agent on the Microsoft Windows (2000, 2003, 2008, XP) platform.

Prerequisites

In order to install the connector, the My Oracle Support Preferred Credentials must be set to enable the download of the connector through self-update. To set the credentials, perform the following steps:

  1. From the Enterprise Manager console, click Setup.

  2. Select My Oracle Support in the pane.

  3. Select Set Credentials, then enter the username and password information and click Apply.

  4. From the Enterprise Manager console, click Setup.

  5. Select Extensibility in the pane.

  6. Select Self Update and click Check Updates to schedule a job to collect the metadata for the connectors.

Refer to the "Setting up Self Update" chapter in the Oracle Enterprise Manager Cloud Control Administrator's Guide for more details.

The following are prerequisites you should review before installing of the connector:

Installing the Connector in Enterprise Manager

The SCOM connector is not included out-of-box so it must be downloaded from the Oracle Enterprise Manager store. All connectors in the Enterprise Manager store will be available on the Self Update page for downloading provided the My Oracle Support Preferred Credentials are configured. See Prerequisites for instructions. The installation files for the Oracle SCOM agent and web service are packaged with the SCOM connector. The connector must be installed first in order to gain access to the installation files.

Perform the following steps to download and install (apply) the connector.

  1. From the Enterprise Manager console, click Setup.

  2. Select Extensibility in the pane.

  3. Get a list of available connectors by selecting Self Update and then clicking Management Connector.

    The SCOM R2 and pre R2 connectors should be listed here with a status of Available.

  4. Click the appropriate connector to select it and then click Download.

    The Schedule Download window will be displayed to determine when the download should be performed.

  5. Click Select to download immediately.

    Note:

    If you want to schedule the download for a later time, specify the date/time when the download should take place and click Select. You must return to finish the remainder of this procedure after the scheduled download date/time.
  6. If necessary, refresh the screen until the status of the connector changes to Downloaded.

  7. Click the SCOM connector to select it and then click Apply.

    You will be prompted to confirm the operation and then a window appears that indicates the request has been submitted.

  8. Refresh the screen until the status of the connector changes from Apply Scheduled to Applied.

Installing and Running the Oracle SCOM Agent

The following sections provide procedures for installing and running the Oracle SCOM Agent.

Preinstallation Requirements

The following requirements apply to the system where the Oracle SCOM Agent is installed.

  • .NET framework 2.0 is installed

  • .NET framework 3.0 is installed

  • ASP.NET 2.0 is installed

    After .NET framework 2.0 is installed, enter the following command to install ASP.NET 2.0:

    %SystemRoot%\Microsoft.NET\Framework\v2.0.xxxxx\aspnet_regiis –i


    WARNING:

    This command upgrades other applications running under IIS to version 2.0.

  • Internet Information Services (IIS) 5.0 or higher is installed

  • Operations Manager 2007 Console is installed

  • ASP.NET 2.0 extensions are enabled in IIS

    WARNING:

    Before proceeding, enabling ASP.NET 2.0 extensions may affect other applications that are running under IIS in an earlier version.

    To enable ASP.NET extensions, perform the following steps:

    1. Open the IIS Manager and expand the local computer in the left pane.

    2. Right-click on Web Service Extensions and select Allow all Web service extensions for a specific application …

    3. Select ASP.NET v2.0.0xxxxx from the pull-down list, where xxxxx is the version of the .NET framework 2.0 that is installed.

    4. Click OK to enable the ASP.NET extensions.

Setting Up the Agent Account

Before installing the Oracle SCOM Agent, you need to set up an account for the Oracle SCOM Agent to access the SCOM API. The account must satisfy the following requirements:

  • Must be a domain account

  • Must be used exclusively by the Oracle SCOM Agent

  • Must have local administrator permissions

  • Must be a member of a group designated as an Ops Mgr Administrator (See "Ops Mgr Administrator Groups" below)

  • Must be a member of an Ops Mgr role that has an Author profile (See "Ops Mgr user role for Oracle SCOM Agent" below)

Ops Mgr Administrator Groups

To determine the groups that are designated as an Ops Mgr Administrator, perform the following steps:

  1. In the Administration pane of the Ops Mgr 2007 console, select Administration, then Security, then User Roles. The User Roles should be displayed in the center pane.

  2. Right-click on Operations Manager Administrators and select Properties. The General tab lists the groups that have administrative permissions in the User Role members window. The account the Agent uses must be a member of one of the groups listed here, or you need to add one of its groups to this list.

Ops Mgr user role for Oracle SCOM Agent

To add a new Ops Mgr 2007 user role for the Oracle SCOM Agent, perform the following steps:

  1. In the Administration pane of the Ops Mgr 2007 console, select Administration, then Security, then User Roles. Right-click on User Roles and select New User Role, then Author. The Create User Role wizard window appears.

  2. Enter the name of the Oracle SCOM Agent in the User Role Name field.

  3. Click Add to add a user role member. The Select Users or Groups pop-up window appears.

  4. Enter the domain user account information in the Enter the object names to select dialog box.

    Since this is a domain user account, you need to specify the account as <DOMAIN>\<username>, where <DOMAIN> is the Windows domain where the account was created, and <username> is the user name of the account set up for the Oracle SCOM Agent.

  5. Click OK to add the Oracle SCOM Agent account as a user role member.

  6. Click Next to go to the Approve targets page.

  7. Select the targets that you want the Oracle SCOM Agent to access.

    These are the target types for the events that the Oracle SCOM Agent will handle. Typically, you would use the default “All targets are automatically approved, including targets in Management Packs imported in the future.”

  8. Click Next to go to the Approve groups page.

  9. Select the groups that you want the Oracle SCOM Agent to access. You would generally want to use the default of all groups.

  10. Click Next to go to the Approve tasks page.

  11. Click Next to go to the Approve views page.

  12. Click Next to go to the Summary page.

  13. Click Create to create the Oracle SCOM Agent user role.

Installing the Agent

The SCOM Web Service uses the back-end Oracle SCOM Agent to access the SCOM API. The Oracle SCOM Agent must be installed on a Windows system that has connectivity to the SCOM Root Management Server (RMS). The Oracle SCOM Agent is preconfigured to interface with the SCOM Web Service and requires minimal configuration.

Note:

There should only be one installed instance of the Oracle SCOM Agent.

To install the Oracle SCOM Agent, perform the following steps:

  1. Obtain a copy of the agent installation file from the Management Server host machine as specified in Exporting the Agent Installation File and put the SCOMAgent.zip installation file into the directory where you want to install the Oracle SCOM Agent.

  2. Unzip the contents of the SCOMAgent.zip file to any directory.

    This creates the SCOMAgentInstaller.msi and the OracleEnterpriseManager.Alert.Creator.xml files in the designated directory.

  3. Navigate to the directory and run the Oracle SCOM Agent installer by double-clicking on the SCOMAgentInstaller.msi file.

    This starts the installer and displays the Welcome to the Oracle SCOM Agent Setup Wizard page.

  4. Click Next to display the Service Type page.

  5. Select the type of service to be installed under IIS. The default and recommended service type is Web Site.

    This installs the service as a stand-alone web site. Selecting Virtual Directory installs the service as a Virtual Directory under an existing web site.

  6. Click Next to display the Select Installation Folder page.

  7. Enter the location to install the Agent or accept the default location of C:\iWaveSoftware\SCOMConnectorAgent.

  8. Click Next to display the Oracle SCOM Agent Options page.

  9. Enter the name to use when registering the connector in SCOM, or accept the default value of Oracle SCOM Agent.

  10. Click Next to display the Confirm Installation page.

  11. Click Next to display the SCOM Management Group Configuration page, and enter the information for the following required fields on the form:

    • Host name or IP address of the RMS server

    • Domain of the account to use when connecting to the SCOM API

    • User name of the account to use when connecting to the SCOM API

    • Password of the account to use when connecting to the SCOM API

    Note:

    The information for the account from Section 2.4.2, "Setting Up the Agent Account" should be entered in the Domain, Username, and Password fields.
  12. Click Done to proceed. The window displayed next depends on the Service Type you selected in step 5 above.

    • If you selected Web Site:

      The Web Site Configuration window appears. This window contains the Web Site Name and Port Number fields, and both have default values. Accept the default values or change them to the desired values.

    • If you selected Virtual Directory:

      The Virtual Directory Configuration window appears. This window defines the name of the virtual directory to create and the web site within which it will be installed. Accept the default values or change them to the desired values.

  13. For either window, click OK to proceed and display the Web Service Credentials window. This window defines the credentials to specify when testing the newly installed Oracle SCOM Agent.

  14. Specify valid Windows account credentials and click OK.

    The installer now invokes the web service to verify that it is operational. A window pops up with the results of the test.

  15. Close the window. The Installation Successful window appears. This window lists the URL of the Oracle SCOM Agent.

    Note the URL. You will need this whenever you install the SCOM Web Service.

  16. Click OK to continue. The Installation Complete window appears.

  17. Click Close to complete the Agent installation process.

Installing the Alert Creator Management Pack

A management pack file named OracleEnterpriseManager.Alert.Creator.xml is also included in the Agent installation zip file. This management pack is required to create alerts in SCOM. Follow the steps below to import the management pack into SCOM.

  1. In the Administration pane of the OpsMgr console, select Administration, then Management Packs.

  2. Right-click on Management Packs and select Import Management Pack… The Select Management Packs to Import window appears.

  3. Navigate to the directory where the OracleEnterpriseManager.Alert.Creator.xml file is located.

  4. Select the OracleEnterpriseManager.Alert.Creator.xml file and click Open. The Import Management Packs window appears.

    Note:

    Depending on the version of SCOM that you are running, you might see the following error when you attempt to open the management pack:
    OracleEnterpriseManager Alert Creator
    The OracleEnterpriseManager Alert Creator Management Pack will fail to import because it depends on the following Management Packs:
    System.Library version 6.0.6278.0
    Microsoft.SystemCenter.Library version 6.0.6278.0
    System.Health.Library version 6.0.6278.0
    Microsoft.Windows.Library version 6.0.6278.0
    Please add them to the list by clicking on the Add... button and searching in your machine.


    If you see this error, you need to use a text editor to change four management packs referenced in the References section of the management pack file. The version number information must be updated to match the version numbers used in your system

  5. Click Import to import the management pack.

  6. Click Close after the management pack has been imported.

The Agent is now configured to insert alerts into SCOM.

Starting and Stopping the Agent

The installer automatically starts the Agent. To stop the agent, open the IIS manager, select the web site where it was installed, then click Stop. To start, click Start.

Exporting the Agent Installation File

The agent installation file is included in the Self Update archive that was installed in Section 2.3, "Installing the Connector in Enterprise Manager". To extract the installation file, perform the following steps.

  1. Determine the command required to export the agent installation file. To do this, perform the following steps:

    • From the Enterprise Manager console, click Setup.

    • Select Extensibility in the pane.

    • Select Self Update and then click Management Connector.

    • Click the SCOM connector name, then select Export from the Actions list.

    A popup window will appear with the command required to export the file.

  2. Open a command window on the Operations Manager host machine and navigate to a temporary directory where the file can be copied.

  3. Log into emcli using the following command. You will be asked to provide the password information for the sysman account.

    emcli login -username=sysman

  4. Run the emcli export_update command from your system, changing <dirname> to the full path of the temporary directory.

    A zip file will be created. The file name will be comprised of the id value specified in the export_update command with a .zip extension.

  5. Extract the agent installation file from the zip file using the following command:

    unzip *.zip archives/SCOMAgent.zip

Installing the Microsoft SCOM Web Service

The SCOM web service acts as a front-end for all data flowing into and out of SCOM. Oracle Enterprise Manager posts calls to the web service whenever it needs to create or update an event.

You can install the SCOM web service on any Unix or Windows system that has connectivity to the Oracle SCOM Agent and the Oracle Enterprise Manager server.

Installing and Running the Microsoft SCOM Web Service on Unix

The following sections explain how to install and then subsequently run the Web Service.

Prerequisites

The following prerequisites must be met before proceeding to the next section.

  • Oracle Java Runtime Environment (JRE) version 6 Update 11 or higher is installed.

  • JAVA_HOME environment variable is set to the JRE installation directory.

Installing the Web Service on Unix

To install the web service on a Unix platform, perform the following steps:

  1. Create a directory where you want to install the web service.

  2. Obtain a copy of the web service installation file from the Management Server host machine as specified in Section 2.5.3, "Exporting the Web Service Installation File".

  3. Copy the SCOM_webservices_adapter.jar file to the web service installation directory.

  4. Open a terminal and change the working directory to the installation directory.

  5. Enter the following command to unzip and extract the .jar file:

    $JAVA_HOME/bin/jar xvf SCOM_webservices_adapter.jar


    This creates the adapters directory that contains the installation files.

    Note:

    If the system where the SCOM web service is being installed does not have the JDK installed, you cannot extract the jar file contents. You need to copy the jar file to a system that has the JDK installed and transfer the files after they have been extracted.
  6. Enter the following command to change the working directory:

    cd adapters/endpoints/SCOM2007

  7. Enter the following command to run the installation script:

    sh ./install.sh

  8. When the script prompts whether you want to use HTTPS:

    • If you specify Y, the web service is set up to use HTTPS port number 8443.

    • If you specify N, the web service is set up to use HTTP port number 8080.

  9. When the script prompts for the user name of the web service, enter the user name that must be provided to access the SCOM Web Service.

  10. When the script prompts for the password of the web service, enter the password that must be provided to access the SCOM Web Service.

  11. After the script prompts for the URL of the Oracle SCOM Agent, enter the URL that was noted when you installed the Oracle SCOM Agent.

  12. After the script prompts for the username and password to use when accessing the Agent, enter a valid windows username and password.

  13. After the script displays the message "SCOM Web Service Complete," press Enter to complete the installation.

  14. If the web service was configured to run using the HTTPS protocol, you must set up SSL as specified in Configuring Enterprise Manager to use SSL.

The web service framework is now installed and ready to start.

Running the Web Service on Unix

To run the Microsoft SCOM Web Service framework commands listed with the following tasks, first change the working directory to the following in the installation directory:

adapters/bin

  • Start — ./service.sh start

  • Shut Down — ./service.sh stop

  • Restart — ./service.sh restart

  • Check Status — ./service.sh status

Testing the Web Service on Unix

Perform the following steps to verify that the Microsoft SCOM Web Service is functional.

  1. Open a terminal and change the working directory to the adapters/bin directory in the installation directory.

  2. Enter the following command to run the test script:

    ./testAdapter.sh

  3. When the utility prompts for the web service password, enter the password you specified for the SCOM web service in step 10 of section Section 2.5.1.2, "Installing the Web Service on Unix".

If the test completes successfully, the last line the utility displays is "Test completed successfully."

Installing and Running the Microsoft SCOM Web Service on Windows

The following sections explain how to install and then subsequently run the Web Service.

Prerequisites

The following prerequisites must be met before proceeding to the next section.

  • Oracle Java Runtime Environment (JRE) version 6 Update 11 or higher is installed.

  • JAVA_HOME environment variable is set to the JRE installation directory.

  • Zip utility, such as WinZip, is installed for unzipping a zip file.

Installing the Web Service on Windows

To install the web service on a Windows platform, perform the following steps:

  1. Create a directory where you want to install the web service.

  2. Obtain a copy of the web service installation file from the Management Server host machine as specified in Exporting the Web Service Installation File.

  3. Copy the SCOM_webservices_adapter.jar file to the web service installation directory.

  4. Open a terminal and change the working directory to the installation directory.

  5. Download the SCOM_webservices_adapter.jar file from the Oracle Technology Network to the installation directory, then extract the component .jar files.

  6. Enter the following command to unzip and extract the .jar file:

    %JAVA_HOME%\bin\jar xvf SCOM_webservices_adapter.jar


    This creates the adapters directory that contains the installation files.

    Note:

    If the system where the SCOM web service is being installed does not have the JDK installed, you cannot extract the jar file contents. You need to copy the jar file to a system that has the JDK installed and transfer the files after they have been extracted.
  7. Enter the following command to change the working directory:

    cd adapters\endpoints\SCOM2007

  8. Enter the following command to run the installation script:

    .\install.bat

  9. When the script prompts whether you want to use HTTPS:

    • If you specify Y, the web service is set up to use HTTPS port number 8443.

    • If you specify N, the web service is set up to use HTTP port number 8080.

  10. When the script prompts for the user name of the web service, enter the user name that must be provided to access the SCOM Web Service.

  11. When the script prompts for the password of the web service, enter the password that must be provided to access the SCOM Web Service.

  12. After the script prompts for the URL of the Oracle SCOM Agent, enter the URL that was noted when you installed the Oracle SCOM Agent.

  13. After the script prompts for the username and password to use when accessing the Agent, enter a valid windows username and password.

  14. After the script displays the message "SCOM Web Service Complete," click Enter to complete the installation.

  15. If the web service was configured to run using the HTTPS protocol, you must set up SSL as specified in Configuring Enterprise Manager to use SSL.

The following steps are optional. If you want the web service to run as a Windows service, perform the following steps.

  1. Change the working directory to the adapters\bin directory in the installation directory.

  2. Enter the following command to install the web service as a Windows service:

    service.bat install


The web service framework is now installed and ready to start.

Running the Web Service on Windows

Standalone Service

To start the SCOM web service framework when set up as a standalone application (not set up to run as a Windows service):

  1. Change the working directory to the adapters\bin directory in the installation directory.

  2. Run the following command:

    startAdapters.bat


To shut down the SCOM web service framework, close the window where you started the adapter.

Windows Service

To start the SCOM web service framework when set up to run as a Windows service, enter the following command:

net start iWaveAdapters

To shut down the SCOM web service framework, enter the following command:

net stop iWaveAdapters

Testing the Web Service on Windows

Perform the following steps to verify that the Microsoft SCOM Web Service is functional.

  1. Open a terminal and change the working directory to the adapters\bin directory in the installation directory.

  2. Enter the following command to run the test script:

    .\testAdapter.bat

  3. When the utility prompts for the web service password, enter the password you specified for the SCOM web service in step 11 of section Section 2.5.2.2, "Installing the Web Service on Windows" (Windows).

If the test completes successfully, the last line the utility displays is "Test completed successfully."

Exporting the Web Service Installation File

The web service installation file is included in the zip file that was extracted in section 2.4.6 "Exporting the Agent Installation File". To extract the installation file, perform the following steps.

  1. Open a command window on the Operations Manager host machine and navigate to the temporary directory where the zip file was created.

  2. Extract the web service installation file using the following command:

    unzip *.zip archives/SCOM_webservices_adapter.jar
