12 Developing Applications

The Oracle Transparent Gateway for DRDA allows applications written for the Oracle server to access tables in a DRDA database. This access can be virtually transparent by using synonyms or views of the DRDA tables accessed by a database link. However, there are fundamental SQL, datatype, and semantic differences between the Oracle server and DRDA databases. Read this chapter to learn about these differences.

This chapter provides information that is specific to this release of the Oracle Transparent Gateway for DRDA, including the following sections:

12.1 Gateway Appearance to Application Programs

An application written to access information in a DRDA database interfaces with an Oracle integrating server. When developing applications, keep the following information in mind:

12.1.1 Fetch Reblocking

The gateway supports fetch reblocking with the HS_RPC_FETCH_REBLOCKING parameter.

When the value of this parameter is set to ON (the default), the array size for SELECT statements is determined by the HS_RPC_FETCH_SIZE value. The HS_RPC_FETCH_SIZE parameter defines the number of bytes sent with each buffer from the gateway to the Oracle Database 10g server. The buffer might contain one or more qualified rows from the DRDA Server. This feature can provide significant performance enhancements, depending on your application design, installation type, and workload.

The array size between the client and the Oracle Database 10g server is still determined by the Oracle application.

Refer to Chapter 10, " Configuring the Gateway" for more information.

12.2 Using Oracle Stored Procedures with the Gateway

The gateway stored procedure support is an extension of Oracle stored procedures. An Oracle stored procedure is a schema object that logically groups a set of SQL and other PL/SQL programming language statements together to perform a specific task. Oracle stored procedures are stored in the database for continued use. Applications use standard Oracle PL/SQL to call stored procedures.

Oracle stored procedures can be located in a local instance of the Oracle Database 10g server and a remote instance. The following example shows two stored procedures: oraproc1 is a procedure stored in the ORA1 Oracle instance, while oraproc2 is a procedure stored in the ORA2 Oracle instance.

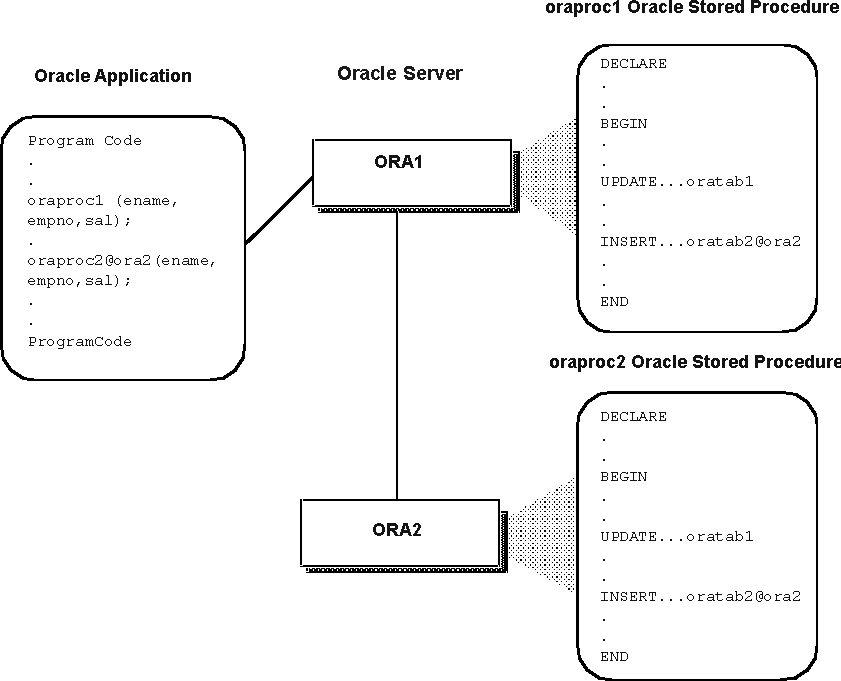

Figure 12-1 Calling Oracle Stored Procedures in a Distributed Oracle Environment

Description of devap_01.gif follows
Description of the illustration devap_01.gif

To maintain location transparency in the application, a synonym can be created:

CREATE SYNONYM oraproc2 FOR oraproc2@ora2;

After this synonym is created, the application no longer needs to use the database link specification to call the stored procedure at the remote Oracle instance.

In Figure 12-1, the second statement in oraproc1 is used to access a table in the ORA2 instance. In the same way, Oracle stored procedures can be used to access DB2 tables through the gateway.

12.3 Using DRDA Server Stored Procedures with the Gateway

The procedural feature of the gateway enables invocation of native DRDA Server stored procedures. In other words, the stored procedure is no longer defined in the Oracle Database 10g server, but instead, is defined to the DRDA Server (for example, DB2/OS390). Again, standard Oracle PL/SQL is used by the Oracle application to run the stored procedure.

The gateway does not require special definitions to call the DB2 stored procedure. Once the stored procedure is defined to the DRDA Server (e.g., DB2/OS390), the gateway is able to use the existing DRDA Server definition to run the procedure.

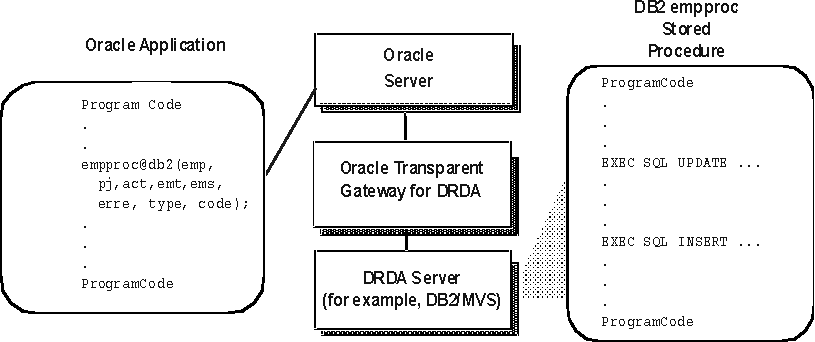

In Figure 12-2, an Oracle application calls the empproc stored procedure defined to the DRDA Server (for example, DB2/OS390).

Figure 12-2 Running DRDA Server Stored Procedures

Description of devap_02.gif follows
Description of the illustration devap_02.gif

From the perspective of the application, running the DB2 stored procedure is no different than invoking a stored procedure at a remote Oracle instance.

12.3.1 Oracle Application and DRDA Server Stored Procedure Completion

As an example, suppose an Oracle application attempts to invoke a stored procedure in a DB2/OS390 database. In order for an Oracle application to call a DB2 stored procedure, the DB2 stored procedure must first be created on the DB2 system by using the procedures documented in the IBM reference document for DB2 for OS/390 SQL.

After the stored procedure is defined to DB2, the gateway is able to access the data using a standard PL/SQL call. For example, an employee name, JOHN SMYTHE, is passed to the DB2 stored procedure REVISE_SALARY. The DB2 stored procedure retrieves the salary value from the DB2 database to calculate a new yearly salary for JOHN SMYTHE. The revised salary returned in RESULT is used to update the EMP table of an Oracle database server:

DECLARE
  INPUT VARCHAR2(15);
  RESULT NUMBER(8,2);
BEGIN
  INPUT := ‘JOHN SMYTHE';
  REVISE_SALARY@DB2(INPUT, RESULT);
  UPDATE EMP SET SAL = RESULT WHERE ENAME = INPUT;
END;

When the gateway receives a call to run a stored procedure on the DRDA Server (for example, DB2/OS390), it first does a lookup of the procedure name in the server catalog. The information that defines a stored procedure is stored in different forms on each DRDA Server. For example, DB2/OS390 V5.0 uses the table SYSIBM.SYSPROCEDURES, while DB2/OS390 V6.1 uses the tables SYSIBM.SYSROUTINES and SYSIBM.SYSPARMS, and DB2/400 uses the tables QSYS2.SYSPROCS and QSYS2.SYSPARMS. The gateway has a list of known catalogs to search, depending upon the DRDA Server being accessed.

The search order of the catalogs is dependent on whether the catalogs support location designators (such as LUNAME in SYSIBM.SYSPROCEDURES), and Authorization or Owner IDs (such as AUTHID in SYSIBM.SYSPROCEDURES or OWNER in SYSIBM.SYSROUTINES).

Some DRDA Servers allow blank or public Authorization qualifiers. If the currently connected DRDA Server supports this form of qualification, the gateway will apply those naming rules when searching for a procedure name in the catalog.

The matching rules will first search for a Public definition, and then an Owner qualified procedure name. For more detailed information, refer to the IBM reference document for DB2 for OS/390 SQL for the underlying database of the DRDA Server.

12.3.2 Procedural Feature Considerations with DB2

The following are special considerations for using the procedural feature with the gateway:

  • DB2 stored procedures do not have the ability to coordinate, commit, and rollback activity on recoverable resources such as IMS or CICS transactions. Therefore, if the DB2 stored procedure calls a CICS or IMS transaction, then it is considered a separate unit of work and does not affect the completion of the stored procedure. This means that if you are running a DB2 stored procedure from an Oracle application, and if this procedure calls a CICS or IMS transaction, then the gateway cannot recover from any activity that occurred within the CICS or IMS transaction.

    For example, the CICS transaction could roll back a unit of work, but this does not prevent the gateway from committing other DB2 work contained within the DB2 stored procedure.

    Likewise, if the DB2 stored procedure updated an irrecoverable resource such as a VSAM file, then the gateway considers this activity separate from its own recoverable unit of work.

  • PL/SQL records cannot be passed as parameters when invoking a DB2 stored procedure.

  • The gateway supports the SIMPLE linkage convention of DB2 stored procedures.

    The SIMPLE linkage convention means that the parameters that are passed to and from the DB2 stored procedure cannot be null.

12.4 Database Link Behavior

A connection to the gateway is established through a database link when it is first used in an Oracle session. In this context, connection refers to both the connection between the Oracle integrating server and the gateway, and to the DRDA network connection between the gateway and the target DRDA database. The connection remains established until the Oracle session ends. Another session or user can access the same database link and get a distinct connection to the gateway and DRDA database.

Connections to the DRDA database can be limited in an APPC configuration in a parallel session limit, or by other factors, such as memory, gateway parameters, or DRDA Server resources. In a TCP/IP configuration, only resource limits (such as memory) or limits on the number of connections by the DRDA Server will limit the number of connections between the gateway and the DRDA Server.

12.5 Oracle Server SQL Construct Processing

One of the most important features of the Oracle Enterprise Integration Gateways family of products is their ability to provide SQL transparency to the user and to the application programmer. Foreign SQL constructs can be categorized into four areas:

12.5.1 Compatible SQL Functions

The Oracle integrating server automatically forwards to the DRDA database compatible SQL functions, that is, SQL constructs with the same syntax and meaning on both the Oracle server and DRDA database. These SQL constructs are forwarded unmodified. All of the compatible functions are column functions. Functions that are not compatible are either translated to an equivalent DRDA SQL function or are compensated by the Oracle server after the data is returned from the DRDA database.

12.5.2 Translated SQL Functions

Translated functions have the same meaning but different names between the Oracle integrating server and the DRDA database, but all applications must use the Oracle function name. These SQL constructs that are supported with different syntax (such as different function names) by the DRDA database, are automatically translated by the Oracle server and then forwarded to the DRDA database. The Oracle integrating server, transparent to your application, changes the function name before sending it to the DRDA database.

12.5.3 Compensated SQL Functions

Some advanced SQL constructs that are supported by the Oracle server may not be supported in the same manner, if at all, by the DRDA database. Compensated functions are those SQL functions that are not recognized by the DRDA Server. If a SELECT statement containing one of these functions is passed from the Oracle integrating server to the gateway, then the gateway removes the function before passing the SQL statement to the DRDA Server. The gateway passes the selected DRDA database rows to the Oracle integrating server. The Oracle integrating server then applies the function.

The Oracle server can compensate for the missing or incompatible function by automatically excluding the incompatible SQL construct from the SQL request that is forwarded to the DRDA database. The Oracle server then retrieves the necessary data from the DRDA database and applies the function. This activity is known as post-processing.

The gateway attempts to pass all SQL functions to DRDA databases. But when a DRDA database does not support a function represented in the computation, then the gateway changes that function. For example, if a program requests:

SELECT COS(X_COOR) FROM TABLE_X;

from a DB2/OS390 database, which does not support the meaning of COS, then the gateway changes the SELECT statement to:

SELECT X_COOR FROM TABLE_X;

All data in the X_COOR column of TABLE_X is passed from the DB2/OS390 database to the Oracle integrating server. After the data is moved to the Oracle integrating server, the COS function is performed.

If you are performing operations on large amounts of data stored in a DRDA database, then keep in mind that some functions require post-processing.

12.5.4 Native Semantic SQL Functions

Some SQL functions that are normally compensated may also be overridden, via the Native Semantics facility. If a SQL function has been enabled for Native Semantics, then the function may be passed on to the DRDA database for processing, instead of being compensated (post-processed). Refer to "Native Semantics".

12.5.5 DB2/OS390 SQL Compatibility

The ways that the Oracle Database server and gateway handle SQL functions for a DB2/OS390 database are shown in the following table:

Table 12-1 DB2/OS390 SQL Compatibility, by Oracle SQL Function

Oracle SQL Function Compatible Translated Compensated Native Semantics Candidate

ABS



Yes Yes

ACOS



Yes Yes

ADD_MONTHS



Yes

ASCII



Yes Yes

ASIN



Yes Yes

ATAN



Yes Yes

ATAN2



Yes Yes

AVG

Yes



CAST



Yes Yes

CEIL



Yes Yes

CHARTOROWID



Yes

CHR



Yes Yes

CONCAT

Yes



CONVERT



Yes Yes

COS



Yes Yes

COSH



Yes Yes

COUNT(*)

Yes



DECODE



Yes Yes

DUMP



Yes Yes

EXP



Yes Yes

FLOOR



Yes Yes

GREATEST



Yes Yes

HEXTORAW



Yes Yes

INITCAP



Yes Yes

INSTR



Yes Yes

INSTRB



Yes Yes

LAST_DAY



Yes

LEAST



Yes Yes

LENGTH



Yes Yes

LENGTHB



Yes Yes

LN



Yes Yes

LOG



Yes Yes

LOWER



Yes Yes

LPAD



Yes Yes

LTRIM



Yes Yes

MAX

Yes



MIN

Yes



MOD



Yes Yes

MONTHS_BETWEEN



Yes

NEW_TIME



Yes

NEXT_DAY



Yes

NLS_INITCAP



Yes Yes

NLS_LOWER



Yes Yes

NLS_UPPER



Yes Yes

NLSSORT



Yes Yes

NVL


VALUE


NVL2



Yes Yes

POWER



Yes Yes

RAWTOHEX



Yes Yes

REPLACE



Yes Yes

REVERSE



Yes Yes

ROUND



Yes Yes

ROWIDTOCHAR



Yes

RPAD



Yes Yes

RTRIM



Yes Yes

SIGN



Yes Yes

SIN



Yes Yes

SINH



Yes Yes

SOUNDEX



Yes

SQRT



Yes Yes

STDDEV



Yes Yes

SUBSTR



Yes Yes

SUBSTRB



Yes Yes

SUM

Yes



SYSDATE



Yes

TAN



Yes Yes

TANH



Yes Yes

TO_CHAR



Yes

TO_DATE



Yes

TO_LABEL



Yes

TO_MULTI_BYTE



Yes

TO_NUMBER


DECIMAL
Yes

TO_SINGLE_BYTE



Yes

TRANSLATE



Yes Yes

TRIM


STRIP Yes Yes

TRUNC



Yes Yes

UID



Yes

UPPER



Yes

USER



Yes

USERENV



Yes

VARIANCE



Yes Yes

VSIZE



Yes Yes

12.5.6 DB2/Universal Database SQL Compatibility

The ways that the Oracle Database server and gateway handle SQL functions for a DB2/UDB database are shown in the following table:

Table 12-2 DB2/Universal Database SQL Compatibility, by Oracle SQL Function

Oracle SQL Function Compatible Translated Compensated Native Semantics Candidate

ABS

Yes

Yes

ACOS



Yes Yes

ADD_MONTHS



Yes

ASCII



Yes Yes

ASIN



Yes Yes

ATAN



Yes Yes

ATAN2



Yes Yes

AVG

Yes



CAST



Yes Yes

CEIL

Yes

Yes

CHARTOROWID



Yes

CHR

Yes

Yes

CONCAT

Yes



CONVERT



Yes Yes

COS

Yes

Yes

COSH



Yes Yes

COUNT(*)

Yes



DECODE



Yes Yes

DUMP



Yes Yes

EXP

Yes

Yes

FLOOR

Yes

Yes

GREATEST



Yes Yes

HEXTORAW



Yes Yes

INITCAP



Yes Yes

INSTR



Yes Yes

INSTRB



Yes Yes

LAST_DAY



Yes

LEAST



Yes Yes

LENGTH



Yes Yes

LENGTHB



Yes Yes

LN

Yes

Yes

LOG



Yes Yes

LOWER


LCASE
Yes

LPAD



Yes Yes

LTRIM



Yes Yes

MAX

Yes



MIN

Yes



MOD

Yes

Yes

MONTHS_BETWEEN



Yes

NEW_TIME



Yes

NEXT_DAY

Yes
Yes

NLS_INITCAP



Yes Yes

NLS_LOWER



Yes Yes

NLS_UPPER



Yes Yes

NLSSORT



Yes Yes

NVL


VALUE


NVL2



Yes Yes

POWER

Yes

Yes

RAWTOHEX



Yes Yes

REPLACE

Yes

Yes

REVERSE



Yes Yes

ROUND

Yes

Yes

ROWIDTOCHAR



Yes

RPAD



Yes Yes

RTRIM



Yes Yes

SIGN

Yes

Yes

SIN

Yes

Yes

SINH



Yes Yes

SOUNDEX



Yes

SQRT

Yes

Yes

STDDEV



Yes Yes

SUBSTR



Yes Yes

SUBSTRB



Yes Yes

SUM

Yes



SYSDATE



Yes

TAN

Yes

Yes

TANH



Yes Yes

TO_CHAR



Yes

TO_DATE



Yes

TO_LABEL



Yes

TO_MULTI_BYTE


Yes Yes

TO_NUMBER


DECIMAL
Yes

TO_SINGLE_BYTE



Yes

TRANSLATE



Yes Yes

TRIM



Yes Yes

TRUNC

Yes

Yes

UID



Yes

UPPER


UCASE
Yes

USER



Yes

USERENV



Yes

VARIANCE



Yes Yes

VSIZE



Yes Yes

12.5.7 DB2/400 SQL Compatibility

The ways that the Oracle Database server and gateway handle SQL functions for a DB2/400 database are shown in the following table:

Table 12-3 DB2/400 SQL Compatibility, by Oracle SQL Function

Oracle SQL Function Compatible Translated Compensated Native Semantics Candidate

ABS


ABSVAL
Yes

ACOS



Yes Yes

ADD_MONTHS



Yes

ASCII



Yes Yes

ASIN



Yes Yes

ATAN



Yes Yes

ATAN2



Yes Yes

AVG

Yes



CAST



Yes Yes

CEIL



Yes Yes

CHARTOROWID



Yes

CHR



Yes Yes

CONCAT

Yes



CONVERT



Yes Yes

COS

Yes

Yes

COSH

Yes

Yes

COUNT(*)

Yes



DECODE



Yes Yes

DUMP



Yes Yes

EXP

Yes

Yes

FLOOR



Yes Yes

GREATEST



Yes Yes

HEXTORAW



Yes Yes

INITCAP



Yes Yes

INSTR



Yes Yes

INSTRB



Yes Yes

LAST_DAY



Yes

LEAST



Yes Yes

LENGTH



Yes Yes

LENGTHB



Yes Yes

LN

Yes

Yes

LOG



Yes Yes

LOWER



Yes Yes

LPAD



Yes Yes

LTRIM



Yes Yes

MAX

Yes



MIN

Yes



MOD



Yes Yes

MONTHS_BETWEEN



Yes

NEW_TIME



Yes

NEXT_DAX



Yes

NLS_INITCAP



Yes Yes

NLS_LOWER



Yes Yes

NLS_UPPER



Yes Yes

NLSSORT



Yes Yes

NVL


VALUE


NVL2



Yes Yes

POWER



Yes Yes

RAWTOHEX



Yes Yes

REPLACE



Yes Yes

REVERSE



Yes Yes

ROUND



Yes Yes

ROWIDTOCHAR



Yes

RPAD



Yes Yes

RTRIM



Yes Yes

SIGN



Yes Yes

SIN

Yes

Yes

SINH

Yes

Yes

SOUNDEX



Yes

SQRT

Yes

Yes

STDDEV

Yes

Yes

SUBSTR



Yes Yes

SUBSTRB



Yes Yes

SUM

Yes



SYSDATE



Yes

TAN

Yes

Yes

TANH

Yes

Yes

TO_CHAR



Yes

TO_DATE



Yes

TO_LABEL



Yes

TO_MULTI_BYTE



Yes

TO_NUMBER



Yes Yes

TO_SINGLE_BYTE



Yes

TRANSLATE



Yes Yes

TRIM



Yes Yes

TRUNC



Yes Yes

UID



Yes

UPPER


TRANSLATE
Yes

USER



Yes

USERENV



Yes

VARIANCE


VAR
Yes

VSIZE



Yes Yes

12.5.8 DB2/VM SQL Compatibility

The ways that the Oracle Database server and gateway handle SQL functions for a DB2/VM database are shown in the following table:

Table 12-4 DB2/VM SQL Compatibility, by Oracle SQL Function

Oracle SQL Function Compatible Translated Compensated Native Semantics Candidate

ABS



Yes Yes

ACOS



Yes Yes

ADD_MONTHS



Yes

ASCII



Yes Yes

ASIN



Yes Yes

ATAN



Yes Yes

ATAN2



Yes Yes

AVG

Yes



CAST



Yes Yes

CEIL



Yes Yes

CHARTOROWID



Yes

CHR



Yes Yes

CONCAT

Yes



CONVERT



Yes Yes

COS



Yes Yes

COSH



Yes Yes

COUNT(*)

Yes



DECODE



Yes Yes

DUMP



Yes Yes

EXP



Yes Yes

FLOOR



Yes Yes

GREATEST



Yes Yes

HEXTORAW



Yes Yes

INITCAP



Yes Yes

INSTR



Yes Yes

INSTRB



Yes Yes

LAST_DAY



Yes

LEAST



Yes Yes

LENGTH



Yes Yes

LENGTHB



Yes Yes

LN



Yes Yes

LOG



Yes Yes

LOWER



Yes Yes

LPAD



Yes Yes

LTRIM



Yes Yes

MAX

Yes



MIN

Yes



MOD



Yes Yes

MONTHS_BETWEEN



Yes

NEW_TIME



Yes

NEXT_DAY



Yes

NLS_INITCAP



Yes Yes

NLS_LOWER



Yes Yes

NLS_UPPER



Yes Yes

NLSSORT



Yes Yes

NVL


VALUE


NVL2



Yes Yes

POWER



Yes Yes

RAWTOHEX



Yes Yes

REPLACE



Yes Yes

REVERSE



Yes Yes

ROUND



Yes Yes

ROWIDTOCHAR



Yes

RPAD



Yes Yes

RTRIM



Yes Yes

SIGN



Yes Yes

SIN



Yes Yes

SINH



Yes Yes

SOUNDEX



Yes

SQRT



Yes Yes

STDDEV



Yes Yes

SUBSTR



Yes Yes

SUBSTRB



Yes Yes

SUM

Yes



SYSDATE



Yes

TAN



Yes Yes

TANH



Yes Yes

TO_CHAR



Yes

TO_DATE



Yes

TO_LABEL



Yes

TO_MULTI_BYTE



Yes

TO_NUMBER



Yes Yes

TO_SINGLE_BYTE



Yes

TRANSLATE



Yes Yes

TRIM



Yes Yes

TRUNC



Yes Yes

UID



Yes

UPPER



Yes Yes

USER



Yes

USERENV



Yes

VARIANCE



Yes Yes

VSIZE



Yes Yes

12.6 Native Semantics

Because some of the advanced SQL constructs that are supported by the Oracle server may not be supported in the same manner (if at all) by the DRDA database, the Oracle server compensates for the missing or incompatible functionality by post-processing the DRDA database data with Oracle (refer to the previous section, "Oracle Server SQL Construct Processing",). This feature provides maximum transparency, but may impact performance. In addition, new versions of a particular DRDA database may implement previously unsupported functions or capabilities, or they may change the supported semantics in such a manner as to make them more compatible with Oracle functions.

Some of the DRDA Servers also provide support for user-defined functions. The user may choose to implement Oracle functions natively, thus allowing the DRDA Server to pass the function on to the underlying database implementation (for example, DB2). Native Semantics provides a method of allowing specific capabilities to be processed natively by the DRDA Server.

Various considerations must be taken into account when enabling the Native Semantic feature of a particular function, because Native Semantics has advantages and disadvantages. For example, a trade-off typically exists between transparency and performance. One such consideration is transparency of data coercion. Oracle provides coercion (implicit data conversion) for many SQL functions. This means that if the supplied value for a particular function is not correct, then Oracle will coerce the value to the correct type before processing it. However, with the Native Semantic feature enabled, the value (exactly as provided) will be passed through to the DRDA Server for processing. In many cases, the DRDA Server will not be able to coerce the value to the correct type and will therefore generate an error.

Another consideration involves the compatibility of parameters to a particular SQL function. For instance, the Oracle implementation of SUBSTR allows negative values for the string index, whereas most DRDA Server implementations of SUBSTR do not allow negative values for the string index. However, if the application is implemented to invoke SUBSTR in a manner that is compatible with the DRDA Server, then the function will behave the same in either Oracle or the DRDA Server.

Another consideration is that the processing of a function at the DRDA Server may not be desirable due to resource constraints in that environment. Refer to the DRDA_CAPABILITY parameter of Appendix C for details on enabling or disabling these capabilities. Refer as well, to the SQL*Plus User's Guide and Reference and PL/SQL User's Guide and Reference for the Oracle format of the following capabilities:

12.6.1 SQL Functions That Can Be Enabled

The following list contains SQL functions that are disabled (OFF) by default. They can be enabled (turned ON) as an option:

Table 12-5 List of SQL Functions That Can Be Enabled

ABS ACOS ASCII ASIN
ATAN ATAN2 CAST CEIL
CHR CONVERT COS COSH
DECODE DUMP EXP FLOOR
GREATEST HEXTORAW INITCAP INSTR
INSTRB LEAST LENGTH LENGTHB
LN LOG LOWER LPAD
LTRIM MOD NLS_INITCAP NLS_UPPER
NLS_LOWER NLSSORT NVL2 POWER
RAWTOHEX REPLACE REVERSE ROUND
RPAD RTRIM SIGN SIN
SINH SQRT STDDEV SUBSTR
SUBSTRB TAN TANH TO_NUMBER
TRANSLATE TRIM TRUNC UPPER
VARIANCE VSIZE


12.6.2 SQL Functions That Can Be Disabled

The following SQL functions are enabled (ON) by default. They can be disabled (turned OFF) as an option:

  • GROUPBY

  • HAVING

  • ORDERBY

  • WHERE

ORDERBY controls sort order, which may differ at various sort locations. For example, with ORDERBY ON, a DB2 sort would be based on EBCDIC sorting order, whereas with ORDERBY OFF, an Oracle sort would be based on ASCII sorting order.

The other three functions, GROUPBY, HAVING, and WHERE, can take additional processing time. If you need to minimize the use of expensive resources, then you should choose the settings of these functions so that the processing is performed on the cheaper resource.

12.6.3 SQL Set Operators and Clauses

The clauses WHERE and HAVING are compatible for all versions of the DRDA Server, meaning that they are passed unchanged to the DRDA Server for processing. Whether clauses GROUP BY and ORDER BY are passed to the DRDA Server, or compensated by the Oracle server, is determined by the Native Semantics parameters (refer to the previous section).

The set operators UNION and UNION ALL are compatible for all versions of the DRDA Server, meaning that they are passed unchanged to the DRDA Server for processing. The set operators INTERSECT and MINUS are compensated on all versions of the DRDA Server except DB2/UDB. For DB2/UDB, INTERSECT is compatible and MINUS is translated to EXCEPT.

12.7 DRDA Datatype to Oracle Datatype Conversion

To move data between applications and the database, the gateway binds data values from a host variable or literal of a specific datatype to a datatype understood by the database. Therefore, the gateway maps values from any version of the DRDA Server into appropriate Oracle datatypes before passing these values back to the application or Oracle tool.

The table lists the datatype mapping and restrictions. The DRDA Server datatypes listed below are general. Refer to documentation for your DRDA database for restrictions on datatype size and value limitations.

Table 12-6 Datatype Mapping and Restrictions

DRDA Server
Oracle External Criteria
CHAR(N) CHAR(N) N < =  255
VARCHAR (N) VARCHAR2(N)

LONG

N < = 2000

2000 < N < = 32740

LONG VARCHAR(N) VARCHAR2(N) N < = 2000
LONG VARCHAR(N) LONG 2000 < N < = 32740
CHAR(N) FOR BIT DATA RAW(N) N < = 255
VARCHAR(N) FOR BIT DATA RAW(N) < =  N < =  255
VARCHAR(N) FOR BIT DATA LONG RAW(N) 255 < N < =  32740
LONG VARCHAR(N) FOR BIT DATA RAW(N < =  N < =  255
LONG VARCHAR(N) FOR BIT DATA LONG RAW(N) 255 < N < =  32740
DATE DATE Refer to "Performing Date and Time Operations "
TIME CHAR(8) Refer to "Performing Date and Time Operations "
TIMESTAMP CHAR(26) Refer to "Performing Date and Time Operations "
GRAPHIC CHAR(2N) N <= 127
VARGRAPHIC VARCHAR2(2N)

LONG

N <= 1000

1000 <= N <= 16370

LONG VARGRAPHIC VARCHAR2(2N)

LONG

N <= 1000

1000 <= N <= 16370

Floating Point Single FLOAT(21) n/a
Floating Point Double FLOAT(53) n/a
Decimal (P, S) NUMBER(P,S) n/a

12.7.1 Performing Character String Operations

The gateway performs all character string comparisons, concatenations, and sorts using the datatype of the referenced columns, and determines the validity of character string values passed by applications using the gateway. The gateway automatically converts character strings from one datatype to another and converts between character strings and dates when needed.

Frequently, DRDA databases are designed to hold non-character binary data in character columns. Applications executed on DRDA systems can generally store and retrieve data as though it contained character data. However, when an application accessing this data runs in an environment that uses a different character set, inaccurate data might be returned.

With the gateway running on the host, character data retrieved from a DB2/400, DB2/OS390, or DB2/VM host is translated from EBCDIC to ASCII. When character data is sent to DB2/400, DB2/OS390, or DB2/VM from the host, ASCII data is translated to EBCDIC. When the characters are binary data in a character column, this translation causes the application to receive incorrect information or errors. To resolve these errors, character columns on DB2/400, DB2/OS390, or DB2/VM that hold non-character data must be created with the FOR BIT DATA option. In the application, the character columns holding non-character data should be processed using the Oracle datatypes RAW and LONG RAW. The DESCRIBE information for a character column defined with FOR BIT DATA on the host always indicates RAW or LONG RAW.

12.7.2 Converting Character String Datatypes

The gateway binds character string data values from host variables as fixed-length character strings. The bind length is the length of the character string data value. The gateway performs this conversion on every bind.

The DRDA VARCHAR datatype can be from 1 to 32740 bytes in length. This datatype is converted to an Oracle VARCHAR2 datatype if it is between 1 and 2000 characters in length. If it is between 2000 and 32740 characters in length, it is converted to an Oracle LONG datatype.

The DRDA VARCHAR datatype can be no longer than 32740 bytes, which is much shorter than the maximum size for the Oracle LONG datatype. If you define an Oracle LONG datatype larger than 32740 bytes in length, then you will receive an error message when it is mapped to the DRDA VARCHAR datatype.

12.7.3 Performing Graphic String Operations

DB2 GRAPHIC datatypes store only double-byte string data. Sizes for DB2 GRAPHIC datatypes typically have maximum sizes which are half that of their Character counterparts. For example, the maximum size of a CHAR may be 255 characters, whereas the maximum size of a GRAPHIC may be 127 characters.

Oracle does not have a direct matching datatype, and the gateway therefore converts between Oracle Character datatypes and DB2 Graphic datatypes. Oracle character datatypes may contain single, mixed, or double-byte character data. The gateway converts the string data into appropriate double-byte-only format depending upon whether the target DB2 column is a Graphic type and whether gateway initialization parameters are set to perform this conversion. For more configuration information, refer to Appendix C, " DRDA-Specific Parameters" and Appendix D, " National Language Support".

12.7.4 Performing Date and Time Operations

The implementation of date and time data differs significantly in IBM DRDA databases and in the Oracle server. The Oracle server has a single date datatype, DATE, that can contain both calendar date and time of day information.

IBM DRDA databases support the following three distinct date and time datatypes:

  • DATE is the calendar date only

  • TIME is the time of day only

  • TIMESTAMP is a numerical value combining calendar data and time of day

12.7.4.1 Processing TIME and TIMESTAMP Data

There is no built-in mechanism that translates the IBM TIME and TIMESTAMP data to Oracle DATE data. An application must process TIME datatypes to the Oracle CHAR format with a length of eight bytes. An application must process the TIMESTAMP datatype in the Oracle CHAR format with a length of 26 bytes.

An application reads TIME and TIMESTAMP functions as character strings and converts or subsets portions of the string to perform numerical operations. TIME and TIMESTAMP values can be sent to an IBM DRDA database as character literals or bind variables of the appropriate length and format.

12.7.4.2 Processing DATE Data

Oracle and IBM DATE datatypes are mapped to each other. If an IBM DATE is queried, then it is converted to an Oracle DATE with a zero (midnight) time of day. If an Oracle DATE is processed against an IBM DATE column, then the date value is converted to the IBM DATE format, and any time value is discarded.

Character representations of dates are different in Oracle format and IBM DRDA format. When an Oracle application SQL statement contains a date literal, or conveys a date using a character bind variable, the gateway must convert the date to an IBM DRDA compatible format.

The gateway does not automatically recognize when a character value is going to be processed against an IBM DATE column. Applications are required to distinguish character date values by enclosing them with Oracle TO_DATE function notation.

For example, if EMP is a synonym or view that accesses data on an IBM DRDA database, then instead of this SQL statement:

SELECT * FROM EMP WHERE HIREDATE = '03-MAR-81'

you must use:

SELECT * FROM EMP WHERE HIREDATE = TO_DATE('03-MAR-81')

In a programmatic interface program that uses a character bind variable for the qualifying date value, you must use this SQL statement:

SELECT * FROM EMP WHERE HIREDATE = TO_DATE(:1)

The above SQL notation does not affect SQL statement semantics when the statement is executed against an Oracle table. The statement remains portable across Oracle and IBM DRDA-accessed data stores.

The TO_DATE function is not required for dates in any of the following formats:

  • YYYY-MM-DD (ISO/JIS)

  • DD.MM.YYYY (European)

  • MM/DD/YYYY (USA)

For example:

SELECT * FROM EMP WHERE HIREDATE = '1981-03-03'

The TO_DATE requirement also does not pertain to input bind variables that are in Oracle date 7-byte binary format. The gateway recognizes such values as dates.

12.7.4.3 Performing Date Arithmetic

The following forms of SQL expression generally do not work correctly with the gateway:

date + number

number + date

date - number

date1 - date2

The date and number addition and subtraction (date + number, number + date, date - number) forms are sent through to the DRDA Server, where they are rejected. The supported servers do not allow number addition or subtraction with dates.

Because of differing interpretations of date subtraction in the supported servers, subtracting two dates (date1 - date2) gives results that vary by server.


Note:

Avoid date arithmetic expressions in all gateway SQL until date arithmetic problems are resolved.

12.7.5 Dates

Date handling has two categories: two-digit year dates, which are treated as occurring 50 years before or 50 years after the year 2000, and four-digit year dates, which are not ambiguous with regard to the year 2000. Oracle Corporation recommends that you set the Oracle Database 10g server and gateway default HS_NLS_DATE_FORMAT parameter to a format including a four-digit year.

Use one of the following methods to enter twenty-first century dates:

  • The TO_DATE function

    Use any date format including a four character year field. Refer to the Oracle Database SQL Reference for the available date format string options.

    For example, TO_DATE('2008-07-23', 'YYYY-MM-DD') can be used in any SELECT, INSERT, UPDATE, or DELETE statement.

  • The HS_NLS_DATE_FORMAT parameter

    The HS_NLS_DATE_FORMAT parameter defines a default format for the Oracle database server explicit TO_DATE functions without a pattern and for implicit string to date conversions.

    For example, with HS_NLS_DATE_FORMAT defined as 'YYYY-MM-DD', '2008-07-23' can be used in any SELECT, INSERT, UPDATE, or DELETE statement.

12.7.6 HS_NLS_DATE_FORMAT Support

The following patterns can be used for the HS_NLS_DATE_FORMAT:

Table 12-7 HS_NLS_DATE_FORMAT Patterns

DB2 Date Format Pattern Example
EUR DD.MM.YYYY 30.10.1994
ISO YYYY-MM-DD 1994-10-30
JIS YYYY-MM-DD 1994-10-30
USA MM/DD/YYYY 10/30/1994

The Oracle default format of 'DD-MON-YY' is not allowed with DB2. As a result, the gateway local date exit is provided to change the Oracle default date format of 'DD-MON-YY' or 'DD-MON-RR' to the DB2 ISO format of 'YYYY-MM-DD' before passing the date to DB2.

The following example demonstrates the most efficient way to enter and select date values in the twenty-first century:

ALTER SESSION SET HS_NLS_DATE_FORMAT = 'YYYY-MM-DD';
INSERT INTO EMP (HIREDATE) VALUES ('2008-07-23');
SELECT * FROM EMP WHERE HIREDATE = '2008-07-23';
UPDATE EMP SET HIREDATE = '2008-07-24'
   WHERE HIREDATE = '2008-07-23';
DELETE FROM EMP WHERE HIREDATE = '2008-07-24';

12.7.7 Oracle TO_DATE Function

The Oracle TO_DATE function is preprocessed in SQL INSERT, UPDATE, DELETE, and SELECT WHERE clauses. TO_DATE functions in SELECT result lists are not preprocessed.

The TO_DATE function is often needed to provide values to update or compare with date columns. Therefore, the gateway replaces the information included in the TO_DATE clause with an acceptable value before the SQL statement is sent to DB2.

Except for the SELECT result list, all TO_DATE functions are preprocessed and turned into values that are the result of the TO_DATE function. Only TO_DATE(literal) or TO_DATE(:bind_variable) is allowed. Except in SELECT result lists, the TO_DATE(column_name) function format is not supported.

The preprocessing of the Oracle TO_DATE functions into simple values is useful in an INSERT VALUES clause because DB2 does not allow functions in the VALUES clause. In this case, DB2 receives a simple value in the VALUES list. All forms of the TO_DATE function (with one, two, or three operands) are supported.

12.7.8 Performing Numeric Datatype Operations

IBM versions of the DRDA Server perform automatic conversions to the numeric datatype of the destination column (such as integer, double-precision floating point, or decimal). The user has no control over the datatype conversion, and this conversion can be independent of the datatype of the destination column in the database.

For example, if PRICE is an integer column of the PRODUCT table in an IBM DRDA database, then the update shown in the following example inaccurately sets the price of an ice cream cone to $1.00 because the IBM DRDA Server automatically converts a floating point to an integer:

UPDATE PRODUCT
SET PRICE = 1.50
WHERE PRODUCT_NAME = 'ICE CREAM CONE    ';

Because PRICE is an integer, the IBM DRDA Server automatically converts the decimal data value of 1.50 to 1.

12.7.9 Mapping the COUNT Function

The Oracle server supports four operands for the COUNT function:

  • COUNT(*)

  • COUNT(DISTINCT colname)

  • COUNT(ALL colname)

  • COUNT(colname)

The default is COUNT(ALL colname).

IBM versions of the DRDA Server support only two operands for the COUNT function:

  • COUNT(*)

  • COUNT(DISTINCT colname)

When an Oracle application issues a COUNT(colname) or a COUNT(ALL colname), the gateway translates the request to COUNT(*), which is compliant DRDA Server SQL syntax. COUNT(*) includes null values whereas COUNT(colname) or COUNT(ALL colname) does not.

To prevent null rows from being counted, when using COUNT(colname) or COUNT(ALL colname) against a DRDA Server, use the following commands:

SELECT COUNT(colname) FROM EMP WHERE colname IS NOT NULL

or

SELECT COUNT(ALL colname) FROM EMP WHERE colname IS NOT NULL

12.7.10 Performing Zoned Decimal Operations

A zoned decimal field is described as packed decimal on an Oracle server. However, an Oracle application such as a Pro*C program can insert into a zoned decimal column using any supported Oracle numeric datatype. The gateway converts this number into the most suitable datatype. Data can be fetched from a DRDA database into any Oracle datatype, provided that it does not result in a loss of information.

12.8 Passing Native SQL Statements through the Gateway

The passthrough SQL feature allows an application developer to send a SQL statement directly to the DRDA Server without the statement being interpreted by the Oracle database server. DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE SQL passthrough statements that are supported by the gateway are limited to nonqueries (INSERT, UPDATE, DELETE, and DDL statements) and cannot contain bind variables. The gateway can run native SQL statements using DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE.

DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE is a built-in gateway function. This function receives one input argument and returns the number of rows affected by the SQL statement. For DDL statements, the function returns zero.

DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE is a reserved name of the gateway and is used specifically for running native SQL.

This release of Oracle Transparent Gateway for DRDA enables retrieval of result sets from queries issued with passthrough. The syntax is different from the DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE function. Refer to "Retrieving Results Sets Through Passthrough" for more information.

12.8.1 Processing DDL Statements through Passthrough

As noted above, SQL statements which are processed through the DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE function are not interpreted by the Oracle database server. As a result, the Oracle database server will not know if such statements are making any modifications to the DRDA Server. This means that unless you keep the Oracle database's cached information up to date after changes to the DRDA Server, the database may continue relying upon inaccurate or outdated information in subsequent queries within the same session.

An example of this occurs when you alter the structure of a table by either adding or removing a column. When an application references a table through the gateway (for example, when you perform a query on it) the Oracle database server caches the table's definition. Now suppose that (within the same session) the application subsequently alters the table's form, by using DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE to add a column. Then the next reference to the table (by the application) will return the old column definitions of the table and will ignore the table's new column. This is because the Oracle database server did not process the statement and thus has no knowledge of the alteration. Because the database does not know of the alteration, it has no reason to re-query the table's form, and thus it will use the already-cached form to handle any new queries.

In order for the Oracle database server to acquire the new form of the table, the existing session with the gateway must be closed and a new session must be opened. This can be accomplished in either of two ways:

  • By ending the application session with the Oracle database server and starting a new session after modifications have been made to the DRDA Server; or

  • By issuing the ALTER SESSION CLOSE DATABASE LINK command after making any modifications to the DRDA Server.

Either of the above actions will void the cached table definitions and will force the Oracle database server to acquire the new definitions upon the next reference.

12.8.2 Using the DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE Function

To run a passthrough SQL statement using DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE, use the following syntax:

number_of_rows = DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE@dblink ('native_DRDA_sql');

where:

number_of_rows is a variable that is assigned the number of rows that are affected by the passthrough SQL completion. For DDL statements, a zero is returned for the number of rows affected.

dblink is the name of the database link that is used to access the gateway.

native_DRDA_sql is a valid nonquery SQL statement (except CONNECT, COMMIT, and ROLLBACK). The statement cannot contain bind variables. Native SQL statements that cannot be dynamically prepared are rejected by the DRDA Server. The SQL statement that is passed by the DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE function must be a character string. For more information regarding valid SQL statements, refer to the SQL Reference for the particular DRDA Server.

12.8.2.1 Examples

  1. Insert a row into a DB2 table using DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE:

    DECLARE
      num_rows integer;
    BEGIN
      num_rows:=DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE@dblink
    ('INSERT INTO SCOTT.DEPT VALUES (10,''PURCHASING'',''PHOENIX'')');
    END
    /


  2. Create a table in DB2 using DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE:

    DECLARE
      num_rows integer;
    BEGIN
      num_rows:=DBMS_HS_PASSTHROUGH.EXECUTE_IMMEDIATE@dblink
      ('CREATE TABLE MYTABLE (COL1 INTEGER, COL2 INTEGER, COL3 CHAR(14),
      COL4 VARCHAR(13))');
    END;
    /


12.8.3 Retrieving Results Sets Through Passthrough

Oracle Transparent Gateway for DRDA provides a facility to retrieve results sets from a SELECT SQL statement entered through passthrough.

12.8.3.1 Example

DECLARE
  CRS binary_integer;
  RET binary_integer;
  VAL VARCHAR2(10)
BEGIN
  CRS:=DBMS_HS_PASSTHROUGH.OPEN_CURSOR@gtwlink;
  DBMS_HS_PASSTHROUGH.PARSE@gtwlink(CRS,'SELECT NAME FROM PT_TABLE');
  RET:=0;
  WHILE (TRUE)
  LOOP
    RET:=DBMS_HS_PASSTHROUGH.FETCH_ROW@gtwlink(CRS,FALSE);
    DBMS_HS_PASSTHROUGH.GET_VALUE@gtwlink(CRS,1,VAL);
    INSERT INTO PT_TABLE_LOCAL VALUES(VAL);
  END LOOP;
  EXCEPTION
    WHEN NO_DATA_FOUND THEN
      BEGIN
        DBMS_OUTPUT.PUT_LINE('END OF FETCH');
        DBMS_HS_PASSTHROUGH.CLOSE_CURSOR@gtwlink(CRS);
      END;
    END;
END;
/

12.9 Oracle Data Dictionary Emulation on a DRDA Server

The gateway optionally augments the DRDA database catalogs with data dictionary views modeled after the Oracle data dictionary. These views are based on the dictionary tables in the DRDA database, presenting that catalog information in views familiar to Oracle users. The views created during the installation of the gateway automatically limit the data dictionary information presented to each user based on the privileges of that user.

12.9.1 Using the Gateway Data Dictionary

The gateway data dictionary views provide users with an Oracle-like interface to the contents and use of the DRDA database. Some of these views are required by Oracle products. The gateway supports the DB2/OS390, DB2/400 and DB2/UDB catalog views. DB2/VM catalog views are not available.

You can query the gateway data dictionary views to see the objects in the DRDA database and to determine the authorized users of the DRDA database. Many Oracle catalog views are supported by the Oracle Transparent Gateway for DRDA. Refer to Appendix A for descriptions of Oracle DB2 catalog views. These views are completely compatible with the gateway.

12.9.2 Using the DRDA Catalog

Each DRDA database has its own catalog tables and views, which you might find useful. Refer to the appropriate IBM documentation for descriptions of these catalogs.

12.10 Defining the Number of DRDA Cursors

You can define any number of cursors depending on your application requirements. Oracle Corporation recommends that you use the default value of 100. However, if the default is not appropriate for your application, there are two points to consider when defining the number of cursors for your installation:

  1. Each cursor requires an additional amount of storage and additional management.

  2. If you change DRDA_PACKAGE_SECTIONS, then you must rebind the package.

The parameter DRDA_PACKAGE_SECTIONS is specific to the DRDA package. This parameter defines the number of sections (open cursors at the IBM database). For more information about setting the DRDA_PACKAGE_SECTIONS parameter, refer to Appendix C, " DRDA-Specific Parameters".
