You add disks to a disk group to increase the total amount of storage space in a disk group. You can add one or multiple disks in a single operation. ASM then rebalances the disk group so that data is evenly distributed on all disks, including the newly added disks.
You can control the power of the rebalance operation, which is a number from 0 to 11. The higher the number, the faster the rebalance operation completes. Lower numbers cause rebalancing to take longer, but use fewer processing and I/O resources. This leaves these resources available for the database. The default value of 1 minimizes disruption to the database. A value of 0 prevents the rebalance operation from happening. Manual or automatic rebalancing can then occur at a later time. For example, you may want to postpone rebalancing because you want to wait for a time when there are fewer demands on the database, or because you want to add more disks or drop disks later and want the rebalancing to be done only once for all disk group changes.
To add one or more disks to a disk group:
Go to the ASM Home page.
Click the Disk Groups link to display the Disk Groups subpage.
If the Automatic Storage Management Login page appears, log in as the SYS
user, connecting as SYSASM
. Provide the SYS
password that was set when the ASM instance was created.
Click a link in the Name column to select the disk group to which you want to add disks.

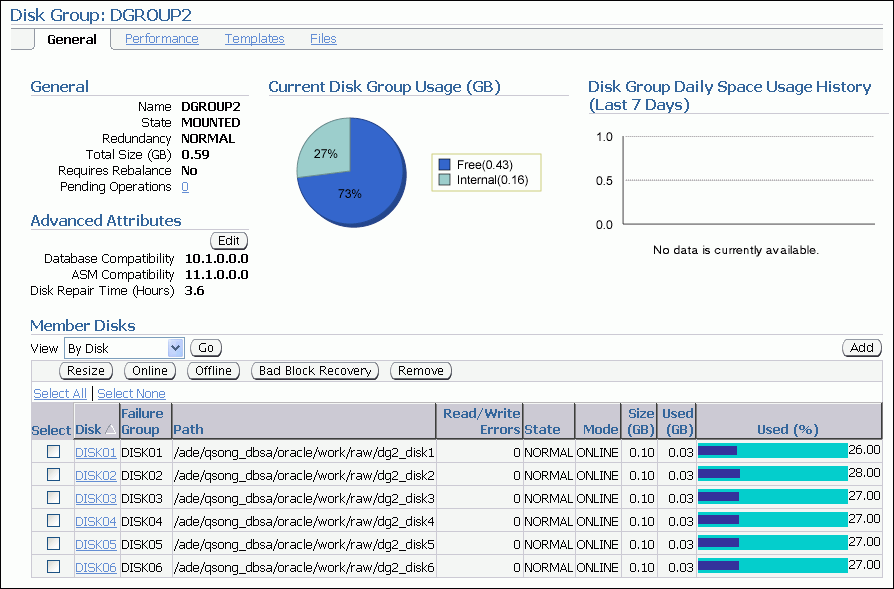

The Disk Group page appears, displaying a list of disks that are already in the disk group.
Click Add.

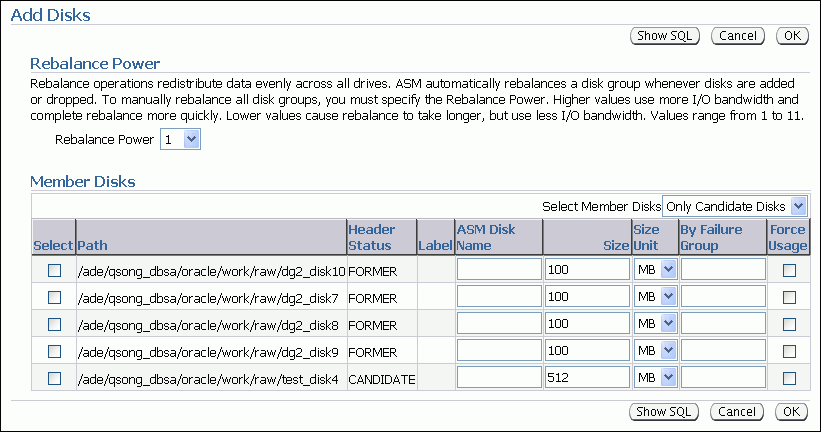

The Add Disks page appears. It displays a list of ASM disks that are available to be added to the disk group. This includes disks with the header status of CANDIDATE
, PROVISIONED
, or FORMER
.
If you want to display not only disks that are available to be added to a disk group, but all ASM disks, including disks that already belong to a disk group (header status = MEMBER
), select All Disks from the Select Member Disks list.
The page is refreshed and now displays the complete list of ASM disks that were discovered by the ASM instance.
Optionally change the rebalance power by selecting from the Rebalance Power list.
Select disks as follows:
Select the check box to the left of each disk that you want to add to the disk group.
If you want to force the inclusion of a disk in the disk group, select the Force Usage check box at the right.
Caution:
The Force Usage check box causes the disk to be added to the disk group even if the disk already belongs to another disk group and has valid database data. This data will be lost. You must be certain that you are selecting a disk that can legitimately be added to the disk group.Optionally enter an ASM disk name for each disk. (ASM provides a name if you do not.)
Click OK to add the selected disks.
See Also:
Oracle Database Storage Administrator's Guide for more information about controlling rebalance operations
Oracle Database Storage Administrator's Guide for a discussion of the FORCE
option
