Preface

The Oracle Enterprise Manager System Monitoring Plug-in for Oracle TimesTen In-Memory Database extends Oracle Enterprise Manager Cloud Control to add support for monitoring TimesTen databases.

Audience

This document is intended for TimesTen system administrators and users of Enterprise Manager. System administrators can use the Enterprise Manager Plug-in for TimesTen to monitor and configure a TimesTen database.

Related documents

TimesTen documentation is available on the product distribution media and on the Oracle Technology Network (OTN):

http://www.oracle.com/technetwork/database/database-technologies/timesten/documentation/index.html

Oracle Enterprise Manager documentation is also available on the Oracle Technology network. This may be especially useful for Oracle Enterprise Manager features that TimesTen supports but does not attempt to fully document.

http://www.oracle.com/pls/em121/homepage

Conventions

TimesTen supports multiple platforms. The term Windows refers to all supported Windows platforms and the term UNIX applies to all supported UNIX platforms and also to Linux. Refer to the "Platforms" section in Oracle TimesTen In-Memory Database Release Notes for specific platform versions supported by TimesTen.

Note:

In TimesTen documentation, the term "TimesTen plug-in" refers to the Oracle Enterprise Manager System Monitoring Plug-in for Oracle TimesTen In-Memory Database.

This document uses the following text conventions:

Convention
Meaning

boldface
Boldface type indicates graphical user interface elements associated with an action, or terms defined in text or the glossary.

italic
Italic type indicates book titles, emphasis, or placeholder variables for which you supply particular values.

monospace
Monospace type indicates commands within a paragraph, URLs, code in examples, text that appears on the screen, or text that you enter.

italic monospace
Italic monospace type indicates a variable in a code example that you must replace. For example:

Driver=install_dir/lib/libtten.sl

Replace install_dir with the path of your TimesTen installation directory.

[ ]
Square brackets indicate that an item in a command line is optional.

{ }
Curly braces indicated that you must choose one of the items separated by a vertical bar ( | ) in a command line.

|

A vertical bar (or pipe) separates alternative arguments.

. . .
An ellipsis (. . .) after an argument indicates that you may use more than one argument on a single command line.

%

The percent sign indicates the UNIX shell prompt.

#

The number (or pound) sign indicates the UNIX root prompt.

TimesTen documentation uses these variables to identify path, file and user names:

Convention | Meaning
install_dir | The path that represents the directory where the current release of TimesTen is installed.
TTinstance | The instance name for your specific installation of TimesTen. Each installation of TimesTen must be identified at install time with a unique alphanumeric instance name. This name appears in the install path.
bits or bb | Two digits, either 32 or 64, that represent either the 32-bit or 64-bit operating system.
DSN | The data source name.

Documentation Accessibility

For information about Oracle's commitment to accessibility, visit the Oracle Accessibility Program website at http://www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc.

Access to Oracle Support

Oracle customers that have purchased support have access to electronic support through My Oracle Support. For information, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=trs if you are hearing impaired.

What's New

This section summarizes the new features and functionality of the Enterprise Manager Plug-in for Oracle TimesTen In-Memory Database Release 12.1.0.3.0 that are documented in this guide, providing links into the guide for more information.

New features in release 12.1.0.3.0

New features in release 12.1.0.3.0

You can monitor TimesTen instances. For more information, see "Working with the TimesTen Instance Home Page".

You can start and stop the TimesTen daemon and TimesTen server services of a TimesTen instance. For more information, see "Working with the Instance Control Menu".

You can start and stop the TimesTen replication and TimesTen cache agents. Also, you can load and unload the TimesTen database from memory and change the RAM policy of the TimesTen database. For more information, see "Working with the Database Control Menu".

You can backup and restore a TimesTen database. For more information, see "Working with the Backup and Restore Page".

You can view a visual layout of the relationships between Enterprise Manager targets and performance information about your targets. For more information, see "Viewing Target Topology".

You can create groups, roles, and users to manage access control to TimesTen targets that are monitored by Enterprise Manager. For more information, see "Working with Access Control".

Internationalization is now supported by translating text and UI elements into supported languages.

Online help is now available for topics related to TimesTen targets. The online help is supported in English and Japanese. All other browser languages default to English.

You can add targets by using the new automatic discovery feature. For more information, see "Configure a TimesTen target".

1 Installing the Enterprise Manager Plug-in for TimesTen

The Enterprise Manager Plug-in for Oracle TimesTen In-Memory Database extends Oracle Enterprise Manager Cloud Control to add support for monitoring TimesTen databases.

This chapter focuses on the installation of the TimesTen plug-in.

Topics include:

Installation prerequisites

Installing the Enterprise Manager Plug-in for TimesTen

Verifying and validating the plug-in

Setting preferred credentials for a target

Changing the monitoring configuration of a TimesTen database target

Upgrading the Enterprise Manager Plug-in for TimesTen

Uninstalling the Enterprise Manager Plug-in for TimesTen

Note:

The instructions and screenshots of this user's guide are based on Oracle Enterprise Manager Cloud Control 12c Release 4.

Installation prerequisites

Before installing the Enterprise Manager Plug-in for TimesTen:

Install Oracle Enterprise Manager Cloud Control 12c Release 4 (or higher) for OMS, Enterprise Manager Repository, and Agent. Ensure that the agent can successfully communicate with your Oracle Enterprise Manager Server and can upload data.

Install Oracle TimesTen In-Memory Database Release 11.2.2.6.0 (or later).

Note:

The Oracle Enterprise Manager Cloud Control Agent and the TimesTen database must reside on the same system.

When you configure your TimesTen instance target, you need to know:

The name of your TimesTen instance

When you configure your TimesTen database target, you need to know:

The name of your TimesTen instance

DSN

The DSN must be a system DSN that is described in either your sys.odbc.ini file or the ODBC Data Source Administrator on Microsoft Windows.

The TimesTen database user name and password

The user name and password are required when you configure the TimesTen target.

The user you specify when you configure the TimesTen target must have ADMIN privileges. The user cannot be the instance administrator.

If your TimesTen database uses TimesTen Cache features, you need to know the cache admin/cache manager user name, the Oracle database cache admin password, and the TimesTen database cache manager password.

The cache admin/cache manager user name needs to exist on the TimesTen database and the Oracle database.

Note:

Be sure the TimesTen database specified by the instance and DSN is loaded into memory.

For information on your TimesTen instance, run the ttStatus or ttVersion utility. For more information, see "ttStatus" or "ttVersion" in the Oracle TimesTen In-Memory Database Reference.

Additional requirements

Additional requirements or considerations include:

Use direct linked connections to define your target DSN. Client/Server connections are not supported for your target DSN.

The Enterprise Manager Plug-in for TimesTen generates temporary files. Each temporary file could require between 10 KB to 30 KB of free space on the Oracle Enterprise Manager Agent file system. If the Oracle Enterprise Manager Agent file system is full, the Oracle Enterprise Manager Agent can no longer monitor the TimesTen database. For information about the system requirements for the Oracle Enterprise Manager Agent, see "CPU, RAM, and Hard Disk Space Requirements for Management Agent" in the Oracle Enterprise Manager Cloud Control Basic Installation Guide.

The operating system user who installs the Oracle Enterprise Manager Agent must belong to the TimesTen users group of the installation being monitored. Also, ensure that the user has read access to /etc/TimesTen/instance_info. For more information about the TimesTen users group, see "Create the TimesTen users group" in the Oracle TimesTen In-Memory Database Installation Guide.

For optimal performance, ensure that TimesTen is on a different system than the Oracle Management Service (OMS) and the Enterprise Manager Repository.

Ensure that the My Oracle Support credentials are set up using the SYSMAN user. This is required to enable updates (plug-ins) to be downloaded from the My Oracle Support site. For more information, see "Saving Preferred Credentials to Access My Oracle Support" in the Oracle Enterprise Manager Cloud Control Security Guide.

Ensure that the Software Library (also known as the local store) is configured. Updates are downloaded to this local store before being deployed into Oracle Enterprise Manager Cloud Control. For more information, see "Configuring an OMS Shared Filesystem Location" in the Oracle Enterprise Manager Cloud Control Administrator's Guide.

Installing the Enterprise Manager Plug-in for TimesTen

To install the TimesTen plug-in for TimesTen, you must:

Download the plug-in

Deploy the plug-in on Oracle Management Service

Deploy the plug-in on the Management Agent

Configure a TimesTen target

Download the plug-in

To download the plug-in, ensure that you are on the Oracle Enterprise Manager Cloud Control home page and are logged in as user SYSMAN.

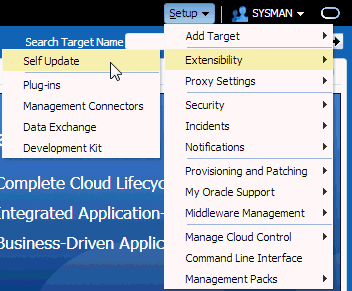

From the Setup menu, select Extensibility, then select Self Update.

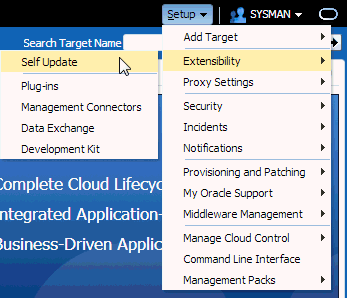

Figure 1-1 Select Self Update

The Self Update page displays.

Click Check Updates.

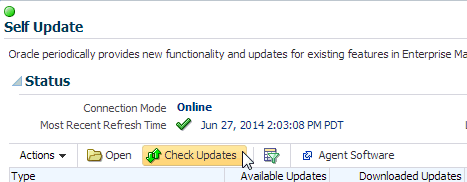

Figure 1-2 Click Check Updates

The Confirmation dialog displays. You should see the informational message: "A job has been submitted successfully to check for new updates from Oracle".

Click OK.

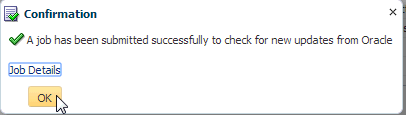

Figure 1-3 Checking for updates

The Self Update page displays with a Most Recent Refresh Time status indicating the status of the updates.

If you see a green check mark next to the Most Recent Refresh Time status, then Enterprise Manager has finished checking for updates. Locate the Plug-in folder.

If you see a status of Submitted or In Progress... for the Most Recent Refresh Time status, then Enterprise Manager is still checking for updates. Click the refresh button located in the top right of the Oracle Enterprise Manager Cloud Control page to refresh the status of the Most Recent Refresh Time. After you see a green check mark next to the Most Recent Refresh Time status, locate the Plug-in folder.

Click the name Plug-in.

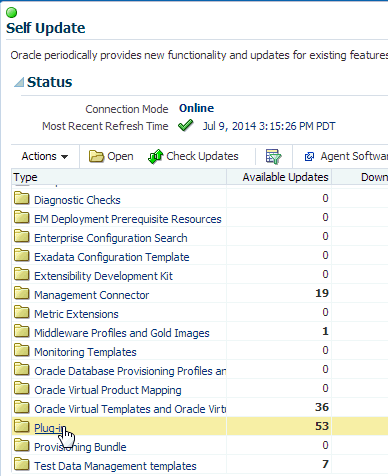

Figure 1-4 Plug-in folder

The Plug-in Updates page displays. In the Plug-in Name column, locate Oracle TimesTen In-Memory Database. Confirm the Status column is equal to Available.

In the Plug-in Name column, click Oracle TimesTen In-Memory Database.

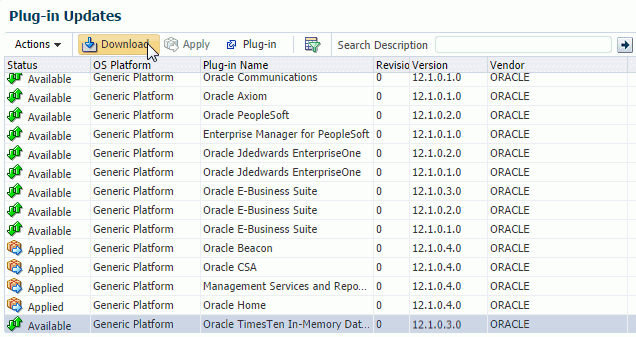

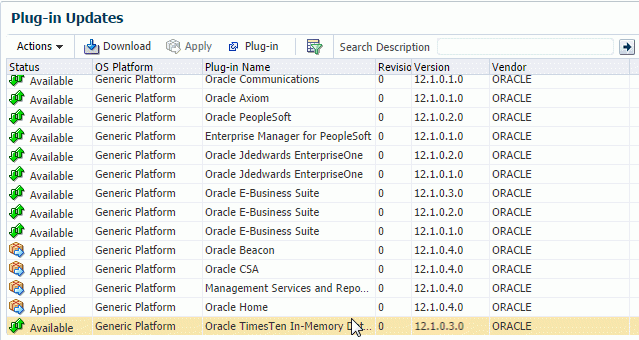

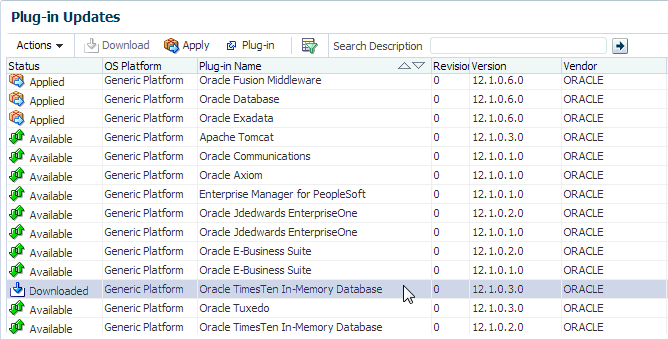

Figure 1-5 Plug-in Updates

Locate the Download button located under Plug-in Updates at the top of the page.

Click Download.

Figure 1-6 Download plug-in

The Schedule Download dialog displays indicating that you can download the plug-in either immediately or later. When you choose Select, Enterprise Manager downloads the plug-in immediately.

Click Select.

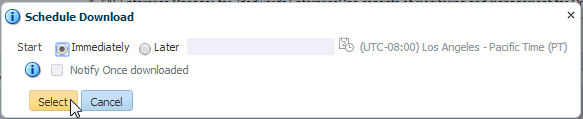

Figure 1-7 Schedule Download dialog

A confirmation dialog displays indicating that the update (plug-in) is downloading.

Click OK.

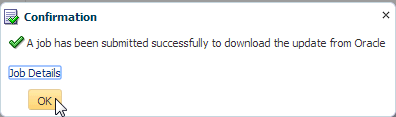

Figure 1-8 Click OK

You have successfully downloaded the plug-in. You can verify the plug-in has been downloaded by reviewing the Plug-in Updates page. You should see the Oracle TimesTen In-Memory Database plug-in with a status of Downloaded.

You are now ready to deploy the plug-in on the Oracle Management Service.

Deploy the plug-in on Oracle Management Service

You must deploy the plug-in on both the Oracle Management Service (OMS) and one or more Management Agents. After you successfully deploy the plug-in, both OMS and the agent know the plug-in exists. You then configure your TimesTen database as one of the targets for the agent and the agent begins the process of monitoring your target.

You must deploy the plug-in on OMS before deploying the plug-in on one or more Management Agents.

Note:

If there is a failure when deploying the plug-in, the Management Repository could be in an inconsistent state. It is recommended that you back up the Management Repository before deploying the plug-in.

To deploy the plug-in on OMS, ensure that you are on the Oracle Enterprise Manager Cloud Control home page and are logged in as user SYSMAN.

From the Setup menu, select Extensibility, then select Plug-ins.

Figure 1-9 Select Extensibility, then Plug-ins

The Plug-ins page displays and you see the plug-ins that have been downloaded and can be deployed. Locate the Databases folder in the Name column.

Expand the Databases folder in the Name column and click Oracle TimesTen In-Memory Database.

Figure 1-10 Select TimesTen In-Memory Database plug-in

You are now ready to deploy the plug-in on OMS. Locate the Deploy On tab at the top of the page.

From the Deploy On menu, select Management Servers....

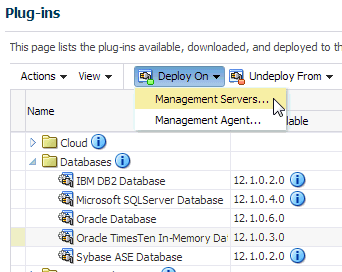

Figure 1-11 Deploy on OMS

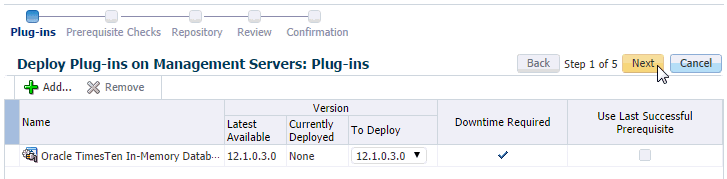

The Deploy Plug-in on Management Servers: Plug-ins page displays. The plug-in Oracle TimesTen In-Memory Database is displayed in the Name column and the Version is auto-filled. Locate the Next button in the top right of the page.

Click Next.

Figure 1-12 Click Next

The Deploy Plug-ins on Management Servers: Prerequisite Checks page displays. The prerequisite checks can take several minutes. In the Prerequisite Status region, you should see a check to the left of the Prerequisite Checks text. To the right of this text, you should see the text "Successfully Completed". Ensure that there are green checks in the Status column of each row in the Deployment Steps: Oracle TimesTen In-Memory Database table. Locate the Next button in the top right of the page.

Click Next.

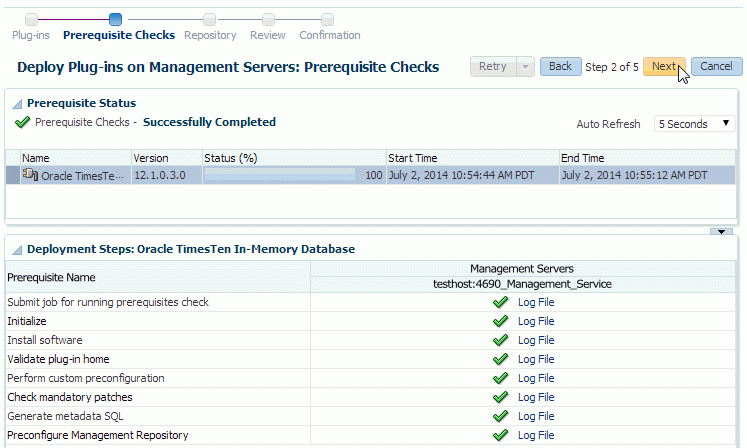

Figure 1-13 Click Continue

The Deploy Plug-ins on Management Servers: Repository page displays. Consider making a backup of the OMS repository before deploying the plug-in. For more information on backing up the OMS repository, see "Backing Up the OMS" in the Oracle Enterprise Manager Cloud Control Advanced Installation and Configuration Guide. Locate the Have you backed up the repository and configuration of first management server? check box.

Select the Have you backed up the repository and configuration of first management server? check box.

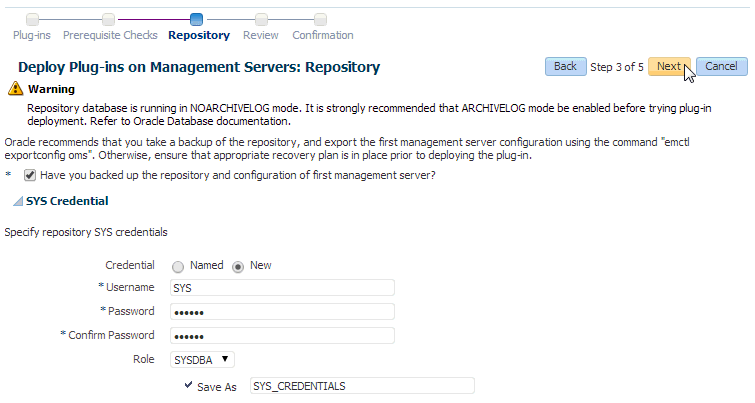

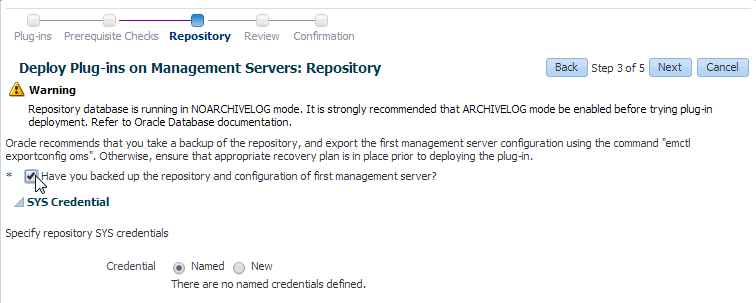

Figure 1-14 Select repository backup confirmation

You are now ready to specify repository SYS credentials. Locate the circle to the left of the New credential type.

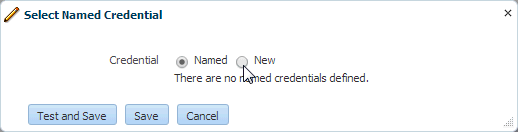

Click in the circle to the left of the text New.

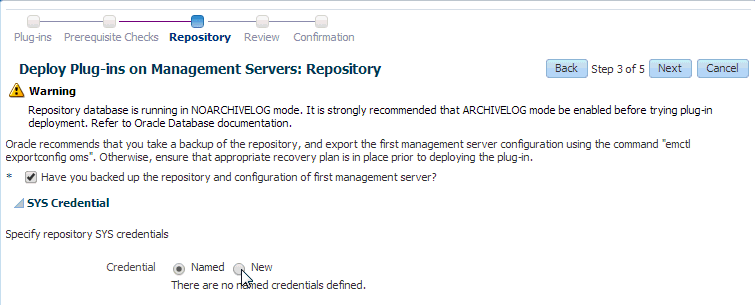

Figure 1-15 Select the new credential type option

The Deploy Plug-Ins on Management Servers: Repository page refreshes. You are now required to enter the repository SYS credentials for your Enterprise Manager repository. The first property is the Username.

In the *Username text field, type the user who has access to the Enterprise Manager repository.

In the *Password text field, type the password for the user who has access to the Enterprise Manager repository.

In the *Confirm Password text field, re-type the password.

From the Role drop-down list, select SYSDBA.

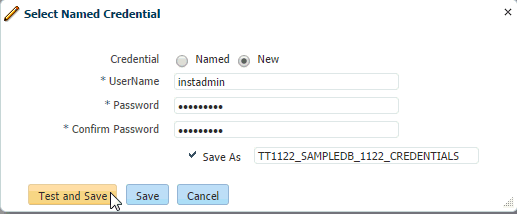

Click in the check box to the left of the text Save As.

In the Save As text field, type the name you want to use for the preferred credentials. The credentials are saved with this name.

Locate the Next button at the top right of the page.

Click Next.

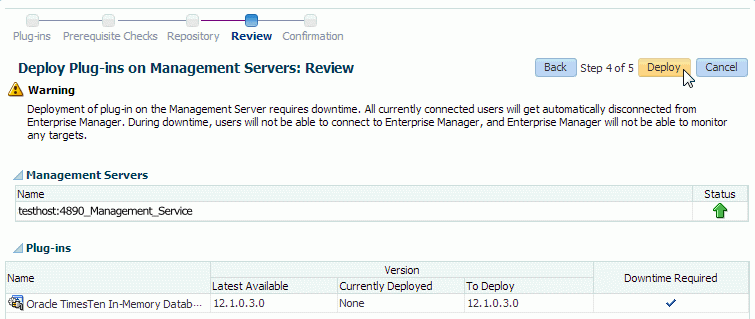

Figure 1-16 Review of the deploy on OMS

The Deploy Plug-ins on Management Servers: Review page displays. In the Management Servers table, verify that the name of the management server is correct. Verify the status is up. In the Plug-ins table, verify that the name of the plug-in is Oracle TimesTen In-Memory Database. Locate the Deploy button at the top right of the page.

Click Deploy.

Figure 1-17 Confirmation of the deployment to OMS

Note:

The Oracle Enterprise Manager Cloud Control server restarts during the deployment process.

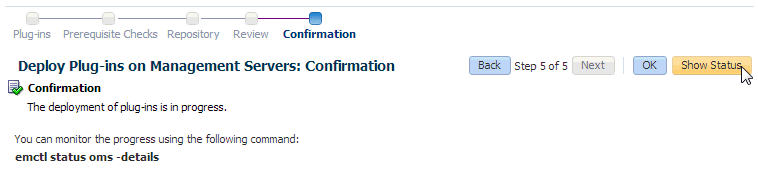

The Deploy Plug-ins on Management Servers: Confirmation page displays with a message indicating the deployment of the plug-in is in progress. The deployment can take several minutes. You can monitor the deployment status by clicking Show Status or going to the Deployment Activities page.

Click Show Status.

Figure 1-18 Click show status

The Plug-ins Deployment Activities page displays showing the status of recent deployment activities and a detailed status of the TimesTen deployment steps in table format. The second table on this page, Deployment Steps: Oracle TimesTen In-Memory Database, shows the deployment steps for the TimesTen plug-in. The last step located in the last row of this table is named "Start management server". Once this step is completed, ensure that there are green checks in the Status column of each row in the Deployment Steps table. Such checks indicate all steps in the deployment process are completed and are successful. If auto refresh is set to off, you may want to set auto refresh to 15 seconds, so you can see the steps as they are completed. You may need to wait a few minutes before changing the auto refresh setting because the Oracle Enterprise Manager Cloud Control server restarts during this deployment.

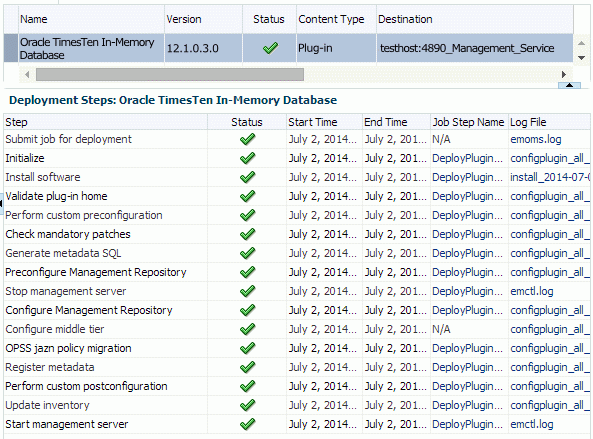

Figure 1-19 Deployment to OMS successful

The plug-in is deployed on OMS.

You are now ready to deploy the plug-in on the Management Agent.

Deploy the plug-in on the Management Agent

You must deploy the plug-in on OMS before deploying the plug-in on one or more Management Agents.

Note:

The TimesTen database, the plug-in, and the agent monitoring the database must be on the same system.

To deploy the plug-in on the Management Agent, ensure that you are on the Oracle Enterprise Manager Cloud Control home page.

From the Setup menu, select Extensibility, then select Plug-ins.

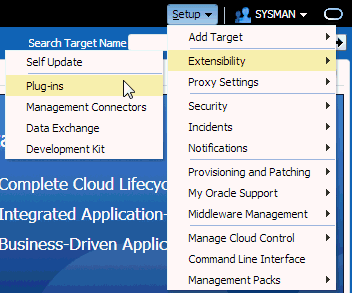

Figure 1-20 Select Extensibility, then Plug-ins

The Plug-ins page displays and you see the plug-ins that have been downloaded and can be deployed. Locate the Databases folder in the Name column.

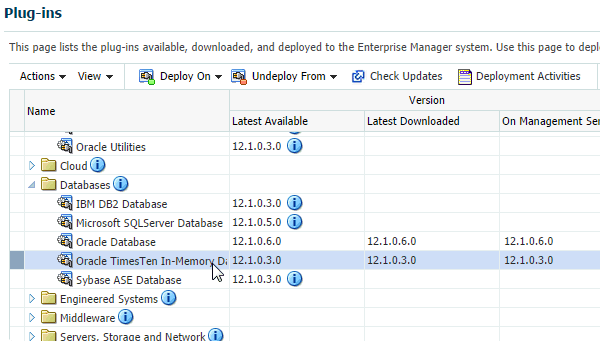

Expand the Databases folder in the Name column and click Oracle TimesTen In-Memory Database.

Figure 1-21 Select Oracle TimesTen In-Memory Database plug-in

You are now ready to deploy the plug-in on the Agent. Locate the Deploy On tab at the top of the page.

From the Deploy On menu, select Management Agent....

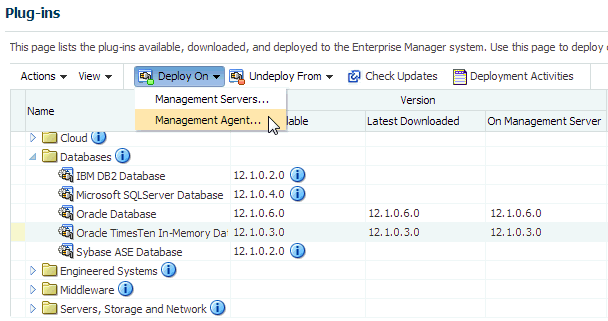

Figure 1-22 Deploy on Management Agent

The Deploy Plug-in on Management Agent General page displays. The plug-in Oracle TimesTen In-Memory Database is displayed in the Name column and the Version is auto-filled. The supported target versions column indicates the minimum version of TimesTen that the agent supports. Locate the Continue button below the Target Types table.

Click Continue.

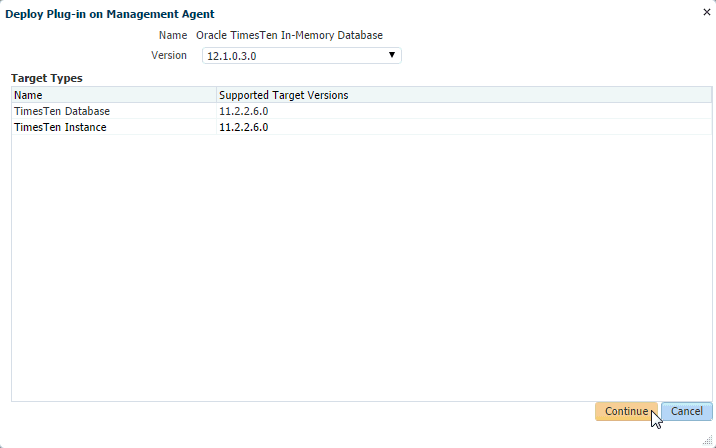

Figure 1-23 Click Continue

You can now select the agent where you want to deploy the plug-in. The agent status must be up as indicated by the green up arrow in the Status column of the Management Agents table.

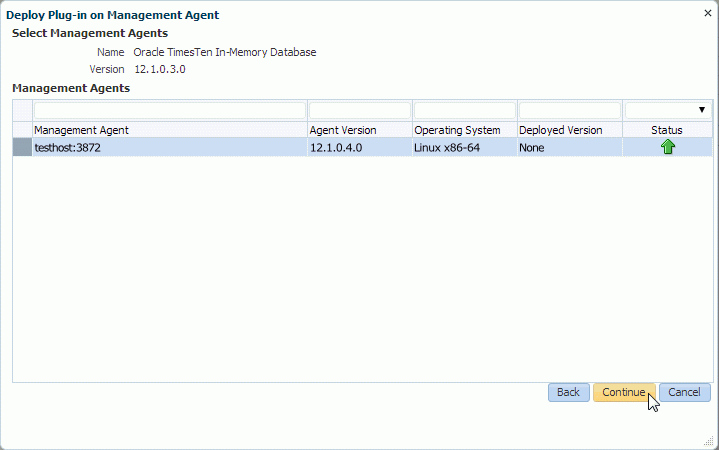

In the Management Agents table, locate the row that contains the correct agent as identified by management agent. Click in this row and then click Continue.

Figure 1-24 Select agent and click Continue

The Deploy Plug-in on Management Agent Prerequisite Checks page displays. In the Management Agent table, verify the Status column has a green check and the Error Message column contains the text "No Error."

Click Next.

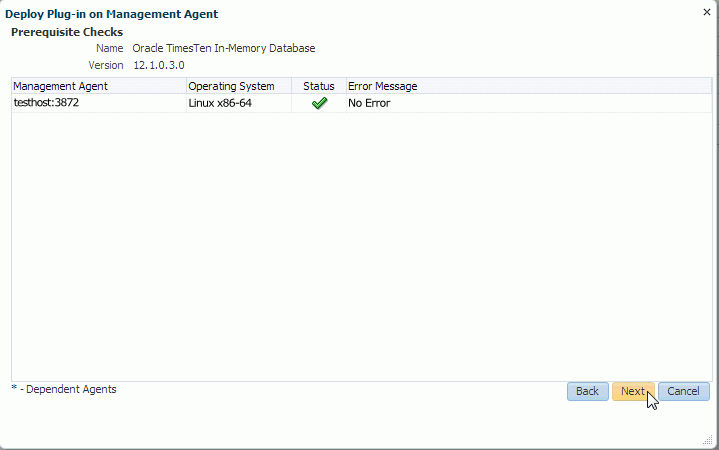

Figure 1-25 Prerequisite checks

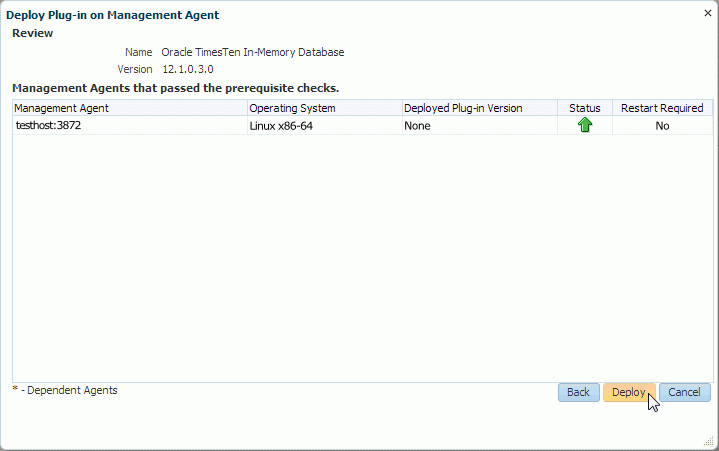

The Deploy Plug-in on Management Agent Review page displays. In the name column, verify the plug-in name is Oracle TimesTen In-Memory Database and the version is correct. Ensure that you see the text "Management Agents that passed the prerequisite checks" and ensure that the Management Agent is correct.

You are ready to deploy the plug-in.

Click Deploy.

Figure 1-26 Click Deploy

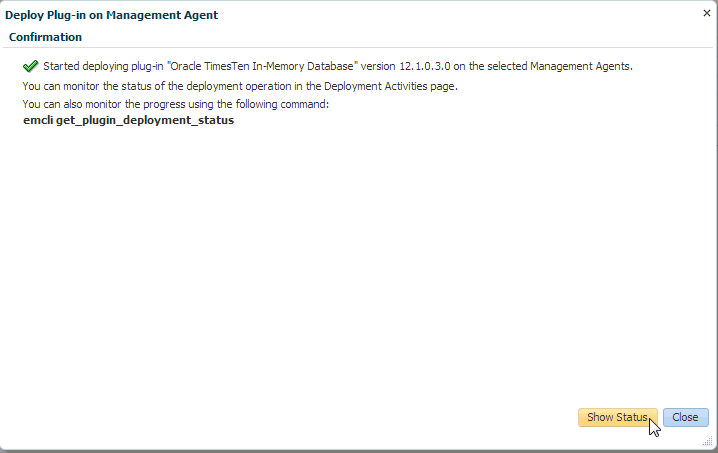

The Deploy Plug-in on Management Agent Confirmation page displays with a message indicating the deployment of the plug-in has started on selected agents. The deployment can take several minutes. You may monitor the deployment status by clicking Show Status or going to the Deployment Activities page.

Click Show Status.

Figure 1-27 Confirmation dialog

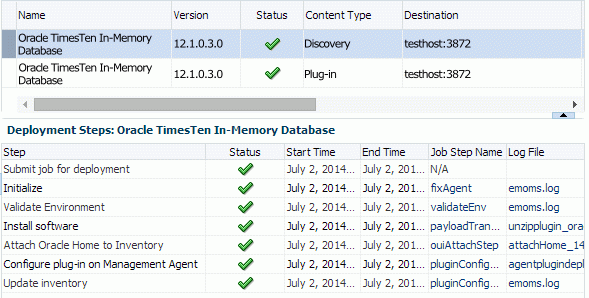

The Plug-ins Deployment Activities page displays showing the status of recent deployment activities and a detailed status of the TimesTen deployment steps in table format. The second table on this page, Deployment Steps: Oracle TimesTen In-Memory Database, shows the deployment steps for the TimesTen plug-in. The last step located in the last row of this table is named "Update inventory". Once this step is completed, ensure that there are green checks in the Status column of each row in the Deployment Steps table. Such checks indicate all steps in the deployment process are completed and are successful. If auto refresh is set to off, you may want to set auto refresh to 15 seconds, so you can see the steps as they are completed.

Figure 1-28 Deployment of agent successful

The plug-in is deployed on the Management Agent and the automatic discovery scripts of the plug-in are deployed on the agent. You can now configure automatic discovery for the TimesTen plug-in, see "Initial automatic discovery configuration". Repeat steps 1-8 to deploy the plug-in on additional Management Agents.

You are now ready to configure a TimesTen target.

Configure a TimesTen target

You must configure a TimesTen target that is monitored by Enterprise Manager Cloud Control. You can configure a TimesTen target for TimesTen instances and each unique TimesTen database with either automatic discovery or manual configuration. When you configure a TimesTen database target, use a Data Manager DSN. Client/server DSNs are not supported. Manual configuration is recommended for advanced users.

Note:

You do not need to configure a TimesTen instance target to configure a TimesTen database target.

Note:

Ensure that you are logged in as SYSMAN or a user that has add target privileges through an Enterprise Manager role. For more information, see "Defining roles".

Follow these instructions before using automatic discovery:

Initial automatic discovery configuration

These are the configuration types:

Automatic discovery configuration for a TimesTen instance target

Automatic discovery configuration for a TimesTen database target

Manual configuration for a TimesTen instance target

Manual configuration for a TimesTen database target

Initial automatic discovery configuration

You must configure each host for automatic discovery before adding a TimesTen instance target or database target through automatic discovery. You do not need to configure automatic discovery if you are adding targets with manual configuration.

For each host that you want to configure for automatic discovery:

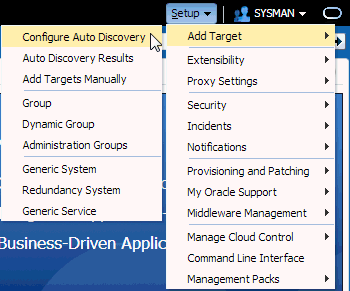

From the Setup menu, select Add Target, then select Configure Auto Discovery.

Figure 1-29 Configure auto discovery

The Setup Discovery page displays. Locate the Target on Hosts tab in the Instruction region.

Click Target on Hosts.

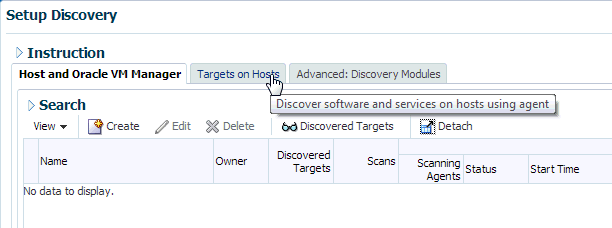

Figure 1-30 Configure auto discovery on host

The Setup Discovery page reloads. You can now select the host where the agent is located. The agent status must be up as indicated by the green up arrow in the Agent Host Name column of the Search table.

In the Search table, locate the row that contains the correct agent host. Click in this row and then click Discovery Modules.

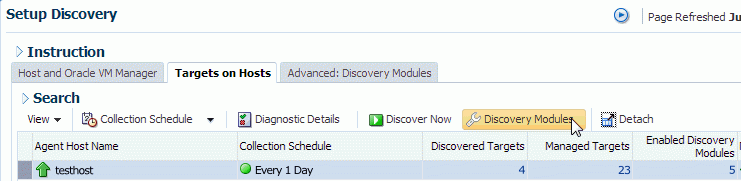

Figure 1-31 Add host

The Discovery Modules page for your host displays. You can now enable the Oracle TimesTen discovery module.

In the Discovery Modules table, locate the row that contains the Oracle TimesTen Discovery module. Click in the check box of the Enable column of this row and then click OK.

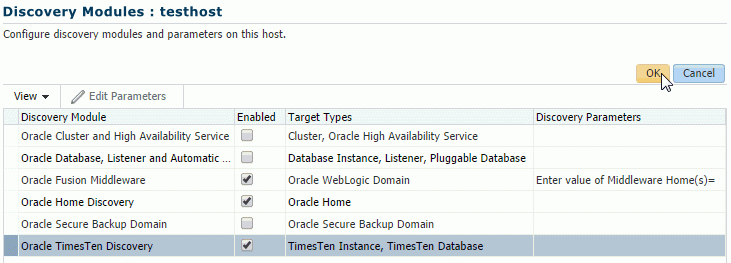

Figure 1-32 Select discovery module

The Setup Discovery page displays. Repeat steps 1-4 to configure additional hosts for automatic discovery.

You are now ready to discover TimesTen targets on your configured hosts.

In the Search table, locate the row that contains the correct agent host. Click in this row and then click Discover Now.

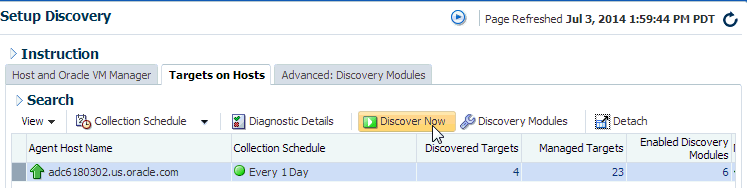

Figure 1-33 Discover now

The Discover Now dialog displays. Locate the Yes button.

Click Yes.

Figure 1-34 Run Discovery Now

The Run Discovery Now - Confirmation dialog displays. The discovery can take several minutes. You should see the informational message: "Discover Now - Completed Successfully". Locate the Close button.

Click Close.

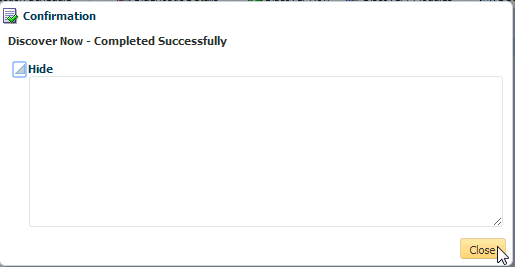

Figure 1-35 Close Confirmation

The Setup Discovery page displays. Enterprise Manager has discovered all the targets on your host. Repeat steps 5-7 to discover targets on additional hosts.

You are now ready to configure TimesTen targets with automatic discovery.

Automatic discovery configuration for a TimesTen instance target

Ensure that you have followed the steps described in "Initial automatic discovery configuration" before you configure a TimesTen instance target with automatic discovery. For each TimesTen instance target you want to configure with automatic discovery:

From the Setup menu, select Add Target, then select Auto Discovery Results.

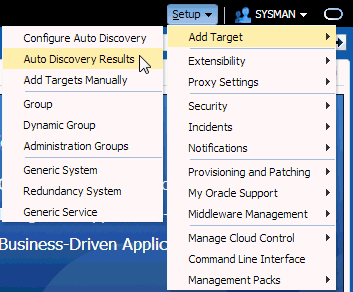

Figure 1-36 Auto Discovery Results

The Auto Discovery Results page displays. Locate the Target on Hosts tab in the Instruction region.

Click Target on Hosts.

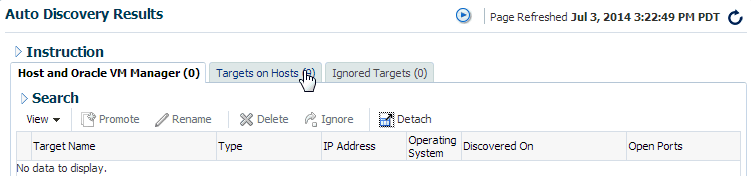

Figure 1-37 Click target on hosts

The Auto Discovery Results page reloads. In the Target Type column, locate TimesTen Instance.

In the Targets table, locate the row that contains the correct TimesTen instance as identified by the Target Name and Target Type column. Click in this row and then click Promote.

Note:

To change the name of a target, select your TimesTen Instance target and click the Rename button. Once you promote a target you cannot change the target name.

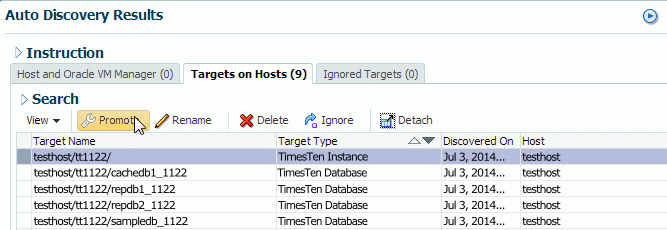

Figure 1-38 Promote target

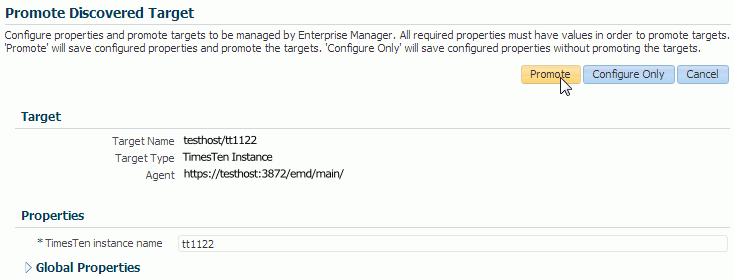

The Promote Discovered Target page displays. Notice the Target Name, Target Type, and Agent text fields, located below the page title, are auto-filled and cannot be edited. The TimesTen instance name field, located in the Properties region, is auto-filled and is editable.

Ensure that the TimesTen instance name is correct and click Promote.

Figure 1-39 Promote discovered target

The Confirmation dialog displays. The target promotion can take several minutes. You should see the informational message: "Promote target - Completed Successfully". Locate the Close button.

Click Close.

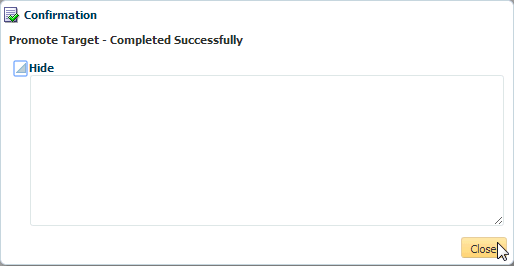

Figure 1-40 Promote target completed successfully

Your TimesTen instance target has been successfully added.

You can now verify and view information about your new target. For more information, see "Verifying and validating the plug-in".

Automatic discovery configuration for a TimesTen database target

Ensure that you have followed the steps described in "Initial automatic discovery configuration" before you configure a TimesTen database target with automatic discovery. For each TimesTen database target you want to configure with automatic discovery:

From the Setup menu, select Add Target, then select Auto Discovery Results.

Figure 1-41 Auto Discovery Results

The Auto Discovery Results page displays. Locate the Target on Hosts tab in the Instruction region.

Click Target on Hosts.

Figure 1-42 Click target on hosts

The Auto Discovery Results page reloads. In the Target Type column, locate TimesTen Database.

In the Targets table, locate the row that contains the correct TimesTen database as identified by the Target Name and Target Type column. Click in this row and then click Promote.

Note:

To change the name of a target, select your TimesTen Database target and click the Rename button. Once you promote a target you cannot change the target name.

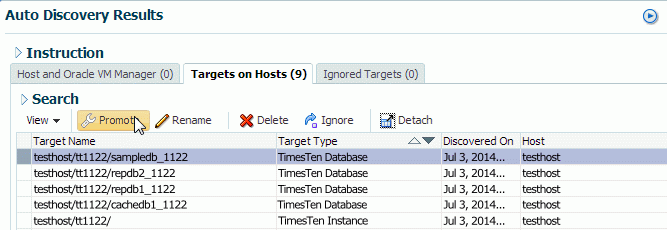

Figure 1-43 Promote target

The Promote Discovered Target page displays. Notice the Target Name, Target Type, Agent text, and Credential Type fields, located below the page title, are auto-filled and cannot be edited. You are now ready to enter the TimesTen monitoring credentials properties.

In the *TimesTen database user name text field, type the TimesTen database user who has ADMIN privileges. Note: This user cannot be the TimesTen instance administrator.

In the *TimesTen password text field, type the password for the TimesTen database user.

In the *Confirm TimesTen password text field, re-type the password.

Note:

Steps 7-11 are only required if your database uses TimesTen cache features that you want to monitor. If you do not want to monitor TimesTen cache features, skip to step 12. For more information on TimesTen cache, see Oracle TimesTen Application-Tier Database Cache User's Guide.

Type the TimesTen cache manager user in the Cache administration/cache manager user name text field. Note: This user must exist on the TimesTen database and the Oracle database.

Type the Oracle database cache manager user password in the Oracle database cache administration password text field.

In the Confirm Oracle database cache administration password text field, re-type the password.

Type the TimesTen cache manager password in the TimesTen database cache manager password text field.

In the Confirm TimesTen database cache manager password text field, re-type the password.

The *Data Source Name text field is auto-filled. Ensure that the data source name is correct.

The *TimesTen instance name text field is auto-filled. Ensure that the TimesTen instance name is correct.

Click Promote.

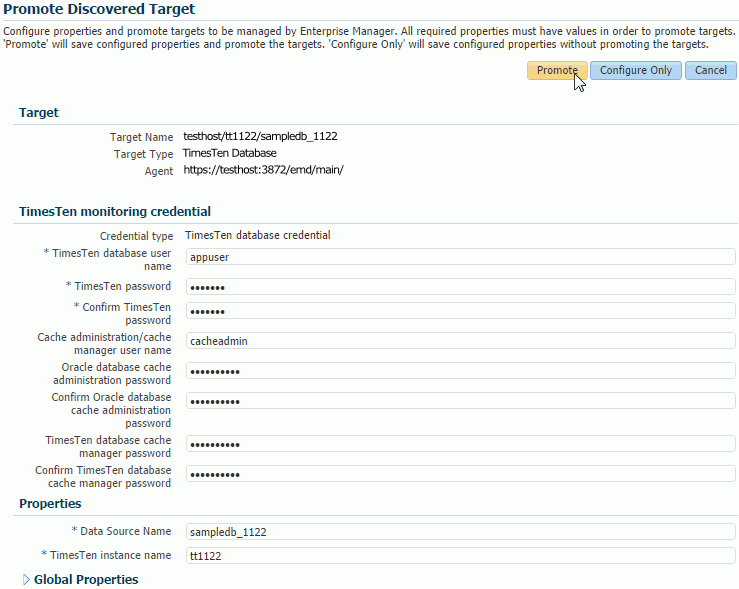

Figure 1-44 Promote discovered target

The Confirmation dialog displays. The target promotion can take several minutes. You should see the informational message: "Promote target - Completed Successfully". Locate the Close button.

Click Close.

Figure 1-45 Promote target completed successfully

Your TimesTen database target has been successfully added.

You can now verify and view information about your new target. For more information, see "Verifying and validating the plug-in".

Manual configuration for a TimesTen instance target

For each TimesTen instance target you want to configure manually:

From the Setup menu, select Add Target, then select Add Targets Manually.

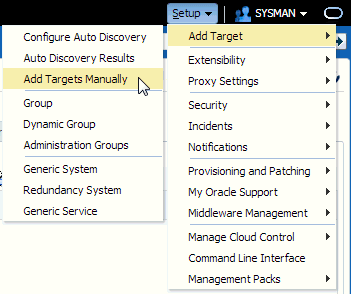

Figure 1-46 Add targets manually

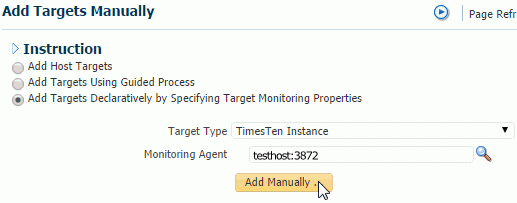

The Add Targets Manually page displays. Locate the Add Targets Declaratively by Specifying Target Monitoring Properties option in the middle left section of the page.

Click in the circle to the left of the text Add Targets Declaratively by Specifying Target Monitoring Properties.

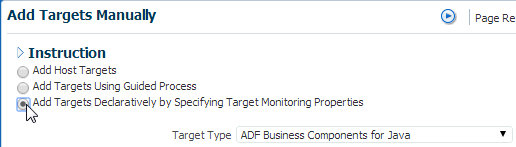

Figure 1-47 Add target manually

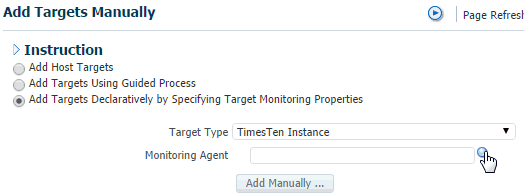

The Target Type select list displays. You are now ready to select TimesTen Instance.

Expand the drop-down list labeled Target Type and select TimesTen Instance.

Figure 1-48 Select target type

You are now ready to search for the Monitoring Agent. Locate the Monitoring Agent search box below the Target Type select list.

Click the Search icon located to the right of Monitoring Agent.

The Select Targets dialog displays. You are now ready to select the monitoring agent for your TimesTen instance target. Locate the Targets table with columns Target Name, Target Type, On Host, and Status. Identify the Target Name of your agent. Ensure that the Target Type is Agent and double check the On Host column to ensure that the host name is correct.

Click in the row that identifies the Target Name of your agent and click Select.

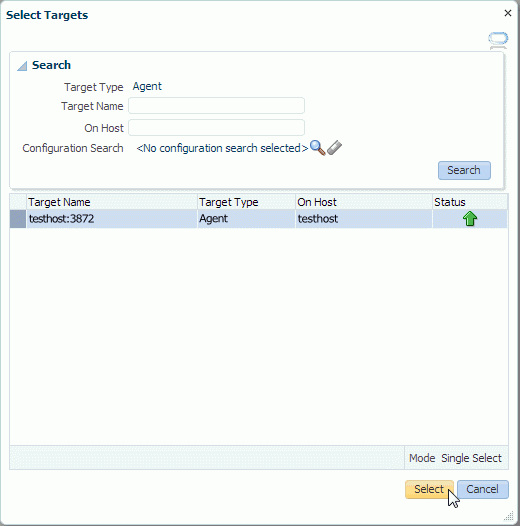

Figure 1-49 Select Management Agent

The Select Targets dialog closes and you are returned back to the Add Targets Manually page. Notice the agent you selected is auto-filled in the Monitoring Agent text field. Double check the Target Type is TimesTen Instance and the agent is correct.

You are now ready to add the target.

Click Add Manually...

Figure 1-50 Click add manually

The Add: TimesTen Instance page displays. Prepare to enter the target properties for your instance target. The first property is the target name.

In the Target Name text field, you define the TimesTen instance target name. Select a name that is a meaningful identifier. (For example, hostname.instance.)

In the *Target Name text field, type the TimesTen target name.

Notice the Target Type and Agent text fields, located below the Target Name text field, are auto-filled. You are now ready to enter the TimesTen instance name.

In the *TimesTen instance name text field, type the name of your TimesTen instance. (Use the ttStatus utility if you cannot recall the instance name. For more information, see "ttStatus" in the Oracle TimesTen In-Memory Database Reference.)

You are now ready to test your connection to ensure that your target is deployed successfully and configured properly.

Click Test Connection.

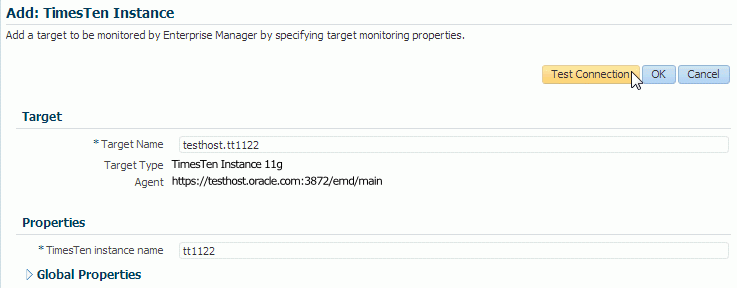

Figure 1-51 Test connection

The Confirmation dialog displays. You should see the informational message: "Test Connection succeeded." If you do not see the "Test Connection succeeded" message, ensure that your instance name is correct.

In the Test Connection dialog, click Close.

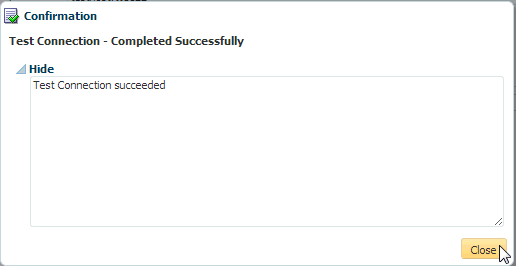

Figure 1-52 Test Connection successful

The Confirmation dialog closes. Locate the OK button at the top right of the page.

Click OK.

A second Confirmation dialog displays. You should see the informational message "Add Target - Completed Successfully." The target type (TimesTen Instance), Target name, and Agent are also displayed.

Click Close.

Figure 1-53 Target added successfully

Your TimesTen instance target has been successfully added.

You can now verify and view information about your new target. For more information, see "Verifying and validating the plug-in".

Manual configuration for a TimesTen database target

For each TimesTen database target you want to configure manually:

From the Setup menu, select Add Target, then select Add Targets Manually.

Figure 1-54 Add targets manually

The Add Targets Manually page displays. Locate the Add Targets Declaratively by Specifying Target Monitoring Properties option in the middle left section of the page.

Click in the circle to the left of the text Add Targets Declaratively by Specifying Target Monitoring Properties.

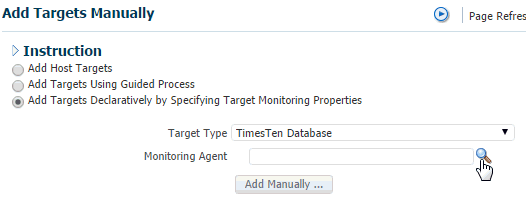

Figure 1-55 Add Non-Host Targets

The Target Type select list displays. You are now ready to select TimesTen Database.

Expand the drop-down list labeled Target Type and select TimesTen Database.

You are now ready to search for the Monitoring Agent. Locate the Monitoring Agent search box below the Target Type select list.

Click the Search icon located to the right of Monitoring Agent.

Figure 1-56 Select target type

The Select Targets dialog displays. You are now ready to select the monitoring agent for your TimesTen target. Locate the Targets table with columns Target Name, Target Type, On Host, and Status. Identify the Target Name of your agent. Ensure that the Target Type is Agent and double check the On Host column to ensure that the host name is correct.

Click in the row that identifies the Target Name of your agent and click Select.

Figure 1-57 Select Management Agent

The Select Targets dialog closes and you are returned back to the Add Targets Manually page. Notice the agent you selected is auto-filled in the Monitoring Agent text field. Double check the Target Type is TimesTen Database and the agent is correct.

You are now ready to add the target.

Click Add Manually...

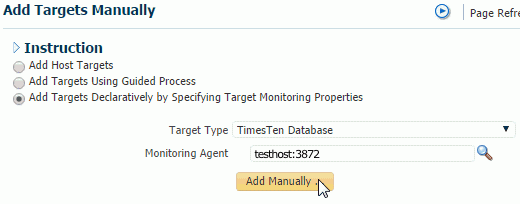

Figure 1-58 Click Add Manually

The Add: TimesTen Database page displays. Prepare to enter the target properties for your target. The first property is the target name.

In the Target Name text field, you define the TimesTen target name. Select a name that is a meaningful identifier. (For example, hostname.instance.DSN.)

In the *Target Name text field, type the TimesTen target name.

Notice the Target Type, Agent, and Credential Type text fields, located below the Target Name text field, are auto-filled. You are now ready to enter the TimesTen monitoring credentials properties.

In the *TimesTen database user name text field, type the TimesTen database user who has ADMIN privileges. Note: This user cannot be the TimesTen instance administrator.

In the *TimesTen password text field, type the password for the TimesTen database user.

In the *Confirm TimesTen password text field, re-type the password. You are now ready to enter the TimesTen properties.

Note:

Steps 11-15 are only required if your database uses TimesTen cache features that you want to monitor. If you do not want to monitor TimesTen cache features, skip to step 16. For more information on TimesTen cache, see Oracle TimesTen Application-Tier Database Cache User's Guide.

Type the TimesTen cache manager user in the Cache administration/cache manager user name text field. Note: This user must exist on the TimesTen database and the Oracle database.

Type the Oracle database cache manager user password in the Oracle database cache administration password text field.

In the Confirm Oracle database cache administration password text field, re-type the password.

Type the TimesTen cache manager password in the TimesTen database cache manager password text field.

In the Confirm TimesTen database cache manager password text field, re-type the password.

In the *Data Source Name text field, type the DSN. The DSN must be a system DSN that is described in either your sys.odbc.ini file or the ODBC Data Source Administrator on MS Windows.

In the *TimesTen instance name text field, type the name of your TimesTen instance. (Use the ttStatus utility if you cannot recall the instance name. For more information, see "ttStatus" in the Oracle TimesTen In-Memory Database Reference.)

You are now ready to test your connection to ensure that your target is deployed successfully and configured properly.

Click Test Connection.

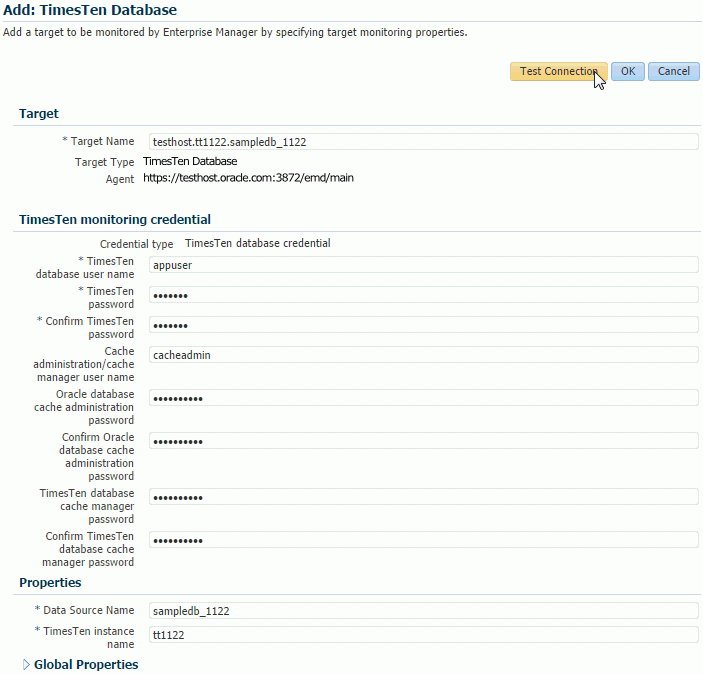

Figure 1-59 Add TimesTen specific information

The Confirmation dialog displays. You should see the informational message: "Test Connection succeeded." If you do not see the "Test Connection succeeded" message, ensure that your instance name and DSN are correct and the TimesTen database for the DSN is loaded into memory.

In the Test Connection dialog, click Close.

Figure 1-60 Test Connection successful

The Confirmation dialog closes. Locate the OK tab at the top right of the page.

Click OK.

A second Confirmation dialog displays. You should see the informational message "Add Target - Completed Successfully." The target type (TimesTen Database), Target name, and Agent are also displayed.

Click Close.

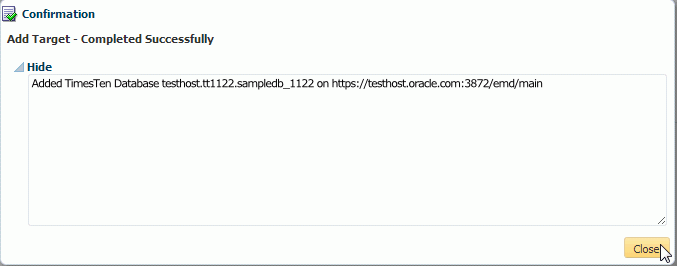

Figure 1-61 Target added successfully

Your TimesTen database target has been successfully added.

You can now verify and view information about your new target. For more information, see "Verifying and validating the plug-in".

Verifying and validating the plug-in

After waiting a few minutes for the plug-in to start collecting data:

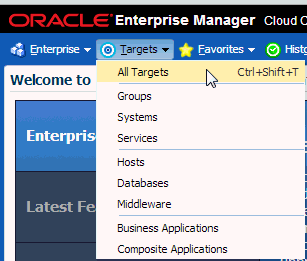

From the Targets menu, select All Targets on the Enterprise Manager Cloud Control 12c home page.

The All Targets page displays. Locate the Refine Search panel under All Targets.

Expand Target Type, then Databases and click TimesTen Instance or TimesTen Database.

Figure 1-62 Select your TimesTen target

The target table displays. For each row in the table, confirm the column Target Type contains TimesTen Instance or TimesTen Database and each row of the table contains the name of the target you previously configured. For more information on configuring a TimesTen target, see "Configure a TimesTen target".

For each target type row, locate the column Target Status. Verify there is a green up arrow indicating the status is Up.

Figure 1-63 Verify the TimesTen target is Up.

You are now ready to verify there are no metric errors.

In the target table, locate the row that contains your TimesTen target. In the column Target Name, click the Target Name. (The target name is the name of the TimesTen target you configured).

Figure 1-64 Click the target name

The TimesTen target page displays.

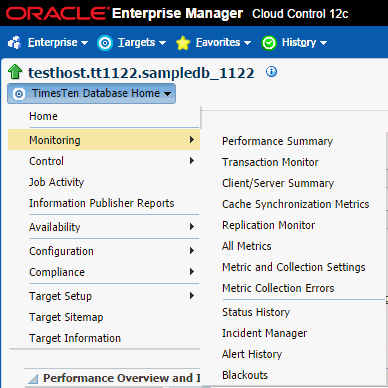

From the TimesTen Database Home menu, select Monitoring, then select Metric Collection Errors.

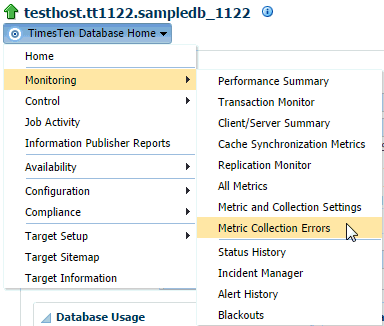

Figure 1-65 Select Metric Collection Errors

The Metric Collection Errors page displays a table with metric collection error information. Verify the first column named Metrics contains the text "There are no errors!".

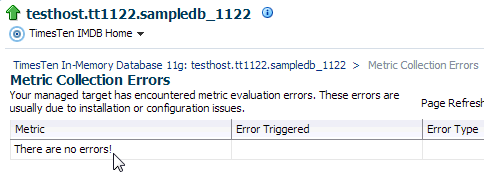

Figure 1-66 No errors

You are now ready to set preferred credentials for your target.

Setting preferred credentials for a target

Set preferred credentials for a TimesTen target to:

Start and stop the TimesTen daemon of a TimesTen instance.

Use the transaction monitor of a TimesTen database.

Create backups of a TimesTen database.

Start and stop the TimesTen cache agent of a TimesTen database.

Start and Stop the TimesTen replication agent of a TimesTen database.

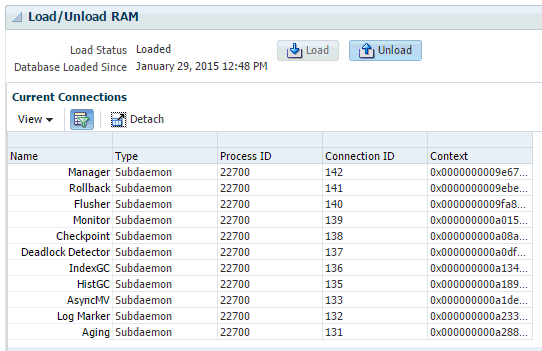

Load and unload a TimesTen database from memory.

For more information on the transaction monitor, see "Working with the Transaction Monitor".

To set the preferred credentials for a target:

Ensure that you are on the Enterprise Manager Cloud Control home page. From the Setup menu, select Security, then select Preferred Credentials.

The Security Preferred Credentials page displays. Locate TimesTen Instance or TimesTen Database in the Target Type column.

Click TimesTen Instance or TimesTen Database.

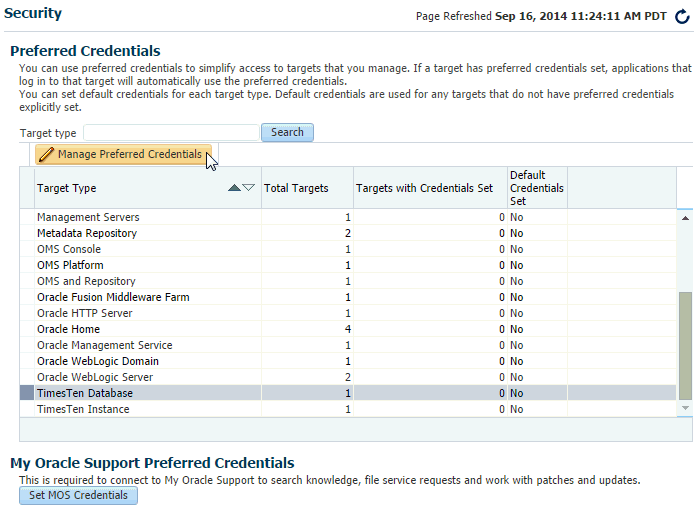

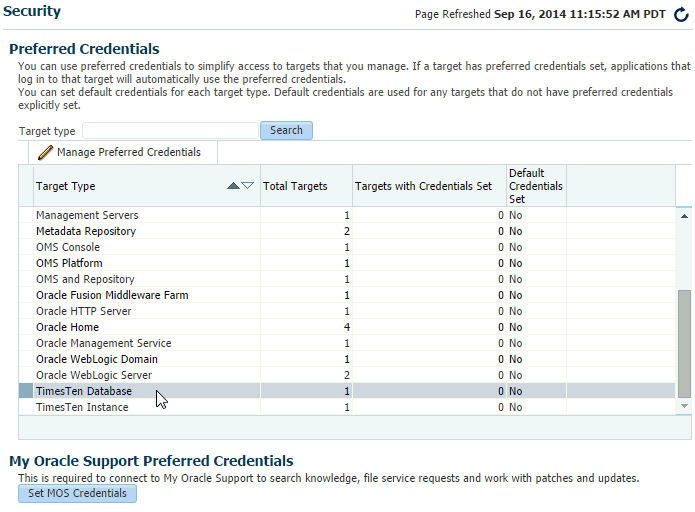

Figure 1-67 Preferred Credentials Page

You are now ready to set the preferred credentials for your TimesTen target. Locate the Manage Preferred Credentials button.

Click Manage Preferred Credentials.

Figure 1-68 Click Manage Preferred Credentials

Depending on your selection, the TimesTen Instance Preferred Credentials or TimesTen Database Preferred Credentials page displays.

In the Target Preferred Credentials table, locate the row that contains your TimesTen target. In the column Target Name, click the Target Name. (The target name is the name of the TimesTen target you configured.)

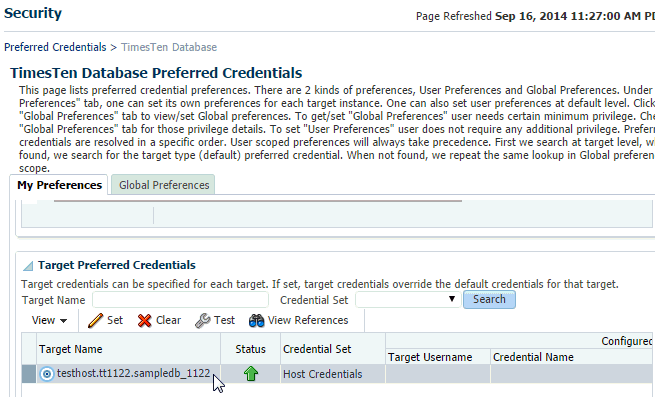

Figure 1-69 Click the target name

Click Set.

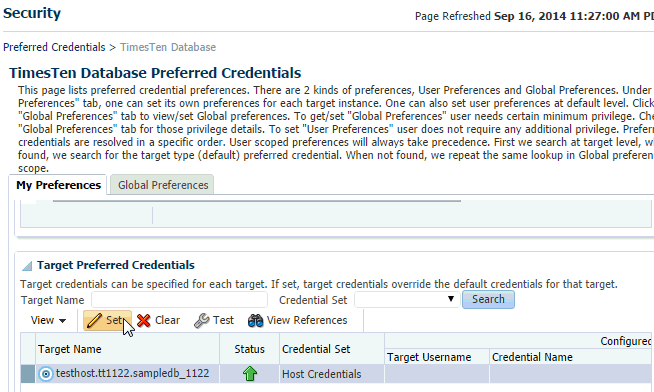

Figure 1-70 Click set

The Select Named Credentials dialog displays.

Click in the circle to the left of the text New.

Note:

If you already have a named credential, select it and skip to step 12.

Figure 1-71 Select Named Credential page

The Select Named credential dialog refreshes. You are now required to enter the preferred credentials for your TimesTen target. The first property is the UserName.

In the *UserName text field, type the user who has access to the target host. The username must be the operating system username of the TimesTen instance administrator.

In the *Password text field, type the password for the user who has access to the target host. The password must be the operating system password of the TimesTen instance administrator.

In the *Confirm password text field, re-type the password.

Click in the check box to the left of the text Save As.

In the Save As text field, type the name you want to use for the preferred credentials. The credentials are saved with this name.

Click Test and Save.

Figure 1-72 Click Test and Save

The information dialog displays with the text "Named credential association completed successfully".

Figure 1-73 Successful named credential association

You have successfully associated the credential with your TimesTen target.

Changing the monitoring configuration of a TimesTen database target

When you configure your TimesTen database target, you specify the TimesTen username and password. If you change the password for this TimesTen user in the TimesTen database, you must update the password in the Enterprise Manager Cloud Control monitoring configuration. For more information on configuring your TimesTen target, see "Configure a TimesTen target".

To change the monitoring configuration of your TimesTen database target:

Ensure that you are on the Enterprise Manager Cloud Control home page. From the Targets menu, select All Targets on the Enterprise Manager Cloud Control 12c home page.

The All Targets page displays. Locate the Refine Search panel under All Targets.

Expand Target Type, then Databases and click TimesTen Instance or TimesTen Database.

Figure 1-74 Select database target type

Locate the row that contains the target name.

Figure 1-75 Locate the TimesTen target

You are now ready to update the password.

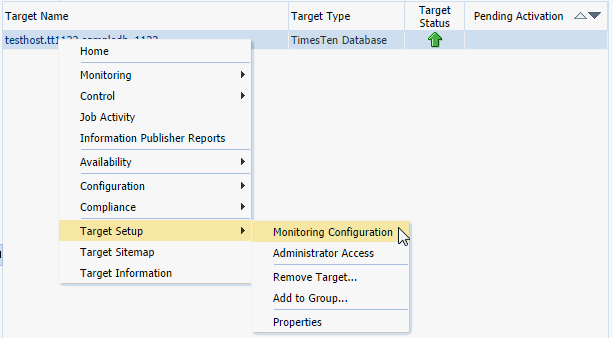

Right-click the Target Name located in the Target Name column of the row containing the TimesTen target and select Target Setup, then Monitoring Configuration.

Figure 1-76 Change the monitoring configuration

The target monitoring configuration page displays. The Data Source Name, the TimesTen instance name, and the TimesTen username are auto-filled. If you have the TimesTen cache feature configured, the Cache admin password and the Cache admin user name text fields are auto-filled.

In the TimesTen password text field, type the new password. This password must be the same password that exists in the TimesTen database for your TimesTen user. For example, if the TimesTen user name is appuser, and in the TimesTen database, you modified the TimesTen password for appuser to be newpassword, then in the TimesTen password field, type newpassword. For more information on changing a password in the TimesTen database, see "ALTER USER" in the Oracle TimesTen In-Memory Database SQL Reference.

Click OK.

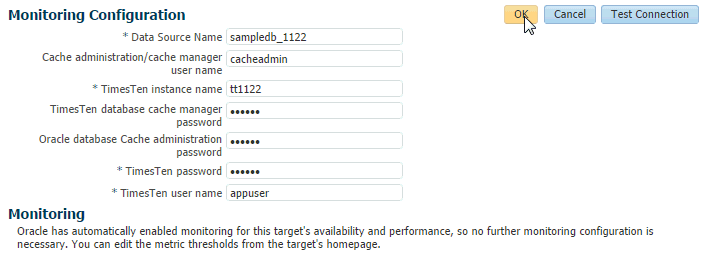

Figure 1-77 Click OK

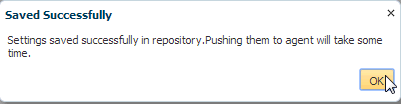

The Saved Successfully dialog displays indicating the settings are saved correctly in the repository.

In the Saved Successfully dialog, click OK.

Figure 1-78 Monitoring configuration saved successfully

The Saved Successfully dialog closes.

You can verify the new monitoring configuration of your target. For more information on verifying a TimesTen target, see "Verifying and validating the plug-in".

Upgrading the Enterprise Manager Plug-in for TimesTen

You can upgrade the plug-in from version 12.1.0.2.0 to version 12.1.0.3.0. Upgrading the plug-in enables you to use the new features of the new plug-in while still keeping all of the metrics that the previous plug-in has collected.

Before upgrading, ensure that you have Oracle Enterprise Manager Cloud Control 12c Release 4 (or higher).

Note:

If you perform these operations while performing an upgrade, your Management Agent automatically upgrades to version 12.1.0.3.0:

Adding new TimesTen targets to Management Agents with the 12.1.0.2.0 plug-in version.

Testing connection when modifying the monitoring configuration of an existing 12.1.0.2.0 TimesTen target. For more information, see "Changing the monitoring configuration of a TimesTen database target".

To upgrade the plug-in from version 12.1.0.2.0 to version 12.1.0.3.0:

Download the 12.1.0.3.0 plug-in. For more information, see "Download the plug-in".

Deploy the 12.1.0.3.0 plug-in on the Management Server. For more information, see "Deploy the plug-in on Oracle Management Service".

Deploy the 12.1.0.3.0 plug-in on the Management Agent. For more information, see "Deploy the plug-in on the Management Agent". It is recommended to complete this step after with step 2. However, if you only upgrade the Management Server while testing the new plug-in some features will not work. For more information, see "Limited functionality when only upgrading Management Server".

You have successfully upgraded the TimesTen plug-in from version 12.1.0.2.0 to version 12.1.0.3.0. You do not need to modify any of your TimesTen target settings.

Limited functionality when only upgrading Management Server

While testing the new plug-in, you may decide to only upgrade the 12.1.0.3.0 plug-in on the Management Server. In this case, your Management Server is version 12.1.0.3.0 while your Management Agent is version 12.1.0.2.0 and certain features will not work. The following features will not work:

On the database Home page, the SQL Monitor is unavailable.

On the database Performance page, checkpoint history is unavailable.

On the database Replication Monitor page, transmitter and receiver thread status is unavailable.

The database Transaction Monitor is unavailable.

Uninstalling the Enterprise Manager Plug-in for TimesTen

You must remove all TimesTen targets before you can undeploy the plug-in. For example, if you have three TimesTen targets and two targets are deployed to one agent and the third target is deployed to a second agent, you must:

Remove target 1 on agent 1.

Remove target 2 on agent 1.

Remove target 3 on agent 2.

You then undeploy and delete the plug-in from the Oracle Enterprise Manager Cloud Control.

To uninstall the Enterprise Manager Plug-in for TimesTen:

Remove the TimesTen target

Undeploy the plug-in from the Management Agent

Undeploy the plug-in from OMS

Delete the plug-in

Remove the TimesTen target

For each TimesTen target you want to remove:

From the Targets menu, select All Targets on the Enterprise Manager Cloud Control home page.

Figure 1-79 Select All Targets

The All Targets page displays. Locate the Refine Search panel under the text "All Targets."

Expand Target Type, then Databases and click TimesTen Instance or TimesTen Database.

Figure 1-80 Select TimesTen In Memory Database

The target table displays. For each row in the table, confirm the column Target Type is TimesTen Instance or TimesTen Database. Also, confirm each row of the table contains the name of the target you previously configured.

Locate the row that contains the target name you want to remove.

Right-click the Target Name located in the Target Name column of the row containing the TimesTen target and select Target Setup, then Remove Target...

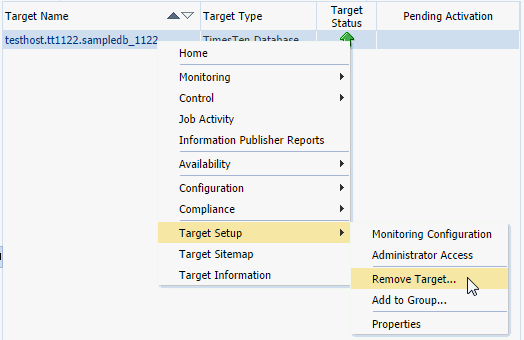

Figure 1-81 Remove target

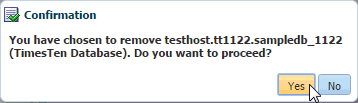

The Confirmation dialog displays the text "You have chosen to remove TimesTen_target_name (TimesTen Instance). Do you want to proceed?" or "You have chosen to remove TimesTen_target_name (TimesTen Database). Do you want to proceed?"

The TimesTen_target_name is the name of your TimesTen target. For example, testhost.tt1122.sampledb_1122.

Click Yes.

Figure 1-82 Remove target confirmation dialog

The Information dialog displays the text "Target TimesTen_target_name (TimesTen Instance) has been deleted" or "Target TimesTen_target_name (TimesTen Database) has been deleted" where TimesTen_target_name is the name of your TimesTen target.

Click OK.

Figure 1-83 Target removed

Verify the row that contained the TimesTen target has been removed from the target table.

Your TimesTen target is removed. Repeat Steps 1-5 to remove additional targets. If all targets are removed, you can undeploy and then delete the plug-in from the Oracle Enterprise Manager Cloud Control.

Undeploy the plug-in from the Management Agent

You must undeploy the plug-in from all the Management Agents that are monitoring TimesTen targets.

Note:

Undeploy the plug-in from the Management Agents before you undeploy the plug-in from the Oracle Management Service (OMS).

Ensure that you have removed all TimesTen targets. For more information on the steps to remove a TimesTen target, see "Remove the TimesTen target".

To undeploy the plug-in from the Management Agent, ensure that you are on the Oracle Enterprise Manager Cloud Control home page.

From the Setup menu, select Extensibility, then select Plug-ins.

Figure 1-84 Select Extensibility, then Plug-ins

The Plug-ins page displays and shows the Plug-ins table. Locate the Databases folder in the Name column.

Expand the Databases folder in the Name column and click Oracle TimesTen In-Memory Database.

Figure 1-85 Select Oracle TimesTen In-Memory Database plug-in

You are now ready to undeploy the plug-in from the agent. Locate the Undeploy From tab at the top of the page.

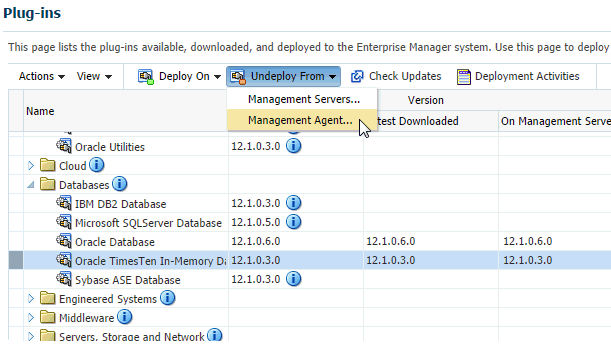

From the Undeploy From menu, select Management Agent....

Figure 1-86 Undeploy from Management Agent

The Undeploy Plug-in from Management Agent General dialog displays. The plug-in Oracle TimesTen In-Memory Database is displayed in the Name column. Locate the Add... button below the Management Agent with this plug-in title.

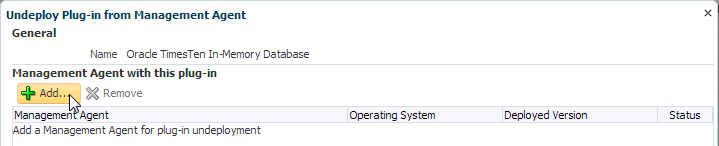

Click Add...

Figure 1-87 Click Add

The Select Targets dialog displays. You are now ready to select the agent to undeploy. Below the text "Select Status Up Agents where TimesTen In-Memory Database is deployed," ensure that the Target Type column equals Agent.

In the Target table, locate the row that contains the correct agent as identified by target name and host. Click in this row and then click Select.

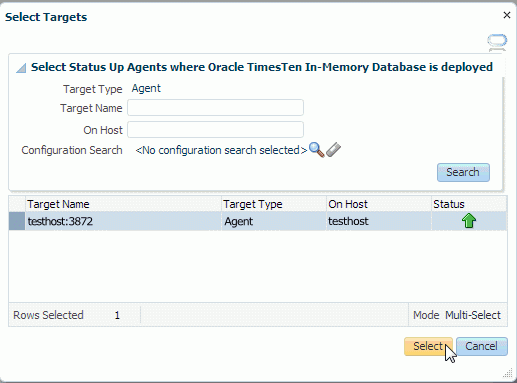

Figure 1-88 Select agent to undeploy

The Management Agent table is updated with the name of the Management Agent you selected.

Click Continue.

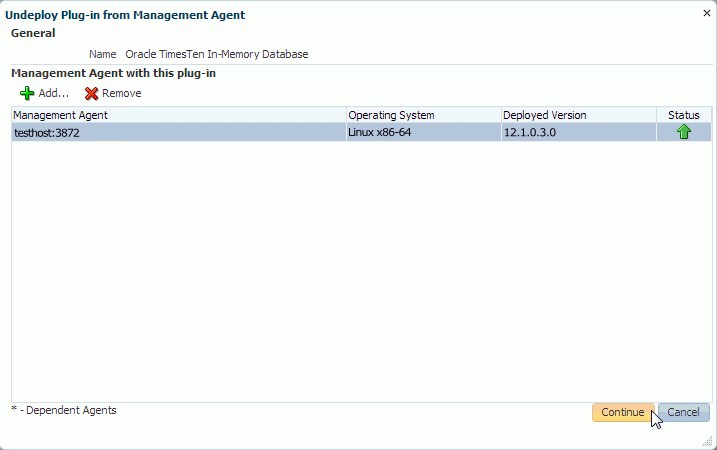

Figure 1-89 Click Continue

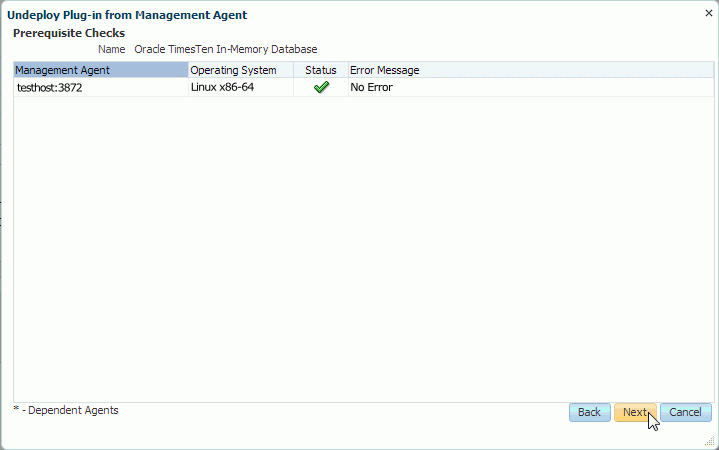

The Undeploy Plug-in from Management Prerequisite Checks dialog displays. Ensure that there is a green check mark in the Status column of the Management Agent table.

Click Next.

Figure 1-90 Click Next

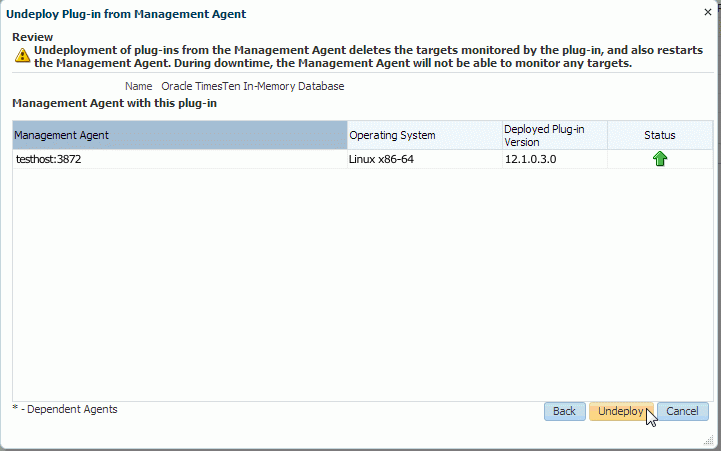

The Undeploy Plug-in From Management Agent Review dialog displays and shows the informational message, "Undeployment of plug-ins from the Management Agent deletes the targets monitored by the plug-in, and also restarts the Management Agent. During downtime, the Management Agent will not be able to monitor any targets."

In the Management Agent with this plug-in table, verify the name in the Management Agent column is correct.

Click Undeploy.

Figure 1-91 Click Undeploy

The Undeploy Plug-in from Management Agent Confirmation dialog displays with a message indicating the undeployment of the plug-in has started on selected agents. The undeployment time varies. You may monitor the undeployment status by clicking Show Status or going to the Recent Deployment Activities page.

Click Show Status.

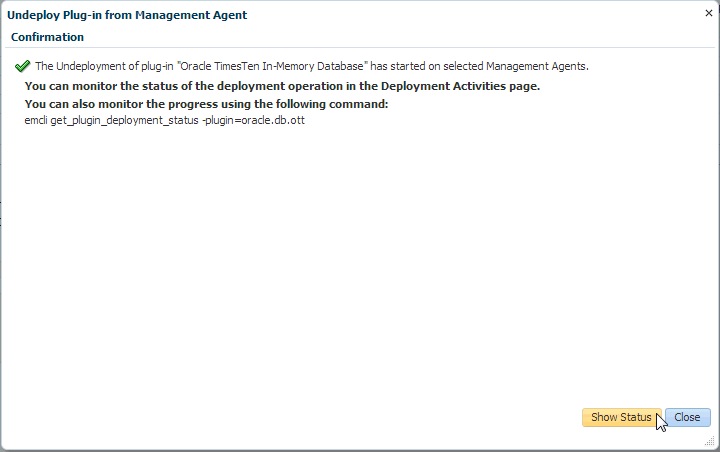

Figure 1-92 Undeploy agent confirmation

The Plug-ins Deployment Activities page displays showing the status of the undeployment steps in table format. Verify the first step located in the first row of the table contains the text, "Initialize" and verify the last step located in the last row of the table contains the text, "Update inventory." This is the last step in the undeployment process. Ensure that there are green checks in the Status column of each row in the Deployment Steps table. Such checks indicate all steps in the undeployment process are completed and are successful. Also, ensure that there is a green check in the Status column in the undeployment table located at the top of the page. If auto refresh is set to off, you may want to set auto refresh to 15 seconds, so you can see the steps as they are completed.

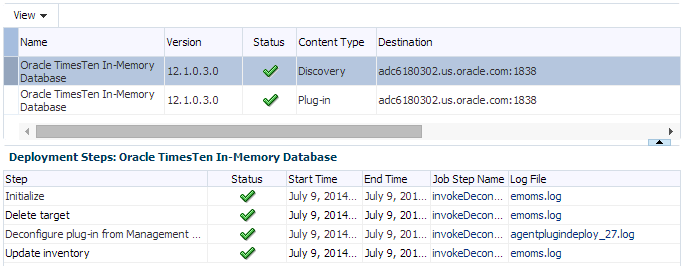

Figure 1-93 Undeployment successful

The plug-in is undeployed from the Management Agent and the automatic discovery scripts of the plug-in are removed from the Management Agent. Repeat Steps 1-8 to undeploy each management agent that is monitoring the plug-in.

You are now ready to undeploy the plug-in from the Oracle Management Service (OMS).

Undeploy the plug-in from OMS

Before you undeploy the plug-in from OMS, ensure that you have undeployed the plug-in from all the Management Agents that are monitoring the plug-in.

To undeploy the plug-in from OMS, ensure that you are on the Oracle Enterprise Manager Cloud Control home page.

From the Setup menu, select Extensibility, then select Plug-ins.

Figure 1-94 Select Extensibility, then Plug-ins

The Plug-ins page displays and shows the Plug-ins table. Locate the Databases folder in the Name column.

Expand the Databases folder in the Name column and select Oracle TimesTen In-Memory Database.

Figure 1-95 Select TimesTen In-Memory Database plug-in

You are now ready to undeploy the plug-in from OMS. Locate the Undeploy From tab at the top of the page.

From the Undeploy From menu, select Management Servers....

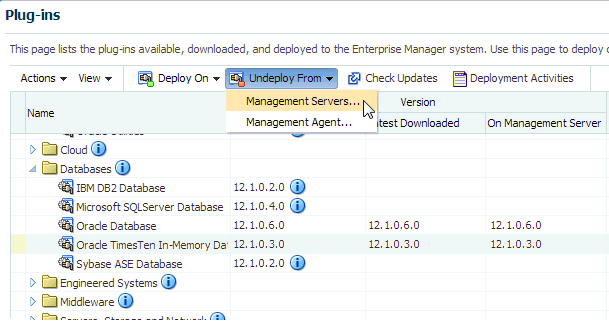

Figure 1-96 Undeploy from OMS

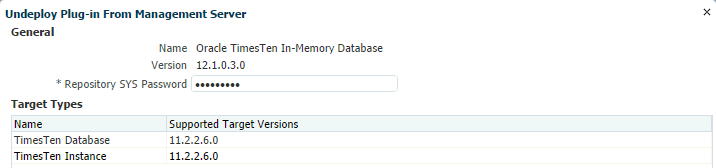

The Undeploy Plug-in from Management Server General page displays. The plug-in Oracle TimesTen In-Memory Database is displayed in the Name column and the Version is auto-filled. You must enter the Repository SYS user password.

In the *Repository SYS Password column, type the Repository SYS user password.

Figure 1-97 Repository SYS Password

Locate the Continue button in the bottom right of the dialog.

Click Continue.

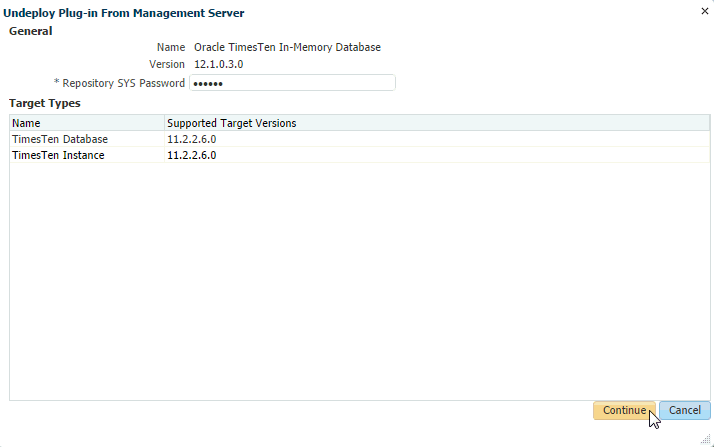

Figure 1-98 Click Continue

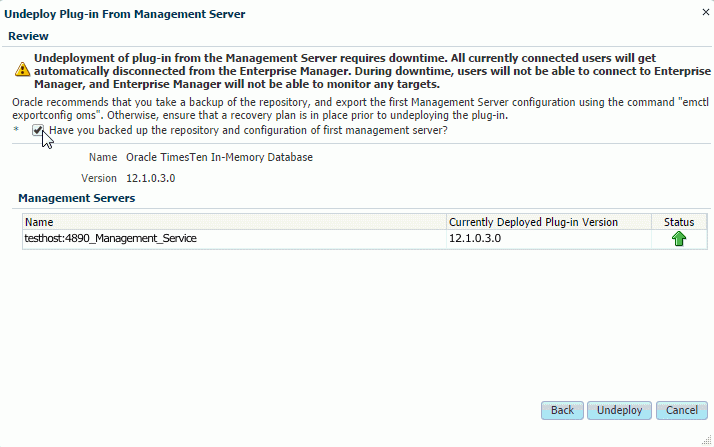

The Undeploy Plug-in From Management Server Review page displays. In the Management Servers table, verify the Management Server name is correct. Verify the version is correct. Also, consider making a backup of the OMS repository before deploying the plug-in. For more information on backing up the OMS repository, see "Backing Up the OMS" in the Oracle Enterprise Manager Cloud Control Advanced Installation and Configuration Guide.

Select the Have you backed up the repository and configuration of first management server? check box.

Figure 1-99 Select repository backup confirmation

Click Undeploy.

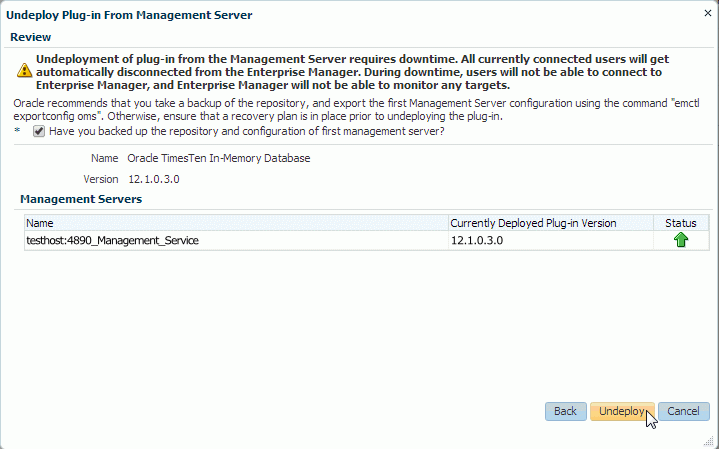

Figure 1-100 Review Undeploy from OMS

Note:

The Oracle Enterprise Manager Cloud Control server restarts during the undeployment process.

The Undeploy Plug-in From Management Server Confirmation page displays with a message indicating the undeployment of the plug-in is in progress. The undeployment time varies. You may monitor the undeployment status by clicking Show Status or going to the Recent Deployment Activities page.

Click Show Status.

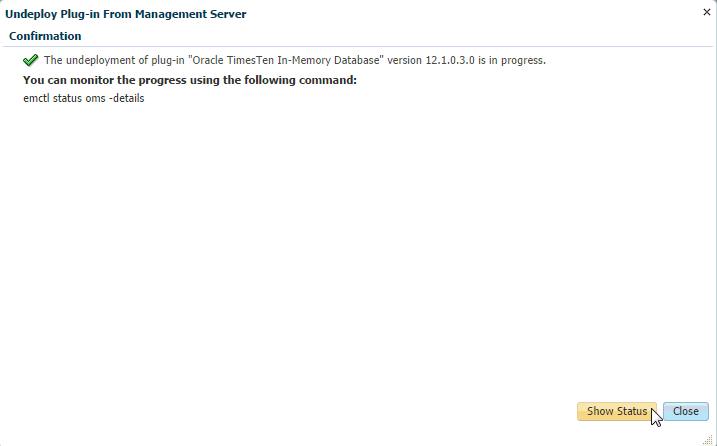

Figure 1-101 Undeploy from OMS confirmation

The Plug-ins Deployment Activities page displays showing the status of the undeployment steps in table format. Verify the last step located in the last row of the table contains the text, "Remove plugin's oracle home." This is the last step in the undeployment process. Ensure that there are green checks in the Status column of each row in the Deployment Steps table. Such checks indicate all steps in the undeployment process are completed and are successful. Also, ensure that there is a green check in the Status column in the undeployment table located at the top of the page. If auto refresh is set to off, you may want to set auto refresh to 15 seconds, so you can see the steps as they are completed.

Figure 1-102 Undeployment of OMS successful

The plug-in is undeployed from OMS.

You are now ready to delete the plug-in from OMS and the Management Agent.

Delete the plug-in

When you delete the plug-in, you remove the plug-in from the Oracle Enterprise Manager Cloud Control. To delete the plug-in, ensure that you are on the Oracle Enterprise Manager Cloud Control home page.

From the Setup menu, select Extensibility, then select Self Update.

Figure 1-103 Select Extensibility, then Self Update

The Self Update page displays. Locate the Plug-in folder.

Click the name Plug-in.

Figure 1-104 Plug-in folder

The Plug-in Updates page displays. In the Plug-in Name column, locate Oracle TimesTen In-Memory Database. Confirm the Status column is equal to Downloaded.

In the Plug-in Name column, click Oracle TimesTen In-Memory Database.

Figure 1-105 Plug-in updates

Prepare to expand the Actions tab located under Plug-in Updates at the top of the page.

Expand Actions and select Delete.

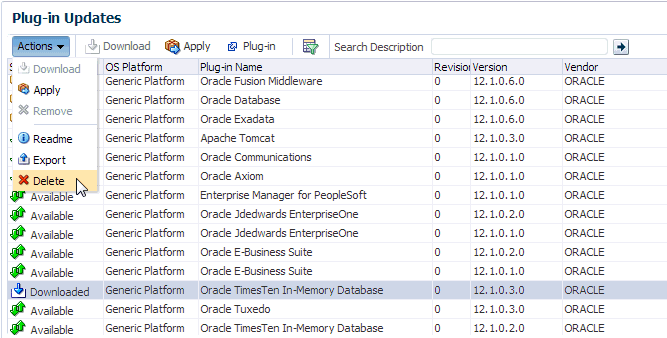

Figure 1-106 Delete plug-in

The Delete Update dialog displays indicating the delete will remove the update (plug-in) permanently. Prepare to confirm the delete by clicking Delete.

Click Delete.

Figure 1-107 Delete Update confirmation

A confirmation dialog displays indicating that the update (plug-in) has been deleted permanently.

Click OK.

Figure 1-108 Plug-in deleted

You have successfully deleted the plug-in. You can verify the plug-in has been deleted by reviewing the Plug-in Updates page. You should no longer see the TimesTen plug-in.

2 Working with the TimesTen Target Page

The TimesTen plug-in collects many metrics that are useful in troubleshooting performance issues. The TimesTen target page displays a collective view of your database or instance, the performance of your database, and control operations for your instance.

This chapter details the procedure for navigating to the TimesTen target page and provides an overview of the TimesTen target page.

Topics include:

Navigating to the TimesTen target page

Overview of the TimesTen instance target page

Overview of the TimesTen database target page

Setting the display time period and auto refresh rate of data on a target page

Viewing the log of control operations

Navigating to the TimesTen target page

To navigate to the TimesTen target page:

From the Targets menu, select All Targets on the Enterprise Manager Cloud Control 12c home page.

The All Targets page displays. Locate the Refine Search panel under All Targets.

Expand Target Type, then Databases and click TimesTen Instance or TimesTen Database.

Figure 2-1 Choose TimesTen Database

The target table displays. For each row in the table, confirm the column Target Type contains TimesTen Instance or TimesTen Database. The number of rows depends on the number of TimesTen targets you have configured. For example, if you configured two TimesTen targets, then you should see two rows in the table.

In the column Target Name, identify the TimesTen target you want to review, and click the Target Name. The target name is the name of the TimesTen target you configured.

Figure 2-2 Click the target name

The TimesTen target page displays. For more information on the TimesTen instance target page, see "Overview of the TimesTen instance target page". For more information on the TimesTen database target page, see "Overview of the TimesTen database target page".

Overview of the TimesTen instance target page

The TimesTen instance target page enables you to gather monitoring and metrics information specific to TimesTen instances and control the TimesTen daemon and server. Figure 2-3, "TimesTen instance target page" shows Enterprise Manager Cloud Control menu choices and menu choices that have been customized for TimesTen instance targets.

Figure 2-3 TimesTen instance target page

A description of the menu choices that have been customized for TimesTen instance targets follows:

Home

Displays high level information about the TimesTen instance. For more information, see Chapter 4, "Working with the TimesTen Instance Home Page".

Monitoring - All Metrics

Displays TimesTen instance metric information in table format. For more information, see "Viewing TimesTen instance metrics".

Control - Start/Stop Services

Displays controls to start and stop the TimesTen daemon and server. For more information, see "Start/stop services".

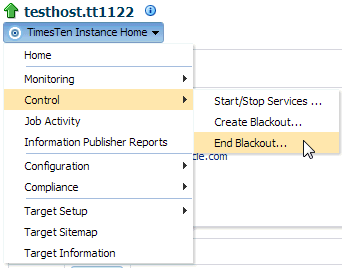

Control - Create Blackout

Displays controls to create a blackout to suspend all data collection activity on a target that is monitored by Enterprise Manager. For more information, see "Create blackout".

Control - End Blackout

Displays controls to end a blackout and resume all data collection activities on a target that is monitored by Enterprise Manager. For more information, see "End blackout".

Overview of the TimesTen database target page

The TimesTen database target page enables you to gather monitoring and metrics information specific to TimesTen database targets and control various functions of the TimesTen database. Figure 2-4, "TimesTen target page" shows Enterprise Manager Cloud Control menu choices and menu choices that have been customized for TimesTen database targets.

Figure 2-4 TimesTen target page

A description of the menu choices that have been customized for TimesTen targets follows:

Home

Displays high level performance metrics and configuration data. For more information, see Chapter 5, "Working with the TimesTen Database Home Page."

Monitoring - Performance Summary

Displays performance metrics in graphical format. For more information, see Chapter 6, "Working with the Performance Summary Page."

Monitoring - Transaction Monitor

Displays a snapshot of the current transactions in your TimesTen database and describes details about your transactions. For more information, see Chapter 7, "Working with the Transaction Monitor".

Monitoring - Client/Server Summary

Displays client/server information about your database. For more information, see Chapter 8, "Working with the Client/Server Page".

Monitoring - Cache Synchronization Metrics

Displays cache synchronization metrics. For more information, see Chapter 12, "Working with the Cache Synchronization Metrics Page."

Monitoring - Replication Monitor

Displays information for monitoring replication. For more information, see Chapter 13, "Working with the Replication Monitor."

Monitoring - All Metrics

Displays metric information about your TimesTen database target in table format. For more information, see "Viewing TimesTen database metrics".

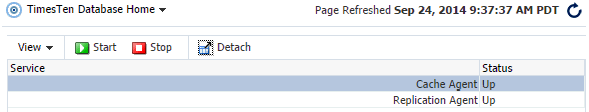

Control - Start/Stop Agents

Displays controls to start and stop the cache and replication agents. For more information, see "Start/stop agents".

Control - Ram Load/Unload and Policy Settings

Displays controls to control and configure the RAM policy of the TimesTen database. For more information, see "Ram load/unload and policy settings".

Control - Create Blackout

Displays controls to create a blackout to suspend all data collection activity on a target that is monitored by Enterprise Manager. For more information, see "Create blackout".

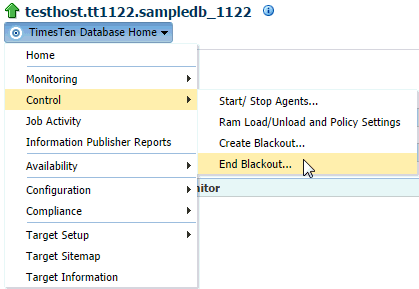

Control - End Blackout

Displays controls to end a blackout and resume all data collection activities on a target that is monitored by Enterprise Manager. For more information, see "End blackout".

Information Publisher Reports

Displays reports about your TimesTen database. For more information, see Chapter 16, "Viewing Reports."

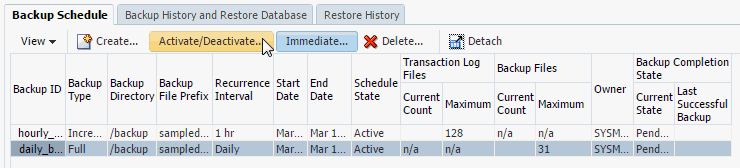

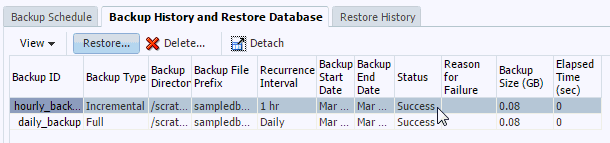

Availability - Backup & Restore

Displays controls to backup and restore the TimesTen database. For more information, see Chapter 11, "Working with the Backup and Restore Page".

Setting the display time period and auto refresh rate of data on a target page

Enterprise Manager enables you to set the display frequency and auto refresh rate of data on a target page.

Figure 2-5 View Data and Auto Refresh region

You can set the time period and auto refresh rate of data with the following options:

View data

Auto refresh

View data

The View Data option enables you to view data on a target page based on a historical time period or in real time. This option is not available on all TimesTen target pages and only affects graphs. When a TimesTen target page has a View Data option it is located in the top right corner of the page with the following options:

Real Time

Last 2 Hours

Last 24 Hours

Last 7 Days

Last 31 Days

Custom Time Period...

By default, every TimesTen target page uses a view data time period of Last 24 Hours. It is recommended to use the Real Time option of View Data when monitoring a TimesTen target.

Auto refresh

The Auto Refresh option enables you to control the auto refresh rate of a target page. This option is available on all TimesTen target pages and affects the whole target page. The Auto Refresh option is located in the top right corner of the target page and the options vary depending on the value of the View Data option.

Viewing the log of control operations

Enterprise Manager logs all control operations that are performed on Enterprise Manager targets. In some cases it is useful to review these logs.

From the Targets menu, select All Targets on the Enterprise Manager Cloud Control 12c home page.

Expand Target Type, then Middleware and click Oracle WebLogic Server.

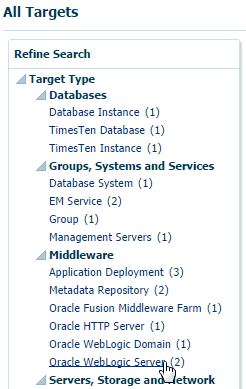

Figure 2-6 Select Oracle WebLogic Server

The target table displays. For each row in the table, confirm the column Target Type contains Oracle WebLogic Server.

In the column Target Name, identify the Oracle WebLogic Server target that manages your OMS, and click the Target Name. Typically this target name is /EMGC_EMGC_DOMAIN/EMGC_DOMAIN/EMGC_OMS1.

Figure 2-7 Click the target name

The WebLogic Server target page displays. Locate the WebLogic Server menu.

From the WebLogic Server menu, select Logs, then View Log Messages.

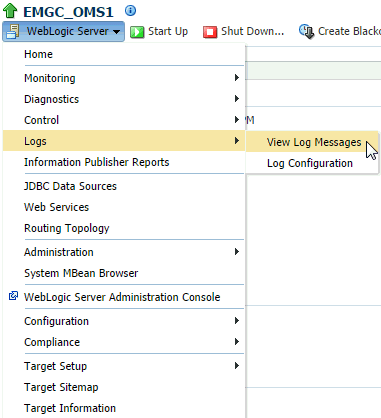

Figure 2-8 Select View Log Messages

The Log Messages page displays. Locate the Search Mode field in the Search region.

In the *Search Mode field, select the Online Logs option. If you want to search through archived logs or both types of logs, select Archive Logs or Both.

In the Date Range field, select an appropriate date range.

In the *Message Types field, select the type of messages that you want to search through. It is recommended to check all message types. TimesTen control operations are logged in trace files.

In the *Search field, select All Fields.

In the Keyword field, select contains from the drop-down list and enter OTT in the text field.

Click Search.

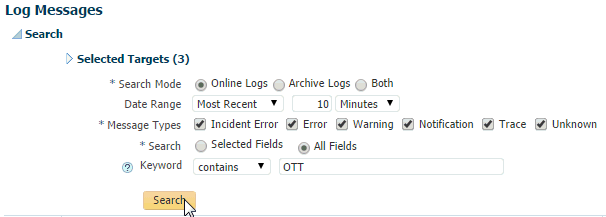

Figure 2-9 Search log messages

A processing dialog displays. The search can take several minutes. You should see your search results in the table below the Search region. Locate issues that you want to review.

Click in the row that identifies the issue that you want to troubleshoot.

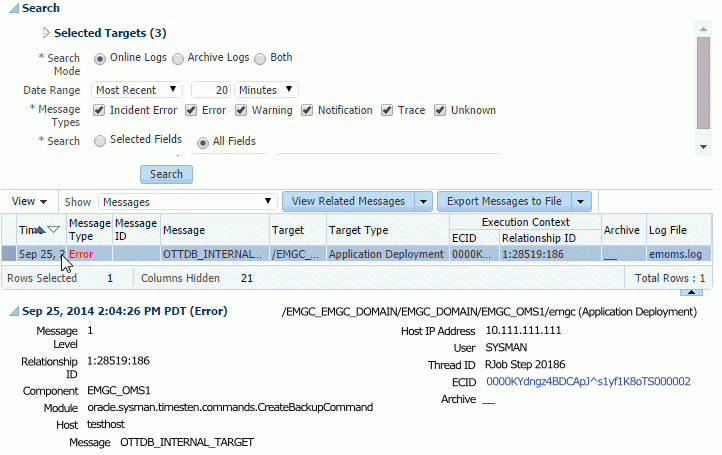

Figure 2-10 Search results

Troubleshoot the issues with the details that are displayed in the results region that is located at the bottom of the page.

3 Working with Access Control

This chapter focuses on access control of TimesTen targets in Oracle Enterprise Manager Cloud Control.

Topics include:

Overview of access control

Creating a group

Defining roles

Creating users

Granting preferred credentials to users

Overview of access control

The Oracle Enterprise Manager uses privileges that are assigned to roles to manage targets and their operations. Targets can be grouped into groups. A TimesTen Enterprise Manager administrator can assign roles and groups to users to determine how and what they can manipulate in a TimesTen target.

Note:

The default super administrator of Enterprise Manager, SYSMAN, can view and control all TimesTen targets without having to belong to a group or be assigned a role.

Creating a group

You must create these groups:

A group that contains the host or hosts that contains your TimesTen targets.

A group that contains the TimesTen targets that this group can view and control. You can combine TimesTen instances and databases into a single group or create multiple groups.

From the Targets menu, select Groups.

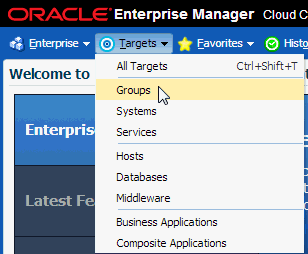

Figure 3-1 Select Groups

The Groups page displays. Locate the Create button above the group table.

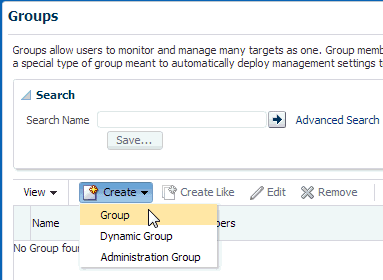

Expand Create and select Group.

Figure 3-2 Create a group

The Add Target Create Group page displays. Prepare to enter the properties for your group. The first property is the group name.

In the *Name text field, you define the group name. Choose a name that is a meaningful identifier. (For example, datacenter1_hosts or datacenter1_databases.)

Click in the check box to the right of Privilege Propagation. This setting allows group users to have access to new targets that are added to this group at a later date.

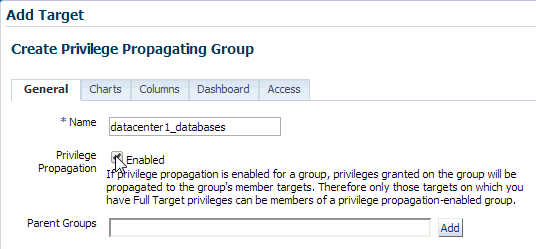

Figure 3-3 Enable privilege propagation

You are now ready to add member targets to your group. You can combine any type of Enterprise Manager target in your group, including TimesTen instance and TimesTen database targets. However, ensure that you create separate groups for hosts and TimesTen targets. For more information on adding TimesTen targets, see "Configure a TimesTen target".

Locate the Add button in the Members region.

Click Add.

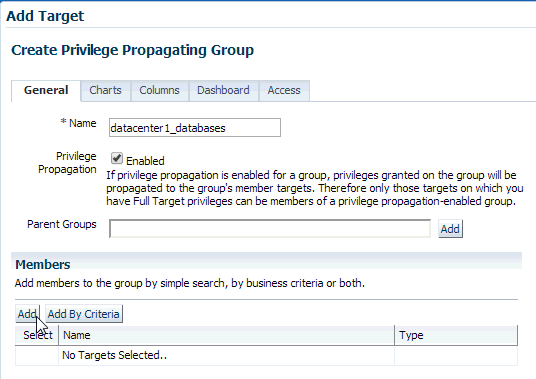

Figure 3-4 Add member

The Search and Select: Targets page displays. Locate the Target Type drop-down list in the Search region.

Expand the drop-down list labeled Target Type and select Host, TimesTen Instance, or TimesTen Database.

Note:

Ensure that you separate hosts and TimesTen targets into different groups.

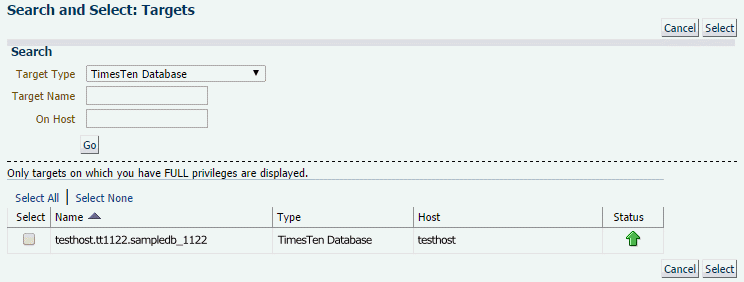

Figure 3-5 Search results

The page refreshes with the results of your search. In the Name column, locate the row that contains the target name that you want to add to the group. Confirm the status is a green up arrow.

Select the check box of the row that identifies the Name of the row containing the target. If you want to add multiple targets, select the corresponding check box of any additional targets.

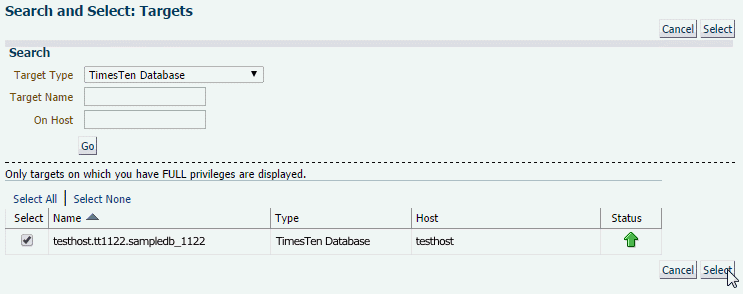

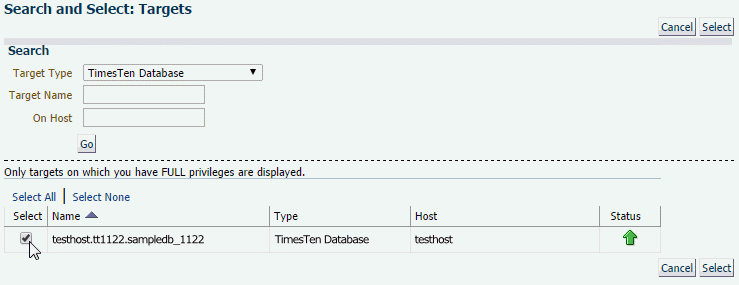

Figure 3-6 Select target

Locate the Select button.

Click Select.

Figure 3-7 Click Select

The Search and Select: Targets page closes and the Add Target Create Privilege Propagating Group page refreshes. You should now see your selected target in the Members table. Locate the OK button in the top right corner of the page.

Click OK.

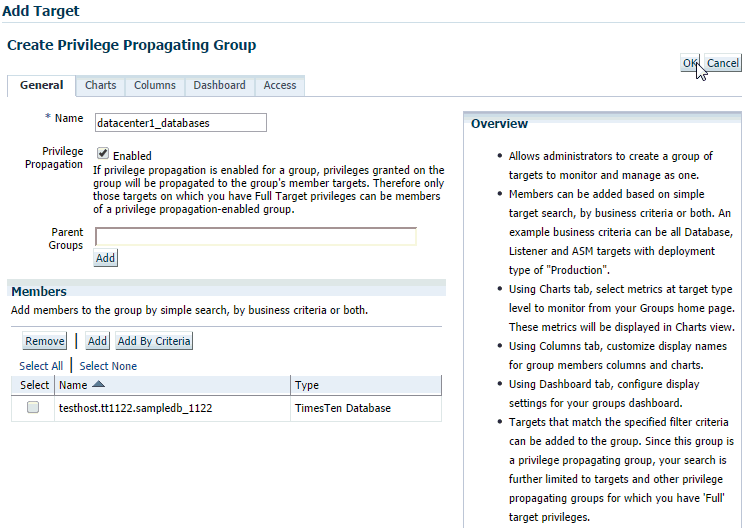

Figure 3-8 Click OK

The Information Dialog displays. You should see the informational message "Group group_name has been added." Locate the OK button.

Click OK.

Figure 3-9 Group added

The Information dialog closes. You successfully created an Enterprise Manager group.

Your Enterprise Manager group is created. Repeat steps 1-9 to create additional groups. If you have one host group and at least one TimesTen target group, you can define Enterprise Manager roles.

Defining roles

Create a role that contains the privileges that you want to assign to Enterprise Manager users.

Ensure that you have at least one host group and one TimesTen target group. For more information on the steps to create an Enterprise Manager group, see "Creating a group".

From the Setup menu, select Security, then select Roles.

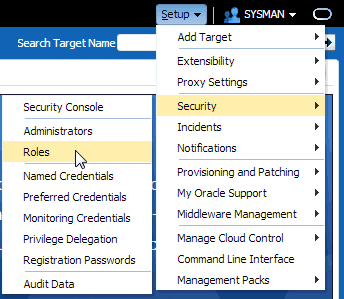

Figure 3-10 Select Roles

The Security Roles page displays. Locate the Create button above the Roles table.

Click Create.

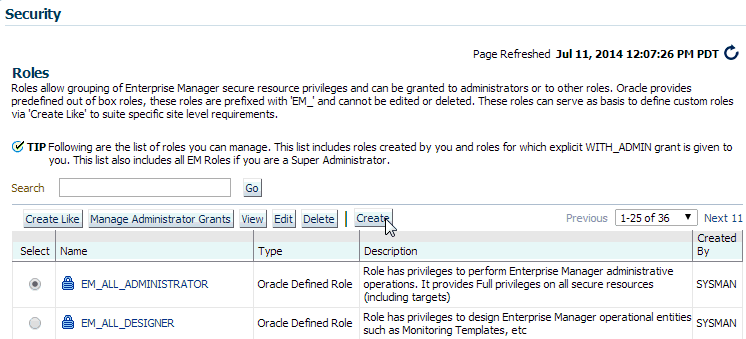

Figure 3-11 Click Create

The Create Role: Properties page displays. You are now ready to enter the Enterprise Manager role properties. The first property is the role name.

In the *Name text field, you define the role name. Choose a name that is a meaningful identifier. (For example, TimesTen database administrators.)

In the *Name text field, type the Enterprise Manager role name.

Locate the Next button in the upper right corner of the page.

Click Next.

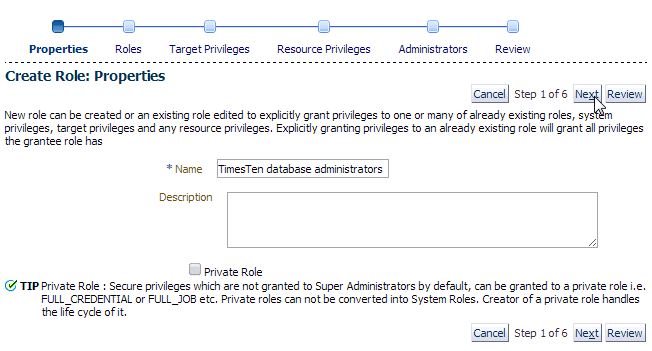

Figure 3-12 Click Next

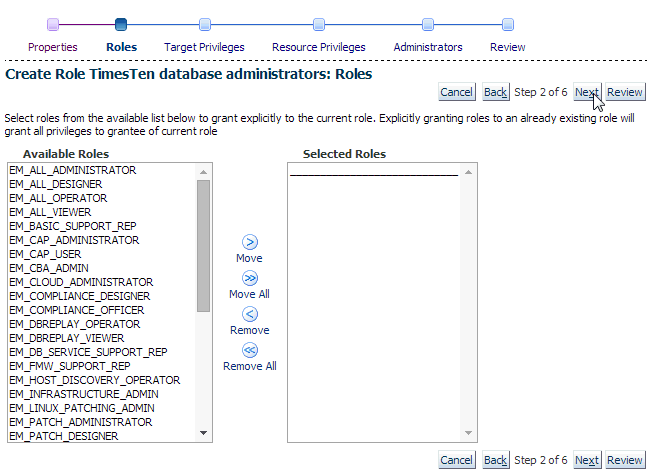

The Create Role role_name: Roles page displays. Locate the Next button in the upper right corner of the page.

Click Next.

Figure 3-13 Click Next

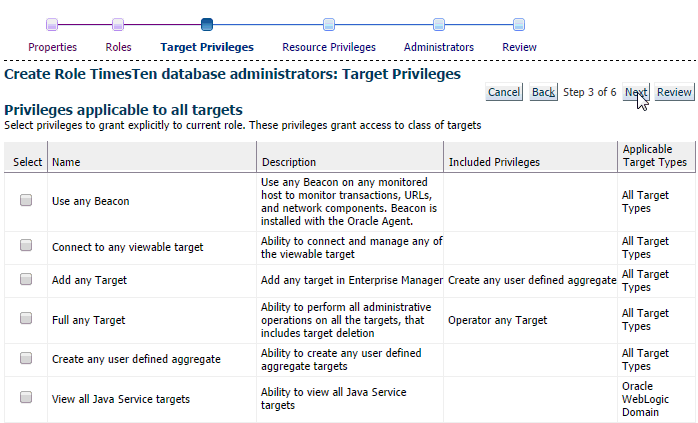

The Create Role role_name: Target Privileges page displays. Locate the Target Privileges region at the bottom of the page.

Click the Add button from the Target Privileges region.

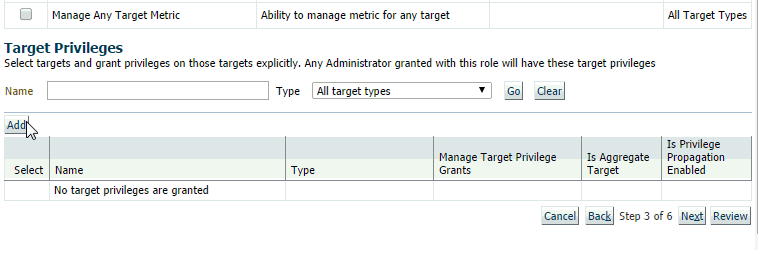

Figure 3-14 Select privilege(s)

The Search and Add: Targets page displays. Locate the Target Type drop-down list in the Search region.

Expand the drop-down list labeled Target Type and select Group.

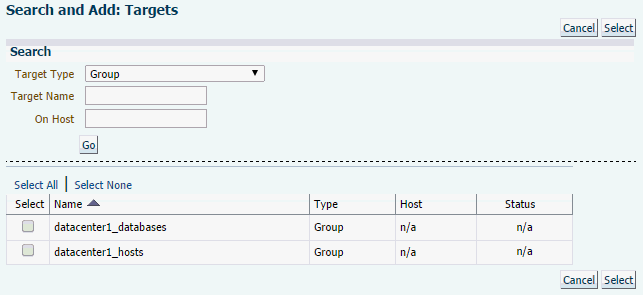

Figure 3-15 Search results

The page refreshes with the results of your search. In the Name column, locate the row that contains the group names that you want to add to the role. You should have at least one TimesTen target group and its respective host group.

Select the check boxes of the rows that identify the Name of the rows containing the groups. Ensure to select a TimesTen target group and its respective host group.

Figure 3-16 Select groups

Locate the Select button.

Click Select.

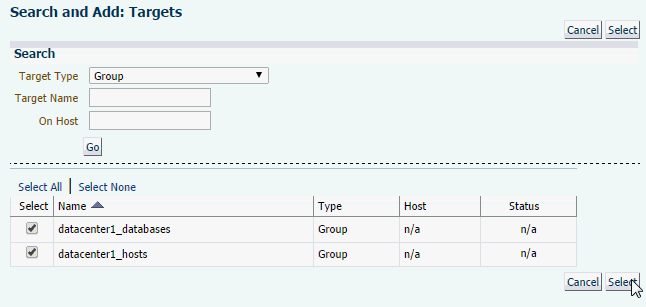

Figure 3-17 Click Select

The Search and Add: Targets page closes and the Create Role role_name: Target Privileges page refreshes. You should now see your selected groups in the Target Privileges table. In the Target Privileges table, locate the row that contains your TimesTen target group. In the TimesTen target group row, locate the pencil button in the Manage Target Privilege Grants column.

In the TimesTen target group row, click the pencil button in the Manage Target Privilege Grants column.

Figure 3-18 Manage target privilege grants

The Create Role role_name: Target Privileges page refreshes. Locate the Target Privileges table.

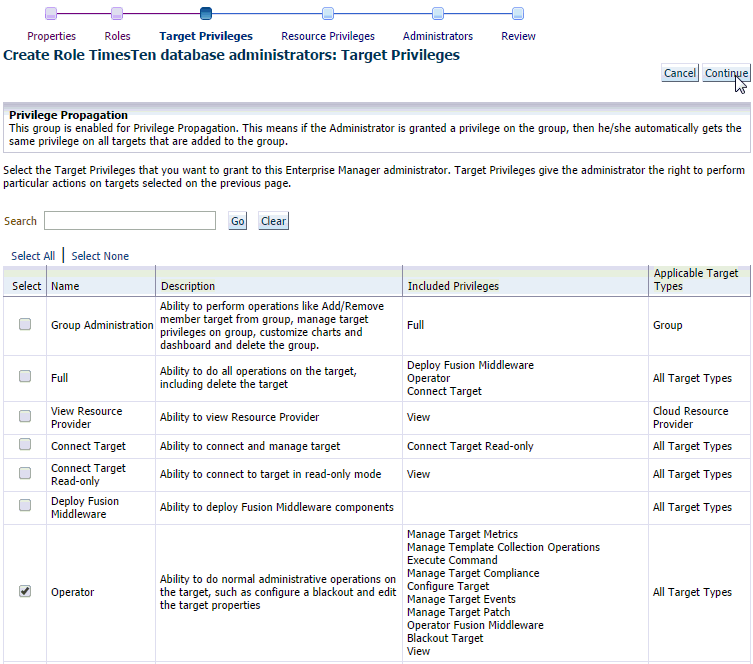

The Target Privileges table contains all of the available Enterprise Manager privileges that you can assign to a group. Enterprise Manager Cloud Control has a variety of privileges, but only two privileges are important for TimesTen operations:

View

This privilege is needed to view TimesTen targets.

Operator

This privilege is needed for TimesTen target control operations. The operator privilege includes the view privilege.

Identify the Name of the privilege(s) that you want to assign to this role.

Select the check box of the row that identifies the Name of the privilege that you want to assign to this group. If you want to add multiple privileges, select the corresponding check box of any additional privilege.

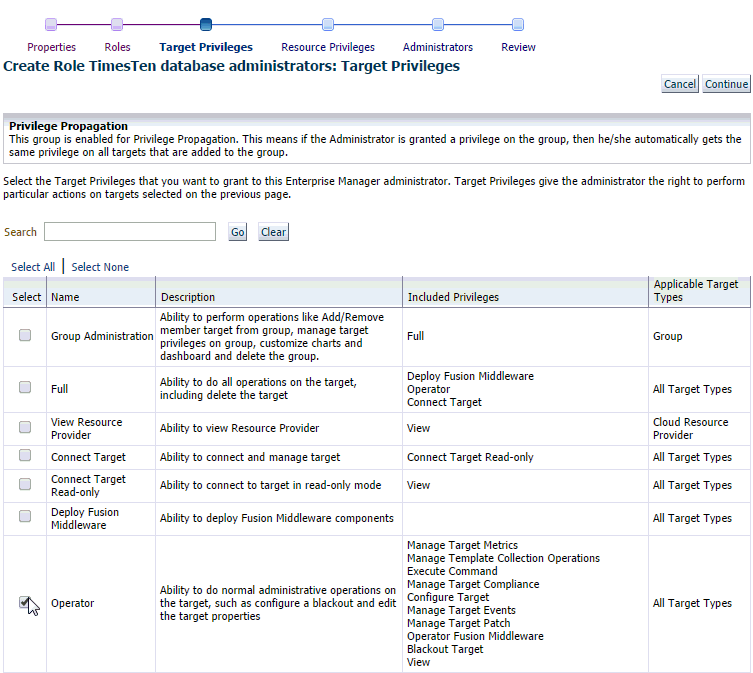

Figure 3-19 Select privileges

Locate the Continue button in the upper right corner of the page.

Click Continue.

Figure 3-20 Click Continue

The Create Role role_name: EM Resource Privileges page displays. In the Target Privileges table, locate the row that contains your host group. In the TimesTen target group row, locate the pencil button in the Manage Target Privilege Grants column.

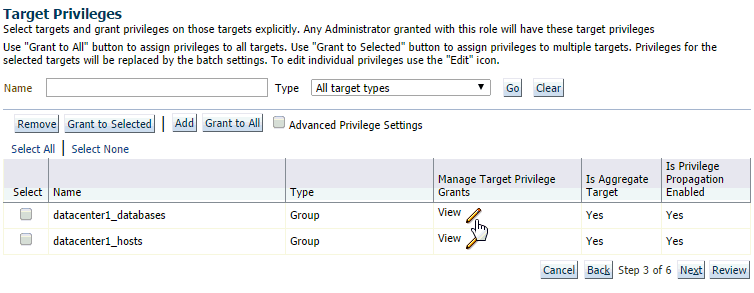

In the host group row, click the pencil button in the Manage Target Privilege Grants column.

Figure 3-21 Manage target privilege grants

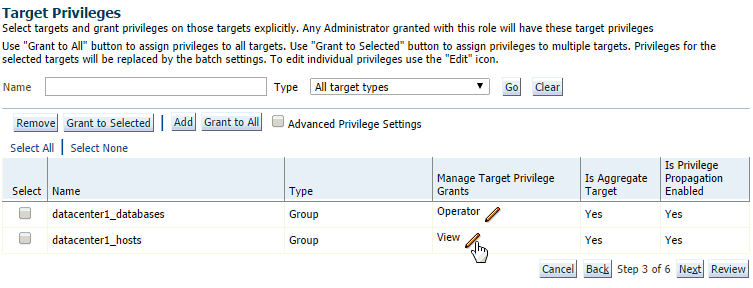

The Create Role role_name: Target Privileges page refreshes. Locate the Target Privileges table.

The Target Privileges table contains all of the available Enterprise Manager privileges that you can assign to a group. Enterprise Manager Cloud Control has a variety of privileges, but only two privileges are important for host operations:

View

This privilege is needed to view Enterprise Manager host.

Execute Command

This privilege is needed for TimesTen targets to execute operating system commands on a host. The Execute Command privilege is required to control the TimesTen agents, TimesTen database, and TimesTen server, and load and unload the TimesTen database from memory.

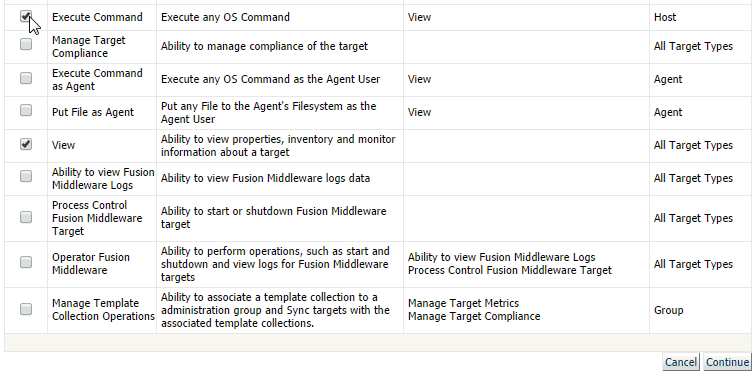

Identify the Name of the privilege(s) that you want to assign to this role.

Select the check box of the row that identifies the Name of the privilege that you want to assign to this group. If you want to add multiple privileges, select the corresponding check box of any additional privilege.

Figure 3-22 Select privileges

Locate the Continue button in the bottom right corner of the page.

Click Continue.

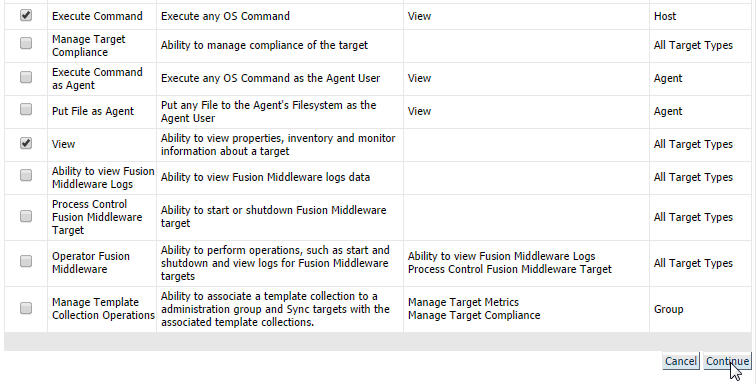

Figure 3-23 Click Continue

The Create Role role_name: Target Privileges page displays. Locate the Next button in the upper right corner of the page.

Click Next.

Figure 3-24 Click Next

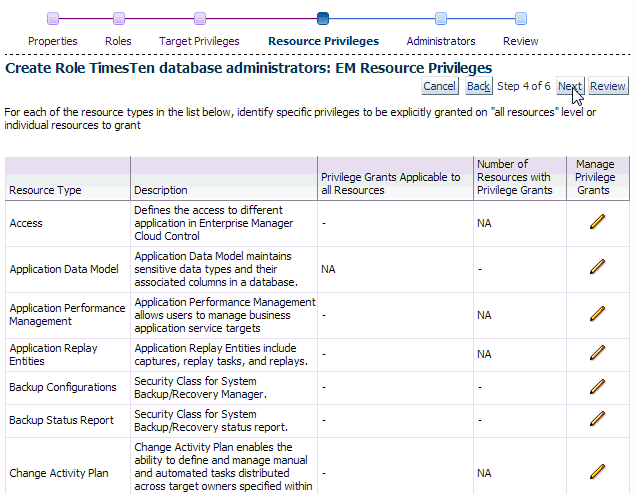

The Create Role role_name: EM Resource Privileges page displays. Locate the resource type list.

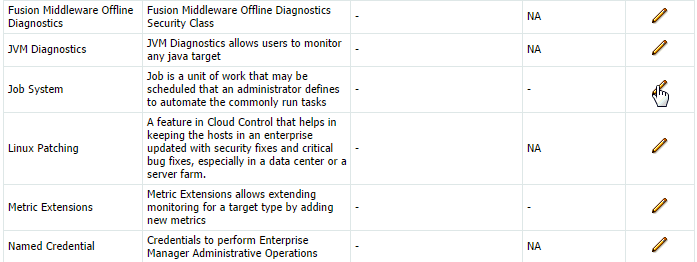

In the resource type list, locate the row that contains Job System as identified by the Resource Type Column. Click the pencil button in the Manage Privilege Grants column.

Figure 3-25 Click the pencil button

The Create Role role_name: Manage Privileges: Job System page displays. Locate the Resource Type Privileges table.

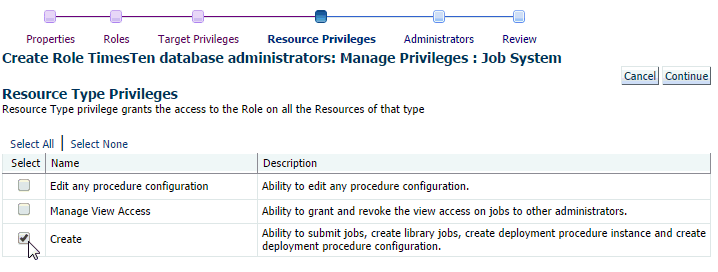

Select the check box of the row that identifies the Create privilege.

Figure 3-26 Select the check box

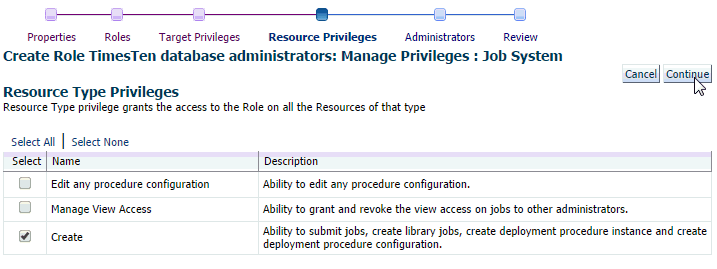

Locate the Continue button in the upper right corner of the page.

Click Continue.

Figure 3-27 Click Continue

The Create Role role_name: EM Resource Privileges page displays. Locate the Next button in the upper right corner of the page.

Click Next.

Figure 3-28 Click Next

The Create Role role_name: Administrators page displays. Locate the Next button in the upper right corner of the page.

Click Next.

Figure 3-29 Click Next

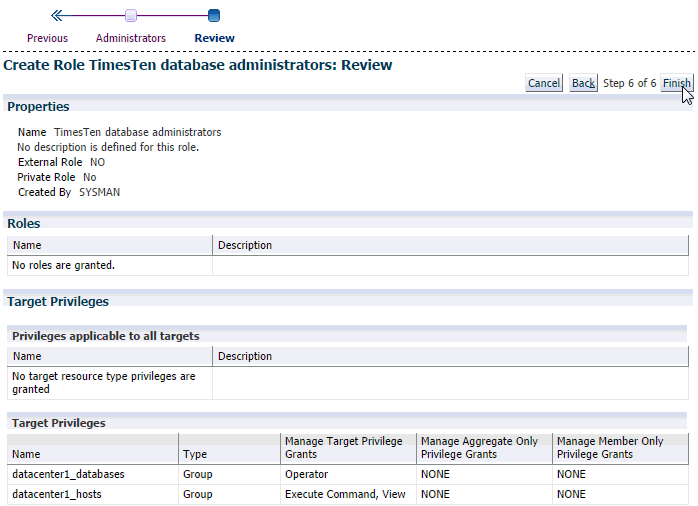

The Create Role role_name: Review page displays. In the Properties region, verify the role name is correct. Also, verify that the correct privileges are in the Privileges applicable to all targets table. Locate the Finish button in the upper right corner of the page.

Click Finish.

Figure 3-30 Click Finish

The Security Roles page displays with a confirmation message that indicates that you successfully created the Enterprise Manager role.

Figure 3-31 Role creation confirmation

You are now ready to create an Enterprise Manager user.

Creating users

Create a user that can control and view your TimesTen targets.

From the Setup, select Security, then select Administrators.

Figure 3-32 Select Administrators

The Security Administrators page displays. Locate the Create button above the group table.

Click Create.

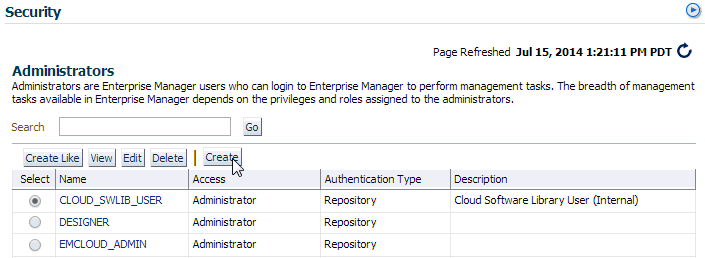

Figure 3-33 Click Create

The Create Administrator: Properties page displays. You are now ready to enter the Enterprise Manager user properties. The first property is the user name.

In the *Name text field, you define the user name. Choose a name that is a meaningful identifier. (For example, terry.)

In the *Name text field, type the user name.

In the *Password text field, type the password for the user.

In the *Confirm Password text field, re-type the password.

Locate the Next button in the upper right corner of the page.

Click Next.

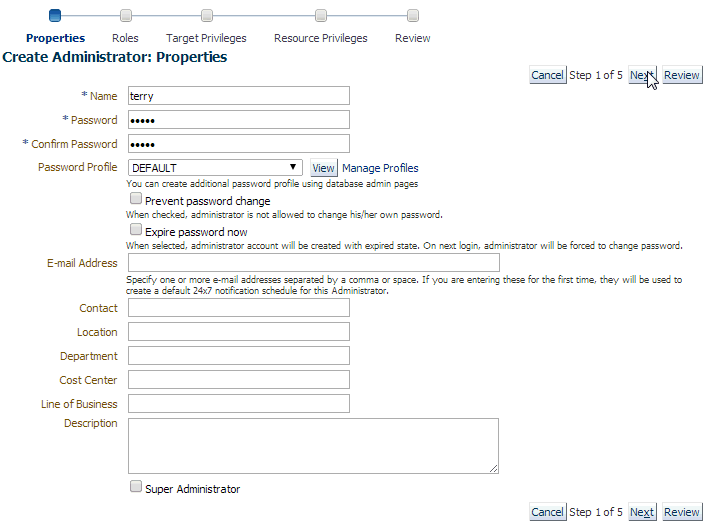

Figure 3-34 Click Next

The Create Administrator username: Roles page displays. You are now ready to assign a role to your user.

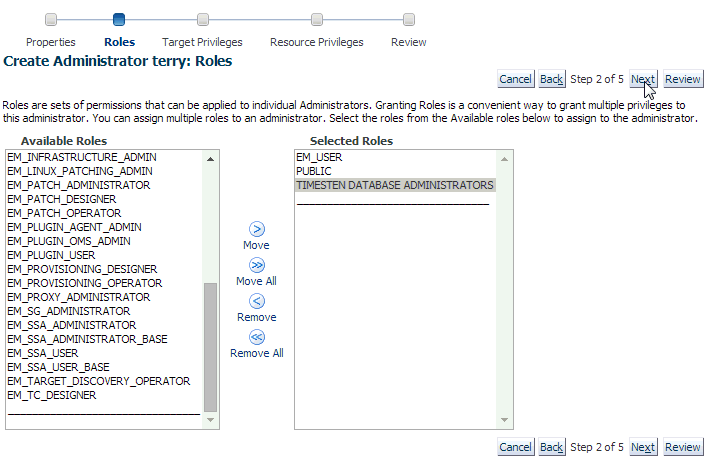

In the Available Roles list, locate the row that contains your TimesTen role. Double click the role name. If you want to assign multiple roles, double click the corresponding role name of any additional roles.

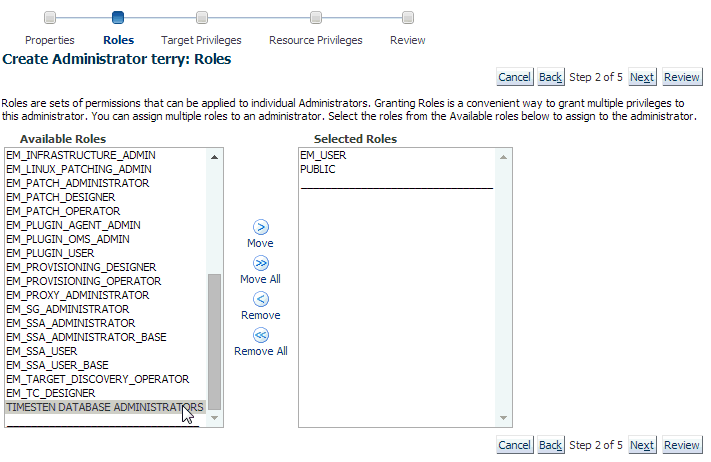

Figure 3-35 Assign a role

Locate the Next button in the upper right corner of the page.

Click Next.

Figure 3-36 Click Next

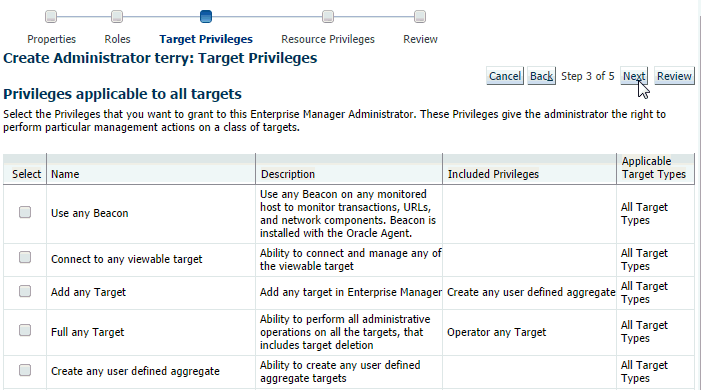

The Create Administrator username: Target Privileges page displays. Locate the Next button in the upper right corner of the page.

Click Next.

Figure 3-37 Click Next

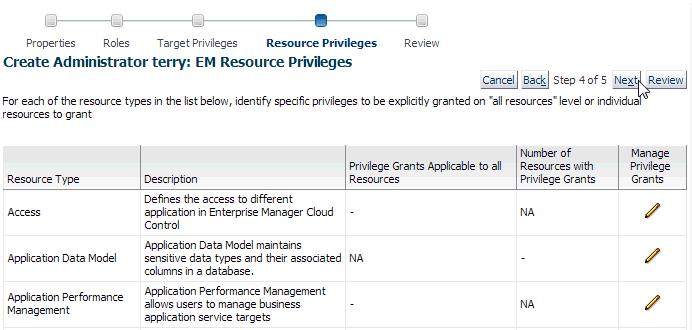

The Create Administrator username: EM Resource Privileges page displays. Locate the Next button in the upper right corner of the page.

Click Next.

Figure 3-38 Click Next

The Create Administrator username: Review page displays. In the Properties region, verify that the user name is correct. Also, verify that the correct roles are in the Roles table. Locate the Finish button in the upper right corner of the page.

Click Finish.

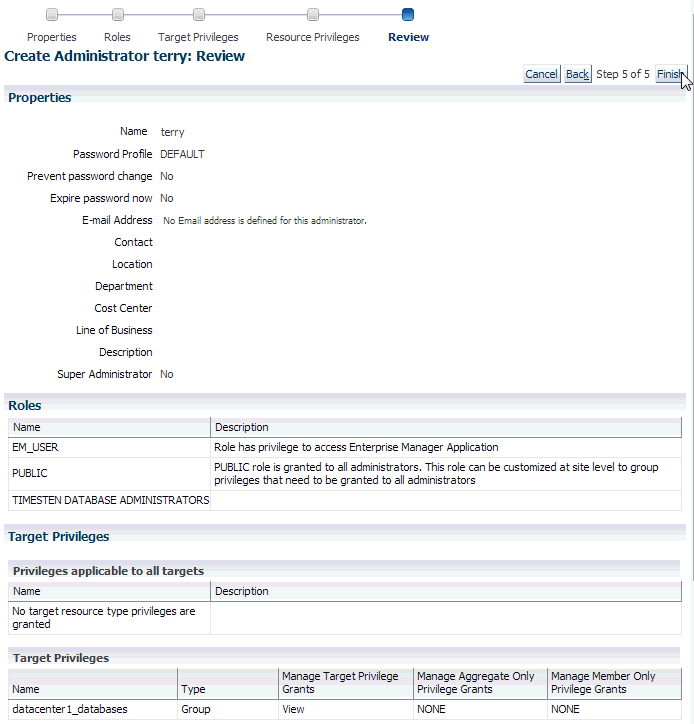

Figure 3-39 Click Finish

The Security Administrators page displays with a confirmation message that indicates that you successfully created the Enterprise Manager user.

Figure 3-40 User creation confirmation

You have successfully created an Enterprise Manager user that can view and control TimesTen targets.

Granting preferred credentials to users

Enterprise Manager enables you to grant a user access to preferred credentials that you created for a target with the SYSMAN user. Target preferred credentials are required to perform several operations on TimesTen targets. Ensure that you have set preferred credentials for the SYSMAN user before proceeding with this section. For more information, see "Setting preferred credentials for a target".

To grant a user access to preferred credentials, ensure that you are on the Oracle Enterprise Manager Cloud Control home page and are logged in as user SYSMAN.

From the Setup menu, select Security, then select Named Credentials.

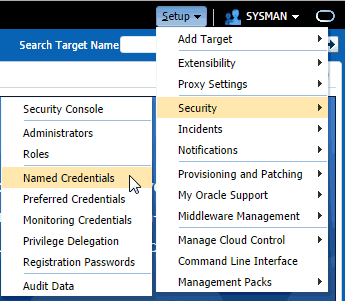

Figure 3-41 Select Named Credentials

The Security Named Credentials page displays. Locate the credential name in the Credential Name column.

Click the credential name.

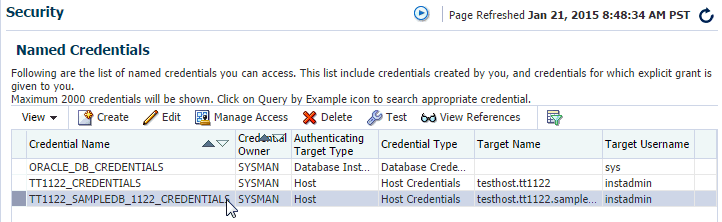

Figure 3-42 Select credential name

You are now ready to grant the preferred credentials to a user. Locate the Manage Access button.

Click Manage Access.

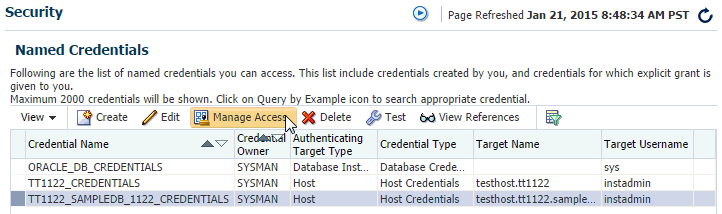

Figure 3-43 Click Manage Access

The Security Manage Access: credential_name page displays. Locate the Add Grant button in the Access Control region.

Click Add Grant.

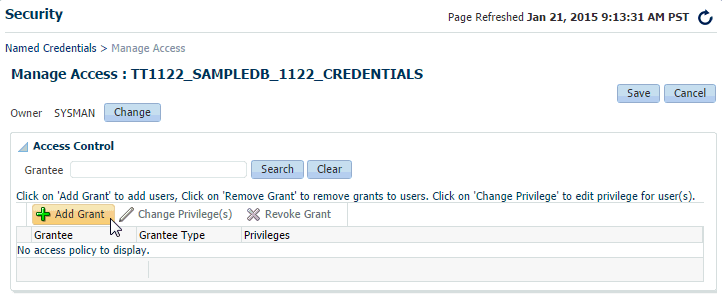

Figure 3-44 Click Add Grant

The Search and Select - Roles - Oracle Enterprise Manager dialog displays.

In the dialog, locate the row that contains the correct user name. Click in this row and click Select.

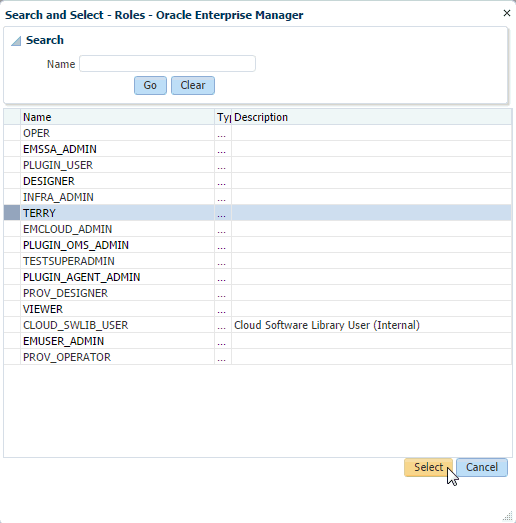

Figure 3-45 Select user name

The Search and Select - Roles - Oracle Enterprise Manager dialog closes and the Security Manager Access: credential_name page refreshes. You should see your selected user name in the table in the Access Control region. Locate the Save button in the upper right corner of the page.

Click Save.

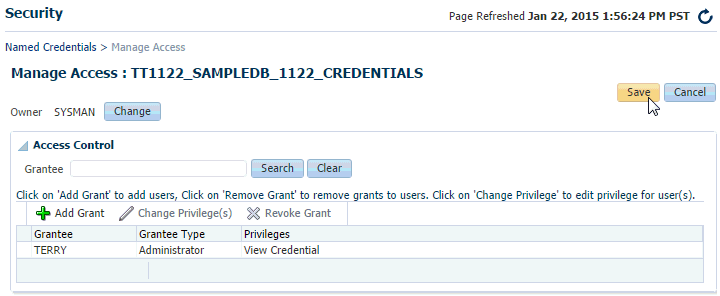

Figure 3-46 Click Save

The Security Named Credentials page displays. Repeat steps 1-6 to grant access to additional preferred credentials to users.

To enable preferred credentials on an Enterprise Manager user account, logon to Enterprise Manager using the user credentials. Then, follow the instructions in "Setting preferred credentials for a target" and assign the existing named credentials as noted in step 6.

You have successfully granted a user access to preferred credentials of a SYSMAN user target.

4 Working with the TimesTen Instance Home Page

This chapter describes the TimesTen instance home page. The home page conveys high level information about the TimesTen instance.

Topics include:

Viewing the TimesTen instance home page

Analyzing information on the TimesTen instance home page

Viewing the TimesTen instance home page

To view the home page, ensure that you are on the TimesTen instance target page. For information on navigating to the TimesTen instance target page, see "Navigating to the TimesTen target page".

From the TimesTen Instance Home menu, select Home.

The TimesTen home page displays.

Analyzing information on the TimesTen instance home page

The TimesTen instance home page consists of four regions each of which has been customized specifically for TimesTen instance targets.

The four home page regions described in detail include:

Instance summary

Daemon status

Server status

Hosted databases

Instance summary

Figure 4-1 Instance summary region

This region shows information about your TimesTen instance target:

Instance

The name of your current TimesTen instance.

Version

The version of your current TimesTen instance.

Hostname

The name of the host where TimesTen is running. This is a link that lets you view the host target page.

Administrator

The operating system username of the TimesTen instance administrator.

Click the Details button to view additional details about your TimesTen instance. The TimesTen instance target needs preferred credentials to display additional instance details. For more information on setting preferred credentials, see "Setting preferred credentials for a target". The detailed instance information dialog displays the output of the ttVersion -m utility. For more information on the ttVersion utility and its output, see "ttVersion" in the Oracle TimesTen In-Memory Database Reference.

Daemon status

Figure 4-2 Daemon status region

This region shows information about the TimesTen daemon:

Daemon status

This value can be either Up or Down. The TimesTen daemon need to be Up to use the TimesTen instance and TimesTen database. For more information on how to start and stop the TimesTen daemon, see "Start/stop services".

Port

The port number on which the TimesTen daemon listens. If this port number causes conflicts with another application, consider using the ttmodinstall -port utility to modify the TimesTen daemon port number. For more information, see "ttmodinstall" in the Oracle TimesTen In-Memory Database Reference.

Process ID

The process identifier of the TimesTen daemon process.

Server status

Figure 4-3 Server status region

This region shows information about the TimesTen server:

Server status

This value can be either Up or Down. The TimesTen server need to be Up for TimesTen databases that belong to this TimesTen instance to accept client/server connections. For more information on how to start and stop the TimesTen server, see "Start/stop services".

Port

The port number on which the TimesTen server listens. If this port number causes conflict with another application, consider modifying the TimesTen server port number. For more information, see "Modifying the TimesTen Server options" in the Oracle TimesTen In-Memory Database Operations Guide.

Process ID

The process identifier of the TimesTen server process.

Hosted databases

Figure 4-4 Hosted databases region

This region shows the databases that are part of your TimesTen instance in a table format. This information is useful in determining the status of all of the databases associated with this TimesTen instance.

A description of each column follows:

Database

This value is taken from the last part of the path to the datastore. For example, if the path to the datastore is /var/tt/sampledb_1122, the database name is sampledb_1122.

If the database is a TimesTen database target you can click the database name to open the home page of the TimesTen database target. For more information on the TimesTen database home page, see "Working with the TimesTen Instance Home Page".

Total Connections

The total number of direct linked and client/server connections to the database.

Client Server Connections

The number of client/server connections to the database.

RAM Status

This value can be either Loaded or Not loaded. The RAM status is Loaded if the database is loaded into memory.

Cache Agent

This value can be either Up, Down, or N/A. If you have not configured a cache group, then this value is N/A. The Cache Agent is used for read or write caching of data in an Oracle 11g or 12c database. For more information, on how to start and stop the cache agent, see "Start/stop agents".

Replication Agent

This value can be either Up, Down, or N/A. If you have not configured a replication scheme, then this value is N/A. TimesTen uses the Replication Agent to either replicate data between TimesTen databases or to asynchronously write data to an Oracle 11g or 12c database. For more information, on how to start and stop the cache agent, see "Start/stop agents".

PLSQL

This value can be either Enabled or Disabled. Once PL/SQL support is enabled in a database, you cannot disable it later. For more information, see "PLSQL" in the Oracle TimesTen In-Memory Database Reference. By default, this column is hidden. To enable this column, click the View button, then Columns, and then click the PLSQL option.

In addition, you can select a row and click Details to view all of the connections to a certain database. If you click Details, a Current Connections dialog opens showing the connections to the database. The Current Connections dialog displays the connection output of the ttStatus DSN utility. For more information on the ttStatus utility and its output, see "ttStatus" in the Oracle TimesTen In-Memory Database Reference.

5 Working with the TimesTen Database Home Page

This chapter describes the TimesTen database home page. The TimesTen database home page conveys high level configuration and performance information about your TimesTen database.

Topics include:

Viewing the TimesTen home page

Analyzing information on the TimesTen home page

Viewing the TimesTen home page

To view the home page, ensure that you are on the TimesTen database target page. For information on navigating to the TimesTen database target page, see "Navigating to the TimesTen target page".

From the TimesTen Database Home menu, select Home.

The TimesTen database home page displays.

Analyzing information on the TimesTen home page

The TimesTen home page consists of three regions each of which has been customized specifically for TimesTen database targets.

The three home page regions described in detail include:

Status and Summary

Performance Overview and Issues

SQL Execution Time and Monitor

Status and Summary

The Status and Summary region consists of three subregions:

Summary

Status

Configuration

Summary

Figure 5-1 Summary region

This region shows information about your TimesTen target:

Database name

This value is taken from the last part of the path to the database. For example, if the path to the database is /var/tt/sampledb_1122, the database name is sampledb_1122.

Instance name

The name of your current TimesTen instance. This is a link that lets you view the TimesTen instance target page.

TimesTen version

The version of your current TimesTen instance.

Hostname

The name of the host where TimesTen is running. This is a link that lets you view the host target page.

Oracle Net Service Name

The service name of the Oracle database used for cache and to load data from an Oracle database into the TimesTen database. If you have not configured the Oracle Net Service Name, then this value is Not Specified.

Status

Figure 5-2 Status region

This region shows status information including:

TimesTen Server

This value can be either Up or Down. The TimesTen Server is the listener process that enables client/server connections to the database. For more information on how to start and stop the TimesTen server, see "Start/stop services".

Cache Agent

This value can be either Up or Down. If you have not configured a cache group, then this value is Down. The Cache Agent is used for read or write caching of data in an Oracle database. For more information, on how to start and stop the cache agent, see "Start/stop agents".

Replication Agent

This value can be either Up or Down. If you have not configured a replication scheme, then this value is Down. TimesTen uses the Replication Agent to either replicate data between TimesTen databases or to asynchronously write data to an Oracle database. For more information, on how to start and stop the replication agent, see "Start/stop agents".

Loaded Since

The date and time when the database was loaded into memory.

Configuration

Figure 5-3 Configuration region

This region shows configuration information specific to your database. These attributes are first connection attributes and the values are set at first connect. For more information on first connection attributes, see "Connection Attributes" in the Oracle TimesTen In-Memory Database Reference.

Allocated PERM Space

Allocated TEMP Space

Internal Log Buffer Size

PL/SQL Memory Segment Size

Performance Overview and Issues

The Performance Overview and Issues region consists of two tabs:

Performance Overview

Issues

Performance Overview

The Performance Overview region consists of three subregions:

Database Usage (%)

Database Connections

Free Space (%)

Database Usage (%)

Figure 5-4 Database Usage region

This region uses a line graphs to show permanent and temporary space currently in use. The values are expressed as a percentage of what was configured at database first connect. For information on the configured values, see the Summary, Status, and Configuration regions.

The X-Axis represents time. The Y-Axis represents the percent of permanent space in use and the percent of temporary space in use.

High database usage may indicate the need to grow the database by allocating more permanent or temporary space.

Database Connections

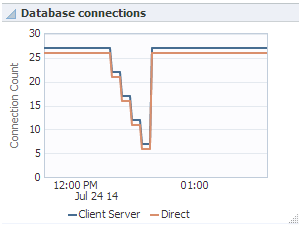

Figure 5-5 Database connections region

This region uses a line graph to show the number of direct linked connections and client/server connections. These line graphs change according to time to show not only the current value but also the values collected in recent metric collections.

The X-Axis represents time. The Y-Axis represents the number of current direct linked connections and the number of client/server connections. These connections do not include subdaemon connections or connections created by the TimesTen plug-in to collect configuration and performance data.

Free Space (%)

Figure 5-6 Free Space region

This region uses a graph to show the free space in the file systems where the checkpoint and transaction log files are currently located.

The X-Axis represents time. The Y-Axis represents the free space in the checkpoint file system and the free space in the transaction log file system. If you configured the checkpoint and transaction log files in the same file system and path, the two lines will be on top of each other and you will see one line.

A very low percentage of free disk available may indicate a need to install a larger disk.

Issues

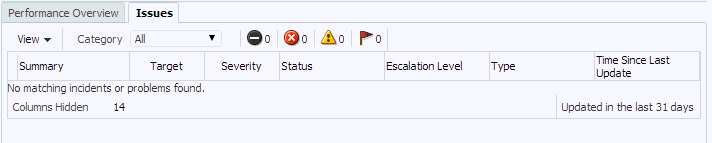

Figure 5-7 Issues region

This region displays alerts that have exceeded either warning or error thresholds.

SQL Execution Time and Monitor

The SQL Execution Time and Monitor consists of two tabs.

SQL Monitor

SQL Execution Time Histogram

SQL Monitor

Figure 5-8 SQL Monitor region

This regions shows the top SQL statements in the SQL command cache expressed in table format. This information is useful in analyzing your queries. It may be useful to sort by the number of executions to see the SQL statements that are most executed. It may also be useful to exclude system SQL commands by clicking in the box to the left of Exclude System.

As you review the top executions, look at the values in the Prepare Count column. If the SQL query is not prepared, then you should prepare the query. For optimal performance, a SQL statement should be prepared once and executed many times. If the number of prepares for a SQL statement is large then verify if your application can be enhanced to minimize the number of prepares per SQL statement.

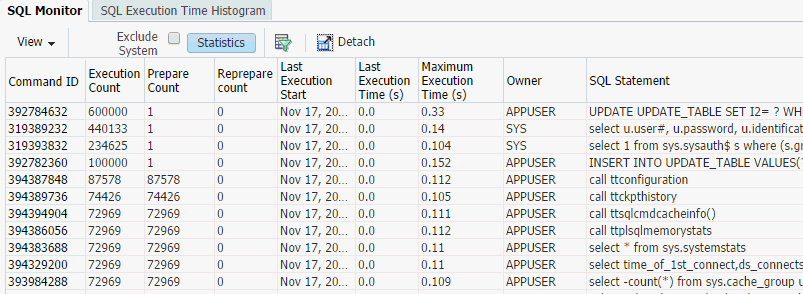

Click the Statistics button at the top of the table to view the number of cached commands and the current space allocated to store cached commands. This information is derived from the output values of the ttSQLCmdCacheInfo2 built-in procedure. For more information about the ttSQLCmdCacheInfo2 built-in procedure, see "ttSQLCmdCacheInfo2" in the Oracle TimesTen In-Memory Database Reference.

Click the Query By Example at the top of the table to enable query fields for the Owner and SQL Statement columns.

In addition, you can review the queries in the SQL Statement column. You can copy and paste this SQL query into the worksheet in SQL Developer and review the results from Explain Plan. You can also paste the SQL query into ttIsql and look at the showplan for the query. This may give you a better understanding of how and why your queries are performing as they are.

You can also click the column header to sort the table based on the column. A description of each column follows:

Note:

The columns are sorted based on the rows that are currently loaded in the SQL Monitor table. To sort the table based on all the rows from the ttSQLCmdCacheInfo2 built-in procedure, ensure that you are viewing data in Real Time. For more information on viewing data in Real Time, see "View data".

Command ID

A unique identifier for the SQL command. The TimesTen database generates this number.

Execution Count

A counter for the number of executions that took place on this command since it was brought into the command cache.

Prepare Count

A counter for the number of prepares for a SQL statement.

Reprepare count

A counter of the number of reprepares.

Last Execution Time (s)

The last execution time for a SQL statement.

Maximum Execution Time (s)

The maximum execution time for a SQL statement.

Owner

The identifier of the user who created the command.

SQL Statement

The SQL text.

SQL Execution Time Histogram

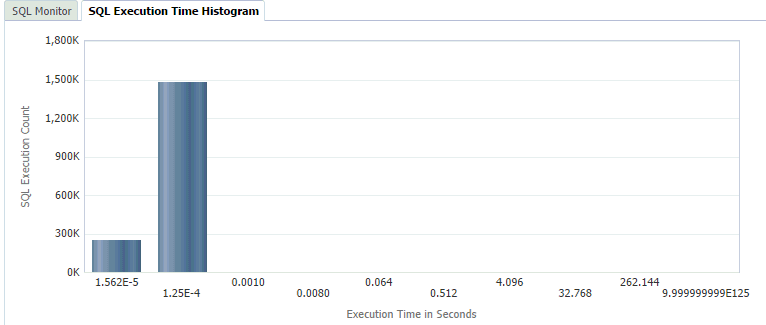

Figure 5-9 SQL Execution Time Histogram region

This region shows a histogram with the number of SQL commands that have been executed since command cache sampling has been enabled. The histogram is populated with output of the ttSQLExecutionTimeHistogram built-in procedure. For more information on the ttSQLExecutionTimeHistogram built-in procedure, see "ttSQLExecutionTimeHistogram" in the Oracle TimesTen In-Memory Database Reference.

The histogram is populated when the TimesTen database is configured to take sample SQL command cache. To enable TimesTen to take sample SQL command caches, call the ttStatsConfig built-in procedure with the SQLCmdSampleFactor parameter set to a value that is between 0 and 60000. For more information about the ttStatsConfig built-in procedure, see "ttStatsConfig" in the Oracle TimesTen In-Memory Database Reference.

For example, call the ttStatsConfig built-in procedure with the following parameters and values to enable command cache sampling for every single SQL command:

Command> call ttStatsConfig('SqlCmdSampleFactor',1);
< SQLCMDSAMPLEFACTOR, 1 >
1 row found.

The histogram has the following fixed interval times:

0 seconds to .00001562 seconds

.00001562 seconds to .000125 seconds

.0000125 seconds to .001 seconds

.001 seconds to .008 seconds

.008 seconds to .064 seconds

.064 seconds to .512 seconds

.512 seconds to 4.096 seconds

4.096 seconds to 32.768 seconds

32.768 seconds to 262.144 seconds

262.144 seconds to 9.999999999E+125 seconds

To reset the SQL execution time histogram, call the ttStatsConfig built-in procedure with the SQLCmdHistogramReset parameter set to a value that is not 0. For more information about the ttStatsConfig built-in procedure, see "ttStatsConfig" in the Oracle TimesTen In-Memory Database Reference.

For example, call the ttStatsConfig built-in procedure with the following parameters and values to reset the SQL execution time histogram:

Command> call ttStatsConfig('SQLCmdHistogramReset',1);
< SQLCMDHISTOGRAMRESET, 1 >
1 row found.

6 Working with the Performance Summary Page

This chapter describes the TimesTen performance summary page. The performance summary page displays performance specific information that has been customized for your TimesTen database targets.

Topics include:

Viewing the performance summary page

Analyzing information on the TimesTen performance summary page

Viewing the performance summary page

To view the performance summary page, ensure that you are on the TimesTen database target page. For information on navigating to the TimesTen database target page, see "Navigating to the TimesTen target page".

From the TimesTen Database Home menu, select Monitoring, then select Performance Summary.

Analyzing information on the TimesTen performance summary page

Figure 6-1 shows the seven performance specific areas that have been customized for your TimesTen database targets. Click a specific tab to view detailed performance information.

Figure 6-1 Performance tabs

A description of each area follows:

Connections

Statements

Workload

Commits and rollbacks

Locks

Transaction Logs

Checkpoints

Connections

The connections tab enables you to view information about database connections and disconnections. The connections tab contains one graph region:

Connects and disconnects

Connects and disconnects

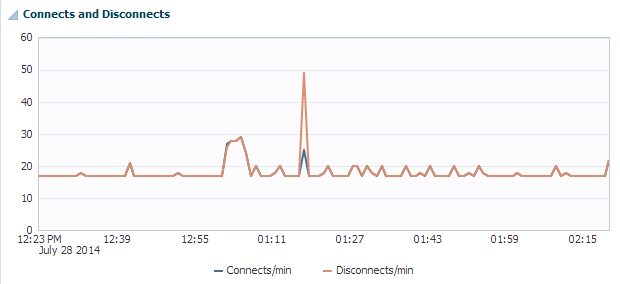

Figure 6-2 Connects and disconnects region

The connects and disconnects rates region uses a line graph to show the number of connects and disconnect per minute.

The X-Axis represents time. The Y-Axis represents the number of connects and disconnects per minute. These numbers represent all connects and disconnects from applications and connections created by the TimesTen plug-in to collect configuration and performance data.

If you see a high rate of connects and disconnects, then investigate why you are seeing this high rate. You may consider modifying your applications to do connection pooling.

Statements

The statements tab enables you to compare and review the execution rates of your SQL statements. It is divided into four regions:

Write rates

Read rates

Ratio of prepares to executes

Break up of executed statement types

Write rates

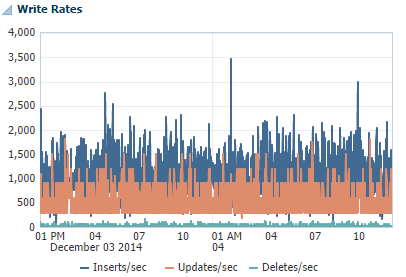

Figure 6-3 Write Rates region

The write rates region uses a line graph to show the rate of INSERT, UPDATE, and DELETE statements executed per second.

Read rates

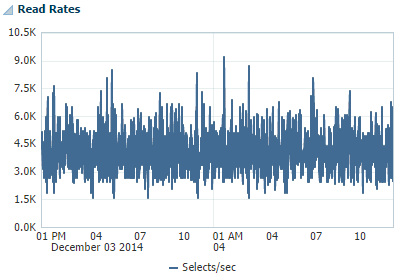

Figure 6-4 Read Rates region

The read rates region uses a line graph to show the rate of SELECT statements executed per second.

Ratio of prepares to executes

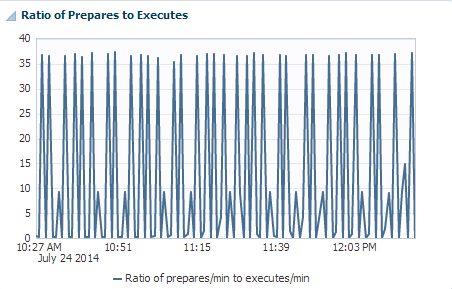

Figure 6-5 Ratio of Prepares to Executes region

The ratio of prepare to execute rates region uses a line graph to show the overall performance of the statements that are executing.

If SQL statements are prepared for every execute, the ratio of prepares to executes is equal to a value of 1.0. This type of ratio impacts performance. Preparing SQL statements is CPU intensive. Try to minimize the number of times your SQL statements are prepared. In your applications, consider using bind variables. You can then prepare your SQL statements once and then execute your SQL statements multiple times.

A value less than 1.0 means that there are more executes than prepares. When this occurs, the statements being executed are already in the SQL command cache and are already prepared. This results in less work that must be done to execute the statement.

Break up of executed statement types

The break up of executed statement types region displays information about executed statements. The region is divided into two sub-regions:

Summary

Detail

Summary

Figure 6-6 Summary sub-region

The summary sub-region shows the total number of SQL statements that have been executed since the database has been loaded into memory. There is also a field that shows the date and time when the database was loaded into memory.

Detail

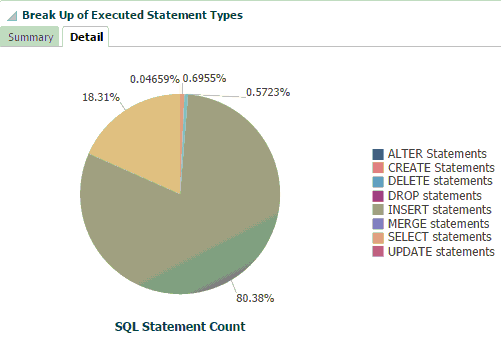

Figure 6-7 Detail sub-region

The detail sub-region has a pie chart that shows the types of SQL statements that have executed since your TimesTen database target was loaded into memory.

Workload

The workload tab shows the workload of your TimesTen target. The page is divided into two regions:

Write workload

Read workload

Prepares and reprepares

Write workload

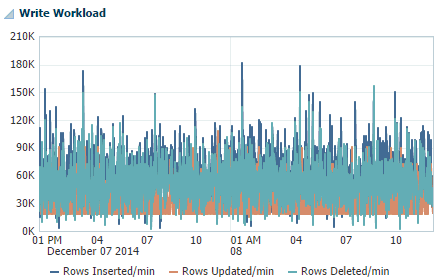

Figure 6-8 Write Workload region

The write workload region uses a line graph to show the number of table rows deleted, inserted, and updated per minute.

The write workload region is populated when the TimesTen database is enabled to collect all database and operating system statistics. To enable TimesTen to collect all database and operating system statistics, call the ttStatsConfig built-in procedure with the StatsLevel parameter set to ALL.

Command> call ttStatsConfig('StatsLevel','ALL');< STATSLEVEL, ALL >1 row found.

For more information about the ttStatsConfig built-in procedure, see "ttStatsConfig" in the Oracle TimesTen In-Memory Database Reference.

Read workload

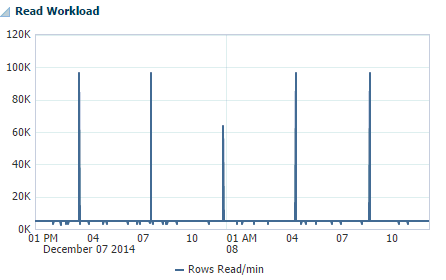

Figure 6-9 Read Workload region

The read workload region uses a line graph to show the number of table rows read per minute.

The read workload region is populated when the TimesTen database is enabled to collect all database and operating system statistics. To enable TimesTen to collect all database and operating system statistics, execute the ttStatsConfig built-in procedure with the StatsLevel parameter set to ALL.

Command> call ttStatsConfig('StatsLevel','ALL');< STATSLEVEL, ALL >1 row found.

For more information about the ttStatsConfig built-in procedure, see "ttStatsConfig" in the Oracle TimesTen In-Memory Database Reference.

Prepares and reprepares

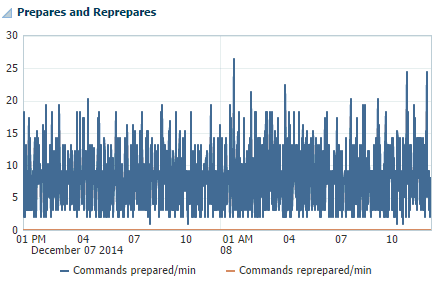

Figure 6-10 Prepares and reprepares

The prepares and reprepares region uses a line graph to show the number of commands prepared per minute and the number of commands reprepared per minute. If you see a high number of reprepared commands per minute, then this is an indication that there are invalidations occurring. This results in performance degradation.

In your applications, consider using bind variables and prepare your SQL statement once. You can then execute the SQL statement multiple times. If you do this, the number of commands prepared per minute should approach zero.

Commits and rollbacks

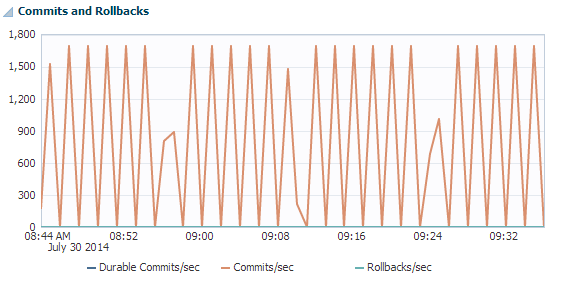

Figure 6-11 Commits and rollbacks region

The commits and rollbacks region uses a line graph to show the relationship between durably committed transactions, committed transactions, and rollbacks.

The X-Axis represents time. The Y-Axis represents the rate of transactions durably committed, non-durably committed, and rolled back per second.

Locks

The locks page shows information related to the performance of the locks and concurrent operations of your TimesTen database target. It contains three regions:

Locks and deadlocks

Lock grants

Percentage of acquired locks without wait

Locks and deadlocks

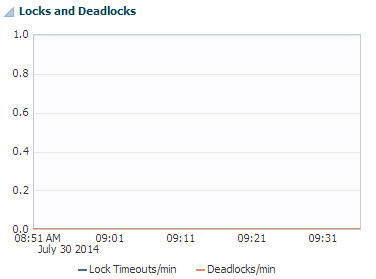

Figure 6-12 Locks and Deadlocks region

The locks and deadlocks region uses a line graph to show the rate of deadlocks per minute and the lock timeouts per minute.

The deadlock rate should be as low as possible. If you see a continued or growing rate of deadlocks, review the way in which your application acquires resources. If the deadlock rate is greater than zero, review the "Working with the Transaction Monitor".

Lock timeouts per minute should be low. If the lock timeouts per minute is not low, then this is an indication there is contention for the same resource. To find out what is causing the lock timeouts, review the "Working with the Transaction Monitor".

Lock grants

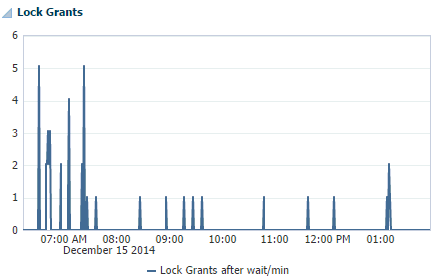

Figure 6-13 Lock Grants region

The lock grants region uses a line graph to show the lock grants after wait per minute. The rate of locks granted after wait should be low indicating that locks were acquired on time. Ideally, the rate should be 0.

Percentage of acquired locks without wait

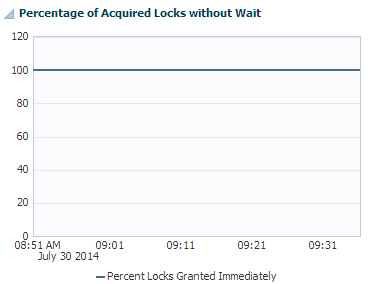

Figure 6-14 Percentage of Acquired Locks without Wait region

The percent of acquired locks without wait uses a line graph to show the ratio of immediate grants per minute divided by the total rate of grants per minute. This percentage should be close to 100% indicating that locks are acquired without wait. This graph is a good measure of lock contention and concurrency in your TimesTen target.

Transaction Logs

The transaction logs page displays information about log holds and the performance of log holds. The page is divided into two sub-tabs:

Log holds

Log performance

Log holds

The log holds sub-tab provides a report of the logs that are being held for the different operations that run on your TimesTen database target. Such operations include transactions, checkpoints, and replication.

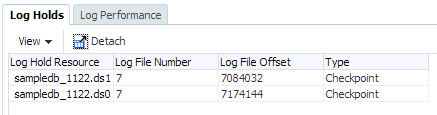

Figure 6-15 Log Holds region

The log holds table contains the same columns and values as the ttLogHolds built-in procedure. For more information about ttLogHolds, see "ttLogHolds" in the Oracle TimesTen In-Memory Database Reference. Use the table to monitor how well the operations that depend on the log buffer are doing.

If logs start to accumulate in the log holds table, review the operations that are not allowing the transaction log fils to be purged.

Log performance

The log performance page enables you to review the performance of the log buffer. The log performance sub-tab is divided into two regions:

Log reads and log flushes

Log buffer wait

Log reads and log flushes

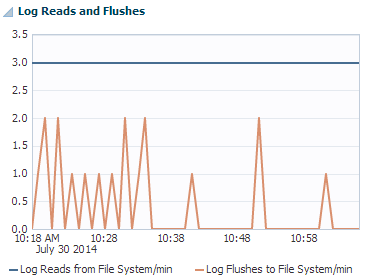

Figure 6-16 Log Reads and Log Flushes region

The log reads and log flushes region uses a line graph to show the log reads from the file system per minute and the log flushes to the file system per minute. Both the log reads and the log flushes should be low. A non zero rate of log reads from the file system results in poor response time. Ideally, all log records are read from memory (the log buffer) rather than from disk because reading log records from memory is significantly faster.

A high rate of log flushes to the file system may indicate either the need for a larger log buffer or that operations such as checkpoints, replication or XLA are not performing quickly, resulting in the log buffer being persisted to disk.

Log buffer wait

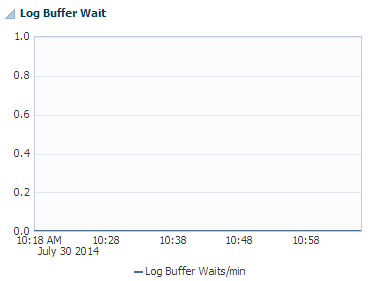

Figure 6-17 Log Buffer Wait region

The log buffer waits per minute region helps you review how the operations that use the log files are doing. The values should be 0. A nonzero value indicates that transactions needed to wait before writing to the log buffer.

Checkpoints

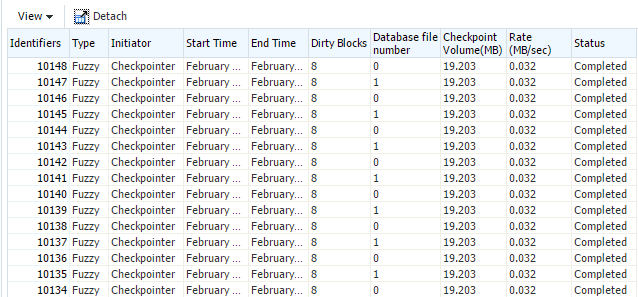

Figure 6-18 Checkpoints table

The checkpoints table shows the checkpoint history for the last 24 hours. Identifiers is a unique numeric identifier for the checkpoint. Identifiers increase monotonically during the lifetime of the database. If you destroy the database, the identifiers are reset. If you destroy the database, but keep the target in Enterprise Manager, you may see a mixture of checkpoints from the both the destroyed and the new database. The new database identifiers are likely to be small and are at the bottom of the table. If you want to see the new database identifiers at the top of the table, sort by Start Time.

Valid values for Type are static, blocking, fuzzy, or none. Valid values for initiator are user, checkpointer, or subdaemon. For the Dirty Blocks column, the values are the number of dirty blocks written. These are blocks that were modified since the last checkpoint. For the Rates column, the value is the volume written per second (in Megabytes). Valid values for the Status column is Progress, Completed, or Failed.

The TimesTen plug-in polls the TimesTen database target every 10 minutes and checks the latest eight checkpoints. If there are more than eight checkpoints in a 10 minute interval, only the last eight checkpoints are displayed. You can sort checkpoints by start time by clicking on the column header.

7 Working with the Transaction Monitor

This chapter describes the TimesTen transaction monitor page. The transaction monitor page displays a snapshot of the current transactions in your TimesTen database and describes details about your transactions.

Topics include:

Viewing the transaction monitor page

Analyzing information on the transaction monitor page

Viewing the transaction monitor page

Before using the transaction monitor, ensure that preferred credentials are set for your TimesTen database target. For more information about setting preferred credentials, see "Setting preferred credentials for a target".

To view the transaction monitor page, ensure that you are on the TimesTen database target page. For information on navigating to the TimesTen database target page, see "Navigating to the TimesTen target page".

From the TimesTen Database Home menu, select Monitoring, then select Transaction Monitor.

Analyzing information on the transaction monitor page

The transaction monitor displays a snapshot of the current transactions in your TimesTen database and describes details about your transactions. Use the transaction monitor to review how your transactions are processed. If your application is running slow, there may be an issue with how the transactions in the application are acquiring locks. If a lock is not released or is taking too long to be released, application responsiveness is degraded. The transaction monitor can help you identify transactions that are taking too long to be processed.

Note:

Enterprise Manager enables you to set the display frequency and auto refresh rate of data on the transaction monitor page. For more information, see "Setting the display time period and auto refresh rate of data on a target page".

The transaction monitor page is divided into two tabs:

Outstanding locks

Awaiting locks

Outstanding locks

The outstanding locks tab enables you to view information about outstanding locks in your database. It is divided into two regions:

Transaction information

Lock detail for transaction

Transaction information

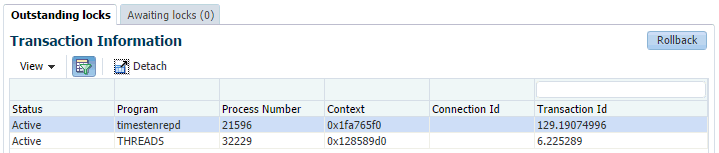

Figure 7-1 Transaction Information region

The transaction information region displays the current transactions that are holding locks in your database in a table format. You can click the column header to sort the table based on the column.

Click a transaction to review detailed information about the transaction and the locks associated with the transaction.

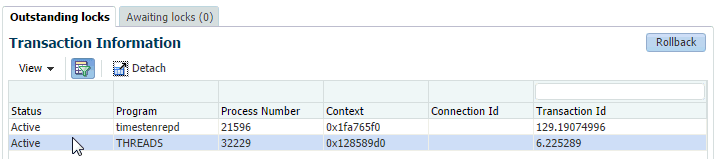

Figure 7-2 Select a transaction

The lock information for your selected transaction displays in the lock detail for transaction region. For more information on the lock detail for transaction region, see "Lock detail for transaction".

To rollback a transaction, select the transaction and click the Rollback button that is located above the transaction information table.

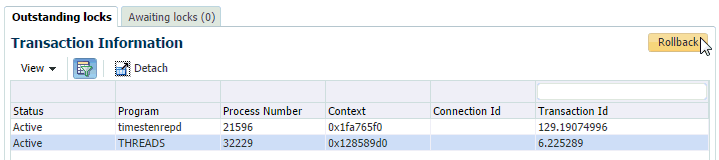

Figure 7-3 Rollback a transaction

A confirmation dialog appears where you need to confirm the rollback operation.

Lock detail for transaction

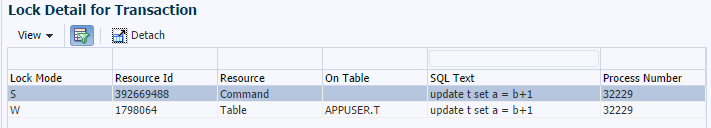

Figure 7-4 Lock details

The lock details region displays information about the locks of a selected transaction.

The number of locks in the lock details region should be low. If you see many locks, review the way your application is acquiring locks.

For more information about locks and transactions, see "ttXactAdmin" in the Oracle TimesTen In-Memory Database Reference.

Awaiting locks

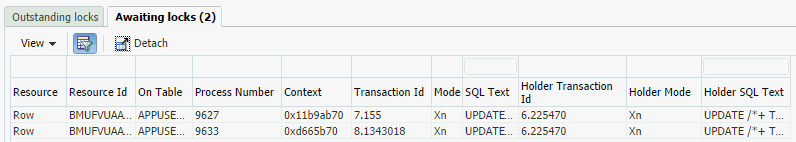

Figure 7-5 Awaiting locks

The awaiting locks region displays transactions that are competing for the same lock resources.

The number of locks in the awaiting locks region should be low. Locks that are awaiting events such as user input do not show in the table. If you see a transaction that does not clear after running the transaction monitor multiple times, review the lock. You may need to force a commit or a rollback on the transaction.

For more information about locks and transactions, see "ttXactAdmin" in the Oracle TimesTen In-Memory Database Reference.

8 Working with the Client/Server Page

This chapter describes the TimesTen database client/server page. The TimesTen database client/server page conveys performance information about your TimesTen client/server connection.

Topics include:

Viewing the client/server page

Analyzing information on the TimesTen client/server page

Viewing the client/server page

To view the client/server summary page, ensure that you are on the TimesTen database target page. For information on navigating to the TimesTen database target page, see "Navigating to the TimesTen target page".

From the TimesTen Database Home menu, select Monitoring, then select Client/Server Summary.

The TimesTen database client/server summary page displays.

Analyzing information on the TimesTen client/server page

Figure 8-1 shows the three client/server specific tab that have been customized for your TimesTen database targets. Click a specific tab to view detailed client/server information.

Figure 8-1 Client/Server Summary tabs

A description of each area follows:

Server Workload

Statements

Network usage

Server Workload

The server workload tab enables you to view information about server workload. The server workload tab contains three graph regions:

Write rates

Read rates

Commits and rollbacks

Write rates

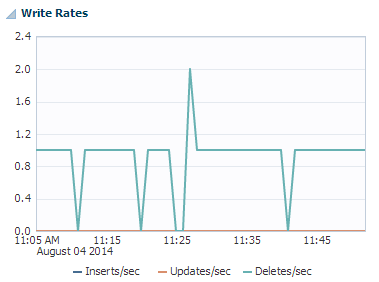

Figure 8-2 Write Rates region

The write rates region uses a line graph to show the rate of INSERT, UPDATE, and DELETE operations executed on rows per second on the TimesTen server.

The write rates region is populated when the TimesTen database is enabled to collect all database and operating system statistics. To enable TimesTen to collect all database and operating system statistics, call the ttStatsConfig built-in procedure with the StatsLevel parameter set to ALL.

Command> call ttStatsConfig('StatsLevel','ALL');< STATSLEVEL, ALL >1 row found.

For more information about the ttStatsConfig built-in procedure, see "ttStatsConfig" in the Oracle TimesTen In-Memory Database Reference.

Read rates

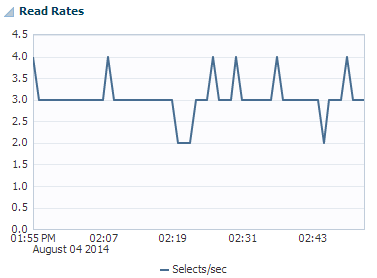

Figure 8-3 Read Rates region

The read rates region uses a line graph to show the rate of SELECT operations executed on rows per second on the TimesTen server.

The read rates region is populated when the TimesTen database is enabled to collect all database and operating system statistics. To enable TimesTen to collect all database and operating system statistics, execute the ttStatsConfig built-in procedure with the StatsLevel parameter set to ALL.

Command> call ttStatsConfig('StatsLevel','ALL');< STATSLEVEL, ALL >1 row found.

For more information about the ttStatsConfig built-in procedure, see "ttStatsConfig" in the Oracle TimesTen In-Memory Database Reference.

Commits and rollbacks

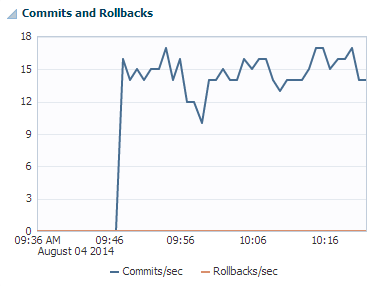

Figure 8-4 Commits and Rollbacks region

The commits and rollbacks region uses a line graph to show the rate of COMMIT and ROLLBACK statements executed per second on the TimesTen server.

Statements

The statements tab enables you to view information about the read and write rates of your SQL statements. The statements tab contains two graph regions:

Write rates

Read rates

Write rates

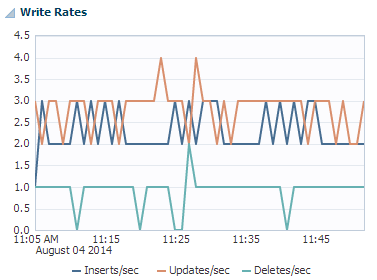

Figure 8-5 Write Rates region

The write rates region uses a line graph to show the rate of INSERT, UPDATE, and DELETE operations executed per second on the TimesTen server.

Read rates

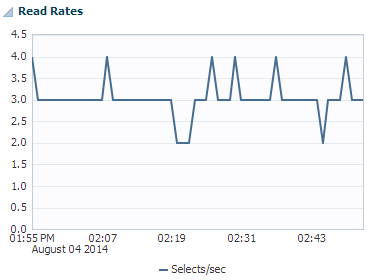

Figure 8-6 Read Rates region

The read rates region uses a line graph to show the rate of SELECT operations executed per second on the TimesTen server.

Network usage

The network usage tab enables you to view information about client/server network usage. The network usage tab contains two graph regions:

Network round trips

Bytes sent and received

Network round trips

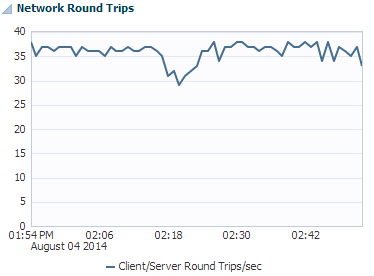

Figure 8-7 Network Round Trips region

The network round trips region uses a line graph to show the client/server round trips per second.

Bytes sent and received

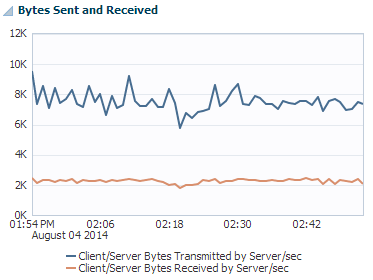

Figure 8-8 Bytes Sent and Received region

The bytes sent and received region uses a line graph to show the number of bytes sent and received by the TimesTen server per second.

9 Working with the Instance Control Menu

This chapter describes the TimesTen instance control menu. The instance control menu displays options to control various aspects of your TimesTen instance targets.

Topics include:

Viewing the instance control menu

Viewing the instance control menu

To view the instance control menu, ensure that you are on the TimesTen instance target page. For information on navigating to the TimesTen instance target page, see "Navigating to the TimesTen target page".

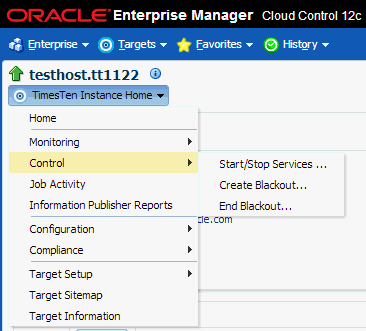

From the TimesTen Instance Home menu, select Control.

The TimesTen instance control menu displays. Click a specific option to view TimesTen instance controls. A description of each option follows:

Start/stop services

Create blackout

End blackout

Start/stop services

The start/stop services page enables you to start and stop the TimesTen daemon and TimesTen server services. This page also displays statistics of TimesTen databases that are part of your current TimesTen instance. The start/stop services page contains two regions:

Note:

In order to start and stop the TimesTen daemon of a TimesTen instance, you must set preferred credentials for your TimesTen instance target. For more information, see "Setting preferred credentials for a target".

Service

Database

Service

Figure 9-1 Service region

The service region enables you to start and stop the TimesTen daemon and TimesTen server services. You can select a row and then click Start or Stop to control the TimesTen services. If you stop the TimesTen daemon and a TimesTen database is loaded into memory, Enterprise manager displays a dialog that recommends that you close all connections to your TimesTen database and unload the database from memory. This dialog enables you to filter the Database region to only view the TimesTen databases with active connections and that are loaded into memory.

The services region enables you to perform similar control operations as the ttDaemonAdmin utility. The Status, Process ID, and Port columns are populated with information from the ttStatus utility. For more information about the utilities, see "ttDaemonAdmin" and "ttStatus" in the Oracle TimesTen In-Memory Database Reference.

The port column of the Service table shows you the ports on which the TimesTen daemon and TimesTen server listen. If these ports conflict with another application, consider changing the TimesTen ports with the ttmodinstall utility. For more information on the ttmodinstall utility, see "ttmodinstall" in the Oracle TimesTen In-Memory Database Reference.

Database

Figure 9-2 Database region

The database region displays statistics of TimesTen databases that are part of your current TimesTen instance. The database table is populated with information from the ttStatus utility. You can select a row in the table and then click the Details button to view all the connections to the selected TimesTen database. For more information about the ttStatus utility, see "ttStatus" in the Oracle TimesTen In-Memory Database Reference.

Create blackout

Create a blackout to suspend all data collection activity on a target that is monitored by Enterprise Manager. Consider creating a blackout to perform maintenance on a TimesTen instance target. For more information on creating a blackout, see "Creating a Blackout" in the Oracle Enterprise Manager Cloud Control Administrator's Guide.

End blackout

A blackout ends automatically after the set blackout duration expires. In some cases you may want to end a blackout before the blackout duration expires. To end a blackout, ensure that you are on the TimesTen instance target page and that a blackout is active for your TimesTen instance target. For information on navigating to the TimesTen instance target page, see "Navigating to the TimesTen target page".

From the TimesTen Instance Home menu, select Control, then select End Blackout.

Figure 9-3 Select End Blackout

The Blackouts confirmation page displays. Locate the Yes button.

Click Yes.

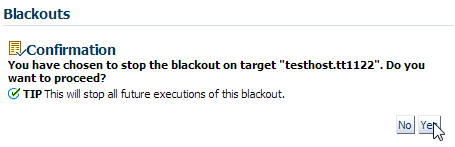

Figure 9-4 Click Yes

The information dialog displays with the text "The End Blackout request has been successfully submitted. Target status changes require time to reflect this latest submission."

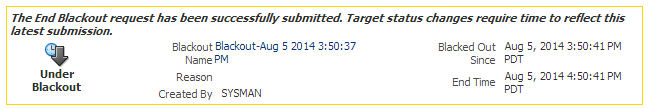

Figure 9-5 Successful End Blackout request

You have successfully ended the blackout of your TimesTen instance target. Enterprise Manager can take several minutes to resume data collection activities on your TimesTen instance target.

10 Working with the Database Control Menu

This chapter describes the TimesTen database control menu. The database control menu displays options to control various aspects of your TimesTen database targets.

Topics include:

Viewing the database control menu

Viewing the database control menu

To view the database control menu, ensure that you are on the TimesTen database target page. For information on navigating to the TimesTen database target page, see "Navigating to the TimesTen target page".

From the TimesTen Database Home menu, select Control.

The TimesTen database control menu displays. Click a specific option to view TimesTen database controls. A description of each option follows:

Start/stop agents

Ram load/unload and policy settings

Create blackout

End blackout

Start/stop agents

Figure 10-1 Start/Stop Agents page

The start/stop agents page enables you to start and stop the TimesTen replication and TimesTen cache agents. You can select a row and then click Start or Stop to control the TimesTen agents.

The start/stop agents page calls these built-in procedures to control the TimesTen agents:

ttCacheStart - This built-in procedure starts the TimesTen cache agent. For more information, see "ttCacheStart" in the Oracle TimesTen In-Memory Database Reference.

ttCacheStop - This built-in procedure stops the TimesTen cache agent. For more information, see "ttCacheStop" in the Oracle TimesTen In-Memory Database Reference.

ttRepStart - This built-in procedure starts the TimesTen replication agent. For more information, see "ttRepStart" in the Oracle TimesTen In-Memory Database Reference.

ttRepStop - This built-in procedure stops the TimesTen replication agent. For more information, see "ttRepStop" in the Oracle TimesTen In-Memory Database Reference.

Ram load/unload and policy settings

The Ram load/unload and policy settings page enables you to load and unload the TimesTen database from memory and change the RAM policy of the TimesTen database. This page contains two regions:

Load/unload RAM

RAM policy configuration

Load/unload RAM

Figure 10-2 Load/Unload RAM region

The load/unload RAM region enables you to load and unload the TimesTen database from memory. You can also review the load status of the TimesTen database and current connections to your TimesTen database. The load and unload options are only available if your database RAM residence policy is set to Manual. You can click the Load button to load the database into memory. You can click the Unload button to unload the database from memory. Before unloading the TimesTen database from memory, ensure that all applications are disconnected from your TimesTen database. Also, ensure that you stop the cache and replication agents. For more information on stopping the cache and replication agents, see "Start/stop agents".

The load/unload RAM region runs the ttAdmin utility to load and unload the database from memory. For more information, see "ttAdmin" in the Oracle TimesTen In-Memory Database Reference.

RAM policy configuration

The RAM policy configuration region enables you to view your current RAM residence policy and change the RAM policy of your TimesTen database. The RAM policy configuration contains two sub-regions:

Current configuration

Change RAM policy

Current configuration

Figure 10-3 Current Configuration sub-region

The current configuration sub-region displays the current RAM residence policy and the RAM residence grace period.

The current configuration sub-region runs the ttAdmin utility to display the current RAM configuration of your database. For more information, see "ttAdmin" in the Oracle TimesTen In-Memory Database Reference.

Change RAM policy

Figure 10-4 Change RAM policy sub-region

The change RAM policy sub-region enables you to modify the RAM policy of your TimesTen database. If you set the RAM policy as In Use, you can also set a RAM residence grace period.

The change RAM policy sub-region runs the ttAdmin utility to change the RAM policy and set RAM residence grace period. For more information on the ttAdmin utility and the RAM policy settings, see "ttAdmin" in the Oracle TimesTen In-Memory Database Reference.

Create blackout

Create a blackout to suspend all data collection activity on a target that is monitored by Enterprise Manager. Consider creating a blackout to perform maintenance on a TimesTen instance target. For more information on creating a blackout, see "Creating a Blackout" in the Oracle Enterprise Manager Cloud Control Administrator's Guide.

End blackout

A blackout ends automatically after the set blackout duration expires. In some cases you may want to end a blackout before the blackout duration expires. To end a blackout, ensure that you are on the TimesTen instance target page and that a blackout is active for your TimesTen database target. For information on navigating to the TimesTen database target page, see "Navigating to the TimesTen target page".

From the TimesTen Database Home menu, select Control, then select End Blackout.

Figure 10-5 Select End Blackout

The Blackouts confirmation page displays. Locate the Yes button.

Click Yes.

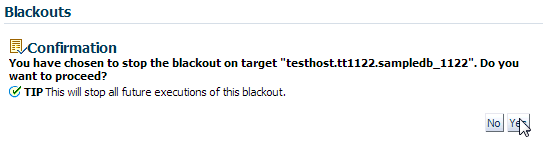

Figure 10-6 Click Yes

The information dialog displays with the text "The End Blackout request has been successfully submitted. Target status changes require time to reflect this latest submission."

Figure 10-7 Successful End Blackout request

You have successfully ended the blackout of your TimesTen database target. Enterprise Manager can take several minutes to resume data collection activities on your TimesTen database target.

11 Working with the Backup and Restore Page

This chapter describes the TimesTen database Backup and Restore page. The TimesTen database backup and restore page enables you to schedule database backups, restore from available backups, and view recovery history.

Topics include:

Viewing the backup and restore page

Analyzing information on the TimesTen backup and restore page

Viewing the backup and restore page

Before using database backup and restore, ensure that preferred credentials are set for your TimesTen database target. For more information about setting preferred credentials, see "Setting preferred credentials for a target".

To view the backup and restore page, ensure that you are on the TimesTen database target page. For information on navigating to the TimesTen database target page, see "Navigating to the TimesTen target page".

From the TimesTen Database Home menu, select Availability, then select Backup and Restore.

Analyzing information on the TimesTen backup and restore page

Figure 11-1 shows the three backup and restore specific areas that have been customized for your TimesTen database targets. Click a specific tab to view detailed information.

Figure 11-1 Backup and Restore tabs

A description of each area follows:

Backup schedule

Backup history and restore database

Restore history

Backup schedule

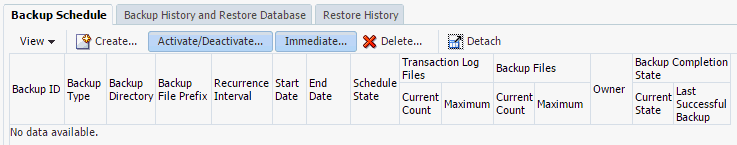

Figure 11-2 Backup Schedule tab

The backup schedule tab enables you to create, edit, and delete backup schedules for your TimesTen database. TimesTen calls the ttBackup utility to perform backups of your TimesTen database. For more information on the ttBackup utility, see "ttBackup" in the Oracle TimesTen In-Memory Database Reference.

You can perform these actions on the backup schedule tab:

Create a backup schedule

Activate a backup schedule

Deactivate a backup schedule

Request an immediate backup

Delete a backup schedule

Create a backup schedule

To create a backup schedule, ensure that you are on the Backup Schedule tab of the Backup and Restore page.

Note:

The backup and restore functions for the TimesTen database in Enterprise Manager cannot backup and restore TimesTen databases with cache groups. For more information on backing up and restoring TimesTen databases with cache groups, see "Backing up and restoring a database with cache groups" in the Oracle TimesTen Application-Tier Database Cache User's Guide.

Click Create.

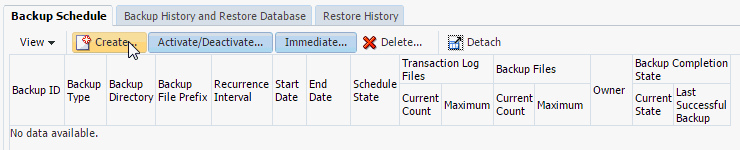

Figure 11-3 Click Create

The Create a Backup Schedule dialog displays. The first property is the Type of Backup.

Select a backup type from the Type options. These are the available backup types:

Incremental

An incremental backup augments an existing incremental-enabled backup of the same database. An incremental backup moves the backup point of an existing backup forward in time by augmenting the backup with all of the transaction log files created since its last backup point.

Full

A full backup saves the entire database. For full backups, you must have enough disk space available to hold both the existing backup and the new backup, until the new backup succeeds.

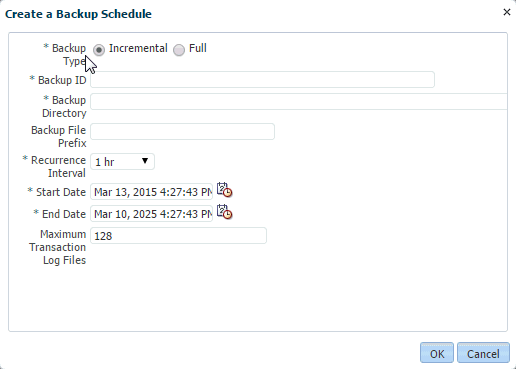

Figure 11-4 Select a backup type

You are now ready to define your new backup schedule.

Incremental

An incremental backup augments an existing incremental-enabled backup of the same database. An incremental backup moves the backup point of an existing backup forward in time by augmenting the backup with all of the transaction log files created since its last backup point.An incremental backup typically completes much faster than a full backup, as it has less data to copy. The performance gain of incremental backups over full backups comes at the cost of increased disk usage and longer restoration times. Use incremental backups in concert with full backups to achieve a balance between backup time, disk usage, and restoration time.

Before defining a backup schedule, ensure that you have completed the steps up to step 2 from "Create a backup schedule".

Note:

For more information about TimesTen backup types, see "Types of backup provided" in the Oracle TimesTen In-Memory Database Installation Guide.

In the * Backup ID text field, type a meaningful backup schedule name. (For example, hourly_backup.)

In the * Backup Directory text field, type the directory where the backup files should be stored. Ensure that this directory exists.

In the Backup File Prefix text field, type a file prefix for the backup files in the backup directory. The Backup File Prefix field is optional. The default value for this option is the file name portion of the DataStore attribute of the database's ODBC definition. For more information about the DataStore attribute, see "DataStore" in the Oracle TimesTen In-Memory Database Reference.

From the * Recurrence Interval drop-down list, select a recurrence for when TimesTen checks the maximum transaction log files criteria. If the maximum transaction log files criteria is met, TimesTen performs an incremental backup. The default value is 1 hour.

Click the calendar button to the right of the * Start Date field, then select the start date and time for the backup schedule. The default value is the current date and time of the Enterprise Manager server.

Click the calendar button to the right of the * End Date field, then select the end date for the backup schedule. The default value is 10 years after the current date of the Enterprise Manager server.

In the Maximum Transaction Log Files text field, type the number of transaction log files when an incremental backup is performed. TimesTen only performs the incremental backup if the maximum transaction log files criteria is met during a recurrence check. The default value is 128.

Click OK.

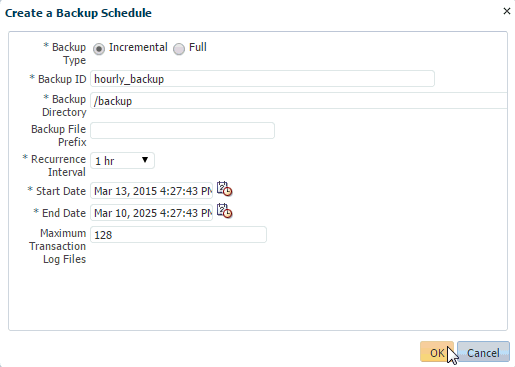

Figure 11-5 Click OK

The Create a Backup Schedule dialog closes and you are returned back to the Backup Schedule tab of the Backup and Restore page. Notice the backup schedule you created is auto-filled in the backup schedule table.

If you see a "No preferred credentials set" error message, set preferred credentials for your TimesTen database target and activate the backup schedule you created. Make sure your backup schedule works by requesting an immediate backup. For more information, see "Setting preferred credentials for a target", "Activate a backup schedule", and "Request an immediate backup".

You successfully created a TimesTen incremental backup schedule.

Full

A full backup saves the entire database. For full backups, you must have enough disk space available to hold both the existing backup and the new backup, until the new backup succeeds.

Note:

For more information about TimesTen backup types, see "Types of backup provided" in the Oracle TimesTen In-Memory Database Installation Guide.

In the * Backup ID text field, type a meaningful backup schedule name. (For example, daily_backup.)

In the * Backup Directory text field, type the directory where the backup files should be stored. Ensure that this directory exists.

In the Backup File Prefix text field, type a file prefix for the backup files in the backup directory. The Backup File Prefix field is optional. The default value for this option is the file name portion of the DataStore attribute of the database's ODBC definition. For more information about the DataStore attribute, see "DataStore" in the Oracle TimesTen In-Memory Database Reference.

From the * Recurrence Interval drop-down list, select a recurrence for when TimesTen checks the maximum transaction log files criteria. If the maximum transaction log files criteria is met, TimesTen performs an incremental backup.

Click the calendar button to the right of the * Start Date field, then select the start date and time for the backup schedule. The default value is the current date and time of the Enterprise Manager server.

Click the calendar button to the right of the * End Date field, then select the end date for the backup schedule. The default value is 10 years after the current date of the Enterprise Manager server.

In the Maximum Backup Files text field, type the maximum number of full backup files that TimesTen can store at any given time. When the maximum backup files value is exceeded, TimesTen deletes the oldest backup file before creating a new backup file. The default value is 31.

Click OK.

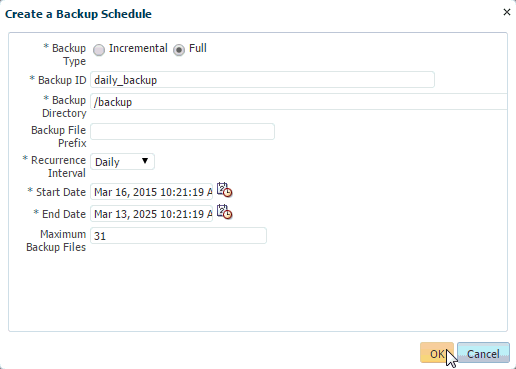

Figure 11-6 Click OK

The Create a Backup Schedule dialog closes and you are returned back to the Backup Schedule tab of the Backup and Restore page. Notice the backup schedule you created is auto-filled in the backup schedule table.

If you see a "No preferred credentials set" error message, set preferred credentials for your TimesTen database target and activate the backup schedule you created. Make sure your backup schedule works by requesting an immediate backup. For more information, see "Setting preferred credentials for a target", "Activate a backup schedule", and "Request an immediate backup".

You successfully created a TimesTen full backup schedule.

Activate a backup schedule

When you create a backup schedule Enterprise Manager activates the backup schedule. An active backup schedule runs based on its configured schedule.

To activate a backup schedule, ensure that you are on the Backup Schedule tab of the Backup and Restore page:

In the Backup Schedule table, click in the row that identifies the Backup ID of your backup schedule. Ensure that the Schedule State is Inactive.

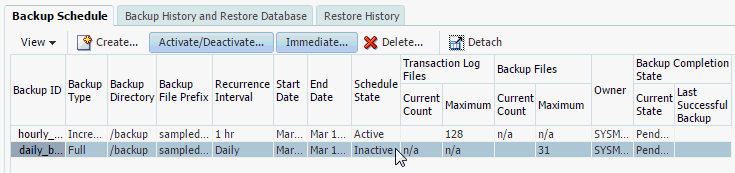

Figure 11-7 Select your backup schedule

Click Activate/Deactivate.

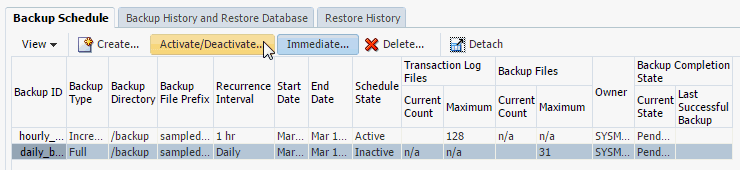

Figure 11-8 Click Activate/Deactivate

The Activate/Deactivate Backup Schedule dialog displays. Locate the Activate button.

Click Activate.

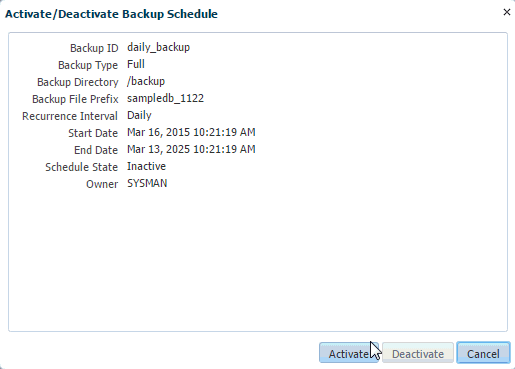

Figure 11-9 Click Activate

The Activate/Deactivate Backup Schedule dialog closes and the Backup Schedule tab of the Backup and Restore page refreshes. Notice that the Schedule State of your Backup ID is now Active.

You have successfully activated your backup schedule.

Deactivate a backup schedule

To deactivate a backup schedule, ensure that you are on the Backup Schedule tab of the Backup and Restore page:

In the Backup Schedule table, click in the row that identifies the Backup ID of your backup schedule. Ensure that the Schedule State is Active.

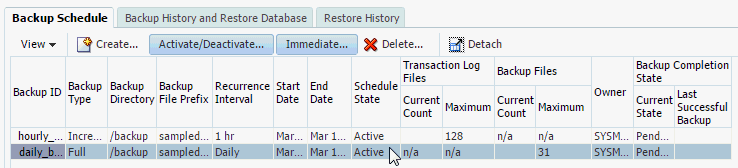

Figure 11-10 Select your backup schedule

Click Activate/Deactivate.

Figure 11-11 Click Activate/Deactivate

The Activate/Deactivate Backup Schedule dialog displays. Locate the Deactivate button.

Click Deactivate.

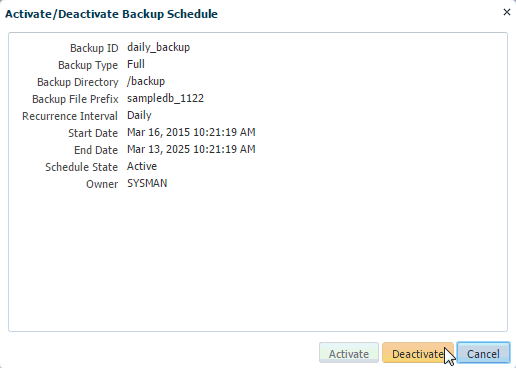

Figure 11-12 Click Deactivate

The Activate/Deactivate Backup Schedule dialog closes and the Backup Schedule tab of the Backup and Restore page refreshes. Notice that the Schedule State of your Backup ID is now Inactive.

You have successfully deactivated your backup schedule.

Request an immediate backup

To request an immediate backup, ensure that you are on the Backup Schedule tab of the Backup and Restore page:

In the Backup Schedule table, click in the row that identifies the Backup ID of your backup schedule. Ensure that the Schedule State is Active.

Figure 11-13 Select your backup schedule

Click Immediate.

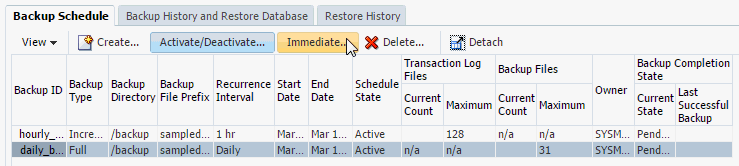

Figure 11-14 Click Immediate

The Immediate Backup dialog displays. Locate the OK button.

Click OK.

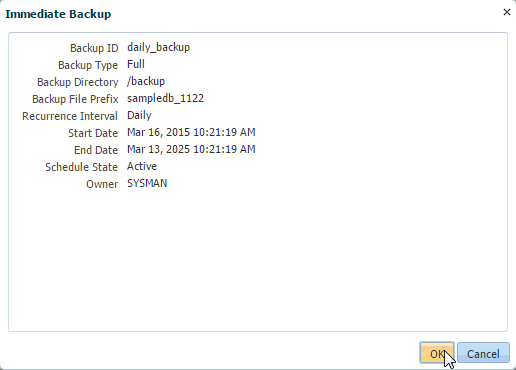

Figure 11-15 Click OK

The Immediate Backup dialog closes. TimesTen runs the ttBackup utility to complete your backup request. The backup time varies depending on the size of your database. Review the Backup History tab to see the status of your TimesTen backup. For more information on the Backup History tab, see "Backup history and restore database". For more information on the ttBackup utility, see "ttBackup" in the Oracle TimesTen In-Memory Database Reference.

You have successfully requested an immediate TimesTen backup.

Delete a backup schedule

To delete a backup schedule, ensure that you are on the Backup Schedule tab of the Backup and Restore page:

In the Backup Schedule table, click in the row that identifies the Backup ID of your backup schedule.

Figure 11-16 Select your backup schedule

Click Delete.

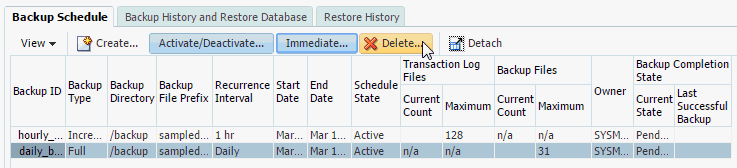

Figure 11-17 Click Delete

The Delete Backup Schedule dialog displays. Locate the OK button.

Click OK.

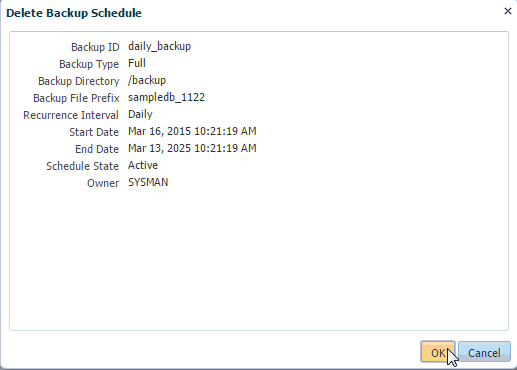

Figure 11-18 Click OK

The Delete Backup Schedule dialog closes and the Backup Schedule tab of the Backup and Restore page refreshes. You can verify the backup schedule has been deleted by reviewing the Backup Schedule tab of the Backup and Restore page. You should no longer see your TimesTen backup schedule.

You have successfully deleted your TimesTen backup schedule.

Backup history and restore database

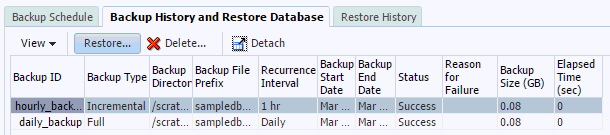

Figure 11-19 Backup History tab

The backup history tab and restore database enables you to view backup history, delete backups, and recover your TimesTen database. TimesTen calls the ttRestore utility to restore your TimesTen database from a backup. For more information on the ttRestore utility, see "ttRestore" in the Oracle TimesTen In-Memory Database Reference.

You can perform these actions on the backup history tab:

Restore the TimesTen database with an available backup

Delete a TimesTen database backup file

Restore the TimesTen database with an available backup

To restore your TimesTen database with an available backup, ensure that you are on the Backup History and Restore Database tab of the Backup and Restore page and that your TimesTen database is unloaded from memory. For more information on unloading your TimesTen database from memory, see "Load/unload RAM".

Note:

During the restoration procedure, Enterprise Manager does not collect any TimesTen database metric information. Enterprise Manager starts collecting TimesTen database metric information when the TimesTen database is restored.

In the Backup History and Restore Database table, click in the row that identifies the Backup ID of your backup. Ensure that the Status is Success.

Figure 11-20 Select your backup

Click Restore.

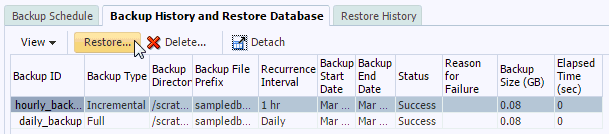

Figure 11-21 Click Restore

The Restore Backup dialog displays. Locate the OK button.

Click Restore.

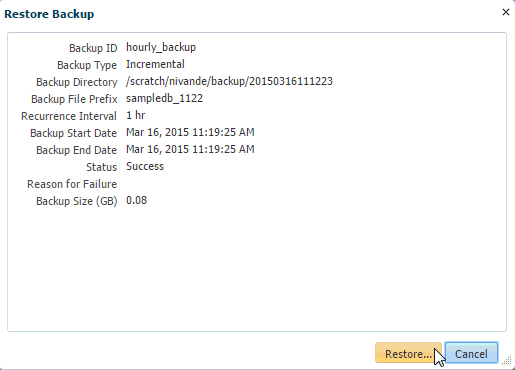

Figure 11-22 Click Restore

The Restore Backup dialog closes. TimesTen runs the ttRestore utility to complete your TimesTen database restoration request. The restore time varies depending on the size of your database. Review the Restore History tab to see the status of your TimesTen database restoration. For more information on the Restore History tab, see "Restore history". For more information on the ttRestore utility, see "ttRestore" in the Oracle TimesTen In-Memory Database Reference

You have successfully requested a TimesTen database restoration.

Delete a TimesTen database backup file

To delete a TimesTen database backup file entry or a failed TimesTen database backup entry, ensure that you are on the Backup History tab of the Backup and Restore page:

Note:

Ensure that you delete TimesTen backup files from the Backup History table. If you delete TimesTen backup files directly from the file system, Enterprise Manager does not remove the entry from the Backup History table.

In the Backup History and Restore Database table, click in the row that identifies the Backup ID of your TimesTen backup file or failed TimesTen database backup entry.

Figure 11-23 Select your TimesTen database backup file

Click Delete.

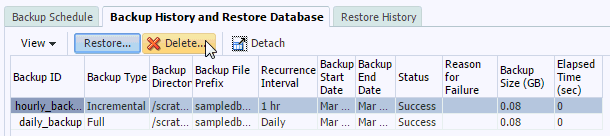

Figure 11-24 Click Delete

The Delete Available Backup dialog displays. Locate the OK button.

Click OK.

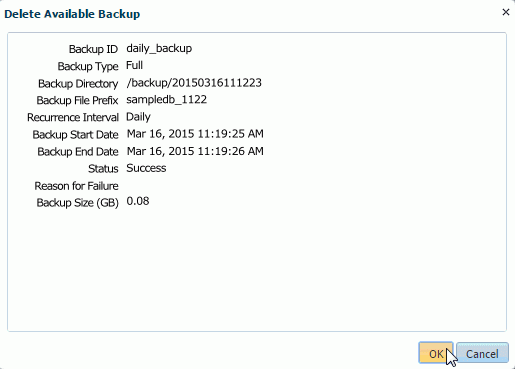

Figure 11-25 Click OK

The Delete Available Backup dialog closes and the Backup History tab of the Backup and Restore page refreshes. You can verify that the TimesTen backup entry has been deleted by reviewing the Backup History tab of the Backup and Restore page. You should no longer see your TimesTen backup entry.

You have successfully deleted your TimesTen backup entry from Enterprise Manager and Enterprise Manager deletes the TimesTen backup from your file system.

Restore history

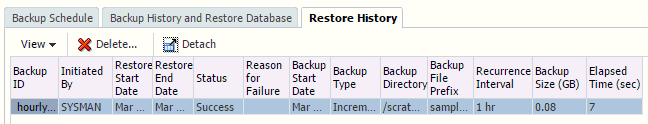

Figure 11-26 Restore History tab

The restore history tab enables you to review and delete TimesTen database recovery entries.

You can perform these actions on the restore history tab:

Review a restore history entry

Delete a restore history entry

Review a restore history entry

The restore history table shows all of the restore operations that have been performed on the TimesTen database from Enterprise Manager. This information is useful in keeping track of recovery operations and reviewing the causes of recovery failures.

Delete a restore history entry

To delete a TimesTen database restore entry ensure that you are on the Restore History tab of the Backup and Restore page:

In the Restore History table, click in the row that identifies the Backup ID of your TimesTen database restore entry.

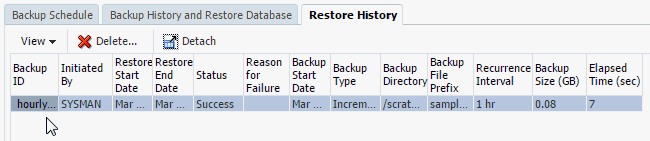

Figure 11-27 Select your TimesTen database recovery entry

Locate the Delete button.

Click Delete.

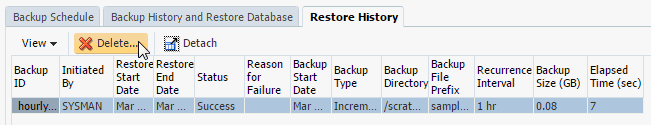

Figure 11-28 Click Delete

The Delete Recovery History dialog displays. Locate the OK button.

Click OK.

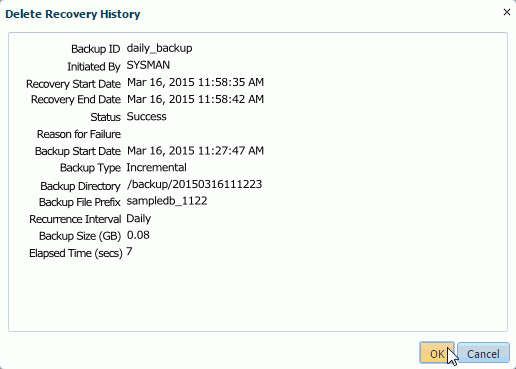

Figure 11-29 Click OK

The Delete Recovery History dialog closes and the Restore History tab of the Backup and Restore page refreshes. You can verify that the TimesTen restore history entry has been deleted by reviewing the Restore History tab of the Backup and Restore page. You should no longer see your TimesTen restore history entry.

You have successfully deleted your TimesTen restore history entry.

12 Working with the Cache Synchronization Metrics Page

This chapter describes the Cache Synchronization Metrics page.

Topics include:

Viewing the cache synchronization metrics page

Analyzing the cache synchronization metrics page

Viewing the cache synchronization metrics page

The cache synchronization metrics shows cache specific performance information. In order to view the metrics, ensure that you have configured a cache environment for your TimesTen target and ensure that the cache agent is up. For more information on configuring a cache environment, see the Oracle TimesTen Application-Tier Database Cache User's Guide.

To view the cache synchronization metrics, ensure that you are on the TimesTen target page. For information on navigating to the TimesTen target page, see "Navigating to the TimesTen target page".

From the TimesTen Database Home menu, select Monitoring, then select Cache Synchronization Metrics.

Analyzing the cache synchronization metrics page

Figure 12-1 shows two cache synchronization metrics tabs that have been customized for TimesTen cache environments. Click a specific tab to view detailed cache synchronization metrics information.

Note:

Only one of these tabs is available at a time: Cache Parallel AWT or Cache AWT. If you have set cache AWT parallelism, Enterprise Manager displays the Cache parallel AWT tab. If you have not set cache AWT parallelism, Enterprise Manager displays the Cache AWT tab. For more information on cache AWT parallelism, see "Configuring parallel propagation to Oracle Database tables" in the Oracle TimesTen Application-Tier Database Cache User's Guide.

Figure 12-1 Cache Synchronization Metrics tabs

A description of each area follows:

Cache AWT

Cache parallel AWT

Cache autorefresh

Cache AWT

Note:

The Cache AWT tab is only available if you have not set cache AWT parallelism. For more information on cache AWT parallelism, see "Configuring parallel propagation to Oracle Database tables" in the Oracle TimesTen Application-Tier Database Cache User's Guide.

The cache AWT tab enables you to view performance information of AWT cache groups. It is divided into five regions:

Cache AWT

AWT transactions propagated to the Oracle database

AWT transactions committed on Oracle database

AWT batch performance

AWT volume (MB/sec)

Cache AWT

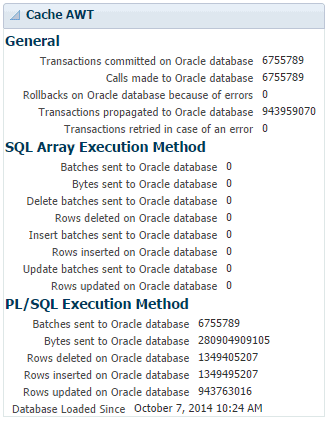

Figure 12-2 Cache AWT region

The cache AWT region shows the number of transactions committed on the Oracle database and the number of transactions rolled back on the Oracle database. The number of batches sent, bytes sent, rows deleted, rows inserted, and rows updated on the Oracle database for the SQL array execution method and the PL/SQL execution method of AWT cache are also displayed. The performance data is derived from values in the SYS.SYSTEMSTATS system table. For more information, see "SYS.SYSTEMSTATS" in the Oracle TimesTen In-Memory Database System Tables and Views Reference.

The method determines whether TimesTen uses the PL/SQL execution method or the SQL array execution method to apply changes to the Oracle database server for asynchronous writethrough propagation.

For more information about AWT cache methods, see "TimesTen Cache first connection attributes" in the Oracle TimesTen In-Memory Database Reference.

AWT transactions propagated to the Oracle database

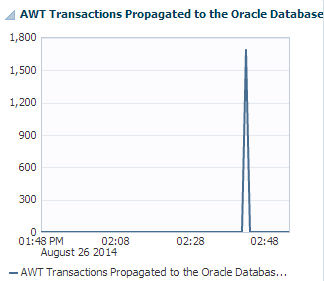

Figure 12-3 AWT Transactions Propagated to the Oracle Database region

The AWT transactions propagated to the Oracle database region uses a line graph to show the number of AWT transactions propagated to the Oracle database per second.

AWT transactions committed on Oracle database

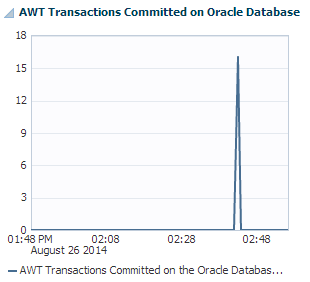

Figure 12-4 AWT Transactions Committed on Oracle Database region

The AWT transactions committed on Oracle database region uses a line graph to show the number of AWT transactions committed on the Oracle database per second.

AWT batch performance

Figure 12-5 AWT Batch Performance region

The AWT batch performance region uses a line graph to show AWT Batch performance represented as a rate of rows per batch. SQL array execution mode is set with CacheAWTMethod=0 and PL/SQL execution mode is set with CacheAWTMethod=1. For more information on CacheAWTMethod, see "CacheAWTMethod" in the Oracle TimesTen In-Memory Database Reference.

AWT volume (MB/sec)

Figure 12-6 AWT Volume (MB)/sec region

The AWT volume (MB/sec) region uses a line graph to show the AWT volume in Megabytes per second.

Cache parallel AWT

Note:

The Cache parallel AWT tab is only available if you have set cache AWT parallelism. For more information on cache AWT parallelism, see "Configuring parallel propagation to Oracle Database tables" in the Oracle TimesTen Application-Tier Database Cache User's Guide.

The cache parallel AWT tab displays track and performance information about AWT cache groups that are configured with parallel propagation. For more information on parallel propagation for AWT cache groups, see "Configuring parallel propagation to Oracle Database tables" in the Oracle TimesTen Application-Tier Database Cache User's Guide. The cache parallel AWT tab is divided into two sub-tabs:

Performance

Tracks

Performance

The performance sub-tab provides performance information about AWT cache groups that are configured with parallel propagation. The performance sub-tab is divided into four regions:

AWT lag

AWT bytes sent

AWT batch performance

AWT transactions

AWT lag

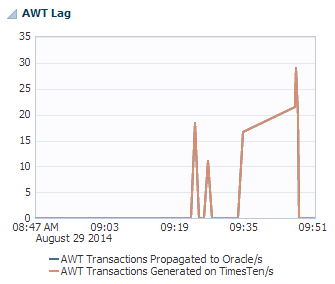

Figure 12-7 AWT Lag region

The AWT lag region uses a line graph to show the number of AWT transactions propagated to the Oracle database and generated on the TimesTen database per second.

It is important that the number of AWT transactions propagated to the Oracle database match the number of AWT transactions generated on the TimesTen database. For more information on troubleshooting AWT performance, see "AWT performance monitoring" in the Oracle TimesTen In-Memory Database Troubleshooting Guide.

AWT bytes sent

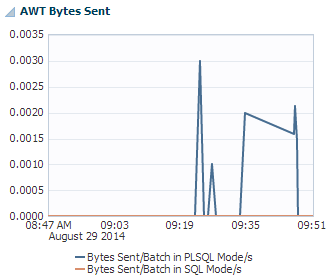

Figure 12-8 AWT Bytes Sent region

The AWT bytes sent region uses a line graph to show the bytes sent per batch in SQL mode and PLSQL mode per second. SQL array execution mode is set with CacheAWTMethod=0 and PL/SQL execution mode is set with CacheAWTMethod=1. For more information on CacheAWTMethod, see "CacheAWTMethod" in the Oracle TimesTen In-Memory Database Reference.

AWT batch performance

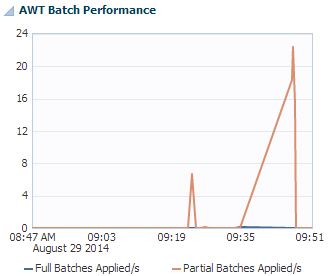

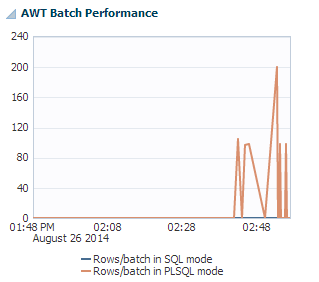

Figure 12-9 AWT Batch Performance region

The AWT batch performance region uses a line graph to show the number of full and partial batches applied per second.

AWT transactions

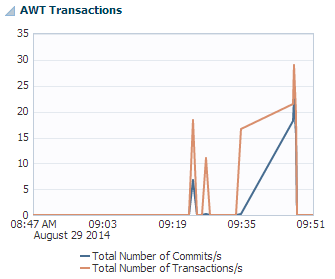

Figure 12-10 AWT Transactions region

The AWT transactions region uses a line graph to show the number of commits and transactions per second.

Tracks

The tracks sub-tab provides performance information about parallel AWT tracks. The tracks sub-tab is divided into two regions:

Parallel AWT tracks

Transactions processed on Oracle database

Parallel AWT tracks

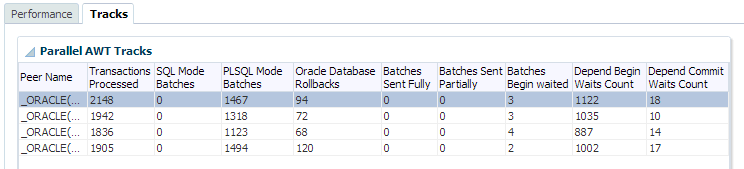

Figure 12-11 Parallel AWT Tracks region

The Parallel AWT tracks region shows the performance of the various parallel AWT tracks. Parallel AWT tracks are set with the CacheAWTParallelism connection attribute. For more information on the CacheAWTParallelism connection attribute, see "CacheAWTParallelism" in the Oracle TimesTen In-Memory Database Reference.

Click a peer name to review the number of transactions processed on the Oracle database for the parallel AWT track. The number of transactions processed on the Oracle database for the parallel AWT track display in the transactions processed on Oracle database region. For more information on the transactions processed on Oracle database region, see "Transactions processed on Oracle database".

Transactions processed on Oracle database

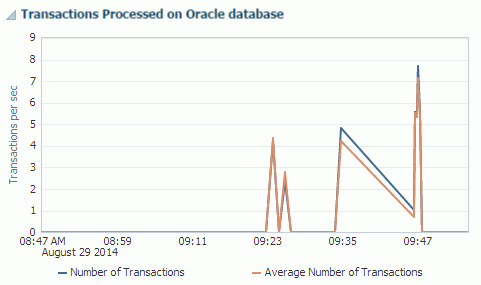

Figure 12-12 Transactions Processed on Oracle database region

The transactions processed on Oracle database region uses a line graph to show the number of transactions processed on the Oracle database for the parallel AWT track.

Cache autorefresh

The cache autorefresh tab enables you to view performance information of read-only cache groups. This tab is divided into three regions:

Cache autorefresh

Readonly cache

Updates pending refresh

Cache autorefresh

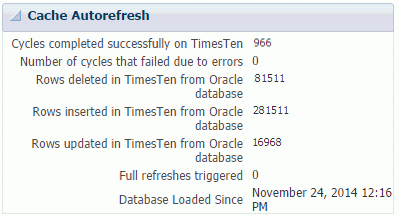

Figure 12-13 Cache Autorefresh region

The cache autorefresh region shows the number of rows deleted, inserted, and updated in TimesTen from the Oracle database. The number of cycles that completed successfully and the number of cycles that failed on TimesTen are also displayed. TimesTen starts collecting these metrics when the TimesTen database is loaded into memory.

Readonly cache

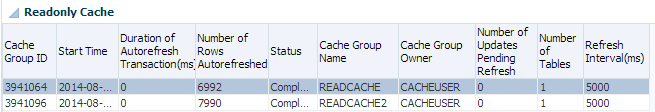

Figure 12-14 Readonly Cache region

The readonly cache region displays information about the last autorefresh operations of each of the read-only cache groups of your TimesTen database. For more information on read-only cache groups, see "Read-only cache group" in the Oracle TimesTen Application-Tier Database Cache User's Guide.

Click a cache group ID to review the number of updates pending refresh. The number of updates pending refresh display in the updates pending refresh region. For more information on the updates pending refresh region, see "Updates pending refresh".

Updates pending refresh

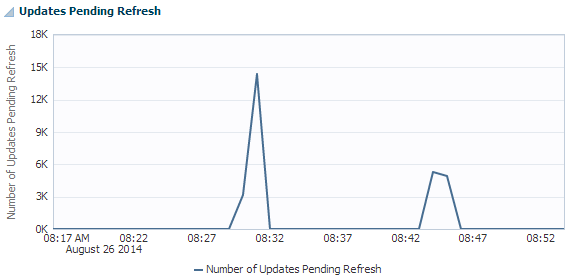

Figure 12-15 Updates Pending Refresh region

The updates pending refresh region shows a line graph with the number of updates pending refresh for your specified cache group in the last hour.

13 Working with the Replication Monitor

This chapter describes the replication monitor page. The replication monitor page enables you to monitor and analyze TimesTen database targets that use AWT cache groups and that use replication to replicate objects to other databases.

Topics include:

Viewing the replication monitor

Analyzing information on the TimesTen replication monitor

Viewing the replication monitor

In order to view the replication monitor metrics, ensure that you have configured replication for your TimesTen database target and ensure that the replication agent is up.

Navigate to the TimesTen database target page. For information on navigating to the TimesTen database target page, see "Navigating to the TimesTen target page".

From the TimesTen Database Home menu, select Monitoring, then select Replication Monitor.

Analyzing information on the TimesTen replication monitor

The TimesTen replication monitor page consists of two areas each of which have been customized specifically for TimesTen replication.

The top area consists of:

Summary

Status

State

The bottom area consists of five tabs:

Replication peers

Replication log holds

Transmitter thread status

Receiver thread status

Tracks

Summary

Figure 13-1 Summary region

This region identifies your database and the configuration of your replication policy:

Database name

This value is taken from the last part of the path to the database. For example, if the path to the database is /var/tt/master, the database name is master.

Replication policy

The replication policy is set with the -repPolicy option of the ttAdmin utility. The default value is manual. For more information on changing the replication policy, see "ttAdmin" in the Oracle TimesTen In-Memory Database Reference.

Status

Figure 13-2 Status region

The replication status region shows overall information relative to the current state of the replicated operations. If the most recent log file number is much greater than the last log file held by replication, then the replication agent has fallen behind in transmitting the recently created transactions.

Values for Replication Agent are Up, Down, or N/A. If you have not configured a replication scheme, then the value is N/A.

State

Figure 13-3 State region

The replication state region shows the current replication state of a database in an active standby pair.

The replication state region uses values from the ttRepStateGet built-in procedure. For more information about ttRepStateGet, see "ttRepStateGet" in the Oracle TimesTen In-Memory Database Replication Guide.

Replication peers

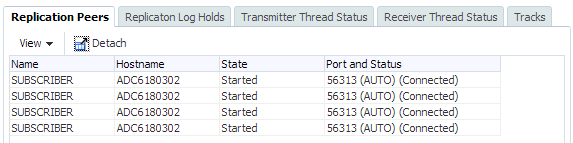

Figure 13-4 Replication Peers region

The replication peers table is common to any database regardless of whether the database is in the role of transmitter or receiver. The table shows the list of peers to the database.

The replication peers table uses values from the TTReplication.ReplicationPEERS replication table. You can also view these values with the ttRepAdmin -showstatus utility. For more information about the TTReplication.ReplicationPEERS replication table, see "TTReplication.ReplicationPEERS" in the Oracle TimesTen In-Memory Database System Tables and Views Reference. For more information about the ttRepAdmin utility, see "ttRepAdmin" in the Oracle TimesTen In-Memory Database Reference.

Replication log holds

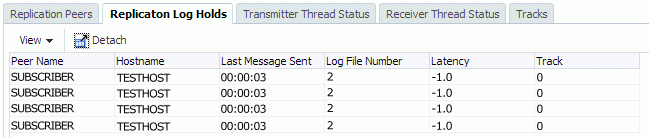

Figure 13-5 Replication Log Holds region

The replication log holds table shows information for databases that replicate transactions to other databases. The table shows replication log holds.

The replication log holds table uses values from the ttLogHolds built-in procedure. For more information about the ttLogHolds utility, see "ttLogHolds" in the Oracle TimesTen In-Memory Database Reference.

Transmitter thread status

The transmitter thread status tab shows a detailed list and status of transmitter threads for this TimesTen database. This tab is populated for databases that replicate transactions to other databases. This tab is divided into two regions:

Replication transmitters

Transactions sent in the last hour

Replication transmitters

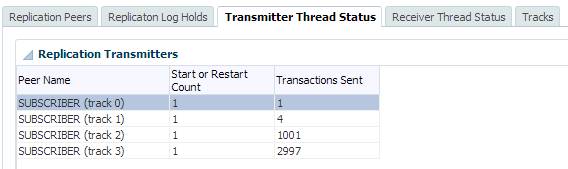

Figure 13-6 Replication Transmitters region

The replication transmitters table shows information for databases that replicate transactions to other databases. The table shows the status of transmitter threads for the database.

The replication transmitters table uses values from the ttRepAdmin -showstatus utility. For more information about the ttRepAdmin utility, see "ttRepAdmin" in the Oracle TimesTen In-Memory Database Reference.

Click a transmitter track to review the number of transactions sent on that track. The number of transactions sent in the last hour display in the transactions sent in the last hour region. For more information on the transactions sent in the last hour region, see "Transactions sent in the last hour".

Transactions sent in the last hour

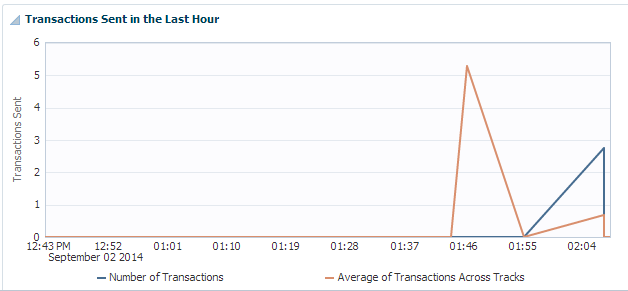

Figure 13-7 Transactions Sent in the Last Hour region

The transactions sent in the last hour region shows a line graph with the number of transactions sent for your specified transmitter track and average number of transactions sent per transmitter track per second.

Receiver thread status

The receiver thread status tab shows a detailed list and status of receiver threads for this TimesTen database. This tab is populated for databases that receive transactions from other databases. This tab is divided into two regions:

Replication receivers

Transactions received in the last hour

Replication receivers

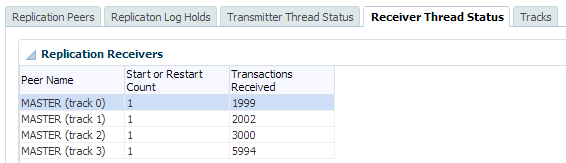

Figure 13-8 Replication Receivers region

The receiver threads status table shows information for databases that receive transactions from other databases. The table shows the status of receiver threads for the database.

The replication receivers table uses values from the ttRepAdmin -showstatus utility. For more information about the ttRepAdmin utility, see "ttRepAdmin" in the Oracle TimesTen In-Memory Database Reference.

Click a receiver track to review the number of transactions received on that track. The number of transactions received in the last hour display in the transactions received in the last hour region. For more information on the transactions received in the last hour region, see "Transactions received in the last hour".

Transactions received in the last hour

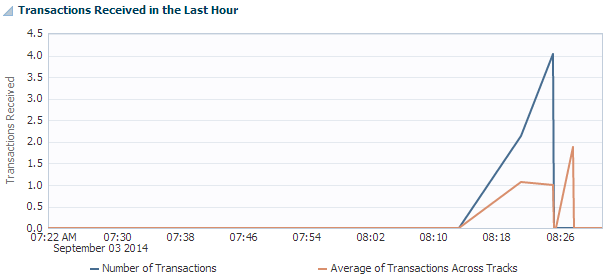

Figure 13-9 Transactions Received in the Last Hour region

The transactions received in the last hour region shows a line graph with the number of transactions received for your specified receiver track and average transactions received per receiver track per second.

Tracks

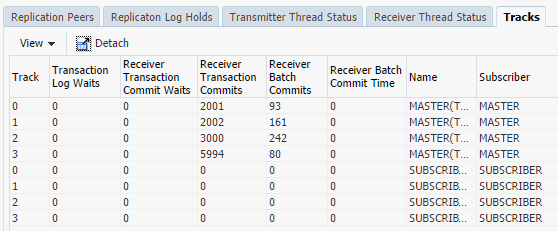

Figure 13-10 Tracks tab

The tracks tab uses a table to show performance information about each track. This information can help you determine the location of transaction bottlenecks.

14 Viewing Metrics

This chapter details metric information collected for your TimesTen database and TimesTen instance to assist you in determining the efficiency and performance of your target.

Topics include:

Navigating to the TimesTen database metrics page

Navigating to the TimesTen instance metrics page

Viewing TimesTen database metrics

Viewing TimesTen instance metrics

Navigating to the TimesTen database metrics page

Ensure that you are on the TimesTen database target page. For more information on navigating to the TimesTen database target page, see "Navigating to the TimesTen target page".

From the TimesTen Database Home menu, select Monitoring, then select All Metrics.

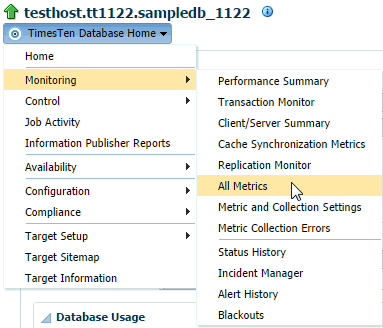

Figure 14-1 TimesTen database All Metrics

The All Metrics page displays. Locate the name of the metric group.

Expand the metric group, and click the name of the metric.

The metric information displays in table format. For more information on TimesTen database metrics, see "Viewing TimesTen database metrics".

Navigating to the TimesTen instance metrics page

Ensure that you are on the TimesTen instance target page. For more information on navigating to the TimesTen instance target page, see "Navigating to the TimesTen target page".

From the or TimesTen Instance Home menu, select Monitoring, then select All Metrics.

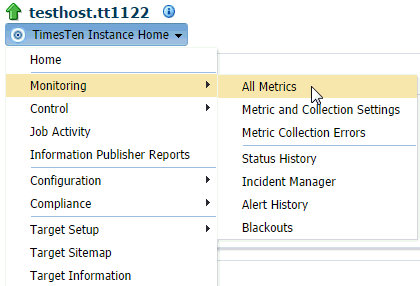

Figure 14-2 TimesTen Instance All Metrics

The All Metrics page displays. Locate the name of the metric group.

Expand the metric group, and click the name of the metric.

The metric information displays in table format. For more information on TimesTen instance metrics, see "Viewing TimesTen instance metrics".

Viewing TimesTen database metrics

There are twelve groups of TimesTen database metrics:

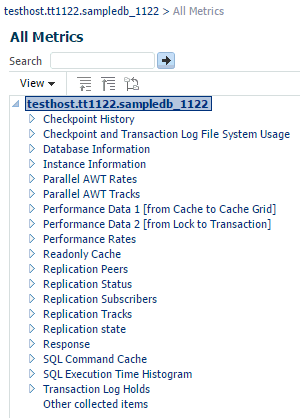

Figure 14-3 Groups of metrics

Checkpoint history

Checkpoint and transaction log file system usage

Database information

Instance information

Parallel AWT Rates

Parallel AWT Tracks

Performance data

Performance rates

Readonly cache

Replication peers

Replication status

Replication subscribers

Replication tracks

Replication state

Response

SQL command cache

SQL execution time histogram

Transaction log holds

Some metrics have predefined warning and critical thresholds. You can modify and add new thresholds. The Oracle Enterprise Manager Cloud Control issues alerts and warnings when the values collected for the metrics surpass the set threshold.

Checkpoint history

Table 14-1 lists each metric and describes the metrics.

Table 14-1 Checkpoint History

Metric
Description

Blocks currently in use out of total blocks

The number of blocks that are currently in use.

Bytes occupied by all blocks

The number of bytes occupied by all blocks.

Bytes occupied by blocks in use

The number of bytes occupied by the blocks that are in use.

Bytes occupied by dirty blocks

The number of bytes occupied by dirty blocks.

Bytes written in MB

Bytes written in megabytes.

Bytes written per sec

Bytes written per second.

Checkpoint sequence number

Checkpoint sequence number.

Dirty blocks written by this checkpoint

The number of dirty blocks written by this checkpoint.

Percentage of the checkpoint that has been completed

Indicates the percentage of the checkpoint that has been completed. If there is no checkpoint in progress, the value is NULL.

Permanent blocks currently allocated in the database

Permanent blocks currently allocated in the database.

Status of the checkpoint operation

Status of the checkpoint operation.

The database file number used by the checkpoint

The database file number used by the checkpoint.

The source of the checkpoint request

The source of the checkpoint request.

The transaction log file number of the checkpoint log record

The transaction log file number of the checkpoint log record.

The transaction log file offset of the checkpoint log record

The transaction log file offset of the checkpoint log record.

The type of checkpoint

The type of checkpoint.

Time when the checkpoint completed

Time when the checkpoint completed.

Time when the checkpoint was begun

Time when the checkpoint began.

TimesTen database error number for the failure

TimesTen error number that indicates the reason for the failure.

Total bytes written by this checkpoint

The total number of bytes written by this checkpoint.

Checkpoint and transaction log file system usage

Table 14-2 lists each metric and describes the metrics.

Table 14-2 Checkpoint and Transaction Log File System Usage

Metric
Description

Checkpoint file system

Checkpoint file system.

Checkpoint file system mount Point

Checkpoint file system mount point.

Checkpoint file system size (MB)

Checkpoint file system size in megabytes.

Checkpoint file system space available (%)

Checkpoint file system space available (expressed as a percentage).

Checkpoint file system space available (MB)

Checkpoint file system space available in megabytes.

Transaction log file system

Transaction log file system.

Transaction log file system mount point

Transaction log file system mount point.

Transaction log file system size (MB)

Transaction log file system size in megabytes.

Transaction log file system space available (%)

Transaction log file system space available (expressed as a percentage).

Transaction log file system space available (MB)

Transaction log file system space available in megabytes.

Database information

Table 14-3 shows information about your database.

Table 14-3 Database Information

Database information
Description

Active standby pair table creation replication

Database attribute is DDLReplicationAction.

If set to 'INCLUDE' (the default): When a table is created, the table is automatically added to the active standby pair scheme. If set to 'EXCLUDE': When a table is created, the table is not automatically included in the active standby pair.

Amount of data in log between background checkpoints

Amount of data in megabytes that collects in log between background checkpoints.

Binding style for duplicate SQL parameters

Determines whether applications use TimesTen or Oracle parameter binding for duplicate occurrences of a parameter in a SQL statement. If 0, Oracle-style binding.

Cache agent policy

Cache agent policy (always, manual).

Cache agent running

1 if running; 0 if not running.

Character encoding for the connection

Character encoding for the connection. May be different than database character set.

Commit operations should write log records to disk

If set (=1), commit operations write log records to disk.

Controls conditional compilation of PL/SQL units

Controls conditional compilation of PL/SQL units.

Controls transactional commit behavior in relation to DDL

Controls transactional commit behavior in relation to DDL. If 0, Oracle. If 1, Timesten.

Delete unneeded transaction log files during checkpoint

If 1, transaction log files are deleted during a checkpoint operation.

Determines if commands are shared between connections

Determines if commands are shared between connections.

Determines whether PL/SQL is enabled

Determines if PL/SQL is enabled. (1 = enabled.)

Enables AWT propagation method on Oracle database tables

Database attribute is CacheAWTMethod.

Determines whether PL/SQL execution method or SQL array execution method is used for Asynchronous Writethrough propagation to apply changes to the Oracle server.

If 0, SQL array execution method is used.

If 1 (the default), PL/SQL execution method is used.

Enables cache grid

If set (=1), cache grid is enabled.

Enables transparent load to dynamic cache groups

If set (=1), enables transparent load of Oracle data to dynamic cache groups.

Error returned upon transparent load failure

If set (=1), error message is returned if there is a transparent load failure.

Expected upper bound for concurrent connections

Indicates the expected upper bound on the number of concurrent connections to the database.

Frequency in seconds for background checkpoint

Frequency in seconds that TimesTen performs a background checkpoint.

Identifies the character set used by the database

Identifies the character set used by the database.

Identifies the physical database

Identifies the physical database.

Is error reported for data loss from character type conversion

Determines if error is reported when there is data loss during an implicit or explicit character type conversion between NCHAR/NVARCHAR2 and CHAR/VARCHAR2 data.

Isolation level read committed or serializable

Specifies whether the isolation level is read committed or serializable. If 1, read committed.

Level of DDL replication enabled

Database attribute is DDLReplicationLevel.

If 1, replicates ALTER TABLE ADD or DROP COLUMN to the standby database. Does not replicate CREATE and DROP operations for tables, indexes or synonyms to the standby database.

If 2 (the default), replicates creating and dropping of tables, indexes and synonyms.

Location of PL/SQL memory segment

Virtual address of PL/SQL shared memory segment that is loaded into each process that uses the TimesTen "direct" drivers.

Lock wait interval

Lock wait interval for connection.

Log buffer strands

Number of log buffer strands.

Max rate data written to disk during checkpoint

Maximum rate data that TimesTen writes to disk during a checkpoint operation.

Maximum process heap memory PL/SQL can use for this connection

Specifies the maximum amount of process heap memory in megabytes that PL/SQL can use for the connection.

Method used to write and sync log data to transaction log files

Method used to write and sync log data to transaction log files. If 1, TimesTen uses buffered writes to write data to transaction log files.

Optimization level used to compile PL/SQL library units

Optimization level used to compile PL/SQL library units.

Oracle Service Name of Oracle instance from which data is loaded

Oracle Service Name of the Oracle database instance from which data is to be loaded into a TimesTen database.

PL/SQL memory segment size

Size in megabytes of the PL/SQL shared memory segment used by PL/SQL.

Parallel replication apply ordering

Database attribute is ReplicationApplyOrdering.

If 0 (the default), specifies commit ordering parallel replication.

If 1, specifies user-managed track based parallel replication.

Query timeout threshold

Time limit in seconds that the database can execute a SQL statement before timing out.

RAM residence policy

Ram residence policy (always, manual, inUse).

Replication agent running

1 if running; 0 if not running.

Replication policy

Replication policy (always, manual, norestart).

Row-level or database-level locking

Specifies whether the connection uses row-level locking (value = 0) or database-level locking (value =1).

SQL statement pass through to Oracle database mode

Specifies if SQL statements are passed through to Oracle, or executed locally in TimesTen, or both.

Sets the maximum message wait time

Sets the maximum message wait time.

Size in MB of the permanent region of the database

Size in megabytes of the permanent region of the database.

Size in MB of the temporary region of the database

Size in megabytes of the temporary region of the database.

Specifies that disk space should be preallocated when created

Specifies that disk space for the database should be preallocated when creating the database.

Specifies that the database is not saved to disk

Specifies that database is not saved to disk.

Terminate connect if recovery encounters defective log record

Determines whether the first connection to the database should proceed if TimesTen recovery encounters a defective log record. If 1, TimesTen continues after log is truncated.

The collating sequence to use for linguistic comparisons

Collating sequence to use for linguistic comparisons. Default is binary.

The default length semantics configuration

Default length semantics configuration. Default is byte.

The directory where transaction log files are stored

The directory where transaction log files are stored.

The size of the internal log buffer in MB

Size of the internal log buffer in megabytes.

The transaction log file size in MB

Transaction log file size in megabytes.

The type mode for the database

Type mode for database. If 0, Oracle database type mode. If 1, TimesTen type mode.

Thread count to apply changes on active master database

Number of threads used to apply changes on the active master database to the standby master database in an active standby pair replication scheme.

Thread count to rebuild indexes during recovery

Number of threads used to rebuild indexes during recovery.

Threshold for warning when permanent region low in memory

Threshold at which TimesTen returns a warning and throws an SNMP trap when the permanent region of the database is low in memory.

Threshold for warning when temporary region low in memory

Threshold at which TimesTen returns a warning and throws an SNMP trap when the temporary region of the database is low in memory.

Time PL/SQL procedure can run before being terminated

Number of seconds a PL/SQL procedure runs before being automatically terminated.

Time of first connection to database

Time of first connection to the database.

Tracks available for parallel replication

Database attribute is ReplicationParallelism.

Possible values are between 1 and 64, indicating the number of tracks to replicate in parallel. The default is 1 indicating single-threaded replication.

What type of logging should be performed for the database

Type of logging used for the database. Only logging to disk is supported (value = 1).

Whether PL/SQL compiler generates cross-reference information

Determines if PL/SQL compiler should generate cross-reference information.

Whether error returned if query times out before executing

Indicates whether TimesTen should write a warning to the support log and throw an SNMP trap when execution time of a SQL statement exceeds the specified value. If 0, TimesTen does not return a warning.

Whether real memory should be locked during database load

Specifies whether connections to a shared database should lock real memory during database loading.

Whether to enable installation of TAF FAN callbacks

Specifies whether to enable or disable installation of Transparent Application Failover (TAF) and Fast Application Failover (FAB) callbacks when using Oracle Real Application Clusters (Oracle RAC) with TimesTen Cache.

Instance information

Table 14-4 shows information about your TimesTen instance.

Table 14-4 Instance Information

Name
Description

Daemon port number

Daemon port number.

Instance name

TimesTen instance name.

Platform type

Platform type. For example, Linux/86_32.

TimesTen server process identifier

TimesTen server process identifier.

TimesTen server port number

Server port number.

TimesTen server running

1 if running, 0 if not running.

TimesTen version number

Five-digit release number.

For more information on your TimesTen instance, see "ttStatus" in the Oracle TimesTen In-Memory Database Reference.

Parallel AWT Rates

Table 14-5 shows information about your Parallel AWT Rates.

Table 14-5 Parallel AWT Rates

Name
Description

Bytes sent in PL/SQL mode MB per sec

The number of megabytes sent in PL/SQL mode to the Oracle database per second.

Bytes sent in SQL mode MB per sec

The number of megabytes sent in SQL mode to the Oracle database per second.

Oracle database Rollbacks Timeout per sec

The timeout per second for rollbacks on the Oracle database.

Total AWT MB per sec

The number of megabytes sent for AWT to the Oracle database per second.

Total number of Oracle database commits per sec

The total number of Oracle database commits per second.

Total number of batches sent fully per sec

The total number of batches sent fully per second.

Total number of batches sent partially per sec

The total number of batches sent partially per second.

Total number of transactions per sec

The total number of transactions sent to the Oracle database per second.

Transaction master restart per sec

The number of transaction master restarts per second.

Transactions Generated on TimesTen database per sec

The number of transactions generated on the TimesTen database per second.

Transactions propagated to Oracle database per sec

The number of transactions propagated to the Oracle database per second.

Parallel AWT Tracks

Table 14-6 shows information about your Parallel AWT Tracks.

Table 14-6 Parallel AWT Tracks

Name
Description

Batches Begin Waited

The number of AWT batches that had to wait on a begin dependency before being transmitted between the TimesTen database and the Oracle database.

Batches Begin Waits Count

The number of times the AWT batch had to check on a begin dependency to be satisfied before being transmitted between the TimesTen database and the Oracle database.

Commit Waited Count

The number of times the AWT batch had to check on a commit dependency to be satisfied before the AWT batch is committed on the Oracle database.

Full Batches

The number of full AWT batches transmitted between the TimesTen database and the Oracle database.

Oracle database Rollbacks

The number of rollbacks performed on the Oracle database.

PL/SQL Mode Batches

The number of AWT batches transmitted between the TimesTen database and the Oracle database in PL/SQL mode.

Partial Batches

The number of partial AWT batches transmitted between the TimesTen database and the Oracle database.

SQL Mode Batches

The number of AWT batches transmitted between the TimesTen database and the Oracle database in SQL mode.

Subscriber

The name of the subscriber database.

Track

The track number.

Transaction processed

The total number of transactions processed.

Transactions processed per sec

The number of transactions processed per second.

Performance data

Table 14-7 shows performance information.

Table 14-7 Performance Data

Metric
Description

Cache - AWT transactions committed on Oracle database

Number of AWT transactions committed on the Oracle database.

Cache - AWT transactions re-tries in case of an error

Number of times AWT transactions are re-tried on Oracle database.

Cache - Autorefresh cycles completed successfully

Number of autorefresh cycles completed successfully on TimesTen.

Cache - Autorefresh cycles that failed due to errors

Number of autorefresh cycles that failed because of errors.

Cache - Batches sent to Oracle database in SQL mode

Number of batches sent to the Oracle database in SQL mode (CacheAWTMethod = 0).

Cache - Bytes flushed to Oracle database

Number of bytes flushed to the Oracle database.

Cache - Bytes loaded due to dynamic load miss-local

Total number of bytes loaded from the Oracle database for servicing dynamic load misses for dynamic local cache groups.

Cache - Bytes loaded due to dynamic load misses

Total number of bytes loaded from the Oracle database for servicing dynamic load misses.

Cache - Bytes sent to Oracle database for SWT operations

Number of bytes sent to the Oracle database during SWT cache group operations.

Cache - Bytes sent to Oracle database in PL/SQL mode

Number of bytes sent to the Oracle database in PL/SQL mode (CacheAWTMethod = 1).

Cache - Bytes sent to Oracle database in SQL mode

Number of bytes sent to the Oracle database in SQL mode (CacheAWTMethod = 0).

Cache - Calls made to Oracle database for AWT

Number of calls made to the Oracle database for AWT.

Cache - Data loads from Oracle database for dynamic load misses

Number of data loads from the Oracle database when servicing dynamic load misses for dynamic local cache groups.

Cache - Data requests due to dynamic load on remote cache grid member

Number of requests for data received by this cache grid member from another cache grid member (because of a dynamic load on the remote cache grid member).

Cache - Data requests received for dirty data

Number of requests for data received by this cache grid member when the data requested is dirty (and must first be propagated to the Oracle database).

Cache - Data requests received where data not present

Number of requests for data received by this cache grid member when the data requested was not found in this member.

Cache - Data requests received where locked by transaction

Number of requests for data received by this cache grid member when the data requested was locked by a transaction on this member.

Cache - Delete batches sent to Oracle database in SQL mode

Number of delete batches sent to the Oracle database in SQL mode (CacheAWTMethod = 0).

Cache - Dynamic load misses from the Oracle database

Number of times a dynamic load miss had to load the requested data from the Oracle database.

Cache - Flush cache group executes

Number of flush cache group executions.

Cache - Full refreshes triggered during autorefresh operations

Number of full refreshes triggered during autorefresh operations.

Cache - Global dynamic cachegroup cache hits

Global dynamic cache group hits: Dynamic loads that find the data in the local cache grid member without requiring the data to be loaded from the Oracle database or another cache grid member.

Cache - Global dynamic cachegroup cache misses

Global dynamic cache group misses: Dynamic loads that do not find data initially in the local cache grid member (either need to go to the Oracle database or another cache grid member).

Cache - Insert batches sent to Oracle database in SQL mode

Number of insert batches sent to the Oracle database in SQL mode (CacheAWTMethod = 0).

Cache - Local dynamic cachegroup cache hits

Local dynamic cache group hits: Number of dynamic loads that find the requested data in the database.

Cache - Local dynamic cachegroup misses

Local dynamic cache group misses: Number of dynamic loads that do not find the requested data in the database and need to load the data from the Oracle database.

Cache - PL/SQL block batches sent to Oracle database

Number of PL/SQL block batches sent to the Oracle database. (CacheAWTMethod = 1).

Cache - Remote dynamic loads

Dynamic loads that do not find data in the local cache grid member and successfully load the required data from another cache grid member.

Cache - Rollbacks on Oracle database because of errors

Number of rollbacks on Oracle database because of errors.

Cache - Rows deleted in the TimesTen database by autorefresh

Number of rows deleted from TimesTen during autorefresh from the Oracle database.

Cache - Rows deleted on Oracle database in PL/SQL

Number of rows deleted from Oracle database in PL/SQL mode (CacheAWTMethod = 1).

Cache - Rows deleted on Oracle database in SQL

Number of rows deleted from the Oracle database in SQL mode (CacheAWTMethod = 0).

Cache - Rows flushed to Oracle database

Number of rows flushed to the Oracle database.

Cache - Rows in SWT cache groups deleted on Oracle database

Number of rows in SWT cache groups deleted from Oracle database.

Cache - Rows in SWT cache groups inserted on Oracle database

Number of rows in SWT cache groups inserted into Oracle database.

Cache - Rows in SWT cache groups updated on Oracle database

Number of rows in SWT cache groups updated on Oracle database.

Cache - Rows inserted in the TimesTen database by autorefresh

Number of rows inserted into TimesTen during autorefresh from the Oracle database.

Cache - Rows inserted on Oracle database in PL/SQL mode

Number of rows inserted into Oracle database in PL/SQL mode (CacheAWTMethod = 1).

Cache - Rows inserted on Oracle database in SQL mode

Number of rows inserted into Oracle database in SQL mode (CacheAWTMethod = 0).

Cache - Rows updated in the TimesTen database by autorefresh

Number of rows updated in TimesTen during autorefresh from the Oracle database.

Cache - Rows updated on Oracle database in PL/SQL mode

Number of rows updated on Oracle database in PL/SQL mode (CacheAWTMethod = 1).

Cache - Rows updated on Oracle database in SQL mode

Number of rows updated on Oracle database in SQL mode (CacheAWTMethod = 0).

Cache - Transactions propagated from TimesTen to Oracle database

Number of TimesTen transactions propagated to the Oracle database.

Cache - Update batches sent to Oracle database in SQL mode

Number of updated batches sent to the Oracle database in SQL mode (CacheAWTMethod = 0).

Cache grid - Cache grid members that have attached so far

Number of attach operations.

Cache grid - Detach operations

Number of detach operations.

Checkpoint - Bytes written during last checkpoint

Number of bytes written during last checkpoint.

Checkpoint - Checkpoint bytes written during database recovery

Number of bytes written for checkpointing during database recovery.

Checkpoint - Checkpoint volume in bytes

Number of bytes written for checkpointing.

Checkpoint - Checkpoint writes

Number of checkpoint writes.

Checkpoint - Checkpoints completed

Number of checkpoints completed.

Checkpoint - End time of last checkpoint begun

End time of last checkpoint begun.

Checkpoint - Fuzzy checkpoints completed

Number of fuzzy checkpoints completed.

Checkpoint - Start time of last checkpoint begun

Start time of last checkpoint begun.

Checkpoint - Status of last checkpoint begun

Status of last checkpoint begun. For instance, completed.

Checkpoint - Type of last checkpoint begun

Type of last checkpoint begun. For example, fuzzy.

Checkpoint - Whether last checkpoint begun had an error

Whether last checkpoint begun had an error.

Client/Server - ALTER statements executed by server

Number of ALTER statements executed by server.

Client/Server - CREATE statements executed by server

Number of CREATE statements executed by server.

Client/Server - Bytes received by server

Number of client/server bytes received by server.

Client/Server - Bytes transmitted by server

Number of client/server bytes transmitted by server.

Client/Server - Disconnects

Number of client/server disconnects.

Client/Server - Round trips

Number of client/server round-trips.

Client/Server - DELETE statements executed by server

Number of DELETE statements executed by server.

Client/Server - DROP statements executed by server

Number of DROP statements executed by server.

Client/Server - INSERT statements executed by server

Number of INSERT statements executed by server.

Client/Server - MERGE statements executed by server

Number of MERGE statements executed by server.

Client/Server - SELECT statements executed by server

Number of SELECT statements executed by server.

Client/Server - Table rows deleted by server

Number of table rows deleted by server.

Client/Server - Table rows inserted by server

Number of table rows inserted by server.

Client/Server - Table rows updated by server

Number of table rows updated by server.

Client/Server - Transaction rollbacks by server

Number of transaction rollbacks by server.

Client/Server - Transactions committed by server

Number of transactions committed by server.

Client/Server - UPDATE statements executed by server

Number of UPDATE statements executed by server.

Connections - Client-server connections established

Cumulative number of client/server connections established.

Connections - Database connects established

Cumulative number of database connections established.

Connections - Database connects exceeding configured maximum

Cumulative number of database connection thresholds exceeded.

Connections - Database disconnects

Cumulative number of database disconnections.

Connections - Direct linked database connections established

Cumulative number of direct-linked database connections established.

Connections - First database connections established

Number of first database connections established.

DB - Deletes from range indexes

Number of rows deleted from range indexes.

DB - Full table scans

Number of full table scans.

DB - Hash index inserts during database recovery index rebuild

Number of rows inserted into hash indexes during index rebuild phase of database recovery.

DB - Hash indexes scanned

Number of hash indexes scanned.

DB - Hash indexes scanned during replication

Number of hash indexes scanned during replication operations (such as insert, update, and delete operations on tables).

DB - Indexes rebuilt

Number of indexes rebuilt.

DB - Inserts into range indexes

Number of rows inserted into range indexes.

DB - LRU aging commits done since database loaded

Number of LRU aging commits since the database was loaded into memory.

DB - LRU aging cycles completed since database loaded

Number of LRU aging cycles completed since the database was loaded into memory.

DB - LRU aging high threshold crossings since database loaded

Number of times LRU aging high threshold has been reached since the database was loaded into memory.

DB - Merge joins done

Number of merge joins done.

DB - Nested loop joins done

Number of nested loop joins done.

DB - Range index inserts during database recovery index rebuild

Number of rows inserted into range indexes during index rebuild phase of database recovery

DB - Range indexes scanned

Number of temporary indexes scanned.

DB - Range indexes scanned during replication

Number of temporary indexes scanned during replication operations.

DB - Rows deleted during LRU aging since database loaded

Number of rows deleted during LRU aging since the database was loaded into memory.

DB - Rows deleted during time-based aging since database loaded

Number of rows deleted during time-based aging since the database was loaded into memory.

DB - Rows deleted from hash indexes

Number of rows deleted from hash indexes.

DB - Rows fetched from hash indexes

Number of rows fetched from hash indexes.

DB - Rows fetched from hash indexes during replication

Number of rows fetched from hash indexes during replication operations.

DB - Rows fetched from range indexes during replication

Number of rows fetched from range indexes during replication operations.

DB - Rows fetched from temp indexes during replication

Number of rows fetched from temporary indexes during replication operations.

DB - Rows fetched from temporary indexes

Number of rows fetched from temporary indexes.

DB - Rows inserted into hash indexes

Number of rows inserted into hash indexes.

DB - Rows not deleted using LRU aging because of lock contention

Number of rows that were not deleted using LRU aging because of lock contention since the database was loaded into memory.

DB - Rows not deleted using time-based aging - lock contention

Number of rows that were not deleted using time-based aging because of lock contention since the database was loaded into memory.

DB - Sorts done

Number of sorts done.

DB - Table rows deleted

Number of table rows deleted.

DB - Table rows inserted

Number of table rows inserted.

DB - Table rows read

Number of table rows read.

DB - Table rows updated

Number of table rows updated.

DB - Temporary indexes created

Number of temporary indexes created.

DB - Temporary indexes scanned

Number of range indexes scanned.

DB - Temporary indexes scanned during replication

Number of range indexes scanned during replication operations (such as insert, update, and delete operations on tables).

DB - Time-based aging commits done since the database loaded

Number of time-based aging commits since the database was loaded into memory.

DB - Time-based aging cycles completed since database loaded

Number of time-based aging cycles completed since the database was loaded into memory.

DB - Times LRU aging low threshold reached since database loaded

Number of times LRU aging low threshold has been reached since the database was loaded into memory.

DB - Tuples fetched from range indexes

Number of rows fetched from range indexes.

DB - Updates on range indexes

Number of rows updated on range indexes.

Lock - Deadlocks

Number of deadlocks.

Lock - Locks acquired for DML activity

Number of locks acquired for DML activity.

Lock - Locks acquired for table scans

Number of locks acquired for table scans.

Lock - Locks granted immediately

Number of locks granted immediately.

Lock - Locks granted that required waiting

Number of locks granted that required waiting.

Lock - Requests denied due to timeouts

Number of lock requests denied due to timeouts.

Log - Bytes inserted into the log buffer

Number of bytes inserted into the log buffer.

Log - Bytes of log read during DB recovery

Number of log bytes read during database recovery.

Log - Bytes read from log for commits

Number of bytes read from the log for commit processing.

Log - Earliest log file currently

Earliest log file that currently exists in the database.

Log - File system reads

Number of file system reads.

Log - File system reads for commits

Number of file system reads from the log for commit processing.

Log - File system writes

Number of file system writes.

Log - Last log file number

Number of last log file.

Log - Log files generated so far

Number of log files generated so far.

Log - Log records inserted into the log buffer

Number of log records inserted into the log buffer.

Log - Most recent log file present

Most recent log file present.

Log - Times the log is synched to disk

Number of times the log has been synchronized to disk.

Log - Total waits for inserts

Number of times a thread was delayed while trying to insert a log record into the log buffer because the log buffer was full. If this value is increasing, it generally indicates that the log buffer is too small.

Memory - Highest amount of permanent region in use - MB

Highest amount of memory of the permanent data region in use since the first connection to the database.

Memory - Highest amount of temporary region in use - MB

Highest amount of memory of the temporary data region in use since the first connection to the database.

Memory - MB of permanent space in use

Size of permanent region currently in use.

Memory - MB of temporary space in use

Size of temporary region currently in use.

Memory - Percent of permanent space in use

Percent of the permanent region space currently being used.

Memory - Percent of temporary space in use

Percent of the temporary region space currently being used.

PL/SQL - Cache hit ratio for object handles

The cache hit ratio for PL/SQL object handles.

PL/SQL - Cache hit ratio for pin requests

The cache hit ratio for PIN requests.

PL/SQL - Lock requests for a PL/SQL object

Number of times a lock was requested for a PL/SQL object.

PL/SQL - Object invalidations due to dependent object changes

Total number of times objects in the namespace were marked invalid because a dependent object was modified.

PL/SQL - PINs of objs not 1st performed since creation

Any PIN of an object that is not the first PIN performed since the object handle was created and which requires loading the object from the database.

PL/SQL - Times PL/SQL object's handle found in memory

Number of times a PL/SQL object's handle was found in memory.

PL/SQL - Times a PIN was requested for PL/SQL objects

Number of times a PIN was requested for PL/SQL objects.

PL/SQL - Times all metadata of library object found in memory

Number of times all of the metadata pieces of the library object were found in memory.

PL/SQL - Total heap (MB) for PL/SQL on this database connection

Total amount of heap memory in megabytes allocated to PL/SQL for the database connection.

PL/SQL - Total times a deferred cleanup occurred

Number of times a deferred cleanup occurred.

Replication - Last log file number held by replication

Number of last log file held by replication.

Replication - Transactions replicated from this database

Number of replicated transactions generated on the local database that are being replicated to at least one peer database.

Statement - ALTER statements executed

Number of ALTER statements executed.

Statement - Automatic statement reprepares

Number of automatic statement reprepares.

Statement - CREATE statements executed

Number of CREATE statements executed.

Statement - Command cache misses during statement prepare

Number of command cache misses during statement prepare.

Statement - DELETE statements executed

Number of DELETE statements executed.

Statement - DROP statements executed

Number of DROP statements executed.

Statement - INSERT statements executed

Number of INSERT statements executed.

Statement - MERGE statements executed

Number of MERGE statements executed.

Statement - SELECT statements executed

Number of SELECT statements executed.

Statement - Statement prepares

Number of statement prepares.

Statement - Statement reprepares (forced or automatic)

Number of statement reprepares including forced and automatic.

Statement - Total SQL statements executed

Number of SQL statements executed.

Statement - UPDATE statements executed

Number of UPDATE statements executed.

Transaction - Durable replicated transaction commits

Number of durable replicated transaction commits.

Transaction - Durable transaction commits

Number of durable transaction commits.

Transaction - Nondurable replicated transaction commits

Number of nondurable replicated transaction commits.

Transaction - Nondurable transaction commits

Number of nondurable transaction commits.

Transaction - Replication initiated transaction commits

Number of replication initiated transaction commits.

Transaction - Transaction rollbacks

Number of transaction rollbacks.

Transaction - Transactions committed

Number of durable and non-durable transaction committed.

Transaction - XLA initiated transaction commits

Number of XLA initiated transaction commits.

Workload - 10th most commonly executed SQL statement

Tenth most commonly executed SQL statement.

Workload - 2nd most commonly executed SQL statement

Second most commonly executed SQL statement.

Workload - 2nd most commonly prepared SQL statement

Second most commonly prepared SQL statement.

Workload - 2nd most commonly reprepared SQL statement

Second most commonly reprepared SQL statement.

Workload - 3rd most commonly executed SQL statement

Third most commonly executed SQL statement.

Workload - 3rd most commonly prepared SQL statement

Third most commonly prepared SQL statement.

Workload - 3rd most commonly reprepared SQL statement

Third most commonly reprepared SQL statement.

Workload - 4th most commonly executed SQL statement

Fourth most commonly executed SQL statement.

Workload - 4th most commonly prepared SQL statement

Fourth most commonly prepared SQL statement.

Workload - 4th most commonly reprepared SQL statement

Fourth most commonly reprepared SQL statement.

Workload - 5th most commonly executed SQL statement

Fifth most commonly executed SQL statement.

Workload - 5th most commonly prepared SQL statement

Fifth most commonly prepared SQL statement.

Workload - 5th most commonly reprepared SQL statement

Fifth most commonly reprepared SQL statement.

Workload - 6th most commonly executed SQL statement

Sixth most commonly executed SQL statement.

Workload - 7th most commonly executed SQL statement

Seventh most commonly executed SQL statement.

Workload - 8th most commonly executed SQL statement

Eighth most commonly executed SQL statement.

Workload - 9th most commonly executed SQL statement

Ninth most commonly executed SQL statement.

Workload - Cache hits

Number of hits inside cache.

Workload - Client/Server connections

The number of current active client/server connections on the TimesTen database.

Workload - Commands prepared

Number of commands prepared (compiled).

Workload - Commands reprepared

Number of commands reprepared.

Workload - Communication with Oracle database for dynamic load

Number of executes from the Oracle database using dynamic load.

Workload - Cursor opens

Number of cursor opens.

Workload - Cursors closed

Number of cursor closed.

Workload - Direct linked connections

The number of current direct-linked connections on the database.

Workload - Fetches from Oracle database using dynamic load

Number of fetches from the Oracle database using dynamic load.

Workload - Most commonly executed SQL statement

Most commonly executed SQL statement.

Workload - Most commonly prepared SQL statement

Most commonly prepared SQL statement.

Workload - Most commonly reprepared SQL statement

Most commonly reprepared SQL statement.

Workload - Passthrough count

Number of passthrough operations executed.

Workload - System connections

The sum of the current active subdaemon, replication agent, and cache connect agent connections.

Workload - Total number of connections

Sum of all current active connections on the TimesTen database.

Performance rates

Performance rates are expressed as a rate (For example, X times per minute). These rates are considered instantaneous rates because the value is the rate in the last minute or the per-minute rate (if you have changed the most recent collection interval to a value other than one minute).

Table 14-8 shows each metric and describes the metrics.

Table 14-8 Performance Rates

Metric
Description

Cache - Rows per batch in PL/SQL mode

The number of rows sent per batch in PL/SQL mode to the Oracle database.

Cache - Rows per batch in SQL mode

The number of rows sent per batch in SQL mode to the Oracle database.

Cache - Total AWT MB per sec

The number of megabytes of AWT transactions sent per second to the Oracle database.

Cache - Transactions committed on Oracle database per sec

The number of transactions committed per second on the Oracle database.

Cache - Transactions propagated to Oracle database per sec

The number of transactions propagated per second to the Oracle database.

Cache grid - Cache grid attaches per minute

The number of cache grid attaches per minute.

Cache grid - Cache grid detaches per minute

The number of cache grid detaches per minute.

Cache grid - Cache grid global hit percent

The number of cache grid global hit percent (percent is found in local grid member).

Cache grid - Cache grid global hits per sec

The number of cache grid global hits per second.

Cache grid - Cache grid global misses per sec

The number of cache grid global misses per second.

Cache grid - Cache grid local hits per sec

The number of cache grid local hits per second.

Cache grid - Cache grid local misses per sec

The number of cache grid local misses per second.

Cache grid - Cache grid misses filled from Oracle database per sec

The number of cache grid misses filled from the Oracle database per second.

Client/Server - ALTER statements executed by server per sec

The number of ALTER statements executed per second by the TimesTen server.

Client/Server - Bytes received by server per sec

The number of client/server bytes received per second by the TimesTen server.

Client/Server - Bytes transmitted by server per sec

The number of client/server bytes transmitted per second by the TimesTen server.

Client/Server - CREATE statements executed by server per sec

The number of CREATE statements executed per second by the TimesTen server.

Client/Server - DELETE statements executed by server per sec

The number of DELETE statements executed per second by the TimesTen server.

Client/Server - DROP statements executed by server per sec

The number of DROP statements executed per second by the TimesTen server.

Client/Server - INSERT statements executed by server per sec

The number of INSERT statements executed per second by the TimesTen server.

Client/Server - MERGE statements executed by server per sec

The number of MERGE statements executed per second by the TimesTen server.

Client/Server - Round trips per sec

The number of client/server round-trips per second.

Client/Server - SELECT statements executed by server per sec

The number of SELECT statements executed per second by the TimesTen server.

Client/Server - Table rows deleted by server per sec

The number of table rows deleted per second by the TimesTen server.

Client/Server - Table rows inserted by server per sec

The number of table rows inserted per second by the TimesTen server.

Client/Server - Table rows updated by server per sec

The number of table rows updated per second by the TimesTen server.

Client/Server - Transaction rollbacks by server per sec

The number of transaction rollbacks per second by the TimesTen server.

Client/Server - Transactions committed by server per sec

The number of transactions committed per second by the TimesTen server.

Client/Server - UPDATE statements executed by server per sec

The number of UPDATE statements executed per second by the TimesTen server.

DB - Table rows deleted per minute

The number of table rows deleted per minute in the TimesTen database.

DB - Table rows inserted per minute

The number of table rows inserted per minute in the TimesTen database.

DB - Table rows read per minute

The number of table rows read per minute in the TimesTen database.

DB - Table rows updated per minute

The number of table rows updated per minute in the TimesTen database.

Lock - Deadlocks per minute

The number of deadlocks per minute.

Lock - Immediate lock grants per minute

The number of nonblocking locks acquired per minute.

Lock - Lock grants after wait per minute

The number of blocking locks acquired per minute.

Lock - Lock timeouts per minute

The number of lock timeouts per minute.

Lock - Percent locks granted immediately

The percent of locks granted immediately versus having to wait.

Log - Log buffer MB inserted per sec

The number of megabytes inserted into the log buffer per second.

Log - Log buffer waits per minute

The number of times per minute a thread had to wait because the log buffer was full.

Log - Log bytes to disk per minute in MB

The number of megabytes of log that was written to disk per minute.

Log - Log flushes to file system per minute

Number of times per minute the log buffer was written to the file system.

Log - Log reads from file system per minute

The number of times per minute a log read could not be satisfied from the in memory buffer.

Prepares per minute to executes per minute ratio

The ratio of the prepares per minutes to executes per minute.

Replication - Transactions replicated per minute

The number of transactions replicated to a peer per minute.

Statement - DELETE statements executed per sec

The number of DELETE statements executed per second.

Statement - INSERT statements executed per sec

The number of INSERT statements executed per second.

Statement - MERGE statements executed per sec

The number of MERGE statements executed per second.

Statement - SELECT statements executed per sec

The number of SELECT statements executed per second.

Statement - Total statements executed per sec

The total number of statements executed per second.

Statement - UPDATE statements executed per sec

The number of UPDATE statements executed per second.

Transaction - Transaction rollbacks per sec

The number of transactions rolled back per second.

Transaction - Transactions committed per sec

The number of transactions committed per second.

Transaction - Transactions durably committed per sec

The number of durable transactions committed per minute.

Workload - Commands prepared per minute

The number of SQL commands prepared (compiled) per minute.

Workload - Commands reprepared per minute

The number of SQL commands reprepared (recompiled) per minute.

Workload - Connects per minute

The number of connections to the database per minute.

Workload - Disconnects per minute

The number of disconnects from the database per minute.

Workload - Queries per sec

The number of queries per second.

Readonly cache

Table 14-10 shows readonly cache metrics and describes the metrics.

Table 14-9 Readonly Cache

Metric
Description

Auto refresh status

The status of the autorefresh operation.

Cache group ID

The identifier of the cache group.

Cache group name

The name cache group.

Cache group owner

The owner of the cache group.

Object Identifiers

The object identifier of the table on the Oracle database.

Refresh Interval

The refresh interval for the cache group.

Refresh Time Spent(ms)

The total time spent performing refresh operations.

Rows autorefreshed

The number of rows that have been autorefreshed.

Start Time

The timestamp of when the last autorefresh was performed.

Updates pending refresh

The number of updates that are pending refresh.

Replication peers

Table 14-10 shows replication peers metrics and describes the metrics.

Table 14-10 Replication Peers

Metric
Description

Replication peer host name

Name of the system that hosts replication.

Replication peer name

If replication type is DNS, name of the database to be queried. If replication type is PEERS, name of the database that is a replication peer to this database.

Replication port number

TCP/IP port used by the replication agent to listen for connections from the transmitter threads of remote replication agents. The default is 0 indicating that this port has been assigned automatically to the replication agent, rather than being specified as part of a replication scheme.

Replication protocol

Protocol used by replication to communicate between peers.

Replication state

Current replication state of the replication peer in relation to the queried database.

Type

The replication type.

Replication status

Table 14-11 shows replication status information.

Table 14-11 Replication Status

Name
Description

Replication peer name

The replication peer name.

Replication thread type

The replication thread type. Valid values are Transmitter or Receiver.

Start or restart count

Start or restart count.

Transactions sent or received

The total number of transactions sent or received.

Transactions sent or received per sec

The number of transactions sent or received per second.

Replication subscribers

Table 14-12 shows replication subscriber information.

Table 14-12 Replication Subscribers

Name
Description

Average latency time (in seconds)

The average latency time in seconds between when the master sends a message and when it receives the final acknowledgment from the subscriber.

Last message received

Time in seconds since this subscriber received the last message from the master.

Last message sent

Time in seconds since the master sent the last message to the subscriber. This includes the "heartbeat" messages sent between the databases.

Replication host name

Name of the system that hosts the subscriber.

Replication peer name

Name of the subscriber database.

Replication port number

TCP/IP port used by the subscriber agent to receive updates from the master. A value of 0 indicates that replication has automatically assigned the port.

Replication protocol

Protocol used by replication to communicate between master and subscribers.

Replication state

Current replication state of the subscriber peer in relation to the queried database.

Replication track

Replication track.

Txn log files held by the master database for a subscriber

Number of transaction log files the master database is retaining for a subscriber.

Replication tracks

Table 14-15 shows replication tracks information.

Table 14-13 Replication Tracks

Name
Description

Receiver batch commit counts

The total number of batch commits on the receiver.

Receiver batch commit time

The total time of batch commits on the receiver.

Receiver txn commit counts

The total number of commits on the receiver.

Receiver txn commit waits

The total number of commits waits on the receiver.

Subscriber

The subscriber database.

Track

The track number.

Transmitter log waits

The log waits from the transmitter.

Replication state

Table 14-11 shows replication state information.

Table 14-14 Replication State

Name
Description

Cache Grid State

The current state of the cache grid if the active standby pair is configured for cache grid. If cache grid is not configured the status is No Cache Grid.

State

The current replication state of the database in an active standby pair.

Response

Table 14-15 shows response information.

Table 14-15 Response

Name
Description

Status

Valid values are Up or Down.

SQL command cache

Table 14-16 describes information in the SQL command cache.

Table 14-16 SQL Command Cache

Name
Description

Command ID

The SQL command identifier.

Executions which took place on this command

The number of executions that took place on this command since it was brought into the command cache.

Fetch executions done internally for this statement

The number of fetch executions that were done internally for this statement.

Indicates if command can be garbage collected

Indicates whether this command can be garbage collected by the subdaemon. If 0, it is non-freeable. If 1, it is freeable.

Last measured execution time of the command

The last measured execution time for this SQL command.

Maximum execute time in seconds of this statement

The maximum execution time in seconds for this SQL command.

Minimum execute time in seconds

The minimum execution time in seconds for this SQL command.

Reprepares or invalidations of this command

A counter for the number of reprepares or invalidations of this command.

SQL for the current command

The full SQL text for the current command.

Space(bytes) allocated for this command in the command cache

The total space in bytes allocated for this command in the command cache.

Time when the statement started

The time of when the last execution of the SQL statement started.

Unique ID of a private connection

Unique identifier of a private connection.

User prepares which result in a hit on the command cache

A counter for the number of user prepares that result in a hit in the command cache.

User who created this command

The identifier of the user who created this command.

SQL execution time histogram

Table 14-18 shows SQL execution time histogram information.

Table 14-17 SQL Execution Time Histogram

Name
Description

Accumulated wall clock execution time(sec) when sampling

The accumulated wall clock execution time when sampling in seconds.

Execution Time(sec) upper bound for the bucket

The execution time upper bound limit for this bucket in seconds.

Execution time samples since database start or statistics reset

The number of execution time samples that have been taking since the database has started or since statistics were reset.

SQL command count in this bucket

The SQL command count in this bucket.

Transaction log holds

Table 14-18 shows transaction log holds information.

Table 14-18 Transaction Log Holds

Name
Description

Object for which the hold was created

The type specific object for which the hold was created.

Transaction log file number of the hold

The transaction log file number of the hold.

Transaction log file offset of the hold

The transaction log file offset of the hold.

Type of hold

The type of hold.

Viewing TimesTen instance metrics

There are two groups of TimesTen instance metrics:

Figure 14-4 TimesTen Instance All Metrics

Hosted databases

Response

Some metrics have predefined warning and critical thresholds. You can modify and add new thresholds. The Oracle Enterprise Manager Cloud Control issues alerts and warnings when the values collected for the metrics surpass the set threshold.

Hosted databases

Table 14-18 shows hosted databases information.

Table 14-19 Hosted Databases

Name
Description

Cache agent

This value can be either Up, Down, or N/A. If you have not configured a cache group, then this value is N/A.

Client server connections

The number of client/server connections to the database.

Database path name

The value is taken from the last part of the path to the database. For example, if the path to the database is /var/tt/sampledb_1122, the database name is sampledb_1122.

PL/SQL

This value can be either Enables or Disabled. Once PL/SQL support is enabled in a database, you cannot disable it later.

Ram status

This value can be either Loaded or Not loaded. The RAM status is Loaded if the database is loaded into memory.

Replication agent

This value can be either Up, Down, or N/A. If you have not configured a replication scheme, then this value is N/A.

Total connections

The total number of direct linked and client/server connections to the database.

Response

Table 14-18 shows response information.

Table 14-20 Response

Name
Description

Status

Valid values are Up or Down.

15 Viewing Target Topology

This chapter describes the TimesTen topology page. The topology page provides a visual layout of the relationships between Enterprise Manager targets and performance information about your targets.

Topics include:

Viewing the topology page

Changing the view of the topology page

Adding monitoring metrics

Viewing the topology page

To view the topology page, ensure that you are on the TimesTen target page. For information on navigating to the TimesTen target page, see "Navigating to the TimesTen target page".

Depending on the type of target there are two ways of accessing the topology page:

For a TimesTen instance target:

From the TimesTen Instance Home menu, select Configuration, then select Topology.

For a TimesTen database target:

From the TimesTen Database Home menu, select Configuration, then select Topology.

Changing the view of the topology page

The topology page provides a visual layout of the relationships between Enterprise Manager targets and performance information about your targets.

To change the view of the topology page:

From the View drop-down list, select a view type:

Uses

This view helps you determine the targets that the selected target depends on. If a target is having problems, this view can be useful in helping you determine whether its problems have been caused by another target it depends on. This is the default view.

Used by

This view shows you the targets that depend on the selected target. This can be useful, for example, to view a certain TimesTen metric for the TimesTen databases that are associated with a specific TimesTen instance.

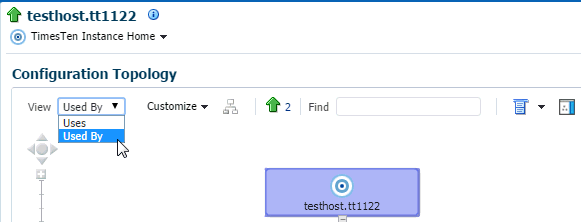

Figure 15-1 Select view

The topology page refreshes with your selected view type.

Adding monitoring metrics

The topology page enables you to view monitoring metrics for your Enterprise Manager targets on a single page. For example, you can monitor the PermSize and TempSize attributes of all of the TimesTen databases that are associated with your TimesTen instance.

To add monitoring metrics to the targets displayed on the topology page, ensure that you are on the topology page for your TimesTen target.

From the Options menu, select Annotations, then select Choose Metrics.

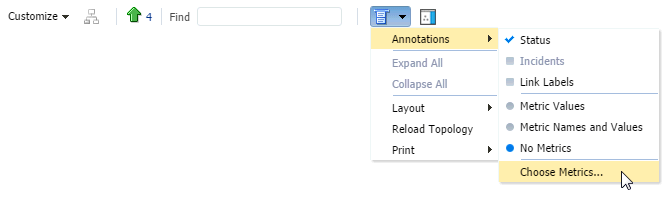

Figure 15-2 Select Choose Metrics

The Choose Metrics dialog displays. Locate the * Target Type drop-down list.

From the * Target Type drop-down list, select a target type:

TimesTen Database

This target type lets you choose metrics that are specific for TimesTen database targets. For more information on TimesTen database metrics, see "Viewing TimesTen database metrics".

TimesTen Instance

This target type lets you choose metrics that are specific for TimesTen instance targets. For more information on TimesTen instance metrics, see "Viewing TimesTen instance metrics".

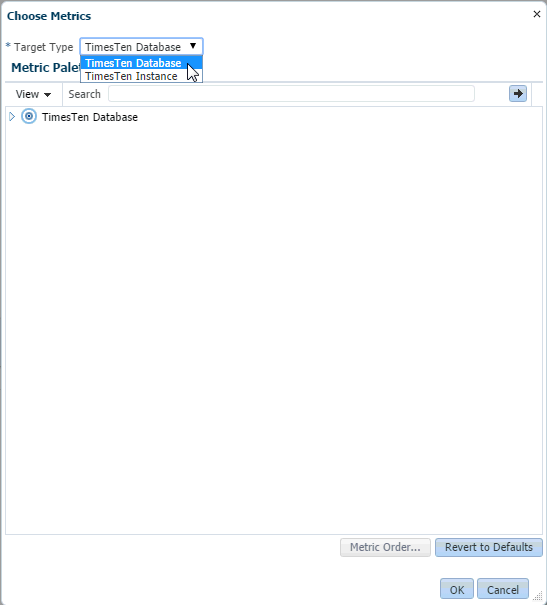

Figure 15-3 Select the target type

Locate the name of the metric group.

Expand the metric group, and click the name of the metric.

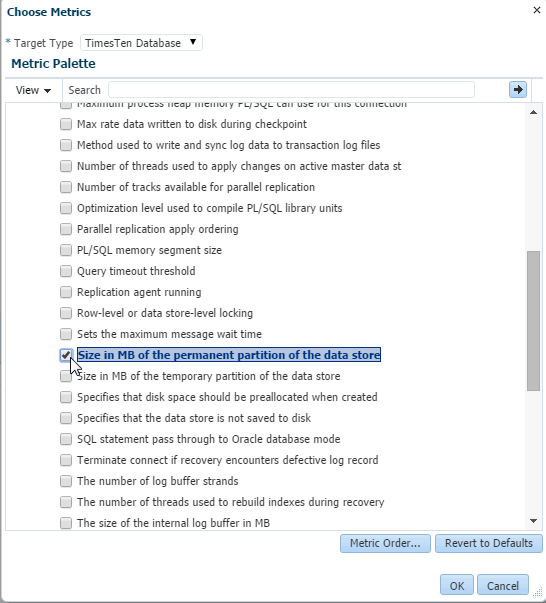

Figure 15-4 Choose Metrics dialog

Repeat this step until you add all of the metrics that you want to monitor. Locate the Metric Order button.

Click Metric Order.

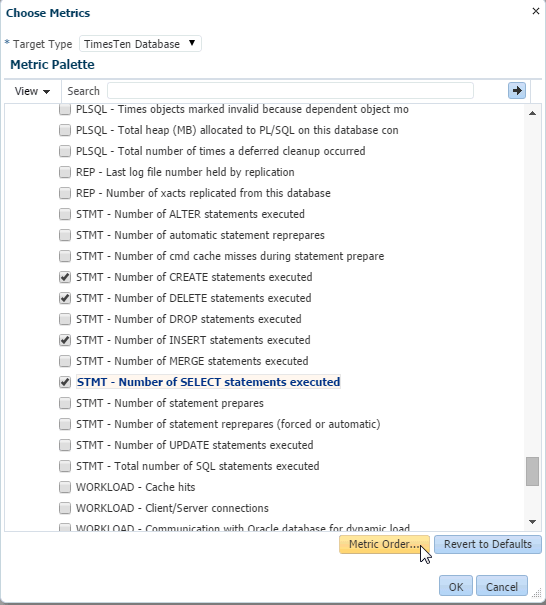

Figure 15-5 Click Choose Metric

The Metric Order dialog displays. The first three metrics in the list are displayed for each of your Enterprise Manager target on the topology page. Additional metrics are displayed in the tooltip of the Enterprise Manager target.

Organize the metrics with the arrows that are on the right of the metric list.

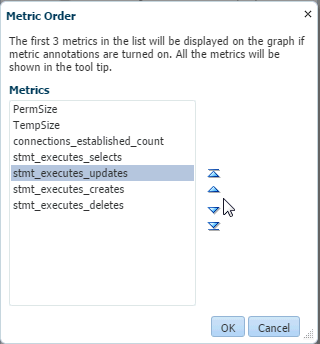

Figure 15-6 Organize the metrics

Locate the OK button.

Click OK.

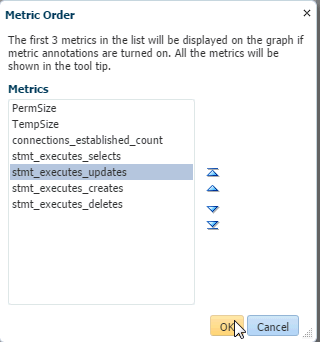

Figure 15-7 Click OK

The Metric Order dialog closes. Locate the OK button in the Choose Metrics dialog.

Click OK.

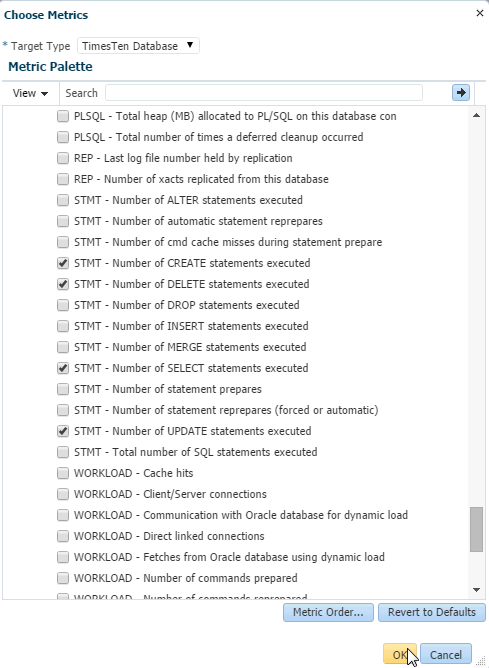

Figure 15-8 Click OK

The Choose Metrics dialog closes. Locate the Options button on the topology page.

From the Options menu, select Annotations, then select Metric Names and Values.

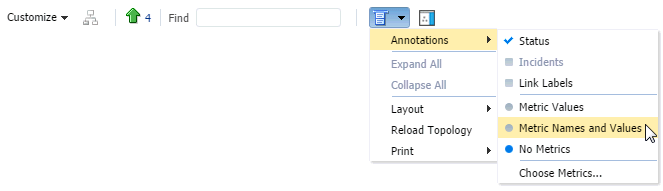

Figure 15-9 Select Metric Names and Values

The Topology page refreshes.

Your targets now show the top three metrics that you configured. Hover over a target and click the more link in the popup to see all of your configured metrics for a specific target.

16 Viewing Reports

Reports are generated from the metric information that has been collected and stored in the Oracle Enterprise Manager repository.

Topics include:

Viewing reports

Types of reports

Viewing reports

Ensure that you are on the TimesTen database target page. For more information on navigating to the TimesTen database target page, see "Navigating to the TimesTen target page".

Note:

TimesTen specific reports are only available for TimesTen database targets.

From the TimesTen Database Home menu, select Information Publisher Reports.

The Information Publisher Reports page displays. Locate the Title column in the Information Publisher Reports table.

In the Title column, click the name of the TimesTen report.

The Specify Target for Report page displays.

Click Continue.

The report displays. If you want to print the report, select Printable Page.

Types of reports

There are nine report categories containing 10 groups of reports.

The categories, groups, and subgroups are:

TimesTen Cache Grid Reports

TimesTen Cache AWT Activity Reports

AWT Commits

AWT Rows per Batch

AWT Throughput

TimesTen Cache Grid Activity Reports

Cache Grid Global Hit Percent

Cache Grid Attaches and Detaches

Cache Grid Hits and Misses

TimesTen Connections

TimesTen database Connections Reports

Current Connections

Connection Rate

TimesTen Lock Reports

TimesTen database Lock Activity Reports

Locks Granted Immediately vs Wait

Locks Timeouts and Deadlocks

TimesTen Log Monitoring

TimesTen database Transaction Log Reports

Log Inserts Activity

Log Waits Activity

Completed Checkpoints

Checkpoint Bytes Written Activity

Recovery Activity

TimesTen Memory Monitoring

TimesTen database Memory Reports

Permanent Memory Activity

Temporary Memory Activity

PL/SQL Memory Activity

TimesTen PLSQL Reports

TimesTen database PLSQL Reports

Pin Hit Ratio

PL/SQL Invalidations and Reloads

TimesTen SQL Operations

TimesTen database SQL Operation Reports

SQL Operations

TimesTen Tables

TimesTen database Table Activity Reports

Rows Processed

TimesTen database Monitoring

TimesTen database Activity Reports

Log Activity

Transactions Activity

Space Usage (% full)

Log Buffer Bytes

Index

A  B  C  D  E  F  I  L  M  P  R  S  T  U

A

access control

group, 3.2

overview, 3.1

roles, 3.3

users, 3.4

granting preferred credentials, 3.5

agent

status, 5.3.2

auto refresh

set, 2.4

B

backup

full, 11.3.1.2

incremental, 11.3.1.1

backup file

delete, 11.4.2

backup schedule

activate, 11.3.2

create, 11.3.1

deactivate, 11.3.3

delete, 11.3.5

immediate backup, 11.3.4

C

cache

viewing, 12.1

control operations

log, 2.5

create blackout

TimesTen database, 10.4

TimesTen instance, 9.3

D

database

restore, 11.4.1

database connections

client/server, 5.4.1.2

direct linked, 5.4.1.2

database usage

high values, 5.4.1.1

permanent space, 5.4.1.1

temporary space, 5.4.1.1

delete

backup file, 11.4.2

deployment

failure, 1.2.2

display time period

set, 2.4

E

end blackout

TimesTen database, 10.5

TimesTen instance, 9.4

F

free space

checkpoint file system, 5.4.1.3

transaction log file system, 5.4.1.3

I

installation

deploying plug-in for TimesTen on management agent, 1.2.3

deploying plug-in for TimesTen on OMS, 1.2.2

deployment

failure, 1.2.2

prerequisites, 1.1

uninstalling plug-in, 1.7

L

locks

acquisition, 7.2

log

control operations, 2.5

log flushes

high rate, 6.8.2.1

log holds

high volume, 6.8.1

M

management agent

adding, 1.2.3

metrics

collection errors, 1.3

TimesTen database

all metrics, 14.1

checkpoint and transaction log file system usage, 14.3.2

checkpoint history, 14.3.1

database information, 14.3.3

instance information, 14.3.4

navigating, 14.1

parallel AWT rates, 14.3.5

parallel AWT tracks, 14.3.6

performance data, 14.3.7

performance rates, 14.3.8

readonly cache, 14.3.9

replication peers, 14.3.10

replication state, 14.3.14

replication status, 14.3.11

replication subscribers, 14.3.12

replication tracks, 14.3.13

response, 14.3.15

SQL command cache, 14.3.16

SQL execution time histogram, 14.3.17

transaction log holds, 14.3.18

viewing, 14.3

TimesTen instance

all metrics, 14.2

hosted databases, 14.4.1

navigating, 14.2

response, 14.4.2

viewing, 14.4

P

performance

checkpoints, 6.9

commits and rollbacks, 6.6

locks, 6.7

transaction logs, 6.8

viewing, 6.1

performance summary

connections, 6.3

statements, 6.4

workload, 6.5

plug-in

changing monitoring configuration, 1.5

deleting, 1.7.4

validating, 1.3, 1.4, 1.5

verifying, 1.3

R

replication

viewing, 13.1

reports

information publisher reports, 16.1

printable page, 16.1

types, 16.2

viewing, 16.1

restore

database, 11.4.1

restore history

delete, 11.5.2

review, 11.5.1

S

set

auto refresh, 2.4

display time period, 2.4

SQL command cache, 5.5

T

target

configuring, 1.2.4

database

adding manually, 1.2.4.5

instance

adding manually, 1.2.4.4

remove, 1.7.1

setting preferred credentials, 1.4

TimesTen

issues, 5.4.2

target page

navigation, 2.1

TimesTen database

client/server

network usage, 8.5

server workload, 8.3

statements, 8.4

configuration, 5.3.3

control

create blackout, 10.4

end blackout, 10.5

load database into ram, 10.3

ram policy settings, 10.3

start/stop agents, 10.2

unload database from memory, 10.3

status, 5.3.2

summary, 5.3.1

transaction monitor

awaiting locks, 7.2.2

outstanding locks, 7.2.1

TimesTen instance

control

create blackout, 9.3

end blackout, 9.4

start/stop services, 9.2

daemon status, 4.4

hosted databases, 4.6

server status, 4.5

summary, 4.3

topology page

adding monitoring metrics, 15.3

change view, 15.2

transaction

rollback, transaction monitor

rollback, 7.2.1.1

U

undeployment

plug-in for TimesTen from management agent, 1.7.2

plug-in for TimesTen from OMS, 1.7.3

uninstallation

deleting the plug-in, 1.7.4

plug-in, 1.7

Oracle Legal Notices

Copyright Notice

Copyright © 1994-2015, Oracle and/or its affiliates. All rights reserved.

Trademark Notice

Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.

Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. AMD, Opteron, the AMD logo, and the AMD Opteron logo are trademarks or registered trademarks of Advanced Micro Devices. UNIX is a registered trademark of The Open Group.

License Restrictions Warranty/Consequential Damages Disclaimer

This software and related documentation are provided under a license agreement containing restrictions on use and disclosure and are protected by intellectual property laws. Except as expressly permitted in your license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify, license, transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any means. Reverse engineering, disassembly, or decompilation of this software, unless required by law for interoperability, is prohibited.

Warranty Disclaimer

The information contained herein is subject to change without notice and is not warranted to be error-free. If you find any errors, please report them to us in writing.

Restricted Rights Notice

If this is software or related documentation that is delivered to the U.S. Government or anyone licensing it on behalf of the U.S. Government, the following notice is applicable:

U.S. GOVERNMENT END USERS: Oracle programs, including any operating system, integrated software, any programs installed on the hardware, and/or documentation, delivered to U.S. Government end users are "commercial computer software" pursuant to the applicable Federal Acquisition Regulation and agency-specific supplemental regulations. As such, use, duplication, disclosure, modification, and adaptation of the programs, including any operating system, integrated software, any programs installed on the hardware, and/or documentation, shall be subject to license terms and license restrictions applicable to the programs. No other rights are granted to the U.S. Government.

Hazardous Applications Notice

This software or hardware is developed for general use in a variety of information management applications. It is not developed or intended for use in any inherently dangerous applications, including applications that may create a risk of personal injury. If you use this software or hardware in dangerous applications, then you shall be responsible to take all appropriate fail-safe, backup, redundancy, and other measures to ensure its safe use. Oracle Corporation and its affiliates disclaim any liability for any damages caused by use of this software or hardware in dangerous applications.

Third-Party Content, Products, and Services Disclaimer

This software or hardware and documentation may provide access to or information on content, products, and services from third parties. Oracle Corporation and its affiliates are not responsible for and expressly disclaim all warranties of any kind with respect to third-party content, products, and services. Oracle Corporation and its affiliates will not be responsible for any loss, costs, or damages incurred due to your access to or use of third-party content, products, or services.

Alpha and Beta Draft Documentation Notice

If this document is in preproduction status:

This documentation is in preproduction status and is intended for demonstration and preliminary use only. It may not be specific to the hardware on which you are using the software. Oracle Corporation and its affiliates are not responsible for and expressly disclaim all warranties of any kind with respect to this documentation and will not be responsible for any loss, costs, or damages incurred due to the use of this documentation.
