13.1 Samplers
|

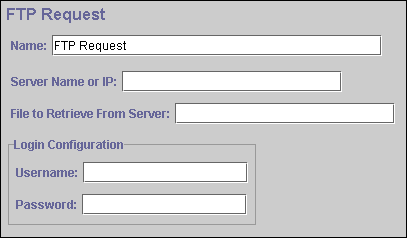

13.1.1 FTP Request
|
|
This controller lets you send an FTP "retrieve file" request to an FTP server.
If you are going to send multiple requests to the same FTP server, consider
using a

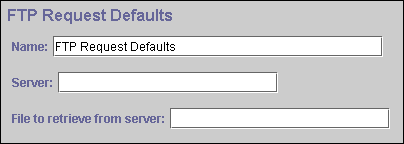

FTP Request Defaults
Configuration
Element so you do not have to enter the same information for each FTP Request Generative
Controller.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
| Server Name or IP |
Domain name or IP address of the FTP server.
JMeter assumes the FTP server is listening on the default port.
|
Yes
|
| File to Retrieve From Server |
Path and name of the file to retrieve.
|
Yes
|
| Username |
FTP account username.
|
Usually
|
| Password |
FTP account password.
|
Usually
|
See Also:
|
|

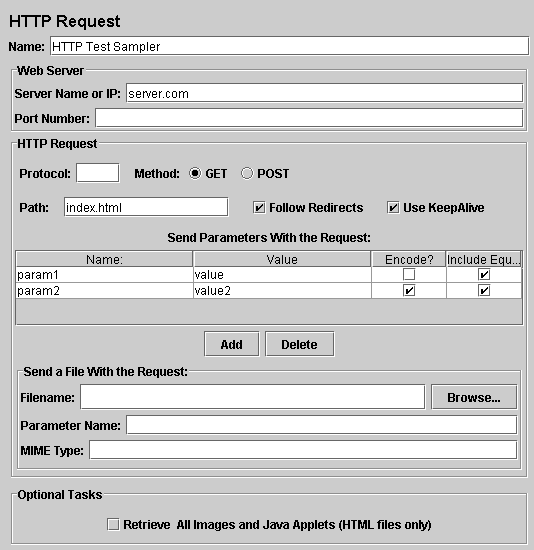

13.1.2 HTTP Request
|
|
This sampler lets you send an HTTP/HTTPS request to a web server. It
also lets you control whether or not JMeter parses HTML files for images and
Java applets and sends HTTP requests to retrieve them.
If you are going to send multiple requests to the same web server, consider
using an

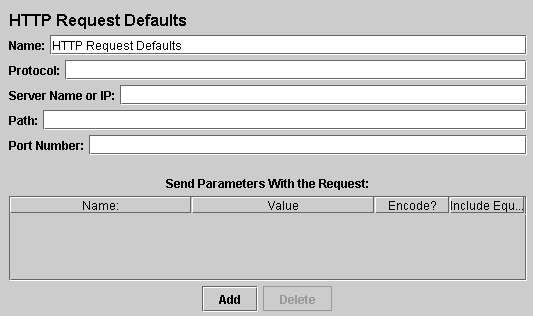

HTTP Request Defaults
Configuration Element so you do not have to enter the same information for each
HTTP Request.
Or, instead of manually adding HTTP Requests, you may want to use
JMeter's

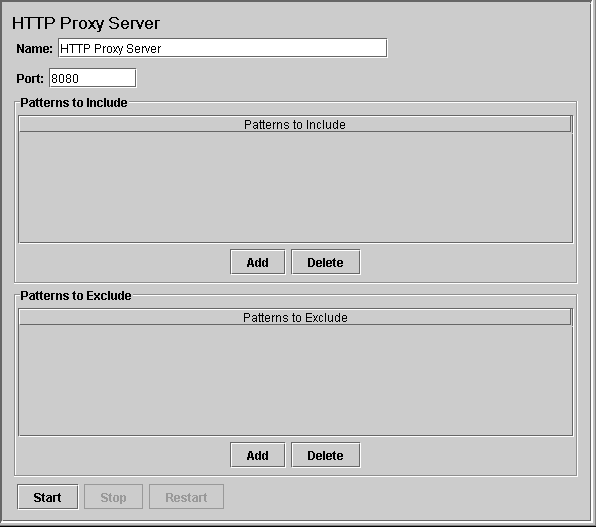

HTTP Proxy Server
to create
them. This can save you time if you have a lot of HTTP requests or requests with many
parameters.
If the request requires a login authorization, you will also have to add an

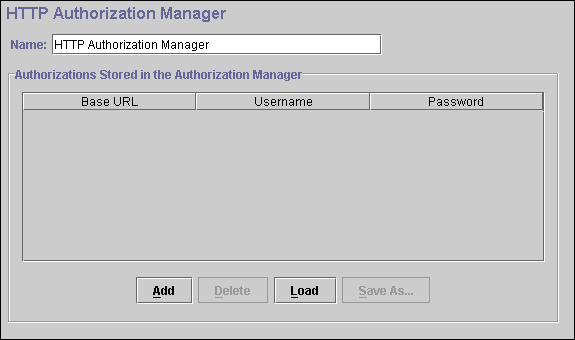

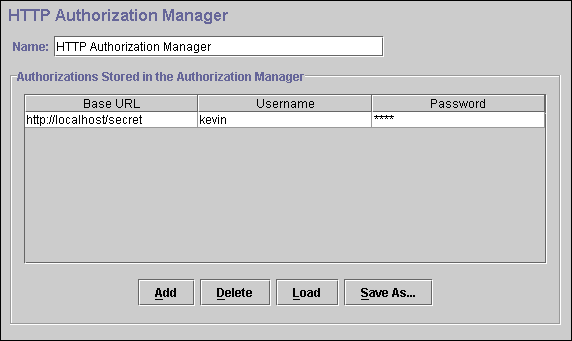

HTTP Authorization Manager
Configuration Element. And, if the request uses cookies, then you will also need an

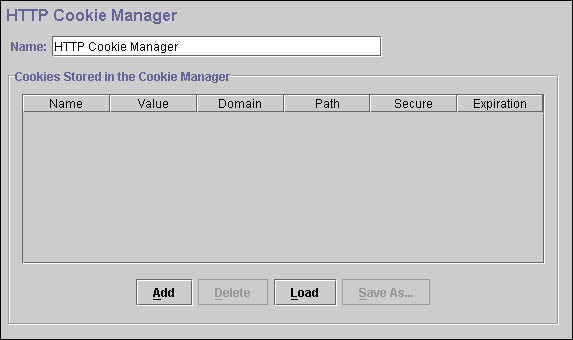

HTTP Cookie Manager
. You can
add either of these elements to the Thread Group or the HTTP Request. If you have
more than one HTTP Request that needs authorizations or cookies, then add the
elements to the Thread Group. That way, all HTTP Request controllers will share the
same Authorization Manager and Cookie Manager elements.
If the request uses a technique called "URL Rewriting" to maintain sessions,
then see section
6.1 Handling User Sessions With URL Rewriting
for additional configuration steps.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
| Server |
Domain name or IP address of the web server.
|
Yes
|
| Port |
Port the web server is listening to.
|
No (defaults to 80)
|
| Protocol |
HTTP or HTTPS.
|
Yes
|
| Method |
HTTP GET or HTTP POST.
|
Yes
|
| Path |
The path to resource (for example, /servlets/myServlet). If the
resource requires query string parameters, add them below in the
"Send Parameters With the Request" section.
|
Yes
|
| Send Parameters With the Request |
The query string will
be generated from the list of parameters you provide. Each parameter has a
name
and
value
, the options to encode the parameter, and an option to include or exclude an equals sign (some applications
don't expect an equals when the value is the empty string). The query string will be generated in the correct fashion, depending on
the choice of "Method" you made (ie if you chose GET, the query string will be
appended to the URL, if POST, then it will be sent separately). Also, if you are
sending a file using a multipart form, the query string will be created using the
multipart form specifications.
Additionally, you can specify whether each paramter should be URL encoded. If you are not sure what this
means, it is probably best to select it. If your values contain characters such as & or spaces, or
question marks, then encoding is usually required.
|
No
|
| Filename |
Name of the file to send. If left blank, JMeter
does not send a file, if filled in, JMeter automatically sends the request as
a multipart form request.
|
No
|
| Parameter Name |
Name of the web request parameter.
|
No (Yes if Filename filled in)
|
| MIME Type |
MIME type (for example, text/plain).
|
No (Yes if Filename filled in)
|
| Retrieve All Images and Java Applets |
Tell JMeter to parse the HTML file
and send HTTP/HTTPS requests for all images and Java applets referenced in the file.
|
No
|
See Also:
|
|

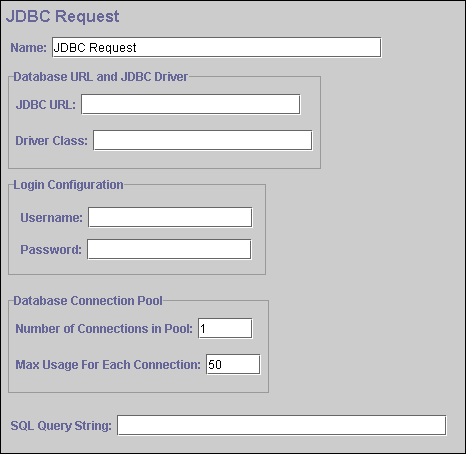

13.1.3 JDBC Request
|
|
This sampler lets you send an JDBC Request (an SQL query) to a database.
If you are going to send multiple requests to the same database, consider
using one or more of the Defaults Configuration Elements:

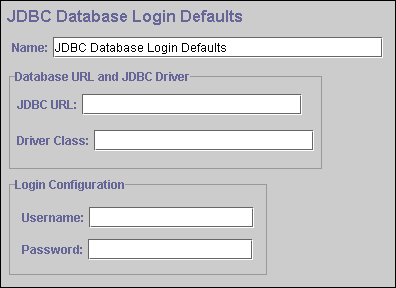

JDBC Database Login Defaults
,

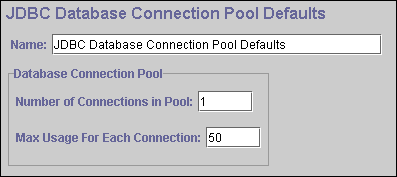

JDBC Database Connection Pool Defaults
,

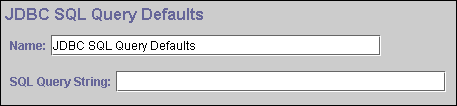

JDBC SQL Query Defaults
.
This way, you do not have to enter the same information for each JDBC Request
controller.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
| JDBC URL |
URL of the database (for example,
"jdbc:weblogic:oracle"). Refer to your database's JDBC documentation for the
URL you should use.
|
Yes
|
| Driver Class |
The database driver Java class (for example,
"weblogic.jdbc.oci.Driver"). Refer to your database's JDBC documentation for
the name of the JDBC driver class you should use.
|
Yes
|
| Username |
FTP account username.
|
Usually (database dependent)
|
| Password |
FTP account password.
|
Usually (database dependent)
|
| Number of Connections in Pool |
Number of database connection
instances to create and keep active. The maximum value depends on your database.
Also, JMeter imposes a maximum of 100 connections.
|
Yes
|
| Max Usage For Each Connection |
Maximum number of times JMeter
uses a database connection instance before recycling it (destroying and creating
a new instance).
|
Yes
|
| SQL Query String |
SQL query (for example, "select * from t_customers").
|
Yes
|
See Also:
|
|

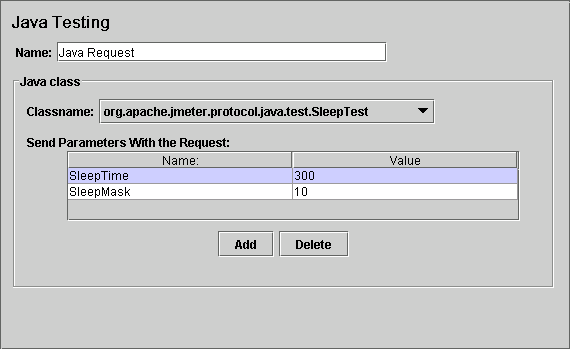

13.1.4 Java Request
|
|
This sampler lets you control a java class that implements the
JavaSamplerClient interface. By writing your own implementation of this interface,
you can use JMeter to harness multiple threads, input parameter control, and
data collection.
The pull-down menu provides the list of all such implementations found by
JMeter in its classpath. The parameters can then be specified in the
table below - as defined by your implementation. A simple example (SleepTest) is
provided.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this sampler
that is shown in the tree.
|
No
|
| Classname |
The specific implementation of
the JavaSamplerClient interface to be sampled.
|
Yes
|
| Send Parameters with Request |
A list of
arguments that will be passed to the sampled class. All arguments
are sent as Strings.
|
No
|
|
|

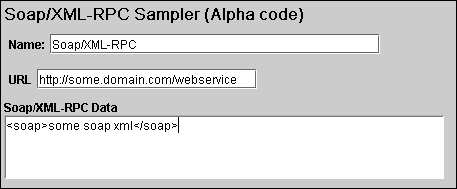

13.1.5 SOAP/XML-RPC Request
|
|
This sampler lets you send a SOAP request to a webservice. It can also be
used to send XML-RPC over HTTP. It creates an HTTP POST request, with the specified XML as the
POST content.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this sampler
that is shown in the tree.
|
No
|
| URL |
The URL to direct the SOAP request to.
|
Yes
|
| Soap/XML-RPC Data |
The Soap XML message, or XML-RPC
instructions.
|
No
|
|
|

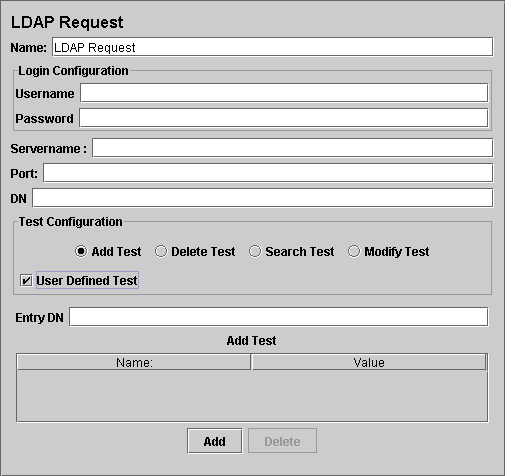

13.1.6 LDAP Request
|
|
This Sampler lets you send a different Ldap request(Add, Modify, Delete and Search) to a LDAP server.
If you are going to send multiple requests to the same LDAP server, consider
using an

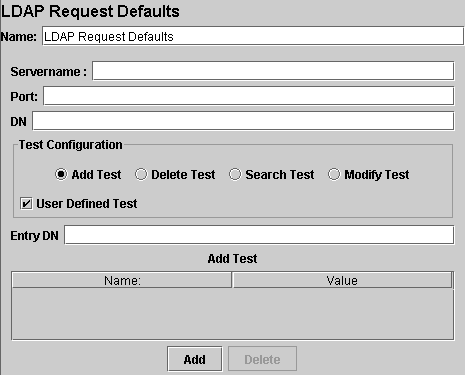

LDAP Request Defaults
Configuration Element so you do not have to enter the same information for each
LDAP Request.
The same way the

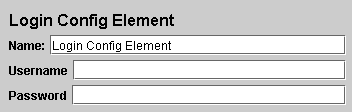

Login Config Element
also using for Login and password.
Control Panel
There are two ways to create test cases for testing a LDAP Server.
-
Inbuilt Test cases.
-
User defined Test cases.
There are four test scenarios of testing LDAP. The tests are given below:
-
Add Test
-
Inbuilt test :
This will add a pre-defined entry in the LDAP Server and calculate
the execution time. After execution of the test, the created entry will be
deleted from the LDAP
Server.
-
User defined test :
This will add the entry in the LDAP Server. User has to enter all the
attributes in the table.The entries are collected from the table to add. The
execution time is calculated. The created entry will not be deleted after the
test.
-
Modify Test
-
Inbuilt test :
This will create a pre-defined entry first, then will modify the
created entry in the LDAP Server.And calculate the execution time. After
execution
of the test, the created entry will be deleted from the LDAP Server.
-
User defined test
This will modify the entry in the LDAP Server. User has to enter all the
attributes in the table. The entries are collected from the table to modify.
The execution time is calculated. The entry will not be deleted from the LDAP
Server.
-
Search Test
-
Inbuilt test :
This will create the entry first, then will search if the attributes
are available. It calculates the execution time of the search query. At the
end of the execution,created entry will be deleted from the LDAP Server.
-
User defined test
This will search the user defined entry(Search filter) in the Search
base (again, defined by the user). The entries should be available in the LDAP
Server. The execution time is calculated.
-
Delete Test
-
Inbuilt test :
This will create a pre-defined entry first, then it will be deleted
from the LDAP Server. The execution time is calculated.
-
User defined test
This will delete the user-defined entry in the LDAP Server. The entries
should be available in the LDAP Server. The execution time is calculated.
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
| Server Name or IP |
Domain name or IP address of the LDAP server.
JMeter assumes the LDAP server is listening on the default port(389).
|
Yes
|
| Port |
default port(389).
|
Yes
|
| root DN |
DN for the server to communicate
|
Yes
|
| Username |
LDAP server username.
|
Usually
|
| Password |
LDAP server password.
|
Usually
|
| Entry DN |
the name of the context to create or Modify; may not be empty Example: do you want to add cn=apache,ou=test
you have to add in table name=cn, value=apache
|
yes
|
| Delete |
the name of the context to Delete; may not be empty
|
yes
|
| Search base |
the name of the context or object to search
|
yes
|
| Search filter |
the filter expression to use for the search; may not be null
|
yes
|
| add test |
this name, value pair to added in the given context object
|
yes
|
| modify test |
this name, value pair to add or modify in the given context object
|
yes
|
See Also:
|
|

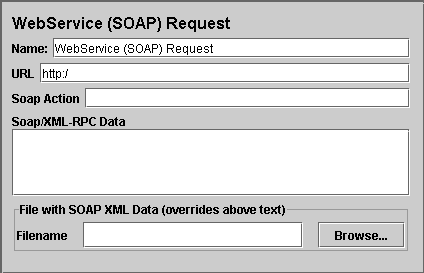

13.1.7 WebService(SOAP) Request (Alpha Code)
|
|
This sampler has been tested with IIS Webservice running .NET 1.0. It hasn't been tested with SUN or IBM webservices providers, but it should work. The sampler uses Apache SOAP driver, to serialize the message and set the header with the correct SOAPAction. Right now the sampler doesn't support automatic WSDL handling, since Apache SOAP currently doesn't provide support for it. Both IBM and SUN provide WSDL drivers.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this sampler
that is shown in the tree.
|
No
|
| URL |
The URL to direct the SOAP request to.
|
Yes
|
| SOAPAction |
The SOAPAction defined in the webservice description or WSDL.
|
Yes
|
| Soap Data |
The Soap XML message
|
Yes
|
|
|
|
|
|
13.2 Logic Controllers
|
13.2.1 Interleave Controller
|
|
If you add Generative or Logic Controllers to an Interleave Controller, JMeter will alternate among each of the
other controllers for each loop iteration.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| name |
Descriptive name for this controller that is shown in the tree.
|
No
|
| ignore sub-controller blocks |
If checked, the interleave controller will treat sub-controllers like single request elements and only allow one request per controller at a time.
|
No
|
Simple Interleave Example
Download
this example (see Figure 1). In this example,
we configured the Thread Group to have two threads and a loop count of five, for a total of ten
requests per thread. See the table below for the sequence JMeter sends the HTTP Requests.

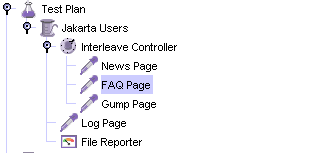

Figure 1 - Interleave Controller Example 1
|
|
Loop Iteration
|
Each JMeter Thread Sends These HTTP Requests
|
|
1
|
News Page
|
|
2
|
Log Page
|
|
2
|
FAQ Page
|
|
2
|
Log Page
|
|
3
|
Gump Page
|
|
2
|
Log Page
|
|
4
|
Because there are no more requests in the controller,
JMeter starts over and sends the first HTTP Request, which is the News Page.
|
|
2
|
Log Page
|
|
5
|
FAQ Page
|
|
2
|
Log Page
|
Useful Interleave Example
Download
another example (see Figure 2). In this
example, we configured the Thread Group
to have a single thread and a loop count of eight. Notice that the Test Plan has an outer Interleave Controller with
two Interleave Controllers inside of it.
Figure 2 - Interleave Controller Example 2
|
The outer Interleave Controller alternates between the
two inner ones. Then, each inner Interleave Controller alternates between each of the HTTP Requests. Each JMeter
thread will send the requests in the following order: Home Page, Interleaved, Bug Page, Interleaved, CVS Page, Interleaved, and FAQ Page, Interleaved.
Note, the File Reporter is configured to store the results in a file named "interleave-test2.dat" in the current directory.
Figure 3 - Interleave Controller Example 3
|
If the two interleave controllers under the main interleave controller were instead simple controllers, then the order would be: Home Page, CVS Page, Interleaved, Bug Page, FAQ Page, Interleaved. However, if "ignore sub-controller blocks" was checked on the main interleave controller, then the order would be: Home Page, Interleaved, Bug Page, Interleaved, CVS Page, Interleaved, and FAQ Page, Interleaved.
|
|

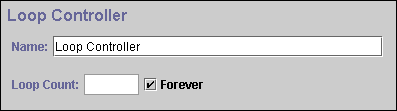

13.2.2 Loop Controller
|
|
If you add Generative or Logic Controllers to a Loop Controller, JMeter will
loop through them a certain number of times, in addition to the loop value you
specified for the Thread Group. For example, if you add one HTTP Request to a
Loop Controller with a loop count of two, and configure the Thread Group loop
count to three, JMeter will send a total of 2 * 3 = 6 HTTP Requests.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
| Loop Count |
The number of times the subelements of this controller will be iterated each time
through a test run.
Special Case:
The Loop Controller embedded in the
Thread Group
element behaves slightly differently. Unless set to forever, it stops the test after
the given number of iterations have been done.
|
Yes, unless "Forever" is checked
|
Looping Example
Download
this example (see Figure 3).
In this example, we created a Test Plan that sends a particular HTTP Request
only once and sends another HTTP Request five times.

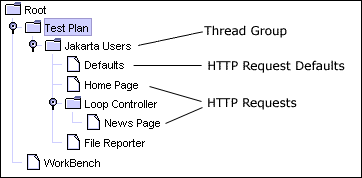

Figure 3 - Loop Controller Example
|
We configured the Thread Group for a single thread and a loop count value of
one. Instead of letting the Thread Group control the looping, we used a Loop
Controller. You can see that we added one HTTP Request to the Thread Group and
another HTTP Request to a Loop Controller. We configured the Loop Controller
with a loop count value of five.
JMeter will send the requests in the following order: Home Page, News Page,
News Page, News Page, News Page, and News Page. Note, the File Reporter
is configured to store the results in a file named "loop-test.dat" in the current directory.
|
|
13.2.3 Once Only Controller
|
|
The Once Only Logic Controller tells JMeter to process the controller(s) inside it only once, and pass over any requests under it
during further iterations through the test plan.
The Once Only Controller will now execute always during the first iteration of any looping parent controller. Thus, if the Once Only Controller is placed under a Loop Controller specified to loop 5 times, then the Once Only Controller will execute only on the first iteration through the Loop Controller (ie, every 5 times). Note this means the Once Only Controller will still behave as previously expected if put under a Thread Group (runs only once per test), but now the user has more flexibility in the use of the Once Only Controller.
For testing that requires a login, consider placing the login request in this controller since each thread only needs
to login once to establish a session.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
Once Only Example
Download
this example (see Figure 4).
In this example, we created a Test Plan that has two threads that send HTTP request.
Each thread sends one request to the Home Page, followed by three requests to the Bug Page.
Although we configured the Thread Group to iterate three times, each JMeter thread only
sends one request to the Home Page because this request lives inside a Once Only Controller.
Figure 4. Once Only Controller Example
|
Each JMeter thread will send the requests in the following order: Home Page, Bug Page,
Bug Page, Bug Page. Note, the File Reporter is configured to store the results in a file named "loop-test.dat" in the current directory.
|
|
13.2.4 Simple Controller
|
|
The Simple Logic Controller lets you organize your Samplers and other
Logic Controllers. Unlike other Logic Controllers, this controller provides no functionality beyond that of a
storage device.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|

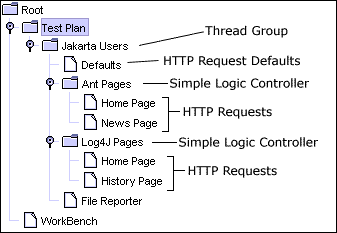

Using the Simple Controller
Download
this example (see Figure 5).
In this example, we created a Test Plan that sends two Ant HTTP requests and two
Log4J HTTP requests. We grouped the Ant and Log4J requests by placing them inside
Simple Logic Controllers. Remember, the Simple Logic Controller has no effect on how JMeter
processes the controller(s) you add to it. So, in this example, JMeter sends the requests in the
following order: Ant Home Page, Ant News Page, Log4J Home Page, Log4J History Page.
Note, the File Reporter
is configured to store the results in a file named "simple-test.dat" in the current directory.
Figure 5 Simple Controller Example
|
|
|
13.2.5 Random Controller
|
|
The Random Logic Controller acts similarly to the Interleave Controller, except that
instead of going in order through its sub-controllers and samplers, it picks one
at random at each pass.
| Interactions between multiple controllers can yield complex behavior.
This is particularly true of the Random Controller. Experiment before you assume
what results any given interaction will give
|
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
|
|
13.2.6 Recording Controller
|
|
The Recording Controller is a place holder indicating where the proxy server should
record samples to. During test run, it has no effect, similar to the Simple Controller. But during
recording using the
HTTP Proxy Server
, all recorded samples will
be saved under the Recording Controller.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
|
|

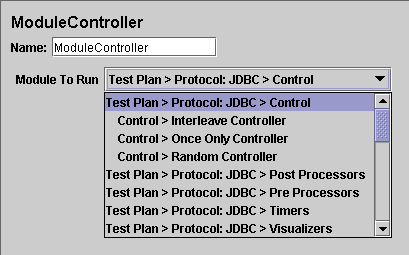

13.2.7 Module Controller
|
|
The Module Controller provides a mechanism for substituting test plan fragments into the current test plan at run-time. To use this
module effectively, one might have a number of Controllers under the
WorkBench
, each with a different series of
samplers under them. The module controller can then be used to easily switch between these multiple test cases simply by choosing
the appropriate controller in it's drop down box. This provides convenience for running many alternate test plans quickly and easily.
Control Panel
| The Module Controller should not be used with remote testing or non-gui testing in conjunction with Workbench components since the Workbench test elements are not part of test plan .jmx files. Any such test will fail.
|
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
| Module to Run |
The module controller provides a list of all controllers loaded into the gui. Select
the one you want to substitute in at runtime.
|
Yes
|
|
|
13.2.8 Throughput Controller
|
|
The Throughput Controller allows the user to control how often it is executed. There are two modes - percent execution and total executions. Percent executions causes the controller to execute a certain percentage of the iterations through the test plan. Total
executions causes the controller to stop executing after a certain number of executions have occurred. Like the Once Only Controller, this
setting is reset when a parent Loop Controller restarts.
Control Panel
| The Throughput Controller can yield very complex behavior when combined with other controllers - in particular with interleave or random controllers as parents (also very useful).
|
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
| Execution Style |
Whether the controller will run in percent executions or total executions mode.
|
Yes
|
| Throughput |
A number. for percent execution mode, a number from 0-100 that indicates the percentage of times the controller will execute. "50" means the controller will execute during half the iterations throught the test plan. for total execution mode, the number indicates the total number of times the controller will execute.
|
Yes
|
| Per User |
If checked, per user will cause the controller to calculate whether it should execute on a per user (per thread) basis. if unchecked, then the calculation will be global for all users. for example, if using total execution mode, and uncheck "per user", then the number given for throughput will be the total number of executions made. if "per user" is checked, then the total number of executions would be the number of users times the number given for throughput.
|
No
|
|
|
|
|
|
13.3 Listeners
|
Most of the listeners perform several roles in addition to "listening"
to the test results. They frequently also provide means to view,
save, and read saved test results.
The saving and reading of test results is generic. The various
listeners generally have a panel whereby one can specify the file to
which the results will be written (or read). By default,
the results are stored as CSV
files, typically with a ".jtl" extension. Storing as CSV is the most efficient option, but is less detailed than XML (the other available option).
To change the format, in jmeter.properties, find the following line:
jmeter.save.saveservice.output_format=csv
Change "csv" to "xml" for greater detail.
The information to be saved is configurable. For maximum information, choose "xml" as the format and specify "Functional Test Mode" on the Test Plan element. If this box is not checked, the default saved
data includes a time stamp (the number of milliseconds since midnight,
January 1, 1970 UTC), the data type, the thread name, the label, the
response time, message, and code, and a success indicator. If checked, all information, including the full response data will be logged.
One can get a more selective set of information my modifying the
jmeter.properties file. The following example indicates how to set
properties to get a vertical bar ("|") delimited format that will
output results like:.
timeStamp|time|label|responseCode|threadName|dataType|success|failureMessage
02/06/03 08:21:42|1187|Backoffice Home|200|Thread Group-1|text|true|
02/06/03 08:21:42|47|Login BO|200|Thread Group-1|text|false|Test Failed,
expected to contain: password etc.
The corresponding jmeter.properties file excerpt is below. One oddity
in this example is that the output_format is set to csv, which
typically
indicates comma-separated values. However, the default_delimiter was
set to be a vertical bar instead of a comma, so the csv tag is a
misnomer in this case.
#---------------------------------------------------------------------------
# Results file configuration
#---------------------------------------------------------------------------
# This section helps determine how result data will be saved.
# The commented out values are the defaults.
# legitimate values: xml, csv, db. Only xml and csv are currently supported.
jmeter.save.saveservice.output_format=csv
# true when field should be saved; false otherwise
# assertion_results_failure_message only affects CSV output
jmeter.save.saveservice.assertion_results_failure_message=true
jmeter.save.saveservice.data_type=true
jmeter.save.saveservice.label=true
jmeter.save.saveservice.response_code=true
jmeter.save.saveservice.response_data=false
jmeter.save.saveservice.response_message=false
jmeter.save.saveservice.successful=true
jmeter.save.saveservice.thread_name=true
jmeter.save.saveservice.time=true
# legitimate values: none, ms, or a format suitable for SimpleDateFormat
#jmeter.save.saveservice.timestamp_format=ms
jmeter.save.saveservice.timestamp_format=MM/dd/yy HH:mm:ss
# legitimate values: none, first, all
jmeter.save.saveservice.assertion_results=first
# For use with Comma-separated value (CSV) files or other formats
# where the fields' values are separated by specified delimiters.
jmeter.save.saveservice.default_delimiter=|
jmeter.save.saveservice.print_field_names=true
The date format to be used for the timestamp_format is described in
SimpleDateFormat
.
Bear in mind that choosing a date format other than "ms" is likely to
make it impossible for JMeter to interpret the value when it is read
in later for viewing purposes.
The internal viewing capabilities are described in the following subsections.
13.3.1 Mailer Visualizer
|
|
The mailer visualizer can be set up to send email if a test run receives too many
failed responses from the server.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| From |
Email address to send messages from.
|
Yes
|
| Addressie(s) |
Email address to send messages to.
|
Yes
|
| SMTP Host |
IP address or host name of SMTP (email redirector)
server.
|
No
|
| Failure Subject |
Email subject line for fail messages.
|
No
|
| Success Subject |
Email subject line for success messages.
|
No
|
| Failure Limit |
Once this number of failed responses are received, a failure
email is sent.
|
Yes
|
| Success Limit |
Once this number of successful responses are
received
after previously reaching the failure limit
, a success email
is sent. The mailer will thus only send out messages in a sequence of failed-succeeded-failed-succeeded, etc.
|
Yes
|
| Test Mail |
|
No
|
| Failures |
A field that keeps a running total of number
of failures so far received.
|
No
|
|
|

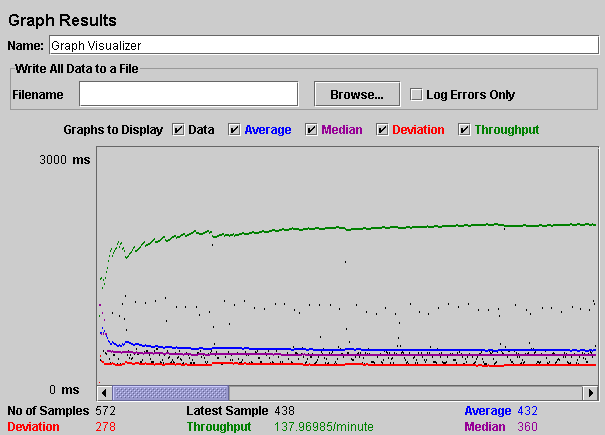

13.3.3 Graph Results
|
|
The Graph Results listener generates a simple graph that plots all sample times. Along
the bottom of the graph, the current sample (black), the current average of all samples(blue), the
current standard deviation (red), and the current throughput rate (green) are displayed in milliseconds.
The throughput number represents the actual number of requests/minute the server handled. This calculation
includes any delays you added to your test and JMeter's own internal processing time. The advantage
of doing the calculation like this is that this number represents something
real - your server in fact handled that many requests per minute, and you can increase the number of threads
and/or decrease the delays to discover your server's maximum throughput. Whereas if you made calculations
that factored out delays and JMeter's processing, it would be unclear what you could conclude from that
number.
Control Panel
|
|

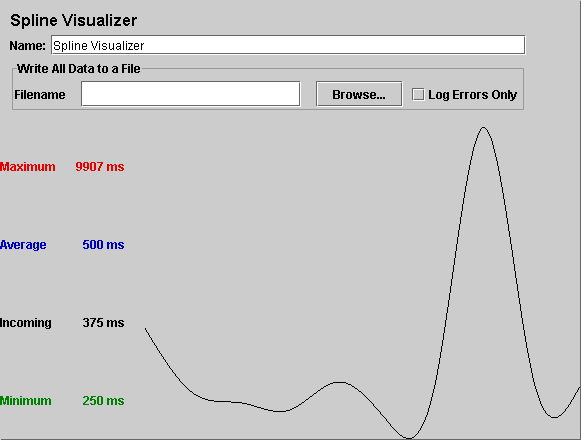

13.3.4 Spline Visualizer
|
|
The Spline Visualizer provides a view of all sample times from the start
of the test till the end, regardless of how many samples have been taken. The spline
has 10 points, each representing 10% of the samples, and connected using spline
logic to show a single continuous line.
Control Panel
|
|

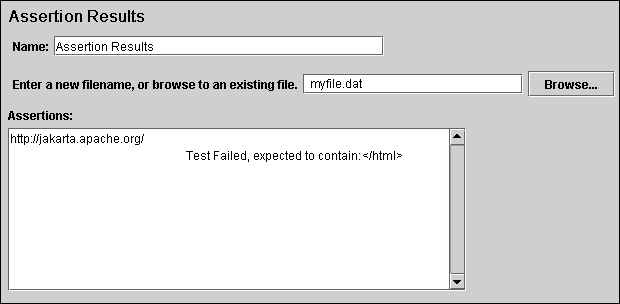

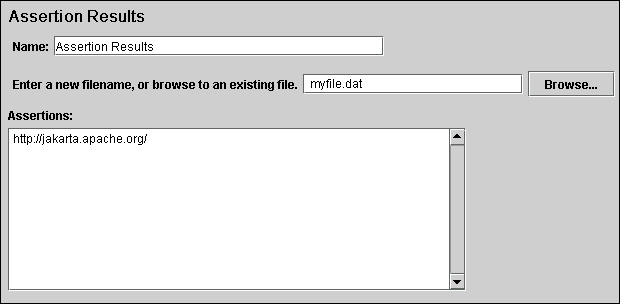

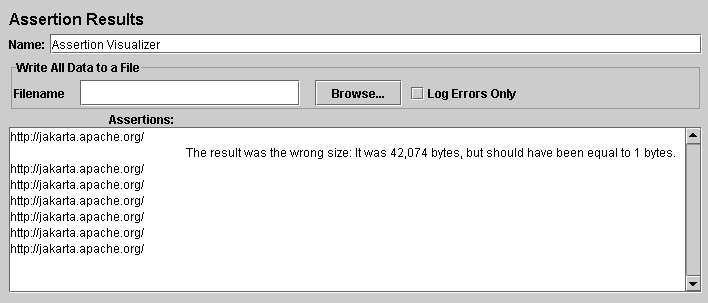

13.3.5 Assertion Results
|
|
The Assertion Results visualizer shows the URL of each sample taken (no time information
is shown). It also reports failures of any
Assertions
that
are part of the test plan.
Control Panel
See Also:
|
|

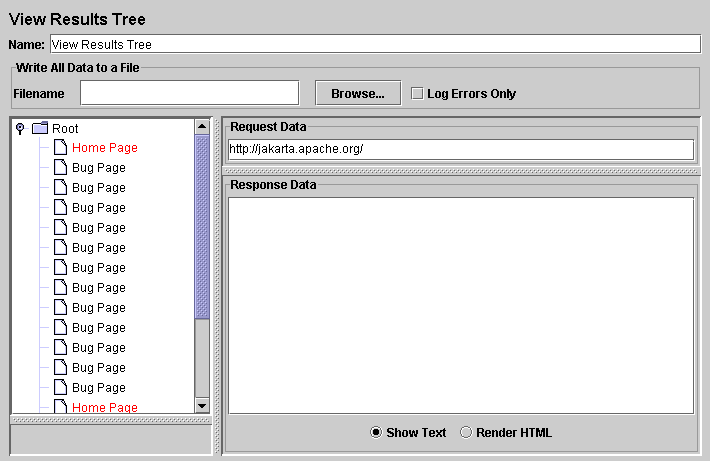

13.3.6 View Results Tree
|
|
The View Results Tree shows a tree of all sample responses, allowing you to view the
response for any sample. In addition to showing the response, you can see the time it took to get
this response, and some response codes.
There are two ways two view the response, controllable by a push
button. The default view shows all of the text contained in the
response. The alternative view attempts to render the response as
HTML. The rendered HTML is likely to compare poorly to the view one
would get in any web browser; however, it does provide a quick
approximation that is helpful for initial result evaluation.
Control Panel
|
|

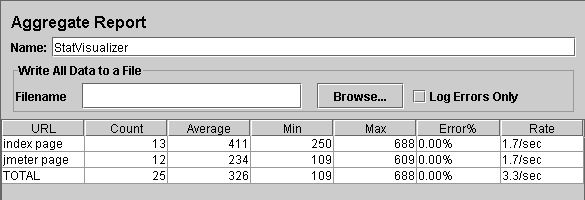

13.3.7 Aggregate Report
|
|
The aggregate report creates a table row for each differently named request in your test. For each
request, it totals the response information and provides request count, min, max, average, error rate, and an
idealized throughput calculation.
Control Panel
|
|

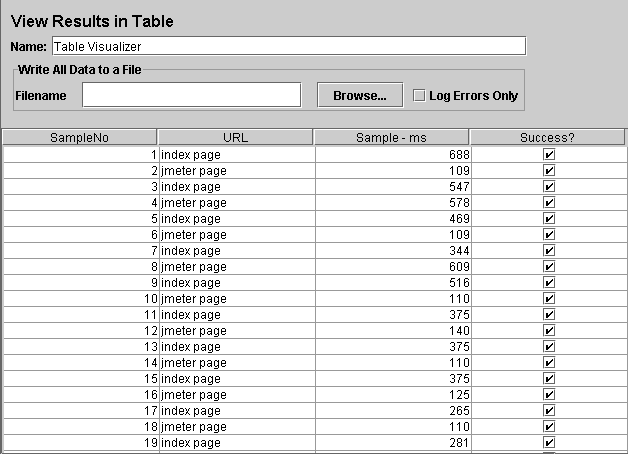

13.3.8 View Results in Table
|
|
This visualizer creates a row for every sample result. Each sample result's URL,
time in milliseconds, success/failure is displayed. Like the
View Results Tree
,
this visualizer uses a lot of memory.
Control Panel
|
|
13.3.9 Simple Data Writer
|
|
This listener can record results to a file
but not to the UI. It is meant to provide an efficient means of
recording data by eliminating GUI overhead.
|
|
|
|
|
13.4 Configuration Elements
|
13.4.1 HTTP Authorization Manager
|
|
The Authorization Manager lets you specify one or more user logins for web pages that are
restricted using Basic HTTP Authentication. You see this type of authentication when you use
your browser to access a restricted page, and your browser displays a login dialog box. JMeter
transmits the login information when it encounters this type of page.
| In the current release, all JMeter threads in a Thread Group use the same username/password
for a given Base URL even if you create multiple users with the same Base URL in the authorization table.
We plan to correct this in a future release. As a workwaround, you can create multiple Thread Groups for your
Test Plan, with each Thread Group having its own Authorization Manager.
|
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Base URL |
A partial or complete URL that matches one or more HTTP Request URLs. As an example,
say you specify a Base URL of "http://jakarta.apache.org/restricted/" with a username of "jmeter" and
a password of "jmeter". If you send an HTTP request to the URL
"http://jakarta.apache.org/restricted/ant/myPage.html", the Authorization Manager sends the login
information for the user named, "jmeter".
|
Yes
|
| Username |
The username to authorize.
|
Yes
|
| Password |
The password to authorize.
|
Yes
|
Controls:
-
Add Button - Add an entry to the authorization table.
-
Delete Button - Delete the currently selected table entry.
-
Load Button - Load a previously saved authorization table and add the entries to the existing
authorization table entries.
-
Save As Button - Save the current authorization table to a file.
| When you save the Test Plan, JMeter automatically saves all of the authorization
table entries.
|
Authorization Example
Download
this example. In this example, we created a Test Plan on a local server that sends three HTTP requests, two requiring a login and the
other is open to everyone. See figure 6 to see the makeup of our Test Plan. On our server, we have a restricted
directory named, "secret", which contains two files, "index.html" and "index2.html". We created a login id named, "kevin",
which has a password of "spot". So, in our Authorization Manager, we created an entry for the restricted directory and
a username and password (see figure 7). The two HTTP requests named "SecretPage1" and "SecretPage2" make requests
to "/secret/index1.html" and "/secret/index2.html". The other HTTP request, named "NoSecretPage" makes a request to
"/index.html".

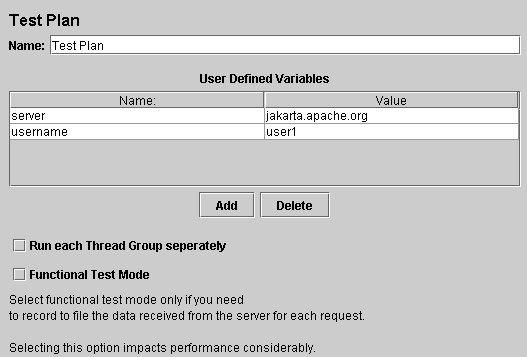

Figure 6 - Test Plan
|
Figure 7 - Authorization Manager Control Panel
|
When we run the Test Plan, JMeter looks in the Authorization table for the URL it is requesting. If the Base URL matches
the URL, then JMeter passes this information along with the request.
| You can download the Test Plan, but since it is built as a test for our local server, you will not
be able to run it. However, you can use it as a reference in constructing your own Test Plan.
|
|
|
13.4.2 HTTP Cookie Manager
|
|
The Cookie Manager element has two functions:
First, it stores and sends cookies just like a web browser. If you have an HTTP Request and
the response contains a cookie, the Cookie Manager automatically stores that cookie and will
use it for all future requests to that particular web site. Each JMeter thread has its own
"cookie storage area". So, if you are testing a web site that uses a cookie for storing
session information, each JMeter thread will have its own session.
Second, you can manually add a cookie to the Cookie Manager. However, if you do this,
the cookie will be shared by all JMeter threads.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Cookies Stored in the Cookie Manager |
This
gives you the opportunity to use hardcoded cookies that will be used by all threads during the test execution.
|
No (discouraged, unless you know what you're doing)
|
| Add Button |
Add an entry to the cookie table.
|
N/A
|
| Delete Button |
Delete the currently selected table entry.
|
N/A
|
| Load Button |
Load a previously saved cookie table and add the entries to the existing
cookie table entries.
|
N/A
|
| Save As Button |
Save the current cookie table to a file.
|
N/A
|
|
|
13.4.3 HTTP Proxy Server
|
|
The Proxy Server allows JMeter to watch and record your actions while you browse your web application
with your normal browser (such as Internet Explorer). JMeter will create test sample objects and store them
directly into your test plan as you go (so you can view samples interactively while you make them).
To use the proxy server,
add
the HTTP Proxy Server element to the workbench.
Select the WorkBench element in the tree, and right-click on this element to get the
Add menu (Add --> Non-Test Elements --> HTTP Proxy Server).
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
| Port |
The port that the Proxy Server listens to. 8080 is the default, but you can change it
if that port is already in use on your machine.
|
Yes
|
| Patterns to Include |
Regular expressions that are matched against the full URL that is sampled. Allows filtering of requests that are recorded. All requests pass through, but only
those that meet the requirements of the Include/Exclude fields are
recorded
. If both Include and Exclude are
left empty, then everything is recorded (which can result in dozens of samples recorded for each page, as images, stylesheets,
etc are recorded).
If there is at least one entry in the Include field, then only requests that match one or more Include patterns are
recorded
.
|
No
|
| Patterns to Exclude |
Regular expressions that are matched against the URL that is sampled.
Any requests that match one or more Exclude pattern are
not
recorded
.
|
No
|
| Clear Buttons |
Remove all regular expressions from the list.
|
N/A
|
| Start Button |
Start the proxy server. JMeter writes the following message to the console once the proxy server
has started up and is ready to take requests: "Proxy up and running!".
|
N/A
|
| Stop Button |
Stop the proxy server.
|
N/A
|
| Restart Button |
Stops and restarts the proxy server. This is
useful when you change/add/delete an include/exclude filter expression.
|
N/A
|
To add an entry to the Include or Exclude field, type the entry into the text field, and hit "Enter" when done.
The text will be added to the List box to the right of the text field. To clear the text field, hit the "clear"
button. Currently, there is no way to individually select items and delete them.
These entries will be treated as Perl-type regular expressions. They will be matched against the host name + the path of
each browser request. Thus, if the URL you are browsing is http://jakarta.apache.org/jmeter/index.html?username=xxxx,
then the regular expression will be tested against the string: "jakarta.apache.org/jmeter/index.html". Thus,
if you wanted to include all .html files, you're regular expression might look like: ".*\.html". Using a
combination of includes and excludes, you should be able to record what you are interested in and skip what you are
not.
When you are ready to begin, hit "start".
| You will need to edit the proxy settings of your browser to point at the
appropriate server and port, where the server is the machine JMeter is running on, and
the port # is from the Proxy Control Panel shown above.
|
Where Do Samples Get Recorded?
JMeter places the recorded samples in a Recording Controller found under a Thread Group (so be sure to add a ThreadGroup and then a Recording Controller before you start recording). Also, if you have a HTTP Request Defaults element, then the recorded samples will have empty fields for
the default values you specified. Additionally, you can specify user-defined values that will replaced in your samples as they are recorded. See
Best Practices with the Proxy Server
for more info.
When you are done recording your test samples, stop the proxy server (hit the "stop" button). Remember to reset
your browser's proxy settings. Now, you may want to sort and re-order the test script, add timers, listeners, a
cookie manager, etc.
|
|
13.4.4 HTTP Request Defaults
|
|
This element lets you set default values that your HTTP Request controllers use. For example, if you are
creating a Test Plan with 25 HTTP Request controllers and all of the requests are being sent to the same server,
you could add a single HTTP Request Defaults element with the "Server Name or IP" field filled in. Then, when
you add the 25 HTTP Request controllers, leave the "Server Name or IP" field empty. The controllers will inherit
this field value from the HTTP Request Defaults element.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this controller that is shown in the tree.
|
No
|
| Server |
Domain name or IP address of the web server.
|
Yes
|
| Port |
Port the web server is listening to.
|
No (defaults to 80)
|
| Protocol |
HTTP or HTTPS.
|
Yes
|
| Method |
HTTP GET or HTTP POST.
|
Yes
|
| Path |
The path to resource (for example, /servlets/myServlet). If the
resource requires query string parameters, add them below in the
"Send Parameters With the Request" section.
|
Yes
|
| Send Parameters With the Request |
The query string will
be generated from the list of parameters you provide. Each parameter has a
name
and
value
. The query string will be generated in the correct fashion, depending on
the choice of "Method" you made (ie if you chose GET, the query string will be
appended to the URL, if POST, then it will be sent separately). Also, if you are
sending a file using a multipart form, the query string will be created using the
multipart form specifications.
|
No
|
|
|

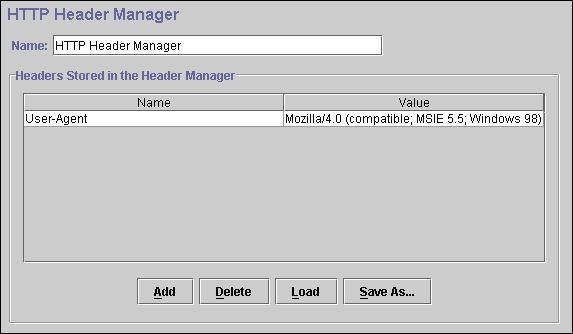

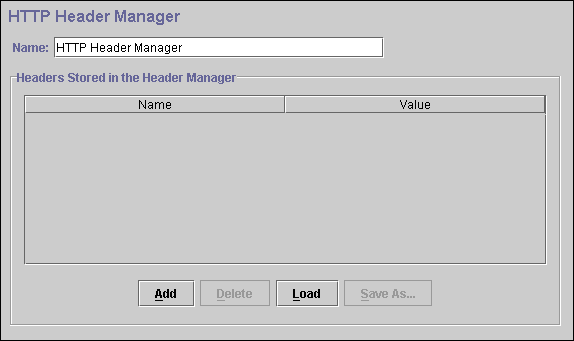

13.4.9 HTTP Header Manager
|
|
The Header Manager lets you add or override HTTP request headers.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Name (Header) |
Name of the request header.
Two common request headers you may want to experiment with
are "User-Agent" and "Referer".
|
No (You should have at least one, however)
|
| Value |
Request header value.
|
No (You should have at least one, however)
|
| Add Button |
Add an entry to the header table.
|
N/A
|
| Delete Button |
Delete the currently selected table entry.
|
N/A
|
| Load Button |
Load a previously saved header table and add the entries to the existing
header table entries.
|
N/A
|
| Save As Button |
Save the current header table to a file.
|
N/A
|
Header Manager example
Download
this example. In this example, we created a Test Plan
that tells JMeter to override the default "User-Agent" request header and use a particular Internet Explorer agent string
instead. (see figures 9 and 10).
Figure 9 - Test Plan
|
Figure 10 - Header Manager Control Panel
|
|
|
13.4.10 Login Config Element
|
|
The Login Config Element lets you add or override username and password settings in samplers that use username and password as part of their setup.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Username |
The default username to use.
|
No
|
| Password |
The default password to use.
|
No
|
|
|

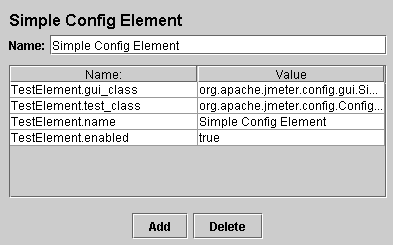

13.4.11 Simple Config Element
|
|
The Simple Config Element lets you add or override arbitrary values in samplers. You can choose the name of the value
and the value itself. Although some adventurous users might find a use for this element, it's here primarily for developers as a basic
GUI that they can use while developing new JMeter components.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Parameter Name |
The name of each parameter. These values are internal to JMeter's workings and
are not generally documented. Only those familiar with the code will know these values.
|
Yes
|
| Parameter Value |
The value to apply to that parameter.
|
Yes
|
|
|
|
|
|
13.5 Assertions
|

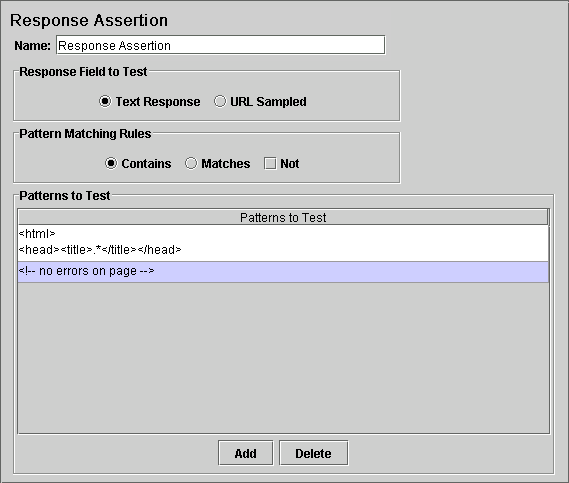

13.5.1 Response Assertion
|
|
The response assertion control panel let's you add strings to be tested. These strings can
be regular expressions. You can also choose whether the strings will be expected
to match the entire response, or if the response is only expected to contain the
strings. You can attach multiple assertions to any controller for additionaly flexibility.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Response Field to Test |
Instructs JMeter to test
against either the Response Text from the server, or against the URL string that was sampled.
|
Yes
|
| Pattern Matching Rules |
Indicates whether the text being tested
must CONTAIN or MATCH the test patterns. NOT may also be selected to indicate the text
should NOT CONTAIN or NOT MATCH the test patterns.
|
Yes
|
| Patterns to Test |
A list of regular expressions to
be tested. Each pattern is tested separately. There is no difference between setting up
one Assertion with multiple patterns and setting up multiple Assertions with one
pattern each (assuming the other options are the same).
|
Yes
|
Assertion Examples
Figure 7 - Test Plan
|

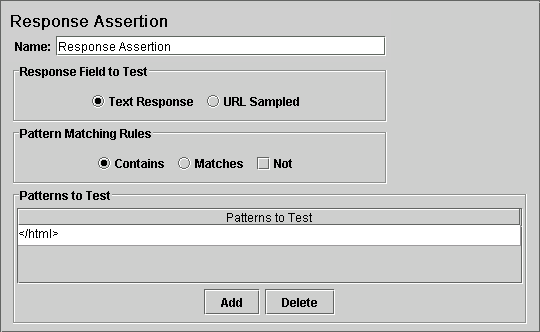

Figure 8 - Assertion Control Panel with Pattern
|
Figure 9 - Assertion Listener Results (Pass)
|
Figure 10 - Assertion Listener Results (Fail)
|
|
|

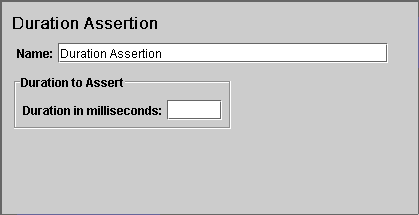

13.5.2 Duration Assertion
|
|
The Duration Assertion tests that each response was received within a given amount
of time. Any response that takes longer than the given number of milliseconds (specified by the
user) is marked as a failed response.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Duration in Milliseconds |
The maximum number of milliseconds
each response is allowed before being marked as failed.
|
Yes
|
|
|

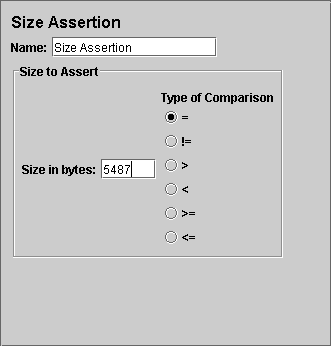

13.5.3 Size Assertion
|
|
The Size Assertion tests that each response contains the right number of bytes in it. You can specify that
the size be equal to, greater than, less than, or not equal to a given number of bytes.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Size in bytes |
The number of bytes to use in testing the size of the response.
|
Yes
|
| Type of Comparison |
Whether to test that the response is equal to, greater than, less than,
or not equal to, the number of bytes specified.
|
Yes
|
|
|

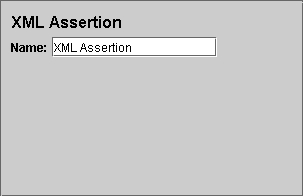

13.5.4 XML Assertion
|
|
The XML Assertion tests that the response data consists of a formally correct XML document. It does not
validate the XML based on a DTD or schema or do any further validation.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
|
|
|
|
|
13.6 Timers
|

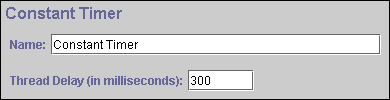

13.6.1 Constant Timer
|
|
If you want to have each thread pause for the same amount of time between
requests, use this timer.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this timer that is shown in the tree.
|
No
|
| Thread Delay |
Number of milliseconds to pause.
|
Yes
|
|
|

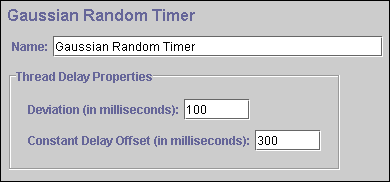

13.6.2 Gaussian Random Timer
|
|
This timer pauses each thread request for a random amount of time, with most
of the time intervals ocurring near a particular value. The total delay is the
sum of the Gaussian distributed value (with mean 0.0 and standard deviation 1.0) times
the deviation value you specify, and the offset value.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this timer that is shown in the tree
|
No
|
| Deviation |
Deviation in milliseconds.
|
Yes
|
| Constant Delay Offset |
Number of milliseconds to pause in addition
to the random delay.
|
Yes
|
|
|

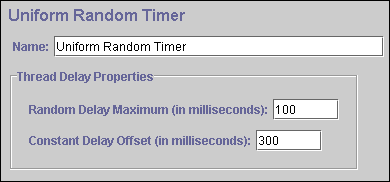

13.6.3 Uniform Random Timer
|
|
This timer pauses each thread request for a random amount of time, with
each time interval having the same probability of occurring. The total delay
is the sum of the random value and the offset value.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this timer that is shown in the tree.
|
No
|
| Random Delay Maximum |
Maxium random number of milliseconds to
pause.
|
Yes
|
| Constant Delay Offset |
Number of milliseconds to pause in addition
to the random delay.
|
Yes
|
|
|
13.6.4 Constant Throughput Timer
|
|
This timer introduces variable pauses, calculated to keep the total throughput (in terms of samples per minute) as close as possible to a give figure. Of course the throughput will be lower if the server is not capable of handling it, or if other timers or time-consuming test elements prevent it.
Only samples within the container where you put the timer count towards the calculated throughput. Also note that the total time (used in the denominator to calculate the throughput) starts counting with the first such sample -- not with the test start.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this timer that is shown in the tree.
|
No
|
| Target Throughput |
Throughput we want the timer to try to generate.
|
Yes
|
|
|
|
|
|
13.7 Pre Processors
|
13.7.1 HTML Link Parser
|
|
This modifier parses HTML response from the server and extracts
links and forms. A URL test sample that passes through this modifier will be examined to
see if it "matches" any of the links or forms extracted
from the immediately previous response. It would then replace the values in the URL
test sample with appropriate values from the matching link or form. Perl-type regular
expressions are used to find matches.
Spidering Example
Consider a simple example: let's say you wanted JMeter to "spider" through your site,
hitting link after link parsed from the HTML returned from your server (this is not
actually the most useful thing to do, but it serves as a good example). You would create
a
Simple Controller
, and add the "HTML Link Parser" to it. Then, create an
HTTP Request, and set the domain to ".*", and the path likewise. This will
cause your test sample to match with any link found on the returned pages. If you wanted to
restrict the spidering to a particular domain, then change the domain value
to the one you want. Then, only links to that domain will be followed.
Poll Example
A more useful example: given a web polling application, you might have a page with
several poll options as radio buttons for the user to select. Let's say the values
of the poll options are very dynamic - maybe user generated. If you wanted JMeter to
test the poll, you could either create test samples with hardcoded values chosen, or you
could let the HTML Link Parser parse the form, and insert a random poll option into
your URL test sample. To do this, follow the above example, except, when configuring
your Web Test controller's URL options, be sure to choose "POST" as the
method. Put in hard-coded values for the domain, path, and any additional form parameters.
Then, for the actual radio button parameter, put in the name (let's say it's called "poll_choice"),
and then ".*" for the value of that parameter. When the modifier examines
this URL test sample, it will find that it "matches" the poll form (and
it shouldn't match any other form, given that you've specified all the other aspects of
the URL test sample), and it will replace your form parameters with the matching
parameters from the form. Since the regular expression ".*" will match with
anything, the modifier will probably have a list of radio buttons to choose from. It
will choose at random, and replace the value in your URL test sample. Each time through
the test, a new random value will be chosen.

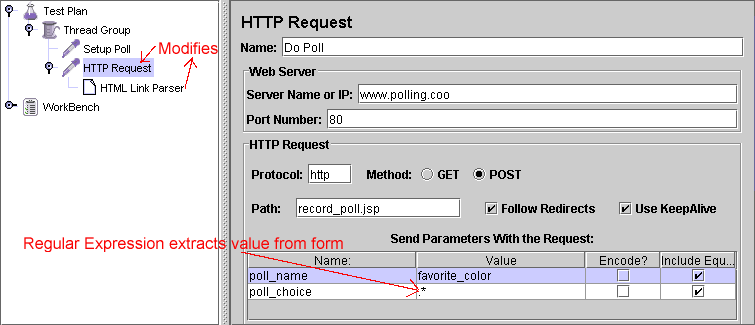

Figure 8 - Online Poll Example
|
| One important thing to remember is that you must create a test sample immediately
prior that will return an HTML page with the links and forms that are relevant to
your dynamic test sample.
|
|
|

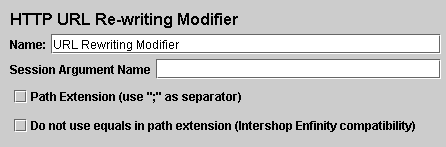

13.7.2 HTTP URL Re-writing Modifier
|
|
This modifier works similarly to the HTML Link Parser, except it has a specific purpose for which
it is easier to use than the HTML Link Parser, and more efficient. For web applications that
use URL Re-writing to store session ids instead of cookies, this element can be attached at the
ThreadGroup level, much like the
HTTP Cookie Manager
. Simply give it the name
of the session id parameter, and it will find it on the page and add the argument to every
request of that ThreadGroup.
Alternatively, this modifier can be attached to select requests and it will modify only them.
Clever users will even determine that this modifier can be used to grab values that elude the
HTML Link Parser
.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name given to this element in the test tree.
|
No
|
| Session Argument Name |
The name of the parameter to grab from
previous response. This modifier will find the parameter anywhere it exists on the page, and
grab the value assigned to it, whether it's in an HREF or a form.
|
Yes
|
| Path Extension |
Some web apps rewrite URLs by appending
a semi-colon plus the session id parameter. Check this box if that is so.
|
No
|
| Do not use equals in path extension |
Some web apps rewrite URLs without using an "=" sign between the parameter name and value (such as Intershop Enfinity).
|
No
|
|
|

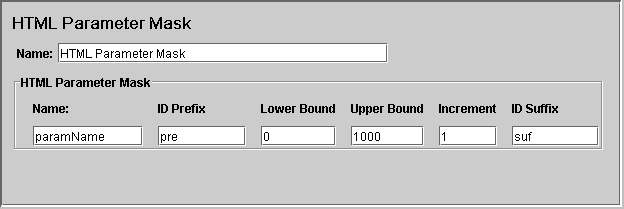

13.7.3 HTML Parameter Mask
|
| * - This element is deprecated. Use Counter instead |
|
The HTML Parameter Mask is used to generate unique values for HTML arguments. By
specifying the name of the parameter, a value prefix and suffix, and counter parameters, this
modifier will generate values of the form "
name=prefixcountersuffix
". Any HTTP
Request that it modifies, it will replace any parameter with the same name or add the appropriate
parameter to the requests list of arguments.
| The value of the argument in your HTTP Request must be a '*' in order for the HTML Parameter Mask
Modifier to replace it.
|
As an example, the username for a login script could be modified to send a series of values
such as:
user_1
user_2
user_3
user_4, etc.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name given to this element in the test tree.
|
No
|
| Name (second appearing) |
The name of the parameter to
modify or add to the HTTP Request.
|
Yes
|
| ID Prefix |
A string value to prefix to every generated value.
|
No
|
| Lower Bound |
A number value to start the counter at.
|
Yes
|
| Upper Bound |
A number value to end the counter, at which point it restarts
with the Lower Bound value.
|
Yes
|
| Increment |
Value to increment the counter by each time through.
|
Yes
|
| ID Suffix |
A string value to add as suffix to every generated vaue.
|
No
|
|
|

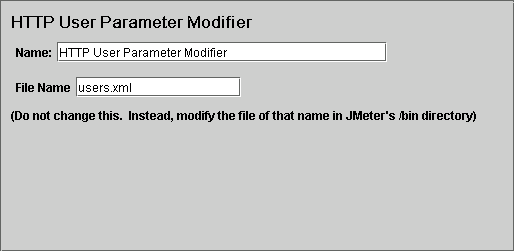

13.7.4 HTTP User Parameter Modifier
|
| * - This element is deprecated. Use User Parameters instead |
|
The User Parameter Modifier uses an XML file get values for HTTP arguments. Any
HTTP Request that this modifier modifies will be checked for the existence of the specified
arguments. If found, the values for those arguments will be replaced by the values found in the
xml file. The XML file can have multiple sets of the same values. This modifier will iterate
through these values in a round-robin style, thus each request will get a different set of values
until the last set of values is reached, at which point it will begin again at the first set.
| If the number of value sets is equal to the number of threads in your test, then it will work
out that each thread will get the same set of values each time, which will be a different set from
any other thread
|
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name given to this element in the test tree.
|
No
|
| File Name |
Name of the XML file in JMeter's /bin directory
that holds the value sets.
|
Yes
|
|
|
13.7.5 User Parameters
|
|
Allows the user to specify values for User Variables specific to individual threads.
User Variables can also be specified in the Test Plan but not specific to individual threads. This panel allows
you to specify a series of values for any User Variable. For each thread, the variable will be assigned one of the values from the series
in sequence. If there are more threads than values, the values get re-used. For example, this can be used to assign a distinct
user id to be used by each thread. User variables can be referenced in any field of any jMeter Component.
The variable is specified by clicking the Add Variable button in the bottom of the panel and filling in the Variable name in the 'Name:' column.
To add a new value to the series, click the 'Add User' button and fill in the desired value in the newly added column.
Values can be accessed in any test component in the same thread group, using the
function syntax
: ${variable}.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Update Once Per Iteration |
A flag to indicate whether the User Paramters element
should update it's variables only once per iteration. if you embed functions into the UP, then you may need greater
control over how often the values of the variables are updated. Keep this box checked to ensure the values are
updated each time through the UP's parent controller. Uncheck the box, and the UP will update the parameters for
every sample request made within it's
scope
.
|
Yes
|
|
|
13.7.6 Counter
|
|
Allows the user to create a counter that can be referenced anywhere
in the Thread Group. The counter config lets the user configure a starting point, a maximum,
and the increment. The counter will loop from the start to the max, and then start over
with the start, continuing on like that until the test is ended.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Start |
The starting number for the counter. The counter will equal this
number during the first iteration.
|
Yes
|
| Increment |
How much to increment the counter by after each
iteration.
|
Yes
|
| Maximum |
If the counter exceeds the maximum, then it is reset to the Start value.
|
Yes
|
| Reference Name |
This controls how you refer to this value in other elements. Syntax is
as in
user-defined values
:
$(reference_name}
.
|
Yes
|
| Track Counter Independently for each User |
In other words, is this a global counter, or does each user get their
own counter? If unchecked, the counter is global (ie, user #1 will get value "1", and user #2 will get value "2" on
the first iteration). If checked, each user has an independent counter.
|
No
|
|
|
|
|
|
13.8 Post-Processors
|
13.8.1 Regular Expression Extractor
|
|
Allows the user to extract values from a server response using a Perl-type regular expression. As a post-processor,
this element will execute after each Sample request in its
scope
, applying the regular expression, extracting the requested values,
generate the template string, and store the result into the given variable name.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Reference Name |
The name of the JMeter variable in which to store the result. Also note that each group is stored as [refname]_g#, where [refname] is the string you entered as the reference name, and # is the group number, where group 0 is the entire match, group 1 is the match from the first set of parentheses, etc.
|
Yes
|
| Regular Expression |
The regular expression used to parse the response data.
|
Yes
|
| Template |
The template used to create a string from the matches found. This is an arbitrary string
with special elements to refer to groups within the regular expression. The syntax to refer to a group is: '$1$' to refer to
group 1, '$2$' to refer to group 2, etc.
|
Yes
|
| Match No. |
Indicates which match to use. The regular expression may match multiple times. Use a
value of zero to indicate JMeter should choose a match at random. Otherwise, select the numbered match assuming they
are ordered as they appear in the response data.
|
Yes
|
| Default Value |
If no matches are found, the default value is stored in the variable.
|
No
|
|
|
|
|
|
13.9 Miscellaneous Features
|
13.9.1 Test Plan
|
|
At the Test Plan level, static variables can be defined that allow users to abstract values that are repeated throughout their tests, such as server names. Here, one can instruct JMeter to save the maximum sample information to file by selecting "functional testing". Also, an option exists here to instruct JMeter to run the
Thread Group
serially rather than in parallel.
Control Panel
|
|
13.9.2 Thread Group
|
|
A Thread Group defines a pool of users that will execute a particular test case against your server. In the Thread Group GUI, you can control the number of users simulated (num of threads), the ramp up time (how long it takes to start all the threads), the number of times to perform the test, and optionally, a start and stop time for the test.
Control Panel
Parameters
| Attribute | Description | Required |
|---|
| Name |
Descriptive name for this element that is shown in the tree.
|
No
|
| Number of Threads |
Number of users to simulate.
|
Yes
|
| Ramp-up Period |
How long JMeter should take to get all the threads started. If there are 10 threads and a ramp-up time of 100 seconds, then each thread will begin 10 seconds after the previous thread started, for a total time of 100 seconds to get the test fully up to speed.
|
Yes
|
| Loop Count |
Number of times to perform the test case. Alternatively, "forever" can be selected causing the test to run until manually stopped.
|
No
|
| Start Time |
If the scheduler checkbox is selected, one can choose an absolute start time. When you start your test, JMeter will wait until the specified start time to begin testing.
|
No
|
| End Time |
If the scheduler checkbox is selected, one can choose an absolute end time. When you start your test, JMeter will wait until the specified start time to begin testing, and it will stop at the specified end time.
|
No
|
|
|
13.9.3 WorkBench
|
|
The WorkBench simply provides a place to temporarily store test elements while not in use, for copy/paste purposes, or any other purpose you desire. When you save your test plan, WorkBench items are not saved with it. Your WorkBench can be saved independently, if you like (right-click on WorkBench and choose Save).
Control Panel
|
|
13.9.4 SSL Manager
|
|
The SSL Manager is a way to select a client certificate so that you can test
applications that use Public Key Infrastructure (PKI). In order to use it,
you must have JSSE 1.0.2 installed. Unfortunately, there is no standard method
for controling who a client is--and that won't be introduced until JDK 1.4 is
officially available. The SSL Manager should still work with JDK 1.4, so this
is the best solution we could come up with.
Choosing a Client Certificate
You may either use a Java Key Store (JKS) format key store, or a Public Key
Certificate Standard #12 (PKCS12) file for your client certificates. There
is a bug in the JSSE libraries that require you to have at least a six character
password on your key (at least for the keytool utility that comes with your
JDK).
To select the client certificate, choose Options->SSL Manager from the menu bar.
You will be presented with a file finder that looks for PKCS12 files by default.
Your PKCS12 file must have the extension '.p12' for SSL Manager to recognize it
as a PKCS12 file. Any other file will be treated like an average JKS key store.
If JSSE is correctly installed, you will be prompted for the password. The text
box does not hide the characters you type at this point--so make sure no one is
looking over your shoulder. The current implementation assumes that the password
for the keystore is also the password for the private key of the client you want
to authenticate as.
The next time you run your test, the SSL Manager will examine your key store to
see if it has more than one key available to it. If there is only one key, SSL
Manager will select it for you. If there is more than one key, you will be prompted
to select the alias you wish to authenticate as. If SSL Manager cannot detect
any keys in your keystore, it will give you a text box for the off chance you know
something it doesn't. Keep in mind that for the first run, you will be prompted
once per thread. Try to use only one thread for the first run to ensure everything
is working properly.
Things to Look Out For
You must have your Certificate Authority (CA) certificate installed properly
if it is not signed by one of the five CA certificates that ships with your
JDK. One method to install it is to import your CA certificate into a JKS
file, and name the JKS file "jssecacerts". Place the file in your JRE's
lib/security folder. This file will be read before the "cacerts" file in
the same directory. Keep in mind that as long as the "jssecacerts" file
exists, the certificates installed in "cacerts" will not be used. This may
cause problems for you. If you don't mind importing your CA certificate into
the "cacerts" file, then you can authenticate against all of the CA certificates
installed.
|
|
|
|
|
13.10 Functions
|
Please read the
general description
of how functions work. Here is given only the details of
specific functions.
13.10.1 __regexFunction
|
|
The Regex Function is used to parse the previous response using any regular
expression (provided by user). The function returns the template string with variable values filled
in.
The __regexFunction stores values for future use. In the sixth parameter, you can specify
a reference name. After this function executes, the same values can be retrieved at later times
using the syntax for user-defined values. For instance, if you enter "refName" as the sixth
parameter you will be able to use:
-
${refName} to refer to the computed result of the second parameter ("Template for the
replacement string") parsed by this function
-
${refName_g0} to refer to the entire match parsed by this function.
-
${refName_g1} to refer to the first group parsed by this function.
-
${refName_g#} to refer to the n
th
group parsed by this function.
Parameters
| Attribute | Description | Required |
|---|
| First arguement |
The first argument is the regular expression
to be applied to the response data. It will grab all matches. Any parts of this expression
that you wish to use in your template string, be sure to surround in parentheses. Example:
<a href="(.*)">. This will grab the value of the link and store it as the first group (there is
only 1 group). Another example: <input type="hidden" name="(.*)" value="(.*)">. This will
grab the name as the first group, and the value as the second group. These values can be used
in your template string
|
Yes
|
| Second argument |
This is the template string that will replace
the function at run-time. To refer to a group captured in the regular expression, use the syntax:
$[group_number]$. Ie: $1$, or $2$. Your template can be any string.
|
Yes
|
| Third argument |
The third argument tells JMeter which match
to use. Your regular expression might find numerous matches. You have four choices:
-
An integer - Tells JMeter to use that match. '1' for the first found match, '2' for the
second, and so on
-
RAND - Tells JMeter to choose a match at random.
-
ALL - Tells JMeter to use all matches, and create a template string for each one and then
append them all together. This option is little used.
-
A float number between 0 and 1 - tells JMeter to find the Xth match using the formula:
(number_of_matches_found * float_number) rounded to nearest integer.
|
Yes
|
| Fourth argument |
If 'ALL' was selected for the above argument
value, then this argument will be inserted between each appended copy of the template value.
|
No
|
| Fifth argument |
Default value returned if no match is found
|
No
|
| Sixth argument |
A reference name for reusing the values parsed by this function.
Stored values are ${refName} (the replacement template string) and ${refName_g#} where "#" is the
group number from the regular expression ("0" can be used to refer to the entire match).
|
No
|
|
|
13.10.2 __counter
|
|
The counter generates a new number each time it is called, starting with 1
and incrementing by +1 each time. The counter can be configured to keep each simulated user's values
separate, or to use the same counter for all user. If each user's values is incremented separately,
that is like counting the number of iterations through the test plan. A global counter is like
counting how many times that request was run.
Parameters
| Attribute | Description | Required |
|---|
| First argument |
TRUE if you wish each simulated user's counter
to be kept independent and separate from the other users. FALSE for a global counter.
|
Yes
|
| Second argument |
A reference name for reusing the value created by this function.
Stored values are of the form ${refName}. This allows you to keep one counter and refer to its value in
multiple places.
|
No
|
|
|
13.10.3 __threadNum
|
|
The thread number function simply returns the number of the thread currently
being executed. These numbers are independent of ThreadGroup, meaning thread #1 in one threadgroup
is indistinguishable from thread #1 in another threadgroup, from the point of view of this function.
There are no arguments for this function.
|
|
13.10.4 __intSum
|
|
The intsum function can be used to compute the sum of two or more integer values.
Parameters
| Attribute | Description | Required |
|---|
| First argument |
The first int value.
|
Yes
|
| Second argument |
The second int value.
|
Yes
|
| nth argument |
The nth int value.
|
No
|
| last argument |
A reference name for reusing the value
computed by this function.
|
Yes
|
|
|
13.10.5 _StringFromFile
|
|
The StringFromFile function can be used to read strings from a text file.
This is useful for running tests that require lots of variable data.
For example when testing a banking application, 100s or 1000s of different account numbers might be required.
Each time it is called it reads the next line from the file.
When the end of the file is reached, it will start reading again from the beginning.
If there are multiple references to the function in a test script, each will open the file independently,
even if the file names are the same.
[If the value is to be used again elsewhere, use different variable names for each function call.]
If an error occurs opening or reading the file, then the function returns the string "**ERR**"
Parameters
| Attribute | Description | Required |
|---|
| First argument |
Path to the file name.
(The path can be relative to the JMeter launch directory)
|
Yes
|
| Second argument |
A reference name - refName - for reusing the value created by this function. Stored values are of the form ${refName}.
|
No
|
The file name parameter is resolved when the file is opened or re-opened.
The reference name parameter (if supplied) is resolved every time the function is executed.
|
|
13.10.6 __machineName
|
|
The machineName function returns the local host name
Parameters
| Attribute | Description | Required |
|---|
| Name of function |
A reference name for reusing the value
computed by this function.
|
Yes
|
|
|
13.10.7 __javaScript
|
|
The javaScript function executes a piece of JavaScript (not Java!) code and returns its value
Parameters
| Attribute | Description | Required |
|---|
| Expression |
The JavaScript expression to be executed. For example:
-
new Date() - return the current date and time
-
Math.floor(Math.random()*(${maxRandom}+1))
- a random number between 0 and the variable maxRandom
-
${minRandom}+Math.floor(Math.random()*(${maxRandom}-${minRandom}+1))
- a random number between the variables minRandom and maxRandom
|
Yes
|
| Name of function |
A reference name for reusing the value
computed by this function.
|
Yes
|
|
|
13.10.8 __Random
|
|
The random function returns a random number that lies between the given min and max values.
Parameters
| Attribute | Description | Required |
|---|
| Minimum value |
A number
|
Yes
|
| Maximum value |
A bigger number
|
Yes
|
| Name of function |
A reference name for reusing the value
computed by this function.
|
Yes
|
|
|
13.10.8 __CSVRead
|
|
The CSVFile function returns a string from a CSV file (c.f.
StringFromFile
)
NOTE: A single instance of the file is opened and used for all threads.
Parameters
| Attribute | Description | Required |
|---|
| File Name |
The file to read from
|
Yes
|
| Column number |
The column number in the file.
0 = first column, 1 = second etc.
"next" - go to next line of file.
|
Yes
|
|
|
13.10.9 __property
|
|
The property function returns the value of a JMeter property.
If the property value cannot be found, it returns the property name.
Parameters
| Attribute | Description | Required |
|---|
| Property Name |
The property name to be retrieved.
|
Yes
|
| Name of function |
A reference name for reusing the value
computed by this function.
|
No
|
|
|
|
|
|
