10 Managing Content Repositories

Oracle WebCenter enables content integration through:

This chapter describes how to configure and manage content repositories used by WebCenter Spaces and custom WebCenter applications deployed on Oracle WebLogic Server. For more information about managing and including content in WebCenter applications, see:

Note:

Any content repository configuration changes that you make through Fusion Middleware Control or using WLST are not dynamic; you need to restart the managed server on which the WebCenter application is deployed for your changes to take effect. See Section 8.2, "Starting and Stopping Managed Servers for WebCenter Application Deployments".

This chapter contains the following subsections:

Audience

The content of this chapter is intended for Fusion Middleware administrators (users granted the Admin or Operator role through the Oracle WebLogic Server Administration Console). See also, Section 1.8, "Understanding Administrative Operations, Roles, and Tools".

10.1 What You Should Know About Content Repository Connections

WebCenter users need to store, publish, and share files. The Documents service provides content management and storage capabilities for WebCenter applications, including content upload, file and folder creation and management, file check out, versioning, and so on. To do this, the Documents service requires at least one content repository connection (WebCenter applications can support multiple content repository connections) to be made active:

When Oracle Content Server is the content repository (required for WebCenter Spaces), the identity store configured for the Documents service must be LDAP-based, not a file-based jazn store, and Oracle Content Server must be connected to that same identity store.

Just like other service connections, post-deployment, content repository connections are registered and managed through Fusion Middleware Control or using the WLST command-line tool. Connection information is stored in configuration files and in the MDS repository. For more information, see Section 1.3.4, "Oracle WebCenter Configuration Considerations".

Always use Fusion Middleware Control or WLST command-line tool to review and configure back-end services for WebCenter applications. Any changes that you make to WebCenter applications, post-deployment, are stored in the Oracle Metadata Service (MDS) repository as customizations.

Once connection details are defined, WebCenter users can expose the content of the connected content repositories through several ADF Faces components, such as <af:image>, <af:inlineFrame>, and <af:goLink>, and built-in Documents service task flows (Documents, Document List Viewer, and Recent Documents). For more information, see "Working with Page Content" and "Working with the Documents Service" in Oracle Fusion Middleware User's Guide for Oracle WebCenter.

10.2 Content Repository Prerequisites

Oracle WebCenter's support of the JCR 1.0 open document standard enables integration with multiple back-end content stores. Oracle WebCenter supports the following content repositories: Oracle Content Server, Oracle Portal, and the file system.

Caution:

File system connections must not be used in production or enterprise application deployments. This feature is provided for development purposes only

10.2.1 Oracle Content Server Prerequisites

This section contains the following subsections:

10.2.1.1 Oracle Content Server - Installation

Oracle Content Server 10.1.3.4.1 installation is integrated with Oracle WebCenter installation. Alternatively, you can choose to install Oracle Content Server separately without installing Oracle WebCenter components, provided certain configuration requirements are satisfied. For information about installing Oracle Content Server, see the Oracle Fusion Middleware Installation Guide for Oracle WebCenter.

10.2.1.2 Oracle Content Server - Configuration

After installing Oracle Content Server, you must configure the server to use the same LDAP-based identity store that Oracle WebCenter has been configured to use. You can optionally configure Oracle Content Server for using full-text search and index and Secure Socket Layer (SSL) for secure identity propagation. Table 10-1 lists the various configuration tasks and specifies whether these tasks are mandatory or optional.

Table 10-1 Oracle WebCenter-Specific Postinstallation Configuration Tasks for Oracle Content Server

Task Mandatory/Optional

Configuring the Identity Store

Mandatory

Enabling Full-Text Searching and Indexing

Optional

Configuring Secure Socket Layer (SSL)

Optional

10.2.1.2.1 Configuring the Identity Store

Both Oracle Content Server and Oracle WebCenter must be configured to use the same LDAP-based identity store. By default, Oracle Content Server is not set up with an LDAP-based identity store.

To configure Oracle Content Server to use an LDAP-based identity store:

  1. Start the Oracle Content Server console and log on as an administrator.

  2. From the Administration menu, select Providers.

  3. In the Create a New Provider section, for the ldapuser provider type, click Add in the Action column. (Figure 10-0)

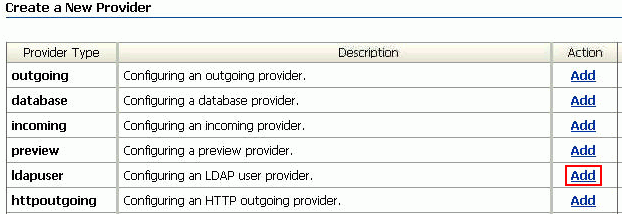

    Figure 10-1 Creating a New Provider

    Creating a New Provider
    Description of "Figure 10-1 Creating a New Provider"

  4. Specify details for the LDAP provider. You must specify the following details: provider name, provider description, provider class, source path, LDAP server, LDAP suffix, and LDAP port. You may also specify the LDAP admin user and password. (Figure 10-2)

    The LDAP server details that you enter must be of the server that Oracle WebCenter is configured to use.

    Note:

    Set the Default Network Accounts field to #none. Do not set any default role because all user security information is stored using the extended user attribute component of Oracle Content Server. You can set the Role Prefix and Account Prefix fields to any path that does not exist on the LDAP server.

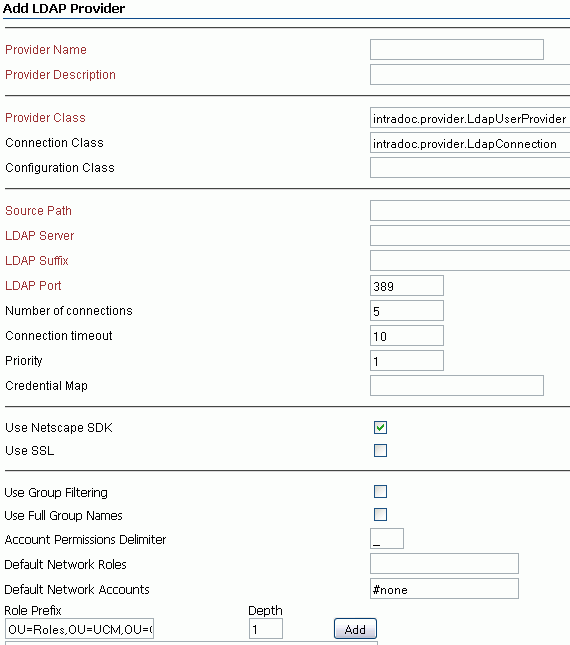

    Figure 10-2 Specifying Details of a New LDAP Provider

    Specifying Details of a New LDAP Provider
    Description of "Figure 10-2 Specifying Details of a New LDAP Provider"

  5. Click the Add button to add the LDAP provider.

  6. Click the Test link on the main providers page to verify that the new LDAP connection works fine.

10.2.1.2.2 Enabling Full-Text Searching and Indexing

By default, the database used by Oracle Content Server is set up to provide metadata-only searching and indexing capabilities. However, you can modify the default configuration of SQL Server, Oracle, and DB2 to additionally support full-text searching and indexing. Configuring full-text searching and indexing capabilities is optional, but advisable.

For information about enabling full-text searching and indexing, see the "Setting Up Database Search and Indexing" appendix in the Content Server Installation Guide for Microsoft Windows or Content Server Installation Guide for UNIX available at:

http://download.oracle.com/docs/cd/E10316_01/owc.htm

10.2.1.2.3 Configuring Secure Socket Layer (SSL)

If Oracle Content Server and the WebCenter application in which you intend to create a repository connection are not on the same system or the same trusted private network, then identity propagation is not secure. To ensure security, you must configure SSL on Oracle Content Server.

Configuration of SSL on Oracle Content Server involves the following tasks:

You can also refer to "SSL Properties" in Content Integration Suite Administration Guide available at http://download.oracle.com/docs/cd/E10316_01/ouc.htm. Perform these procedures if you use self-signed certificates.

In a production environment, it is recommended that you use real certificates. For information about how to configure keystores when using real certificates, see the "Using Security Providers" chapter in the Security Providers Component Administration Guide available at http://download.oracle.com/docs/cd/E10316_01/ouc.htm.

For more information about configuration for SSL, see Section 14.6, "Configuring WebCenter Applications and Components to Use SSL".

Configuring a Keystore and Key on the Client Side

To configure a keystore on the WebCenter application (client) side:

  1. In your development environment, go to JDEV_HOME/jdk/bin and open the command prompt.

  2. Generate the client keystore by running the following keytool command:

    keytool -genkey -keyalg RSA -validity 5000 -alias Client private key alias -keystore client-keystore.jks
-dname "cn=client" -keypass Private key password -storepass KeyStore password

  3. To verify that the keys have been correctly created, you can optionally run the following keytool command:

    keytool -list -keystore client-keystore.jks -storepass KeyStore password

  4. To use the key, sign it by running the following keytool command:

    keytool -selfcert -validity 5000 -alias Client private key alias -keystore client-keystore.jks
-keypass Private key password -storepass KeyStore password

  5. Export the client public key by running the following keytool command:

    keytool -export -alias Client private key alias -keystore client-keystore.jks
-file client.pubkey -keypass Private key password -storepass KeyStore password

Configuring a Keystore and Key on the Server Side

To configure a keystore on the Oracle Content Server side:

  1. In the same development environment, go to JDEV_HOME/jdk/bin and open the command prompt.

  2. Generate the server keystore by running the following keytool command:

    keytool -genkey -keyalg RSA -validity 5000 -alias Server public key alias
-keystore server-keystore.jks -dname "cn=server" -keypass Private server key password -storepass KeyStore password

  3. To verify that the key has been correctly created, run the following keytool command:

    keytool -list -keystore server-keystore.jks -keypass Server private key password -storepass KeyStore password

  4. To use the key, sign it by running the following keytool command:

    keytool -selfcert -validity 5000 -alias Server public key alias -keystore server-keystore.jks
-keypass Private server key password -storepass KeyStore password

  5. Export the server public key to the server keystore by running the following keytool command:

    keytool -export -alias Server public key alias -keystore server-keystore.jks
-file server.pubkey -keypass Server private key password -storepass KeyStore password

Verifying Signatures of Trusted Clients

To verify signatures of trusted clients, import the client public key into the server keystore:

  1. In your development environment, go to JDEV_HOME/jdk/bin and open the command prompt.

  2. To verify the signature of trusted clients, import the client's public key in to the server keystore by running the following keytool command:

    keytool -import -alias Client public key alias -file client.pubkey -keystore
server-keystore.jks -keypass Private server key password -storepass KeyStore password

  3. Import the server public key into the client keystore by running the following keytool command:

    keytool -import -alias Server public key alias -file server.pubkey -keystore
client-keystore.jks -keypass Private key password -storepass KeyStore password

    When the tool prompts you if the key is self-certified, you must enter Yes. Example 10-1 shows a sample output that is generated after this procedure is completed successfully.

    Example 10-1 Sample Output Generated by the Keytool

    [user@server]$ keytool -import -alias client -file client.pubkey
-keystore server-keystore.jks -keypass Server private key password -storepass Keystore password
Owner: CN=client
Issuer: CN=client
Serial number: serial number, for example, 123a19cb
Valid from: Date, Year, and Time until: Date, Year, and Time
Certificate fingerprints:
        ...
Trust this certificate? [no]:  yes
Certificate was added to keystore.

Securing Identity Propagation

To secure identity propagation, you must configure SSL on Oracle Content Server.

  1. Log on to Oracle Content Server as an administrator.

  2. From Administration, choose Providers.

  3. On the Create a New Provider page, click Add for sslincoming.

  4. On the Add Incoming Provider page, in Provider Name, enter a name for the provider, for example, sslincomingprovider.

    When the new provider is set up, a directory with the provider name is created as a subdirectory of the CONTENT_SERVER_HOME/data/providers directory.

  5. In Provider Description, briefly describe the provider, for example, SSL Incoming Provider for securing the Content Server.

  6. In Provider Class, enter the class of the sslincoming provider, for example, idc.provider.ssl.SSLSocketIncomingProvider.

    Note:

    You can add a new SSL keepalive incoming socket provider or a new SSL incoming socket provider. Using a keepalive socket improves the performance of a session and is recommended for most implementations.

  7. In Connection Class, enter the class of the connection, for example, idc.provider.KeepaliveSocketIncomingConnection.

  8. In Server Thread Class, enter the class of the server thread, for example, idc.server.KeepaliveIdcServerThread.

  9. In Server Port, enter an open server port, for example, 5555.

  10. Select the Require Client Authentication checkbox.

  11. In Keystore password, enter the password to access the keystore.

  12. In Alias, enter the alias of the keystore.

  13. In Alias password, enter the password of the alias.

  14. In Truststore password, enter the password of the trust store.

  15. Click Add.

    The new incoming provider is now added.

  16. Go to the new provider directory that was created in step 4.

  17. To specify truststore and keystore, create a file named sslconfig.hda.

  18. Copy the server keystore to the server.

  19. Configure the sslconfig.hda file. Example 10-2 shows how the .hda file should look after you include the truststore and keystore information.

    Example 10-2 Sample sslconfig.hda File

    @Properties LocalData
TruststoreFile=/tmp/ssl/server_keystore
KeystoreFile=/tmp/ssl/server_keystore
@end

10.2.1.3 Oracle Content Server - Security Considerations

To secure identity propagation, you must configure SSL on Oracle Content Server. This is required when Oracle Content Server and your WebCenter application are not on the same system or the same trusted private network. For information, see Section 10.2.1.2.3, "Configuring Secure Socket Layer (SSL)."

10.2.1.4 Oracle Content Server - Limitations in WebCenter

None.

10.2.2 Oracle Portal Prerequisites

This section contains the following subsections:

10.2.2.1 Oracle Portal - Installation

For information on installing Oracle Portal, see Oracle Fusion Middleware Installation Guide for Oracle Portal, Forms, Reports and Discoverer.

10.2.2.2 Oracle Portal - Configuration

Oracle Portal must be up-to-date with all the latest patches. For additional information about patches, see the product release notes. See also Oracle Fusion Middleware Administrator's Guide for Oracle Portal.

10.2.2.3 Oracle Portal - Security Considerations

None.

10.2.2.4 Oracle Portal - Limitations in WebCenter

Oracle Portal integration with Oracle WebCenter is read-only. It is not possible to create content in the portal from Oracle WebCenter.

You can expose Oracle Portal pages in WebCenter through the Federated Portal Adapter by publishing them as portlets in Oracle Portal. The following are not returned by the Federated Portal Adapter, and thus are not visible in Oracle WebCenter:

  • Seeded page groups:

    • Oracle Portal repository.

    • Oracle Portal design-time pages.

  • Pages of the following types:

    • Mobile.

    • URL.

    • Navigation pages.

  • Items of the following types:

    • Navigation items.

    • PLSQL items.

    • Portlet.

    • Portlet instance.

    • URL items.

    • Mobile items.

    • Page links.

    • Item links.

  • Items defined as:

    • Expired.

    • Hidden.

10.2.3 File System Prerequisites

This section contains the following subsections:

10.2.3.1 File System - Security Considerations

All operations are executed as the system user under which the JVM is running and therefore inherit its permissions.

10.2.3.2 File System - Limitations in WebCenter

File system connections must not be used in production or enterprise application deployments, and search capabilities are limited and slow due to the absence of an index. This feature is provided for development purposes only.

10.3 Registering Content Repositories

This section contains the following subsections:

10.3.1 Registering Content Repositories Using Fusion Middleware Control

To register a content repository:

  1. Log in to Fusion Middleware Control and navigate to the home page for WebCenter Spaces or the custom WebCenter application:

  2. Do one of the following:

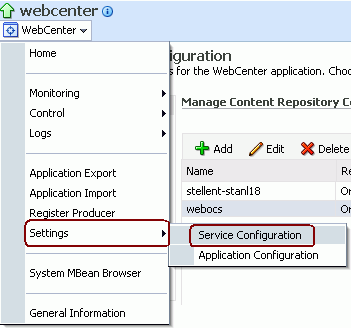

    • For WebCenter Spaces - From the WebCenter menu, choose Settings > Service Configuration.

    • For custom WebCenter applications - From the Application Deployment menu, choose WebCenter > Service Configuration.

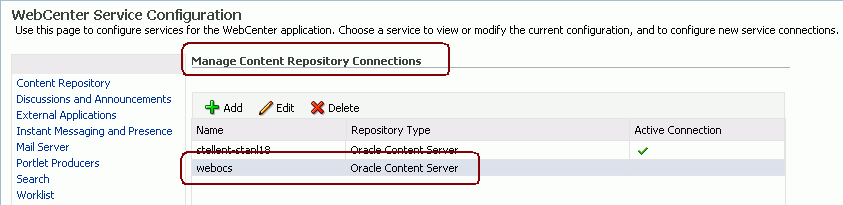

  3. From the list of services on the WebCenter Service Configuration page, select Content Repository.

  4. To connect to a new content repository, click Add (Figure 10-3).

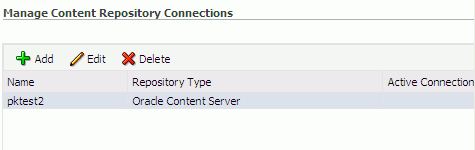

    Figure 10-3 Configuring Content Repository Connections

    Configuring a Content Repository

  5. Enter a unique name for this connection, specify the content repository type, and indicate whether this connection is the active (or default) connection for the application. See Table 10-2.

    Table 10-2 Manage Content Repository Connections

    Field Description

    Connection Name

    Enter a unique name for this content repository connection. The name must be unique (across all connection types) within the WebCenter application.

    Repository Type

    Choose the type of repository you want to connect to. Select one of the following:

    • Oracle Content Server - an Oracle Universal Content Management repository. See also, Oracle Content Server Prerequisites.

    • Oracle Portal - an Oracle Portal content repository. See also, Oracle Portal Prerequisites.

    • File System - a computer file system. See also, File System Prerequisites.

      Caution: File system connections must not be used in production or enterprise application deployments. This feature is provided for development purposes only.

    (WebCenter Spaces) If you are setting up the backend content repository for WebCenter Spaces, that is, the repository used by WebCenter Spaces to store group space and personal space documents, you must select Oracle Content Server.

    Active Connection

    Select to make this the default content repository for your WebCenter application.

    You can connect your WebCenter application to multiple content repositories; all connections are used. One connection must be designated the default (or active) connection. Do one of the following:

    • For WebCenter Spaces:

      Select to make this the active connection, that is, the back-end repository that WebCenter Spaces uses to store group space and personal space documents. The active connection must be to an Oracle Content Server.

      If this is the active connection for WebCenter Spaces, some additional configuration is required -- see Table 10-3, "Content Repository Connection - WebCenter Spaces Repository Details".

    • For other WebCenter applications:

      Select to make this the active connection; that is, the default connection for Documents service task flows (Documents, Document List Viewer, and Recent Documents). When no specific connection details are provided for these task flows, this default (active) connection is used.

    Deselecting this option does not disable the content repository connection. If a content repository is no longer required, you must delete the connection.

  6. (For the active connection in WebCenter Spaces only.) Enter additional details for the WebCenter Spaces repository (see Table 10-3).

    Table 10-3 Content Repository Connection - WebCenter Spaces Repository Details

    Field Description

    Administrator User Name

    Enter the user name of the content repository administrator.

    For example: sysadmin

    Administrative privileges are required for this connection so that operations can be performed on behalf of WebCenter users.

    Spaces Root

    Enter the root folder under which group space content is stored. Specify a folder that does not yet exist and is unique across applications. Use the format: /foldername. This name cannot be the same as the Application Name.

    For example: /MyWebCenterSpaces

    If it does not already exist, the folder specified is automatically created when the WebCenter application starts.

    Invalid entries include: /, /foldername/, /foldername/subfolder

    Application Name

    Enter a unique name for this WebCenter Spaces application within this content repository.

    For example: MyWCS

    The name must begin with an alphabetical character, followed by any combination of alphanumeric characters or the underscore character. The string must be less than or equal to 30 characters.

  7. Enter connection details for the content repository. For detailed parameter information, see:

    Table 10-4 Oracle Content Server Connection Parameters

    Field Description

    CIS Type

    Specify whether Oracle Content Server connects on the content server listener port or the Web server filter, and whether the listener port is SSL enabled. Choose from:

    • Socket - Uses an intradoc socket connection to connect to the Oracle Content Server. The client IP address must be added to the list of authorized addresses in the Oracle Content Server. In this case, the client is the machine on which Oracle WebCenter is running.

    • Socket SSL - Uses an intradoc socket connection to connect to the Oracle Content Server that is secured using the SSL protocol. The client's certificates must be imported in the server's trust store for the connection to be allowed. This is the most secure option, and the recommended option whenever identity propagation is required (for example, in WebCenter Spaces).

    • Web - Uses an HTTP(S) connection to connect to the Oracle Content Server.

      For WebCenter Spaces, the Web option is not suitable for a back-end Oracle Content Server repository that is being used to store group space and personal space documents, because it does not allow identity propagation.

    For more information on the configuration parameters required for each CIS socket type, see the table "Oracle Content Server Connection Parameters for Each CIS Socket Type" in Oracle Fusion Middleware Developer's Guide for Oracle WebCenter.

    Authentication Method

    Choose from:

    • Identity Propagation - Oracle Content Server and the WebCenter application use the same identity store to authenticate users.

      (WebCenter Spaces) Identity propagation is required on the active connection for WebCenter Spaces, that is, for the content repository being used to store group space and personal space documents.

    • External Application - An external application authenticates users against the Oracle Content Server. Select this option if you want to use public, shared, or mapped credentials.

    If an external application is used for authentication, use the Associated External Application drop down list to identify the application. If the application you want is not listed, select Create New to define the external application now.

    Server Host

    Enter the hostname of the machine where the Oracle Content Server is running.

    For example: mycontentserver.mycompany.com

    Server Host is required when the CIS Type is set to Socket or Socket SSL.

    Server Port

    Enter the port on which the Oracle Content Server listens:

    • Socket - Port specified for the incoming provider in the server.

    • Socket SSL - Port specified for the sslincoming provider in the server.

    For example, 4444

    Server Port is required when the CIS Type is set to Socket or Socket SSL.

    Web URL

    Enter the Web server URL for the Oracle Content Server.

    Use the format: http://<hostname>:<port>/<web_root>/<plugin_root>

    For example: http://mycontentserver/cms/idcplg

    Web URL is applicable when the CIS Type is set to Web.

    Key Store Location

    Specify the location of key store that contains the private key used to sign the security assertions. The key store location must be an absolute path.

    For example: D:\keys\keystore.xyz

    Key Store Location is required when the CIS Type is set to Socket SSL.

    Key Store Password

    Enter the password required to access the keystore.

    For example: T0PS3CR3T

    Key Store Password is required when the CIS Type is set to Socket SSL.

    Private Key Alias

    Enter the client private key alias in the keystore. The key is used to sign messages to the server. The public key corresponding to this private key must be imported in the server keystore.

    Ensure that the alias does not contain special characters or white space. For example: enigma

    Private Key Alias is required when the CIS Type is set to Socket SSL.

    Private Key Password

    Enter the password to be used with the private key alias in the key store.

    For example: c0d3bR3ak3R

    Private Key Password is required when the CIS Type is set to Socket SSL.

    Table 10-5 Oracle Portal Connection Parameters

    Field Description

    Data Source Name

    Enter the JNDI DataSource location used to connect to the portal.

    For example: jdbc/MyPortalDS

    The datasource must be on the server where the WebCenter application is deployed.

    Authentication Method

    Specify how to authenticate users against Oracle Portal. Choose from:

    • Identity Propagation - Select this option when the WebCenter application and Oracle Portal both use the same user identity store.

    • External Application - Use an external application to authenticate users against Oracle Portal. Select this option if you want to use public, shared, or mapped credentials.

    If an external application is used for authentication, use the Associated External Application drop-down list to identify the application.

    Associated External Application

    Associate Oracle Portal with an external application. External application credential information is used to authenticate Oracle Portal users.You can select an existing external application from the drop-down list, or click Create New to configure a new external application now.

    Table 10-6 File System Connection Parameters

    Field Description

    Base Path

    Enter the full path to a folder on a local file system in which your content is placed. For example: C:\MyContent

    Caution: File system content must not be used in production or enterprise application deployments. This feature is provided for development purposes only.

  8. Click OK to save this connection.

  9. To start using the new (active) connection you must restart the managed server on which the WebCenter application is deployed.

The registered connections are now available to Documents service task flows, which you can add to pages in WebCenter Spaces or custom WebCenter applications. See also, "Working with the Documents Service" in the Oracle Fusion Middleware User's Guide for Oracle WebCenter.

10.3.2 Registering Content Repositories Using WLST

Use the following WLST commands to register new content repository connections:

For command syntax and examples, see the Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

To configure a particular connection as the default connection, set isPrimary='true'. See also, Section 10.4, "Changing the Active (or Default) Content Repository Connection".

For information on how to run WLST commands, see Section 1.12.3.1, "Running Oracle WebLogic Scripting Tool (WLST) Commands".

Note:

To start using the new (active) connection you must restart the managed server on which the WebCenter application is deployed. See "Starting and Stopping WebLogic Managed Servers Using the Command Line" in the Oracle Fusion Middleware Administrator's Guide.

10.4 Changing the Active (or Default) Content Repository Connection

WebCenter applications support multiple content repository connections but only one content repository connection can be designated the active (or default) connection.

In WebCenter Spaces, the active connection becomes the default back-end repository for group space and personal space documents and the repository must be an Oracle Content Server.

For other WebCenter applications, the active connection becomes the default connection for Documents service task flows (Documents, Document List Viewer, Recent Documents). When no specific connection details are provided for these task flows, the default (active) connection is used.

This section contains the following subsections:

10.4.1 Changing the Active (or Default) Content Repository Connection Using Fusion Middleware Control

To change the active (or default) content repository connection:

  1. Log in to Fusion Middleware Control and navigate to the home page for WebCenter Spaces or the custom WebCenter application:

  2. Do one of the following:

    • For WebCenter Spaces - From the WebCenter menu, choose Settings > Service Configuration.

    • For custom WebCenter applications - From the Application Deployment menu, choose WebCenter > Service Configuration.

  3. From the list of services on the WebCenter Services Configuration page, select Content Repository.

    The Manage Content Repository Connections table indicates the current active connection (if any).

  4. Select the connection you want to become the active (or default) connection, and then click Edit.

  5. Select the Active Connection check box.

  6. Click OK to update the connection.

  7. To start using the updated active connection you must restart the managed server on which the WebCenter application is deployed.

10.4.2 Changing the Active (or Default) Content Repository Connection Using WLST

Use the following WLST commands with Primary='true' to designate an existing content repository connection as the default connection:

For command syntax and examples, see the Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

To subsequently disable a default content repository connection, run the same WLST command with isPrimary='false'. Connection details are retained but the connection is no longer named as the primary connection in adf-config.xml.

For information on how to run WLST commands, see Section 1.12.3.1, "Running Oracle WebLogic Scripting Tool (WLST) Commands".

Note:

To start using the new (active) connection you must restart the managed server on which the WebCenter application is deployed. See, "Starting and Stopping WebLogic Managed Servers Using the Command Line" in the Oracle Fusion Middleware Administrator's Guide.

10.5 Modifying Content Repository Connection Details

This section contains the following subsections:

10.5.1 Modifying Content Repository Connection Details Using Fusion Middleware Control

To update content repository connection details:

  1. Log in to Fusion Middleware Control and navigate to the home page for WebCenter Spaces or the custom WebCenter application:

  2. Do one of the following:

    • For WebCenter Spaces - From the WebCenter menu, choose Settings > Service Configuration.

    • For custom WebCenter applications - From the Application Deployment menu, choose WebCenter > Service Configuration.

  3. From the list of services on the WebCenter Services Configuration page, choose Content Repository.

  4. Select the connection name, and click Edit.

  5. Edit connection details, as required. For detailed parameter information, see:

  6. Click OK to save your changes.

  7. To start using the updated (active) connection details, you must restart the managed server on which the WebCenter application is deployed.

10.5.2 Modifying Content Repository Connection Details Using WLST

Use the following WLST commands to edit content repository connections:

For command syntax and examples, see the Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

To configure a particular connection as the active (or default) connection, set isPrimary='true'. See also, Section 10.4, "Changing the Active (or Default) Content Repository Connection".

For information on how to run WLST commands, see Section 1.12.3.1, "Running Oracle WebLogic Scripting Tool (WLST) Commands".

Note:

To start using the updated (active) connection details, you must restart the managed server on which the WebCenter application is deployed. See, "Starting and Stopping WebLogic Managed Servers Using the Command Line" in the Oracle Fusion Middleware Administrator's Guide.

10.6 Deleting Content Repository Connections

This section contains the following subsections:

Caution:

Delete a content repository connection only if it is not in use. If a connection is marked as active, it should first be removed from the active list, and then deleted.

10.6.1 Deleting Content Repository Connections Using Fusion Middleware Control

To delete a content repository connection:

  1. Log in to Fusion Middleware Control and navigate to the home page for WebCenter Spaces or the custom WebCenter application:

  2. Do one of the following:

    • For WebCenter Spaces - From the WebCenter menu, choose Settings > Service Configuration.

    • For custom WebCenter applications - From the Application Deployment menu, choose WebCenter > Service Configuration.

  3. From the list of services on the WebCenter Services Configuration page, choose Content Repository.

  4. Select the connection name, and click Delete.

  5. To effect this change you must restart the managed server on which the WebCenter application is deployed.

10.6.2 Deleting Content Repository Connections Using WLST

Use the WLST command deleteConnection to remove a content repository connection. For command syntax and examples, see "deleteConnection" in the Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

For information on how to run WLST commands, see Section 1.12.3.1, "Running Oracle WebLogic Scripting Tool (WLST) Commands".

Note:

To effect this change you must restart the managed server on which the WebCenter application is deployed. See, "Starting and Stopping WebLogic Managed Servers Using the Command Line" in the Oracle Fusion Middleware Administrator's Guide.

10.7 Setting Connection Properties for the WebCenter Spaces Content Repository

You can view, modify, and delete connection properties for the back-end Oracle Content Server repository that is being used by WebCenter Spaces to store group space and personal space documents. Specifically, you can define the root folder under which group space content is stored, the name of the content repository administrator, and a unique application identifier for separating application data on the Oracle Content Server.

This section contains the following subsections:

10.7.1 Setting Connection Properties for the WebCenter Spaces Content Repository Using Fusion Middleware Control

To set content repository connection properties:

  1. Log in to Fusion Middleware Control and navigate to the home page for WebCenter Spaces or the custom WebCenter application. See Section 6.2, "Navigating to the Home Page for WebCenter Spaces".

  2. From the WebCenter menu, choose Settings > Service Configuration.

  3. From the list of services on the WebCenter Services Configuration page, choose Content Repository.

  4. Select the connection name, and click Edit.

  5. (For the active connection in WebCenter Spaces only.) Set connection properties for the WebCenter Spaces repository (see Table 10-7).

    Table 10-7 Content Repository Connection - WebCenter Spaces Repository Details

    Field Description

    Administrator User Name

    Enter the user name of the content repository administrator.

    For example: sysadmin

    Administrative privileges are required for this connection so that operations can be performed on behalf of WebCenter users.

    Spaces Root

    Enter the root folder under which group space content is stored. Specify a folder that does not yet exist and is unique across applications. Use the format: /foldername. This name cannot be the same as the Application Name.

    For example: /MyWebCenterSpaces

    If it does not already exist, the folder specified is automatically created when the WebCenter application starts.

    Invalid entries include: /, /foldername/, /foldername/subfolder

    Application Name

    Enter a unique name for this WebCenter Spaces application within this content repository.

    For example: MyWCS

    The name must begin with an alphabetical character, followed by any combination of alphanumeric characters or the underscore character. The string must be less than or equal to 30 characters.

  6. Click OK to save your changes.

  7. To start using the updated (active) connection properties, you must restart the managed server on which the WebCenter application is deployed.

10.7.2 Setting Connection Properties for the WebCenter Spaces Content Repository Using WLST

The following commands are valid only for the WebCenter Spaces application to view, set, and delete properties for the Oracle Content Server repository that is being used by WebCenter Spaces to store group space and personal space documents:

For command syntax and detailed examples, see the Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.

For information on how to run WLST commands, see Section 1.12.3.1, "Running Oracle WebLogic Scripting Tool (WLST) Commands".

10.8 Testing Content Repository Connections

After setting up content repository connections, you can test them to make sure that you can access the content repository:

10.8.1 Testing Oracle Content Server Connections

To verify a connection of the socket type web, log in to the Web interface of Oracle Content Server as administrator. You can obtain the URL of a socket type connection through Fusion Middleware Control as follows:

  1. In Fusion Middleware Control, from the WebCenter menu, choose Settings and select Service Configuration (Figure 10-4).

    Figure 10-4 Fusion Middleware Control WebCenter Menu

    Fusion Middleware Control WebCenter Menu

  2. On the Manage Content Repository Connections page, select the connection and click Edit (Figure 10-5).

    Figure 10-5 Manage Content Repository Connections Page

    Manage Content Repository Connections Page

  3. On the Edit Content Repository Connection page, copy the Web URL (Figure 10-6).

    Note:

    Remove the /idcplg/ suffix from the URL before using it.

    The URL format is: http://host_name/web_root/ For example: http://mycontentserver/cms/

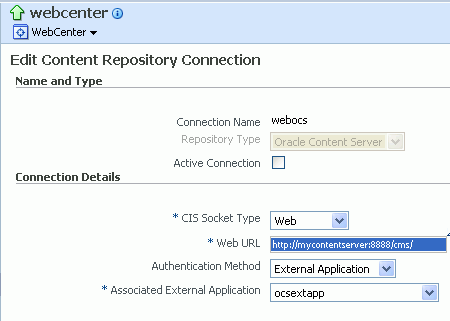

    Figure 10-6 Edit Content Repository Connection Page

    Edit Content Repository Connection Page

10.8.2 Testing Oracle Portal Connections

To verify the full state of an Oracle Portal connection:

  1. In the Oracle WebLogic Administration Console, under Domain Structure, expand Services > JDBC, then double-click Data Sources (Figure 10-7).

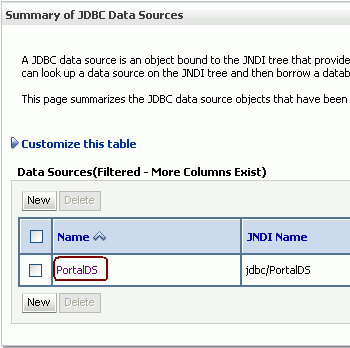

    Figure 10-7 Oracle WebLogic Administration Console

    Oracle WebLogic Administration Console

  2. On the Summary of JDBC Data Sources page, select the data source you intend to test (Figure 10-8).

    Figure 10-8 Sumary of JDBC Data Sources Page

    Sumary of JDBC Data Sources Page

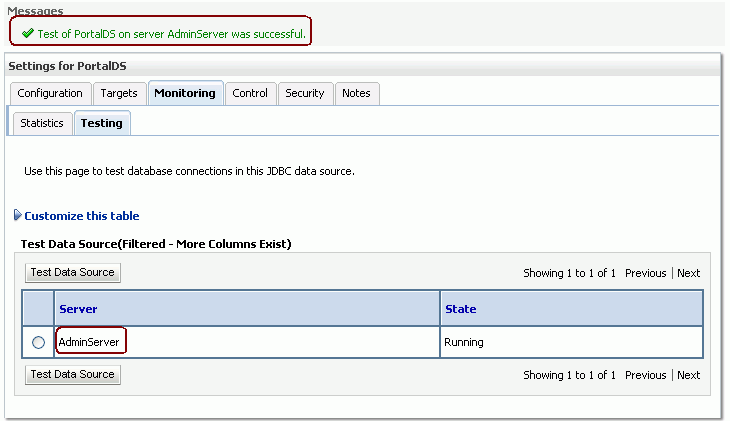

  3. In the Settings for datasource_name section, select the tabs Monitoring, then Testing. Select the data source target server, then click Test Data Source to test the connection (Figure 10-9).

    Figure 10-9 Data Source Settings Section

    Data Source Settings Section

10.9 Changing the Maximum File Upload Size

By default, the maximum upload size for files is:

The WebCenter application developer can customize the default file upload size at design time by setting the UPLOAD_MAX_MEMORY, UPLOAD_MAX_DISK_SPACE, and UPLOAD_TEMP_DIR parameters in the web.xml file. For information about manually editing web.xml, see Section A.1.2, "web.xml".

For more information, see "Uploading Files to Content Repositories" in the Oracle Fusion Middleware Developer's Guide for Oracle WebCenter.

Go to previous page
Previous		 Go to next page
Next
Go to Documentation Home
Home		 Go to Book List
Book List		 Go to Table of Contents
Contents		 Go to Index
Index		 Go to Feedback page
Contact Us
