3.1 Components Overview

3.1.1 Component Wizard

The Component Wizard utility automates the process of creating custom components, including creating and editing all the files necessary for custom components. You can also use the Component Wizard to modify existing components and to package and unpackage components for use on Content Server instances.

The Component Wizard is discussed in more detail in the Oracle Fusion Middleware System Administrator's Guide for Content Server.

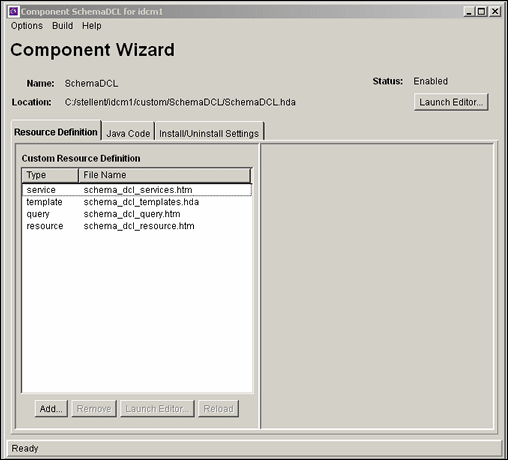

Figure 3-1 Component Wizard interface

To access the Component Wizard

• (Windows) From the Start menu click the instance name, then Utilities, then Component Wizard. The Component Wizard main page is displayed.

• (UNIX) Run ComponentWizard, stored in DomainHome/ucm/short-product-id/bin. The Component Wizard main page is displayed.

3.1.2 Advanced Component Manager

The Advanced Component Manager provides a way to manage custom components in the Content Server. By using the Advanced Component Manager, you can easily enable or disable components, or add new components to the content server.

The Advanced Component Manager is discussed in more detail in the Oracle Fusion Middleware System Administrator's Guide for Content Server.

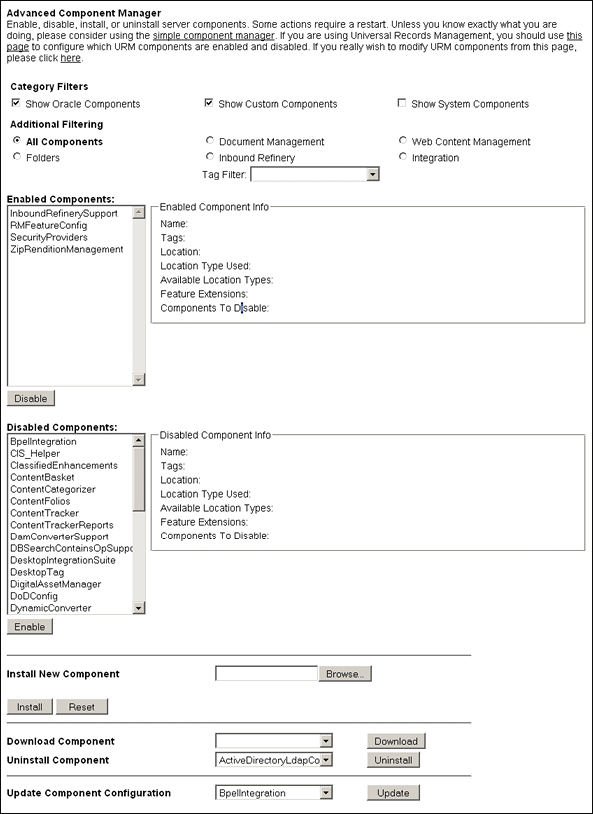

Figure 3-2 Advanced Component Manager page

To use the Advanced Component Manager, click Administration on the portal navigation tray for your Content Server, then click Admin Server. On the Admin Server page, the Component Manager page is displayed. In the first paragraph of the Component Manager page, which displays lists of enabled and disabled server components, click advanced component manager. You can select individual components in the tables to view details about each component and select categories of components to view. You can enable and disable components on this page, plus install and uninstall custom components.

3.1.3 ComponentTool

ComponentTool is a command-line utility for installing, enabling, and disabling components in Content Server. After installing a component, ComponentTool automatically enables it. ComponentTool is located in the DomainHome/ucm/cs/bin directory.

3.1.4 Component Files Overview

When you define a custom component, you create or make changes to the following files:

• The idcshort-product-id_components.hda file, which tells the Content Server what components are enabled and where to find the definition file for each component.

• The component definition (or glue) file, which tells the Content Server where to find the resources for the custom component.

• Different custom resource files, which define your customization to standard Content Server resources.

• Template files, which define custom template pages.

• Other files which contain customization to Content Server graphics, Java code, help files, and so forth.

These files are all discussed in more detail in "About Directories and Files".

Any type of file can be included in a component, but the following file formats are used most often:

• HDA

• HTM

• CFG

• Java CLASS

If you build or unpackage components in the Component Wizard, or upload and download components in the Component Manager, you work with the following files:

• A compressed zip file used to deploy a component on other Content Servers.

• A manifest.hda file that tells the Content Server where to place the files that are unpackaged or uploaded from a component zip file.

3.1.5 Enabling and Disabling Components

By definition, a component is enabled when it is properly defined in the Components ResultSet in the idc_components.hda file. A component is disabled if there is no entry or the entry is not formatted correctly.

There are several ways to enable or disable a component:

• Manual editing: In the IntradocDir/data/components/ directory, open the idcshort-product-id_components.hda file in a text editor and add or delete the two-line entry for the component. Alternately, you can change only the Enabled or Disabled setting for the component and save the file.

• ComponentTool: Run the DomainHome/ucm/short-product-id/bin/ComponentTool to enable or disable a component. For example, ComponentTool -enable component_name

• Component Wizard: Select Enable or Disable from the Options menu. For details, see the Oracle Fusion Middleware System Administrator's Guide for Content Server.

• Component Manager: Select the check box next to a component name to enable a server component specified on the Component Manager screen. Clear the check box next to a component name to disable a server component on the Component Manager screen. For details, see the Oracle Fusion Middleware System Administrator's Guide for Content Server.

• Advanced Component Manager: Select a component name and click Disable to disable the component on the Advanced Component Manager screen. Select a component name and click Enable to enable the component on the Advanced Component Manager screen.
