5 Imaging Solution Tables

This chapter describes the AXF and E-Business Suite configuration tables used for the Imaging Solution, including commands, web user interface tools, and example implementations. This chapter covers the following topics:

AXF Tables

"Overview of AXF Configuration Tables"
"AXF_SOLUTIONS Table"
"AXF_SOLUTION_ATTRIBUTES Table"
"AXF_COMMANDS Table"
"AXF_SOLUTION_PARAMETERS Table"
"AXF_ACTION_MENU Table"
"AXF_ACTIONS Table"
"AXF_METADATA_BLOCKS Table"
"AXF_METADATA_ATTRIBUTES Table"
"AXF_ENUM_TYPES Table"
"AXF_ENUM_ITEMS Table"
"AXF_XPATH_ATTRIBUTES Table"
"AXF_XPATH_NAMESPACES Table"

AXF Web User Tools

"Task List Web Tool"
"Task Viewer Web Tool"
"Enumeration Picker Web Tool"
"Identity Picker Web Tool"

AXF Commands

"Open Task Command"
"Autotask Command"
"Release Task Command"
"Complete Task Command"
"Redirect Command"
"Update Task Command"
"Update Task From Procedure Command"
"Terminate Conversation Command"
"Validate Task Command"

E-Business Suite Tables

"About the AXF Tables in E-Business Suite"
"AXF_CONFIGS Table"
"AXF_COMMANDS Table"
"AXF_COMMAND_PARAMETERS Table"
"AXF_PROPERTIES Table"

5.1 Overview of AXF Configuration Tables

Note:

Running an AXF and an Oracle BPM Worklist session at the same time can result in the session first opened ending. For example, launching an AXF session with an Oracle BPM Worklist session open ends the BPM Worklist session.

This conflict occurs because console session information is retained in browser cookies whose names are domain specific, but default to the same initial value. To prevent this conflict, set cookie names unique for each domain. To set cookie names, use the console on the advanced section of the Domain Configuration/General page.

Note:

If modifying AXF table values in a running system, either execute Clear DB Cache from the Driver page or restart the AXF application within the Application Server for the changes to take effect. For information about the Driver page, see "Verifying the AXF Installation with HelloWorld" in Oracle Fusion Middleware Installation Guide for Oracle Enterprise Content Management Suite.

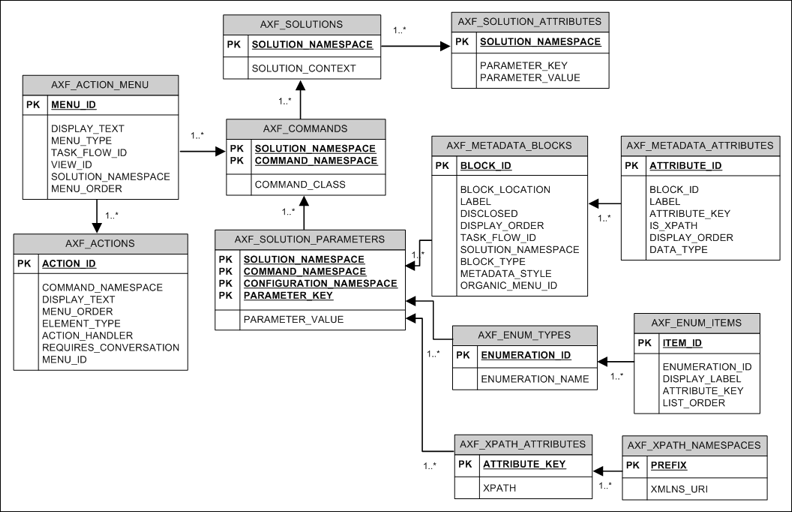

The diagram that follows displays the AXF configuration tables and their relationships.

Figure 5-1 AXF Configuration Tables

This graphic shows the relationships between AXF tables.

AXF Table	Description
AXF_SOLUTIONS Table AXF_SOLUTION_ATTRIBUTES Table	Define AXF solutions, and general parameters for infrastructure, services, and solutions.
AXF_COMMANDS Table	Define AXF commands within solutions.
AXF_SOLUTION_PARAMETERS Table	Define parameters for AXF commands and AXF web tools.
AXF_ACTION_MENU Table AXF_ACTIONS Table	Define task action pane itself, links in the pane, and their parameters.
AXF_METADATA_BLOCKS Table, AXF_METADATA_ATTRIBUTES Table	Define optional panes, such as Summary and Comments in the Task Viewer.
AXF_ENUM_TYPES Table, AXF_ENUM_ITEMS Table	Define enumeration pickers and their values.
AXF_XPATH_ATTRIBUTES Table, AXF_XPATH_NAMESPACES Table	Define XPATH attributes for payload elements.

5.2 AXF Tables

This section describes the following AXF tables. See "AXF Web User Tools" for web tool-related tables.

"AXF_SOLUTIONS Table"
"AXF_SOLUTION_ATTRIBUTES Table"
"AXF_COMMANDS Table"
"AXF_SOLUTION_PARAMETERS Table"
"AXF_ACTION_MENU Table"
"AXF_ACTIONS Table"
"AXF_METADATA_BLOCKS Table"
"AXF_METADATA_ATTRIBUTES Table"
"AXF_XPATH_ATTRIBUTES Table"
"AXF_XPATH_NAMESPACES Table"

5.2.1 AXF_SOLUTIONS Table

The AXF_SOLUTIONS table defines the solutions used by AXF. It links to the AXF_COMMANDS Table through the SOLUTION_NAMESPACE column.

This graphic is discussed in surrounding text.

5.2.1.1 Column Description

Table 5-1 Column Description for AXF_SOLUTIONS Table

Column	Description
SOLUTION_CONTEXT	Defines the JNDI name of the AXF solution implementation. (Currently, AxfCommandMediator is the only solution implementation.)
SOLUTION_NAMESPACE	Defines the AXF solution name.

5.2.1.2 Example Implementation

This example table shows the AXF solutions defined. Each of the solutions uses AxfCommandMediator as its solution implementation.

Table 5-2 Example AXF_SOLUTIONS Table

SOLUTION_NAMESPACE	SOLUTION_CONTEXT
InvoiceProcessing	ejb.AxfCommandMediator#oracle.imaging.axf.service.AxfCommandMediatorRemote
AccountDistributionApproval	ejb.AxfCommandMediator#oracle.imaging.axf.service.AxfCommandMediatorRemote
SupplierMaintenance	ejb.AxfCommandMediator#oracle.imaging.axf.service.AxfCommandMediatorRemote
RequestInvoiceInformation	ejb.AxfCommandMediator#oracle.imaging.axf.service.AxfCommandMediatorRemote
AccountDistribution	ejb.AxfCommandMediator#oracle.imaging.axf.service.AxfCommandMediatorRemote
InvoiceApproval	ejb.AxfCommandMediator#oracle.imaging.axf.service.AxfCommandMediatorRemote
Rescan	ejb.AxfCommandMediator#oracle.imaging.axf.service.AxfCommandMediatorRemote

5.2.2 AXF_SOLUTION_ATTRIBUTES Table

This table defines general attributes for use by infrastructure, services, or solutions. For example, use this table to define error message addresses, connections, and conversation timeout settings.

5.2.2.1 Column Description

Table 5-3 Column Description for AXF_SOLUTION_ATTRIBUTES Table

Column	Description
SOLUTION_NAMESPACE	Specifies the functional area that uses the parameter. Must correspond to a valid BPEL value. AXF namespace is used by AXF. AccountsPayable is used by the AccountsPayable template. BPEL.default specifies the name of the BPEL connection, where BPEL is a constant and default is the name of connection.
PARAMETER_KEY	Name of the parameter. Used when retrieving the parameter value from the database. Parameters include: BPEL_CONNECTION: Identifies the BPEL connection to be used. CONNECTION_PROVIDER: Defines the connection (BPEL or custom). If specifying a BPEL connection, this value is AxfWorkflowServiceModule. ConversationTimeoutSeconds: Specifies the length of time for which a ConversationID (cid) is valid. The default is 43200 seconds of inactivity. IDENTITY_SERVICE_ENDPOINT: Specifies the URL point to BPEL identity web services to query the defined users in BPEL. USE_AUTOTASK_LOCKING: Specifies if autotask locking is enabled (TRUE) or disabled (FALSE). Enabling autotask locking can prevent collisions that may occur when multiple users are acquiring tasks in Autotask mode. See "Configuring Autotask Locking".
PARAMETER_VALUE	Value of the parameter.

Column

Description

SOLUTION_NAMESPACE

Specifies the functional area that uses the parameter. Must correspond to a valid BPEL value.

AXF namespace is used by AXF.
AccountsPayable is used by the AccountsPayable template.
BPEL.default specifies the name of the BPEL connection, where BPEL is a constant and default is the name of connection.

PARAMETER_KEY

Name of the parameter. Used when retrieving the parameter value from the database. Parameters include:

BPEL_CONNECTION: Identifies the BPEL connection to be used.
CONNECTION_PROVIDER: Defines the connection (BPEL or custom). If specifying a BPEL connection, this value is AxfWorkflowServiceModule.
ConversationTimeoutSeconds: Specifies the length of time for which a ConversationID (cid) is valid. The default is 43200 seconds of inactivity.
IDENTITY_SERVICE_ENDPOINT: Specifies the URL point to BPEL identity web services to query the defined users in BPEL.
USE_AUTOTASK_LOCKING: Specifies if autotask locking is enabled (TRUE) or disabled (FALSE). Enabling autotask locking can prevent collisions that may occur when multiple users are acquiring tasks in Autotask mode. See "Configuring Autotask Locking".

PARAMETER_VALUE

Value of the parameter.

5.2.2.2 Example Implementation

This example table sets solution attributes for the Invoice Processing solution.

Table 5-4 Example AXF_SOLUTION_ATTRIBUTES Table

SOLUTION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
InvoiceProcessing	BPEL_CONNECTION	axfconnection
InvoiceProcessing	CONNECTION_PROVIDER	oracle.imaging.axf.servicemodules.bpel.workflow.AxfWorkflowServiceModule
InvoiceProcessing	USE_AUTOTASK_LOCKING	TRUE

5.2.3 AXF_COMMANDS Table

Use this table to define AXF commands and their java classes for each solution. Note that you configure each command's parameters in the AXF_SOLUTION_PARAMETERS Table.

5.2.3.1 Column Description

Table 5-5 Column Description for AXF_COMMANDS Table

Column	Description
SOLUTION_NAMESPACE	The name of the solution, as defined in the AXF_SOLUTIONS Table.
COMMAND_NAMESPACE	Defines the unique name of the command within the solution.
COMMAND_CLASS	The fully qualified class name in which the command is defined. This class is loaded and the execute() method representing the command is executed. For information about a specific task, see the specific task, listed under "Imaging Solution Tables".

5.2.3.2 Example Implementation

This example shows commands defined for the Invoice Processing solution.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-6 Example AXF_COMMANDS Table

COMMAND_CLASS	COMMAND_NAMESPACE
oracle.imaging.axf.commands.bpel.AutotaskCommand	AutoOpenTask
oracle.imaging.axf.commands.bpel.ReleaseTaskCommand	ReleaseTask
oracle.imaging.axf.commands.bpel.ReleaseTaskCommand	SkipTask
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	AccountDistributionComplete
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	AssignProcessingGroupComplete
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	CompleteInvoice
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	DeleteInvoice
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	DuplicateInvoice
oracle.imaging.axf.commands.bepl.CompleteTaskCommand	Hold
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	InvoiceApprovalComplete
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	RequestInformationComplete
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	RescanComplete
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	SpecialistExceptionComplete
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	SupplierMaintenance
oracle.imaging.axf.commands.bpel.CompleteTaskCommand	SupplierMaintenanceComplete
oracle.imaging.axf.commands.bpel.OpenTaskCommand	OpenTask
oracle.imaging.axf.commands.bpel.UpdateTaskFromProcedureCommand	RetrieveUserList
oracle.imaging.axf.commands.bpel.UpdateTaskCommand	AttachSupplemental
oracle.imaging.axf.commands.bpel.UpdateTaskCommand	SaveInvoice
oracle.imaging.axf.commands.system.RedirectCommand	AccountDistributionEdit
oracle.imaging.axf.commands.system.RedirectCommand	AssignProcessingGroupEdit
oracle.imaging.axf.commands.system.RedirectCommand	EditComments
oracle.imaging.axf.commands.system.RedirectCommand	InvoiceApprovalEdit
oracle.imaging.axf.commands.system.RedirectCommand	RequestInformationEdit
oracle.imaging.axf.commands.system.RedirectCommand	RescanEdit
oracle.imaging.axf.commands.system.RedirectCommand	SearchIPM
oracle.imaging.axf.commands.system.RedirectCommand	SpecialistExceptionEdit
oracle.imaging.axf.commands.system.RedirectCommand	StartInvoiceProcessing
oracle.imaging.axf.commands.system.RedirectCommand	SupplierMaintenanceEdit
oracle.imaging.axf.commands.system.TerminateConversationCommand	TerminateConversation

5.2.4 AXF_SOLUTION_PARAMETERS Table

This table defines command parameters for the solution, AXF commands, and AXF web tools.

5.2.4.1 Column Description

Table 5-7 Column Description for AXF_SOLUTION_PARAMETERS Table

Column	Description
SOLUTION_NAMESPACE	Identifies the solution namespace, as defined in the AXF_SOLUTIONS Table.
COMMAND_NAMESPACE	Specifies the command name, as defined in the AXF_COMMANDS Table.
CONFIGURATION_NAMESPACE	Used to implement the command. Specify the complete package name of the implementation class. This namespace path provides the physical Java class to be instantiated. The namespace also differentiates commands within the same solution namespace.
PARAMETER_KEY	Specifies the parameter key to be used in the AXF command. For parameter details, see the specific command or web tool: Web Tools: "Task List Web Tool" "Task Viewer Web Tool" "Enumeration Picker Web Tool" "Identity Picker Web Tool" "Comments" AXF Commands: "Open Task Command" "Autotask Command" "Release Task Command" "Complete Task Command" "Redirect Command" "Update Task Command" "Update Task From Procedure Command" "Validate Task Command"
PARAMETER_VALUE	Specifies the value of the parameter key. (For parameter details, see the specific AXF command or web tool.) If the value has an XPATH: prefix, the attribute value comes from the AXF_XPATH_ATTRIBUTES Table.

5.2.4.2 Example Implementation

This example defines the StartInvoiceProcessing command for the Invoice Processing solution. The first row specifies that the task list be displayed, using the RedirectCommand and corresponding URL. The remaining rows call the task list (in the CONFIGURATION_NAMESPACE column) and define its behavior.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-8 Example AXF_SOLUTION_PARAMETERS Table for StartInvoiceProcessing Command

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
StartInvoiceProcessing	oracle.imaging.axf.commands.bpel.RedirectCommand	REDIRECT_URL	taskflow://WEB-INF/taskflows/axf-tasklist-tfd.xml#axf-tasklist-tfd
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	CMD_OPEN_TASK_BUTTON	OpenTask
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	CMD_AUTO_TASK_BUTTON	AutoOpenTask
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	DEFAULT_VIEW	(null)
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	NO_OF_LINES	20
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	SHOW_INBOX	FALSE
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	CONNECTION_NAME	default
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	VIEW_LIST	North Invoice Processing Group, South Invoice Processing Group, East Invoice Processing Group, West Invoice Processing Group, My Holds,Exceptions

5.2.5 AXF_ACTION_MENU Table

Use this table to insert and customize an action menu on the Task Viewer or Task List screen. A common use is to display a Task Actions pane in the Task Viewer for users to click action links related to the displayed task, as shown in Figure 5-2. Use the AXF_ACTIONS Table to define a specified menu's actions.

5.2.5.1 Column Description

Table 5-9 Column Description for AXF_ACTION_MENU Table

Column	Description
MENU_ID	Specifies a primary key to the AXF_ACTIONS Table, identifying the menu in which to place menu actions.
DISPLAY_TEXT	Specifies the pane's title (for example, Task Actions, Shortcuts, or Re-Assignments).
MENU_TYPE	Specifies where on the screen the menu is displayed and its type. (LEFT_SIDEBAR displays a side pane leftmost on the screen.)
TASK_FLOW_ID	Specifies a task flow String that corresponds to a known task flow ID which loads a page or pages on the task flow.
VIEW_ID	(Reserved for future use.)
SOLUTION_NAMESPACE	Identifies the AXF solution, as defined in the AXF_SOLUTIONS Table.
MENU_ORDER	Defines the order in which the menu is displayed if multiple menus are set for display.

5.2.5.2 Example Implementation

This example table implements a pane entitled Task Actions in the left side of the Task Viewer for the Invoice Processing solution.

Table 5-10 Example AXF_ACTION_MENU

MENU_ID	DISPLAY_TEXT	MENU_TYPE	TASK_FLOW_ID	VIEW_ID	SOLUTION_NAMESPACE	MENU_ORDER
0	Task Actions	LEFT_SIDEBAR	axf-taskviewer-tfd	null	InvoiceProcessing	0

5.2.6 AXF_ACTIONS Table

This table defines the task actions used in an AXF solution. You can display action menus in a Task Viewer page (see "Task Viewer Web Tool") or a Task List (see "Task List Web Tool"). This table links to the AXF_COMMANDS Table.

5.2.6.1 Column Description

Table 5-11 Column Description for AXF_ACTIONS Table

Column	Description
DISPLAY_TEXT	Specifies the name of the action (link, for example) in the pane.
COMMAND_NAMESPACE	Specifies the command that is called as a result of the action, as defined in the AXF_COMMANDS Table.
MENU_ORDER	Specifies the display order of the action in the pane.
ELEMENT_TYPE	Specifies how to render the action on the page, where: LINK: Displays an HTML link BUTTON: Displays a button
ACTION_HANDLER	Determines how the command is handled, where COMMAND sends the command specified in the COMMAND_NAMESPACE column to the Solution Mediator. Note: If left (null), this value defaults to COMMAND.
REQUIRES_CONVERSATION	Specifies whether the action requires a conversation ID.
MENU_ID	Specifies the ID from the AXF_ACTION_MENU Table and defines the menu in which the action is displayed.
ACTION_ID	Defines the action's unique numeric identifier.
USE_POPUP	Reserved for future use.

5.2.6.2 Example Implementation

The tables that follow provide an example AXF_ACTIONS Table.

Figure 5-2 Task Viewer Page with Task Actions, Summary, and Comments Enabled

Fields not shown in Table 5-12:

ACTION_HANDLER=COMMAND
REQUIRES_CONVERSATION=TRUE

Table 5-12 Example AXF_ACTIONS Table

DISPLAY_TEXT	COMMAND_NAMESPACE	MENU_ORDER	ELEMENT_TYPE	ACTION_ID
Invoice Approval	InvoiceApprovalEdit	1	LINK	AXF_ACTIONS_SEQ.NEXTVAL
Return to Task List	ReleaseTask	0	LINK	AXF_ACTIONS_SEQ.NEXTVAL
Skip Task	SkipTask	0	LINK	AXF_ACTIONS_SEQ.NEXTVAL
Complete Invoice	CompleteTask	0	LINK	AXF_ACTIONS_SEQ.NEXTVAL

5.2.7 AXF_XPATH_ATTRIBUTES Table

This table defines the XPATH attributes used in the AXF framework. This XPATH is mainly defined for payload elements.

5.2.7.1 Column Description

Table 5-13 Column Description for AXF_XPATH_ATTRIBUTES Table

Column	Description
ATTRIBUTE_KEY	Attribute key referenced in the Parameter Value column in the AXF_SOLUTION_PARAMETERS Table.
XPATH	XPATH expression used to locate the value in the payload.

5.2.7.2 Example Implementation

This example follows an XPATH attribute specified for an AssignProcessingGroupEdit command in the AXF_SOLUTION_PARAMETERS table. The PARAMETER_VALUE column contains an XPATH: prefix, indicating that the attribute value comes from the AXF_XPATH_ATTRIBUTES table.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-14 Example AXF_SOLUTION_PARAMETERS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
AssignProcessingGroupEdit	oracle.imaging.axf.web.EnumerationPicker	ATTRIBUTE_NAME	XPATH:InvoiceProcessing_ProcessingGroup

In the AXF_XPATH_ATTRIBUTES table that follows, the corresponding XPATH column displays the XPATH expression used to locate the value in the payload.

Table 5-15 Example AXF_XPATH ATTRIBUTES Table

ATTRIBUTE_KEY	XPATH
InvoiceProcessing_ProcessingGroup	//task:processingGroup

In the AXF_NAMESPACES table that follows, the XMLNS_URI column displays where within the XML file to locate the processingGroup task information.

Table 5-16 Example AXF_XPATH_NAMESPACES Table

Prefix	XMLNS_URI
task	http://xmlns.oracle.com/bpel/workflow/task

5.2.8 AXF_XPATH_NAMESPACES Table

The following table defines the namespaces used for the XPATH attributes. It links to the AXF_XPATH_ATTRIBUTES Table.

5.2.8.1 Column Description

Table 5-17 Column Description for AXF_XPATH_NAMESPACES Table

Column	Description
PREFIX	The namespace prefix used in the XPATH.
XMLNS_URI	Provides a unique identifier.

5.2.8.2 Example Implementation

Table 5-18 Example AXF_XPATH_NAMESPACES Table

Prefix	XMLNS_URI
task	http://xmlns.oracle.com/bpel/workflow/task
documentContent	http://xmlns.oracle.com/imaging/axf/documentContentTypes
solution	http://xmlns.oracle.com/imaging/axf/solutionTypes
invoiceProcessing	http://xmlns.oracle.com/imaging/axf/InvoiceProcessing
xml	http://www.w3.org/XML/1998/namespace

5.3 AXF Web User Tools

This section covers the following topics:

"Task List Web Tool"
"Task Viewer Web Tool"
"Enumeration Picker Web Tool"
"Identity Picker Web Tool"

5.3.1 Task List Web Tool

The AXF Task List web tool is a reusable web interface for displaying human workflow tasks controlled by an AXF solution.

Task List Features

The Profile field uses standard BPEL views to restrict the task list view based on user/group, BPEL Process versions, and BPEL payload attribute values. (Use the BPM Worklist application to create views and share them with other users or groups.)
Users can select a task from the table by clicking its View Task link, which retrieves the workflow task from a specified BPEL server and process, claims it and displays it in the Task Viewer. After users complete the selected task, they return to the Task List.
When autotask mode is selected, the AXF solution automatically claims and opens tasks as users complete them, until all of a user's tasks have been processed or the user chooses to stop processing tasks by returning to the Task List. Users activate autotask mode by clicking Auto Task.
Users can skip (release) an assigned task by clicking the Release button. The task is then released back into the pool of available tasks. If the user clicks Release but did not previously acquire the selected task, a message indicates that the task cannot be released.
You can configure the Task List to include a side pane action list with links.

5.3.1.1 Task List Parameters

Table 5-19 Task List Parameters in AXF_SOLUTION_PARAMETERS Table

Parameter	Description
CMD_OPEN_TASK_BUTTON	Specify a COMMAND_NAMESPACE to be executed when a user clicks the View Task link on the Task List web page.
CMD_AUTO_TASK_BUTTON	Specify a COMMAND_NAMESPACE to be executed when a user clicks the Auto Task button on the Task List web page.
CONNECTION_NAME	Specify the BPEL connection, as defined in the AXF_SOLUTION_ATTRIBUTES Table.
NO_OF_LINES	Specify the maximum number of tasks to be displayed before multiple pages are used.
BPEL_CONNECTION	Specify the BPEL connection that obtains the task list from BPEL, defined in the AXF_SOLUTION_ATTRIBUTES Table.
VIEW_LIST	Specify the list of views (defined in the Human workflow system) displayed to users in the Profile field.
DEFAULT_VIEW	Specify the default profile.
SHOW_INBOX	Specify whether the Inbox is listed in the view list. If TRUE, the Inbox is listed; if FALSE, the Inbox is not listed.
TASK_DEF	Specify the BPEL human workflow tasks to which the user has access. (For example, a value of Rescan means that Rescan tasks are displayed in the Inbox.) This parameter applies only when the SHOW_INBOX parameter is set to TRUE and the Inbox profile is selected.
REDIRECT_URL	Specify either: a task flow String corresponding to a task flow ID which loads one or more pages on the task flow. a standard URL string that redirects to the specified URL.

5.3.1.2 Example Implementation

This example defines the StartInvoiceProcessing command for the Invoice Processing solution. The first row uses the Redirect Command to display the task list. The remaining rows define the task list's behavior.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-20 Example Task List Parameters in AXF_SOLUTION_PARAMETERS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
StartInvoiceProcessing	oracle.imaging.axf.commands.bpel.RedirectCommand	REDIRECT_URL	taskflow://WEB-INF/taskflows/axf-tasklist-tfd.xml#axf-tasklist-tfd
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	CMD_OPEN_TASK_BUTTON	OpenTask
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	CMD_AUTO_TASK_BUTTON	AutoOpenTask
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	DEFAULT_VIEW	(null)
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	SHOW_INBOX	FALSE
StartInvoiceProcessing	oracle.imaging.axf.web.backing.TaskList	VIEW_LIST	North Invoice Processing Group, South Invoice Processing Group, East Invoice Processing Group, West Invoice Processing Group, My Holds,Exceptions

5.3.2 Task Viewer Web Tool

The AXF Task Viewer web tool is a reusable web interface that displays the content associated with a Human Workflow Task. In a typical configuration, a business user displays the Task Viewer on one monitor, and keys values shown in the image into a business application on another monitor.

You can customize the web page through database configuration using Java commands or AXF action commands.

Task Viewer Features

Users view Oracle I/PM image documents in the Image Viewer pane, using either the basic or advanced Oracle I/PM viewer mode. Typically, the Task Viewer uses the Oracle I/PM viewer tool to render image documents. However, another tool can be used; the Task Viewer uses whichever URL has been passed into the BPEL process by Oracle I/PM's BPEL Injector.
Users can select actions in the side Task Actions pane, which invoke a solution's AXF commands. You enable the Task Actions pane in the AXF_ACTION_MENU Table, configure the action links to invoke AXF commands in the AXF_ACTIONS Table, and the commands themselves in the AXF_COMMANDS Table.
Users can view a Summary section that displays metadata values about the task. You configure these items for display in the AXF_METADATA_BLOCKS Table and AXF_METADATA_ATTRIBUTES Table. You can also configure the section's title and the task payload values displayed.
If configured, users can also view a Comments section that displays comment fragments and provides icons for displaying full comments or adding them for the task. You configure comments for display in the AXF_METADATA_BLOCKS Table.
If autotask mode is selected, users disable it by returning to the Task List, typically by clicking a Return to Task List link in the Task Actions pane.

Configuring the Task Viewer

You configure the Task Viewer in the following tables:

AXF_SOLUTION_PARAMETERS Table
AXF_ACTION_MENU Table
AXF_ACTIONS Table
AXF_METADATA_BLOCKS Table
AXF_METADATA_ATTRIBUTES Table

5.3.2.1 AXF_METADATA_BLOCKS Table

This table defines the task viewer itself and its sections to be displayed on the Task Viewer page.

5.3.2.1.1 Column Description

Table 5-21 Column Description for AXF_METADATA_BLOCKS Table

Column	Description
BLOCK_ID	Identifies the row in the database. Links to the AXF_METADATA_ATTRIBUTES Table.
BLOCK_LOCATION	Specifies where the block is displayed on the Task Viewer page. LEFT_SIDEBAR displays a left sidebar pane. (Currently, this is the only value supported.)
LABEL	Defines the pane's label (for example, Summary or Comments).
DISCLOSED	TRUE if the block is displayed; FALSE if it is not displayed.
DISPLAY_ORDER	Specifies the order in which the block is displayed. The default value is 1.
TASK_FLOW_ID	Specifies the task flow on which to display the metadata block (for example, axf-taskviewer-tfd or axf-tasklist-tfd).
SOLUTION_NAMESPACE	Specifies the AXF solution name.
BLOCK_TYPE	Specifies the type of values contained in the block (for example, METADATA or COMMENT.
METADATA_STYLE	Reserved for future use.
ORGANIC_MENU_ID	Reserved for future use.

5.3.2.1.2 Example Implementation

This table displays the Summary and Comments section on the Task Viewer page.

Columns not shown: DISCLOSED=TRUEMETADATA_STYLE=null

ORGANIC_MENU_ID=null

Table 5-22 Example AXF_METADATA_BLOCKS Table

BLOCK_ID	BLOCK_LOCATION	LABEL	DISPLAY_ORDER	TASK_FLOW_ID	SOLUTION_NAMESPACE	BLOCK_TYPE
1	LEFT_SIDEBAR	Summary	1	axf-taskviewer-tfd	InvoiceProcessing	METADATA
AXF_METADATA_BLOCKS_SEQ.NEXTVAL	LEFT_SIDEBAR	Comments	1	axf-taskviewer-tfd	InvoiceProcessing	COMMENT

5.3.2.2 AXF_METADATA_ATTRIBUTES Table

This table defines the labels and values to be shown in metadata sections specified in the "AXF_METADATA_BLOCKS Table". It also defines how attribute values are retrieved for display using Xpath attributes.

5.3.2.2.1 Column Description

Table 5-23 Column Description for AXF_METADATA_ATTRIBUTES Table

Column	Description
BLOCK_ID	References the AXF_METADATA_BLOCKS Table in which to display metadata labels and values.
ATTRIBUTE_ID	Primary key for the metadata attribute.
LABEL	Specifies the metadata label displayed to users in the metadata section (for example, Status in a Summary section).
ATTRIBUTE_KEY	Specifies an attribute key that matches the Xpath attribute key in the AXF_XPATH_ATTRIBUTES Table, where it is used to look up and display the metadata value.
IS_XPATH	If TRUE, the attribute value comes from the xpath in the BPEL payload. If FALSE, the value comes from BPEL system attributes.
DISPLAY_ORDER	Specifies the order in which the metadata label/value are displayed in the metadata section.
DATA_TYPE	Specifies the metadata item's data type (for example, String).

5.3.2.2.2 Example Implementation

This table defines metadata labels and values displayed in a Task Viewer's Summary section, as shown in Figure 5-2.

Columns not shown:

DATA_TYPE=String

Table 5-24 Example AXF_METADATA_ATTRIBUTES Table

BLOCK_ID	ATTRIBUTE_ID	LABEL	ATTRIBUTE_KEY	IS_XPATH	DISPLAY_ORDER
1	AXF_METADATA_ATTRIBUTES_SEQ.NEXTVAL	Status	InvoiceProcessing_Status	TRUE	1
1	AXF_METADATA_ATTRIBUTES_SEQ.NEXTVAL	Exception Code	InvoiceProcessing_ExceptionCode	TRUE	2
1	AXF_METADATA_ATTRIBUTES_SEQ.NEXTVAL	Processing Group	InvoiceProcessing_ProcessingGroup	TRUE	3
1	AXF_METADATA_ATTRIBUTES_SEQ.NEXTVAL	Invoice Number	InvoiceProcessing_InvoiceNumber	TRUE	4
1	AXF_METADATA_ATTRIBUTES_SEQ.NEXTVAL	Supplier Name	InvoiceProcessing_SupplierName	TRUE	5
1	AXF_METADATA_ATTRIBUTES_SEQ.NEXTVAL	Supplier Site	InvoiceProcessing_SupplierSiteName	TRUE	6

5.3.2.3 Comments

The Comments pane allows users to view and enter comments related to the human task during the transaction's processing. You configure comments in the AXF_METADATA_BLOCKS Table.

5.3.3 Enumeration Picker Web Tool

The Enumeration Picker web tool allows users to select a choice from a list of values configured in AXF tables. For example, the Enumeration Picker shown in the graphic that follows displays a Processing Group dropdown field containing North, South, East, and West values.

After the user selects a value, the value is updated into the BPEL payload before the configured command is executed, typically a command to return to the Task Viewer or to complete the command.

You configure the Enumeration Picker in the following tables:

Define configuration parameters for the picker in the AXF_SOLUTION_PARAMETERS table (see Table 5-25).Define the picker in the AXF_ENUM_TYPES Table.
Define the picker's values in the AXF_ENUM_ITEMS Table.

5.3.3.1 Enumeration Picker Parameters

Table 5-25 Enumeration Picker Parameters in AXF_SOLUTION_PARAMETERS Table

Parameter	Description
LOV_REFERENCE	This list of values reference links to the AXF_ENUM_TYPES Table, whose ID value links to the AXF_ENUM_ITEMS Table, where all picker values are stored.
ATTRIBUTE_NAME	This attribute is updated in the BPEL task when a user clicks the OK button on the Enumeration Picker web page. The attribute value is a constant; see "System Attributes". If the value has an XPATH: prefix, the value comes from the AXF_XPATH_ATTRIBUTES Table and it is the XPATH to update the value in the task payload.
CMD_ON_CANCEL	Specify the command (COMMAND_NAMESPACE) to be executed when a user clicks the Cancel button on the Enumeration Picker page.
CMD_ON_OK	Specify the command (COMMAND_NAMESPACE) to be executed when a user clicks the OK button on the Enumeration Picker page.
ATTRIBUTE_LABEL	Specify the label name to display on the web page for attributes to be updated in the BPEL task.
DEFAULT_VALUE	Specify a default value for the picker. If no default is specified, a None value is displayed.
DEFAULT_ALWAYS	Specify TRUE to always show the value specified in the DEFAULT_VALUE parameter when displaying the Enumeration Picker, even if another value was previously selected. Otherwise, specify FALSE.

Example Implementation

This example shows an enumeration picker referenced for selecting the processing group.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-26 Example Enumeration Picker Parameters in AXF_SOLUTIONS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
AssignProcessingGroupEdit	oracle.imaging.axf.web.backing.EnumerationPicker	LOV_REFERENCE	ProcessingGroups
AssignProcessingGroupEdit	oracle.imaging.axf.web.backing.EnumerationPicker	ATTRIBUTE_LABEL	Processing Group
AssignProcessingGroupEdit	oracle.imaging.axf.web.backing.EnumerationPicker	CMD_ON_OK	AssignProcessingGroupComplete
AssignProcessingGroupEdit	oracle.imaging.axf.web.backing.EnumerationPicker	ATTRIBUTE_NAME	XPATH:InvoiceProcessing_ProcessingGroup
AssignProcessingGroupEdit	oracle.imaging.axf.web.backing.EnumerationPicker	CMD_ON_CANCEL	OpenTask
AssignProcessingGroupEdit	oracle.imaging.axf.web.backing.EnumerationPicker	DEFAULT_VALUE	North
AssignProcessingGroupEdit	oracle.imaging.axf.web.backing.EnumerationPicker	DEFAULT_ALWAYS	FALSE

5.3.3.2 AXF_ENUM_TYPES Table

This table defines Enumeration Pickers.

Column Description

Table 5-27 Column Description for AXF_ENUM_TYPES Table

Column	Description
ENUMERATION_ID	Specify an ID for the enumeration picker.
ENUMERATION_NAME	Specify a name for the enumeration picker configuration.

Example Implementation

This example defines enumeration pickers for the Invoice Processing solution. Each picker's items are defined in the AXF_ENUM_ITEMS Table.

Table 5-28 Example AXF_ENUM_TYPES Table

ENUMERATION_ID	ENUMERATION_NAME
1	ProcessingGroups
2	SupplierMaintenanceCodes
3	SpecialistExceptionCodes
4	RescanCodes

5.3.3.3 AXF_ENUM_ITEMS Table

This table defines a specified Enumeration Picker's values.

Column Description

Table 5-29 Column Description for AXF_ENUM_ITEMS Table

Columns	Description
ENUMERATION_ID	Specify the picker's ID, as defined in the AXF_ENUM_TYPES Table.
ITEM_ID	Specify an ID for the picker item.
DISPLAY_LABEL	Specify the item name to be displayed in the picker field.
ATTRIBUTE_KEY	Specify the value to be stored in the payload. This value is often the same as the DISPLAY_LABEL's value, but can differ.
LIST_ORDER	Specify the order in which the value is to be listed in the picker field.

Example Implementation

This example defines the items for the ProcessingGroups, SupplierMaintenanceCodes, SpecialistExceptionCodes, and RescanCodes enumeration pickers defined in the AXF_ENUM_TYPES Table.

Table 5-30 Example AXF_ENUM_ITEMS Table

ENUMERATION_ID	ITEM_ID	DISPLAY_LABEL	ATTRIBUTE_KEY	LIST_ORDER
1	1	North	North	1
1	2	South	South	2
1	3	East	East	3
1	4	West	West	4
2	5	No Supplier	No Supplier	1
2	6	No Supplier Site	No Supplier Site	2
3	7	Duplicate Invoice	Duplicate Invoice	1
3	8	Invalid Invoice Number	Invalid Invoice Number	2
3	9	No PO	No PO	3
3	10	Invalid PO	Invalid PO	4
3	11	PO Overbill	PO Overbill	5
4	12	Poor Image Quality	Poor Image Quality	1
4	13	Pages Out of Order	Pages Out of Order	2
4	14	Pages Missing	Pages Missing	3
4	15	Other	Other	4

5.3.4 Identity Picker Web Tool

The Identity Picker web tool allows users to select one or more users or groups from an identity store configured for BPEL. Typically, a related action is taken after choosing an identity; for example, a task is assigned or delegated. The action to be taken after selecting an identity is configured in the AXF_SOLUTION_PARAMETERS Table.

Note:

The command updates the task payload when the user clicks OK. The BPEL process is responsible for using this information to delegate the task.

Note:

The Filter and Search Attribute settings use the BPEL Worklist views configuration. Changing these settings is done using the BPEL Workflow application.

5.3.4.1 Identity Picker Parameters

Table 5-31 Identity Picker Parameters in AXF_SOLUTION_PARAMETERS Table

Parameter Key	Description
CMD_ON_CANCEL	Specify the command (COMMAND_NAMESPACE) to be executed when a user clicks the Cancel button on the Identity Picker page.
CMD_ON_OK	Specify the command (COMMAND_NAMESPACE) to be executed when a user clicks the OK button on the Identity Picker page.
IDENTITY_FILTER	Define how the identity picker searches, where: USER: The picker searches for user information defined in BPEL. GROUP: The picker searches for group information defined in BPEL. Note: Specify USER or GROUP for a command. To allow both search types, create an additional command that uses the other type to open the identity picker. For example, you might create AssignByGroup and AssignByUser commands.
IDENTITY_ATTRIBUTE	This attribute is updated in the BPEL task when a user clicks OK on the Identity Picker page. The Attribute value is a constant as defined under "System Attributes". If the value has an XPATH: prefix, then the value comes from the AXF_XPATH_ATTRIBUTES Table and it is the XPATH to update the value in the task payload.

5.3.4.2 Example Implementation

This example shows an InvoiceApprovalEdit command that searches for user information stored in BPEL, and updates the BPEL task using an XPATH variable.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-32 Example Identity Picker Parameters in AXF_SOLUTION_PARAMETERS table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
InvoiceApprovalEdit	oracle.imaging.axf.web.backing.IdentityPicker	IDENTITY_FILTER	USER
InvoiceApprovalEdit	oracle.imaging.axf.web.backing.IdentityPicker	CMD_ON_CANCEL	OpenTask
InvoiceApprovalEdit	oracle.imaging.axf.web.backing.IdentityPicker	IDENTITY_ATTRIBUTE	XPATH:InvoiceProcessing_InvoiceApprovalAssignment
InvoiceApprovalEdit	oracle.imaging.axf.web.backing.IdentityPicker	CMD_ON_OK	InvoiceApprovalComplete

5.4 AXF Commands

AXF commands include:

"Open Task Command"
"Autotask Command"
"Release Task Command"
"Complete Task Command"
"Redirect Command"
"Update Task Command"
"Update Task From Procedure Command"
"Terminate Conversation Command"
"Validate Task Command"

AXF command-related topics include:

"Custom Commands"
"Configuring Chained Commands and Web Tools"

5.4.1 Open Task Command

This command acquires a task from BPEL (human work flow) for a given task ID; the specific task is likely selected from the task list. If the task can be acquired by the user, the command obtains the details of the task and displays the specified web page.

5.4.1.1 Open Task Command Parameters

Table 5-33 lists configuration parameters for this command. These parameters are used in the AXF_SOLUTION_PARAMETERS Table to configure commands.

Table 5-33 Parameters for OpenTask Command

Parameter Key	Description
TASK_VIEW_URL	This task flow is returned in the response command upon executing this command. The value for the TASK_VIEW_URL parameter uses one of the following strings to represent task flows. Each string can be thought of as a special URL where taskflow: is the protocol instead of http. taskflow://WEB-INF/taskflows/axf-tasklist-tfd.xml#axf-tasklist-tfd (displays the Task List) taskflow://WEB-INF/taskflows/axf-taskviewer-tfd.xml#axf-taskviewer-tfd (displays the Task Viewer) taskflow://WEB-INF/taskflows/axf-identity-picker-tfd.xml#axf-identity-picker-tfd (displays the Identity Picker) taskflow://WEB-INF/taskflows/axf-enumeration-picker-tfd.xml#axf-enumeration-picker-tfd (displays the Enumeration Picker) taskflow://WEB-INF/taskflows/axf-comments-tfd.xml#axf-comments-tfd (displays Comments)

Parameter Key

Description

TASK_VIEW_URL

This task flow is returned in the response command upon executing this command.

The value for the TASK_VIEW_URL parameter uses one of the following strings to represent task flows. Each string can be thought of as a special URL where taskflow: is the protocol instead of http.

taskflow://WEB-INF/taskflows/axf-tasklist-tfd.xml#axf-tasklist-tfd (displays the Task List)
taskflow://WEB-INF/taskflows/axf-taskviewer-tfd.xml#axf-taskviewer-tfd (displays the Task Viewer)
taskflow://WEB-INF/taskflows/axf-identity-picker-tfd.xml#axf-identity-picker-tfd (displays the Identity Picker)
taskflow://WEB-INF/taskflows/axf-enumeration-picker-tfd.xml#axf-enumeration-picker-tfd (displays the Enumeration Picker)
taskflow://WEB-INF/taskflows/axf-comments-tfd.xml#axf-comments-tfd (displays Comments)

5.4.1.2 Example Implementation

This example uses the OpenTask command to display the Task Viewer for the Invoice Processing solution.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-34 Example Open Task Command in AXF_SOLUTION_PARAMETERS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
OpenTask	oracle.imaging.axf.commands.bpel.OpenTaskCommand	TASK_VIEW_URL	taskflow://WEB-INF/taskflows/axf-taskviewer-tfd.xml#axf-taskviewer-tfd

5.4.2 Autotask Command

This command initializes autotask mode, in which a new human workflow task is automatically claimed for the user.

5.4.2.1 Autotask Command Parameters

These parameters are used in the AXF_SOLUTION_PARAMETERS Table to configure Autotask commands.

Table 5-35 Autotask Command Parameters in AXF_SOLUTION_PARAMETERS Table

Parameter Key	Description
TASK_VIEW_URL	Task flow returned in the response command upon executing this command.
CMD_ON_NO_TASKS	COMMAND_NAMESPACE executed when there are no tasks.
BPEL_TRY_AUTO	Time in milliseconds between attempts to get the next task from the Human workflow system.

5.4.2.2 Example Implementation

This example uses the Autotask command to automatically claim tasks and display them in the Task Viewer for the Invoice Processing solution.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-36 Autotask Command Parameters in AXF_SOLUTION_PARAMETERS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
AutoOpenTask	oracle.imaging.axf.commands.bpel.AutotaskCommand	TASK_VIEW_URL	taskflow://WEB-INF/taskflows/axf-taskviewer-tfd.xml#axf-taskviewer-tfd
AutoOpenTask	oracle.imaging.axf.commands.bpel.AutotaskCommand	CMD_ON_NO_TASKS	StartInvoiceProcessing
AutoOpenTask	oracle.imaging.axf.commands.bpel.AutotaskCommand	BPEL_TRY_AUTO	3000

5.4.2.3 Configuring Autotask Locking

In AXF configurations with multiple simultaneous users, collisions may occur when attempting to acquire tasks in Autotask mode. You can enable or disable autotask locking for each named BPEL connection in the AXF database. When locking is enabled, only one user may automatically acquire a task at a given time.

Enabling the lock functionality prevents an error from appearing on the Task List if two users acquire a task simultaneously, and is the recommended setting. In situations where simultaneous acquisition is unlikely, disabling the lock functionality may increase performance.

The setting is configured in the AXF_SOLUTION_ATTRIBUTES Table by inserting the following row:

NAMESPACE	PARAMETER_TYPE	PARAMETER_NAME	PARAMETER_VALUE
BPEL.default	connection	USE_AUTOTASK_LOCKING	true

5.4.3 Release Task Command

The Release Task command releases a human workflow task and displays the AXF Task List web tool, regardless of autotask mode.

5.4.3.1 Release Task Command Parameters

Table 5-37 lists configuration parameters for this command. These parameters are used in the AXF_SOLUTION_PARAMETERS Table to configure commands.

Table 5-37 Release Task Command Parameters

Parameter Key	Description
CMD_AUTOTASK_OFF	Specify the command (COMMAND_NAMESPACE) to be executed when AUTOTASK mode is off.
CMD_AUTOTASK_ON	Specify the command (COMMAND_NAMESPACE) to be executed when AUTOTASK mode is on.

5.4.3.2 Example Implementation

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-38 Example Release Task Commands in AXF_SOLUTION_PARAMETERS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
SkipTask	oracle.imaging.axf.commands.bpel.ReleaseTaskCommand	CMD_AUTOTASK_OFF	StartInvoiceProcessing
SkipTask	oracle.imaging.axf.commands.bpel.ReleaseTaskCommand	CMD_AUTOTASK_ON	AutoTaskOpen
ReleaseTask	oracle.imaging.axf.commands.bpel.ReleaseTaskCommand	CMD_AUTOTASK_OFF	StartInvoiceProcessing
ReleaseTask	oracle.imaging.axf.commands.bpel.ReleaseTaskCommand	CMD_AUTOTASK_ON	StartInvoiceProcessing

5.4.4 Complete Task Command

The Complete Task command updates the list of attributes and outcome for a specified task in the human task workflow. This command also takes the parameters defined for the Update Task Command.

In addition, the Complete Task command can also update BPEL payload attribute values using request parameters to the command. If auto-task mode is active, the command claims the next available task and displays in the Task Viewer. If auto-task mode is not active, the command displays the Task List.

5.4.4.1 Complete Task Command Parameters

Table 5-39 lists configuration parameters for this command. These parameters are used in the AXF_SOLUTION_PARAMETERS Table to configure commands.

Table 5-39 CompleteTask Command Parameters

Parameter Key	Description
OUTCOME	Specify the outcome defined for the human work flow system. Default bpel outcomes are singular, APPROVE, or REJECT.
CMD_AUTOTASK_ON	Specify the command (COMMAND_NAMESPACE) to be executed when AUTOTASK mode is on.
CMD_AUTOTASK_OFF	Specify the command (COMMAND_NAMESPACE) to be executed when AUTOTASK mode is off.

5.4.4.2 Example Implementation

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-40 Example Complete Task Command in AXF_SOLUTION_PARAMETERS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
DeleteInvoice	oracle.imaging.axf.commands.bpel.CompleteTaskCommand	CMD_AUTOTASK_OFF	StartInvoiceProcessing
DeleteInvoice	oracle.imaging.axf.commands.bpel.CompleteTaskCommand	CMD_AUTOTASK_ON	AutoOpenTask
DeleteInvoice	oracle.imaging.axf.commands.bpel.CompleteTaskCommand	OUTCOME	DELETE_INVOICE

5.4.5 Redirect Command

The Redirect command redirects the browser to an AXF web tool or other URL. The request parameters included in this URL are:

CID (Conversation ID)
PID (ParameterSet ID)

Any user defined request parameters should be stored as part of the PID.

The base URL comes from the database configuration. This command returns the URL in the response command.

Table 5-41 lists configuration parameters for this command. These parameters are used in the AXF_SOLUTION_PARAMETERS Table to configure commands.

5.4.5.1 Redirect Command Parameters

Table 5-41 RedirectCommand Parameters

Parameter Key	Description
REDIRECT_URL	This URL is returned in the response command upon executing this command.
EXTERNAL	If this has a value of TRUE, then the redirect page does not have a CID and PID appended to it. The re-direct URL is an external Web site and all request parameters are appended in the URL.

5.4.5.2 Example Implementation

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-42 Example Redirect Command in AXF_SOLUTION_PARAMETERS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
SearchIPM	oracle.imaging.axf.commands.system.RedirectCommand	EXTERNAL	TRUE
StartInvoiceProcessing	oracle.imaging.axf.commands.system.RedirectCommand	REDIRECT_URL	taskflow://WEB-INF/taskflows/axf-tasklist-tfd.xml#axf-tasklist-tfd

5.4.6 Update Task Command

The Update Task command updates the list of attributes in the BPEL task or updates values in the XML payload using XPATH. (For an XPATH example, see "Example Implementation".)

You can create your own parameter keys for the Update Task command and use either a system attribute or an XPATH for the parameter value. AXF searches the request parameters and finds all the values that match the parameter keys (besides outcome), and pulls parameter keys for the list of attributes to use in that task payload.

To update a non-payload attribute in the BPEL task, use a system attribute from those listed in "System Attributes". For example, the UpdateTask command can take the value of outcome (defined as PARAMETER_KEY) from the request parameter and update the OUTCOME (defined as PARAMETER_VALUE) attribute value in the task.

5.4.6.1 Update Task Parameters

Table 5-43 Parameters for UpdateTaskCommand

Parameter Key	Description
outcome	Specify the outcome defined for the human work flow system. Default bpel outcomes are singular, APPROVE, or REJECT.

5.4.6.2 System Attributes

System Attributes
ACQUIREDBY
APPROVERS
ASSIGNEDDATE
ASSIGNEDGROUP //Cannot be updated
ASSIGNEDUSER //Cannot be updated
CREATEDATE
CREATOR
DATEATTRIBUTE1-DATEATTRIBUTE5
EXPIREDDATE
ENDDATE
FORMATTRIBUTE1-FORMATTRIBUTE5
FROMUSER
NUMBERATTRIBUTE1-NUMBERATTRIBUTE5
OUTCOME
OWNERGROUP
OWNERUSER
PRIORITY
STATE
TASKID
TASKNUMBER //Cannot be updated
TITLE
TASKDEFINITIONNAME
TEXTATTRIBUTE1-TEXTATTRIBUTE10
UPDATEDBY
URLATTRIBUTE1 - URLATTRIBUTE5

5.4.6.3 Example Implementation

This XPATH example updates transactionID in the payload: the parameter key InvoiceTransactionID is the key defined in the request parameter. The value is XPATH:TransactionID where XPATH defines that the attribute TransactionID is defined in the AXF_XPATH_ATTRIBUTES Table.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-44 Example UpdateTaskCommand Parameters in AXF_SOLUTION_PARAMETERS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
AttachSupplemental	oracle.imaging.axf.commands.bpel.UpdateTaskCommand	InvoiceTransactionID	XPATH:InvoiceProcessing_TransactionID
SaveInvoice	oracle.imaging.axf.commands.bpel.UpdateTaskCommand	InvoiceTransactionID	XPATH:InvoiceProcessing_TransactionID

5.4.7 Update Task From Procedure Command

The Update Task From Procedure command calls a stored pl/sql procedure using a specified data source and updates the task payload using XPATH.

5.4.7.1 Update Task From Procedure Parameters

Table 5-45 Parameters for UpdateTaskFromProcedure Command

Parameter Key	Description
XPATH_USERS	Specifies an XPATH variable contained in the AXF_XPATH_ATTRIBUTES Table that refers to the XPATH where the list of returned data is to be stored.
CMD_EMPTY_LIST	Specifies the command to be executed if no results are returned from the pl/sql function.
CMD_NON_EMPTY_LIST	Specifies the command to be executed if results are returned from the pl/sql function.
JNDI_DS	Specifies the name of the JNDI data source, configured on the Application Server, to use for execution of the pl/sql function.
PLSQL_PROC	Specifies the name of the pl/sql function to call.

5.4.7.2 Example Implementation

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-46 Example UpdateTaskFromProcedureCommand Parameters in AXF_SOLUTION_PARAMETERS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
RetrieveUserList	oracle.imaging.axf.commands.bpel. UpdateTaskFromProcedureCommand	XPATH_USERS	XPATH:InvoiceProcessing_InvoiceApprovalAssignment
RetrieveUserList	oracle.imaging.axf.commands.bpel. UpdateTaskFromProcedureCommand	CMD_NON_EMPTY_LIST	InvoiceApprovalEdit
RetrieveUserList	oracle.imaging.axf.commands.bpel.UpdateTaskFromProcedureCommand	CMD_EMPTY_LIST	CompleteInvoice
RetrieveUserList	oracle.imaging.axf.commands.bpel.UpdateTaskFromProcedureCommand	JNDI_DS	jdbc/AXFEBS11DataSource
RetrieveUserList	oracle.imaging.axf.commands.bpel.UpdateTaskFromProcedureCommand	PLSQL_PROC	AXFRETRIEVEUSERLIST

5.4.7.3 Example PL/SQL Procedure

The pl/sql procedure that follows loads the xml into the DOM, retrieves the invoice ID, queries for the invoice amount for that transaction, and based on that amount, returns a set of users.

To use this example, modify this procedure to retrieve the specific pieces of data from the payload you would like. The only requirement is that the pl/sql function you create must take a VARCHAR2 and return a VARCHAR2. The name of the function is in the AXF configuration.

create or replace FUNCTION axfretrieveuserlist(  xmlPayload IN VARCHAR2 ) RETURN VARCHAR2 IS

    v_node    xmldom.DOMNode;
    v_node2   xmldom.DOMNode;
    v_nl      xmldom.DOMNodeList;
    v_doc     xmldom.DOMDocument;
    v_elem    xmldom.DOMElement;
    v_parser  xmlparser.Parser;
    invoiceID     VARCHAR2(256);
    invoiceAmount NUMBER(8,2);
    userList      VARCHAR2(256);

BEGIN

    v_parser := xmlparser.newParser;
    xmlparser.parseBuffer(v_parser, xmlPayload);
    v_doc := xmlparser.getDocument(v_parser);
    xmlparser.freeParser(v_parser);

    -- Retrieve the invoice ID
    v_nl := xmldom.getElementsByTagName(v_doc, 'invoiceID');
    v_node := xmldom.item(v_nl, 0);
    v_node2 := xmldom.getFirstChild(v_node);
    invoiceID := xmldom.getNodeValue(v_node2);

    -- Retrieve Invoice Amount for given invoice id
    select INVOICE_AMOUNT into invoiceAmount from ap_invoices_all where INVOICE_ID = invoiceid;

    if invoiceamount > 10000 then
      userList := 'jlondon';
    else
      userList := 'jcooper,mtwain';
    end if;

    RETURN userList;

END;

5.4.8 Terminate Conversation Command

The Terminate Conversation Command is used by an external client to terminate a conversation with AXF.

5.4.9 Validate Task Command

The Validate Task command validates BPEL system attribute data or BPEL payload data, and based on validation results, executes a subsequent command.

Table 5-47 lists configuration parameters for this command. These parameters are used in the AXF_SOLUTION_PARAMETERS Table to configure commands.

5.4.9.1 Validate Task Command Parameters

Table 5-47 ValidateTaskCommand Parameters

Parameter Key	Description
ATTRIBUTE_TO_VALIDATE	Specifies the attribute in the BPEL task to validate. This can be either a system attribute or a payload attribute. If specifying a payload attribute, use a prefix value of XPATH: and reference a value from the AXF_XPATH_ATTRIBUTES Table.
REGULAR_EXPRESSION	Defines a standard Regular Expression for validating the specified attribute.
CMD_ON_PASS	Specifies the command to execute after this command, if the validation is successful.
CMD_ON_FAIL	Specifies the command to execute after this command if the validation fails.
FAIL_MESSAGE	Specifies the message to display if the validation fails.

5.4.9.2 Example Implementation

The following configuration validates that the invoice has been saved (Invoice Transaction ID is not 0). If it is 0, the command reports the error message specified in the FAIL_MESSAGE parameter.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing

Table 5-48 Example ValidateTask Command in AXF_SOLUTION_PARAMETERS Table

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
ValidateTransactionID	oracle.imaging.axf.commands.bpel.ValidateTaskCommand	ATTRIBUTE_TO_VALIDATE	XPATH:InvoiceProcessing_TransactionID
ValidateTransactionID	oracle.imaging.axf.commands.bpel.ValidateTaskCommand	CMD_ON_PASS	CompleteInvoice
ValidateTransactionID	oracle.imaging.axf.commands.bpel.ValidateTaskCommand	REGULAR_EXPRESSION	[^0]
ValidateTransactionID	oracle.imaging.axf.commands.bpel.ValidateTaskCommand	FAIL_MESSAGE	Please save the transaction before completing the task.

5.4.9.3 Example Implementation Instructions

Follow these steps to add a validation that verifies that a Transaction ID is present before allowing a task to be completed.

Note:

This example assumes that you have installed the Invoice Processing template data.

Note:

This configuration change should be applied only in use cases where users must create the business application invoice before the task can be completed. This configuration would not apply in use cases where users may not create an invoice before completing the task (typically, for example, when the task is being completed with an outcome of SupplierMaintenance).

Add the following row to the AXF_COMMANDS table:

Table 5-49 Example AXF_COMMANDS Table

SOLUTION_NAMESPACE COMMAND_CLASS COMMAND_NAMESPACE

InvoiceProcessing

oracle.imaging.axf.commands.bpel.ValidateTaskCommand

ValidateTransactionID
Add the rows shown in Table 5-48 to the AXF_SOLUTION_PARAMETERS table.
In the AXF_ACTIONS Table, edit the row in which the Complete Task is configured, replacing the Complete action's COMMAND_NAMESPACE column with the ValidateTransactionID's command namespace.

Table 5-50 AXF_ACTIONS Table

ACTION_ID VIEW_ID DISPLAY_NAME COMMAND_NAMESPACE MENU_ORDER

CompleteInvoice

/TaskViewer.jspx

Complete Invoice

ValidateTransactionID

3

5.4.10 Custom Commands

You can also deploy custom commands to work within the AXF infrastructure. Custom commands must implement the oracle.imaging.axf.commands.AxfCommand interface. The execute(AxfRequest) method is invoked by the infrastructure. Configure the implementation to execute in the AXF configuration database.

In addition, commands may implement the oracle.imaging.axf.commands.ValidatableCommand interface, which provides a way for the AXF infrastructure to validate the configuration and operation of a command without executing it to provide a system command status.

5.4.11 Configuring Chained Commands and Web Tools

Some AXF commands have parameter keys that specify what occurs after the command is completed, allowing you to chain them. For example, Table 5-51 shows a portion of the AXF_SOLUTION_PARAMETERS table. After the CompleteTask command executes, additional AXF commands are executed (StartInvoiceProcessing and AutoOpenTask, based on program logic).

Table 5-51 Example AXF_SOLUTION_PARAMETERS Table for CompleteTask Command (InvoiceProcessing Solution)

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
DuplicateInvoice	oracle.imaging.axf.commands.bpel.CompleteTaskCommand	CMD_AUTOTASK_OFF	StartInvoiceProcessing
DuplicateInvoice	oracle.imaging.axf.commands.bpel.CompleteTaskCommand	CMD_AUTOTASK_ON	AutoOpenTask
DuplicateInvoice	oracle.imaging.axf.commands.bpel.CompleteTaskCommand	OUTCOME	DUPLICATE_INVOICE

5.5 E-Business Suite Tables

Configuring AXF for E-Business Suite requires configuring AXF-related tables in E-Business Suite. This section covers the following topics:

"About the AXF Tables in E-Business Suite"
"AXF_CONFIGS Table"
"AXF_COMMANDS Table"
"AXF_COMMAND_PARAMETERS Table"
"AXF_PROPERTIES Table"

5.5.1 About the AXF Tables in E-Business Suite

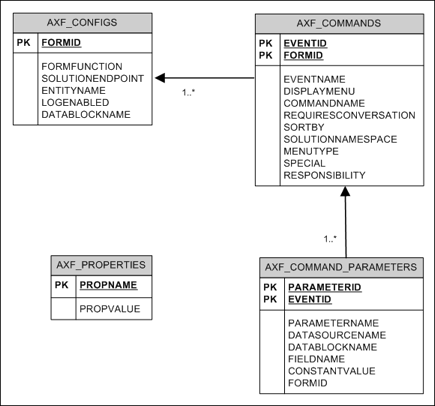

The following diagram shows how the tables used by the E-Business Suite system in AXF solutions are related.

5.5.2 AXF_CONFIGS Table

Use the AXF_CONFIGS table to enable the AXF solution on various E-Business Suite Forms. This table allows a fine level of granularity when selecting which Forms are AXF-enabled, up to the Data Block level.

Form events are invoked automatically when an action is performed on an E-Business Suite Form. The AXF_CUSTOM.pll makes all events available, such as POST-INSERT, for customization. You can decide which events to use, and how and when to use them.

When an action occurs, the customized code launches the specified solution and command configured for the event. In the case where the same form is being reused, such as Invoice Entry and Invoice Query, FORMFUNCTION and DATABLOCKNAME uniquely identify each Form.

Note:

You can enable all datablocks on a form rather than a specific datablock, by specifying AXF_DEFAULT for the DATABLOCKNAME parameter. This allows AXF to be notified whenever a POST-INSERT event occurs for the form, regardless of its datablock. Note, however, that setting the DATABLOCKNAME parameter to AXF_DEFAULT enables specified ZOOM or SPECIAL commands on all screens related to the form. (ZOOM and SPECIAL commands are set in the AXF_COMMANDS Table.)

5.5.2.1 Column Description

Table 5-52 Column Description for AXF_CONFIGS Table

Column Name	Description	Data Type
FORMID	Specifies the primary key of the table.	Number
FORMFUNCTION	Distinguishes each E-Business Suite Form based on the form's functionality.	Varchar2 (100 byte)
SOLUTIONENDPOINT	Specifies a URL to AXF.	Varchar2 (1000 byte)
ENTITYNAME	Used by the attachment functionality as a unique name, which links attachments to the correct Forms.	Varchar2 (100 byte)
LOGENABLED	Enables or disables the log for the specified form. Specify one of the following: 1/TRUE/YES 0/FALSE/NO	Varchar2 (10 byte)
DATABLOCKNAME	Specify the data block on the form to be enabled. Note that you can also specify `AXF_DEFAULT` to enable all data blocks on the form. A Form may be reused by E-Business Suite (for example, Invoice Entry and Invoice Query); the FORMFUNCTION and DATABLOCKNAME together uniquely identify each form.	Varchar2 (100 byte)

5.5.2.2 Example Implementation

This example defines that the entire Invoices Form is AXF-enabled. (Without the first row, the INV_SUM_FOLDER Data Block of the Invoices Form would be enabled.)

Table 5-53 Example AXF_CONFIGS Table

FORMID	FORMFUNCTION	SOLUTIONENDPOINT	ENTITYNAME	LOG ENABLED	DATABLOCKNAME
1	AP_APXINWKB	http://ApplicationServerName:Port/axf-ws/AxfSolutionMediatorService	AP_INVOICES	YES	AXF_DEFAULT
2	AP_APXINWKB_SUMMARY_VIEW	http://ApplicationServerName:Port/axf-ws/AxfSolutionMediatorService	AP_INVOICES	YES	INV_SUM_FOLDER
6	AP_APXINWKB_BATCHES	http://ApplicationServerName:Port/axf-ws/AxfSolutionMediatorService	AP_INVOICES	YES	INV_SUM_FOLDER

5.5.2.3 Enabling E-Business Suite Logging

To enable logging for a particular Form function, set the LOGENABLED field to either 1, YES or TRUE and the file is created in the UTL_FILE_DIR folder. Consult with your DBA to verify that the UTL_FILE_DIR folder is available and accessible. Log files are named Username_MASTER_LOG.txt, and continue to grow as items are appended.

5.5.3 AXF_COMMANDS Table

Use the AXF_COMMANDS table to describe the actions to be taken based on user activity. This table works with the AXF_CONFIGS Table.

5.5.3.1 Column Description

Table 5-54 Column Description for AXF_COMMANDS Table

Column Name	Description	Data Type	Nullable
FORMID	Links to the AXF_CONFIGS Table.	Number	No
EVENTID	Primary key of the table.	Number	Yes
EVENTNAME	Name of the Event command to be invoked (for example, ZOOM, POST-INSERT).	Varchar2 (100 byte)	Yes
DISPLAYMENU	Displays text of the menu for the command.	Varchar2 (100 byte)	Yes
COMMANDNAMESPACE	Request command to be passed to the back-end when the menu is selected.	Varchar2 (100 byte)	Yes
REQUIRESCONVERSATION	Indicates if the command requires a valid conversation or not.	Varchar2 (10 byte)	Yes
SORTBY	Order in which the menu is displayed.	Number	Yes
SOLUTIONNAMESPACE	Name of the solution.	Varchar2 (100 byte)	Yes
MENUTYPE	Specify the menu type to display to users in E-Business Suite. You can choose: ZOOM: Displays a Zoom menu in the toolbar. ZOOMANDSPECIAL: Displays both a Zoom menu and a Special menu. (Enter a special key in the SPECIAL column.) SPECIAL: Displays a Special menu on the toolbar. (Enter a special key in the Special column.)	Varchar2 (25 byte)	Yes
SPECIAL	Create new menu entries by entering a unique number for the Special type menu, where: SPECIAL1-15 creates entries in the Tools menu. SPECIAL16-30 creates entries in the Reports menu. SPECIAL31-45 creates entries in the Actions menu. (Consult the E-Business Suite Documentation for further information.)	Varchar2 (10 byte)	Yes
RESPONSIBILITY	Reserved for future use.	Varchar2 (100 byte)	Yes

5.5.3.2 Example Implementation

This example shows two commands invoked from the Zoom menu (Attach Supplemental and Process Invoices). Each command is listed twice because the commands are enabling the same functionality, but on two different screens.

In addition, the solution has been configured to invoke the SaveInvoice command during the POST-INSERT event, which specifies that whenever an action inserts a new E-Business Suite transaction record, the integration automatically invokes the SaveInvoice command on the back-end, performing the actions associated with the command. Note that POST-INSERT is not called by a subsequent save of the same transaction record in E-Business Suite.

Fields not shown: SOLUTION_NAMESPACE=InvoiceProcessing, SPECIAL=(null), RESPONSIBILITY=(null)

Table 5-55 Example AXF_COMMANDS Table

EVENTID	FORMID	EVENTNAME	DISPLAYMENU	COMMANDNAMESPACE	REQUIRESCONVERSATION	SORTBY	MENUTYPE
16	1	ZOOM	Attach Supplemental	AttachSupplemental	YES	2	ZOOM
14	6	ZOOM	Attach Supplemental	AttachSupplemental	YES	2	ZOOM
13	6	ZOOM	Process Batch Invoices	StartInvoiceProcessing	NO	1	ZOOM
10	1	ZOOM	Process Invoices	StartInvoiceProcessing	NO	1	ZOOM
11	1	POST-INSERT	(null)	SaveInvoice	YES	0	(null)
15	6	POST-INSERT	(null)	SaveInvoice	YES	0	(null)

5.5.4 AXF_COMMAND_PARAMETERS Table

Use the AXF_COMMAND_PARAMETERS table to define the information sent for each defined command. Each command may require or omit a different set of parameters.

5.5.4.1 Column Description

Table 5-56 Column Description for AXF_COMMAND_PARAMETERS Table

Column	Description
PARAMETERID	Defines a unique ID for the parameter.
EVENTID	Defines a unique ID for the event. Comes from the AXF_COMMANDS Table.
PARAMETERNAME	The name of the parameter to be passed.
DATASOURCENAME	Data Source for the parameter value. You can specify Data or Constant.
DATABLOCKNAME	Data Block of the Form from which the value is fetched.
FIELDNAME	Field Name in the form from which the value is fetched.
CONSTANTVALUE	A constant value for the parameter.

5.5.4.2 Example Implementation

The example that follows contains two parameters sent for EventID 2: a constant value (InvoicesByVendor) and a data value (VENDOR_NAME) in the INVOICES_QF Data Block.

The COMPLETE command requires that a conversation is established between E-Business Suite and AXF. A Conversation is a session unique ID that allows communication between E-Business Suite and AXF Framework.

If a command requires a separate window to be opened, then E-Business Suite opens another instance of the browser. Users may then take additional steps in the newly created window.

Table 5-57 Example AXF_COMMAND_PARAMETERS Table

PARAMETERID	EVENTID	PARAMETERNAME	DATASOURCENAME	DATABLOCKNAME	FIELDNAME	CONSTANTVALUE
1	2	SearchName	CONSTANT	(null)	(null)	InvoicesByVendor
2	2	VendorName	DATA	INVOICES_QF	VENDOR_NAME	(null)
18	11	InvoiceTransactionID	DATA	INV_SUM_FOLDER	INVOICE_ID	(null)
21	14	InvoiceTransactionID	DATA	INV_SUM_FOLDER	INVOICE_ID	(null)
20	15	InvoiceTransactionID	DATA	INV_SUM_FOLDER	INVOICE_ID	(null)
22	16	InvoiceTransactionID	DATA	INV_SUM_FOLDER	INVOICE_ID	(null)

5.5.5 AXF_PROPERTIES Table

Use the AXF_PROPERTIES table to define properties for AXF integration for E-Business Suite.

5.5.5.1 Column Description

Table 5-58 Column Description for AXF_PROPERTIES Table

Column Description

PROPNAME

Specifies properties to be used. Properties include:

SecureMode: To enable SSL, set this property to ON, and set values for AXFWalletPath and AXFWalletPwd properties.
AXFWalletPath: Certificate location (path).
AXFWalletPwd: Password for Wallet Manager.
AXF_VERSION: Specify 1 for AXF 10g, or 2 for AXF 11g.
AXF_SOAP_SECURITY: Specify TRUE to enable SOAP security, as described in "Securing Communications".
AXF_SOAP_USER: Specify the SOAP userid used in the SOAP header for authentication, as described in "Securing Communications".
AXF_SOAP_POLICY: Specify the name of the SOAP policy to be used. The currently supported policy is USER_NAME_TOKEN.

PROPVALUE

Specifies the property's value.

5.5.5.2 Example Implementation

This example table shows the default properties values.

Table 5-59 Example AXF_PROPERTIES Table

PROPNAME	PROPVALUE
SecureMode	OFF
AXFWalletPath	file:walletpath
AXFWalletPwd	walletpassword
AXF_VERSION	2
AXF_SOAP_POLICY	USER_NAME_TOKEN
AXF_SOAP_SECURITY	FALSE
AXF_SOAP_USER	AXF
