This chapter describes how to initialize and use Remote Intradoc Client (RIDC), which provides a thin communication API for communication with Oracle Content Server.
This chapter includes the following sections:
Section 9.11, "Configuring SSL Communication with Oracle Content Server"
Section 9.12, "Using Tables for Content Items, the Search Index, and the File Store"
The RIDC communication API removes data abstractions to Oracle Content Server while still providing a wrapper to handle connection pooling, security, and protocol specifics. If you want to use a native Java API, then RIDC is recommended.
RIDC has these key features:
Support is provided for Intradoc socket-based communication and the HTTP and JAX-WS protocols.
Client configuration parameters include setting the socket time outs, connection pool size, and so forth.
All calls to RIDC require some user identity for authentication. For Intradoc URLs, no credentials are required because the request is trusted between Oracle Content Server and the client. For HTTP URLs, the context requires credentials.
To invoke a service, you can use the ServiceRequest
object, which can be obtained from the client.
The RIDC client pools connections, which requires that the caller of the code close resources when done with a response.
Streams are sent to Oracle Content Server through the TransferStream
interface.
The RIDC objects follow the standard Java Collection paradigms, which makes them extremely easy to consume from a JSP/JSPX page.
Binders can be reused among multiple requests.
RIDC allows Secure Socket Layer (SSL) communication with Oracle Content Server.
RIDC supports three protocols: Intradoc, HTTP, and WebServices/JAX-WS.
Intradoc: The Intradoc protocol communicates with Oracle Content Server over the Intradoc socket port (typically, 4444). This protocol does not perform password validation and so requires a trusted connection between the client and Oracle Content Server. Clients that use this protocol are expected to perform any required authentication. Intradoc communication can also be configured to run over SSL.
HTTP: RIDC communicates with the web server for Oracle Content Server using the Apache HttpClient package. Unlike Intradoc, this protocol requires authentication credentials for each request.
For more information, see the Jakarta Commons HttpClient documentation on the HttpClient Home page of the Apache HttpClient web site at
http://hc.apache.org/httpclient-3.x
JAX-WS: The JAX-WS protocol is supported only in Oracle UCM 11g with Oracle Content Server running in Oracle WebLogic Server. To provide JAX-WS support, several additional JAR archives are required. These JAR archives are provided with the ecm-client.zip distribution, which is available from the Oracle Technology Network (OTN).
These additional JAR archives are required for JAX-WS support:
oracle.webservices.standalone.client.jar
wseeclient.jar
jps-az-api.jar
These JAR archives should be placed in the /src/lib/jaxws subdirectory of the RIDC installation directory.
RIDC allows Secure Socket Layer (SSL) communication with Oracle Content Server using the Intradoc communication protocol.
Note:
You must install and enable the SecurityProviders component in the Oracle Content Server instance that you want to access, and you must configure Oracle Content Server for SSL communication.An example of using the IDC protocol over a secure socket (SSL) follows:
// build a secure IDC client as cast to specific type IntradocClient idcClient = (IntradocClient manager.createClient("idcs://localhost:54444"); // set the SSL socket options config.setKeystoreFile("ketstore/client_keystore"); //location of keystore file config.setKeystorePassword ("password"); // keystore password config.setKeystoreAlias("SecureClient"); //keystore alias config.setKeystoreAliasPassword("password"); //password for keystore alias
For more information, see Section 9.11, "Configuring SSL Communication with Oracle Content Server."
RIDC provides an MBeans implementation allowing administrators to change properties of an RIDC connection at runtime using JMX and MBeans.
To register and enable MBeans, add the following to your code:
import oracle.stellent.ridc.convenience.adf.mbeans.IdcMBeanManager; ... //connection name is the connection in the ADFContext you want to manage IdcMBeanManager mbeanManager = IdcMBeanManager.getInstance(connectionName); mbeanManager.register();
Once the application has started, edit the connection using a tool such as JConsole to connect to your application and change connection information while the application is running.
To initialize RIDC, you will need the ECM Client libraries, which are shipped with the RIDC distribution, in your class path.
For the JAX-WS protocol, you also need to configure Oracle WebLogic Server security for the Oracle UCM web services. The security configuration includes these tasks:
Setting up the policy for the login service
Creating a new keystore file (or adding credentials to your existing keystore), which will be used by both the server and the client
Setting up an Oracle wallet by adding the credentials
The client requires the following items:
The JPS configuration file
The keystore
The Oracle wallet from the server
For information about configuring the server and client for web services, see the Oracle Fusion Middleware Services Reference Guide for Oracle Universal Content Management.
The following table shows the URL formats that are supported.
URL | Description |
---|---|
http://host/cs/idcplg | URL to the Oracle Content Server CGI path. |
https://host/cs/idcplg | Uses SSL over HTTP; requires extra configuration to load the SSL certificates. |
idc://host:4444 | Uses the Intradoc port; requires only the hostname and the port number. |
idcs://host:4444 | Uses SSL over the Intradoc port; requires extra configuration to load the SSL certificates. |
http://wlsserver:7044/idcnativews | Uses the JAX-WS protocol to connect to Oracle Content Server. |
This example code initializes RIDC for an Intradoc connection:
// create the manager IdcClientManager manager = new IdcClientManager(); // build a client that will communicate using the intradoc protocol IdcClient idcClient = manager.createClient("idc://localhost:4444");
This example code initializes an HTTP connection (the only difference from an Intradoc connection is the URL):
// create the manager IdcClientManager manager = new IdcClientManager(); // build a client that will communicate using the HTTP protocol IdcClient idcClient = manager.createClient("http://localhost/idc/idcplg");
This example code initializes a JAX-WS client. These two web services are exposed by Oracle Content Server: the login
service and the request
service. You will need the web context root that these web services use. By default, this is idcnativews
.
// create the manager IdcClientManager manager = new IdcClientManager(); // build a client that will communicate using the JAXWS protocol IdcClient idcClient = manager.createClient("http://wlsserver:7044/idcnativews");
Configuration of the clients can be done after they are created. Configuration parameters include setting the socket time outs, connection pool size, and so on. The configuration is specific to the protocol; if you cast the IdcClient object to the specific type, then you can retrieve the protocol configuration object for that type.
This example code sets the socket time out and wait time for Intradoc connections:
// build a client as cast to specific type IntradocClient idcClient = (IntradocClient)manager.createClient ("http://host/cs/idcplg"); // get the config object and set properties idcClient.getConfig ().setSocketTimeout (30000); // 30 seconds idcClient.getConfig ().setConnectionSize (20); // 20 connections
These JAX-WS specific configurations can be set after you have created the client:
// build a client as a cast for jaxws type JaxWSClient jaxwsClient = (JaxWSClient) manager.createClient( ("http://wlsserver:7044/idcnativews"); JaxWSClientConfig jaxwsConfig = jaxwsClient.getConfig();
You can set the name of the Oracle Content Server instance that you want to connect to. By default, this is /cs/,
which is the default web context for an Oracle UCM installation. If the server web context is different than the default, then you can set the the web context by editing a property. This example code sets your web context root:
// set the property jaxwsConfig.setServerInstanceName("/mywebcontext/");
A JPS configuration file is required for most policies, such SAML or Message Token. This example code sets the location of the JPS configuration file:
jaxwsConfig.setJpsConfigFile("/my/path/to/the/jps-config.xml");
This example code sets the security policy:
jaxwsConfig.setClientSecurityPolicy ("policy:oracle/wss11_username_token_with_message_protection_client_policy");
RIDC uses the default values for the installed web services. If, for some reason, the web services have been modified and do not conform to the default URIs or URLs, you may need to modify the default values. This example code changes the login
and request
service URLs:
// login port wsdl url jaxwsConfig.setLoginServiceWSDLUrl(new URL ("http://server:7044/webservices/loginPort?WSDL")); //request port wsdl url jaxwsConfig.setRequestServiceWSDLUrl(new URL ("http://server:7044/anotherservice/myrequestport?WSDL"));
The default streaming chunk size is set to 8192
. This example code changes the streaming chunk size:
jaxwsConfig.setStreamingChunkSize(8190);
All calls to RIDC require some user identity. Optionally, this identity can be accompanied by credentials as required by the protocol. The user identity is represented by the IdcContext
object; once created, it can be reused for all subsequent calls. To create an identity, you pass in the user name and, optionally, some credentials:
//create a simple identity with no password (for idc:// urls) IdcContext userContext = new IdcContext("sysadmin"); // create an identity with a password IdcContext userPasswordContext = new IdcContext("sysadmin", "idc");
For Intradoc URLs, you do not need any credentials because the request is trusted between Oracle Content Server and the client.
For HTTP and JAX-WS URLs, the context needs credentials.
For HTTP URLs, the credentials can be a simple password or anything that the HttpClient package supports.
For JAX-WS URLs, the requirement for credentials will be dependent on the service policy that the web service is configured to use by the server.
To invoke a service, use the ServiceRequest
object, which you can obtain from the client. Creating a new request will also create a new binder and set the service name in the binder, along with any other default parameters. From that point, you can populate the binder as needed for the request.
This example code executes a service request and gets back a DataBinder object with the results:
// get the binder DataBinder binder = idcClient.createBinder(); // populate the binder with the parameters binder.putLocal ("IdcService", "GET_SEARCH_RESULTS"); binder.putLocal ("QueryText", ""); binder.putLocal ("ResultCount", "20"); // execute the request ServiceResponse response = idcClient.sendRequest (userContext, binder); // get the binder DataBinder serverBinder = response.getResponseAsBinder ();
The ServiceResponse
object contains the response from Oracle Content Server. From the response, you can access the stream from Oracle Content Server directly, or you can parse it into a DataBinder object and query the results.
This example code takes a ServiceResponse
and gets the search results, printing out the title and author values:
// get the binder DataBinder binder = response.getResponseAsBinder (); DataResultSet resultSet = binder.getResultSet ("SearchResults"); // loop over the results for (DataObject dataObject : resultSet.getRows ()) { System.out.println ("Title is: " + dataObject.get ("dDocTitle")); System.out.println ("Author is: " + dataObject.get ("dDocAuthor")); }
The RIDC client pools connections, meaning that the caller of the code must close resources when it is done with a response. This is done by calling getResponseAsBinder
, which closes resources automatically, or by calling close
on the stream returned from a call to getResponseStream
. If you do not want to examine the results, close
must still be called, either by getting the stream and closing it directly or by calling close
on the ServiceResponse
object.
The following examples show how to use the options for closing resources.
To close resources through getResponseAsBinder:
// execute the request ServiceResponse response = idcClient.sendRequest (userContext, binder); // get a binder closes the response automatically response.getResponseAsBinder ();
To close resources by closing the stream:
// execute the request ServiceResponse response = idcClient.sendRequest (userContext, binder); // get the result stream and read it InputStream stream = response.getResponseStream (); int read = 0; while ((read = stream.read ()) != -1) { } //close the stream stream.close ();
To close resources by calling the close method on the ServiceResponse object:
// execute the request ServiceResponse response = idcClient.sendRequest (userContext, binder); // close the response (which closes the stream directly) response.close ();
The IdcClientConfig#getConnectionPool
property determines how RIDC will handle the pooling of connections. There are two options, pool
and simple
.
Pool
is the default, and it means to use an internal pool that allows a configurable number of active connections at a time (configurable via the IdcClientConfig#getConnectionSize
property), with the default active size set to 20
.
Simple
does not enforce a connection maximum and rather lets every connection proceed without blocking.
You can register a different pool implementation through the IdcClientManager#getConnectionPoolManager()#registerPool()
method, which maps a name to an implementation of the ConnectionPool
interface. Then you can use the name in the IdcClientConfig
object to select that pool for a particular client.
Streams are sent to Oracle Content Server through the TransferStream
interface. This interface wraps the actual stream with metadata about the stream (length, name, and so on).
This example code performs a check-in to Oracle Content Server:
// create request DataBinder binder = idcClient.createBinder(); binder.putLocal ("IdcService", "CHECKIN_UNIVERSAL"); // get the binder binder.putLocal ("dDocTitle", "Test File"); binder.putLocal ("dDocName", "test-checkin-6"); binder.putLocal ("dDocType", "ADACCT"); binder.putLocal ("dSecurityGroup", "Public"); // add a file binder.addFile ("primaryFile", new TransferFile ("test.doc")); // check in the file idcClient.sendRequest (userContext, binder);
You can receive a stream from Oracle Content Server through the ServiceResponse
object; the response is not converted into a DataBinder object unless you specifically request it. If you just want the raw HDA data, you can get that directly, along with converting the response to a String or DataBinder object:
// create request DataBinder binder = idcClient.createBinder (); // execute the service ServiceResponse response = idcClient.sendRequest (userContext, binder); // get the response stream InputStream stream = response.getResponseStream (); // get the response as a string String responseString = response.getResponseAsString (); // parse into data binder DataBinder dataBinder = response.getResponseAsBinder ();
The RIDC objects all follow the standard Java Collection paradigms, which makes them extremely easy to consume from a JSP or JSPX page. Assume the ServerResponse
object (used in the previous example) was available in the HttpServletRequest
object in an attribute called idcResponse
. This example JSPX code will iterate over the response and create a small table of data:
<table> <tr> <th>Title</th> <th>Author</th> <th>Release Date</th> </tr> <c:forEach var="row" items="${idcResponse.dataBinder.SearchResults.rows}"> <tr> <td>${row.dDocTitle}</td> <td>${row.dDocAuthor}</td> <td>${row.dInDate}</td> </tr> </c:forEach> </table>
The binders can be reused among multiple requests. A binder from one request can be sent in to another request. For example, this example code pages the search results by reusing the same binder for multiple calls to Oracle Content Server:
// create the user context IdcContext idcContext = new IdcContext ("sysadmin", "idc"); // build the search request binder DataBinder binder = idcClient.createBinder(); binder.putLocal("IdcService", "GET_SEARCH_RESULTS"); binder.putLocal("QueryText", ""); binder.putLocal("ResultCount", "20"); // send the initial request ServiceResponse response = idcClient.sendRequest (binder, idcContext); DataBinder responseBinder = response.getResponseAsBinder(); // get the next page binder.putLocal("StartRow", "21"); response = idcConnection.executeRequest(idcContext, binder); responseBinder = response.getResponseAsBinder(); // get the next page binder.putLocal("StartRow", "41"); response = idcConnection.executeRequest(binder, idcContext); responseBinder = response.getResponseAsBinder();
Oracle UCM has several security models that are controlled by settings in Oracle Content Server. To resolve if a particular user has access to a document, three things are needed: the user's permission controls, the document's permission controls, and the Oracle Content Server security environment settings.
It is assumed that the application program calling the UserSecurity
module will fetch documents and the DOC_INFO
metadata (in the document's binder, typically the result of a search) as some superuser and cache this information. When the application needs to know if a particular user has access to the document, a call is made to Oracle Content Server as that user to fetch that user's permissions. Once the user's permission controls are known, then they can be matched to the information in the document's metadata to resolve the access level for that user. The available access levels follow:
READ
READ/WRITE
READ/WRITE/DELETE
READ/WRITE/DELETE/ADMIN
It is preferable to reduce the number of calls to Oracle Content Server (using a cache) and to provide a default implementation for matching the user's permissions information with the document's permission information. One limitation is that Oracle Content Server controls which types of security are used in some server environment properties: UseAccounts=true
and UseCollaboration=true
.
The user security convenience is accessed through the IUserSecurityCache
interface. Three concrete classes implement the optional Oracle Content Server security:
The UserSecurityGroupsCache
class simply keeps a cache of user permissions and will match documents considering only Security Group information.
The UserSGAccountsCache
class adds a resolver to also consider Account information if Oracle Content Server has the UseAccounts=true
setting.
The UserSGAcctAclCache
class adds a resolver to also consider ACL permissions if UseCollaboration=true
.
The IAccessResolver
interface allows the addition of classes that can participate in the resolution of the access levels for a document.
This example code uses the three classes for implementing security:
IdcClientManager m_clientManager = new IdcClientManager (); IdcClient m_client = m_clientManager.createClient ("http://localhost/scs/idcplg"); //RIDC superuser context IdcContext m_superuser = new IdcContext("sysadmin", "idc"); //Examples of the three concrete cache classes IUserSecurityCache m_SGCache = new UserSecurityGroupsCache (m_client, 20, 1000); IUserSecurityCache m_SGAcctCache = new UserSGAccountsCache (m_client, 20, 1000, 20000); IUserSecurityCache m_SGAcctAclCache = new UserSGAcctAclCache (m_client, 20, 1000, 20000, m_superuser); //Example test testDocPermission () { DataBinder m_doc1 = getDataBinder ("TEST"); //Get the document information (typically in the first row of DOC_INFO) DataObject docInfo = m_doc1.getResultSet ("DOC_INFO").getRows ().get (0); //Get the cache id for this user //Important: this makes a live call to Oracle Content Server //to get the user ID for "Acme1") //CacheId acme1 = m_SGAcctAclCache.getCacheIdForUser // (new IdcContext("Acme1", "idc")); //You may want to include this: IdcContext context = new IdcContext("Acme1", "idc"); CacheId acme1 = new CacheId (context.getUser (), context); //Get the access level for this document by this user int access = m_SGAcctAclCache.getAccessLevelForDocument (acme1, docInfo); } //Example code to get a Document's DOC_INFO databinder DataBinder getDataBinder (String dDocName) throws IdcClientException { DataBinder dataBinder = m_client.createBinder (); dataBinder.putLocal ("IdcService", "DOC_INFO_BY_NAME"); dataBinder.putLocal ("dDocName", dDocName); ServiceResponse response = m_client.sendRequest (m_superuser, dataBinder); return response.getResponseAsBinder (); } //Example code to create a DataObject DataObject dataObject = m_client.getDataFactory ().createDataObject (); dataObject.put ("dSecurityGroup", "public"); dataObject.put ("dDocAccount", "Eng/Acme");
Internally, these fields from the document are examined during getAccessLevelForDocument()
processing:
For the AccessResolverSecurityGroups class: dSecurityGroup
For the AccessResolverAccounts class: dDocAccount
For the AccessResolverSecurityGroups class: xClbraUserList
and xClbraAliasList
The preceding IAccessResolver
classes determine if they should participate based on cached information from Oracle Content Server. If they do participate, the access levels are put together with the AND operator.
RIDC allows Secure Socket Layer (SSL) communication with Oracle Content Server. This section provides basic information about SSL communication, including how to set up a sample implementation for testing purposes.
For SSL communication, you must install and enable the SecurityProviders component, configure Oracle Content Server with a new incoming provider, and specify the truststore or keystore information. You must have a valid keystore or trust manager with signed, trusted certificates on both the client and Oracle Content Server.
The sample implementation uses a JDK utility to create a self-signed key pair and certificates. Oracle does not provide signed certificates. For most implementations, you will want a certificate signed by a universally recognized Certificate Authority.
The following subsections describe how to configure SSL communication with Oracle Content Server:
Section 9.11.1, "Installing and Enabling the SecurityProviders Component"
Section 9.11.2, "Configuring an Incoming Provider for SSL Communication"
Section 9.11.3, "Creating Self-Signed Key Pairs and Certificates"
You must install and enable the SecurityProviders component in the Oracle Content Server instance you want to access. This component is installed and enabled by default in Oracle Content Server 11gR1.
In Oracle Content Server 10gR3, you need to install and enable the component manually. For information about installing and enabling components, see the Oracle UCM 10gR3 installation documentation.
You can set up a new keepalive incoming socket provider or a new SSL incoming socket provider. The setup steps for both providers follow. Using keepalive improves the performance of a session and is recommended for most implementations.
To set up a new incoming provider:
Log in to Oracle Content Server as an administrator.
Click Administration and then Providers.

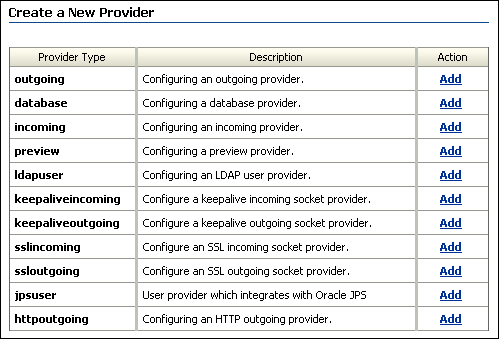

Figure 9-1 List of Providers in Oracle Content Server
Click Add for the sslincoming
provider.
The Add Incoming Provider page opens.
Enter a provider name and description.
Enter an open server port.
Enter configuration information for either a new SSL keepalive incoming socket provider or a new SSL incoming socket provider. The setup steps for both providers are listed in the following text. Using keepalive improves the performance of a session and is recommended for most implementations.
SSL keepalive incoming socket provider
Provider Class: idc.provider.ssl.SSLSocketIncomingProvide
r
Connection Class: idc.provider.KeepaliveSocketIncomingConnection
Server Thread Class: idc.server.KeepaliveIdcServerThread
SSL incoming socket provider
Provider Class: idc.provider.ssl.SSLSocketIncomingProvider
Connection Class: intradoc.provider.SocketIncomingConnection
Server Thread Class: intradoc.server.IdcServerThread
Click Add.
After you have completed setting up a new incoming provider, you must also specify truststore and keystore information.
For most implementations, you will want a certificate signed by a universally recognized Certificate Authority. However, if you control both the client and server and want only to ensure that your transmissions are not intercepted, or if you are simply testing your implementation, you can create your own self-signed key pairs and certificates by using the JDK utility called keytool.
Key and Certificate Management Tool (keytool) is a key and certificate management utility that enables users to administer their own public and private key pairs and associated certificates for use in self-authentication. It is provided as part of the Sun JDK. Keytool is a command-line utility. The executable is located in the bin subdirectory.
From a command-line prompt, navigate to the JDK-Home/bin subdirectory, and issue the -genkey
command. This command generates a new key and takes several arguments. The arguments in the following table are used with this command.
Argument | Description |
---|---|
-alias |
Alias of the key being created. This is the way a keystore knows which element in the file you are referring to when you perform operations on it. |
-keyalg |
Encryption algorithm to use for the key. |
-keystore |
Name of the binary output file for the keystore. |
-dname |
Distinguished name that identifies the key. |
-keypass |
Password for the key that is being generated. |
-storepass |
Password used to control access to the keystore. |
Generate a separate key pair for both the client and the server. To do this, you will need to run the -genkey
command twice, each time placing the key pair into a separate keystore.
You will need to specify the alias, the algorithm to use, the keystore name, the distinguished name, and passwords for the keys and the keystore. This example uses RSA as the algorithm and idcidc
as the password for the key and the keystore.
Use these argument values for the client:
-alias SecureClient
-keyalg RSA
-keystore client_keystore
-dname "cn=SecureClient"
-keypass idcidc
-storepass idcidc
# keytool -genkey -alias SecureClient -keyalg RSA -keystore client_keystore -dname "cn=SecureClient" -keypass idcidc -storepass idcidc
Use these argument values for the server:
-alias SecureServer
-keyalg RSA
-keystore server_keystore
-dname "cn=SecureServer"
-keypass idcidc
-storepass idcidc
# keytool -genkey -alias SecureClient -keyalg RSA -keystore client_keystore -dname "cn=SecureClient" -keypass idcidc -storepass idcidc # keytool -genkey -alias SecureServer -keyalg RSA -keystore server_keystore -dname "cn=SecureServer" -keypass idcidc -storepass idcidc
Each of these commands will generate a key pair wrapped in a self-signed certificate and stored in a single-element certificate chain.
Keys are unusable unless they are signed. The keytool utility will self-sign them for you so that you can use the certificates for internal testing. However, these keys are not signed for general use.
From a command line prompt, issue the -selfcert
command (this command self-signs your certificates and takes several arguments). Run the -selfcert
command twice, once for the client and again for the server.
Use these argument values for the client:
-alias SecureClient
-keystore client_keystore
-keypass idcidc
-storepass idcidc
Use these argument values for the server:
-alias SecureServer
-keystore server_keystore
-keypass idcidc
-storepass idcid
Examples of -selfcert
commands follow:
# keytool -selfcert -alias SecureClient -keystore client_keystore -keypass idcidc -storepass idcidc # keytool -selfcert -alias SecureServer -keystore server_keystore -keypass idcidc -storepass idcidc
The certificate is now signed by its private and public key, resulting in a single-element certificate chain. This replaces the one that you generated previously.
After you have created the client and server keys and self-signed the certificates, you now have two key pairs (public and private keys) in two certificates locked in two keystores. Since each application will need to have the public key of the other to encrypt and decrypt data, you need to place a copy of each public key in the other application's keystore.
From a command-line prompt, issue the -export
command (this command exports your certificates and takes several arguments). Run the -export
command twice, once for the client and again for the server. Use the -file
argument to redirect the output to a file instead of the console.
Use these argument values for the client:
-alias SecureClient
-file client_cert
-keystore client_keystore
-storepass idcidc
Use these argument values for the server:
-alias SecureServer
-file server_cert
-keystore server_keystore
-storepass idcidc
Examples of -export
commands follow:
# keytool -export -alias SecureClient -file client_cert -keystore client_keystore -storepass idcidc
(Certificate stored in the file client_cert)
# keytool -export -alias SecureServer -file server_cert -keystore server_keystore -storepass idcidc
(Certificate stored in the file server_cert)
The certificate (containing the public key and signer information) has now been exported to a binary certificate file.
The final step in setting up your self-signed certificates is to import the public certificates of each program into the keystore of the other. Keytool will present you with the details of the certificates you are requesting to be imported and provide a request confirmation.
From a command line prompt, issue the -import
command (this command imports your certificates and takes several arguments). Run the -import
command twice, once for the client and again for the server. Notice that the -keystore
values are reversed.
Use these argument values for the client:
-alias SecureClient
-file client_cert
-keystore server_keystore
-storepass idcidc
Use these argument values for the server:
-alias SecureServer
-file server_cert
-keystore client_keystore
-storepass idcidc
Examples of -import
commands follow:
# keytool -import -alias SecureClient -file client_cert -keystore server_keystore -storepass idcidc Owner: CN=SecureClient Issuer: CN=SecureClient Serial number: 3c42e605 Valid from: Mon Jan 14 08:07:01 CST 2002 until: Sun Apr 14 09:07:01 CDT 2002 Certificate fingerprints: MD5: 17:51:83:84:36:D2:23:A2:8D:91:B7:14:84:93:3C:FF SHA1: 61:8F:00:E6:E7:4B:64:53:B4:6B:95:F3:B7:DF:56:D3:4A:09:A8:FF Trust this certificate? [no]: y Certificate was added to keystore # keytool -import -alias SecureServer -file server_cert -keystore client_keystore -storepass idcidc Owner: CN=SecureServer Issuer: CN=SecureServer Serial number: 3c42e61e Valid from: Mon Jan 14 08:07:26 CST 2002 until: Sun Apr 14 09:07:26 CDT 2002 Certificate fingerprints: MD5: 43:2F:7D:B6:A7:D3:AE:A7:2E:21:7C:C4:52:49:42:B1 SHA1: ED:B3:BB:62:2E:4F:D3:78:B9:62:3B:52:08:15:8E:B3:5A:31:23:6C Trust this certificate? [no]: y Certificate was added to keystore
The certificates of each program have now been imported into the keystore of the other.
The following subsections describe how to search tables for information about content items:
Content managed by Oracle Content Server is primarily tracked by four tables:
These tables track the content's metadata, state, and actions as well as information that is associated with each file.
Revisions
This table tracks core information about each revision of the content:
One row per revision
Different revisions with the same content that share the same content ID and RevClass ID
System metadata for each revision:
Metadata for revisions: content ID, title, author, check-in date, and so on
Metadata for categorization and security: type, security group, doc account
State information for various actions:
Indexing
Workflow
Document conversion
Numeric IDs and text labels to help track and retrieve a revision:
A unique dID value for each revision (the primary key in the table)
A unique dRevClassID value for the content
A revision ID to mark the revision number for each revision
Documents
This table tracks information for files that are associated with each content revision.
One row per revision
Multiple rows per revision, with one row for each of these files:
Primary
Alternate
Web-viewable
File information: original name, location, language, size, and so on
DocMeta
This table contains extended metadata fields:
One row for each revision
One column for each metadata field
Definition of each field, stored in the DocMetaDefinition table
RevClasses
This table tracks information for each content revision:
One row per content item
Row locked for content modification
Unique dDocName and RevClassId values
Current indexed revision
Dates and users:
Creation date and creator
Last modified date and user
Owner
Oracle Content Server provides various ways to search the repository. Metadata searches can be based on the Revisions, Documents, DocMeta, and RevClasses tables. To efficiently perform text searches, the full-text search feature of Oracle Database can be utilized, and the IdcText table can be created to hold the search index.
IdcText
This table contains selected columns from the Revisions, Documents, DocMeta, and RevClasses tables as well as columns for other data:
It contains a predefined list from the Revisions, RevClasses, and Documents tables.
It contains custom metadata that is indicated as searchable from the DocMeta table.
The OtsMeta column (CLOB field) contains an SDATA
section and additional indexable fields that are not in the other columns. However, SDATA
has significant limitations.
The SDATA
section has significant limitations.
The OtsContent column contains an indexable document.
The ResultSetInterface column can be used for sorting or count estimation, or to drill down.
The File Store Provider can be used to distribute files managed by Oracle Content Server on the file system, a database, other devices, or any combination of these. The files are stored in SecureFiles in Oracle Content Server 11g. For database-backed file storage, the FileStorage and FileCache tables store the information related to each file.
FileStorage
This table stores file information and some additional information:
File stored in a BLOB field (SecureFiles in Oracle Content Server 11g)
The database administrator can turn on additional BLOB optimizations. For example, deduplication, compression, and encryption with SecureFiles.
Values for dID and dRenditionID that point to a particular file managed by Oracle Content Server
Tracking information in a small number of fields: last modified date and file size
FileCache
This table stores pointers for files cached on the file system, for certain types of processing (extraction, conversion, and so on), and for quick access by the web server. This pointer is also used to perform cleanup.
