6 Creating the ADF Mobile Client User Interface

6.2.1 How to Create a Task Flow

You use the navigation diagrammer to declaratively create a task flow. When you use the diagrammer, JDeveloper creates the XML metadata needed for navigation to work in your application in the MobileClient-task-flow.xml file (default). To use the task flow other than the default on the application startup, you need to manually modify the value of the following setting in the adf-config.xml file:

<amc:setting name="root-task-flow" value="MobileClient-task-flow.xml"/>

Before you begin:

To design a task flow, the ADF Mobile application must include a view controller project file (that is, a project that includes the ADF Mobile UI technology), which includes the MobileClient-task-flow.xml file. If the project does not include this file, or if the project requires an additional flow, you can create one using the Mobile Client Task Flow Creation Wizard as described in Section 6.2.3, "How to Use the Mobile Client Task Flow Creation Wizard."

To create a task flow:

1. Open the MobileClient-task-flow.xml file for your application. By default, this is in the Application Sources node.

2. In the editor window, click the Diagram tab to open the navigation diagrammer.

3. If the Component Palette is not displayed, from the main menu choose View > Component Palette. By default, the Component Palette is displayed in the upper right-hand corner of JDeveloper.

4. In the Component Palette dropdown list, choose ADF Mobile Client Task Flow.

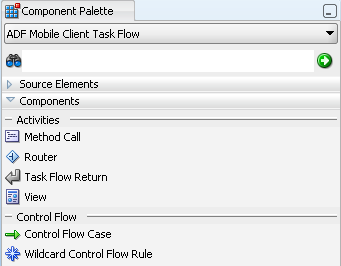

   Figure 6-1 ADF Mobile Client Task Flow Palette in JDeveloper




5. Select the component you wish to use and drag it onto the diagram.

   JDeveloper redraws the diagram with the newly added component.

Once the navigation for your application is defined, you can create the pages and add the components that will execute the navigation. For more information about using navigation components on a page, see Section 6.2.11, "How to Enable Page Navigation Using Control Flow Case."

After you define the task flow for the application, you can double-click a view file to access the MCX view. For more information, see Section 6.3, "Creating Mobile Views."

6.2.2 How to Create an Additional Task Flow

JDeveloper automatically creates a bounded mobile client task flow (named MobileClient-task-flow.xml by default) when you select the Mobile Client UI technology for the project. You can create additional bounded task flows using the task flow dialog.

To create a bounded task flow:

1. In the main menu, select File, and then New.

2. In New Gallery, expand the Client Tier node, and then select ADF Mobile Client.

3. From the Items list, select ADF Mobile Client Task Flow, as Figure 6-2 shows, and then click OK.

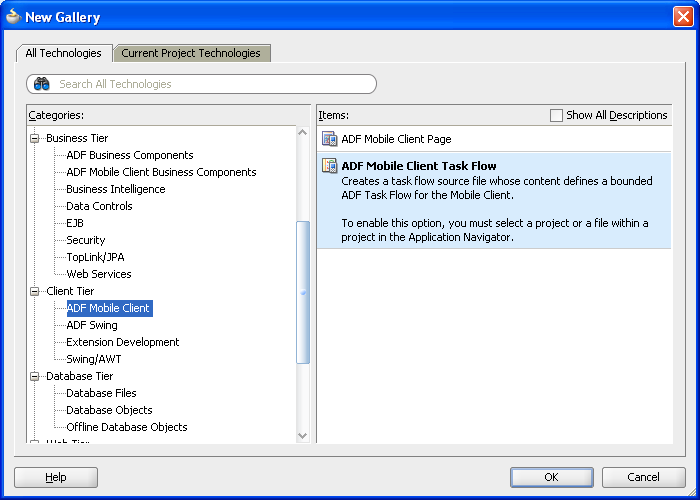

   Figure 6-2 Creating a Mobile Client Task Flow




4. Complete the Create ADF Mobile Client Task Flow dialog by adding the following:

   • Enter a name for the task flow. By default, JDeveloper names this file MobileClient-task-flow.xml.

   • Enter the directory path.

5. Click OK.

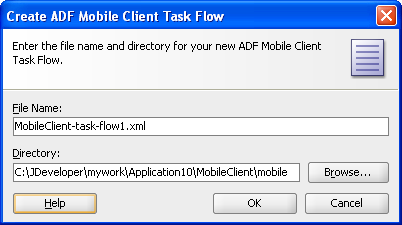

   Figure 6-3 shows the Create ADF Mobile Client Task Flow dialog. JDeveloper increments the number of the task flow according to the number of task flows that already exist in the same pattern. For example, Figure 6-3 shows a task flow named MobileClient-task-flow1.xml.

   Figure 6-3 Create ADF Mobile Client Task Flow Dialog




6.2.3 How to Use the Mobile Client Task Flow Creation Wizard

Although JDeveloper creates the mobile client task flow automatically when you assign the Mobile Client technology to a project, you can also manually create a mobile client task flow using the Mobile Client Task Flow Creation Wizard.

Before you begin:

Because the task flow files are included in the view controller project, the ADF Mobile client application must include the view controller project file that results from the selection of the ADF Mobile UI technology (see Section 4.4.1, "How to Create an Application Workspace.")

To create a mobile client task flow:

1. In the Application Navigator, select the project in which you want to create the mobile client task flow, and then choose New to open the New Gallery dialog.

2. Select the Current Project Technologies tab, and then expand the Client Tier node in the Categories list.

3. Select ADF Mobile Client, and then select ADF Mobile Client Task Flow from the Items list.

4. Enter the name of the task flow (the default value is MobileClient-task-flow.xml) and, if needed, enter the directory for the task flow. If an application already includes a mobile client task flow, the wizard will automatically give the task flow a unique name within the application. For example, the task flow that Figure 6-5 shows is called MobileClient1-task-flow.xml.

5. Click OK.

6.2.4 What Happens When You Create a Mobile Client Task Flow

JDeveloper creates a bounded task flow, which by default is called MobileClient-task-flow.xml. You can populate this task flow by dragging ADF Mobile Client Task Flow components into the diagrammer.

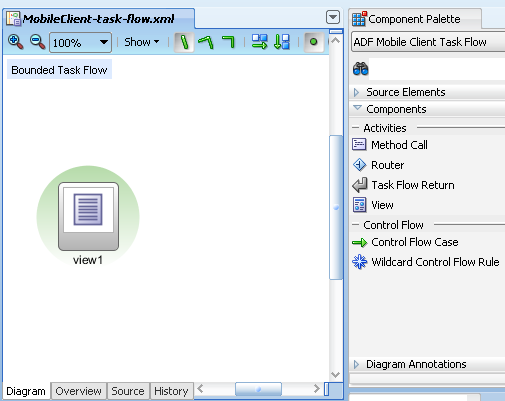

Figure 6-4 shows the Diagram tab selected, revealing the diagrammer. ADF Mobile Client Task Flow is selected in the Component Palette.

Figure 6-4 The Bounded Task Flow in the Diagrammer

6.2.5 What You May Need to Know About Supported Activities and Control Flows

The mobile client task flow designer supports a subset of ADF activities and control flows.

Table 6-1 lists the activities supported for mobile client task flows.

Table 6-2 lists the control flows supported by mobile client task flows.

6.2.6 What You May Need to Know About the MobileClient-task-flow.xml File

As described in Section 4.4.2, "What Happens When You Create a Mobile Client Application Workspace," adding the Mobile Client technology to the project results in the addition of the MobileClient-task-flow.xml file. This file is the mobile client counterpart to task-flow-definition.xml, and lets you design the interactions between views (MCX pages) by dragging and dropping the mobile client task flow components from the Component Palette into the diagrammer. The MobileClient-task-flow.xml file (shown in Figure 6-5), which JDeveloper generates as a result of selecting the ADF Mobile UI technology for the project, is the source file for creating task flows for mobile client applications.

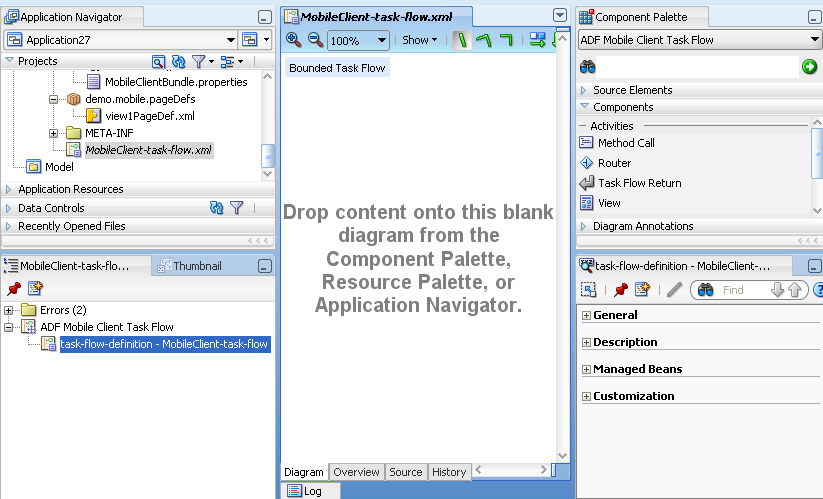

Figure 6-5 The MobileClient-task-flow.xml File

You use the Property Inspector to define the components in the mobile client task flow in the same manner as you would using task-flow-definition.xml or faces-config.xml.

6.2.7 What You May Need to Know About the Mobile Client Task Flow Diagrammer

As illustrated in Figure 6-5, the task flow diagram and Component Palette display automatically after you create a task flow using the Mobile Client Task Flow Creation Wizard. The task flow diagram is a visual editor into which you can drag and drop activities and task flows from the Component Palette or from the Application Navigator.

For more information, see the following:

• Section 6.2.3, "How to Use the Mobile Client Task Flow Creation Wizard"

• Section 6.2.9, "How to Add View Activities"

6.2.8 How to Add Mobile Client Activities

After you create a mobile client task flow, the task flow diagrammer and Component Palette automatically display. As in ADF application development, this task flow diagrammer is the visual editor onto which you drag and drop activities, views, and control flows.

Before you begin:

You must select ADF Mobile Client Task Flow from the Component Palette as Figure 6-6 shows.

To add an activity to a mobile client task flow:

1. In the Application Navigator, double-click a task flow source file (MobileClient-task-flow.xml) to display the task flow diagram and the Component Palette, as Figure 6-6 shows. The diagrammer displays the task flow editor. The Component Palette automatically displays the components available for a mobile client task flow.

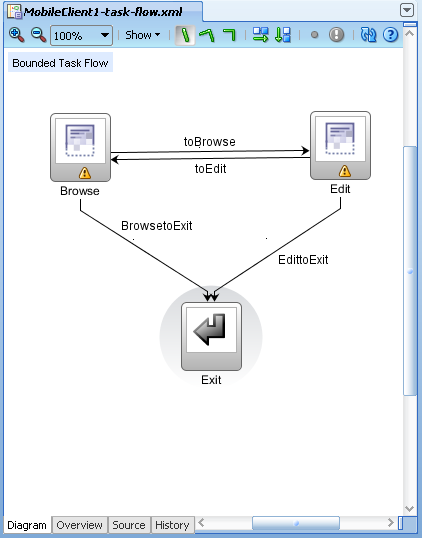

   Figure 6-6 The Diagrammer for the Task Flow Editor




2. Drag an activity from the Component Palette onto the diagram. If you drag a view activity onto the diagram, you can invoke the Create MCX File wizard.

6.2.9 How to Add View Activities

The view activity is associated in metadata with an actual MCX page. You add a view activity by dragging and dropping a view activity from the Component Palette. A view activity displays an MCX page. You can create an actual MCX page by double-clicking the view activity in the Diagram window. You can also create a view activity by dragging and dropping an MCX file in the Application Navigator into the overview editor's Diagram tab.

6.2.10 How to Add a Wildcard Control Flow Rule

Mobile client task flows support the wildcard control flow rule, which represents a control flow from-activity-id that contains a trailing wildcard (foo*) or a single wildcard character.

6.2.11 How to Enable Page Navigation Using Control Flow Case

You can create navigation using the Control Flow Case component, which identifies how control passes from one activity to the next. To create a control flow, select Control Flow Case from the Component Palette. Next, connect the control flow case to the source activity and then to the destination activity. JDeveloper creates the following after you connect a source and target activity:

• control-flow-rule: Identifies the source activity using a from-activity-id.

• control-flow-case: Identifies the destination activity using a to-activity-id.

To define a control flow case directly in the Mobile client task flow diagram

1. In the Application Navigator, double-click a task flow source file to display the task flow diagram.

2. Select Control Flow Case from the Component Palette.

3. On the diagram, click a source activity and then a destination activity. JDeveloper adds the control flow case to the diagram. Each line that JDeveloper adds between an activity represents a control flow case. The from-outcome contains a value that can be matched against values specified in the action attribute of the UI components.

4. To change the from-outcome, select the text next to the control flow in the diagram. By default, this is a wildcard character.

5. To change the from-activity-id (the identifier of the source activity), or the to-activity-id (the identifier for the destination activity), drag either end of the arrow in the diagram to a new activity.

   For more information, see "What Happens When You Create a Control Flow Rule" section in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

6.3.1 How to Work With MCX Pages

The MCX page is represented by an XML file similar to a JSPX file in ADF Faces. The view layer of a mobile client application is persisted in this file.

<amc:view>
   <amc:form/>
   <amc:menu/>
    …
   <amc:menu/>
</amc:view>

6.3.1.3 What Happens When You Create an MCX Page

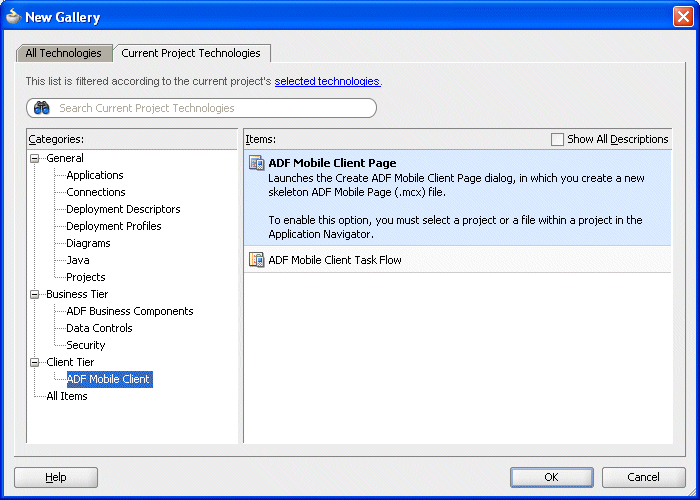

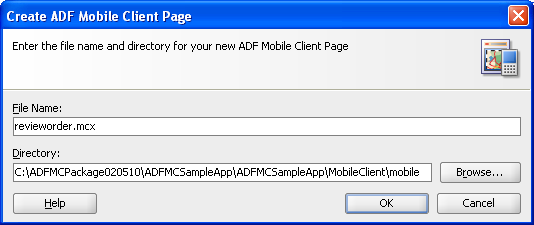

When you use the Create ADF Mobile Client Page dialog to create an MCX page, JDeveloper creates the physical file and adds it to the mobile directory of the MobileClient project.

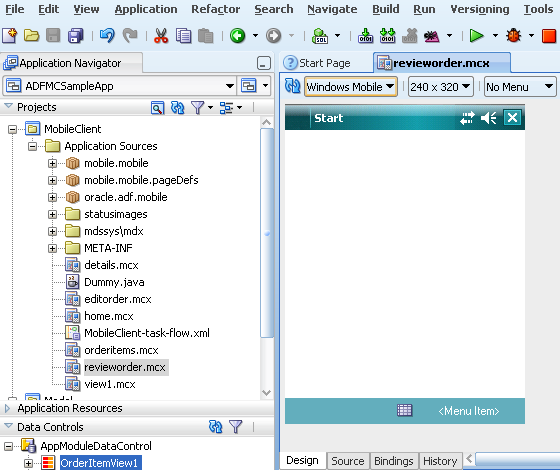

In the Application Navigator that Figure 6-9 shows, the mobile node contains a newly created MCX file called revieworder.mcx.

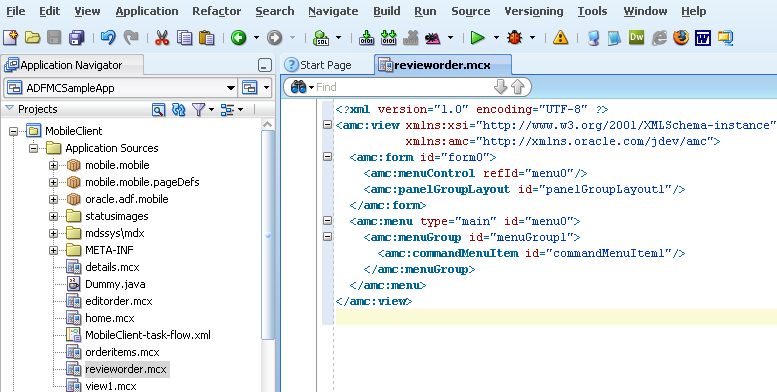

Figure 6-9 The MCX File in the Application Navigator

JDeveloper also adds the code necessary to import the component libraries and display a page. This code is illustrated in the source editor shown in Figure 6-9.

Example 6-1 Declarative Page Source Created by JDeveloper

<?xml version="1.0" encoding="UTF-8" ?>
<amc:view xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xmlns:amc="http://xmlns.oracle.com/jdev/amc">
  <amc:form id="form0">
    <amc:menuControl refId="menu0"/>
    <amc:panelGroupLayout id="panelGroupLayout1"/>
  </amc:form>
  <amc:menu type="main" id="menu0">
    <amc:menuGroup id="group1">
      <amc:commandMenuItem id="commandMenuItem1"/>
    </amc:menuGroup>
  </amc:menu>
</amc:view>

When the page is first displayed in JDeveloper, it is displayed in the visual editor (accessed by clicking the Design tab), which allows you to view the page in a WYSIWYG environment. Figure 6-10 shows the Preview tab selected for a newly created MCX page called revieworder.mcx. This page is blank because it has not yet been populated with ADF Mobile client components or data controls.

Figure 6-10 The Visual Editor for a Newly Created MCX Page

You can also view the source for the page in the source editor by clicking the Source tab, as shown in Figure 6-9. The Structure window located in the lower left-hand corner of JDeveloper (also shown in Figure 6-10), provides a hierarchical view of the page. For more information, see Section 6.3.2.2, "Using the Visual Editor."

6.3.2 How to Add Mobile Client Components and Data Controls to an MCX Page

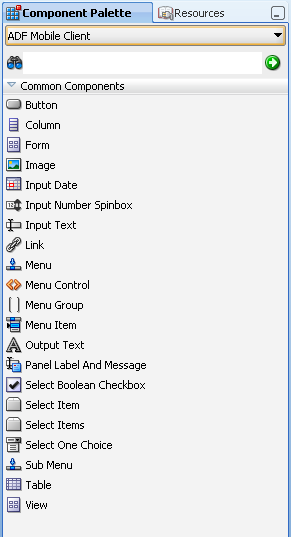

After you create an MCX page, you can start adding the mobile client UI components and data controls to your page.

6.3.2.2 Using the Visual Editor

JDeveloper's editor provides WYSIWYG support for both the Windows Mobile and BlackBerry platforms when you build views using MCX files. As illustrated in Figure 6-12, splitting a view while adding the mobile client components to the MCX file enables you to see both the code view through the source editor and a mobile client UI view through the visual interactive designer represented by the Design tab. As a result, you can modify the source view and get instant feedback in terms of the look and feel of that application on both the BlackBerry and Windows Mobile platforms.

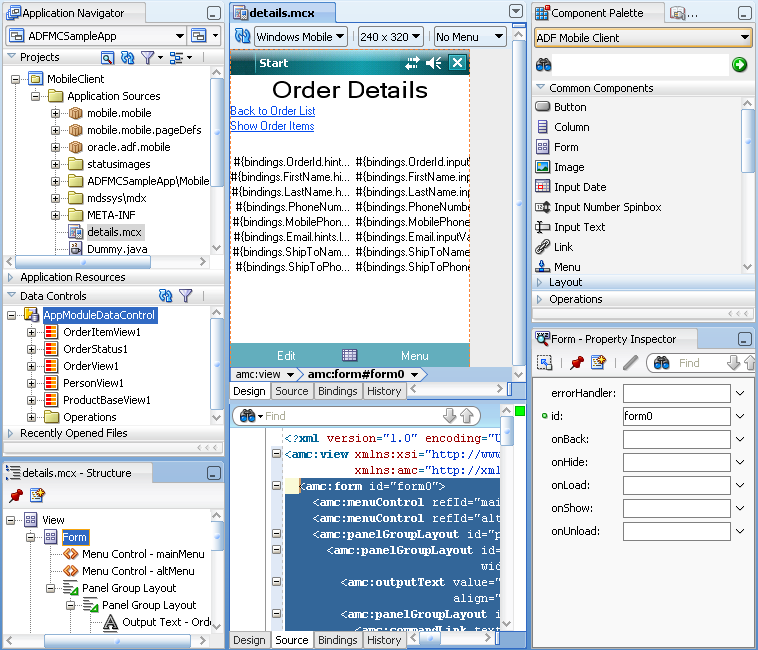

Figure 6-12 Splitting Design and Source Views

In addition to being able to see the Design and Source views simultaneously, you can also open and work with multiple design views at the same time, as well as set each one to a different platform and screen size. By opening a combination of design views for different devices, you can develop applications simultaneously for different platforms and form factors.

Besides providing the means to drag and drop components onto the MCX page, the designer lets you interact with the components directly, therefore eliminating the need to use the Structure pane:

• When you select a component in the Designer, this component is outlined in all visible renderers.

• When you move the mouse over a component, you can see the highlight in the current renderer.

• You can select a component using a breadcrumb bar that shows the hierarchy of components on the current page. Note that the breadcrumb bar appears below the Design tab, and selecting a component in this bar has the same effect as selecting the component in the Structure pane.

• When you right-click a component in the designer, the standard context menu is displayed. This menu is identical to the context menu of the Structure window.

Note:

The MCX page is rendered even for an invalid MCX file. Errors are indicated by the error icon on a component. By moving the mouse over the error icon, you can view the error details.

6.3.2.3 Adding Data Controls to the View

You can create databound UI components in an MCX view by dragging data control elements from the Data Controls panel and dropping them into either the Structure window or the source editor. When you drag an item from the Data Controls panel to either of these places, JDeveloper invokes a context menu of default UI components available for the item that you dropped. When you select the desired UI component, JDeveloper inserts into an MCX page. In addition, JDeveloper creates the binding information in the associated page definition file. If no such file exists, then JDeveloper creates one.

Depending on the approach you take, you can insert different types of data controls into the Structure window of an MCX page. For example, dropping a collection such as a View object enables you to create a Form or a Table.

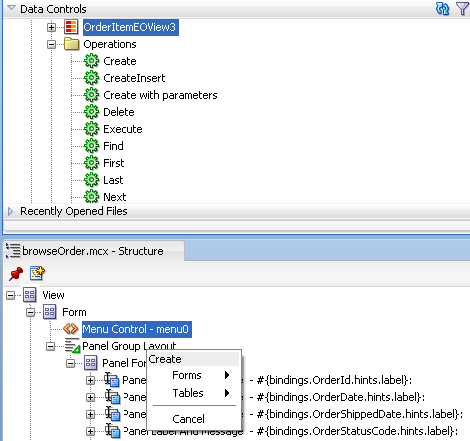

Figure 6-13 shows the context menu for creating forms or tables that appears when you drag a View object (such as OrderItemEOView3 in Figure 6-13) in to the Structure window of an MCX page.

Figure 6-13 Creating a Form or Table from a View Object

Dropping an attribute of a collection lets you create various input and output components. You can also create Buttons and Links by dropping a data control operation on a page.

The respective action listener is added in the mobile client Button for each of these operations. The EL expression in the actionListener is the same as the one created on the drop of an operation into an ADF Faces application.

The following scenarios describe the specific controls that result from dropping an entire collection or from dropping selected attributes into the Structure window or the MCX page's source file.

Scenario 1

In this scenario, you populate a Panel Form Layout based on the View objects in the model layer by performing the following:

1. Create a new MCX page. Drag a Panel Form Layout component from the Component Palette into the page's Panel Group Layout.

2. From the Data Controls panel, select a collection such as a View object, and then drop it into the Structure window. A context menu appears that presents options to create a form or a table.

3. Select either form or table. A wizard appears that describes all of the View object attributes that can be added to the MCX page as well as the type of mobile client components that can be created for each of the fields.

4. Select the appropriate attributes and change the component as needed.

5. Click OK. JDeveloper adds all of the controls to the MCX page and adds the required EL expressions.

Scenario 2

In this scenario, you add only specific attributes of a View object by performing the following:

1. Create an MCX page.

2. From the Data Controls panel, expand a collection such as a View object.

3. Select an attribute, and then drop it into the Structure window of the MCX source file. Depending on the type of attribute that you select, a context menu appears that presents the appropriate components.

   Table 6-3 lists the selection components, which are available when you select Single Selections.

   Table 6-3 Selection-Related Components

   Component	Description	EL Expressions

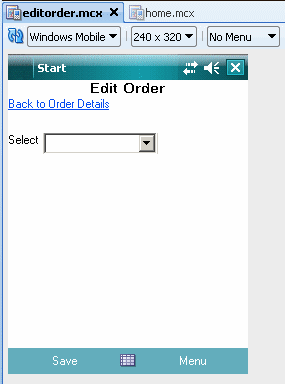

   Select One Choice	Creates a mobile client combo box with a label and with value properties	label="#{bindings.FieldName.label}" value="#{bindings.FieldName.inputValue}" (selectOneChoice) value="#{bindings.FieldName.items}" (nested selectItems)

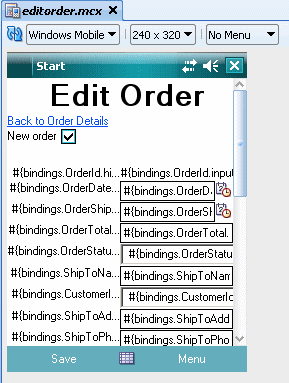

   Select Boolean Checkbox	Creates a mobile client check box with a label and with a value properties.	value="#{bindings.FieldName.inputValue}" text="#{bindings.FieldName.label}"




   Selecting Texts in the context menu enables you to create text controls by populating the page with the components listed in Table 6-4.

   Table 6-4 Text-Related Components

   Component	Description	EL Expressions

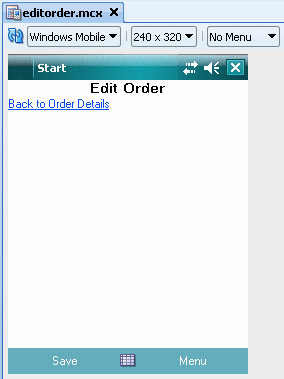

   Output Text with Label	Creates a mobile client Panel Label and Message component that contains an Output Text component.	label=”#{bindings.FieldName.hints.label}” (on panelLabelAndMessage) value=”#{bindings.FieldName.inputValue}” (on outputText)
   Output Text	Creates a mobile client output text value property.	value=”#{bindings.FieldName.inputValue}”

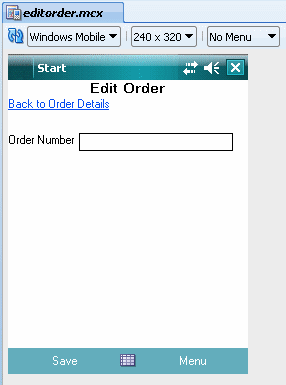

   Input Text with Label	Creates a mobile client input text with label and value properties.	label=”#{bindings.FieldName.hints.label}” value=”#{bindings.FieldName.inputValue}”
   Input Text	Creates a mobile client input text with value property.	value=”#{bindings.FieldName.inputValue}”




   If you select a date attribute, then the context menu presents the components listed in Table 6-5 when you select Date.

   Table 6-5 Date Attribute-Related Components

   Component	Description	EL Expression

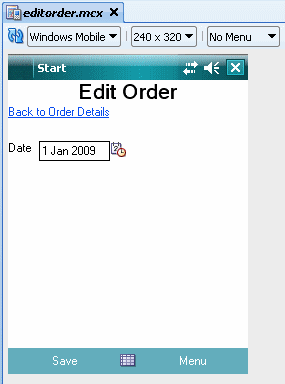

   Input Date with Label	Creates a mobile client input date with a label and value property.	value="#{bindings.FieldName.inputValue}" label="#{bindings.FieldName.hints.label}" required="#{bindings.FieldName.hints.mandatory}" (inputDate) pattern="#{bindings.FieldName.format}" (nested convertDateTime)
   Input Date	Creates a mobile client input date with a value property.	value="#{bindings.FieldName.inputValue}" required="#{bindings.FieldName.hints.mandatory}" (inputDate) pattern="#{bindings.FieldName.format}" (nested convertDateTime)




4. Select the component. JDeveloper adds the controls to the MCX page and adds the required EL expressions as well.

   Figure 6-14 shows the context menu for adding date, single selection, and text controls that appears when you drag an attribute from the Data Controls panel into the Structure window of an MCX page. As shown in Figure 6-14, dragging a date-related attribute (CreationDate) results in a context menu that includes the Dates selection, one that enables you to create date input components that Table 6-2 describes.

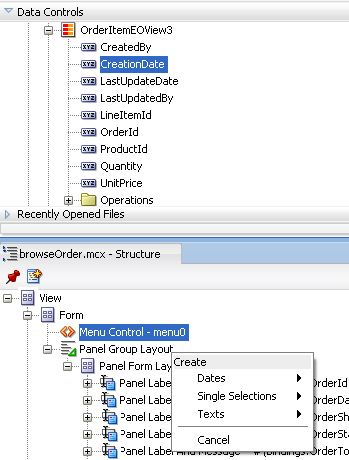

   Figure 6-14 Adding Controls from Attributes




6.3.2.4 Configuring UI Components

Once you drop components onto a page, you can use the Property Inspector (displayed by default at the bottom right of JDeveloper) to set attribute values for each component.

Tip:

If the Property Inspector is not displayed, choose View > Property Inspector from the main menu.

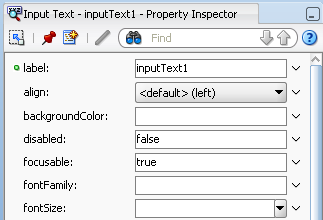

Figure 6-15 shows the Property Inspector displaying the attributes for an Input Text component.

Figure 6-15 The Property Inspector

To set component attributes:

1. Select the component for which you want to set attributes. You can select the component either in the visual editor or the Structure window, or you can select its tag directly in the source editor.

2. In the Property Inspector, either enter values directly into the fields, or if the field contains a list, use that list to select a value. You can also use the list to the right of the field, which launches a popup containing tools you can use to set the value. These tools are either specific property editors (opened by choosing Edit) or the Expression Builder, which you can use to create EL expressions for the value (opened by choosing Expression Builder). For more information about using the Expression Builder, see "Creating EL Expressions" section in Oracle Fusion Middleware Web User Interface Developer's Guide for Oracle Application Development Framework.

When you use the Property Inspector to set or change attribute values, JDeveloper automatically changes the page source for the attribute to match the entered value.

Tip:

You can always change attribute values by directly editing the page in the source editor. To view the page in the source editor, click the Source tab at the bottom of the page.

6.4.1 How to Use a Form Component

A Form is a component that serves as a container for other components.

By default, when you create an MCX page, JDeveloper automatically creates and inserts a Form component with its containing Panel Group Layout component (see Section 6.4.2, "How to Use a Panel Group Layout Component") into the page. When you add components to the page, they will be inserted inside the Form component (form element in an MCX file).

6.4.2 How to Use a Panel Group Layout Component

The Panel Group Layout component is a basic layout component that lays out its children horizontally or vertically. The Form component must have one Panel Group Layout child component. To create the Panel Group Layout component, use the Component Palette.

To add the Panel Group Layout component:

1. In the Component Palette, drag and drop a Panel Group Layout to the MCX page.

2. Insert the desired child components into the Panel Group Layout component.

3. To add spacing between adjacent child components, insert the Spacer (spacer) component.

4. Use the Property Inspector to arrange the child components in the desired layout by setting the layout property. For more information, see Oracle Fusion Middleware Tag Reference Library for Oracle ADF Mobile Client.

   You can also change horizontal and vertical alignments. For more information, see Oracle Fusion Middleware Tag Reference Library for Oracle ADF Mobile Client.

5. In the Property Inspector, set the remaining attributes of this component. For more information, see Oracle Fusion Middleware Tag Reference Library for Oracle ADF Mobile Client.

6.4.2.1 What You May Need to Know About Geometry Management and the Panel Group Layout Component

The geometry behavior of ADF Mobile client user interface components depends on whether they are layered on a Panel Group Layout component with its layout attribute set to vertical (default) or horizontal.

6.4.2.1.1 Geometry Management and Vertical Panels

A vertical panel places components in vertical direction in one column.

Typically, the height of the panel grows as components are added to the panel, whereas the width of the panel is defined by the widest component in the panel. However, if the height attribute is set, the panel will take on the specified height. If the width attribute is set, the component will take on the lesser of the specified width and the width made available by its parent container. This behavior is consistent when scrolling is enabled. If horizontal scrolling is enabled and the width attribute is not set, then the panel is as wide as the lesser of the width of its widest component and the width made available by the parent container.

As a general rule, if no size is specified in a vertical Panel Group Layout, it will be as high as the sum of the heights of its child components, and as wide as the widest component.

The default width for such components as an Input Date and Input Text is the width of the visible part of their parent container and not the maximum available width for the entire screen.

A vertical Panel Group Layout ignores the verticalAlign attribute of its child components.

The following examples show how the combination of various settings of the Panel Group Layout and its child components affect the run-time display. Note that in all of the examples, the Panel Group Layout has a blue backgroundColor, while the Output Text child component has a green backgroundColor.

Example 6-2 Defining Full-Width Vertical Panel Group Layout with Right-Aligned Child Component

<amc:panelGroupLayout id="home" layout="vertical"
                      backgroundColor="#0000FF" width="100%"
                      height="100%" scrollable="true">
   <amc:outputText id="ot1" value="OutputText"
                   align="right" backgroundColor="#00FF00"/>
</amc:panelGroupLayout>

Figure 6-16 shows a Panel Group Layout component that fills up the whole screen area, since its width and height are set to 100%. At run time, the Output Text is right-aligned.

Figure 6-16 Full-Width Vertical Panel Group Layout with Right-Aligned Child Component at Run Time

Example 6-3 Defining Full-Width Horizontal Panel Group Layout with Bottom-Aligned Child Component

<amc:panelGroupLayout id="home" layout="horizontal"
                      backgroundColor="#0000FF" width="100%"
                      height="100%" scrollable="true">
   <amc:outputText id="ot1" value="OutputText"
                   verticalAlign="bottom" backgroundColor="#00FF00"/>
</amc:panelGroupLayout>

Figure 6-17 shows a Panel Group Layout component that fills up the whole screen area, since its width and height are set to 100%. At run time, the Output Text is bottom-aligned.

Figure 6-17 Full-Width Horizontal Panel Group Layout with Bottom-Aligned Child Component at Run Time

Example 6-4 Defining Vertical Panel Group Layout of the Size of Its Child Component

<amc:panelGroupLayout id="home" layout="vertical" backgroundColor="#0000FF">
   <amc:outputText id="ot1" value="OutputText"
                   align="right" backgroundColor="#00FF00"/>
</amc:panelGroupLayout>

Figure 6-18 shows a Panel Group Layout component that is not visible, since it expands only enough to accommodate its child component. At run time, only the Output Text is visible for the Panel Group Layout is the same size as its child component.

Figure 6-18 Vertical Panel Group Layout of the Size of Its Child Component at Run Time

Example 6-5 Defining Vertical Panel Group Layout That Is Wider than Its Child Component

<amc:panelGroupLayout id="home" layout="vertical"
                      width="200" backgroundColor="#0000FF">
   <amc:outputText id="ot2" value="OutputText"
                   align="right" backgroundColor="#00FF00"/>
</amc:panelGroupLayout>

Figure 6-19 shows a Panel Group Layout component that is set to be wider than its child component. At run time, the Output Text is right-aligned with extra space to the left.

Figure 6-19 Vertical Panel Group Layout That Is Wider than Its Child Component at Run Time

Example 6-6 Defining Horizontal Panel Group Layout of the Size of Its Child Component

<amc:panelGroupLayout id="home" layout="horizontal" backgroundColor="#0000FF">
   <amc:outputText id="ot3" value="OutputText"
                   verticalAlign="bottom" backgroundColor="#00FF00"/>
</amc:panelGroupLayout>

Figure 6-20 demonstrates the same layout behavior as Figure 6-18 the Panel Group Layout component is not visible, since it expands only enough to accommodate its child component. At run time, only the Output Text is visible for the Panel Group Layout, as this component is the same size as its child component.

Figure 6-20 Horizontal Panel Group Layout of the Size of Its Child Component at Run Time

Example 6-7 Defining Horizontal Panel Group Layout That Is Higher than Its Child Component

<amc:panelGroupLayout id="home" layout="horizontal"
                      height="50" backgroundColor="#0000FF">
   <amc:outputText id="ot4" value="OutputText"
                   verticalAlign="bottom" backgroundColor="#00FF00"/>
</amc:panelGroupLayout>

Figure 6-21 shows a Panel Group Layout component that is set to be higher than its child component. At run time, the Output Text is right-aligned with extra space above it.

Figure 6-21 Horizontal Panel Group Layout That Is Higher than Its Child Component at Run Time

Horizontal Scrolling in Vertical Panels

By default, horizontal scrolling is disabled, but you can enable it. When horizontal scrolling is disabled, the vertical panel attempts to lay out all components within the visible width of the panel. When it is not possible to lay out a component within the visible width, it extends of the screen to the right. The behavior of components on a vertical panel varies depending on the component type.

On BlackBerry smartphones, when horizontal scrolling is enabled in a vertical panel, the vertical panel scrolls in a horizontal direction when the focusable component that was initially obscured becomes activated.

Vertical Scrolling in Vertical Panels

By default, vertical scrolling is automatically enabled on BlackBerry devices on a vertical panel when the bottom edge of the component at the bottom exceeds the maximum visible height of the panel. Note that the vertical scrolling takes place in the panel that is the panel closest to the root panel in the hierarchical order and that is enabled for vertical scrolling. Therefore, no local scrolling is performed unless there is no containing panel enabled for vertical scrolling.

Note:

Scrolling (both vertical and horizontal) is not enabled by default on Windows Mobile devices. When enabled, vertical scrolling takes place on the Panel Group Layout on which the verticalScroll attribute is set to true.

You can explicitly disable vertical scrolling of parts of the view while enabling localized vertical scrolling by setting appropriate attributes. When vertical scrolling of the root panel, as well as that of all the ancestors of a vertical panel, is disabled, the panel scrolls in vertical directions within the panel.

You can also completely disable vertical scrolling on a view by explicitly disabling vertical scrolling on all panels including the main view.

Alignment in Vertical Panels

A vertical panel can be aligned to left (default), center, or right with respect to the current applicable width of the current column.

For example, suppose there is a vertical panel whose width attribute is set to 200. The panel contains two components: Button commandButton1 that is 100 pixels wide, and Button commandButton2 that is 150 pixels wide. Since the right horizontal alignment is specified on both contained components, both are right-aligned within the panel and there is an empty space to the left of both of them.

If in the preceding example the panel's width is not set, the panel would be 150 pixels wide, because it assumes the width of the widest contained component (commandButton2). When the contained components are laid out on the panel, there would not be any empty space to the left of the commandButton2.

Note that the horizontal alignment of the panel does not affect the horizontal alignment of the contained UI components.

Vertical alignment is ignored on vertical panels.

Nesting Vertical Panels

A vertical panel can be nested within any panel, whether it is vertical or horizontal. A vertical panel can contain any panel.

The width of a vertical panel is equal to the widest component in the panel when the width attribute is not specified. When the width attribute is set, then the panel takes on the smaller of the specified width or the available width provided by its parent container. Vertical panels behave in the same way with respect to height.

At the same time, a vertical panel lays out its contained panels indifferent from the way it would lay out other components.

Overlapping Vertical Panels

It is not possible for two panels or two components within a panel to overlap.

Spacing Between Panels

To create gaps between panels or components, use the Spacer component

6.4.2.1.2 Geometry Management and Horizontal Panels

A horizontal panel places components in a horizontal direction in one row. Components contained in a horizontal panel may be multiline, but no component is placed on top of another.

The width of the panel when scrolling is enabled is the lesser of the total width occupied by its children or 1073741823 (0x3FFFFFFF) pixels. The height of the panel is defined by the highest component in the panel. If a horizontal panel contains a component whose width is equal to the available width, the component does not occupy the entire available width of a horizontally scrollable container by default. This behavior is consistent regardless of the enablement of horizontal scrolling.

Horizontal Scrolling in Horizontal Panels

By default, horizontal scrolling is disabled, but you can enable it. When horizontal scrolling is disabled, the horizontal panel attempts to lay out all components within the visible width of the panel. The available width is the lesser of the remaining (or provided) width of the parent container and the width specified on the panel.

This means that when a nonscrollable panel is embedded in a horizontally scrollable panel, the embedded panel's available width is 1073741823 (0x3FFFFFFF) pixels. This is because the very wide panel can be made visible through the scrolling on the underlying panel.

When it is not possible to lay out a component within the panel, the component extends to the right and it may become obscured and inaccessible. The behavior of components varies depending on the component type.

Some components are laid out differently when horizontal scrolling is enabled. However, if the component has a fixed width, such as a Button or an Output Text, the component is not stretched but maintains the same size regardless of the enablement of horizontal scrolling.

Some components display in different ways depending on the enablement of the horizontal scrolling in a horizontal panel. When horizontal scrolling is enabled, an input component can grow in width beyond the visible width. When horizontal scrolling is disabled, the text in an input component wraps and all text is made visible in most cases, possibly through vertical scrolling.

Vertical Scrolling in Horizontal Panels

By default, vertical scrolling is disabled, but you can enable it by setting the verticalScroll property to true.

Alignment in Horizontal Panels

Changing horizontal alignment on components in a horizontal panel has no effect. Changing vertical alignment on components in a horizontal panel shows an effect if the horizontal panel is taller than the components being aligned."

Nesting Horizontal Panels

A horizontal panel can be nested within any panel, whether it is a vertical or a horizontal panel. A vertical panel can contain any panel.

The geometry of a horizontal panel is calculated the containing panel as follows: when the height attribute is not specified, the height of a horizontal panel is the lesser of the highest component in the panel and the available height provided by the parent. When the height attribute is set, then the panel takes on the lesser of the specified height and the available height provided by its parent container. The width is the sum of the widths of the panel's children when the width attribute is not set. When the width attribute is set, the panel width is the lesser of the specified width and the sum of the widths of its children.

At the same time, a horizontal panel lays out its contained panels indifferent from the way it would lay out other components.

Overlapping Panels

It is not possible for two panels or two components within a panel to overlap.

Spacing Between Panels

To create gaps between panels or components, use the Spacer component

6.4.3 How to Use a Panel Form Layout Component

The Panel Form Layout (panelFormLayout) component positions components so that their labels and fields align horizontally. In general, the main content of the Panel Form Layout component is comprised of input components (such as Input Text and Input Date) and selection components (such as Select One Choice).

For more information, see Section 6.4.3.1, "What You May Need to Know About Geometry Management and the Panel Form Layout Component."

To add the Panel Form Layout component:

1. In the Component Palette, drag and drop a Panel Form Layout component to the MCX page.

2. In the Property Inspector, set the component's attributes. For more information, see Oracle Fusion Middleware Tag Reference Library for Oracle ADF Mobile Client.

6.4.4 How to Use a Panel Label And Message Component

Use the Panel Label And Message (panelLabelAndMessage) component to lay out a label and its child, which is usually an output component (see Section 6.6, "Creating and Using Output Components").

To add the Panel Label And Message component:

1. In the Component Palette, drag and drop a Panel Label And Message component into a Panel Group Layout component.

2. In the Property Inspector, set the component's attributes. For more information, see Oracle Fusion Middleware Tag Reference Library for Oracle ADF Mobile Client.

6.5.1 How to Use the Input Text Component

The Input Text (inputText) component represents an editable field with an optional text label in front of it.

Example 6-8 demonstrates how to declare the inputText element in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
   ...
      <amc:panelGroupLayout id="panelGroupLayout3"
                     layout="vertical"
                     rendered="#{!applicationScope.addMode}"
                     width="100%">
      ...
         <amc:inputText label="Order Number"
                        id="inputText2"/>
      ...

Figure 6-22 shows the Input Text component in the Design page.

Figure 6-22 Input Text in Design Page

To enable conversion of numbers, as well as date and time values that are entered in the Input Text component, you use the Convert Number (see Section 6.6.1.2, "Converting Numerical Values") and Convert Date Time (see Section 6.6.1.3, "Converting Date and Time Values") components.

When creating the Input Text component for the use on BlackBerry smartphones, note that the track wheel moves the focus caret in the main direction (usually vertical), whereas pressing ALT+trackwheel moves the focus caret in the less-used direction (usually horizontal).

You can use an Input Text component within the Panel Group Layout, Panel Form Layout, and Panel Label And Message components.

6.5.2 How to Use the Input Date Component

The Input Date (inputDate) component presents an input field for entering dates. The default date format is the short date format appropriate for the current locale. For example, the default format in American English (ENU) is mm/dd/yy. However, you can override the format using a date-time converter (for more information about using converters, see Section 6.6.1.3, "Converting Date and Time Values").

Example 6-9 demonstrates how to declare the inputDate element in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
   ...
      <amc:panelGroupLayout id="panelGroupLayout3"
                            layout="vertical"
                            rendered="#{!applicationScope.addMode}"
                            width="50%">
      ...
         <amc:inputDate value="1 Jan 2009"
                        label="Date "
                        required="#{bindings.OrderDate.hints.mandatory}"
                        id="inputDate2"/>
      ...

Figure 6-23 shows the Date Input Date component in the Design page of the visual editor.

Figure 6-23 Input Date in Design Page

The text label part of the Input Date component is always aligned to the left, while the edit field is aligned to right.

To enable conversion of date and time values that are entered in the Input Date component, you use the Convert Date Time component (see Section 6.6.1.3, "Converting Date and Time Values").

6.5.3 How to Use the Input Number Spinbox Component

The Input Number Spinbox (inputNumberSpinbox) is used for entering numbers and quickly stepping through the numbers. The input number must be within the range defined by its minimum and maximum attributes.

Example 6-10 demonstrates how to declare the inputNumberSpinbox element in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
   ...
      <amc:panelGroupLayout id="panelGroupLayout3"
                            layout="vertical"
                            rendered="#{!applicationScope.addMode}"
                            width="100%">
      ...
         <amc:inputNumberSpinbox label="Select order number"
                        value="#{bindings.OrderId.inputValue}"
                        id="inputNumberSpinbox1" width="200"/>
      ...

Figure 6-24 shows the Select order number Input Number Spinbox component in the Design page of the visual editor.

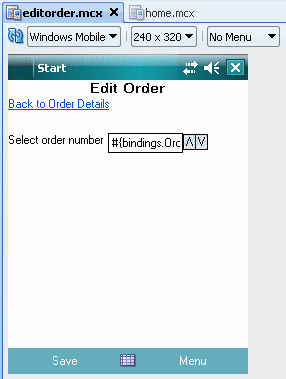

Figure 6-24 Input Number Spinbox in Design Page

6.5.4 How to Use the Select Boolean Checkbox Component

The Select Boolean Checkbox (selectBooleanCheckbox) component represents a check box that you use to enable single selection of true or false values, which allows toggling between selected and deselected states.

Example 6-11 demonstrates how to declare the selectBooleanCheckbox element in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
   ...
      <amc:panelGroupLayout id="panelGroupLayout3"
                            layout="vertical"
                            rendered="#{!applicationScope.addMode}"
                            width="100%">
      ...
         <amc:selectBooleanCheckbox label="New order"
                                    id="selectBooleanCheckbox1"/>
      ...

Figure 6-25 shows the New Order Select Boolean Checkbox component in Design page of the visual editor.

Figure 6-25 Select Boolean Checkbox in Design Page

If you use the default font, this box will appear either empty or containing a check mark, depending upon the state of the field. Pressing the spacebar when the Select Boolean Checkbox component has the focus toggles its state.

6.5.5 How to Use the Select One Choice Component

The Select One Choice (selectOneChoice) component represents a combo box that is used to enable selection of a single value from a list. The selection mechanism is provided by the Select Items component (see Section 6.5.5.2, "What You May Need to Know About Differences Between Select Items and Select Item Components") contained by the Select One Choice component.

Example 6-12 demonstrates how to declare the selectOneChoice element with the selectItems subelement in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
   ...
      <amc:panelGroupLayout id="panelGroupLayout3"
                            layout="vertical"
                            rendered="#{!applicationScope.addMode}"
                            width="100%">
      ...
         <amc:selectOneChoice label="Select">
            <amc:selectItems value="#{bindings.OptionBean.optionList}"/>
         </amc:selectOneChoice>
      ...

Figure 6-26 shows the Select Select One Choice with the Select Items subcomponent in Design page of the visual editor.

Figure 6-26 Select One Choice in Design Page

The combo box part of the Select One Choice component is positioned after the text label part.

6.5.6 What You May Need to Know About Event Listeners and Input Components

You can add the valueChangeListener event listener to input components.

This event listener is applicable to input components for ADF Mobile client run-time description on both BlackBerry smartphones and Windows Mobile devices, but it does not have any effect at design time.

For more information, see Section 6.12, "Using Event Listeners."

6.6.1 How to Use the Output Text Component

The Output Text component is represented by the outputText element in an MCX file. Example 6-13 demonstrates how to declare this element in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
   ...
      <amc:panelGroupLayout id="panelGroupLayout1"
                            layout="vertical"
                            rendered="#{!applicationScope.addMode}"
                            width="100%">
      ...
         <amc:outputText value="Edit Order"
                         id="outputText2"
                         align="center"
                         fontSize="14"
                         fontStyle="bold"
                         justification="center"/>
      ...

Figure 6-27 shows the Edit Order Output Text component in the Design page of the visual editor.

Figure 6-27 Output Text in Design Page

<amc:panelLabelAndMessage label="ID:" truncateAt="7">
   <amc:outputText value="#{bindings.OrderId.inputValue}">
      <amc:convertNumber groupingUsed="false"
                         pattern="#{bindings.OrderId.format}"/>
   </amc:outputText>
</amc:panelLabelAndMessage>

<amc:panelLabelAndMessage label="ID:" truncateAt="7">
   <amc:outputText value="#{bindings.OrderId.inputValue}">
      <amc:convertDateTime type="date"
                           dateStyle="short"
                           pattern="#{bindings.OrderId.format}"/>
   </amc:outputText>
</amc:panelLabelAndMessage>

6.7.1 How to Display an Image

You specify the image source in the MCX file (either manually, or using the Property Inspector), as well as other applicable attributes. Example 6-16 demonstrates how to declare this element in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
   ...
<amc:image source="/images/globalhelp.gif"
           shortDesc="global help"
           longDescURL="help.html"
           id="i2"/>
   ...

6.7.2 What You May Need to Know About Supported Image File Formats

The following are supported formats for BlackBerry smartphones:

• GIF

• JPEG

• PNG

• BMP

• TIFF

• WBMP

The following are supported formats for Windows Mobile devices:

• GIF

• JPG

• PNG

6.7.3 What You May Need to Know About Geometry Management and the Image Component

By default, the Image component uses only enough area to fit its contained bitmap.

If the width attribute is specified, the Image component will take on the lesser of the specified width and available width. If the height attribute is specified, the Image component will take on the lesser of the specified height and available height. If the align attribute is specified, the Image component will not necessarily use the full width of the parent container.

The display position of the Image component depends on the panel on which it is layered. The following geometry behavior of the Image is identical on BlackBerry and Windows Mobile platforms:

• On vertical panels: Image is always positioned below the previous component and horizontally aligned according to the align attribute value.

• On horizontal panels: Image is always positioned to the right of the previous component and is vertically aligned according to the verticalAlign attribute value.

6.8.1 How to Use the Table Component

Example 6-17 demonstrates the declaration of a table element in an MCX file, with three column subelements, each containing outputText and convertNumber subelements.

...
<amc:table id="tblOrders"
           value="#{bindings.OrderItems1View2.collectionModel}" var="row">
   <amc:column sortProperty="ProductName" sortable="true" headerText="Product Name">
      <amc:outputText value="#{row.bindings.ProductName.inputValue}"/>
   </amc:column>
   <amc:column sortProperty="UnitPrice" sortable="true" headerText="Price">
      <amc:outputText value="#{row.bindings.UnitPrice.inputValue}">
         <amc:convertNumber groupingUsed="false"
                            pattern="#{bindings.OrderItems1View2.hints.UnitPrice.format}"/>
      </amc:outputText>
   </amc:column>
   <amc:column sortProperty="Quantity" sortable="true" headerText="Quan.">
      <amc:outputText value="#{row.bindings.Quantity.inputValue}">
         <amc:convertNumber groupingUsed="false"
                            pattern="#{bindings.OrderItems1View2.hints.Quantity.format}"/>
      </amc:outputText>
   </amc:column>
</amc:table>
...

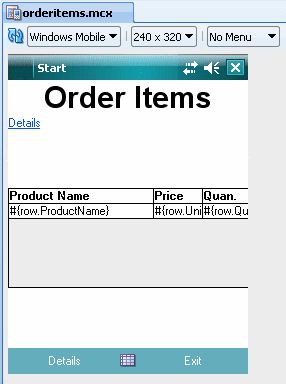

Figure 6-28 shows the Table component in the Design page of the visual editor.

Figure 6-28 The Table component in Design Page

The Table component is equipped with the following additional features:

• Context-sensitive menu commands

• Dynamic sorting and filtering

To create a table using a data control, you bind the Table component to a collection. JDeveloper allows you to do this declaratively by dragging and dropping a view object from the Data Controls panel.

To create a databound table:

1. From the Data Controls panel, select a view object.

2. Drag the view object onto an MCX page or into the Structure window.

3. From the context menu, choose the appropriate table.

   When you drag the collection, you can choose from the following types of tables:

   • ADF Table: Allows you to select the specific attributes you wish your editable table columns to display, and what UI components to use to display the data. By default, ADF Input Text components are used for most attributes, thus enabling the table to be editable. Attributes that are dates use the Input Date component. Additionally, if a control type control hint has been created for an attribute, or if the attribute has been configured to be a list, then the component set by the hint is used instead.

   • ADF Read-Only Table: Same as the ADF Table; however, each attribute is displayed in an Output Text component.

4. The ensuing Edit Table Columns dialog shows each attribute in the collection, and allows you to determine how these attributes will behave and appear as columns in your table.

   Note:

   If the collection contains a structured attribute (an attribute that is neither a Java primitive type nor a collection), the attributes of the structured attributes will also appear in the dialog.

   Using this dialog, you can do the following:

   • Allow the ADF Model layer to handle selection by selecting the Row Selection checkbox. Selecting this option means that the iterator binding will access the iterator to determine the selected row. Select this option unless you do not want the table to allow selection.

   • Allow the ADF Model layer to handle column sorting by selecting the Sorting checkbox. Selecting this option means that the iterator binding will access the iterator, which will perform an order-by query to determine the order. Select this option unless you do not want to allow column sorting.

   • Allow the columns in the table to be filtered using entered criteria by selecting the Filtering checkbox. Selecting this option allows the end user to enter criteria in text fields above each column. That criteria is then used to build a Query-by-Example (QBE) search on the collection, so that the table will display only the results returned by the query.

   • Group columns for selected attributes together under a parent column, by selecting the desired attributes (shown as rows in the dialog), and clicking the Group button.

   • Change the display label for a column. By default, the label is bound to the labels property for any control hint defined for the attribute on the table binding. This binding allows you to change the value of a label text once on the view object, and have the change appear the same on all pages that display the label.

     Instead of using this default, you can enter text or an EL expression to bind the label value to something else, for example, a key in a resource file.

   • Change the value binding for a column. You can change the column to be bound to a different attribute. If you simply want to rearrange the columns, you should use the order buttons. If you do change the attribute binding for a column, the label for the column also changes.

   • Change the UI component used to display an attribute. The UI components are set based on the table you selected when you dropped the collection onto the page, on the type of the corresponding attribute (for example, Input Date components are used for attributes that are dates), and on whether or not default components were set as control hints on the corresponding view object. You can change to another component using the context menu.

     Tip:

     If one of the attributes for your table is also a primary key, you may want to choose a UI component that will not allow a user to change the value.

     Tip:

     If you want to use a component that is not listed in the context menu, use this dialog to select the Output Text component, and then manually add the other tag to the page.

   • Change the order of the columns using the order buttons.

   • Add a column using the Add icon. There is no limit to the number of columns you can add. When you first click the icon, JDeveloper adds a new column line at the bottom of the dialog and populates it with the values from the first attribute in the bound collection; subsequent new columns are populated with values from the next attribute in the sequence, and so on.

   • Delete a column using the Delete icon.

5. Once the Table is dropped on the page, you can use the Property Inspector to set other display properties of the Table component (see Oracle Fusion Middleware Tag Reference Library for Oracle ADF Mobile Client). For example, you may want to set the width of the table to a certain percentage or size. For more information about display properties, see "Using Tables and Trees" chapter in Oracle Fusion Middleware Web User Interface Developer's Guide for Oracle Application Development Framework.

   Tip:

   When you set the table width to 100%, the table will not include borders, so the actual width of the table will be larger. To have the table set to 100% of the container width, expand the Style section of the Property Inspector, select the Box tab, and set the borderWidth attribute to 0 pixels.

   You enable sorting by setting a Column's sortable attribute to true, and its sortProperty attribute to a valid value. On BlackBerry smartphones, this allows the end user to invoke sorting from the menu when the table is in either cell or component selection mode: a table-specific "Sort" menu item is automatically added to the displayed menu at the time when the Table component gains focus (see Example 6-17). On Windows Mobile devices, sorting can be invoked by clicking on the column header. The header of sortable columns contains arrows indicating which column is currently sorted and in which direction.

   On BlackBerry smartphones, if you set a table column's filterable attribute to true, the table-specific "Filter" menu item is automatically added to the displayed menu at the time when the Table component gains focus (see Example 6-17).

6. If you want the end user to be able to edit information in the table and save any changes, you have to provide a way to submit and persist those changes. For more information and procedures on creating tables that allow data input, see "Using Tables and Trees" chapter in Oracle Fusion Middleware Web User Interface Developer's Guide for Oracle Application Development Framework.

6.8.2 What Happens When You Create a Table

Dropping a Table from the Data Controls panel has the same effect as dropping an Input Text or Form. Briefly, JDeveloper does the following:

• Creates the bindings for the table and adds the bindings to the page definition file

• Adds the necessary code for the UI components to the MCX page.

6.8.3 What You May Need to Know About Event Listeners and Table Components

You can add the following event listeners to Table components:

• rangeChangeListener

• selectionListener

• sortListener

These event listeners are applicable to the tables for ADF Mobile client run-time description on both BlackBerry and Windows Mobile devices, but they do not have any effect at design time.

For more information, see Section 6.12, "Using Event Listeners."

6.8.4 What You May Need to Know About the Table User Interaction Model

On non-touchscreen BlackBerry smartphones:

The Table supports three user interaction modes: table selection, row selection, and cell selection.

By default, the Table starts in table selection mode. You can change this behavior by specifying the startingSelectionMode attribute. Pressing the trackball changes the mode from table to cell to component, while pressing the back key changes the mode from component to cell to table.

In table selection mode, the entire table behaves as one focusable component. When the table has focus, its border is drawn with a different color (black by default). It is not possible to change the selected row or interact with components inside the table in this mode. That means that trackball and key events are consumed by the table and are not passed to the contained components.

In row selection mode it is possible to navigate between rows and columns. Navigating between rows updates the current row in the Table's CollectionModel, while changing the column updates the sort and filter menu choices. The current row is indicated by setting the background color to dark grey (#9CACC9), while the background of the currently selected cell is set to light yellow (#FFFCD8). As in table mode, it is not possible to interact with components inside the cell or to navigate between them.

In cell selection mode it is possible to interact with and navigate between components inside a cell. As in row selection mode, the current cell is indicated by drawing its border in a different color (blue by default). All key and trackball events are handled first by the focused component. If there are several focusable components within a cell, then navigation events first move focus between those components before changing the selected cell. If there are no focusable components inside a cell, then that cell may still become selected as in row selection mode.

On Windows Mobile devices:

The table navigation is performed by either using scroll bars or swiping in the desired direction. Touching a cell or giving focus to a component inside it will set this cell as the current cell, and its row as the current row.

6.8.5 What You May Need to Know About Using a Databound Select One Choice Component Within a Table

To use a databound Select One Choice component within a Table, you must declare a list binding in the page definition and then associate it with the proper Column attribute, as Example 6-18 shows.

<bindings>
   ...
   <!-- added new list binding -->
   <list IterBinding="-iteratorID-" StaticList="false" Uses="-LOVID-"
         id="-listBindingID-" DTSupportsMRU="true"/>
   <tree ...>
      <nodeDefinition ...>
         <AttrNames>
            ...
            <!-- added Binds attribute that references list binding -->
            <Item Value="-lovEnabledAttributeName-" Binds="-listBindingID-"/>

For more information, see Section 6.3.2.3, "Adding Data Controls to the View."

6.9.1 How to Use the Button Component

You use the Button (commandButton) component to trigger actions and enable navigation through the view.

Example 6-19 demonstrates how to declare the commandButton element in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
   ...
      <amc:panelGroupLayout id="panelGroupLayout3"
                            layout="horizontal">
      ...
         <amc:commandButton text="Search"
                            id="commandButton2
                            actionListener="#{bindings.ExecuteWithParams}">
            <amc:setActionListener from="#{true}"
                                   to="#{applicationScope.SearchExecuted}"/>
         </amc:commandButton>
      ...

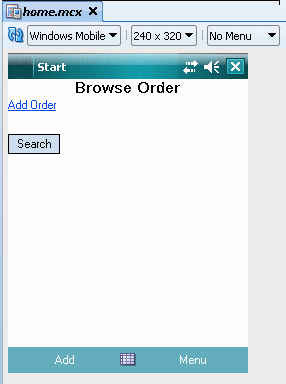

Figure 6-29 shows the Search Button in the Design page of the visual editor.

Figure 6-29 Button and Link in Design Page

You can use the Button component within the Panel Group Layout, Panel Form Layout, Panel Label And Message, and Table components, as well as inside any container component.

6.9.2 How to Use the Link Component

You use the Link (commandLink) component to enable navigation.

Example 6-20 demonstrates how to declare the commandLink element in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
   ...
      <amc:panelGroupLayout id="panelGroupLayout7">
            <amc:commandLink id="commandButton1"
                             text="Add Order"
                             actionListener="#{bindings.CreateInsert}"
                             action="create"/>
   ...

Figure 6-29 shows the Add Order Link component in the Design page of the visual editor.

You can use the Link component within the Panel Group Layout, Panel Form Layout, Panel Label And Message, and Table components, as well as inside any container component.

6.9.3 How to Enable the Back Button Navigation

The mobile client supports navigation using the back button, with the default behavior of going back to the previously visited page enabled on the Escape-key press on the BlackBerry smartphone.

A combination of the page history implementation and the Form's onBack attribute (see Section 6.4.1.1, "How to Add a Form to a Page") provides the basis for this functionality.

You can customize the back button behavior by invoking a custom bean method. To do so, you add the onBack attribute to the form element (see Section 6.4.1.1, "How to Add a Form to a Page"). Example 6-21 shows an MCX file that uses the onBack attribute.

<amc:view xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0" onBack="#{applicationScope.Bean.onBackMethod}">
      <amc:panelGroupLayout id="panelGroupLayout1">
         <amc:outputText value="Press the back button" id="outputText1"/>
      </amc:panelGroupLayout>
   </amc:form>
</amc:view>

Example 6-22 shows a custom method that you may use to specify whether the framework should continue with the default behavior, or execute the custom behavior.

private void onBackMethod(Object[] params) {
   if (params != null && params.length > 0) {
      String param = params[0].toString();
      Trace.log(Trace.UI_LOGNAME, Level.FINE, this.getClass(),
                "onBackMethod", "params[0] = " + param);
   }
   int result = MessageBox.show("Title", "Select a value",
                new String[] { "Go back", "Cancel" }, new int[] { 20, 30 });
   if (params[0] instanceof ClientEvent) {
      ClientEvent backEvent = (ClientEvent) params[0];
      if (result == 20)
         backEvent.setParameter("isConsumed", new Boolean(false));
      else if (result == 30)
         backEvent.setParameter("isConsumed", new Boolean(true));
      else
         Trace.log(Trace.UI_LOGNAME, Level.FINE, this.getClass(),
                   "onBackMethod", "messageBox returned " + result);
   }
}

In the preceding example, the bean method is passed a ClientEvent object. The isConsumed parameter is set to a boolean value in the setParameter method of the ClientEvent. Setting the isConsumed parameter to true informs the framework that the click has been handled completely and that it should not continue with the default back button behavior.

Example 6-23 demonstrates how to invoke the custom onBack method shown in Example 6-22.

public Object invokeMethod(String methodName, Object[] params) {
   if (methodName.equals("onBackMethod")) {
      onBackMethod(params);
   }
   return null;
}

For more information, see Oracle Fusion Middleware Java API Reference for Oracle ADF Mobile Client.

6.10.1 How to Use the Scanner Component

Example 6-24 demonstrates how to declare the scanner element in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
   ...
       <amc:panelGroupLayout id="panelGroupLayout1"
                            layout="vertical"
                            rendered="#{!applicationScope.addMode}"
                            width="100%">
       ...
       </amc:panelGroupLayout>
       <amc:scanner id="scanner1" action="edit"/>
   </amc:form>
...

The Scanner component is not visible in the Design page.

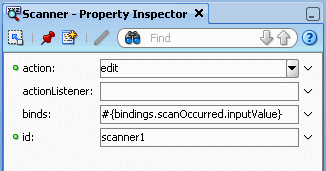

Figure 6-27 shows the Property Inspector settings for the Scanner component.

Figure 6-30 Scanner Component Properties

6.10.2 What You May Need to Know About Event Listeners and Scanner Components

You can add the actionListener to Scanner components.

You can also define other actionListener components as children of the Scanner component.

This event listener is applicable to Scanner components for ADF Mobile client run-time description on both BlackBerry smartphones and Windows Mobile devices, but it does not have any effect at design time.

For more information, see Section 6.12, "Using Event Listeners."

6.10.3 How to Integrate a Barcode Scanner Into a Mobile Client Application

You can integrate a barcode scanner into an ADF Mobile client application by creating the scanner data control with the Scanner Data Control for ADF Mobile Client Application wizard.

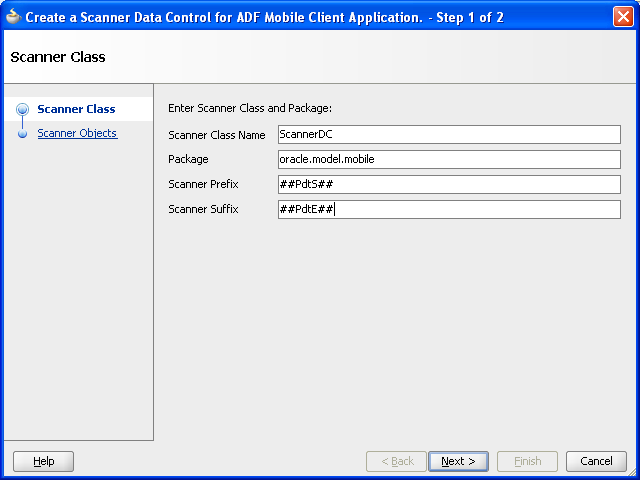

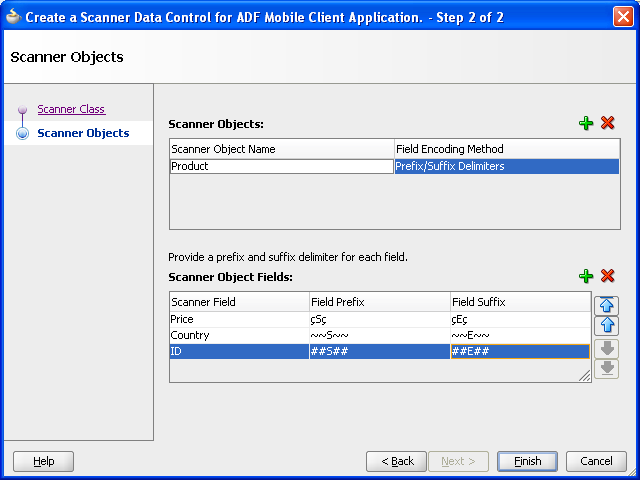

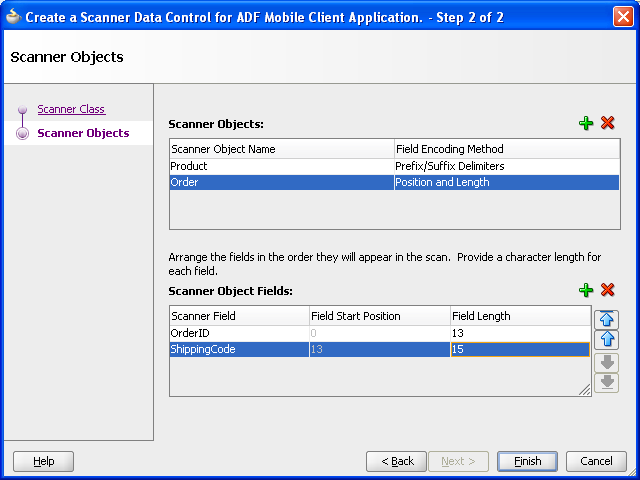

6.10.3.2 What Happens When You Create a Scanner Data Control

After you complete the wizard, JDeveloper creates a data control using the name defined in the wizard. This file includes data controls for the scanner objects. Because JDeveloper also updates DataControls.dcx file with the scanner data control information, the scanner data controls display in the Data Controls panel. (The design time uses this file to populate the Data Control panel.) Figure 6-34 shows a scanner file called ScannerDC (the default name generated by JDeveloper) as well as data collections created from the configured scanner objects, order and project.

Note:

You can add only one scanner data control file per application.

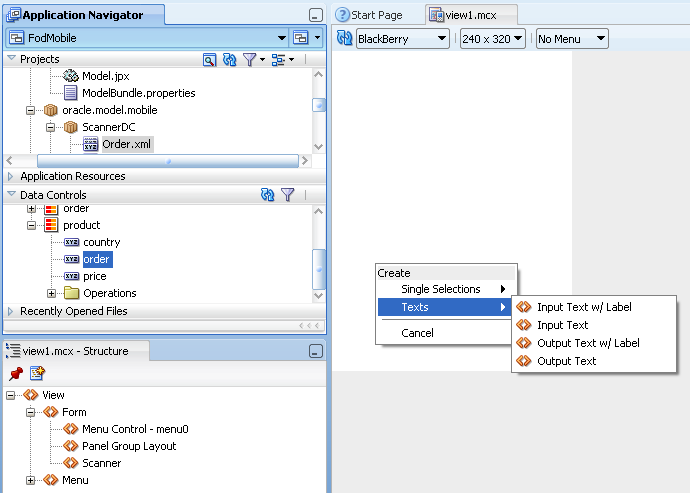

Figure 6-34 Scanner Data Controls

In addition to the data controls, the wizard creates XML files used by the runtime to parse the scanned data. For example, Figure 6-35 shows the resulting XML file created for a scanned object called order in the Application Navigator.

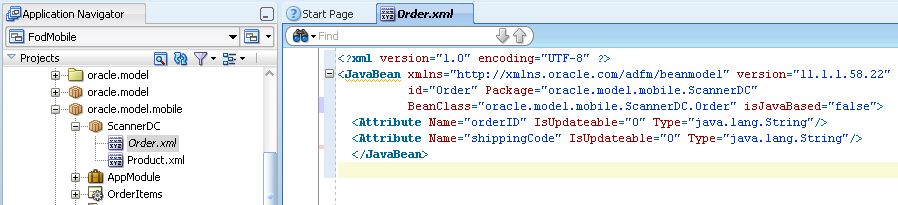

Figure 6-35 The XML File for a Scanned Object

6.11.1 Menu Types

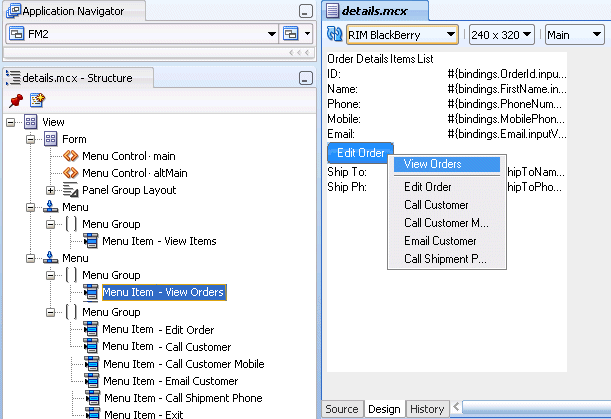

The mobile client's Menu Designer supports the following styles of menus:

• Standard menu for Windows Mobile devices

• Full menu for BlackBerry smartphones

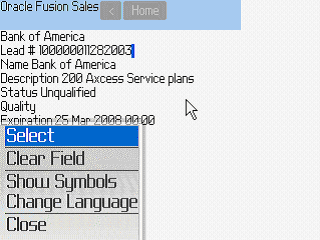

You choose whether or not to display a menu by making selections using a combo box located on the UI designer tool bar. The following are valid values for the menu type selector:

• No Menu: The menu is not displayed when a UI component or panel is selected. This is the default option.

• Main: Only full menus are displayed when a UI component or panel is selected. Corresponds to either Windows Mobile Standard menu, or BlackBerry Full menu.

Also note the following:

• If you change the platform at design time, the menu type selector will retain the displayed value.

• If you open a new split screen, the menu type selector will switch to the default value of No Menu.

• If a menu or any of its menu items is selected in the Structure window or source editor, this menu will be displayed in the Design page regardless of the menu type selector's value on an applicable platform.

Table 6-7 lists types of menus that you can define. Each type behaves differently depending on the platform on which your application is viewed.

When displayed, menus with the same type and id values and that meet the platform type criteria are combined together and treated as a single menu. For example, the contents of the following menu definitions in an MCX file would be combined on a Windows Mobile device:

<menu type="main" platform="all">

and

<menu type="main" platform="wm">

Note that for Main and Alt menus, the id attribute values are implicitly matching.

<amc:menu id="main" type="main">
   <amc:menuGroup index="200">
      <amc:commandMenuItem label="View Orders"
                           index="10"
                           weight="0"/>
   </amc:menuGroup>
   <amc:menuGroup index="250">
      <amc:commandMenuItem label="Edit Order"
                           index="20"
                           weight="0"/>
      <amc:commandMenuItem label="Call Customer"
                           index="30"
                           weight="0"/>
      <amc:commandMenuItem label="Exit"
                           index="70"
                           weight="0"
                           platform="wm"
                           action="appExit"/>
   </amc:menuGroup>
</amc:menu>

<amc:menu id="altMain" type="alt">
   <amc:menuGroup index="200">
      <amc:commandMenuItem label="View Items"
                           index="0"
                           weight="0"/>
   </amc:menuGroup>
</amc:menu>

6.11.2 Menu Components

A Menu component represents a virtual XSD group definition referring to either a menu element or a commandMenuItem element in an MCX file (see Example 6-26 and Example 6-27), allowing you to create a menu that contains both menu items and submenus.

You add a menu component by dragging and dropping it onto the MCX page from the Component Palette (see Section 6.3.2.1, "Adding UI Components"). Then you use the Property Inspector to set the component's attributes (see Section 6.3.2.4, "Configuring UI Components"). For information on attributes of each particular menu component, see Oracle Fusion Middleware Tag Reference Library for Oracle ADF Mobile Client.

Example 6-27 shows how to define menu components in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
       <amc:panelGroupLayout backgroundColor="red" width="100"/>
   </form>
   ...
   <amc:menu id="altMain" type="alt">
      <amc:menuGroup index="200">
         <amc:commandMenuItem label="View Items"
                              index="0"
                              weight="0"/>
      </amc:menuGroup>
   </amc:menu>
</view>

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   <amc:form id="form0">
      <amc:menuControl refId="altMain"/>
      <amc:panelGroupLayout id="home" layout="vertical">
         <amc:panelGroupLayout layout="vertical">
            <amc:inputText id="txtUserName"
                           label="User Name: "
                           value="#{securityContext.userName}"/>
            <amc:inputText id="txtPassword"
                           label="Password: "
                           value="#{securityContext.password}" secret="true"/>
      </amc:panelGroupLayout>
      ...
   </amc:form>
</amc:view>

6.11.2.5 Sub Menu

You use ADF Mobile client's Sub Menu (subMenu) to create cascading menus for Windows Mobile devices.

Note:

Submenus always expand to the left.

In an MCX file, you define subMenu elements as children of the menu, as Example 6-29 shows.

Example 6-29 Defining the subMenu

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   ...
   <amc:menu id="main" type="main">
      <amc:menuGroup index="200">
         <amc:commandMenuItem label="View Orders"
                              index="10"
                              weight="0"/>
      </amc:menuGroup>
      <amc:menuGroup index="250">
         <amc:subMenu label="View Customers"
                 rendered="true">
            <amc:menuGroup index="200">
               <amc:commandMenuItem label="Ascending"
                                    index="15"
                                    weight="0"/>
               <amc:commandMenuItem label="Descending"
                                    index="16"
                                    weight="0"/>
            </amc:menuGroup>
         </amc:subMenu>
         <amc:commandMenuItem label="Edit Order"
                              index="20"
                              weight="0"/>
         <amc:commandMenuItem label="Call Customer"
                              index="30"
                              weight="0"/>
         <amc:commandMenuItem label="Call Customer Mobile"
                              index="40"
                              weight="0"/>
         <amc:commandMenuItem label="Email Customer"
                              index="50"
                              weight="0"/>
         <amc:commandMenuItem label="Call Shipment Phone"
                              index="60"
                              weight="0"/>
         <amc:commandMenuItem label="Exit"
                              index="70"
                              weight="0"
                              platform="wm"
                              action="appExit"/>
      </amc:menuGroup>
   </amc:menu>
</amc:view>

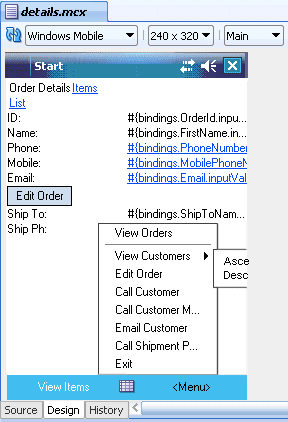

Figure 6-37 shows the Sub Menu component in the Design page of the visual editor.

Figure 6-37 Defining the Sub Menu

6.11.3 How to Associate Menus with UI Components

You can create an association between a UI component and one or more Alt or Main menus by inserting a menuControl child element under the component element in your MCX file, and then setting the refId attribute of the menuControl (see Oracle Fusion Middleware Tag Reference Library for Oracle ADF Mobile Client) to the id attribute of the subject menu item, as the following example shows:

...
<amc:outputText id="AccountName" …>
   <amc:menuControl refId="accountContextMenu">
</amc:outputText>
...

For menus that are meant to be displayed on the top-level menu bar, the mobile client Menu Designer provides an association tool in the form of a popup dialog that you can reach through a context menu selection on the UI component in the Structure window. This dialog displays a tree view of the available menus defined on the page and allows for a multiple selection of them. Upon completion of the dialog, you create a menuControl element under the original component element for each selected menu in the dialog. That is, when an association is created between a menu and a UI component, the menu will be displayed on the menu bar when its associated UI component has focus.

6.11.4 How to Create Menus for BlackBerry Smartphones

You can create full menus for BlackBerry smartphones.

The full menu pops up on the side of the screen upon the press of the BlackBerry Menu button, as Figure 6-38 shows.

Figure 6-38 Full Menu Displayed on a BlackBerry Smartphone

Note that BlackBerry smartphones do not natively support submenus.

The mobile client's Menu Designer positions full menus in the center of the design view, and the menus readjust their position according to the selected form factor.

Example 6-30 shows the source view of the menu defined in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   ...
   <amc:menu id="altMain" type="alt">
      <amc:menuGroup index="200">
         <amc:commandMenuItem label="View Items"
                              index="0"
                              weight="0"/>
      </amc:menuGroup>
   </amc:menu>
   <amc:menu id="main" type="main">
      <amc:menuGroup index="200">
         <amc:commandMenuItem label="View Orders"
                              index="10"
                              weight="0"/>
      </amc:menuGroup>
      <amc:menuGroup index="250">
         <amc:commandMenuItem label="Edit Order"
                              index="20"
                              weight="0"/>
         <amc:commandMenuItem label="Call Customer"
                              index="30"
                              weight="0"/>
         <amc:commandMenuItem label="Call Customer Mobile"
                              index="40"
                              weight="0"/>
         <amc:commandMenuItem label="Email Customer"
                              index="50"
                              weight="0"/>
         <amc:commandMenuItem label="Call Shipment Phone"
                              index="60"
                              weight="0"/>
         <amc:commandMenuItem label="Exit"
                              index="70"
                              weight="0"
                              platform="wm"
                              action="appExit"/>
      </amc:menuGroup>
   </amc:menu>
</amc:view>

Figure 6-39 shows the menu from Example 6-30 in the Structure window and the Design page.

Figure 6-39 BlackBerry Menu in Structure Window and Design Page

6.11.5 How to Create Menus for Windows Mobile Devices

You can create a standard menu for Windows Mobile devices.

The standard menu is the two-button style of menu, with menu items popping up from either of the two buttons on the bottom of the screen. Note that, instead of a menu, you can assign each button an action. You can also create submenus for menu items on the popup menu, which would create the cascading effect.

The Main menu, which refers to the right-side menu, consists of the following two parts:

1. The appropriate half of the menu bar displayed directly under the visual editor.

2. The associated popup menu displayed directly above the menu bar.

The Alt menu refers to the left-side menu and consists of the appropriate half of the menu bar displayed directly under the visual editor.

Example 6-31 shows the source view of the menu defined in an MCX file.

<amc:view xmlns:amc="http://xmlns.oracle.com/jdev/amc">
   ...
   <amc:menu type="main" id="mainMenu">
      <amc:menuGroup id="menuGroup1" index="1">
         <amc:commandMenuItem id="commandMenuItem1"
                              label="Exit"
                              action="exit"/>
      </amc:menuGroup>
      <amc:menuGroup id="menuGroup2">
         <amc:commandMenuItem label="Undo"
                              id="commandMenuItem2"
                              action="goback"
                              actionListener="#{bindings.Rollback}"/>
      </amc:menuGroup>
   </amc:menu>
   <amc:menu id="altMenu" type="alt">
      <amc:menuGroup id="menuGroup3">
         <amc:commandMenuItem label="Save"
                              id="commandMenuItem3"
                              action="goback"
                              actionListener="#{bindings.Commit}"/>
      </amc:menuGroup>
   </amc:menu>
</amc:view>

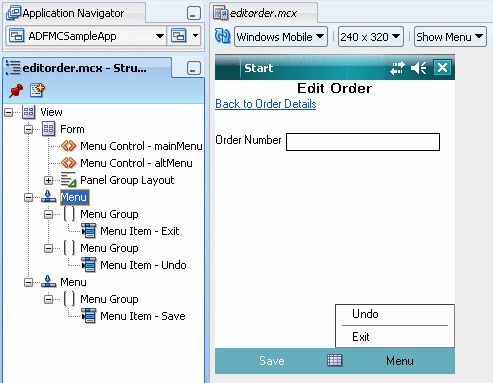

Figure 6-40 shows the menu from Example 6-31 in the Structure window and the Design page.

Figure 6-40 Windows Mobile Menu in Structure Window and Design Page

When creating Main and Alt menus for Windows Mobile devices, consider the following:

• The menu bar (without left or right menu buttons) is always visible by default on the Windows Mobile platform, even if there is no definition of the standard menu in the MCX file.

• The Windows Mobile editor height is reduced by the menu bar height.

• You can specify only one Main type menu per MCX file, although you may specify one Main type menu for each platform option.

• An Alt menu for the Windows Mobile platform has a single menu item.

• Both Main and Alt menus are optional: you do not have to define them.

• The right menu button is labeled with the label attribute of the Main menu (see Oracle Fusion Middleware Tag Reference Library for Oracle ADF Mobile Client).

• If you select the Main menu or any of its children in the Structure window or source editor, the right menu button popup will be displayed showing all submenus and menu items.

• If you select a UI component in the Structure window while the menu type selector is set to Main, the left menu button label will be updated (if this component has a menu item associated with it) and the right menu button popup will be shown (with the system menu items and all menu items associated with the selected component).

• You create separator lines similarly to how you create them for BlackBerry menus, using the Group (group) component and the index attribute (see Oracle Fusion Middleware Tag Reference Library for Oracle ADF Mobile Client).

6.11.6 What You May Need to Know About Design-Time Menu Usage

Figure 6-41 shows a menu combo box that appears at the top of the preview window at design time, with the values "Main" and "No Menu" (default).

Figure 6-41 Menu Selector at Design Time

If the "No Menu" option is selected and the focus is placed on a Menu Control, the menu will pop up and appear in the preview window displaying all of its submenus. If the focus is moved to another component, the menu will disappear. On Windows Mobile devices, if the Menu Control is either associated with the currently focused component or associated with the Form, the menu label will appear in the menu bar at the bottom. This is an indication and visual cue that the menu has been correctly attached to another component via the Menu Control. On BlackBerry smartphones, there is no visual cue for menus since they only appear when the menu key is pressed.

If the "Main" option is selected, all menus associated with the current component or any parent components, including the Form, are always displayed. This allows to see which menus are associated with which components while scrolling through a page or clicking on a page. Because these menus pop up over other components in the preview, this option is used only to verify menu associations and is usually turned off by default.

6.11.7 What You May Need to Know About Event Listeners and Menus

You can add the actionListener to menus.

This event listener is applicable to menus for ADF Mobile client run-time description on both BlackBerry smartphones and Windows Mobile devices, but it does not have any effect at design time.

For more information, see Section 6.12, "Using Event Listeners."

6.14.1 Supported EL Nodes

ADF Mobile client supports the following EL nodes:

• Data bindings: "#{bindings.*}"

• Application Global Variable Scope: "#{applicationScope.*}"

• Sync Context: "#{syncContext.*}"

• Security Context: "#{securityContext.*}"

• Device Context: "#{device.*}"

6.14.2 What You May Need to Know About ADF Mobile Client EL Implementation

The ADF Mobile client EL implementation is based on the Java Unified Expression Language (JUEL) project and follows Expression Language Specification Version 2.1 (available from the JUEL project page at http://juel.sourceforge.net/, and referred to hereinafter as "the specification"), with the following exceptions:

• Immediate and Deferred Evaluation

• Enumerated Types

6.14.3 How to Reference Binding Containers

The active screen's binding container can be referenced by the root EL expression "#{bindings}". Another screen's binding container can be referenced through the expression "#{data.PageDefName}". ADF Mobile client binding objects are referenced by name from the binding container "#{bindings.Name}".

Table 6-8 lists the properties that you can use in EL expressions to access values of ADF Mobile client binding objects at run time. The table lists these properties in alphabetical order.

^Footnote 1  The EL term 'row' is used within the context of a collection component. 'row' simply acts as an iteration variable over each element in the collection whose attributes can be accessed by an ADF Mobile client binding object when the collection is rendered. Attribute and list bindings can be accessed through the row variable. The syntax for such expressions will be the same as those used for accessing binding objects outside of a collection, with the 'row' variable prepended as the first term: #{row.bindings.Name.property}.

6.14.4 EL Events

EL events play a significant role in the functioning of the ADF Mobile client UI.

EL expressions can refer to values in various contexts. Example 6-35 shows the creation of two Input Number Spinbox components, with each component tied to an applicationScope value. The Output Text then uses EL to display a simple addition equation along with the calculated results. When the framework parses the EL expression in the Output Text labels, it determines that the expression contains references to two values and creates event listeners (see Section 6.12, "Using Event Listeners") for the Output Text on those two values. Anytime the value of the underlying expression changes, an event is generated to all listeners for that value.

<amc:inputNumberSpinbox id="spin1" label="X" value="#{applicationScope.X}"/>
<amc:inputNumberSpinbox id="spin2" label="Y" value="#{applicationScope.Y}"/>
<amc:outputText id="ot1" value="#{applicationScope.X} +
       #{applicationScope.Y} = #{applicationScope.X + applicationScope.Y}"/>

In the preceding example two components are updating one value each, and one component is consuming both values. Example 6-36 shows that the behavior would be identical if a third Input Number Spinbox component is added that references one of the existing values.

<amc:inputNumberSpinbox id="spin1" label="X" value="#{applicationScope.X}"/>
<amc:inputNumberSpinbox id="spin2" label="Y" value="#{applicationScope.Y}"/>
<amc:outputText id="ot1" value="#{applicationScope.X} +
       #{applicationScope.Y} = #{applicationScope.X + applicationScope.Y}"/>
<amc:inputNumberSpinbox id="spin3" label="X" value="#{applicationScope.X}"/>

In the preceding example, when either Input Number Spinbox component updates #{applicationScope.X}, the other will automatically be updated along with the Output Text. All of the updates are automatic (no coding is required).

6.15.1 What You May Need to Know About Sequencing

By default, invokeActions declared with the same Refresh value will execute in the order they are declared in the pagedef.

To override this behavior, a predecessor iterator or invokeAction can be specified with the RefreshAfter attribute. Note, however, that the predecessor will still execute or not based on its own Refresh and RefreshCondition values.
