5 Developing the ADF Mobile Client Data Model

This chapter provides an overview of developing the ADF Mobile client model layer.

This chapter includes the following sections:

5.1 Building Business Services for ADF Mobile Client Applications

Mobile client utilizes ADF Business Components, which simplify building business services. By eliminating the substantial coding and testing related to common application development. ADF Business Components enable you to instead focus on implementing business solutions. ADF Business Components provide a foundation of Java classes that business-tier application components extend to leverage a robust implementation of the numerous design patterns you need in many areas. The benefits of ADF Business Components include:

Simplified Data Access

ADF Business Components enable you to do the following:

Enforcement of Business Domain Validation and Business Logic

Support for Sophisticated User Interfaces with Multi-Page Units of Work

Implementation of Best Practices, High-Performance, Service Oriented Architecture

5.1.1 Support for the Core ADF Business Components

As the mobile implementation of the Oracle ADF architecture, ADF Mobile client utilizes the core ADF Business Components but with some modifications:

  • entity object

    An entity object represents a row in a database table. It simplifies modifying the row's data by handling all data manipulation language (DML) operations for you. An entity object encapsulates business logic for the row to ensure your business rules are consistently enforced. You associate an entity object with others to reflect relationships in the underlying database schema to create a layer of business domain objects to reuse in multiple applications. Association objects define relationships between entity objects.

  • view object

    View objects provide the means to retrieve data from a data source. In most cases, the data source will be a database and the mechanism to retrieve data is the SQL query. The view object simplifies working with the results of the SQL query. A data model project can include the following types of view objects:

    • Read-only view objects when updates to data are not necessary (may be entity-based)

    • Entity-based view objects when data updates will be performed

    ADF Mobile client applications generally use entity-based view objects. These rows are not populated until run time.

  • application module

    An application module is the transactional component that UI clients use to work with application data. It defines an updatable data model and top-level procedures and functions (called service methods) related to a logical unit of work related to an end-user task. Unlike ADF Faces applications, ADF Mobile client supports only a single, globally accessible application module. For more information, see "Getting Started with ADF Business Components" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

    Because the application module component supports a "UI- aware" data model of row sets, you do not need to write additional code for typical Create, Update, and Delete operations. By declaratively binding such client UI components to active view object instances in the application module's data model, the components in an MCX page automatically update to reflect changes in the rows of the view object row sets of the data model. For more information, see "Overview of the UI-Aware Data Model" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

5.1.2 Support for Mobile Database Transactions

The ADF Mobile client framework does the following after the user saves changes made to the data using an ADF Mobile client application:

  1. DBTransaction.commit() is invoked, which in turn generates appropriate DML statements for all changes to the data model.

  2. As each statement is posted to the database, an event is fired, which in turn generates an XML record—an entity Replay Item—which encapsulates the details of the INSERT, UPDATE, or DELETE statement.

  3. After the transaction is committed, another event is fired, which causes the previously generated XML records to be written to the database in a separate transaction.

  4. At some later point, data synchronization is initiated, either on-demand or in the background, and Oracle Database Lite Mobile Server (Mobile Server) transfers the Replay Item(s) up to the Mobile Server instance.

  5. If data satisfies all necessary criteria, then it is committed to the enterprise database. Otherwise, an error is recorded in Mobile Server and then delivered to the mobile client the next time synchronization occurs.

5.2 Extending an ADF Application to Mobile Client

As described in Section 4.5, "Extending the Base Application for the Mobile Client Application," the mobile client application is an extension of the server, or base application. The entity and view objects, as well as their attributes, are subsets of the objects owned by the base application. To enable you to create a subset of entity objects (as well as the attributes of these entity objects) and view objects that are required by the mobile client projects, mobile client provides the Create Business Components for ADF Mobile Client wizard, which derives objects from the ADF library JAR created from the base application. For more information about creating an ADF library JAR from the base application, see Section 4.3, "Deploying the Model Project of the Base Application as an ADF Library."

5.2.1 How to Create Subsets of Entity Objects and View Objects

The Create Business Components from ADF Library wizard provides a multi-step approach to adding business components to the ADF Mobile client application. First, you point to the ADF library JAR file that was previously exported from the base ADF application. The ADF library JAR enables you to reuse the ADF Business Components defined in the base application. Next, you select the entity objects and entity attributes that are required for the mobile client application. Lastly, you create updatable view objects based on the previously selected entity objects and add them to a new application module.

Tip:

You can add transient attributes to entity objects that do not persist to columns defined in the underlying table. Any manually added attributes on mobile client entity objects are considered transient attributes.

Before you begin:

As described in Section 4.4.1, "How to Create an Application Workspace," you must have an ADF library JAR of the model project containing the entity objects and view objects on which you base the ADF Mobile client application. For information on creating an ADF library JAR, see "Packaging a Reusable ADF Component into an ADF Library" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

To create subsets of entity objects:

  1. In the Application Navigator, right-click the model project you created in Section 4.4.1, "How to Create an Application Workspace," and choose New.

  2. In the New Gallery, expand Business Tier, select ADF Mobile Client Business Components and then Business Components from ADF Library. Click OK.

    If this is the first component that you are creating in the project, the Initialize Business Components Project dialog appears to allow you to select a database connection to the server (base) application. You use this application to develop the business components for an ADF Mobile client application.

    Note:

    ADF Mobile client only supports SQL92 as the SQL flavor for the database connection.

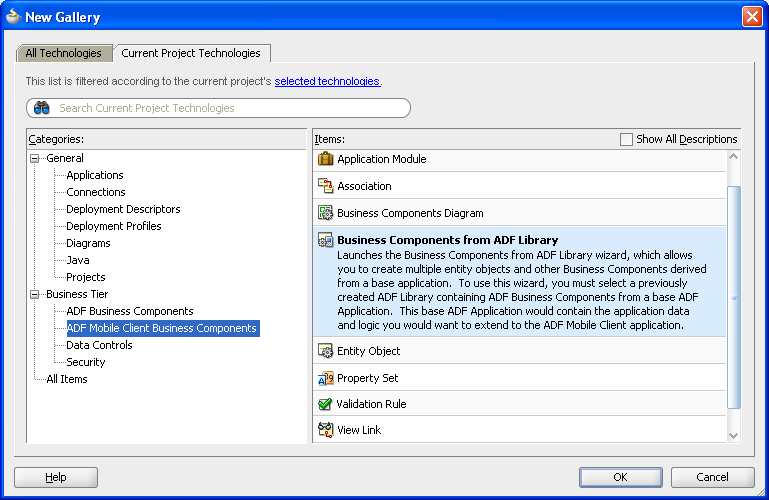

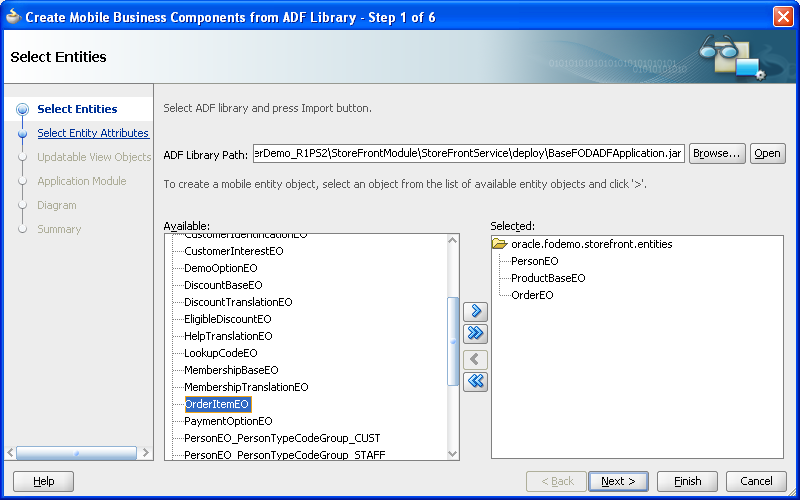

    Figure 5-1 Selecting the Business Components from ADF Library Wizard

    Selecting the Business Components for ADF Library wizard.
  3. In the Initialize Business Components Project dialog, select the database connection or choose New to create a connection. Click OK.

    Note:

    You must use the same connection used by the base (server) application. Do not use the connection to the Oracle database schema where Mobile Server artifacts are stored.
  4. After JDeveloper establishes the connection, Business Components from ADF Library wizard appears. In the Select Entities page, enter the location (or browse for) the ADF library JAR created from the base application, and click Open.

    Note:

    Because the location of the ADF Library JAR used to create an ADF Mobile client application is hard-coded in the model project, you must update the JAR's location for the NMCBaseLibraryFilePath property in Model.jpx if you move the mobile application to another computer or change or delete the JAR. The application will not run unless you change this value.

    For example, Figure 5-2 shows the result of shuttling the ProductBaseEO, OrderEO, and ProductBaseEO entity objects into the Selected list from the Available list, which includes all of the entity objects.

  5. Shuttle the entity objects that you want to base the mobile entity objects on to the Selected list. Click Next.

    Figure 5-2 Selecting Entity Objects for the Mobile Client Application

    Select entity objects.
  6. In the Select Entity Attributes page, select the attributes that you want to include from each entity usage in the Selected list. Shuttle the ones that you do not want to the Available list. Click Next.

    Note:

    The attributes that appear by default in the Available window are calculated fields that do not have a mapping in the database table definition. You cannot move any attribute that is a primary key from the Selected list.

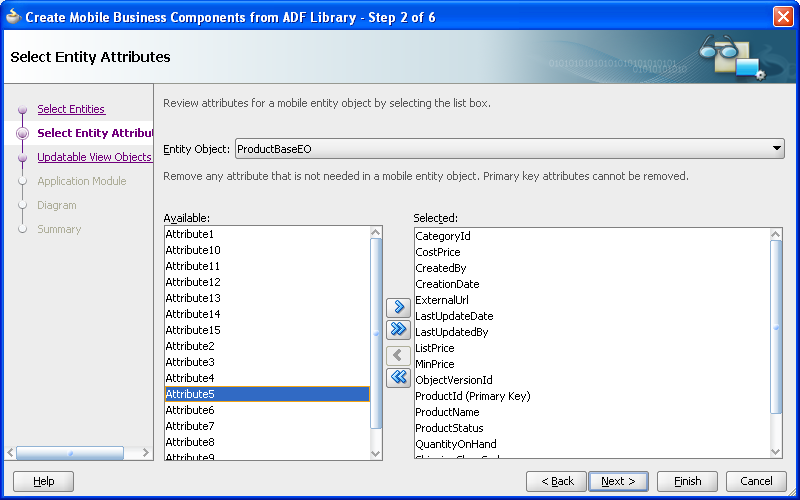

    For example, Figure 5-3 shows the attributes have been selected from the ProductBaseEO entity object.

    Figure 5-3 Selecting Attributes for the Entity Objects of the Mobile Client Application

    Select attributes.
  7. In the Updatable View Objects page, select the entity objects to create a default view object. Click Next.

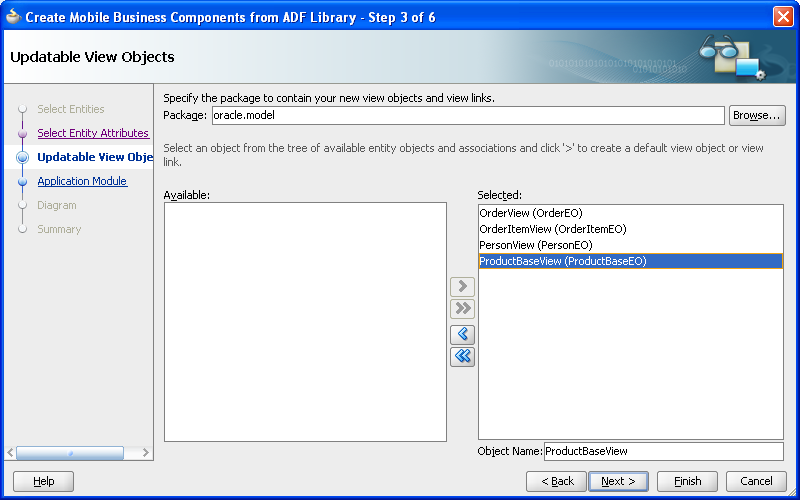

    For example, Figure 5-4 shows that OrderEO and OrderItemEO have been selected to create the view objects OrderEOView and OrderItemEOView.

    Figure 5-4 Selecting View Objects

    Select view objects
  8. In the Application Module page, select Application Module and then enter a name for the application module. For more information on application modules, see "Getting Started with ADF Business Components" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework. Click Next.

  9. In the Summary page, click Finish.

Tip:

You can update the entity objects using the overview editor for entity objects, described in Section 5.3, "Editing Mobile Entity Objects."

5.2.2 What Happens When You Create a Subset of Entity Objects and View Objects

When you create a subset of the entity objects and view objects, JDeveloper creates the new application module, along with the entity objects, view objects, associations, and view links. It lists them in the Application Navigator.

For example, Figure 5-5 illustrates the model project and its contents in the Application Navigator.

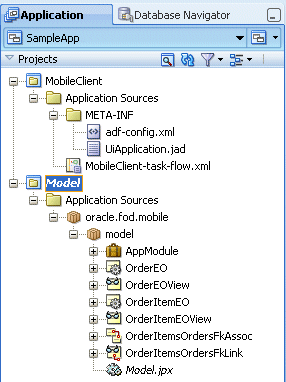

Figure 5-5 Model Project in the Application Navigator

Business events generated for a mobile entity object

5.3 Editing Mobile Entity Objects

At any point during application development, you can expose additional attributes or change certain properties of the attributes that already belong to mobile entity objects using the overview editor for entity objects, shown in Figure 5-6. Likewise, you can use overview editors for view objects, view links, and application modules as you would for a standard ADF application. However, because you selected the ADF Mobile client technology when you created the project, these editors display only the properties that are pertinent to ADF Mobile client.

5.3.1 About Using the Overview Editors for Mobile Objects

The overview editors for entity objects, view objects, and application modules include only the features that pertain to ADF Mobile client. Table 5-1 lists the editor features that are not present for ADF Mobile client development.

Table 5-1 Non-ADF Mobile Client Features in Overview Editors

Editor Page Feature(s) Not Supported in ADF Mobile Client

Entity Object

General

Features not used for ADF Mobile client development include:

  • Custom Properties

  • Because ADF Mobile client does not support multiple application module, the Extends feature is not available; you cannot specify a parent application module.



Attributes

Features not used for ADF Mobile client include:

  • Custom Properties

  • Security

Features not supported in the Attributes Editor

  • Custom Properties page—not included in ADF Mobile client.

  • Dependencies page— not included in ADF Mobile client.

Add Rule Validation dialog—Script Expression is not available as a rule type. For more information on the Add Rule dialog, see Section 5.3.5, "Adding Validation Rules."

View Object

General

Features not used for ADF Mobile client include:

  • Because ADF Mobile client does not support multiple application module, the Extends feature is not available; you cannot specify a parent application module.

  • Tuning section

  • Alternate keys section



Entity

Features not used for ADF Mobile client include:

  • You cannot add child entity objects (the Subtypes button is not available).

  • Right outer join is not supported as a join type, meaning you cannot designate a view object to return all rows that exist in one entity object, even though corresponding rows do not exist in the joined entity object. For more information, see "How to Create Joins for Entity-Based View Objects" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

  • Participate in Row Delete option is not available. As a result, for the updatable entity object, there is no action of removing rows in the UI that deletes the participating reference entity object.



Attribute

Features not used for ADF Mobile include:

  • Custom Properties

  • In the List of Values editor (accessed through the List of Properties section), only Choice List is available as the type of component used by the user interface to display the attribute values list. Most Recently Used Count is not available; you cannot enter the number of items that display in the choice list.

The following features are not supported in the View Attribute dialog (used for adding an attribute) and the View Attribute page accessed through the Edit Attribute dialog:

  • The Expression value type, meaning the default value for the binding variable cannot be based on an expression.

  • Discriminator

  • Effective Date

In addition, the View Attribute dialog does not include:

  • Edit—The Edit Expression Editor is not available for the value type. This editor enables you to add an expression that defines the default value for the current attribute of an entity object or view object.

  • Passivate

The Edit Attribute dialog does not include the Dependencies tab.



Query

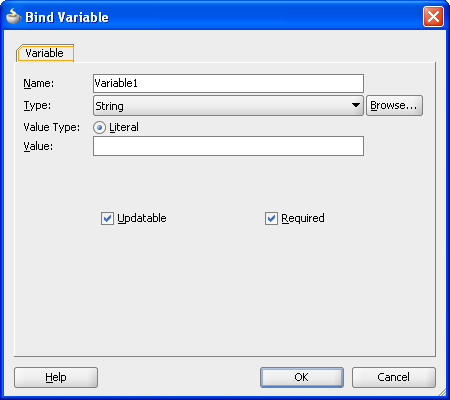

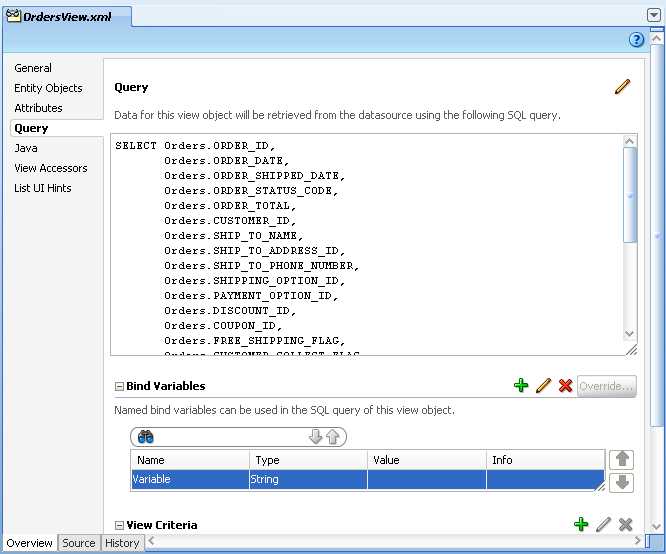

In the Bind Variable dialog, the Custom Properties tab and Control Hints tab are not available for ADF Mobile client. In the Variable tab:

  • The Expression option is not available, meaning the default value of a binding variable cannot be based on an expression.

  • ADF Mobile client supports the following Java types for bind variables:

    • BigDecimal

    • Boolean

    • Byte

    • Character

    • Date

    • Double

    • Float

    • Integer

    • Long

    • Number

    • Short

    • String

    • Timestamp

For the Query Editor, the features that are not used include:

  • Declarative SQL mode—Only expert and normal modes are available. For more information on expert mode, see "Working with Objects in Expert Mode" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

  • Alternate Mappings—used to map the columns in the SQL query to view attributes.

  • Alternate Keys—used for defining attributes for the alternate keys.

In the View Criteria Editor, you can either select Database or In Memory as the query execution mode, but not both. For more information, see "How to Create Named View Criteria Declaratively" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

In the UI Hints tab, the following are not available in ADF Mobile client:



Java

For information on the types supported by ADF Mobile client, see Section 7.2, "Java Support for Business Components."

ADF Mobile client supports the following:

  • View Object Class

  • View Row Class

  • View Object Client Interface

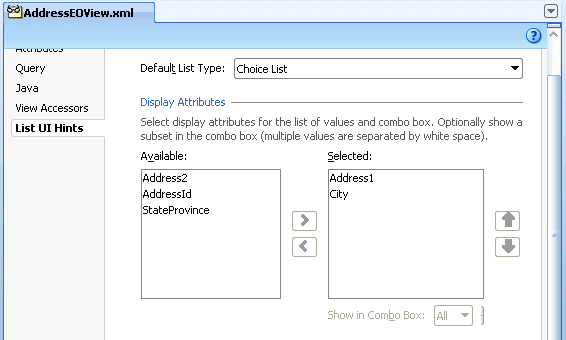

List UI Hints

For ADF Mobile client:

  • Only Choice List is available as the type of component used by the user interface to display the attribute values list.

  • Most Recently Used Count is not available; you cannot enter the number of items that display in the choice list.

Application Module

General

Because ADF Mobile client does not support multiple application module, the Extends feature is not available; you cannot specify a parent application module. The Tuning and Custom Properties sections are not available for ADF Mobile client.



Data Model

The Subtypes feature is not available, so you cannot add a child view instance to support of polymorphic view objects for a selected view instance.



Java

ADF Mobile client supports the following:

  • Application Module Class

  • Application Module Client Interface

  • Application Module Client Class

ADF Mobile client does not support Application Module Definition Class.



EJB Session Bean

This page is not available for ADF Mobile client.



Service Interface

This page is not available for ADF Mobile client.



Configurations

This page is not available for ADF Mobile client.


5.3.2 About Editing Entity Objects

Because the mobile client application synchronizes with its server-side counterpart, this editor allows you to create transient attributes. You cannot create persistent attributes because a mobile client application synchronizes data as exposed through its entity objects against server-side data, which is exposed on an attribute-by-attribute basis, through server-side entity objects backed by a database table. If you create an entity object attribute that only exists in a mobile application, then this attribute cannot be synchronized against a server-side counterpart because one does not exist. You can create transient attributes using this editor, because by definition, a transient attribute does not persist and thus is not synchronized against server-side data.

Note:

ADF Mobile client does not support groovy expressions. To set a value for calculated fields in an entity object, you must override the set method in the Java code for that attribute.

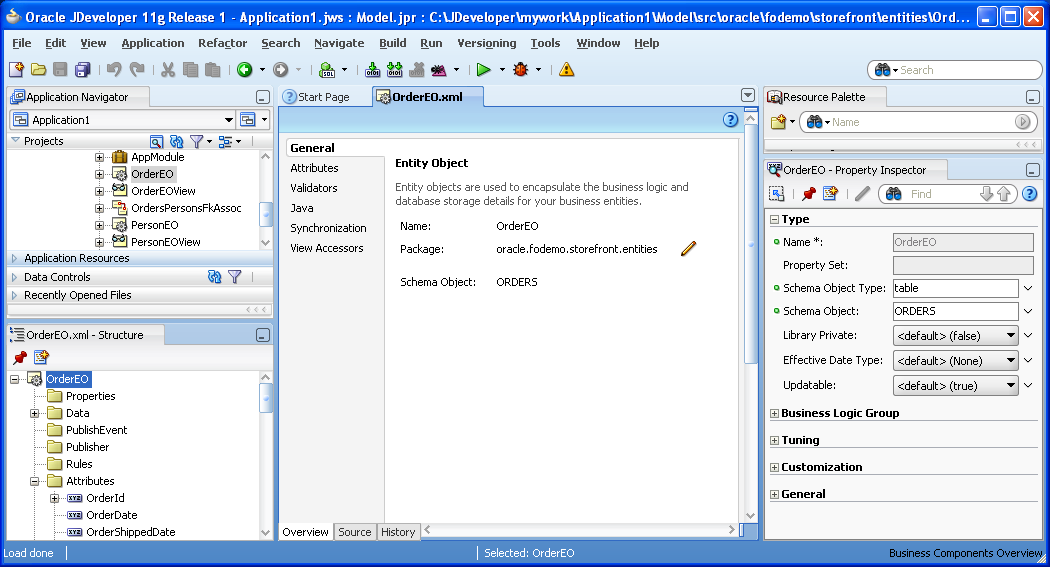

Figure 5-6 The Overview Editor for an Entity Object

The General page of the overview editor for entity object.

Note:

Because the location of the ADF Library JAR used to create an ADF Mobile client application is hard-coded in the resulting entity objects, you must update the JAR's location for the NMCBaseLibraryFilePath property if you move the mobile application to another computer or change or delete the JAR. If you do not change this value, then the application will not run.

5.3.3 How to Add Attributes to an Entity Object

You use the entity editor to modify the attributes belonging to a mobile entity object, or to add transient attributes to one. Because the mobile application must synchronize with the base application, you cannot change certain properties for an attribute. Otherwise, synchronization fails.

Use the Attributes page of the overview editor to create an attribute.

Before you begin:

Create a subset of entity objects for the ADF Mobile client application as described in Section 5.2.1, "How to Create Subsets of Entity Objects and View Objects."

To add attributes:

  1. Double-click an entity object in the Application Navigator.

    Note:

    The Name and Extends properties are read-only values.
  2. Click the Attributes tab.

  3. In the Attributes page, click Add from Base Entity. In the Create New Entity Attributes for Columns dialog, shown in Figure 5-7, the attributes that you did not select for the entity object using the Model Wizard appear in the Available list.

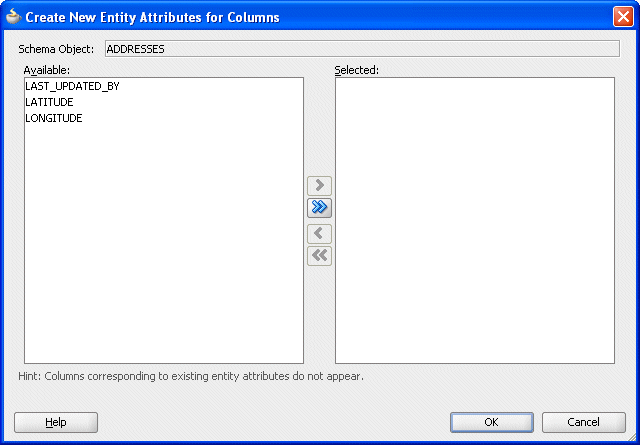

    Figure 5-7 Selecting Attributes

    The Create New Entity Attributes for Columns dialog.
  4. Select the attributes by moving them from the Available window to the Selected window.

  5. Click OK. The selected attributes display in the table.

    Note:

    You cannot use this editor to correct or update persistent attributes. If an attribute has been designed improperly, you can only correct it in the server-side application. You cannot edit the persistent attributes because they must match the attributes of the server object. For example, changing an attribute type from a date to a number causes synchronization to fail.

5.3.4 How to Add Transient Attributes

Use the Attributes page of the overview editor to create a transient attribute.

Before you begin:

Create a subset of entity objects for the ADF Mobile client application as described in Section 5.2.1, "How to Create Subsets of Entity Objects and View Objects."

To Add transient attributes:

  1. Click Add in the Attributes page.

    Note:

    ADF Mobile client supports only transient attributes based on literal values.
  2. In the New Entity Attribute dialog, define the properties for the transient attribute (listed in Table 5-2).

    Table 5-2 Attribute Properties

    Property Description

    Name

    The name of the attribute. This must be a valid Java identifier.

    Type

    Choose the Java type for the attribute

    Property Set

    Choose the type of element that this attribute represents. This field is not available for all attribute types.

    Value Type

    Select Literal to use a literal value for the default

    Value

    For discriminator columns in subtypes of polymorphic entity objects, enter the discriminator value for the subtype.

    ADF Mobile client does not support expressions.

    Mandatory

    Select if this attribute is mandatory. This option is selected by default if the corresponding database column has a NOT NULL constraint.

    Derived from SQL Expression

    ADF Mobile client does not support this option. Do not use it.

    Discriminator

    ADF Mobile client does not support this option. Do not use it.

    Updatable

    The view attribute setting is based on the entity attribute setting and can made more restrictive.

    • Always

      Select to make an attribute updatable.

    • While New

      Select to make an attribute updatable before an entity is first posted.

    • Never

      Select to make an attribute read-only.


  3. Click OK. The attribute appears in the table.

5.3.5 Adding Validation Rules

The Validators page of the overview editor enables you add the built-in Oracle ADF declarative validation rules described in "Defining Validation and Business Rules Declaratively" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework. When you create a validation rule using the overview editor, they are stored in the entity object's XML file.

Figure 5-8 shows the Validators page for the entity object, OrderEO.

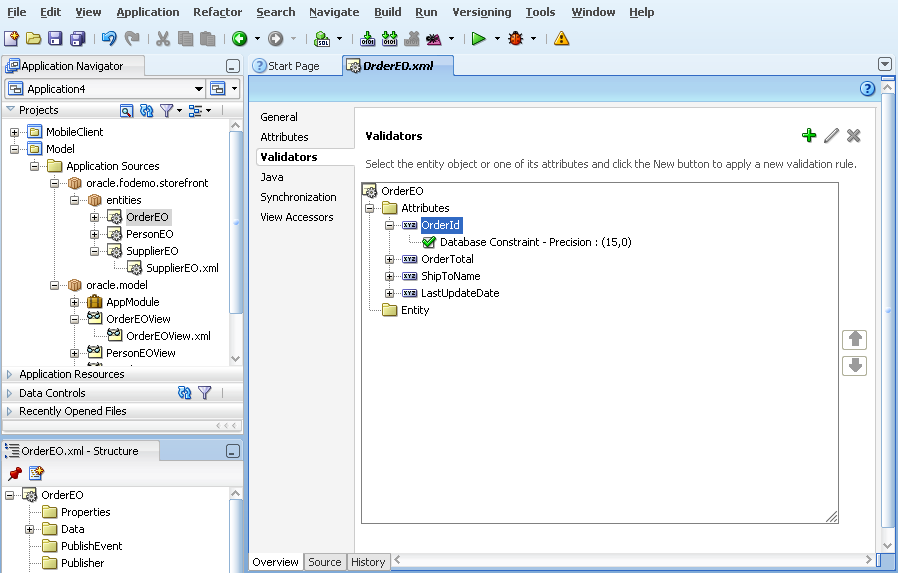

Figure 5-8 The Validators Page

Overview editor's Validator page.

ADF Mobile client supports the following validators, which are available from the Rule Type list of the Add Validation Rule dialog, which you invoke by first selecting an entity or attribute and then by clicking Add.

Figure 5-9 shows the Add Rule Validation dialog.

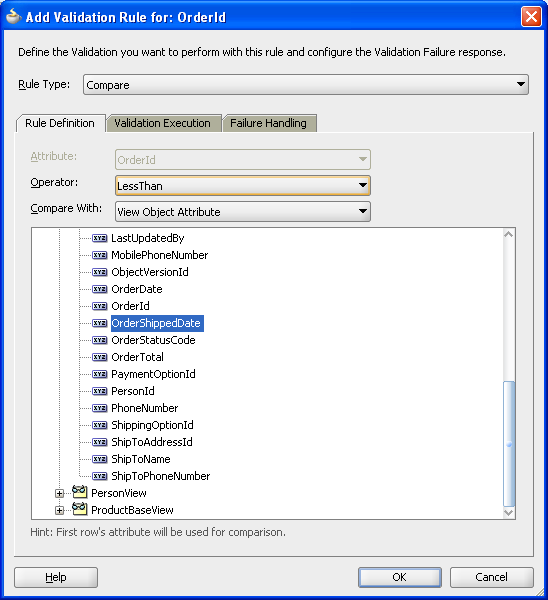

Figure 5-9 The Add Validation Rule Dialog

The Add Validation Rule dialog

Table 5-3 lists the validators and the classes that they support.

Table 5-3 Validators and Their Supported Classes

Validator Usage Supported Classes

Compare

Performs a logical comparison between an entity attribute and a value. When you add a Compare validator, you specify an operator and a comparison. Entity Operators include:

  • Literal value

  • Query result

  • View object attribute

  • View accessor attribute

  • Expression

  • Entity attribute

For more information, see "How to Validate Based on Comparison" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

oracle.jbo.rules.JboCompareValidator

Key Exists

Determines whether a key value (primary, foreign, or alternate key) exists. For more information, see "How to Determine Whether a Key Exists" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

oracle.jbo.server.JboEOExistsValidator, oracle.jbo.server.JboVOExistsValidator, oracle.jbo.server.JboVOUsageExistsValidator

Length

Validates whether the string length (in characters or bytes) of an attribute's value is less than, equal to, or greater than a specified number, or whether it lies between a pair of numbers. For more information, see "How to Validate Against a Number of Bytes or Characters" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework

oracle.jbo.rules.JboLengthValidator

List

Compares an attribute against a list of values (LOV).

For more information, see "How to Validate Using a List of Values" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

oracle.jbo.rules.JboListValidator

Method

Supplements declarative validation rules and Groovy-scripted expressions using your own Java code. Method validators trigger Java code that you write in your own validation methods at the appropriate time during the entity object validation cycle. For more information, see "Using Method Validators" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

oracle.jbo.rules.JboMethodValidator

Range

Performs a logical comparison between an entity attribute and a range of values. When you add a Range validator, you specify minimum and maximum literal values. The Range validator verifies that the value of the entity attribute falls within the range (or outside the range, if specified). For more information, see "How to Make Sure a Value Falls Within a Certain Range" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

oracle.jbo.rules.JboRangeValidator

Regular Expression

ADF Mobile Client does not support Groovy Expressions. Do not create validation rules as Regular Expressions. Use Method validation rule for complex validation rules. for more information see Chapter 7, "Extending ADF Mobile Client Applications with Java.".

oracle.jbo.rules.JboRegExpValidator


For more information, see "Using the Built-In Declarative Validation Rules" and "Implementing Validation and Business Rules Programmatically" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

5.3.5.1 How to Add a Validation Rule to an Entity or Attribute

To add a declarative validation rule to an entity object, use the Validators page of the overview editor.

To add a validation rule:

  1. In the Application Navigator, double-click the desired entity object.

  2. Click the Validators navigation tab on the overview editor.

  3. Select the object for which you want to add a validation rule, and then click the Add icon.

    • To add a validation rule at the entity object level, select Entity.

    • To add a validation rule for an attribute, expand Attributes and select the desired attribute.

    When you add a new validation rule, the Add Validation Rule dialog appears.

  4. Select from the validation rules in Rule Type list.

  5. Use the dialog settings to configure the new rule.

    The controls will change depending on the kind of validation rule you select. For more information about the different validation rules, see "Using the Built-in Declarative Validation Rules" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

  6. You can optionally click the Validation Execution tab and enter criteria for the execution of the rule, such as dependent attributes and a precondition expression. For more information, see "Triggering Validation Execution" Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

    Note:

    For Key Exists and Method entity validators, you can also use the Validation Execution tab to specify the validation level.
  7. Click the Failure Handling tab and enter or select the error message that will be shown to the user if the validation rule fails. For more information, see "Creating Validation Error Messages" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework

  8. Click OK.

5.3.6 Overriding Default Validation Error Handling

When a validation error occurs, a message box showing error messages appears by default. You can override the default behavior if you prefer the validation error message as an outputText component rather than as a message box.

Example 5-1 and Example 5-2 are two versions of the same application, CustomErrorHandler.java. Example 5-1, describes how to use a message box for the validation error message (similar to the default behavior) and how the main error handling method, reportException, handles the error messages in this context. Example 5-2 describes how to put the validating error messages into an outputText component by overriding the reportException method.

5.3.6.1 How to Show the Error Message as a Message Box

Example 5-1 illustrates default behavior of the error handler.

To show a message box with an error message:

  1. Declare the error handler as an attribute of the form component. For example, in an MCX file, you would declare the error handler as an attribute of the form component as follows:

    <amc:form errorHandler="view.backing.CustomErrorHandler" ... >


    Declaring the error handler creates the class and casts it to an oracle.adfnmc.component.ErrorHandler interface.

  2. Create the error handler class and implement the methods of the oracle.adfnmc.component.ErrorHandler interface.

    The reportException method returns a boolean as to whether the error was handled. If this method returns false, the default error handling logic is invoked.

Example 5-1 view/backing/CustomErrorHandler.java

package view.backing;

import oracle.adfnmc.bindings.BindingContainer;
import oracle.adfnmc.bindings.dbf.BindingContext;
import oracle.adfnmc.component.ErrorHandler;
import oracle.adfnmc.component.MessageBox;
import oracle.adfnmc.component.ui.Form;
import oracle.adfnmc.java.util.List;


public class CustomErrorHandler
  implements ErrorHandler
{
  public CustomErrorHandler()
  {
  }

  public boolean reportException(Form form, BindingContainer formBnd, Exception ex)
  {
    // do error handling here
    List errors = null;
    if (formBnd != null)
    {
      errors = formBnd.getErrors();
    }

    if ((errors != null) && (errors.size() > 0))
    {
      String[] messages = new String[errors.size()];
      for (int i = 0; i < errors.size(); ++i)
      {
        Exception exListElement = (Exception) errors.get(i);
        messages[i] = this.getDisplayMessage(BindingContext.getInstance(), exListElement);
      }
      MessageBox.show(messages);
    }
    else
    {
      String message = this.getDisplayMessage(BindingContext.getInstance(), ex);
      MessageBox.show(message);
    }

    // return true so that the form knows the error has been handled
    return true;
  }

  public String getDisplayMessage(BindingContext ctx, Exception ex)
  {
    if (ex != null)
    {
      return ex.getMessage();
    }
    else
    {
      return "";
    }
  }
}

5.3.6.2 How to Show the Error Message as Output Text

Example 5-1 is similar to Example 5-2, but instead illustrates how to show an error message as an outputText component.

To show the error message as output text

  1. Declare the error handler as an attribute of the form component.

  2. Declare an outputText component in the MCX file and set its value to an EL expression. For example:

    <amc:outputText value="#{applicationScope.validationMessage}" foregroundColor="#FF0000" />

  3. Override reportException in the Java class and set the EL expression whenever there is an error.

Example 5-2 view/backing/CustomErrorHandler.java Showing Output Text Error Message

package view.backing;

import oracle.adfnmc.bindings.BindingContainer;
import oracle.adfnmc.bindings.dbf.BindingContext;
import oracle.adfnmc.component.ErrorHandler;
import oracle.adfnmc.component.ui.Form;
import oracle.adfnmc.el.ValueExpression;
import oracle.adfnmc.el.impl.SimpleContext;
import oracle.adfnmc.java.util.List;


public class CustomErrorHandler

  implements ErrorHandler
{
  public CustomErrorHandler()
  {
  }

  public boolean reportException(Form form, BindingContainer formBnd, Exception ex)
  {
    // do error handling here
    List errors = null;
    if (formBnd != null)
    {
      errors = formBnd.getErrors();
    }

    String message = "";
    if ((errors != null) && (errors.size() > 0))
    {
      for (int i = 0; i < errors.size(); ++i)
      {
        Exception exListElement = (Exception) errors.get(i);
        message += this.getDisplayMessage(BindingContext.getInstance(), exListElement) + "\n";
      }
    }
    else
    {
      message = this.getDisplayMessage(BindingContext.getInstance(), ex);

    }

    ValueExpression valueExpression =
      SimpleContext.getValueExpression("#{applicationScope.validationMessage}", String.class);
    valueExpression.setValue(message);

    // return true so that the form knows the error has been handled
    return true;
  }

  public String getDisplayMessage(BindingContext ctx, Exception ex)
  {
    if (ex != null)
    {
      return ex.getMessage();
    }
    else
    {
      return "";
    }
  }
}

5.3.7 About Synchronization for Entity Objects

Data synchronization is not enabled be default for entity objects. Only the entity objects that are imported from a known schema context can be enabled for synchronization.

You can enable or disable synchronization for each entity object using the Synchronization page of the overview editor for entity objects, shown in Figure 5-10. This page enables you to do the following:

  • Set data updates—You can set how the entity objects receive updates from the server and also how the entity objects can update the server. The downstream updates (from the server to the client) are accomplished through Oracle Database Lite Mobile Server (Mobile Server). To perform upstream updates, an entity object must be enabled for ADF Mobile transaction replay service.

  • Set conflict resolution rules—You can also use this page to set the rules for resolving data conflicts between the client and server, as conflicts can arise if a mobile client updates a stale record while the original record may have been changed on the server.

  • Create a data set appropriate for a small database—You can refine the entity object's SQL statement by adding WHERE and ORDER BY clauses to the JDeveloper-generated SELECT statement based on the selected entity attributes.

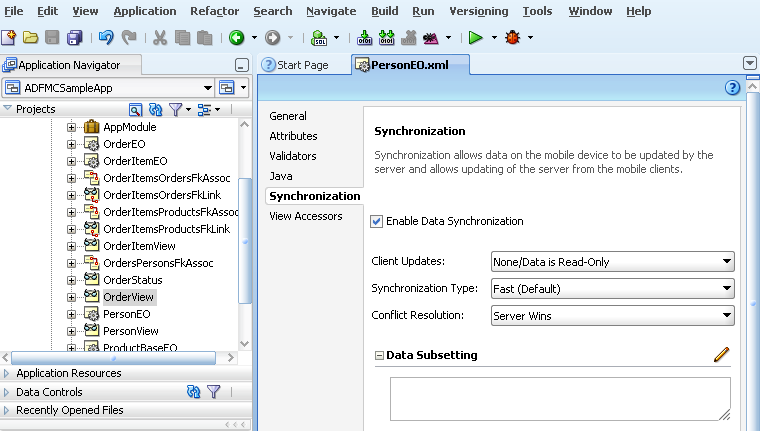

Figure 5-10 Setting the Synchronization for an Entity Object

The entity object Synchronization page.

5.3.7.1 How to Enable or Disable Synchronization for Entity Objects

The Synchronization page enables you to enable or disable synchronization for entity objects that have been enabled for ADF Mobile transaction replay service as well as for those that have not. Depending on whether transaction replay service has been enabled for the selected entity object, this page enables you to set both the upstream (client-to-server) and downstream (server-to-client) updates.

Before you begin:

The ADF Mobile client application must include entity objects imported from a base (server) application using the Create Business Components from ADF Library wizard as described in Section 5.2.1, "How to Create Subsets of Entity Objects and View Objects." To use any of the ADF Mobile transaction replay service configuration options, the selected entity must be enabled for transaction replay service as described in Section 5.8, "Enabling ADF Mobile Transaction Replay Service for an ADF Application."

To configure synchronization for entity objects:

  1. Select Enable Data Synchronization.

    Note:

    You can disable synchronization if you do not select Enable Data Synchronization.
  2. Select how the ADF Mobile client application updates with the server. For downstream, Oracle Database Lite Mobile Server - enabled updates, select Updates made via Tables. For upstream updates, select Updates via TRS.

    Note:

    The Updates via TRS option is only available if the entity has been enabled for transaction replay service.
  3. Select the type of table-level synchronization used by the entity object. The options include:

    • Fast (the default setting)

    • Complete Snapshot

    • Queue-based

    • None

  4. Select how the data conflicts are resolved between the client and server.

  5. Click Edit.

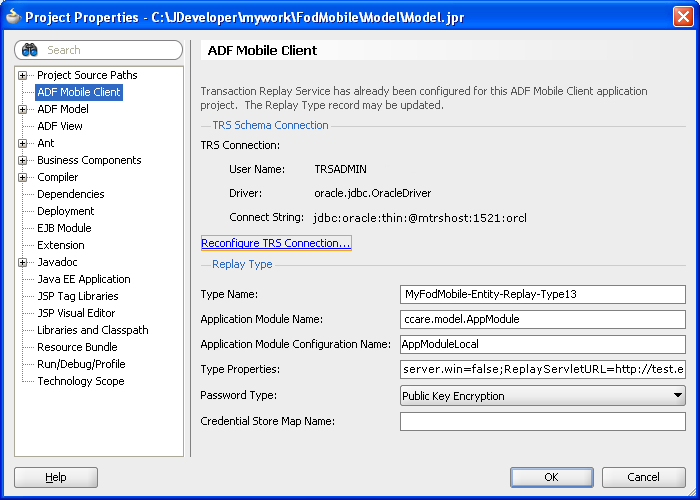

  6. Select which transaction replay service events are enabled for synchronization.

  7. Add a WHERE and ORDER BY clause to the JDeveloper-generated SQL statement query to filter and order the data as required. You can add ORDER BY clauses using the Order By dialog (accessed by clicking Edit). If you prefer not to use the JDeveloper-generated SELECT clause and FROM list, then select Expert Mode from the SQL Mode drop down and enter the SQL statement in the editor as described in "How to Customize SQL Statements in Expert Mode" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

5.3.8 View Accessor Support for Entity Objects and View Objects

View accessors are value-accessor objects in ADF Business Components. You create a view accessor to point from a base entity object attribute or view object attribute to a source view row set. The view accessor returns a list of all possible values to the attribute of the base object.

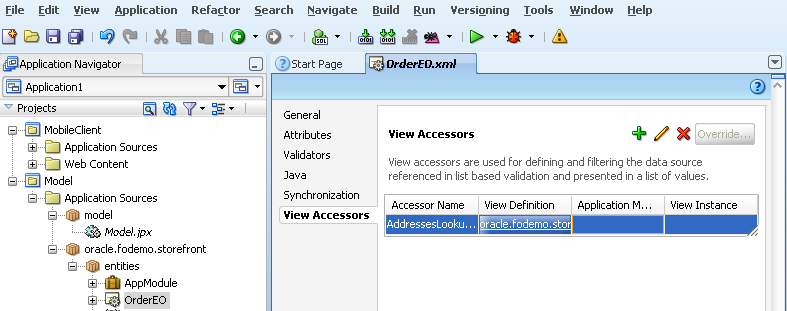

View Accessors are set in the View Accessors page of the Overview Editor for entity objects and view objects, shown in Figure 5-11. For more information, refer to "How to Create a View Accessor for an Entity Object or View Object" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

Figure 5-11 The Overview Editor for View Accessor Page

Overview Editor for View Accessors page.

5.3.9 Using List UI Hints for View Objects

You can associate a control hint with the current entity attribute. View objects will inherit the hint values at runtime. For more information, see "Defining Attribute Control Hints for Entity Objects" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

Note:

ADF Mobile client does not support the following in the Control Hints dialog. Do not use them.
  • Display Hint

  • Tooltip Text

  • Control Type

  • Display Width

  • Display Height

  • Form Type

  • Auto Submit

Because any attribute-specific information that is added to the base application is available to the ADF Mobile application after you complete the Create Mobile Business Components from ADF Library wizard, you must re-import objects from the base application if attribute-specific changes have been made to it. Otherwise, control hints are not available to the ADF Mobile client application.

5.3.10 Using Display Hints for Entity Objects

You can specify default LOV (list of values) hints when you want the LOV-enabled attributes of other view objects to inherit the list UI hints from the current view object. To define LOV-enabled attributes, you must create a view accessor that points to the view object that supplies the values. At design time, the LOV-enabled attributes whose view accessor points to this source view object will inherit any list UI hints you have defined. At runtime, the UI will display the same LOV usage for these LOV-enabled attributes. For more information, see "Working with List of Values (LOV) in View Object Attributes" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework

For example, Figure 5-12 shows the List UI Hints page of the Overview Editor for AddressEOView, a view object.

Figure 5-12 The Overview Editor for List UI Hints

List UI hints page of overview editor

5.3.11 Adding Bind Variables to View Objects

The Query page of the overview editor for a view object (illustrated in Figure 5-13 and described in "Working with Bind Variables" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework) enables you to add bind variables to a query. Although ADF Mobile client supports JDBC Positional, Oracle Named, and Oracle Positional binding styles, Oracle Named is the preferred binding style and is the only one supported in the overview editor for mobile client view objects.

Figure 5-13 The Query Page of the Overview Editor for View Objects

The Query page.

You edit the binding using the Bind Variable dialog, shown in Figure 5-14. For more information on Oracle Named binding style, see the online help available from JDeveloper.

Figure 5-14 The Bind Variable Dialog

Bind Variable dialog.

5.3.12 Working with Resource Bundles

ADF Mobile client provides design-time localization support by enabling the use of the standard localization structures of ADF to specify resource strings in multiple languages. As with standard ADF applications, you can configure an ADF Mobile client application to store translatable strings such as control hints in a resource bundle as described in "Working with Resource Bundles" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework. As shown in Figure 5-15, in addition to the default .properties bundle file, ADF Mobile also supports the XLFF (XML Localization Interchange File Format) properties bundles used for exchanging localization data. ADF Mobile client supports multiple resource bundles. For more information, see Section 7.4.2, "Supporting Localization through XLFF Resource Bundles."

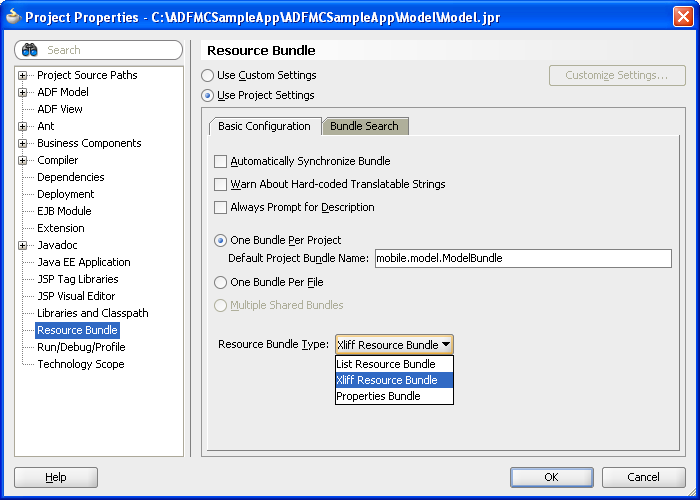

Figure 5-15 Selecting Resource Bundle Type for an ADF Mobile Client Project

Selecting XLFF as resource bundle.

5.4 The Entity Object and View Object Extension

You can extend the mobile application using the same techniques for extending an Oracle ADF application, described in "Advanced Business Components Techniques" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework. You extend mobile client applications using the Java page of the Overview Editor for the entity object or view object. For more information on using the overview editor, see "Creating and Modifying an Application Module" and "Generating Custom Java Classes for a View Object" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework

Note:

ADF Mobile client applications, which are based on the J2ME platform, differ from J2EE-based Oracle ADF applications. Because J2ME lacks the VM support to implement Java reflection, ADF Mobile client applications do not bind methods dynamically; they instead link methods statically at compile time. To simulate dynamic binding, you must add delegation code to invoke application modules or view object from the EL expressions and the entity object validation methods as described in Chapter 7, "Extending ADF Mobile Client Applications with Java."

The ADF Mobile client entity objects and view objects support only a subset of the functionality available to the server entity objects and view objects. Java Assist in JDeveloper filters out the methods that are not supported.

Note:

When you generate entity object and view object Java implementations for ADF Mobile client applications, the generated Java source must be compatible to Java 1.3. The source uses integers for field indexes instead of enumerations.

5.4.1 Supported Constructs

The following JDeveloper-generated Java classes are supported by the runtime:

  • entity object

  • view object

  • view row

  • application module

The following are not used by the runtime, but can safely be generated and used at design time.

  • view row client Interface

  • view row client

The following are explicitly not supported:

  • entity collection

  • entity definition

  • view object definition

  • application module definition

5.4.2 Unsupported Methods

Even though the classes listed in Section 5.4.1, "Supported Constructs" are supported by the runtime, ADF Mobile client does not support every method in those classes. Do not override or otherwise call the following methods:

entity object (oracle.jbo.server.EntityImpl)

  • doDMLWithLOBs(int operation, TransactionEvent e)

  • handleEffectiveDateOperations()

  • validateDateEffectivity()

  • removeAndRetain()

view object (oracle.jbo.server.ViewObjectImpl)

  • addEffectiveDateDstAttributes()

  • buildEffectiveDateFromClauseFragment(StringBuffer fromClause, int noUserParams)

  • sortRows(Row[] rows)

  • activateNewRowTracker(ViewRowSetImpl vrs, KXmlParser parent)

  • validateRangeSizeForRangePaging(ViewRowSetImpl vrs, int rangeSize)

  • activateState(ViewRowSetImpl vrs, ViewRowImpl currentRow, KXmlParser parent)

view row (oracle.jbo.server.ViewRowImpl)

application module (oracle.jbo.server.ApplicationModuleImpl)

  • activateState(int id, SessionData info, int flags)

  • passivateStateForUndo(String id, byte[] clientData, int flags)

  • getAMSerializer()

5.5 Testing Application Modules

You can test the application logic of the application module (created using the Create Business Components for ADF Mobile Client wizard) using the Business Component Browser. To launch the Business Component Browser, select the application module in the Application Navigator and then choose Run.

Note:

If you receive a method not found exception when you test the application module, rearrange the model project's classpath entries as follows:
  1. In the Application Navigator, right-click the model project and choose Project Properties.

  2. Select Libraries and Classpath.

  3. Select the ADF Mobile Client Runtime classpath entry.

  4. Using Move Up or Move Down, move the ADF Mobile Client Runtime entry directly beneath the ADF Model Runtime entry.

  5. Click OK.

For more information on the Business Component Browser, see "Testing Application Modules Using the Business Component Browser" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

5.6 Interacting Directly with SQLite

The ADF Mobile client framework provides a large degree of compatibility with BC4J, which is designed to relieve developers from manually performing create, update, delete (CRUD) operations. Nonetheless, there are use cases that may require bypassing the framework and interacting directly with the underlying database. As illustrated in Example 5-3, ADF Mobile client supports these use cases in a manner that is similar to BC4J's.

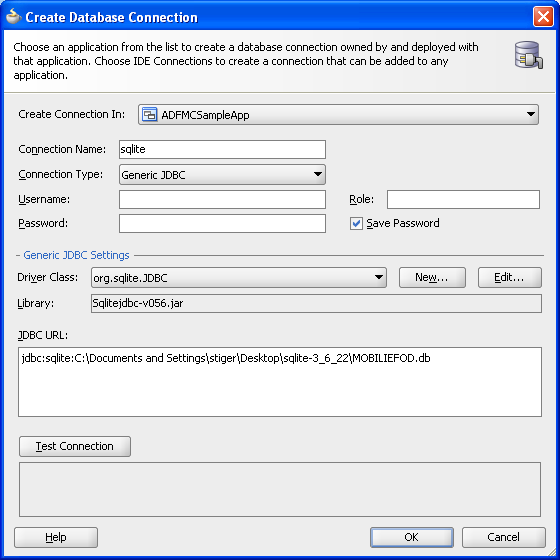

Example 5-3 Obtaining a Database Connection

import oracle.adfnmc.bindings.DataControl;
import oracle.adfnmc.bindings.bc4j.BC4JDataControl;
import oracle.adfnmc.bindings.dbf.BindingContext;
import oracle.jbo.ApplicationModule;

DataControl dc = (DataControl)BindingContext.getInstance().get("AppModuleDataControl");
if (dc instanceof BC4JDataControl)
{
  ApplicationModule am = (ApplicationModule)dc.getDataProvider();
  DBTransaction dbTrans = am.getDBTransaction();
  PreparedStatement prepStmt = null;
  try
  {
    prepStmt = dbTrans.createPreparedStatement("arbitrary SQL query");
    // work with PreparedStatement as usual

  }
  finally
  {
    if (prepStmt != null)
      prepStmt.close();
  }
}

5.6.1 Differences Between SQLite and Other Relational Databases

SQLite is designed for use as an embedded database system, one typically used by a single user and often linked directly into the application. Enterprise databases, on the other hand, are designed for high concurrency in a distributed client-server environment. Because of these differences, there are a number of limitations that may be foreign to developers accustomed to working with Oracle databases. The most important differences are:

Note:

Consult the Documentation section of the SQLite site (http://www.sqlite.org/docs.html) for complete details.

5.6.1.1 Concurrency

Do not open your own connection to the database at any time during application execution. Always reuse the framework's connection by following Example 5-3. This limitation arises directly from SQLite's coarse-grained locking. For more information, see the following documents available from the Documentation section at the SQLite site (http://www.sqlite.org/docs.html):

  • File Locking And Concurrency In SQLite Version 3

  • BEGIN TRANSACTION

5.6.1.2 SQL Support

Although SQLite complies with the SQL92 standard, there are a few unsupported constructs. For more information, see SQL Features That SQLite Does Not Implement, available from the Documentation section at the SQLite site (http://www.sqlite.org/docs.html).

5.6.1.3 Data Types

While most database systems are strongly typed, SQLite is dynamically typed and therefore any value can be stored in any column, regardless of its declared type. The ADF Mobile client framework takes care of converting values to and from the database in accordance with the relevant entity metadata, but if you are working directly against the database, be sure to maintain data integrity. SQLite will not return an error if, for instance, a string value is mistakenly stored in a numeric column. For more information, see Datatypes In SQLite Version 3, available from the Documentation section at the SQLite site (http://www.sqlite.org/docs.html).

5.6.1.4 Foreign Keys

Although SQLite parses foreign key constraints, it does not enforce them. For more information, see the SQLite FAQ available from the Documentation section at the SQLite site (http://www.sqlite.org/docs.html).

5.6.1.5 Database Transactions

Although SQLite is ACID-compliant and hence supports transactions, there are some fundamental differences between its transaction support and Oracle's.

5.6.1.5.1 Nested Transactions

SQLite does not support nested transactions. Only a single transaction may be active at any given time.

5.6.1.5.2 Savepoints

Although SQLite itself supports transaction savepoints, support for this feature is not exposed in the ADF Mobile client framework.

5.6.1.5.3 Commit

SQLite permits either multiple read-only connections or a single read-write connection to any given database. The ADF Mobile client framework manages a single read-write connection to your application's database and shares it with OracleLite Mobile Server Sync (mSync) as needed. As long as you push changes to the database through standard ADF business components, you can simply invoke DBTransaction.commit() just as you would for an ADF Faces application.

5.6.1.5.4 Rollback

ADF Mobile client fetches rows from the database into memory as needed, like BC4J. This generally occurs as you iterate over the rows of the application's viewobjects. As a consequence, there are usually multiple ResultSets open at any given time while the application executes. This does not present a problem for traditional server-grade databases such as Oracle, but SQLite does not permit a transaction to be rolled back until all open ResultSets have been closed first. ADF Mobile client has been designed to work around this limitation in the following manner:

  • When DBTransaction.rollback() is invoked, the application is first disconnected from its database. This will implicitly close all open JDBC ResultSets and cancel any changes that have been posted to the database but not yet committed.

  • Next, the application is reconnected to the database and rollback proceeds as usual.

  • The state of all business components is preserved across the database disconnect, including information about which row was the current row in a given view object. Therefore, when the next row is requested by the application, the framework can return the row that would have come next had the application not been disconnected from its database.

This sequence of steps effectively produces the same behavior as a simple transaction rollback in an ADF Faces application backed by an Oracle database.

5.7 Configuring JDeveloper to Connect to and Test Against a SQLite Database

During the development cycle, you may need to test against the SQLite databases that are generated from OracleLite Mobile Server Sync (mSync). Doing this enables you to test against real data using direct SQL statements and verify if the SQL statement is valid against the SQLite database. Because you must always test manually created SQL statements against SQLite databases, this testing method is useful when you define view objects and create custom SQL statements in expert mode as described in"Working with View Objects in Expert Mode" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework. Also, when a query returns unexpected results, you can test the generated SQL in question by copying and pasting the SQL statement into the view object editor.

5.7.1 How to Test Against a SQLite Database

Use JDeveloper's Database Navigator to create a database connection to the SQLite database. Use the SQL Worksheet to test SQL statements and the update SQLite database schema.

Before you begin:

Download Oracle JDeveloper and the ADF Mobile client extension as described in Section 2.3, "Setting Up JDeveloper."

Download the SQLiteJDBC driver from http://www.zentus.com/sqlitejdbc/. This driver is contained in a JAR file called sqlitejdbc-v0xx.jar. Save this file to an easily accessed location.

To register the Zentus SQLite JDBC driver and test against the SQLite database:

  1. In JDeveloper, create a new database connection. You can create this connection in the application or in the IDE shows how a finished connection may look. The name and password fields are dummy values.

  2. In the Database Navigator, select File > New > Connections and then Database Connections.

  3. Select Generic JDBC from the Connection drop-down menu.

  4. Click New.

  5. Enter org.sqlite.JDBC as the Driver Class in the Register JDBC Driver dialog, as shown in Figure 5-16.

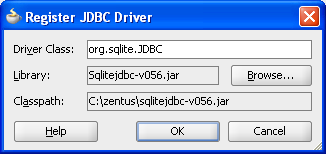

    Figure 5-16 Registering the Zentus SQLite JDBC Driver

    Register Zentus JDBC driver.
  6. Click Browse, click New, and then click Add Entry.

  7. Select the sqlitejdbc-v0xx.jar on your file system. Click OK.

  8. Click OK until you return to the Create Database Connection page.

  9. In the JDBC URL window, enter

    jdbc:sqlite:<Path to your SQLite data file> as shown in Figure 5-17.

    For example, enter jdbc:sqlite:C:\Documents and Settings\<your name>\Desktop\sqlite-3_6_22\MOBILEFOD.db, where MOBILEFOD.db is the SQLite file containing the data.

    Figure 5-17 The Create Database Connection Dialog

    The Create Database Connection dialog.
  10. Enter dummy values in the name and password fields.

  11. Click Test Connection. A Success! message appears if the connection is configured correctly.

  12. In the Database Navigator, right-click the connection and select SQL Worksheet, from the context menu. The SQL Worksheet enables you to test SQL statements and also review, modify, and export the SQLite database.

5.8 Enabling ADF Mobile Transaction Replay Service for an ADF Application

Enabling transaction replay service for an ADF application involves the following steps:

  1. Enabling the server (base) application for transaction replay service by adding the ADF Mobile transaction replay service technology to the project.

  2. Adding a Replay Type to a mobile client application using the TRS Enablement Wizard.

5.8.1 How to Add the ADF Mobile Transaction Replay Service Technology to an ADF Application

You can add the ADF Mobile transaction replay service technology to a new or existing ADF project. You can enable transaction replay service for any application that has the web.xml deployment descriptor file.

Before you begin:

You must have an ADF application model project containing the entity objects and view objects on which you base the ADF Mobile client application.

To add the ADF Mobile transaction replay service technology:

  1. Select the a project in the Application Navigator, then select Edit and then Properties.

  2. In the Technology Scope page, select ADF Mobile Transaction Replay from the Available window and move it to the Selected window as shown in Figure 5-18. Click OK.

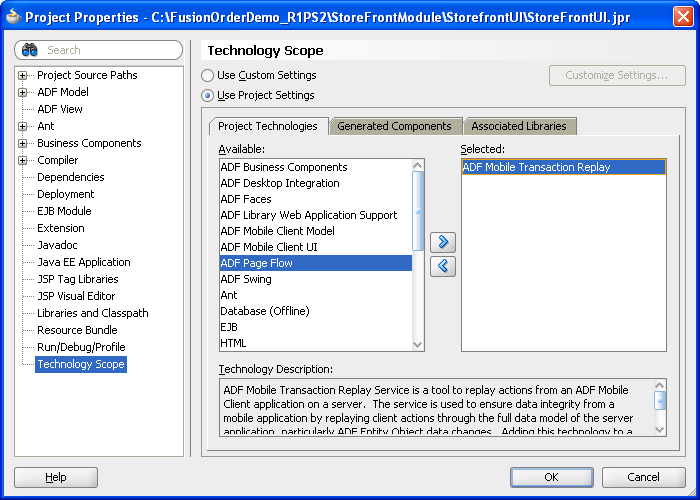

    Figure 5-18 Adding the ADF Mobile Transaction Replay Service Technology

    Select ADF Mobile Transaction Replay scope.
  3. Deploy the application as an ADF JAR as described in "Packaging a Reusable ADF Component into an ADF Library" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.

5.8.2 What Happens When You Add the ADF Mobile Transaction Replay Service Technology to an Application

When you add the ADF Mobile transaction replay service technology to an application, JDeveloper adds the transaction replay service servlet JAR, ReplayServlet, and updates web.xml with transaction replay service configuration parameters as shown in Example 5-4.

Example 5-4 ADF Mobile Transaction Replay Service Configuration Parameters in web.xml

<servlet-name>ReplayServlet</servlet-name>
    <servlet-class>oracle.txnreplay.adfadapter.ReplayServlet</servlet-class>
  </servlet>
  <servlet-mapping>
    <servlet-name>Faces Servlet</servlet-name>
    <url-pattern>/faces/*</url-pattern>
  </servlet-mapping>
  <servlet-mapping>
    <servlet-name>ReplayServlet</servlet-name>
    <url-pattern>/replayservlet</url-pattern>
  </servlet-mapping>

Note:

Because transaction replay service requires a web.xml project in the base (server) application, you usually add the ADF Mobile technology scope to the view-controller project.

In addition, JDeveloper updates the web.xml file's <filter-mapping> element for ReplayServlet, as shown in Example 5-5.

Example 5-5 Filter Mapping in web.xml

<filter-mapping>
    <filter-name>adfBindings</filter-name>
    <servlet-name>ReplayServlet</servlet-name>
    <dispatcher>FORWARD</dispatcher>
    <dispatcher>REQUEST</dispatcher>
  </filter-mapping>
  <filter-mapping>
    <filter-name>JpsFilter</filter-name>
    <servlet-name>ReplayServlet</servlet-name>
    <dispatcher>FORWARD</dispatcher>
    <dispatcher>REQUEST</dispatcher>
    <dispatcher>INCLUDE</dispatcher>
  </filter-mapping>

5.8.3 What Happens When JDeveloper Creates an ADF Mobile Transaction Replay Service-Enabled Application

If a project already is already configured with the ADF Faces technology, then you can enable the transaction replay service Object Replay mechanism in the application.

5.8.4 How to Create a Transaction Replay Type

The TRS Enablement Wizard configures the ADF Mobile client application, project, and entity objects to enable the use of transaction replay service. The wizard verifies that the ADF Mobile application has entity object definitions from an ADF library file. When you create the entities for an ADF Mobile client application using the Create Business Components from ADF Library wizard as described in Section 5.2.1, "How to Create Subsets of Entity Objects and View Objects," the entity objects imported by this wizard are enabled for synchronization because they have been given create, update, and delete actions. For applications that have not been created using this wizard, you can enable transaction replay service for the entity objects using the TRS Enablement Wizard.

Note:

The transaction replay service-enabled mobile application must use business components that are created from the base application's JAR file because both the mobile client application and the base application deployed to the server must share the same entity objects in the application module so that the transactions generated from the mobile applications can be replayed successfully against the base application.

Before you begin:

Only applications whose Model projects contain the ADF Mobile Client Model technology can be enabled for transaction replay service; this technology enables the transaction replay service logging mechanism for the application. You can verify if an application includes this technology by opening the Project Properties dialog for a Model project and then selecting ADF Mobile Client. As shown in Figure 5-19, JDeveloper notes that the project lacks the ADF Mobile Client Model technology required for transaction replay service.

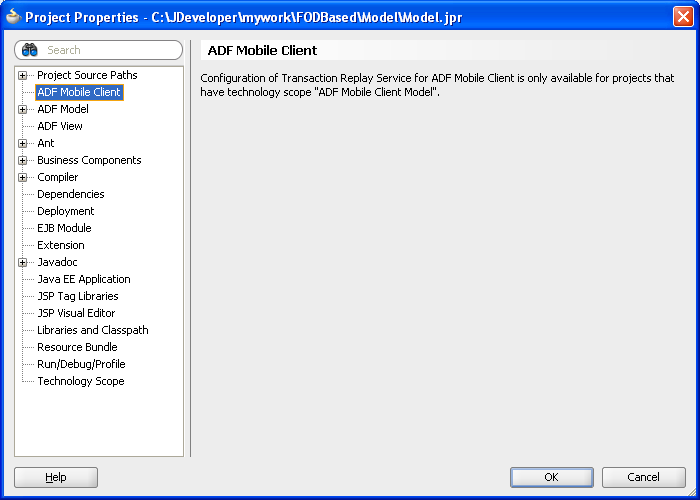

Figure 5-19 ADF Mobile Client Project Properties

Project lacks ADF Mobile Client Model technolgy.

When you create the entities for an ADF Mobile client application using the Create Business Components from ADF Library wizard as described in Section 5.2.1, "How to Create Subsets of Entity Objects and View Objects," the entity objects imported by this wizard are enabled for synchronization because they have been given CREATE, UPDATE, and DELETE actions.

You should have a connection that has a transaction replay service schema deployed to it. If such a connection does not exist, then the wizard prompts you to create one.

To add the transaction replay service to an ADF Mobile client application:

  1. In the Application Navigator, right-click the Model project.

  2. In Project Properties, choose ADF Mobile Client.

  3. Click Configure Transaction Replay Service and then click OK.

    As shown in Figure 5-20, if Configure Transaction Replay Service displays, then the entity objects are not transaction replay service-enabled.

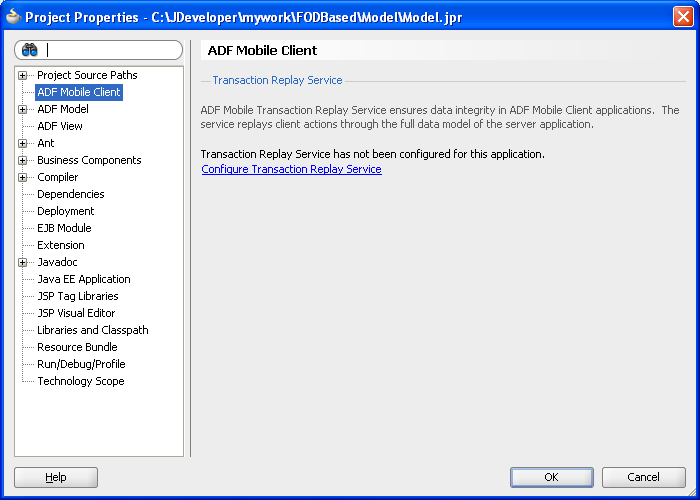

    Figure 5-20 ADF Mobile Client Project Properties

    Configure Transaction Service Replay required.
  4. In the TRS Schema page, shown in Figure 5-21, select an IDE connection or an application connection. The transaction replay service schema must already be deployed to this connection.

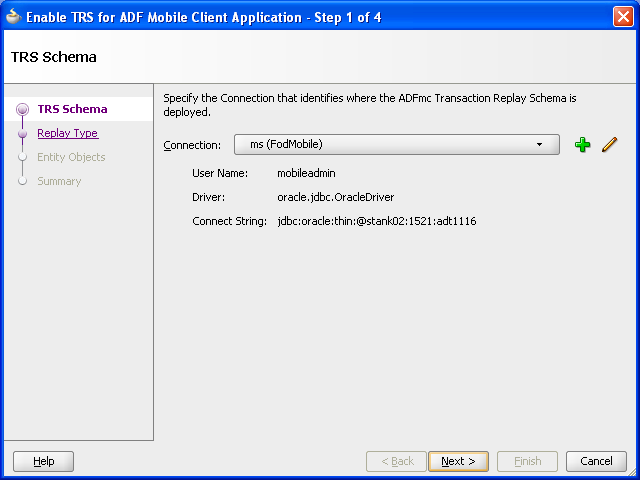

    Figure 5-21 Selecting the ADF Mobile Transaction Replay Service Schema Connection

    Select the MTRS connection.

    If the schema is not in the selected connection, you must create a new connection. Click Next. The wizard proceeds after it verifies that the selected connection contains the transaction replay service schema.

  5. In the Replay Type page, shown in Figure 5-22, enter the replay type information. The wizard defines the replay type by reviewing the imported entity object data from the base (server) application and then populates the Type Name field with a suggested name. You can override this value with any name as long as it is unique in the REPLAY_TYPE table in the transaction replay service schema. The page also enables you to designate how transaction replay service manages passwords.

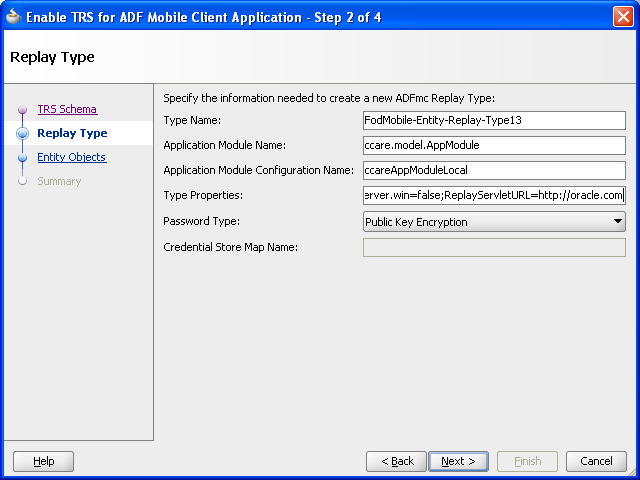

    Figure 5-22 The Replay Type Page

    Define the replay type properties.

    Table 5-4 describes the properties of the Replay Type page.

    Table 5-4 Defining the Reply Type

    Property Description

    Type Name

    If needed, enter a name for the replay type or accept the name populated by the wizard.

    Application Module Name

    Enter the application module of the base (server) application. Open the base server application's model project and locate the application module. Include the application module package and application module name. For example, if the package is model and the name is AppModule, enter model.AppModule. You can find these properties on the General page of the overview editor for the application module.

    Application Module Configuration Name

    Enter the configuration name of the base (server) application module. You can select the application module configuration name using the Manage Configurations dialog. To access this dialog:

    1. Open the base (server) application in JDeveloper.

    2. In the Application Navigator, right-click the application module.

    3. Choose Configurations from the context menu.

    4. Choose the configuration from the Names column.

    5. Enter this configuration name in the Application Module Configuration Name field.

    Type Properties

    This field contains a group of name-value pairs that you can configure for a replay type. This field has the format of name1=value1;name2=value2;name3=value3.

    The ADF Entity Event type has the following two properties:

    1. Name: server.win

      Values: true (the default) or false (optional)

    2. Name: ReplayServletURL

      Value: The URL to the replay servlet set up by adding the ADF Mobile Transaction Replay technology as described in Section 5.8.1, "How to Add the ADF Mobile Transaction Replay Service Technology to an ADF Application." This is a required value.

    Example:

    server.win=false;ReplayServletURL=http://test.example.com:7001/CCare-ViewController-context-root/replayservlet

    Password Type

    Select from among the following password types:

    • Public Key Encryption (PKE)

    • Credential Store Framework (CSF). A credential store is a repository for user name-password or generic credentials. When a credential store is used, an application does not store its passwords in clear text or invent solutions for protecting passwords. The Credential Store Framework (CSF) used by Oracle Platform Security Services (OPSS) is a set of APIs that enable secure Create, Read, Write, and Update operations. For more information, see "Configuring the Credential Store" in Oracle Fusion Middleware Security Guide. If you select this option, then you must also enter the name of the CSF map for the credentials.

    • No Password Type—Select this option if neither PKE nor CSF apply. Use this option for testing only. Do not select this option for a live deployment.

    Credential Store Map Name

    If you select Credential Store Framework as the means by which transaction replay service retrieves the password, then you must enter the name of the map for the credentials.


    Note:

    Although you can change the name of the replay type, you cannot rename the underlying application references that are needed to successfully replay events from the client to the server.
  6. Click Next.

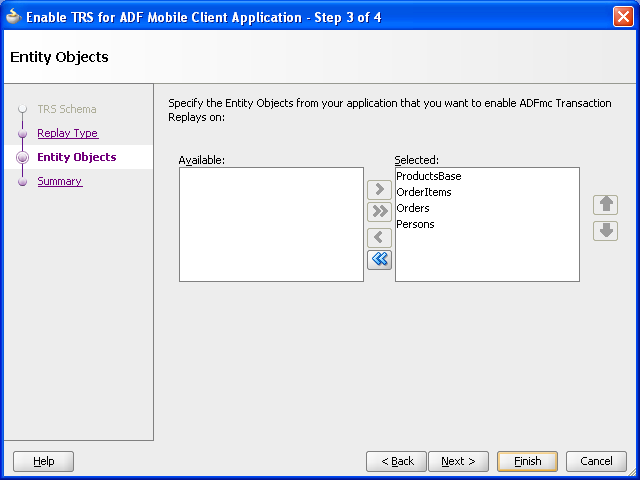

    Figure 5-23 Selecting ADF Mobile Transaction Replay Service Entity Objects

    Selecting MTRS entities.

    The Entity objects page displays all of the entity objects defined in the ADF Mobile client Model project. As illustrated in Figure 5-23, all entity objects are selected by default. Transaction replay service events (INSERT, UPDATE, and DELETE) are enabled for each selected entity object. Select the entity objects designated for transaction replay service by moving the entity objects from the Selected window to the Available window. Click Next.

    Note:

    You can enable or disable transaction replay service for entity objects using the overview editor for entity objects. For more information see Section 5.3.7, "About Synchronization for Entity Objects."
  7. Review the information displayed on the Summary page. To make changes to the replay type, click Back. Otherwise, click Finish.

5.8.5 What Happens When JDeveloper Creates a Transaction Replay Type

When you complete the wizard, the ADF Mobile Client page is updated with the information configured for the transaction replay type. Figure 5-24 shows this page. By clicking Reconfigure TRS Connection, you can access the TRS Enablement Wizard starting at the TRS schema page. You can update the transaction replay type's current connection to the ADF Mobile transaction replay service schema, or select a new one. In addition, you can edit the replay type properties and entity objects using the wizard's pages.

Figure 5-24 ADF Mobile Client Page (After Creation of a Replay Type)

Review and update replay type.

In addition, JDeveloper updates adf-config.xml, writes the TRS replay type for the identified server application to the REPLAY_TYPE table in the transaction replay service Schema, and sets appropriate application, project, and entity object properties to reflect that transaction replay service has been enabled. As shown in Figure 5-25, JDeveloper also creates a transaction replay service data control named ADFmcTransactionReplayDataControl. JDeveloper overwrites this data control each time you complete the wizard.

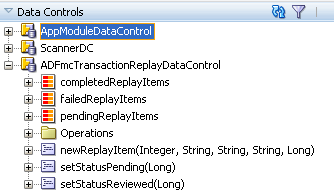

Figure 5-25 The Transaction Replay Service Data Control

The MTRS data control.

You can use this data control to create a view for reviewing Replay Items. Creating such a view enables you to review any conflicts that occurred during a prior synchronization with the server.

You do not need to use the transaction replay service data control to log the standard Replay Items that are generated from the ADF business components used by the mobile client entity objects if you enabled transaction replay service for the entity objects as described in Section 5.3.7.1, "How to Enable or Disable Synchronization for Entity Objects." The ADF Mobile client framework handles this logging automatically for the transaction replay service-enabled entity objects. If you create a mobile application that uses transaction replay service to invoke some business logic outside of ADF Business Components, then you can use the transaction replay service data control to manually log those Replay Items.

5.9 Authentication

When an application contacts the ADF Mobile transaction replay service server through the AuthenticationManager for the first time, it downloads an RSA public key and stores it in the application database. When a user successfully authenticates through AuthenticationManager for the first time, the user name and password are stored in the application database in two forms: first, an SHA1 hash of the password is stored so that the application can authenticate this user in the future if the device does not have network connectivity; second, AuthenticationManager uses the RSA public key to encrypt the password and stores this encrypted password in the database.

As the user runs the application, it generates transaction replay service records for replay on the server. When the application synchronizes these records to the server, the user name and encrypted password are sent to the server so that the transactions can be executed in the user's server security context. The server has the private key to decrypt the user's password and the private key is never downloaded to the mobile client.

ADF Mobile client provides authentication through the interaction of the AuthenticationManager class and the following EL expressions.

The userName and password expressions must be set to enable a user's application to use the AuthenticationManager class; otherwise backing beans cannot use them. Other EL expressions are optional. For more information, see Section 5.9.2, "What You May Need to Know About SecurityContext EL Expressions."

5.9.1 What You May Need to Know About the AuthenticationManager Class

Example 5-6 illustrates a mobile client login page containing components that use EL expressions. For more information, see Section 5.9.2.1, "Using EL Expressions for Authentication."

Example 5-6 A Mobile Client Login Page

<?xml version='1.0' encoding='windows-1252'?>
<amc:view xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:amc="http://xmlns.oracle.com/jdev/amc">
    <amc:form id="form1">
    <amc:menuControl refId="altMain" />
            <amc:panelGroupLayout id="home" layout="vertical">
            <amc:panelGroupLayout layout="vertical">
                <amc:inputText id="txtUserName" label="User Name: "                  value="#{securityContext.userName}" />
                <amc:inputText id="txtPassword" label="Password: "                     value="#{securityContext.password}" secret="true" />
            </amc:panelGroupLayout>
            <amc:panelGroupLayout layout="horizontal">
            <amc:commandButton disabled="#{securityContext.loggingIn}"                 actionListener="#{LoginBean.onLogin}" text="Login" />
            <amc:commandButton disabled="#{!securityContext.loggingIn}"                 actionListener="#{LoginBean.onCancel}" text="Cancel" />
             </amc:panelGroupLayout>
                <amc:outputText id="lblStatus" value="Status:                    #{securityContext.statusMessage}" rendered="#{securityContext.loggingIn}" />
                <amc:outputText id="lblError" value="#{securityContext.errorMessage}"                    rendered="#{securityContext.hasError}" foregroundColor="#FF0000" />
            </amc:panelGroupLayout>
         </amc:form>
         <amc:menu id="altMain" type="alt" platform="wm">
        <amc:menuGroup id="menuGroup1" index="200">
                  <amc:commandMenuItem label="Exit" index="0" action="appExit"/>
        </amc:menuGroup>
         </amc:menu>
</amc:view>

Example 5-7 illustrates a backing bean called LoginBean that uses the AuthenticationManager class.

Example 5-7 Sample LoginBean

package view.backing;

import oracle.adfnmc.el.util.BeanResolver;
import oracle.adfnmc.model.security.AuthenticationManager;
import oracle.adfnmc.model.security.CredentialsCache;
import oracle.adfnmc.util.Utility;


public class LoginBean
  extends BeanResolver
{
  private static final String HOME_ACTION = "toHome"; // defined in the task flow definition files, typically task-flow-definition.xml

  private AuthenticationManager m_mgr;

  public LoginBean()
  {
  }

  private synchronized AuthenticationManager getAuthenticationManager()
  {
    if (m_mgr == null)
    {
      m_mgr = new AuthenticationManager();
      m_mgr.setNavigationAction(HOME_ACTION);
      m_mgr.setWebServiceUrl("<enter value here>");
    }
    return m_mgr;
  }

  private void onLogin()
  {
    AuthenticationManager mgr = getAuthenticationManager();

    String replayTypeName = "<enter value here>";
    mgr.authenticate(replayTypeName);
  }

  private void onCancel()
  {
    AuthenticationManager mgr = getAuthenticationManager();
    mgr.cancel();
  }

  public Object invokeMethod(String methodName, Object[] params)
  {
    if (methodName.equals("onLogin"))
    {
      this.onLogin();
    }
    else if (methodName.equals("onCancel"))
    {
      this.onCancel();
    }

    return null;
  }
}

As illustrated in Example 5-7, the authenticate method of the AuthenticationManger class is called and returns immediately after a user clicks a login button. The bean's onLogin and onCancel methods are hooked to the action listeners (such as actionListener="#{LoginBean.onLogin}" text="Login" and actionListener="#{LoginBean.onCancel}" text="Cancel" in Example 5-8). The AuthenticationManager class spawns a background authentication thread that checks if the user has the permission to update a transaction replay service replay type. If authentication succeeds, it calls a NavigationAction, which is set in the mobile client task flow. In this example, the NavigationAction leads to the home page.

Note:

You must set the String ReplayTypeName variable to the same value entered in the Type Name field of the transaction replay service wizard's Replay Type Page. For example, you would enter MyFodMobile-Entity-Replay_Type13, the value shown in Figure 5-22.

5.9.1.1 Public Accessors

Table 5-5 lists the public accessors of the AuthenticationManager class.

Note:

Typically, you change only NavigationAction.

Table 5-5 Public Accessors

Name Type Default Value Description

NavigationAction

String

None. The value must be set before the authenticate method is called

Denotes the navigation action that runs after a successful login

WebServiceAuthenticationMethodName

String

validateCredential

Denotes a web service method that is used for credential validation

WebServiceNameSpace

String

http://webservice.tnxreplay.oracle/

Denotes the web service namespace that is used for web service calls

WebServicePublicKeyMethodName

String

getPublicKey

Denotes a web service method that is used for public key retrieval

WebServiceUrl

String

None; The value must be set before the authenticate method is called.

Denotes a web service URL that is used

Callback

AuthenticationCallback

null

Denotes a callback used for success or failure of a login


5.9.1.2 Public Methods

Table 5-6 lists the public methods of the AuthenticationManager class.

Table 5-6 Public Methods

Method Usage

clearPublicKey

Call this method when the server's public key changes. Although servers seldom change their public keys, this method clears the public key to enable the AuthenticationManager class to request the public key when the user next tries to authenticate.

authenticate

The AuthenticationManager class calls the authenticate method when a user wants to authenticate credentials. Before this method is called, the values must be set to #{securityContext.userName} and #{securityContext.password}.

The authentication process is as follows:

  • For a user who has never logged in before:

    If the device is offline, then an error is raised that indicates that the device is offline. If the device is online, then the public key is requested and the credentials are validated with the web service.

  • For a user who has logged in previously:

    If the device is offline, then the credentials are validated against the cached credentials. If the device is online, then the credentials are validated against the web service.

cancel

Call this method when a user wants to terminate the current authentication process.


5.9.1.3 The AuthenticationCallback Class

The callback method is:

public void response(int value, Exception e);

The current int values are passed in:

/**
             * This denotes a successful login
             */
            public static final int AUTH_SUCCESS = 0;

            /**
             * This denotes a general failure
             */
            public static final int AUTH_FAILURE = 1;

            /**
             * This denotes a failure due to invalid credentials
             */
            public static final int AUTH_FAILURE_CREDENTIALS = 2;

            /**
             * This denotes a failure due to the device being offline with no    stored credentials
             */
            public static final int AUTH_FAILURE_OFFLINE = 3;

            /**
             * This denotes a failure resolving the URL
             */
            public static final int AUTH_FAILURE_INVALID_URL = 4;

5.9.2 What You May Need to Know About SecurityContext EL Expressions

Write to the expressions listed in Table 5-7 and read from the expressions listed in Table 5-8.

Table 5-7 EL Expressions (Written To)

Name Type Expression Description

UserName

String

#{securityContext.userName}

This must be set before AuthenticationManager.authenticate() is called. This value is passed to the web service as the user name to be authenticated.

Password

String

#{securityContext.password}

This must be set before AuthenticationManager.authenticate() is called. This value is passed to the web service as the password to be authenticated.

This value is cleared automatically on a successful login to prevent it from getting read later in the application.


Table 5-8 lists the EL expressions that are read from.

Table 5-8 EL Expressions (Read From)

Name Type Expression Description

LoggingIn

Boolean

#{securityContext.loggingIn}

This expression is set to true when AuthenticationManager.authenticate() is called. It remains set to true until there is a successful login or a failure.

You can use this expression to swap the disabled nature of a Login/Cancel CommandButton pair based on the current action. For example:

<amc:commandButton disabled="#{securityContext.loggingIn}" actionListener="#{LoginBean.onLogin.execute}" text="Login" />
<amc:commandButton disabled="#{!securityContext.loggingIn}" actionListener="#{LoginBean.onCancel.execute}" text="Cancel" />

Status Message

String

#{securityContext.statusMessage}

This expression is updated when AuthenticationManager.authenticate() is called for the different steps that are taken to authenticate the user. Use this expression to populate an OutputText component that updates users on the current status of the authentication. For example:

<amc:outputText id="lblStatus" value="Status: #{securityContext.statusMessage}" rendered="#{securityContext.loggingIn}" />

HasError

Boolean

#{securityContext.hasError}

This expression is set to false when AuthenticationManager.authenticate() is called and remains set to false unless a login failure occurs.

Use this expression for OutputText components that render only when there is an error. For example:

<amc:outputText id="lblError" value="#{securityContext.errorMessage}" rendered="#{securityContext.hasError}" foregroundColor="#FF0000" />

Error Message

String

#{securityContext.errorMessage}

The expression is updated when AuthenticationManager.authenticate()results in an error.

Use this expression when creating an OutputText component that notifies the user of an error. For example:

<amc:outputText id="lblError" value="#{securityContext.errorMessage}" rendered="#{securityContext.hasError}" foregroundColor="#FF0000" />

5.9.2.1 Using EL Expressions for Authentication

Example 5-8 illustrates an mobile client login page containing components with some of the EL expressions listed in Table 5-7 and Table 5-8. In lines 7 and 8, the UserName and Password EL expressions are set. Setting secret=true in line 8, hides the password entered in the user interface by making it appear as a series of asterisks (*). In lines 11 and 12, the LoggingIn EL expression is used to alternately disable the login button or enable the cancel button. Lines 14 and 15 illustrate the Status Message and Error Message expressions.

Example 5-8 Sample Mobile Client Login Page Using EL Expressions

1: <?xml version='1.0' encoding='windows-1252'?>
2:   <amc:view>
3:      <amc:form xmlns:amc="http://xmlns.oracle.com/jdev/amc">
4:      <amc:menuControl refId="altMain" />
5:      <amc:panelGroupLayout id="home" layout="vertical">
6:      <amc:panelGroupLayout layout="vertical">
7:         <amc:inputText id="txtUserName" label="User Name: " value="#{securityContext.userName}" />
8:         <amc:inputText id="txtPassword" label="Password: " value="#{securityContext.password}" secret="true" />
9:      </amc:panelGroupLayout>
10:      <amc:panelGroupLayout layout="horizontal">
11:      <amc:commandButton disabled="#{securityContext.loggingIn}"             actionListener="#{LoginBean.onLogin}" text="Login" />
12:      <amc:commandButton disabled="#{!securityContext.loggingIn}"            actionListener="#{LoginBean.onCancel}" text="Cancel" />
13:      </amc:panelGroupLayout>
14:      <amc:outputText id="lblStatus" value="Status: #{securityContext.statusMessage}"           rendered="#{securityContext.loggingIn}" />
15:      <amc:outputText id="lblError" value="#{securityContext.errorMessage}"       rendered="#{securityContext.hasError}" foregroundColor="#FF0000" />
16:      </amc:panelGroupLayout>
17:      </amc:form>
18:      <amc:menu id="altMain" type="alt" platform="wm">
19:      <amc:menuGroup index="200">
20:      <amc:commandMenuItem label="Exit" index="0" action="appExit"/>
21:      </amc:menuGroup>
22:      </amc:menu>
23:   </amc:view>
