47 Integrating the Lists Service

This chapter provides an overview of the Lists service and describes how to integrate the Lists service with a WebCenter Portal application. It includes the following sections:

Section 47.1, "Introduction to the Lists Service"
Section 47.2, "Basic Configuration for the Lists Service"
Section 47.3, "Adding Lists to a Resource Catalog"
Section 47.4, "Using the Lists Service REST APIs"
Section 47.5, "Troubleshooting the Lists Service"

47.1 Introduction to the Lists Service

This section provides an overview of the Lists service features and requirements. It includes the following subsections:

Section 47.1.1, "Understanding the Lists Service"
Section 47.1.2, "What Happens to the Lists Service at Runtime"

47.1.1 Understanding the Lists Service

The Lists service provides a means of creating lists and exposing them for placement on application pages at runtime. At design time, you can make the Lists task flow available in your runtime Resource Catalog. At runtime, users can add the task flow from the Catalog to a page and use the task flow to create lists.

At design time, you can add a code snippet to the Resource Catalog to ensure that populated lists are added to the Catalog at runtime, making them available for placement on your application pages.

By default, only users assigned the seeded role Administrator have manage permission on lists. This means at runtime such users can create, edit, and delete lists and edit list data. The default permission can be changed at deployment in jazn-data.xml or by using Enterprise Manager or the Application Policy Manager. Authorized users can change this permission at runtime at the component level (for more information, see Chapter 23, "Modifying Default Security Behavior of Oracle Composer Components"). Only role-based permission is supported.

47.1.2 What Happens to the Lists Service at Runtime

At runtime, the Lists task flow provides controls for creating lists and adding list data. For information about these controls, see the sections, "Creating and Managing Lists," and "Adding and Managing List Data," in Oracle Fusion Middleware User's Guide for Oracle WebCenter Spaces.

Tip:

To enable users to work with lists at runtime, they must be explicitly permitted to do so. For more information, see Section 47.2.3, "Enabling Users to Work with Lists at Runtime."

47.2 Basic Configuration for the Lists Service

This section describes the steps required for adding the Lists service to your application. It includes the following subsections:

Section 47.2.1, "Setting Up Connections for the Lists Service"
Section 47.2.2, "Adding the Lists Service at Design Time"
Section 47.2.3, "Enabling Users to Work with Lists at Runtime"

47.2.1 Setting Up Connections for the Lists Service

The Lists service requires a connection to the database where the WebCenter schema is installed. The Lists service stores all list data in the database. For details about setting up a database connection to the database where the WebCenter schema is installed, see Section 7.2.2, "Setting Up a Database Connection."

Note:

For details about installing the database and the WebCenter schema, see Oracle Fusion Middleware Installation Guide for Oracle WebCenter.

47.2.2 Adding the Lists Service at Design Time

This section explains a basic integration of the Lists service. It includes the following subsections:

Section 47.2.2.1, "Lists Service Task Flows"
Section 47.2.2.2, "How to Add the Lists Service to your Application"

47.2.2.1 Lists Service Task Flows

The Lists service includes one task flow: Lists (Figure 47-1).

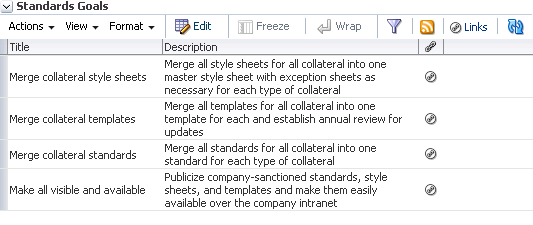

Figure 47-1 A List Rendered in the Lists Task Flow

Description of "Figure 47-1 A List Rendered in the Lists Task Flow"

For information about the Lists task flow, see Section 47.1.2, "What Happens to the Lists Service at Runtime."

47.2.2.2 How to Add the Lists Service to your Application

To add the Lists task flow to your WebCenter Portal application:

Follow the steps described in Section 7.2, "Preparing Your WebCenter Portal Application to Consume Services." to implement security and create a new customizable page in your application.
Create a JSF page on which to add the Lists task flow.
Configure security on the page.

See Also:
For more information, see Chapter 23, "Modifying Default Security Behavior of Oracle Composer Components."
In the Resource Palette, open My Catalogs, then WebCenter Services Catalog, then the Task Flows folder.
Drag and drop the Lists task flow onto your page, and select Region from the context menu.
Save and run your page to the browser.

47.2.3 Enabling Users to Work with Lists at Runtime

Out of the box, only the application administrator can work with lists. For users to see and work with lists at runtime, they must explicitly be granted, minimally, the permission ListPermission:view. At runtime, application administrators can assign this permission through the Role Manager task flow.

For example, to grant view access to lists to all authenticated users, the administrator can create the role AllUsers in the Role Manager task flow, add authenticated-role as a member, and grant view access on Lists.

If you plan to add the Lists service to your application, then you must also add the Role Manager task flow. If your application is based on a Portal Application Template, then the Role Manager task flow is available out of the box on the Security tab in Administration pages. At runtime, you can navigate to this page using the following URL:

http://host:port/appcontxtroot/faces/admin

Note:

Roles and permissions created and granted through the Role Manager at design time are not packaged in the application and are not available after deployment. The provisioning steps described in this section must be taken after deployment.

See Also:

For information about the Role Manager task flow, see Section 67.4, "Using the Role Manager Task Flow."

47.3 Adding Lists to a Resource Catalog

If properly configured, the Resource Catalog makes populated lists available at runtime, enabling authorized users to add them to pages in edit mode. The procedure for adding components to an existing resource catalog or creating a custom catalog are described in Chapter 15, "Creating and Managing Resource Catalogs." This section provides an example of a code snippet to use to add lists to a resource catalog (Example 47-1).

Note:

The values in uppercase are message keys for translated strings.

Example 47-1 Code to Add Lists to a Resource Catalog

<customFolder id="groupLists" visible="#{true}"
      factoryClass="oracle.webcenter.list.view.rc.ListServiceContextFactory">
   <attributes>
    <attribute value="LISTS_CUSTOM_FOLDER.TITLE" attributeId="Title"
      isKey="true"/>
    <attribute value="LISTS_CUSTOM_FOLDER.DESCRIPTION"
      attributeId="Description" isKey="true"/>
    <attribute value="LISTS_CUSTOM_FOLDER.KEYWORDS"
      attributeId="Subject" isKey="true"/>
    <attribute value="oracle.webcenter.list"
      attributeId="WEBCENTER_SERVICE_ID" isKey="false"/>
    <attribute value="/adf/webcenter/folderlists_qualifier.png"
      attributeId="IconURI"/>
   </attributes>
</customFolder>

47.4 Using the Lists Service REST APIs

Oracle WebCenter provides REST APIs to allow access to Lists functionality through interfaces other than the provided task flows. You can use the Lists service REST APIs to perform the following actions:

Work with lists in a Space, such as retrieving a list of lists or adding a new list
Work with one list, such as retrieving or updating list metadata, or deleting the list
Work with rows in a list
Work with a list row, such as retrieving, updating, or deleting the row
Work with list columns, such as adding a column
Work with a list column, such as retrieving, updating, or deleting the column

This section describes the REST APIs associated with the Lists service. It includes the following subsections:

Section 47.4.1, "Entry Point for Lists"
Section 47.4.2, "Lists Resource Type Taxonomy"
Section 47.4.3, "Lists Security Considerations"
Section 47.4.4, "Lists Resource Types"

See Also:

For an introduction to the REST APIs, see Chapter 55, "Using Oracle WebCenter REST APIs."

Before you can use REST APIs, you must take the steps outlined in Section 55.2, "Before You Begin: Performing Required Configurations."

47.4.1 Entry Point for Lists

To get to the REST entry point for lists in a WebCenter Spaces Space, you must navigate to a specific Space to see a link to lists in that Space. For all the lists in a Space, find the link elements with a resourceType of:

urn:oracle:webcenter:space:lists

The corresponding href or template element provides the URI entry point, which retrieves the lists in the Space.

See Also:

For more information about the Resource Index, see Section 55.6.1, "The Resource Index."

For more information about resource types, see Section 55.6.2.1, "Resource Type."

47.4.2 Lists Resource Type Taxonomy

When the client has identified the entry point, it can then navigate through the resource type taxonomy to perform the required operations. The resource type taxonomy for lists is:

urn:oracle:webcenter:space:lists
urn:oracle:webcenter:space:list
   urn:oracle:webcenter:space:list:rows
   urn:oracle:webcenter:space:list:row
   urn:oracle:webcenter:space:list:columns
   urn:oracle:webcenter:space:list:column

47.4.3 Lists Security Considerations

You must be logged in to the REST service to access any of the Lists REST APIs. After that, the underlying service handles permission checking.

See Also:

For general security considerations, see Section 55.9, "Security Considerations for WebCenter REST APIs."

47.4.4 Lists Resource Types

This section provides you with all the information you need to know about each resource type. It includes the following subsections:

Section 47.4.4.1, "urn:oracle:webcenter:space:lists"
Section 47.4.4.2, "urn:oracle:webcenter:space:list"
Section 47.4.4.3, "urn:oracle:webcenter:space:list:rows"
Section 47.4.4.4, "urn:oracle:webcenter:space:list:row"
Section 47.4.4.5, "urn:oracle:webcenter:space:list:columns"
Section 47.4.4.6, "urn:oracle:webcenter:space:list:column"

47.4.4.1 urn:oracle:webcenter:space:lists

The lists response provides a means of retrieving the lists in a given Space (GET) and adding lists to a Space (POST). This section includes the following subsections:

Section 47.4.4.1.1, "Navigation Paths to lists"
Section 47.4.4.1.2, "Supported Methods for lists"
Section 47.4.4.1.3, "Resource Types Linked to from lists"

47.4.4.1.1 Navigation Paths to lists

This section shows how the client can navigate through the hypermedia to access the lists resource:

urn:oracle:webcenter:resourceindex
   urn:oracle:webcenter:spaces
      urn:oracle:webcenter:space:resourceindex
         urn:oracle:webcenter:space:lists

47.4.4.1.2 Supported Methods for lists

The lists resource type supports the following methods:

Method (lists): GET
Method (lists): POST

Method (lists): GET

This method retrieves the lists in a Space.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists?q=name:equals:ProjectIssues&utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: none
Request headers: [Accept = application/xml | application/json]
Request parameters - startIndex, itemsPerPage, q, projection
- q parameter for query, format 'q=attribute:operator:value', for example:
```
'q=name:equals:ProjectIssues'
```
  - Supported operators for Strings: equals, not.equals, contains, starts.with
  - Supported operators for Dates: equals, not.equals, greater.than, greater.than.or.equals, less.than, less.than.or.equals
  - May specify several conditions separated by semicolon (;)

Searchable attributes (Table 47-1)

Table 47-1 Searchable Attributes for lists GET Method

Element	Type	Description
name	string	Name of list
description	string	Description of list
creator	string	User who created list
created	date	Date the list was created
modifier	string	User who modified list
modified	date	Date the list was last modified

Response status: 200 [OK]
Response body: <lists>

Example:

<lists resourceType="urn:oracle:webcenter:space:lists">
   <links>
      <link resourceType="urn:oracle:webcenter:list:lists"
         rel="self" href="opaque"/>
      <link template="opaque?startIndex={startIndex}&
         itemsPerPage={itemsPerPage}&q={searchTerms}&
         projection={projection}
         &stoken=FDgsOu7a2NTTM1cLJvnpkDXfihtHx5Q*"          resourceType="urn:oracle:webcenter:list:lists"/>
   </links>
   <items>
      <list resourceType="urn:oracle:webcenter:space:list">
         <links>
            <link resourceType="urn:oracle:webcenter:list" rel="self"
               href="opaque"
               capabilities="urn:oracle:webcenter:update
               urn:oracle:webcenter:delete"/>
            <link resourceType="urn:oracle:webcenter:list:rows"
               href="opaque"
               capabilities="urn:oracle:webcenter:create"/>
            <link template="opaque?
               startIndex={startIndex}&
               itemsPerPage={itemsPerPage}&q={searchTerms}&
               stoken=FDgsOu7a2NTTM1cLJvnpkDXfihtHx5Q*"
               resourceType="urn:oracle:webcenter:list:rows"/>
            <link resourceType="urn:oracle:webcenter:list:columns"
               href="opaque"
               capabilities="urn:oracle:webcenter:create"/>
         </links>
         <id>/oracle/webcenter/list/scopedMD/
            se0dea180_e2c1_45ac_b08b_
            ba2c0b26aa72/lists/ProjectIssues.xml</id>
         <name>Project Issues</name>
         <description/>
      </list>
   </items>
</lists>

Method (lists): POST

This method creates a list in a Space.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: <list>

Writable elements (Table 47-2)

Table 47-2 Create List Writable Elements

Element	Type	Constraints	Description
name^Foot 1	string	—	Name of list
description	string	—	Description of list
columns^Footref 1	`urn:oracle:webcenter:space:list:columns`	1 to 30	List columns

^Footnote 1Denotes required element

Example:

<list>
   <name>RestExample</name>
   <description>Created using rest api</description>
   <columns>
      <items>
         <metaColumn>
            <name>No.</name>
            <dataType>number</dataType>
         </metaColumn>
         <metaColumn>
            <name>Description</name>
            <dataType>string</dataType>
         </metaColumn>
      </items>
   </columns>
</list>

Request headers: Content-Type = application/xml | application/json, [Accept = application/xml | application/json]
Response status: 201 [Created]
Response body: <list>

Retrieved elements (Table 47-3)

Table 47-3 Retrieved Elements from lists

Element	Type	Description
id	string	List ID
name	string	List name
description	string	List description
scope.guid	string	GUID of Space to which the list belongs
scope.name	string	Name of the Space to which the list belongs
creator	string	Name of the user who created the list
created	date	Date the list was created
modifier	string	Name of the user who last modified the list
modified	date	Date the list was last modified
columns	`urn:oracle:webcenter:space:list:columns`	List columns

Example:

<list resourceType="urn:oracle:webcenter:space:list">
   <links>
      <link resourceType="urn:oracle:webcenter:space:list" rel="self"
         href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/
         lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_
         83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
         fb03874979c0.xml)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:update urn:oracle:webcenter:delete"/>
      <link template="http://dadvmh0330.us.oracle.com:8889
         /rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/
         s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_
         417b_a35f_fb03874979c0.xml)/rows?
         utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_
         w**&startIndex={startIndex}&itemsPerPage={itemsPerPage}
         &q={searchTerms}&utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         resourceType="urn:oracle:webcenter:space:list:rows"
         href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/
         vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_
         83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
         fb03874979c0.xml)/rows?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:create"/>
      <link resourceType="urn:oracle:webcenter:space:list:columns"
         href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/
         vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_
         83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
         fb03874979c0.xml)/columns?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_
         w**" capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:create"/>
   </links>
   <id>/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_
      f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml</id>
   <name>RestExample</name>
   <description>Created using rest api</description>
   <scope>
      <guid>s355923f0_2f04_4fd0_83ad_f7dac2a7ceed</guid>
      <name>vs1</name>
   </scope>
   <creator>weblogic</creator>
   <author>
      <links>
         <link resourceType="urn:oracle:webcenter:people:person"
            rel="via" href="http://dadvmh0330.us.oracle.com:8889/
            rest/api/people/E9A35E80F0BC11DFBFBE0FE339E55B21/lists/
            @self?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="image/png"
            template="http://dadvmh0330.us.oracle.com:8889/
            webcenter/profilephoto/45394133354538304630424
            33131444642464245304645333339453535423231/{size}?
            _xResourceMethod=wsrp"
            resourceType="urn:oracle:webcenter:people:person"
            rel="urn:oracle:webcenter:people:icon"
            href="http://dadvmh0330.us.oracle.com:8889/webcenter/
            profilephoto/4539413335453830463042433131444642464245304645
            333339453535423231/SMALL?_xResourceMethod=wsrp"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="text/html"
            resourceType="urn:oracle:webcenter:spaces:profile"
            rel="alternate" href="http://dadvmh0330.us.oracle.com:8889/
            webcenter/faces/oracle/webcenter/webcenterapp/view/pages/
            peopleconn/UserProfileGallery.jspx?wc.username=weblogic"
            capabilities="urn:oracle:webcenter:read"/>
      </links>
      <displayName>weblogic</displayName>
      <guid>E9A35E80F0BC11DFBFBE0FE339E55B21</guid>
      <id>weblogic</id>
   </author>
   <created>2010-11-18T06:10:32.250-08:00</created>
   <modifier>weblogic</modifier>
   <modifiedByUser>
      <displayName>weblogic</displayName>
      <guid>E9A35E80F0BC11DFBFBE0FE339E55B21</guid>
      <id>weblogic</id>
   </modifiedByUser>
   <modified>2010-11-18T06:10:32.250-08:00</modified>
   <columns resourceType="urn:oracle:webcenter:space:list:columns">
      <links>
         <link resourceType="urn:oracle:webcenter:space:list:columns"
            rel="self"
            href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces
            /vs1/lists/(/oracle/webcenter/list/scopedMD/
            s355923f0_2f04_4fd0_83ad_
            f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
            fb03874979c0.xml)/columns?utoken=
            FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
            capabilities="urn:oracle:webcenter:read
            urn:oracle:webcenter:create"/>
         <link resourceType="urn:oracle:webcenter:space:list"
            rel="urn:oracle:webcenter:parent"
            href="http://dadvmh0330.us.oracle.com:8889/
            rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/
            s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/
            ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)?
            utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"/>
         </links>
         <items>
            <metaColumn resourceType=
               "urn:oracle:webcenter:space:list:column">
               <links>
                  <link resourceType="urn:oracle:webcenter:space:
                     list:column" rel="self
                     "href="http://dadvmh0330.us.oracle.com:8889/
                     rest/api/spaces/vs1/lists/
                     (/oracle/webcenter/list/scopedMD/
                     s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/
                     lists/ls_c9cecbc7_756b_417b_a35f_
                     fb03874979c0.xml)/columns/
                     (lco_9bdd1418_6004_40ba_a052_04e8335b7ee8)?
                     utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
                     capabilities="urn:oracle:webcenter:read
                     urn:oracle:webcenter:update
                     urn:oracle:webcenter:delete"/>
               </links>
               <id>lco_9bdd1418_6004_40ba_a052_04e8335b7ee8</id>
               <name>No.</name>
               <dataType>number</dataType>
               <required>false</required>
               <displayLength>10</displayLength>
               <format>number</format>
               <allowLinks>false</allowLinks>
            </metaColumn>
            <metaColumn resourceType=
               "urn:oracle:webcenter:space:list:column">
               <links>
                  <link resourceType=
                     "urn:oracle:webcenter:space:list:column"
                     rel="self"
                     href="http://dadvmh0330.us.oracle.com:8889/
                     rest/api/spaces/vs1/lists/(/oracle/
                     webcenter/list/scopedMD/
                     s355923f0_2f04_4fd0_83ad_
                     f7dac2a7ceed/lists/ls_c9cecbc7_756b_
                     417b_a35f_fb03874979c0.xml)/columns/
                     (lco_3a31fd20_24f1_4422_99fd_c00d7bed4b24)?
                     utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
                     capabilities="urn:oracle:webcenter:read
                     urn:oracle:webcenter:update
                     urn:oracle:webcenter:delete"/>
            </links>
            <id>lco_3a31fd20_24f1_4422_99fd_c00d7bed4b24</id>
            <name>Description</name>
            <dataType>string</dataType>
            <required>false</required>
            <maxLength>500</maxLength>
            <displayLength>20</displayLength>
            <allowLinks>false</allowLinks>
            <editLines>1</editLines>
         </metaColumn>
      </items>
   </columns>
</list>

47.4.4.1.3 Resource Types Linked to from lists

Table 47-4 lists the resource types that the client can link to from the lists resource.

Table 47-4 Resource Types linked to from lists

rel	resourceType
self	`urn:oracle:webcenter:space:lists`
	`urn:oracle:webcenter:space:list`

47.4.4.2 urn:oracle:webcenter:space:list

The list response provides a means of retrieving, updating, and deleting an individual list. This section includes the following subsections:

Section 47.4.4.2.1, "Navigation Paths to list"
Section 47.4.4.2.2, "Supported Methods for list"
Section 47.4.4.2.3, "Resource Types Linked to from list"

47.4.4.2.1 Navigation Paths to list

This section shows how the client can navigate through the hypermedia to access the list resource:

urn:oracle:webcenter:resourceindex
   urn:oracle:webcenter:spaces
      urn:oracle:webcenter:space:resourceindex
         urn:oracle:webcenter:space:lists
            urn:oracle:webcenter:space:list

47.4.4.2.2 Supported Methods for list

The list resource type supports the following methods:

Method (list): GET
Method (list): PUT
Method (list): DELETE

Method (list): GET

Use this method to retrieve a list.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_bb806754_0652_4d49_9354_5fb62dc3514d.xml)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: none
Request headers: [Accept = application/xml | application/json]
Response status: 200 [OK]
Response body: <list>

Retrieved elements (Table 47-5)

Table 47-5 Retrieved Elements for list

Element	Type	Description
id	string	ID of the list
name	string	Name of the list
description	string	Description of the list
scope.guid	string	GUID of the Space to which the list belongs
scope.name	string	Name of the Space to which the list belongs
creator	string	User who created the list
created	Date	Date on which the list was created
modifier	string	User who last modified the list
modified	Date	Date on which the list was last modified
columns	`urn:oracle:webcenter:space:list:columns`	The columns that make up the list

For example:

<list resourceType="urn:oracle:webcenter:space:list">
   <links>
      <link resourceType="urn:oracle:webcenter:space:list" rel="self"
         href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/
         lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_
         f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
         fb03874979c0.xml)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:update
         urn:oracle:webcenter:delete"/>
      <link template="http://dadvmh0330.us.oracle.com:8889
         /rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/
         s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_
         417b_a35f_fb03874979c0.xml)/rows?
         utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**&
         startIndex={startIndex}&itemsPerPage={itemsPerPage}&q=
         {searchTerms}&utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         resourceType="urn:oracle:webcenter:space:list:rows"
         href="http://dadvmh0330.us.oracle.com:8889/rest/api/
         spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_
         2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
         fb03874979c0.xml)/rows?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:create"/>
      <link resourceType="urn:oracle:webcenter:space:list:columns"
         href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/
         vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_
         83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
         fb03874979c0.xml)/columns?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_
         w**" capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:create"/>
   </links>
   <id>/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_
      f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml</id>
   <name>RestExample</name>
   <description>Created using rest api</description>
   <scope>
      <guid>s355923f0_2f04_4fd0_83ad_f7dac2a7ceed</guid>
      <name>vs1</name>
   </scope>
   <creator>weblogic</creator>
   <author>
      <links>
         <link resourceType="urn:oracle:webcenter:people:person"
            rel="via" href="http://dadvmh0330.us.oracle.com:8889/
            rest/api/people/E9A35E80F0BC11DFBFBE0FE339E55B21/lists/
            @self?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="image/png"
            template="http://dadvmh0330.us.oracle.com:8889/
            webcenter/profilephoto/4539413335453830463042433131444
            642464245304645333339453535423231/{size}?
            _xResourceMethod=wsrp"
            resourceType="urn:oracle:webcenter:people:person"
            rel="urn:oracle:webcenter:people:icon"
            href="http://dadvmh0330.us.oracle.com:8889/
            webcenter/profilephoto/4539413335453830463042433131444
            642464245304645333339453535423231/SMALL?
            _xResourceMethod=wsrp"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="text/html"
            resourceType="urn:oracle:webcenter:spaces:profile"
            rel="alternate" href="http://dadvmh0330.us.oracle.com:8889/
            webcenter/faces/oracle/webcenter/webcenterapp/view/pages/
            peopleconn/UserProfileGallery.jspx?wc.username=weblogic"
            capabilities="urn:oracle:webcenter:read"/>
      </links>
      <displayName>weblogic</displayName>
      <guid>E9A35E80F0BC11DFBFBE0FE339E55B21</guid>
      <id>weblogic</id>
   </author>
   <created>2010-11-18T06:10:32.250-08:00</created>
   <modifier>weblogic</modifier>
   <modifiedByUser>
      <displayName>weblogic</displayName>
      <guid>E9A35E80F0BC11DFBFBE0FE339E55B21</guid>
      <id>weblogic</id>
   </modifiedByUser>
   <modified>2010-11-18T06:10:32.250-08:00</modified>
   <columns resourceType="urn:oracle:webcenter:space:list:columns">
      <links>
         <link resourceType="urn:oracle:webcenter:space:list:columns"
            rel="self" href="http://dadvmh0330.us.oracle.com:8889/
            rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/
            s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_
            756b_417b_a35f_fb03874979c0.xml)/
            columns?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
            capabilities="urn:oracle:webcenter:read
            urn:oracle:webcenter:create"/>
         <link resourceType="urn:oracle:webcenter:space:list"
            rel="urn:oracle:webcenter:parent"
            href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/
            vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_
            4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
            fb03874979c0.xml)?utoken=
            FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"/>
      </links>
      <items>
         <metaColumn resourceType=
            "urn:oracle:webcenter:space:list:column">
            <links>
               <link resourceType=
                  "urn:oracle:webcenter:space:list:column"
                  rel="self"
                   href="http://dadvmh0330.us.oracle.com:8889/
                  rest/api/spaces/vs1/lists/(/oracle/webcenter/
                  list/scopedMD/s355923f0_2f04_4fd0_83ad_
                  f7dac2a7ceed/lists/ls_c9cecbc7_
                  756b_417b_a35f_fb03874979c0.xml)/columns/(lco_
                  9bdd1418_6004_40ba_a052_04e8335b7ee8)?
                  utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
                  capabilities="urn:oracle:webcenter:read
                  urn:oracle:webcenter:update
                  urn:oracle:webcenter:delete"/>
            </links>
            <id>lco_9bdd1418_6004_40ba_a052_04e8335b7ee8</id>
            <name>No.</name>
            <dataType>number</dataType>
            <required>false</required>
            <displayLength>10</displayLength>
            <format>number</format>
            <allowLinks>false</allowLinks>
         </metaColumn>
         <metaColumn resourceType=
            "urn:oracle:webcenter:space:list:column">
            <links>
               <link resourceType=
                  "urn:oracle:webcenter:space:list:column"
                  rel="self"
                  href="http://dadvmh0330.us.oracle.com:8889
                  /rest/api/spaces/vs1/lists/(/oracle/webcenter/
                  list/scopedMD/s355923f0_2f04_4fd0_83ad_
                  f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
                  fb03874979c0.xml)/columns/(lco_3a31fd20_24f1_
                  4422_99fd_c00d7bed4b24)?
                  utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
                  capabilities="urn:oracle:webcenter:read
                  urn:oracle:webcenter:update                   urn:oracle:webcenter:delete"/>
            </links>
            <id>lco_3a31fd20_24f1_4422_99fd_c00d7bed4b24</id>
            <name>Description</name>
            <dataType>string</dataType>
            <required>false</required>
            <maxLength>500</maxLength>
            <displayLength>20</displayLength>
            <allowLinks>false</allowLinks>
            <editLines>1</editLines>
         </metaColumn>
      </items>
   </columns>
</list>

Method (list): PUT

Use this method to update a list name or description.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_bb806754_0652_4d49_9354_5fb62dc3514d.xml)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: <list>
Writable elements for list (Table 47-6)

Table 47-6 Writable Elements for list

Element Type Required Constraints Description

name^Foot 1

string

Yes

1 or more characters

Name of this list

description

string

No

none

Description of this list

^Footnote 1Denotes required element

Element	Type	Required	Constraints	Description
name^Foot 1	string	Yes	1 or more characters	Name of this list
description	string	No	none	Description of this list

For example:

<list>
   <name>RestExampleUpdate</name>
   <description>Updated using rest api</description>
</list>

Request headers: Content-Type = application/xml | application/json, [Accept = application/xml | application/json]
Response status: 200 [OK]
Response body: <list>

Method (list): DELETE

Use this method to delete a list.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_bb806754_0652_4d49_9354_5fb62dc3514d.xml)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: none
Response status: 204 [No Content]
Response body: none

47.4.4.2.3 Resource Types Linked to from list

Table 47-7 lists the resource types that the client can link to from the list resource.

Table 47-7 Resource Types linked to from list

rel	resourceType
self	`urn:oracle:webcenter:space:list`
	`urn:oracle:webcenter:space:list:rows`
	`urn:oracle:webcenter:space:list:columns`

47.4.4.3 urn:oracle:webcenter:space:list:rows

The rows response provides a means of retrieving and adding rows to a list. This section includes the following subsections:

Section 47.4.4.3.1, "Navigation Paths to rows"
Section 47.4.4.3.2, "Supported Methods for rows"
Section 47.4.4.3.3, "Resource Types Linked to from rows"

47.4.4.3.1 Navigation Paths to rows

This section shows how the client can navigate through the hypermedia to access the rows resource:

urn:oracle:webcenter:resourceindex
   urn:oracle:webcenter:spaces
      urn:oracle:webcenter:space:resourceindex
         urn:oracle:webcenter:space:lists
            urn:oracle:webcenter:space:list
               urn:oracle:webcenter:space:list:rows

47.4.4.3.2 Supported Methods for rows

The rows resource type supports the following methods:

Method (rows): GET
Method (rows): POST

Method (rows): GET

Use this method to retrieve list rows.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_bb806754_0652_4d49_9354_5fb62dc3514d.xml)/rows?q=lco_9bdd1418_6004_40ba_a052_04e8335b7ee8:equals:2&utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: none
Request headers: [Accept = application/xml | application/json]
Request parameters - startIndex, itemsPerPage, q, projection
- q parameter for query, format 'q=columnId:operator:value', for example:
```
'q=lco_9bdd1418_6004_40ba_a052_04e8335b7ee8:equals:2'
```
  - Supported operators for Strings: equals, not.equals, contains, starts.with
  - Supported operators for Numbers, Dates: equals, not.equals, greater.than, greater.than.or.equals, less.than, less.than.or.equals
  - May specify several conditions separated by semi-colon (;)
Searchable attributes for rows: Rows are searchable by column values.
Response status: 200 [OK]
Response body: <rows>

For example:

<rows resourceType="urn:oracle:webcenter:space:list:rows">
   <links>
      <link template="http://dadvmh0330.us.oracle.com:8889/
         rest/api/spaces/vs1/lists/(/oracle/webcenter/list/
         scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_
         c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/rows?
         utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**&
         startIndex={startIndex}&itemsPerPage={itemsPerPage}&
         q={searchTerms}&utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         resourceType="urn:oracle:webcenter:space:list:rows" rel="self"
         href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/
         vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_
         83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
         fb03874979c0.xml)/rows?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:create"/>
      <link resourceType="urn:oracle:webcenter:space:list"
         rel="urn:oracle:webcenter:parent"
         href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/
         vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_
         83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
         fb03874979c0.xml)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"/>
   </links>
   <itemsPerPage>1</itemsPerPage>
   <startIndex>0</startIndex>
   <items>
      <row resourceType="urn:oracle:webcenter:space:list:row">
         <links>
            <link resourceType="urn:oracle:webcenter:space:list:row"
               rel="self" href="http://dadvmh0330.us.oracle.com:8889/
               rest/api/spaces/vs1/lists/(/oracle/webcenter/list/
               scopedMD/s355923f0_2f04_4fd0_83ad_
               f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
               fb03874979c0.xml)/rows/(lr_a14d427f_8515_4c82_956f_
               a60e6e08668c)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
               capabilities="urn:oracle:webcenter:read
               urn:oracle:webcenter:update
               urn:oracle:webcenter:delete"/>
         </links>
         <id>lr_a14d427f_8515_4c82_956f_a60e6e08668c</id>
         <listId>/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_
            83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
            fb03874979c0.xml</listId>
         <scope>s355923f0_2f04_4fd0_83ad_f7dac2a7ceed</scope>
         <creator>weblogic</creator>
         <author>
            <links>
               <link resourceType=
                  "urn:oracle:webcenter:people:person"
                  rel="via"
                  href="http://dadvmh0330.us.oracle.com:8889/
                  rest/api/people/E9A35E80F0BC11DFBFBE0FE339E55B21/
                  lists/@self?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_
                  w**" capabilities="urn:oracle:webcenter:read"/>
               <link type="image/png"
                  template="http://dadvmh0330.us.oracle.com:8889/
                  webcenter/profilephoto/45394133354538304630424
                  33131444642464245304645333339453535423231/
                  {size}?_xResourceMethod=wsrp"
                  resourceType="urn:oracle:webcenter:people:person"
                  rel="urn:oracle:webcenter:people:icon"
                  href="http://dadvmh0330.us.oracle.com:8889/
                  webcenter/profilephoto/45394133354538304630424
                  33131444642464245304645333339453535423231/SMALL?
                  _xResourceMethod=wsrp"
                  capabilities="urn:oracle:webcenter:read"/>
               <link type="text/html"
                  resourceType="urn:oracle:webcenter:spaces:
                  profile" rel="alternate"
                  href="http://dadvmh0330.us.oracle.com:8889/
                  webcenter/faces/oracle/webcenter/webcenterapp/
                  view/pages/peopleconn/UserProfileGallery.jspx?
                  wc.username=weblogic"
                  capabilities="urn:oracle:webcenter:read"/>
            </links>
            <displayName>weblogic</displayName>
            <guid>E9A35E80F0BC11DFBFBE0FE339E55B21</guid>
            <id>weblogic</id>
         </author>
         <created>2010-11-18T07:12:06.599-08:00</created>
         <modifier>weblogic</modifier>
         <modifiedByUser>
            <links>
               <link resourceType=
                  "urn:oracle:webcenter:people:person" rel="via"
                  href="http://dadvmh0330.us.oracle.com:8889/rest/
                  api/people/E9A35E80F0BC11DFBFBE0FE339E55B21/lists
                  /@self?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
                  capabilities="urn:oracle:webcenter:read"/>
               <link type="image/png"
                  template="http://dadvmh0330.us.oracle.com:8889/
                  webcenter/profilephoto/45394133354538304630424
                  33131444642464245304645333339453535423231/
                  {size}?_xResourceMethod=wsrp"
                  resourceType="urn:oracle:webcenter:people:person"
                  rel="urn:oracle:webcenter:people:icon"
                  href="http://dadvmh0330.us.oracle.com:8889/
                  webcenter/profilephoto/45394133354538304630424
                  33131444642464245304645333339453535423231/SMALL?
                  _xResourceMethod=wsrp"
                  capabilities="urn:oracle:webcenter:read"/>
               <link type="text/html"
                  resourceType="urn:oracle:webcenter:spaces:
                  profile" rel="alternate"
                  href="http://dadvmh0330.us.oracle.com:8889/
                  webcenter/faces/oracle/webcenter/webcenterapp/
                  view/pages/peopleconn/UserProfileGallery.jspx?
                  wc.username=weblogic"
                  capabilities="urn:oracle:webcenter:read"/>
            </links>
            <displayName>weblogic</displayName>
            <guid>E9A35E80F0BC11DFBFBE0FE339E55B21</guid>
            <id>weblogic</id>
         </modifiedByUser>
         <modified>2010-11-18T07:12:06.599-08:00</modified>
         <columns>
            <column>
               <id>lco_9bdd1418_6004_40ba_a052_04e8335b7ee8</id>
               <name>No.</name>
               <value>1.0</value>
            </column>
            <column>
               <id>lco_3a31fd20_24f1_4422_99fd_c00d7bed4b24</id>
               <name>Description</name>
               <value>test</value>
            </column>
         </columns>
      </row>
   </items>
</rows>

Method (rows): POST

Use this method to create a row in a list.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_bb806754_0652_4d49_9354_5fb62dc3514d.xml)/rows?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: <row>
Writable elements (Table 47-8)

Table 47-8 Writable Elements for rows

Element Type Constraints Description

columns.column.id^Foot 1

string

—

Column ID

columns.column.value^Footref 1

string

Valid value for column data type

Column value

^Footnote 1Denotes required element

Element	Type	Constraints	Description
columns.column.id^Foot 1	string	—	Column ID
columns.column.value^Footref 1	string	Valid value for column data type	Column value

For example:

<row>
   <columns>
      <column>
         <id>lco_9bdd1418_6004_40ba_a052_04e8335b7ee8</id>
         <value>1</value>
      </column>
      <column>
         <id>lco_3a31fd20_24f1_4422_99fd_c00d7bed4b24</id>
         <value>test</value>
      </column>
   </columns>
</row>

Request headers: Content-Type = application/xml | application/json, [Accept = application/xml | application/json]
Response status: 201 [Created]
Response body: <row>

Retrieved elements (Table 47-9)

Table 47-9 Retrieved Elements for rows

Element	Type	Description
id	string	Row ID
list id	string	List ID
scope	string	GUID of Space to which list belongs
creator	string	Person who created the list
created	date	Date the list was created
modifier	string	Last user to modify the list
modified	date	Date the list was last modified
columns	—	Column values

For example:

<row resourceType="urn:oracle:webcenter:space:list:row">
   <links>
      <link resourceType="urn:oracle:webcenter:space:list:row" rel="self"
         href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/
         lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_
         f7dac2a7ceed/lists/ls_bb806754_0652_4d49_9354_
         5fb62dc3514d.xml)/rows/(lr_4cc07327_49cb_4cd5_a270_
         182ddcc8db4a)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:update urn:oracle:webcenter:delete"/>
   </links>
   <id>lr_4cc07327_49cb_4cd5_a270_182ddcc8db4a</id>
   <listId>/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_
      f7dac2a7ceed/lists/ls_bb806754_0652_4d49_9354_
      5fb62dc3514d.xml</listId>
   <scope>s355923f0_2f04_4fd0_83ad_f7dac2a7ceed</scope>
   <creator>weblogic</creator>
   <author>
      <links>
         <link resourceType="urn:oracle:webcenter:people:person"
            rel="via" href="http://dadvmh0330.us.oracle.com:8889
            /rest/api/people/E9A35E80F0BC11DFBFBE0FE339E55B21/lists/
            @self?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="image/png"
            template="http://dadvmh0330.us.oracle.com:8889/
            webcenter/profilephoto/4539413335453830463042433131
            444642464245304645333339453535423231/{size}?
            _xResourceMethod=wsrp"
            resourceType="urn:oracle:webcenter:people:person"
            rel="urn:oracle:webcenter:people:icon"
            href="http://dadvmh0330.us.oracle.com:8889/webcenter/
            profilephoto/453941333545383046304243313144464246424530
            4645333339453535423231/SMALL?_xResourceMethod=wsrp"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="text/html"
            resourceType="urn:oracle:webcenter:spaces:profile"
            rel="alternate" href="http://dadvmh0330.us.oracle.com:8889/
            webcenter/faces/oracle/webcenter/webcenterapp/view/pages/
            peopleconn/UserProfileGallery.jspx?wc.username=weblogic"
            capabilities="urn:oracle:webcenter:read"/>
      </links>
      <displayName>weblogic</displayName>
      <guid>E9A35E80F0BC11DFBFBE0FE339E55B21</guid>
      <id>weblogic</id>
   </author>
   <created>2010-11-17T06:34:25.042-08:00</created>
   <modifier>weblogic</modifier>
   <modifiedByUser>
      <links>
         <link resourceType="urn:oracle:webcenter:people:person"
            rel="via" href="http://dadvmh0330.us.oracle.com:8889/
            rest/api/people/E9A35E80F0BC11DFBFBE0FE339E55B21/lists/
            @self?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="image/png"
            template="http://dadvmh0330.us.oracle.com:8889/
            webcenter/profilephoto/4539413335453830463042433131
            444642464245304645333339453535423231/{size}?
            _xResourceMethod=wsrp"
            resourceType="urn:oracle:webcenter:people:person"
            rel="urn:oracle:webcenter:people:icon"
            href="http://dadvmh0330.us.oracle.com:8889/webcenter/
            profilephoto/453941333545383046304243313144464246424530
            4645333339453535423231/SMALL?_xResourceMethod=wsrp"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="text/html"
            resourceType="urn:oracle:webcenter:spaces:profile"
            rel="alternate" href="http://dadvmh0330.us.oracle.com:8889/
            webcenter/faces/oracle/webcenter/webcenterapp/view/pages/
            peopleconn/UserProfileGallery.jspx?wc.username=weblogic"
            capabilities="urn:oracle:webcenter:read"/>
      </links>
      <displayName>weblogic</displayName>
      <guid>E9A35E80F0BC11DFBFBE0FE339E55B21</guid>
      <id>weblogic</id>
   </modifiedByUser>
      <modified>2010-11-17T06:34:25.042-08:00</modified>
   <columns>
      <column>
         <id>lco_9bdd1418_6004_40ba_a052_04e8335b7ee8</id>
         <name>No.</name>
         <value>1.0</value>
      </column>
      <column>
         <id>lco_3a31fd20_24f1_4422_99fd_c00d7bed4b24</id>
         <name>Description</name>
         <value>test</value>
      </column>
   </columns>
</row>

47.4.4.3.3 Resource Types Linked to from rows

Table 47-10 lists the resource types that the client can link to from the rows resource.

Table 47-10 Resource Types Linked to from rows

rel	resourceType
self	`urn:oracle:webcenter:space:list.rows`
parent	`urn:oracle:webcenter:space:list`
	`urn:oracle:webcenter:space:list:row`

47.4.4.4 urn:oracle:webcenter:space:list:row

The row response provides a means of retrieving and adding, and deleting an individual list row. This section includes the following subsections:

Section 47.4.4.4.1, "Navigation Paths to row"
Section 47.4.4.4.2, "Supported Methods for row"
Section 47.4.4.4.3, "Resource Types Linked to from row"

47.4.4.4.1 Navigation Paths to row

This section shows how the client can navigate through the hypermedia to access the row resource:

urn:oracle:webcenter:resourceindex
   urn:oracle:webcenter:spaces
      urn:oracle:webcenter:space:resourceindex
         urn:oracle:webcenter:space:lists
            urn:oracle:webcenter:space:list
               urn:oracle:webcenter:space:list:rows
                  urn:oracle:webcenter:space:list:row

47.4.4.4.2 Supported Methods for row

The row resource type supports the following methods:

Method (row): GET
Method (row): PUT
Method (row): DELETE

Method (row): GET

Use this method to retrieve data from a list row.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/rows/(lr_a14d427f_8515_4c82_956f_a60e6e08668c)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: none
Request headers: [Accept = application/xml | application/json]
Response status: 200 [OK]
Response body: <row>

Retrieved elements (Table 47-11)

Table 47-11 Retrieved Elements for row

Element	Type	Description
id	string	ID of the row
listId	string	ID of the parent list
scope	string	GUID of the Space to which the list belongs
creator	string	User who created the row
created	Date	Date on which the row was created
modifier	string	User who last modified the row
modified	Date	Date on which the row was last modified
columns	`urn:oracle:webcenter:space:list:columns`	Column values

For example:

<row resourceType="urn:oracle:webcenter:space:list:row">
   <links>
      <link resourceType="urn:oracle:webcenter:space:list:row"
         rel="self" href="http://dadvmh0330.us.oracle.com:8889/
         rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD
         /s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_bb806754_0652_
         4d49_9354_5fb62dc3514d.xml)/rows/(lr_4cc07327_49cb_4cd5_a270_
         182ddcc8db4a)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:update urn:oracle:webcenter:delete"/>
   </links>
   <id>lr_4cc07327_49cb_4cd5_a270_182ddcc8db4a</id>
   <listId>/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_
      f7dac2a7ceed/lists/ls_bb806754_0652_4d49_9354_
      5fb62dc3514d.xml</listId>
   <scope>s355923f0_2f04_4fd0_83ad_f7dac2a7ceed</scope>
   <creator>weblogic</creator>
   <author>
      <links>
         <link resourceType="urn:oracle:webcenter:people:person"
            rel="via" href="http://dadvmh0330.us.oracle.com:8889/
            rest/api/people/E9A35E80F0BC11DFBFBE0FE339E55B21/lists/
            @self?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="image/png"
            template="http://dadvmh0330.us.oracle.com:8889/webcenter/
            profilephoto/453941333545383046304243313144464246424530
            4645333339453535423231/{size}?_xResourceMethod=wsrp"
            resourceType="urn:oracle:webcenter:people:person"
            rel="urn:oracle:webcenter:people:icon"
            href="http://dadvmh0330.us.oracle.com:8889/webcenter/
            profilephoto/453941333545383046304243313144464246424530
            4645333339453535423231/SMALL?_xResourceMethod=wsrp"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="text/html"
            resourceType="urn:oracle:webcenter:spaces:profile"
            rel="alternate" href="http://dadvmh0330.us.oracle.com:8889/
            webcenter/faces/oracle/webcenter/webcenterapp/view/pages/
            peopleconn/UserProfileGallery.jspx?wc.username=weblogic"
            capabilities="urn:oracle:webcenter:read"/>
      </links>
      <displayName>weblogic</displayName>
      <guid>E9A35E80F0BC11DFBFBE0FE339E55B21</guid>
      <id>weblogic</id>
   </author>
   <created>2010-11-17T06:34:25.042-08:00</created>
   <modifier>weblogic</modifier>
   <modifiedByUser>
      <links>
         <link resourceType="urn:oracle:webcenter:people:person"
            rel="via" href="http://dadvmh0330.us.oracle.com:8889/
            rest/api/people/E9A35E80F0BC11DFBFBE0FE339E55B21/lists/
            @self?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="image/png"
            template="http://dadvmh0330.us.oracle.com:8889/webcenter/
            profilephoto/453941333545383046304243313144464246424530
            4645333339453535423231/{size}?_xResourceMethod=wsrp"
            resourceType="urn:oracle:webcenter:people:person"
            rel="urn:oracle:webcenter:people:icon"
            href="http://dadvmh0330.us.oracle.com:8889/webcenter/
            profilephoto/453941333545383046304243313144464246424530
            4645333339453535423231/SMALL?_xResourceMethod=wsrp"
            capabilities="urn:oracle:webcenter:read"/>
         <link type="text/html"
            resourceType="urn:oracle:webcenter:spaces:profile"
            rel="alternate" href="http://dadvmh0330.us.oracle.com:8889/
            webcenter/faces/oracle/webcenter/webcenterapp/view/pages/
            peopleconn/UserProfileGallery.jspx?wc.username=weblogic"
            capabilities="urn:oracle:webcenter:read"/>
      </links>
      <displayName>weblogic</displayName>
      <guid>E9A35E80F0BC11DFBFBE0FE339E55B21</guid>
      <id>weblogic</id>
   </modifiedByUser>
   <modified>2010-11-17T06:34:25.042-08:00</modified>
   <columns>
      <column>
         <id>lco_9bdd1418_6004_40ba_a052_04e8335b7ee8</id>
         <name>No.</name>
         <value>1.0</value>
      </column>
      <column>
         <id>lco_3a31fd20_24f1_4422_99fd_c00d7bed4b24</id>
         <name>Description</name>
         <value>test</value>
      </column>
   </columns>
</row>

Method (row): PUT

Use this method to update row data.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/rows/(lr_a14d427f_8515_4c82_956f_a60e6e08668c)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: <row>
Writable elements (Table 47-12)

Table 47-12 Writable Elements for row

Element Type Constraints Description

columns.column.id^Foot 1

string

—

Column ID

columns.column.value^Footref 1

string

valid value for column data type

Column value

^Footnote 1Denotes required element

Element	Type	Constraints	Description
columns.column.id^Foot 1	string	—	Column ID
columns.column.value^Footref 1	string	valid value for column data type	Column value

For example:

<row>
   <columns>
      <column>
         <id>lco_9bdd1418_6004_40ba_a052_04e8335b7ee8</id>
         <value>1</value>
      </column>
      <column>
         <id>lco_3a31fd20_24f1_4422_99fd_c00d7bed4b24</id>
         <value>test</value>
      </column>
   </columns>
</row>

Request headers: Content-Type = application/xml | application/json, [Accept = application/xml | application/json]
Response status: 200 [OK]
Response body: <row>

Method (row): DELETE

Use this method to delete a list row.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/rows/(lr_a14d427f_8515_4c82_956f_a60e6e08668c)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: none
Response status: 204 [No Content]
Response body: none

47.4.4.4.3 Resource Types Linked to from row

Table 47-13 lists the resource types that the client can link to from the row resource.

Table 47-13 Resource Types Linked to from row

rel	resourceType
self	`urn:oracle:webcenter:space:list:row`

47.4.4.5 urn:oracle:webcenter:space:list:columns

The columns response provides a means of retrieving and adding list columns. This section includes the following subsections:

Section 47.4.4.5.1, "Navigation Paths to columns"
Section 47.4.4.5.2, "Supported Methods for columns"
Section 47.4.4.5.3, "Resource Types Linked to from columns"

47.4.4.5.1 Navigation Paths to columns

This section shows how the client can navigate through the hypermedia to access the columns resource:

urn:oracle:webcenter:resourceindex
   urn:oracle:webcenter:spaces
      urn:oracle:webcenter:space:resourceindex
         urn:oracle:webcenter:space:lists
            urn:oracle:webcenter:space:list
               urn:oracle:webcenter:space:list:columns

47.4.4.5.2 Supported Methods for columns

The columns resource type supports the following methods:

Method (columns): GET
Method (columns): POST

Method (columns): GET

Use this method to retrieve columns in a list.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/columns?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: none
Request headers: [Accept = application/xml | application/json]
Request parameters: none
Response status: 200 [OK]
Response body: <metaColumns>

For example:

<metaColumns resourceType="urn:oracle:webcenter:space:list:columns">
   <links>
      <link resourceType="urn:oracle:webcenter:space:list:columns"
         rel="self" href="http://dadvmh0330.us.oracle.com:8889/
         rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/
         s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_
         417b_a35f_fb03874979c0.xml)/columns?
         utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:create"/>
      <link resourceType="urn:oracle:webcenter:space:list"
         rel="urn:oracle:webcenter:parent"
         href="http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/
         lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_
         f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
         fb03874979c0.xml)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"/>
   </links>
   <items>
      <metaColumn resourceType="urn:oracle:webcenter:space:list:column">
         <links>
            <link resourceType="urn:oracle:webcenter:space:list:column"
               rel="self" href="http://dadvmh0330.us.oracle.com:8889/
               rest/api/spaces/vs1/lists/(/oracle/webcenter/list/
               scopedMD/s355923f0_2f04_4fd0_83ad_
               f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
               fb03874979c0.xml)/columns/(lco_9bdd1418_6004_40ba_
               a052_04e8335b7ee8)?
               utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
               capabilities="urn:oracle:webcenter:read
               urn:oracle:webcenter:update
               urn:oracle:webcenter:delete"/>
         </links>
         <id>lco_9bdd1418_6004_40ba_a052_04e8335b7ee8</id>
         <name>No.</name>
         <dataType>number</dataType>
         <required>false</required>
         <displayLength>10</displayLength>
         <format>number</format>
         <allowLinks>false</allowLinks>
      </metaColumn>
      <metaColumn resourceType="urn:oracle:webcenter:space:list:column">
         <links>
            <link resourceType="urn:oracle:webcenter:space:list:column"
               rel="self" href="http://dadvmh0330.us.oracle.com:8889/
               rest/api/spaces/vs1/lists/(/oracle/webcenter/list/
               scopedMD/s355923f0_2f04_4fd0_83ad_
               f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_
               fb03874979c0.xml)/columns/(lco_3a31fd20_24f1_4422_
               99fd_c00d7bed4b24)?
               utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
               capabilities="urn:oracle:webcenter:read
               urn:oracle:webcenter:update
               urn:oracle:webcenter:delete"/>
         </links>
         <id>lco_3a31fd20_24f1_4422_99fd_c00d7bed4b24</id>
         <name>Description</name>
         <dataType>string</dataType>
         <required>false</required>
         <maxLength>500</maxLength>
         <displayLength>20</displayLength>
         <allowLinks>false</allowLinks>
         <editLines>1</editLines>
      </metaColumn>
   </items>
</metaColumns>

Method (columns): POST

Use this method to create a column in a list.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/columns?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: <metaColumn>

Writable elements (Table 47-14)

Table 47-14 Writable Elements for columns

Element	Type	Constraints	Description
name^Foot 1	string	—	The name of the column
dataType^Footref 1	string	`string` `number` `datetime` `boolean` `person` `image` `richtext`	The data type of the column
required	boolean	`true` `false`	Whether a value is required for the column
defaultValue	data type of column	Object must match data type	The default value of the column
maxLength	int	Valid only for `string` data type	The maximum length for a string value
rangeLow	int	Valid only for `number` data type	The low range value for a `number` data type
rangeHigh	int	Valid only for `number` data type	The high range value for a `number` data type
format	string	For `number` data type: number currency percent For `datetime` data type: date time both	The format of the column
allowLinks	boolean	`true` `false` Valid only for `string` data type	Whether a hyperlink can be specified for a column value
linkTarget	string	`_blank` `_self` Valid only if `allowLinks=true`	`_blank` opens link in a new window, `_self` opens link in the same window
editLines	int	Valid only for `string` data type	The number of lines when editing a column value (default=1)
peopleScope	string	GLOBAL SUB_SCOPE Valid only for `person` data type	Whether valid users are all users in directory or members of the Space that contains the list
displayWidth	int	—	Display width of column in pixels
hint	string	—	Hint displayed to help user when entering column value

^Footnote 1Denotes required element

For example:

<metaColumn>
   <name>Notes</name>
   <dataType>richtext</dataType>
</metaColumn

Request headers: Content-Type = application/xml | application/json, [Accept = application/xml | application/json]
Response status: 201 [Created]
Response body: <metaColumn>

Retrieved elements (Table 47-15)

Table 47-15 Retrieved Elements from columns

Element	Type	Description
id	string	Column ID
name	string	The name of the column
dataType	string	The data type of the column
required	boolean	Whether a value is required for the column
defaultValue	data type of column	The default value of the column
maxLength	int	The maximum length for a string value
rangeLow	int	The low range value for a `number` data type
rangeHigh	int	The high range value for a `number` data type
format	string	The format of the column
allowLinks	boolean	Whether a hyperlink can be specified for a column value
linkTarget	string	`_blank` opens link in a new window, `_self` opens link in the same window
editLines	int	The number of lines when editing a column value (default=1)
peopleScope	string	Whether valid users are all users in directory or members of the Space that contains the list
displayWidth	int	Display width of column in pixels
hint	string	Hint displayed to help user when entering column value

For example:

<metaColumn resourceType="urn:oracle:webcenter:space:list:column">
   <links>
      <link resourceType="urn:oracle:webcenter:space:list:column"
         rel="self" href="http://dadvmh0330.us.oracle.com:8889/
         rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/
         s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/
         ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/columns/
         (lco_fe2b9856_32f3_449a_a277_18dc7f6a779e)?
         utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:update urn:oracle:webcenter:delete"/>
   </links>
   <id>lco_fe2b9856_32f3_449a_a277_18dc7f6a779e</id>
   <name>Notes</name>
   <dataType>richtext</dataType>
   <required>false</required>
   <displayLength>20</displayLength>
   <allowLinks>false</allowLinks>
</metaColumn>

47.4.4.5.3 Resource Types Linked to from columns

Table 47-16 lists the resource types that the client can link to from the columns resource.

Table 47-16 Resource Types Linked to from columns

rel	resourceType
self	`urn:oracle:webcenter:space:list.columns`
parent	`urn:oracle:webcenter:space:list`
	`urn:oracle:webcenter:space:list:column`

47.4.4.6 urn:oracle:webcenter:space:list:column

The column response provides a means of retrieving, adding, and deleting an individual list column. This section includes the following subsections:

Section 47.4.4.6.1, "Navigation Paths to column"
Section 47.4.4.6.2, "Supported Methods for column"
Section 47.4.4.6.3, "Resource Types Linked to from column"

47.4.4.6.1 Navigation Paths to column

This section shows how the client can navigate through the hypermedia to access the column resource:

urn:oracle:webcenter:resourceindex
   urn:oracle:webcenter:spaces
      urn:oracle:webcenter:space:resourceindex
         urn:oracle:webcenter:space:lists
            urn:oracle:webcenter:space:list
               urn:oracle:webcenter:space:list:columns
                  urn:oracle:webcenter:space:list:column

47.4.4.6.2 Supported Methods for column

The column resource type supports the following methods:

Method (column): GET
Method (column): PUT
Method (column): DELETE

Method (column): GET

Use this method to retrieve a list column.

Resource URI. for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/columns/(lco_fe2b9856_32f3_449a_a277_18dc7f6a779e)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: none
Request headers: [Accept = application/xml | application/json]
Response status: 200 [OK]
Response body: <metaColumn>

Retrieved elements (Table 47-17)

Table 47-17 column Retrieved Elements

Element	Type	Description
id	string	Column ID
name	string	The name of the column
dataType	string	The data type of the column
required	boolean	Whether a value is required for the column
defaultValue	data type of column	The default value of the column
maxLength	int	The maximum length for a string value
rangeLow	int	The low range value for a `number` data type
rangeHigh	int	The high range value for a `number` data type
format	string	The format of the column
allowLinks	boolean	Whether a hyperlink can be specified for a column value
linkTarget	string	`_blank` opens link in a new window, `_self` opens link in the same window
editLines	int	The number of lines when editing a column value (default=1)
peopleScope	string	Whether valid users are all users in directory or members of the Space that contains the list
displayWidth	int	Display width of column in pixels
hint	string	Hint displayed to help user when entering column value

For example:

<metaColumn resourceType="urn:oracle:webcenter:space:list:column">
   <links>
      <link resourceType="urn:oracle:webcenter:space:list:column"
         rel="self" href="http://dadvmh0330.us.oracle.com:8889/
         rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/
         s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/
         ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/
         columns/(lco_fe2b9856_32f3_449a_a277_18dc7f6a779e)?
         utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**"
         capabilities="urn:oracle:webcenter:read
         urn:oracle:webcenter:update urn:oracle:webcenter:delete"/>
   </links>
   <id>lco_fe2b9856_32f3_449a_a277_18dc7f6a779e</id>
   <name>Notes</name>
   <dataType>richtext</dataType>
   <required>false</required>
   <displayLength>20</displayLength>
   <allowLinks>false</allowLinks>
</metaColumn>

Method (column): PUT

Use this method to update column data.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/columns/(lco_fe2b9856_32f3_449a_a277_18dc7f6a779e)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: <metacolumn>

Writable elements (Table 47-18)

Table 47-18 column Writable Elements

Element	Type	Constraints	Description
name^Foot 1	string	—	The name of the column
dataType^Footref 1	string	`string` `number` `datetime` `boolean` `person` `image` `richtext`	The data type of the column
required	boolean	`true` `false`	Whether a value is required for the column
defaultValue	data type of column	Object must match data type	The default value of the column
maxLength	int	Valid only for `string` data type	The maximum length for a string value
rangeLow	int	Valid only for `number` data type	The low range value for a `number` data type
rangeHigh	int	Valid only for `number` data type	The high range value for a `number` data type
format	string	For `number` data type: number currency percent For `datetime` data type: date time both	The format of the column
allowLinks	boolean	`true` `false` Valid only for `string` data type	Whether a hyperlink can be specified for a column value
linkTarget	string	`_blank` `_self` Valid only if `allowLinks=true`	`_blank` opens link in a new window, `_self` opens link in the same window
editLines	int	Valid only for `string` data type	The number of lines when editing a column value (default=1)
peopleScope	string	`GLOBAL` `SUB_SCOPE` Valid only for `person` data type	Whether valid users are all users in directory or members of the Space that contains the list
displayWidth	int	—	Display width of column in pixels
hint	string	—	Hint displayed to help user when entering column value

^Footnote 1Denotes required element

For example:

<metaColumn>
   <name>Comments</name>
   <dataType>richtext</dataType>
</metaColumn>

Request headers: Content-Type = application/xml | application/json, [Accept = application/xml | application/json]
Response status: 200 [OK]
Response body: <metaColumn>

Method (column): DELETE

Use this method to delete a list column.

Resource URI, for example:

http://dadvmh0330.us.oracle.com:8889/rest/api/spaces/vs1/lists/(/oracle/webcenter/list/scopedMD/s355923f0_2f04_4fd0_83ad_f7dac2a7ceed/lists/ls_c9cecbc7_756b_417b_a35f_fb03874979c0.xml)/columns/(lco_fe2b9856_32f3_449a_a277_18dc7f6a779e)?utoken=FKld8lalI3QRdi8TgQkOCGEzxL5x_w**

Request body: none
Response status: 204 [No Content]
Response body: none

47.4.4.6.3 Resource Types Linked to from column

Table 47-19 lists the resource types that the client can link to from the column resource.

Table 47-19 Resource Types Linked to from column

rel	resourceType
self	`urn:oracle:webcenter:space:list:column`

47.5 Troubleshooting the Lists Service

Problem

The List task flow shows an error that the WebCenter Repository is not available.

Solution

The database connection is likely not configured. For more information, see Section 7.2.2, "Setting Up a Database Connection."

Problem

A 401 Unauthorized error appears.

Solution

It is likely that security is not set up for the application. Or it may be that there was insufficient permission to perform the attempted task.
