Notifications provides a means of subscribing to services and application objects and, when those objects change, receiving notification across one or more selected messaging channels. This chapter describes how to integrate Notifications with your WebCenter application. It includes the following sections:
This section provides an overview of Notifications. It includes the following subsections:
Notifications provides an automated means of triggering notices about subscribed services and objects across different messaging channels. Messages are triggered when the application services and objects to which a user has subscribed change. For example, a user can subscribe to a document and receive notification when another user changes the document.
Messaging channels can include phone text (SMS), mail, or Worklist, depending on what messaging servers are available and how the application administrator configures Notifications. For example, users can receive a mail message when a particular document changes, a text message when someone responds to a particular discussion topic, a Worklist alert when the user receives an invitation to connect. All messages contain links that take the user to the scene of the change.
Participating services and objects include People Connections (Connections, Message Board, and Feedback), Discussions, and Documents (including Wikis and Blogs).
Table 48-1 describes the types of activities that can trigger a notification and indicates the level at which the subscription is made.
Table 48-1 Activities that Can Trigger Notifications
Activity | Level |
---|---|
A user sends you an invitation to connect |
Application |
A user posts a message to your Message Board |
Application |
A user likes your Message Board post (messages explicitly set on a Message Board and not those added from Publisher to the Activity Stream) |
Application |
A user comments on your Message Board post (messages explicitly set on a Message Board and not those added from Publisher to the Activity Stream) |
Application |
A user posts feedback for you |
Application |
A user replies to a discussion topic |
Object |
A user comments on a discussion topic |
Object |
A user deletes a discussion topic |
Object |
A user comments on a document |
Object |
A user likes a document |
Object |
A user updates a document |
Object |
A user deletes a document |
Object |
A user comments on a wiki document |
Object |
A user likes a wiki document |
Object |
A user updates a wiki document |
Object |
A user deletes a wiki document |
Object |
A user comments on a blog entry |
Object |
A user likes a blog entry |
Object |
A user updates a blog entry |
Object |
A user deletes a blog entry |
Object |
Notifications leverages message delivery platforms available in WebCenter, such as the User Messaging Service (UMS) or the Mail service, to deliver the messages it generates. The Mail service furnishes the default messaging delivery mechanism, though you can instead use the BPEL connection provided through the Worklist service to widen a user's choice of channels to phone text, mail, and the Worklist.
You can set defaults for application-level subscriptions for all users through an XML configuration file (notification-service-settings.xml
). You create your own version of this default file, and then use it to supersede the file of the same name that is provided for this purpose out of the box.

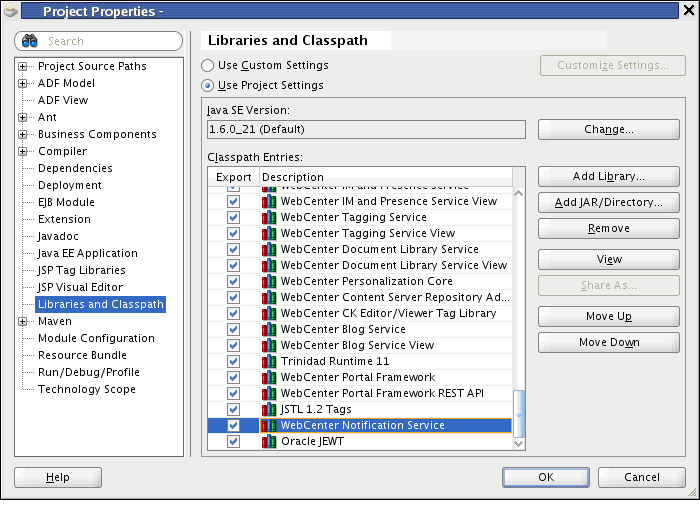

Before your application can work with the Notifications service, you must specify the Notification namespace in the application's adf-config.xml
file. For more information, see Section 48.2.1, "Adding the Notifications Namespace."
Subscription capability is built into the services that support it and do not require additional configuration.
Notifications messaging capability relies on the presence of a configured Mail or Worklist connection to enable delivery of notifications messages. For Notifications messaging, you must explicitly configure the application to use either the BPEL server that is configured for the Worklist service or the Mail server that is configured for the Mail service. For more information, see Section 48.2.2, "Creating a Notifications Connection to a Mail Server," and Section 48.2.3, "Creating a Notifications Connection to a BPEL Server."
To set application defaults for all users for application-level subscription preferences, you must provide your own version of the default file notification-service-settings.xml
. For more information, see Section 48.2.4, "Setting Application Defaults for Notifications."
For Notifications to function properly, its task flows must reside on a secured page. This is because the current user must be known through authentication in order to track and report on subscribed actions. If the page or application that contains Notifications is not secured, you will encounter exception errors. For more information, see Section 48.2.6, "Setting Security for Notifications."
At runtime, users set up their preferred messaging channels through UMS Preferences. For more information, see the section "Establishing and Managing Your Messaging Channels and Filters," in Oracle Fusion Middleware User's Guide for Oracle WebCenter Spaces.
Note:
In designing your application, you must provide users with a way to access UMS preferences. For example, you can add a link to them in your UI, or you can point users to the Worklist task flow, which includes a link to them.Users establish their application-level subscriptions through the Notifications task flow Subscription Preferences (Figure 48-1).
Figure 48-1 Subscription Preferences Task Flow
Users establish their object-level subscriptions by subscribing to the object directly.
Users manage their application-level subscriptions through the Subscription Preferences task flow and their object-level subscriptions through the Notifications task flow Subscription Viewer (Figure 48-2).
Figure 48-2 Subscription Viewer Task Flow
See Also:
For more information about Notifications task flows, see Section 48.2.5.1, "Notifications Task flows."Notifications leverages your Mail or Worklist service connection to provide messaging channels for user notifications. If you plan to use the Mail server, then a connection to a mail server for the Mail service is required, but no further configuration is necessary for Notifications. If you plan to use the same BPEL connection for Notifications that is used by the Worklist service, you must add this configuration to the adf-config.xml
file.
This section provides an overview of those connections and configurations and the process of adding Notifications task flows to an application page. It includes the following subsections:
Section 48.2.2, "Creating a Notifications Connection to a Mail Server"
Section 48.2.3, "Creating a Notifications Connection to a BPEL Server"
Section 48.2.4, "Setting Application Defaults for Notifications"
Section 48.2.5, "Adding Notifications Task Flows to Your Application"
To establish the Notifications namespace with your application, add the following code to the adf-config
element at the top of the file (Example 48-1):
Tip:
You can find theadf-config.xml
file in the Application Resources panel, under Descriptors, in the ADF META-INF folder.Example 48-1 Configuring the Application to Recognize Notifications Configuration
xmlns:notificationC="http://xmlns.oracle.com/webcenter/notification/config"
For example (bold) (Figure 48-2):
Example 48-2 Notifications Configuration in the adf-config Element
<?xml version="1.0" encoding="US-ASCII" ?>
<adf-config xmlns="http://xmlns.oracle.com/adf/config"
xmlns:adf="http://xmlns.oracle.com/adf/config/properties"
xmlns:sec="http://xmlns.oracle.com/adf/security/config"
xmlns:wpsC="http://xmlns.oracle.com/webcenter/framework/service"
xmlns:jndiC="http://xmlns.oracle.com/adf/jndi/config"
xmlns:worklistC="http://xmlns.oracle.com/webcenter/worklist/config"
xmlns:notificationC="http://xmlns.oracle.com/webcenter/notification/config"
xmlns:mdsC="http://xmlns.oracle.com/adf/mds/config"
xmlns:searchC="http://xmlns.oracle.com/webcenter/search/config"
xmlns:relC="http://xmlns.oracle.com/webcenter/relationship/config"
…
To enable users to select a mail messaging channel, you must configure a connection to a Mail server (for more information, see Section 35.2.2, "Setting up Connections for the Mail Service"). Once this is established, you add the following entry in the adf-config.xml
file to associate the Mail server with Notifications (Example 48-3).
Example 48-3 Associating a Mail Server with Notifications in adf-config.xml
<notificationC:adf-notification-config
xmlns="http://xmlns.oracle.com/webcenter/notification/config">
<ConnectionType>MAIL</ConnectionType>
<ConnectionName>someMailConnection</ConnectionName>
</notificationC:adf-notification-config>
Where ConnectionName
is the name of a configured Mail server.
Example 48-4 presents a code sample, with the previous code sample in place (bold).
Example 48-4 A Mail Connection for Notifications in adf-config.xml
<?xml version="1.0" encoding="US-ASCII" ?> <adf-config xmlns="http://xmlns.oracle.com/adf/config" xmlns:adf="http://xmlns.oracle.com/adf/config/properties" xmlns:sec="http://xmlns.oracle.com/adf/security/config" xmlns:wpsC="http://xmlns.oracle.com/webcenter/framework/service" xmlns:jndiC="http://xmlns.oracle.com/adf/jndi/config" xmlns:worklistC="http://xmlns.oracle.com/webcenter/worklist/config" xmlns:notificationC="http://xmlns.oracle.com/webcenter/notification/config" xmlns:mdsC="http://xmlns.oracle.com/adf/mds/config" xmlns:searchC="http://xmlns.oracle.com/webcenter/search/config" xmlns:relC="http://xmlns.oracle.com/webcenter/relationship/config" xmlns:collabC="http://xmlns.oracle.com/webcenter/collab/config" xmlns:listC="http://xmlns.oracle.com/webcenter/list/config" xmlns:rcs="http://xmlns.oracle.com/adf/rcs/adf-config" xmlns:rcv="http://xmlns.oracle.com/adf/rcs/viewer/adf-config"xmlns:tagC= "http://xmlns.oracle.com/webcenter/tagging/config" xmlns:doclibC="http://xmlns.oracle.com/webcenter/doclib/config"> <adf:adf-properties-child xmlns="http://xmlns.oracle.com/adf/config/properties"> <adf-property name="adfAppUID" value="ps3stage2app-7762"/> </adf:adf-properties-child> <sec:adf-security-child xmlns="http://xmlns.oracle.com/adf/security/config"> <CredentialStoreContext credentialStoreClass="oracle.adf.share.security.providers.jps. CSFCredentialStore" credentialStoreLocation="../../src/META-INF/jps-config.xml"/> <sec:JaasSecurityContext initialContextFactoryClass="oracle.adf.share.security. JAASInitialContextFactory" jaasProviderClass="oracle.adf.share.security.providers.jps. JpsSecurityContext" authorizationEnforce="true" authenticationRequire="true"/></sec:adf-security-child> <wpsC:adf-service-config> <wpsC:data-source jndi-name="java:/comp/env/jdbc/WebCenterDSDS"/> </wpsC:adf-service-config> <notificationC:adf-notification-config xmlns="http://xmlns.oracle.com/webcenter/notification/config"> <ConnectionType>MAIL</ConnectionType> <ConnectionName>someMailConnection</ConnectionName> </notificationC:adf-notification-config> <searchC:adf-search-config xmlns="http://xmlns.oracle.com/webcenter/search/config"> …
To furnish users with the option to select mail, phone text, or Worklist messaging channels, you must configure a connection to a BPEL server (for more information, see Section 50.3.1, "Setting up Connections for the Worklist Service"). Notifications leverages the BPEL server that is specified for the Worklist service to provide multiple messaging channels for the notifications it generates. Once a connection to a BPEL server is established, you add the following entry in the adf-config.xml
file to associate the BPEL server with Notifications (Example 48-5).
Example 48-5 Configuring Notifications to Use the BPEL Server for Messaging
<notificationC:adf-notification-config
xmlns="http://xmlns.oracle.com/webcenter/notification/config">
<ConnectionType>BPEL</ConnectionType>
<ConnectionName>worklistConnection</ConnectionName>
<SenderEmailAddress>example@company.com<SenderEmailAddress>
<SenderSMSAddress>12345</SenderSMSAddress>
</notificationC:adf-notification-config>
Where:
ConnectionName is the name you provided for the BPEL server when you set up that connection for the Worklist service.
SenderEMailAddress is a mail address from which all Notifications messages are sent. The sender mail address must match at least one driver that is configured to send messages from a corresponding domain.
SenderSMSAddress is the four- to six-digit number that is used by the User Messaging Server (UMS) as the driver from which all Notifications messages are sent. The sender SMS address must match at least one driver that is configured to send messages from a corresponding domain.
Example 48-6 presents a code sample, with the previous code sample in place (bold).
Example 48-6 Notifications Entries in the adf-config.xml File
<?xml version="1.0" encoding="US-ASCII" ?> <adf-config xmlns="http://xmlns.oracle.com/adf/config" xmlns:adf="http://xmlns.oracle.com/adf/config/properties" xmlns:sec="http://xmlns.oracle.com/adf/security/config" xmlns:wpsC="http://xmlns.oracle.com/webcenter/framework/service" xmlns:jndiC="http://xmlns.oracle.com/adf/jndi/config" xmlns:worklistC="http://xmlns.oracle.com/webcenter/worklist/config" xmlns:notificationC="http://xmlns.oracle.com/webcenter/notification/config" xmlns:mdsC="http://xmlns.oracle.com/adf/mds/config" xmlns:searchC="http://xmlns.oracle.com/webcenter/search/config" xmlns:relC="http://xmlns.oracle.com/webcenter/relationship/config" xmlns:collabC="http://xmlns.oracle.com/webcenter/collab/config" xmlns:listC="http://xmlns.oracle.com/webcenter/list/config" xmlns:rcs="http://xmlns.oracle.com/adf/rcs/adf-config" xmlns:rcv="http://xmlns.oracle.com/adf/rcs/viewer/adf-config"xmlns:tagC= "http://xmlns.oracle.com/webcenter/tagging/config" xmlns:doclibC="http://xmlns.oracle.com/webcenter/doclib/config"> <adf:adf-properties-child xmlns="http://xmlns.oracle.com/adf/config/properties"> <adf-property name="adfAppUID" value="ps3stage2app-7762"/> </adf:adf-properties-child> <sec:adf-security-child xmlns="http://xmlns.oracle.com/adf/security/config"> <CredentialStoreContext credentialStoreClass="oracle.adf.share.security.providers.jps. CSFCredentialStore" credentialStoreLocation="../../src/META-INF/jps-config.xml"/> <sec:JaasSecurityContext initialContextFactoryClass="oracle.adf.share.security. JAASInitialContextFactory" jaasProviderClass="oracle.adf.share.security.providers.jps. JpsSecurityContext" authorizationEnforce="true" authenticationRequire="true"/></sec:adf-security-child> <wpsC:adf-service-config> <wpsC:data-source jndi-name="java:/comp/env/jdbc/WebCenterDSDS"/> </wpsC:adf-service-config> <notificationC:adf-notification-config xmlns="http://xmlns.oracle.com/webcenter/notification/config"> <ConnectionType>BPEL</ConnectionType> <ConnectionName>worklistConnection</ConnectionName> <SenderEmailAddress>example@company.com<SenderEmailAddress> <SenderSMSAddress>12345</SenderSMSAddress> </notificationC:adf-notification-config> <searchC:adf-search-config xmlns="http://xmlns.oracle.com/webcenter/search/config"> …
This section provides information about the XML file you use to set application-level defaults for all users for Notifications. It includes the following subsections:
Section 48.2.4.1, "What You Should Know About Subscription Defaults"
Section 48.2.4.2, "Setting Notifications Subscription Defaults"
Administrator-level subscription preferences are set in a custom XML file that you create and then use to supersede the file that is provided in the notification-repository.jar
for this purpose out of the box (notification-service-settings.xml
). The settings in the custom XML file are analogous to the application-level subscriptions settings available to users through the Subscription Preferences task flow.
Each setting provides the following attributes:
id
—for specifying the service ID:
oracle.webcenter.peopleconnections.connections
, the Connections feature of the People Connections service
oracle.webcenter.peopleconnections.wall
, the Message Board feature of the People Connections service
oracle.webcenter.peopleconnections.kudos
, the Feedback feature of the People Connections service
subscription-enabled
—For specifying the default value for the preference option: true
or false
Tip:
Rather than enabling or disabling the entire subscription capability, thesubscription-enabled
attribute merely sets the initial state of the preference option. For example, if subscription-enabled="true"
, then the associated subscription option is checked by default in the Subscription Preferences task flow. If subscription-enabled="false"
, then the associated subscription option is not checked by default in the task flow.end-user-configurable
—For enabling users to change the established default or preventing users from doing so: true
or false
These attributes work together to determine the initial state of the Subscription Preferences task flow.
Table 48-2 illustrates the effect of custom administrator-level subscriptions settings on the appearance of the Subscription Preferences task flow.
Table 48-2 Effect of Administrator Defaults on Subscriptions Preferences
subscription-enabledFoot 1 | end-user-configurable | Option in Preferences |
---|---|---|
True |
True |
Rendered normally, checkbox is checked |
True |
False |
Grayed out, checkbox is checked |
False |
True |
Rendered normally, checkbox is clear |
False |
False |
Hidden, checkbox is hidden |
Footnote 1 Rather than enabling or disabling the entire subscription capability, the subscription-enabled
attribute merely sets the initial state of the subscription.
Tip:
The most typical scenario for most notifications isFalse
, True
, Rendered normally, checkbox is clear
.Table 48-3 lists the types of actions that can trigger an application-level notification and associates them with their related service ID.
Table 48-3 Application-Level Activities that Can Trigger Notifications
Activity | Related Service ID |
---|---|
A user sends you an invitation to connect |
|
A user posts a message to your Message Board |
|
A user likes your post on another user's Message Board |
|
A user comments on your post on another user's Message Board |
|
A user posts feedback for you |
|
To set defaults for application-level Subscription preferences:
Navigate to a directory with a path that contains /oracle/webcenter/notification
, and create the folder custom
.
Tip:
The directory structure can start or end with any directory or directories, as long as it has/oracle/webcenter/notification/custom
in the path.In the custom
folder, or in any subdirectory under /oracle/webcenter/notification/custom/
, create the file notification-service-settings.xml
.
In the XML file, enter values for all application-level subscription options.
Example 48-7 provides sample content for an application-wide subscription preferences setting file and an example of each required option.
Example 48-7 Sample Subscriptions Settings XML File
<notification-service_settings xmlns="http://xmlns.oracle.com/webcenter/notification"> <subscription-settings> <service id="oracle.webcenter.peopleconnections.connections" subscription-enabled="true" end-user-configurable="false"/> <service id="oracle.webcenter.peopleconnections.wall" subscription-enabled="false" end-user-configurable="true"/> <service id="oracle.webcenter.peopleconnections.kudos" subscription-enabled="false" end-user-configurable="true"/> </subscription-settings> </notification-service_settings>
Note:
If an option is not provided, the default valuesfalse
/false
are assigned for the service.Run the WLST command importMetadata
, and import the directory content into your metadata store.
See Also:
For information about theimportMetadata
command (and other WLST commands), see the section, "importMetadata," in Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.For example:
wls: /wc_domain/serverConfig> importMetadata(application='webcenter', server='serverName', fromLocation='directoryPath', docs='/**')
Where:
application
is the name that identifies your application
serverName
is the name of the server on which the application is running
directoryPath
is the directory path under which oracle/webcenter/notification/custom/<any_sub_dir_after_this>/notification-service-settings.xml
is located.
For example, if the directory path to notification-service-settings.xml
is /scratch/mydir/oracle/webcenter/notification/custom
, enter /scratch/mydir
for directoryPath
.
docs
identifies the content to be imported, in this example, the path and files that fall under those specified for directoryPath
.
Table 48-4 describes the effect of various combinations of settings for the service ID oracle.webcenter.peopleconnections.connections
.
Table 48-4 Effects of Subscription Configurations for Connections
subscription-enabled | end-user-configurable | Effect |
---|---|---|
true |
true |
|
true |
false |
|
false |
true |
|
false |
false |
|
Footnote 1 This is the out-of-the-box default
Table 48-5 describes the effect of various combinations of settings for the service ID oracle.webcenter.peopleconnections.wall
.
Table 48-5 Effects of Subscription Configurations for Message Board
subscription-enabled | end-user-configurable | Effect |
---|---|---|
true |
true |
|
true |
false |
|
false |
true |
|
false |
false |
|
Table 48-6 describes the effect of various combinations of settings for the service ID oracle.webcenter.peopleconnections.kudos
.
Table 48-6 Effect of Subscription Configurations for Feedback
subscription-enabled | end-user-configurable | Effect |
---|---|---|
true |
true |
|
true |
false |
|
false |
true |
|
false |
false |
|
This section provides a brief overview of Notifications task flows and describes how to add them to your application pages. It includes the following subsections:
Notification Services exposes two task flows for managing user subscriptions:

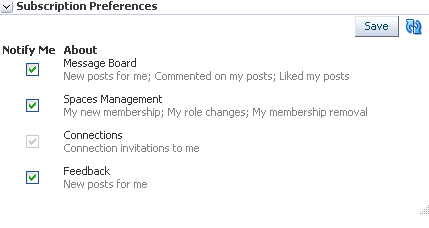

Subscription Preference provides controls for taking, viewing, and unsubscribing from application-level subscriptions (Figure 48-3)
Figure 48-3 Subscription Preferences Task Flow

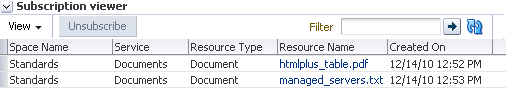

Subscription Viewer provides controls for viewing and unsubscribing from object-level subscriptions (Figure 48-4).
Figure 48-4 Subscription Viewer Task Flow
To add a Notifications task flow to a page:
Follow the steps in Section 7.2.1, "How to Prepare Your Application to Consume Services" to implement security and create a customizable page in your application.
Open the page on which to add the task flow.
In the Resource Palette, in the My Catalogs pane, open the WebCenter Services Catalog, then open the Task Flows folder.
Drag the task flow onto a page region, then choose Region from the pop-up list.
In the Confirm Add ADF Library dialog, click Add Library to add all required libraries for the component.
For Subscription Preferences only, optionally, in the Edit Task Flow Binding dialog, provide a path to your input parameter map and values for the task flow's input parameters, and click OK.
See Also:
For information about Subscription Preferences task flow input parameters, see Section 48.2.5.3, "Subscription Preferences Task Flow Input Parameters."The task flow displays on the page. For example, in the Source view, you will see the content depicted in Example 48-8.
In the Confirm Add Form Element dialog, click No, to avoid wrapping a form element around the task flow.
Save your project, then run your page to a browser.
The task flow appears in your browser (Figure 48-5).
Figure 48-5 Subscription Preferences Task Flow
The Subscription Preferences task flow has input parameters that you can use to control the behavior of a given task flow instance. Table 48-7 lists and describes the input parameters associated with this task flow.
Table 48-7 Subscription Preferences Task Flow Input Parameters
Input Parameter | Description |
---|---|
A control for showing or hiding the Save button and Refresh icon on the task flow
|
|
The name of the scope for which to set subscription preferences. |
Notifications must know the identity of a user to preserve the user's Notifications settings and to track the user's activities on subscribed services and objects. To that end, you must at least configure your application to authenticate users such that they have distinct identities for the purposes of personalization and user preferences.
For details on how to implement a basic security solution for your WebCenter Portal application, see Section 67.3, "Configuring ADF Security." For details on how to implement a complete security solution for your WebCenter Portal application, see Chapter 67, "Securing Your WebCenter Portal Application."
After you configure ADF security for your application, you can open the jazn-data.xml
file and modify your sample user's privileges for each task flow. To open the ADF Security Policies Editor, locate the file in the Application Resources panel and double-click its name. You can further configure grants in this view.
Note:
To successfully grant user permissions for Notifications, you must configure user permissions after deployment.This section provides information about the APIs that are available for use with Notifications. It includes the following subsections:
This section provides an overview of Notifications Java APIs. It includes the following subsections:
Section 48.3.1.1, "Configuration Settings Required to Use Notifications Java APIs"
Section 48.3.1.3, "How to Set up Your Application to Use Notifications Java APIs"
See Also:
For detailed information about the Notifications Java APIs, see the Oracle Fusion Middleware Java API Reference for Oracle WebCenter.To use Notifications Java APIs, you must have the following entries in your adf-config.xml
file:
<namespace path="/oracle/webcenter/page/scopedMD" metadata-store-usage="WebCenterFileMetadataStore"/> <namespace path="/pageDefs" metadata-store-usage="WebCenterFileMetadataStore"/>
If these entries are not present in adf-config.xml
, you can add them using your preferred text editor.
Notifications Java APIs are located in the class oracle.webcenter.notification
. Within the class, SubscriptionManager
provides the interface for creating and managing user subscriptions using the following Java APIs:
FilterOption
—Provides the filter criteria. Use an instance of this class while querying a user's subscriptions.
NotificationServiceFactory
—Factory for creating and retrieving instances that correspond to Notifications interfaces. This is the entry point to the Notifications API.
SortOption
—Defines the sort attributes for fetching subscriptions. Use an instance of this class in SubscriptionManager
methods to query a user's subscriptions.
Subscription
—Contains information about a user's subscription. Subscriptions for a user are created via the method that is exposed by SubscriptionManager
. Instances of this class are returned by the methods exposed in SubscriptionManager
.
SubscriptionPreference
—Represents application- or scope-level subscriptions as a preference and enables setting and unsetting of subscriptions for the corresponding service.
See Also:
For detailed information about the Notifications Java APIs, see the Oracle Fusion Middleware Java API Reference for Oracle WebCenter.To use the Notifications Java APIs, the WebCenter extension must be present in your JDeveloper application. In JDeveloper, go to the Help - About menu, and click the Extensions tab. Look for the WebCenter Notification Service, as shown in Figure 48-6.
Note:

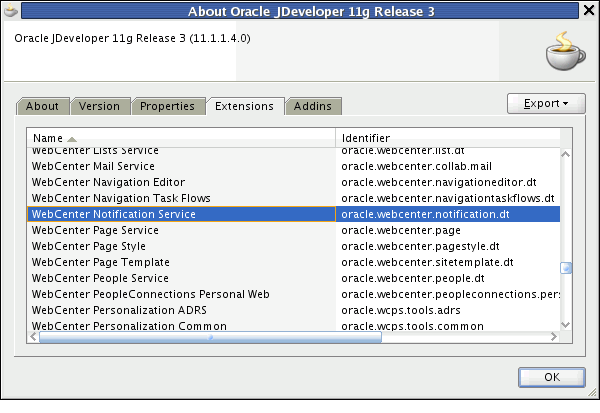

For information about adding the WebCenter extension, see Chapter 3, "Preparing Your Development Environment."After confirming that Notifications is included with the WebCenter extension, you must add the Notifications libraries to the project if they are not already present.
To add Notifications libraries to your project:
Right-click your project and select Project Properties and then Libraries and Classpath (Figure 48-7).
Click Add Library and select the WebCenter Notification Service and WebCenter Notification Service View libraries.
Click OK.
Notifications provides a data control that enables you to create your own visualization of the subscription management functionality. This section provides an overview of the data control Notification Subscription Data Control, and lists and describes its supported methods, attributes, and classes.
See Also:
For information about using data controls in a WebCenter application, see Section 7.1.3, "Using WebCenter Data Controls."This section includes the following subsections:
Section 48.3.2.2, "Understanding the Notification Subscription Data Control"
Section 48.3.2.3, "Notification Subscription Data Control Methods and Attributes"
Section 48.3.2.4, "Notification Subscription Data Control Classes"
Add a data control to your project by right-clicking it in the Resource Palette and selecting Add to Project from the resulting context menu. Once added, you can browse the data control's methods and attributes by expanding it in the Data Controls panel in the Application Navigator.
Add a data control to an application page by dragging it onto the page from the Data Controls panel.
See Also:
For information about using data controls in a WebCenter application, see Section 7.1.3, "Using WebCenter Data Controls."The Notification Subscription Data Control enables you to create a custom UI that is equivalent to the Subscription Preferences and Subscription Viewer task flows should these prove insufficient for your requirements.
You can use the data control as a means of adding application-level subscription preferences. For example, if you have developed your own preferences mechanism in your application, you can use the data control to add subscription preferences to that existing mechanism rather than using the Subscription Preferences task flow directly. Or you can build a custom subscription viewer UI, where all of the current user's object-level subscriptions are listed.
This section lists and describes the methods exposed in the Notification Subscription Data Control. It includes the following subsections:
Section 48.3.2.3.1, "Method: getUserSubscriptionPreferences"
Section 48.3.2.3.2, "Method: getScopeSubscriptionPreferences"
Section 48.3.2.3.3, "Method: saveUserSubscriptionPreferences"
Section 48.3.2.3.4, "Method: saveScopeSubscriptionPreferences"
This method returns application-level subscription preferences for the current user.
Input Parameters
None
Return Values
Returns a collection of SubscriptionPreference
objects. The SubscriptionPreference
object indicates the user's preference for each service.
This method returns the scope level subscription preferences for the current user.
This method is primarily useful in a WebCenter Spaces application. In a WebCenter Portal application, it is expected that the scope will always be the default scope, that is, the application. For the default scope, this method returns application-level preferences.
Input Parameters
The input parameter scopeGuid
takes a value of type String
. The value specifies the GUID of the scope for which the user's scope-level preferences are returned. In a WebCenter Spaces application, the scope referenced here is equivalent to a Space.
Return Values
Returns a collection of SubscriptionPreference
objects. Each object indicates the current user's subscription preferences for each service within the specified scope.
This method enables the application to commit and save changes to the user's application-level preferences. For example, if the user subscribes to all available services, then these changes can be committed by binding this method to the appropriate component on the UI (for example, an Apply button).
Input Parameters
None
Return Values
None
This method enables the application to commit and save changes to the user's scope-level preferences. For example, if the user subscribes to all the available services in the given scope, then these changes can be committed and saved by binding this method to the appropriate component on the UI (for example, an Apply button).
Input Parameters
The input parameter scopeGUID
takes a value of type String
. The value specifies the GUID of the scope for which the modified preferences are to be saved.
Return Values
None
The primary method for returning a list of the current user's object-level subscriptions. You can use this method to build a custom Subscription Viewer UI for showing all of a user's object-level subscriptions.
Input Parameters
Table 48-8 lists and describes the input parameters supported by this method.
Table 48-8 Input Parameters Supported by the method getSubscriptions
Input Parameter | Description |
---|---|
|
An object that contains filter conditions for querying a user's subscriptions. |
|
An object that contains the sort or ordering condition for querying subscriptions. It supports sorting by object name, scope name (WebCenter Spaces only), or the creation date of subscription. |
|
This input parameter takes an integer as a value. The offset for querying subscriptions. This is typically used while fetching the result set with pagination. |
|
This input parameter takes an integer as a value. The maximum number of rows to be returned in one call. |
Return Values
Returns a collection of Subscription
objects matching the filter criteria and other input parameters in the order specified by the sort option.
Used to unsubscribe from, or remove, a specific subscription. This method is typically used to add the unsubscribe action to the Subscription Viewer UI, where object-level subscriptions are exposed.
Note that unsubscribing from a particular service at the application and Space level, or at either level, can be achieve by setting the appropriate flag in SubscriptionPreference
and saving those via the appropriate save*()
method listed above. The Unsubscribe
method is useful within Subscription Viewer functionality.
Input Parameters
Table 48-9 lists and describes the input parameters supported by this method.
Table 48-9 Input Parameters Supported by the method Unsubscribe
Input Parameter | Description |
---|---|
|
Takes a value of type |
|
The ID of the unsubscribed service Valid service IDs include:
|
|
The GUID of the unsubscribed object. |
Return Values
None
The Notification Subscriptions Data Control exposes two classes as return values:
The class SubscriptionPreference
represents application- or scope-level subscriptions as a preference and enables setting and unsetting of subscriptions for the corresponding service (this is followed by save call on the data control).
Table 48-10 lists and describes the properties associated with the SubscriptionPreference
class.
Table 48-10 Properties Associated with the SubscriptionPreference Class
Property | Description |
---|---|
|
A string containing the concatenation of all the applicable activities (description) within the service that generates notifications This is useful to display on the UI to tell the user what he is subscribing to. |
|
An icon for the service |
|
ID of the corresponding service |
|
Display name of the service |
|
A flag that indicates whether the subscription is enabled This attribute also has a setter to support the check/uncheck or select/deselect operation on the UI. |
|
A flag that indicates whether to allow the user to override the default setting |
The class Subscription
is purely read-only and represents Space- (WebCenter Spaces only) and object-level subscriptions.
Table 48-11 lists and describes the properties associated with the Subscription class.
Table 48-11 Properties Associated with the Subscription Class
Property | Description |
---|---|
|
The datetime this subscription was created |
|
The ID of the object, if this represents object level subscription, otherwise |
|
The name of the object, if this represents object level subscription, otherwise |
|
The object type (as defined by the corresponding service) when this subscription represents object level subscriptions, otherwise |
|
The GUID of the scope or Space. |
|
The display name of the scope or Space. |
|
The ID of the service for this subscription object. |
|
The name of the service. |
|
