Oracle Application Management Pack for Oracle E-Business Suite Guide

Command-Line Discovery for Oracle E-Business Suite Systems

The Oracle Application Management Pack for Oracle E-Business Suite provides a command-line interface for the batch discovery of multiple Oracle E-Business Suite systems. Command-line discovery is executed using the script ebsdiscovery.sh which is located under $PLUGIN_HOME/scripts/cli.

Note: Command line discovery is currently not certified on MS Windows platforms.

Prerequisites

The operating system user who runs command-line discovery must have the full permissions on the OMS ORACLE_HOME. Before running command-line discovery, set the following environment variables:

ORACLE_HOME: This environment variable must be set to OMS Home.
JAVA_HOME: This environment variable must be set to a valid JDK directory. The OMS ORACLE_HOME ships with one under $ORACLE_HOME/jdk. Once the OMS ORACLE_HOME is set, JAVA_HOME may be set simply by reference to the ORACLE_HOME variable:
```
    export JAVA_HOME=$ORACLE_HOME/jdk
```
PLUGIN_HOME: This environment variable must point to the folder returned by the query "select plugin_home from GC$CURRENT_DEPLOYED_PLUGIN where plugin_id='oracle.apps.ebs' and destination_type='OMS'".

Before running discovery for multiple instances, it is highly recommended that you first try discovering a single Oracle E-Business Suite system.

Discovery

The ebsdiscovery.sh script can be run with the following parameters:

```
inputfile=<ebslist>
```
This option, when passed to the ebsdiscovery.sh script, will allow for the use of an input file which may contain details for the discovery of several Release 11i or Release 12 Oracle E-Business Suite systems (Oracle Applications environments). See: The ebsList.txt file for more information.

How this option works: Information will be taken from the file specified as <ebslist> and submitted as separate Enterprise Manager jobs for discovering each Oracle E-Business Suite system described in the file. If this “inputfile” option is not provided, then the default value is ebsList.txt. Please see ebsList.txt under $OMS_HOME/sysman/admin/scripts/ebs/cli/amp/disc/ for a sample input file.
```
omscred=<oms credentials file>
```
OMS Credentials will be taken from this file. This file is machine-generated and should not be edited. If this file does not exist, the ebsdiscovery.sh script will create it after prompting for the necessary input values. If this “omscred” option is not provided, then the default value is omscred.conf.
```
logdir=<log directory>
```
This option determines the location where the log files will be written.

An example of running the command is:

./ebsdiscovery.sh inputfile=ebsList.txt omscred=omscred.conf logdir=/tmp

After the discovery job is started, you can view its status on the Oracle Management Server. From the Oracle Enterprise Manager console, navigate to Enterprise (menu) > Job > Activity. The status of the job is shown in the Status field. Click on the job name link to drill down to details on the discovered Oracle E-Business Suite instance.

The ebsList.txt file

The ebsList.txt file contains parameters and values for the discovery process.

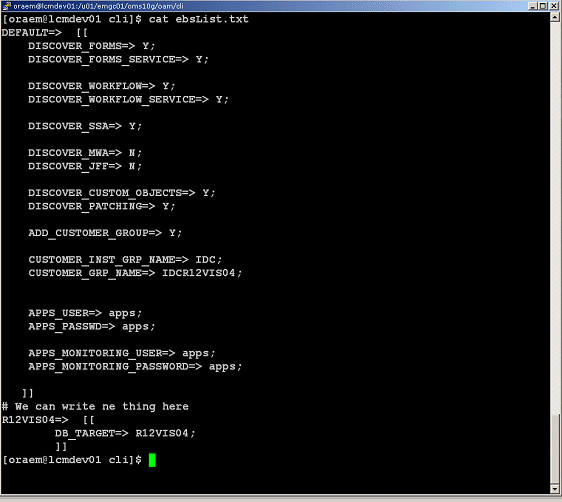

The ebsList.txt file

the picture is described in the document text

The format for the ebsList.txt file is:

DBTARGET=>[[
           DBTARGET=><DBTARGET>;
           DBTYPE=><oracle_database | rac_database>;
           APPS_USER=><apps db user>;
           APPS_PASSWORD=><apps password>;
           ]]

Extra parameters can be provided as <key>=><value> pairs delimited by a semi-colon (;).

For ENCRYPTED_PASSWORD=><encrypted apps password>, the encrypted password will be used to decrypt the password on successive usage of the ebsList.txt file. To override the old password, change the input and add APPS_PASSWORD key value pair again with the new, changed password.

ebsList.txt Parameters

The following table describes the ebsList.txt parameters and their valid values.


Key	Supported Release	Valid Values	Description	Default
DB_TARGET	All	DB Target Name	Database Target name of the Apps you want to discover	N/A
DB_TYPE	All	oracle_database or rac_database	Database type	oracle_database
APPS_USER	All	Apps username		apps
APPS_PASSWD	All	Apps password	This will be replaced by ENCRYPTED_APPS_PASSWD	apps
APPS_MONITORING_USER	12.0 or higher	Apps Monitoring username	This is used for out-of-box service monitoring
APPS_MONITORING_PASSWORD	12.0 or higher	Apps Monitoring password	This will be replaced by ENCRYPTED_APPS_MONITORING_PASSWORD
DISCOVER_WORKFLOW	All	Y or N	Whether to Discover Workflow targets	Y
DISCOVER_WORKFLOW_SERVICE	12.0 or higher	Y or N	Whether to Discover Workflow Service if DISCOVER_WORKFLOW is Y	Y
DISCOVER_FORMS	12.0 or higher	Y or N	Whether to Discover Forms or not	Y
DISCOVER_FORMS_SERVICE	12.0 or higher	Y or N	Whether to Discover Forms Service if DISCOVER_FORM is Y	Y
DISCOVER_SSA	12.0 or higher	Y or N	Whether to discover SSA Service or not	Y
DISCOVER_CUSTOM_OBJECTS	12.0 or higher	Y or N	Whether to Discover Custom Objects or not	Y
DISCOVER_PATCHING	12.0 or higher	Y or N	Whether to discover Patching Configuration target	Y
PROTOCOL	11i	http or https	Whether to have http or https	http
SRVLT_URL_FROM_CTXFILE	11i	Y or N.	Whether to take Servlet URL from Context file or Not. If this value is N, Value for Servlet url will be "/servlet/oracle.forms.servlet.ListenerServlet"	Y
ADD_CUSTOMER_GROUP	12.0 or higher	Y or N	Shall Add Customer Group	N
CUSTOMER_INST_GRP_NAME	12.0 or higher	Text	Customer Instance Group Name	N/A
CUSTOMER_GRP_NAME	12.0 or higher	Text	Customer Group Name	N/A
DELETE_REMOVED_TARGETS	All	Y or N	Whether or not to delete removed targets. Default is N	N
DISCOVER_DISCOVERER	11i	Y or N	Whether or not discover discoverer	Y
FORMS_SRVLT_PROTOCOL	11i	http or https	Whether to have http or https for forms servlet mode	http
DISCOVER_JVM_USAGE	12.0 or higher	Y or N	Whether or not to discover JVM usage target	Y

Customer Groups Created by Discovery

Groups are an optional feature in Enterprise Manager that allows the logical organization of targets in accordance to user preference. Command line discovery allows the definition of target groups and placement of Oracle E-Business Suite systems in these groups at time of discovery. Groups can also be created using the normal discovery process available in the management console, as well as after discovery.
