This chapter describes how to install OracleAS Infrastructure 10g in the following high availability environments:
Section 9.1, "Requirements for High Availability Environments" describes requirements applicable for these high availability environments.
This section describes the requirements that you have to meet before you can install Oracle Application Server in an OracleAS Active Failover Cluster or OracleAS Cold Failover Cluster environment. In addition to these common requirements, each environment has its own specific requirements. See the individual sections for details.
|
Note: You still need to meet the requirements listed in Chapter 4, " Requirements", plus requirements specific to the high availability environment that you plan to use. |
The common requirements are:
Section 9.1.3, "Check That Groups Are Defined Identically on All Nodes"
Section 9.1.5, "Check for Previous Oracle Installations on All Nodes "
You need at least two nodes in a high availability environment. If a node fails for any reason, the second node takes over.
Each node in a cluster must be running a certified clusterware. The following clusterware is certified:
| Platform |
OracleAS Cold Failover Cluster
|
OracleAS Active Failover Cluster
|
|---|---|---|
| HP-UX | HP Serviceguard | HP Serviceguard Extension for RAC (formerly called Serviceguard OPS Edition) |
| Linux | Red Hat Cluster Manager | Oracle Cluster Management Software. See Appendix J for more information about Oracle Cluster Management Software. |
For the most up-to-date list of certified clusterware, check the OracleAS clusterware certification page of OracleMetaLink (http://metalink.oracle.com).
Enter the following command as root to make sure that HP Serviceguard is running:
# /usr/sbin/cmviewcl
The output of this command should list the cluster and indicate that the cluster has the status up. It should also list each node of the cluster. The following example shows the status of a two node cluster:
CLUSTER STATUS iAS_Cluster up NODE STATUS STATE GMS_STATE oappsvr1 up running halted oappsvr2 up running halted
Enter the following command to make sure that Red Hat Cluster Manager is running:
On Red Hat 2.1:
$ /sbin/service cluster status
On Red Hat 3.0:
$ /sbin/service clumanager status
The output of this command should indicate that all processes are running.
Enter the following commands to make sure that Oracle Cluster Management Software is running:
$ ps -ef | grep oracm $ ps -ef | grep oranm $ ps -ef | grep watchdogd
The output of these commands should indicate that at least one instance of each of the oracm, oranm and watchdogd processes exists.
Check that the /etc/group file on all nodes in the cluster contains the operating system groups that you plan to use. You should have one group for the Oracle Installer Inventory directory, and one or two groups for database administration. The group names and the group IDs must be the same for all nodes.
See Section 4.5, "Operating System Groups" for details.
Check that the oracle operating system user, which you log in as to install Oracle Application Server, has the following properties:
Belongs to the oinstall group and to the osdba group. The oinstall group is for the Oracle Installer Inventory directory, and the osdba group is a database administration group. See Section 4.5, "Operating System Groups" for details.
Has write privileges on remote directories.
If the TMP or TMPDIR environment variables are set for the oracle user, check that these directories exist and that they contain sufficient free disk space for temporary files. Check this condition on each node of the cluster.
Details of all Oracle software installations are recorded in the Oracle Installer Inventory directory. Typically, this directory is unique to a node and named oraInventory. The directory path is stored in the oraInst.loc file and this file is stored in the /etc directory on Linux and in the /var/opt/oracle directory on HP-UX. The existance of this file on a node confirms that the node contains some Oracle software installation. Since the OracleAS Infrastructure 10g high availability environments require installations on multiple nodes with Oracle Installer Inventory directories on a file system that may not be accessible on other nodes, the installation instructions in this chapter assume that there have not been any previous installations of any Oracle software on any of the nodes that are used for this high availability environment. The oraInst.loc file and the Oracle Installer Inventory directory should not exist on any of these nodes prior to these high availability installations.
|
Note: On Linux you must install Oracle Cluster Management Software before installing OracleAS Infrastructure 10g in an OracleAS Active Failover Cluster environment. That installation creates a neworaInst.loc file. Do not rename the oraInst.loc file as described in this section if you are installing OracleAS Infrastructure 10g in an OracleAS Active Failover Cluster environment on Linux.
|
If a oraInst.loc file and a Oracle Installer Inventory directory exist, rename the file and directory.
For example enter the following commands as root on Linux:
# cat /etc/oraInst.loc inventory_loc=/localfs/app/oracle/oraInventory inst_group=dba # mv /etc/oraInst.loc /etc/oraInst.loc.orig # mv /localfs/app/oracle/oraInventory /localfs/app/oracle/oraInventory.orig
Since the oraInst.loc file and the Oracle Installer Inventory directories are relevant only during the installation of Oracle software, and not at runtime, renaming them and restoring them later does not affect the behavior of any installed Oracle software on any node. Make sure that the appropriate oraInst.loc file and Oracle Installer Inventory directories are in place before starting the Oracle Universal Installer.

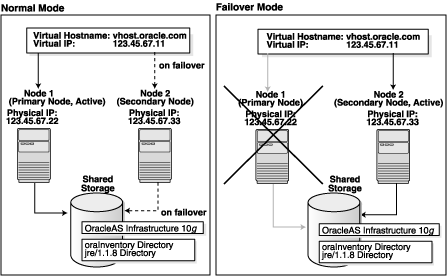

An OracleAS Cold Failover Cluster environment (Figure 9-1) consists of:
two nodes running clusterware (such as HP Serviceguard or Red Hat Cluster Manager)
storage device that can be accessed by both nodes. You install OracleAS Infrastructure 10g on the shared storage device.
During normal operation, node 1, which is the primary node, is the active node. It mounts the shared storage to access the OracleAS Infrastructure 10g files, runs OracleAS Infrastructure 10g processes, and handles all requests.
If node 1 goes down for any reason, the clusterware fails over the OracleAS Infrastructure 10g processes on node 1 to node 2. Node 2 becomes the active node, mounts the shared storage, runs the processes, and handles all requests.
To access the active node in an OracleAS Cold Failover Cluster, clients, including middle tier components and applications, use the virtual hostname associated with the OracleAS Cold Failover Cluster. The virtual hostname is associated with the active node (node 1 during normal operation, node 2 if node 1 goes down). Clients do not need to know which node (primary or secondary) is servicing requests.
You also use the virtual hostname in URLs that access the infrastructure. For example, if vhost.mydomain.com is the name of the virtual host, the URLs for the Oracle HTTP Server and the Application Server Control would look like the following:
| URL for: | Example URL |
|---|---|
| Oracle HTTP Server Welcome page | http://vhost.mydomain.com:7777 |
| Oracle HTTP Server, secure mode | https://vhost.mydomain.com:4443 |
| Application Server Control
|
http://vhost.mydomain.com:1810 |
The rest of this section describes these procedures:
Section 9.2.1, "Setting up an OracleAS Cold Failover Cluster Environment"
Section 9.2.2, "Installing OracleAS Infrastructure 10g in an OracleAS Cold Failover Cluster"
Section 9.2.3, "Performing Post-Installation Steps for OracleAS Cold Failover Cluster"
Section 9.2.4, "Installing Middle Tiers Against an OracleAS Cold Failover Cluster Infrastructure"
Before you can install OracleAS Infrastructure 10g in an OracleAS Cold Failover Cluster, perform these procedures:
Section 9.2.1.1, "Map the Virtual Hostname and Virtual IP Address"
Section 9.2.1.2, "Set Up a File System That Can Be Mounted from Both Nodes"
Also, ensure that you meet the requirements described in Section 9.1, "Requirements for High Availability Environments".
Each node in an OracleAS Cold Failover Cluster environment is associated with its own physical hostname and IP address. In addition, the active node in the cluster is associated with a virtual hostname and IP address. This allows clients to access the OracleAS Cold Failover Cluster using a hostname and IP address that can float between any node of the cluster.
Virtual hostnames and virtual IP addresses are any valid hostname and IP address in the context of the subnet containing the hardware cluster.
|
Note: You map the virtual hostname and virtual IP address only to the active node. Do not map the virtual hostname and IP address to both active and secondary nodes at the same time. When you fail over, only then do you map the virtual hostname and IP address to the secondary node, which is now the active node. |
The following example configures a node with virtual hostname vhost.mydomain.com with virtual IP address 138.1.12.191.
|
Note: Before attempting to complete this procedure, ask the system or network administrator to review all the steps required. The procedure will reconfigure the network settings on the cluster nodes and may vary with differing network implementations. |
Register the virtual hostname and IP address with DNS for the network.
For example, register the vhost.mydomain.com/138.1.12.191 pair with DNS.
Add the following line to the /etc/hosts file on the active node:
ip_address hostname.domain hostname
For example:
138.1.12.191 vhost.mydomain.com vhost
Determine the primary public network interface.
The primary public network interface for Ethernet encapsulation is typically lan0 on HP-UX and eth0 on Linux. Use the following commands to determine the primary public network interface:
On HP-UX, enter the following command and search for a network interface that has an Address value of the physical hostname of the node:
/usr/bin/netstat -i
On Linux, enter the following command and search for a network interface that has an inet addr value of the physical IP address of the node:
/sbin/ifconfig
Find an available index number for the primary public network interface.
Using the same commands as described in step 3, determine an available index number for an additionl IP address to the primary public network interface.
For example, on HP-UX, if the following is the output of the /usr/bin/netstat -i command on a HP-UX system and lan0 was determined to be the primary public interface in step 3, then lan0:2 is available for an additional IP address.
Name Mtu Network Address Ipkts Opkts
lan0:1 1500 datacenter1 www1.mydomain.com 1050265 734793 lan1* 1500 none none 0 0 lan0 1500 datacenter1 www2.mydomain.com 39783928 41833023 lo0 4136 loopback localhost 1226188 1226196
Do not use 0 as the index number because interface:0 is typically the same as just interface on most systems. For example, lan0:0 is the same as lan0 on HP-UX.
Add the virtual IP address to the primary public network interface by running the appropriate command below as the root user:
|
Note: You must use the same NETMASK and BROADCAST values for this interface as those used for the primary public network interface (lan0 and eth0 in the examples). Modify the ifconfig commands in this step to include the appropiate netmask and broadcast options.
|
On HP-UX enter the following command using the available index number from step 4:
/usr/sbin/ifconfig primary_public_interface:available_index ip_address
For example, enter the following command if lan0:2 is available:
/usr/sbin/ifconfig lan0:2 138.1.12.191
On Linux enter the following command using the available index number from step 4:
/sbin/ifconfig primary_public_interface:available_index ip_address
For example, enter the following command if eth0:1 is available:
/sbin/ifconfig eth0:1 138.1.12.191
Check that the virtual IP address is configured correctly.
Using the same commands as listed in step 3, confirm the new entry for the primary_public_interface:available_index entry created in step 5. Additionally, try to connect to the node using the virtual hostname and virtual IP address from another node. For example, entering both of the following commands from a different node should provide a login window to the node you configured in this procedure:
telnet hostname.domain telnet ip_address
For example, enter:
telnet vhost.mydomain.com telnet 138.1.12.191
If the active node fails, then the secondary node takes over. You must remove the virtual IP mapping from the failed node and map it to the secondary node.
|
Note: If the failed node is offline or rebooted, the first step is not required because the failed node will not be configured with the virtual hostname or IP address. |
On the failed node, remove the virtual IP address.
On HP-UX enter the following command:
/usr/sbin/ifconfig configured_interface down
For example, enter the following command if lan0:2 is configured with the virtual IP address:
/usr/sbin/ifconfig lan0:2 down
On Linux enter the following command:
/sbin/ifconfig configured_interface down
For example, enter the following command if eth0:1 is configured with the virutal IP address:
/sbin/ifconfig eth0:1 down
|
Note: Use the commands in step 3 of the previous procedure to confirm that the virtual IP address has been removed. |
On the secondary node, add the virtual IP address.
On the secondary node, follow steps 2 to 6 of the previous procedure to add and confirm the virtual IP address on the secondary node.
Although the hardware cluster has shared storage, you need to create a file system on this shared storage such that both nodes of the OracleAS Cold Failover Cluster can mount this file system. On this file system, you place the following directories:
OracleAS Infrastructure 10g
The oraInventory directory and the jre/1.1.8 directory. The installer automatically installs the jre directory at the same level as the oraInventory directory.
For example, if you specify /mnt/app/oracle/oraInventory as the oraInventory directory, the installer installs the jre directory as /mnt/app/oracle/jre. The installer installs the 1.1.8 directory within the jre directory.
For disk space requirements for OracleAS Infrastructure 10g, see Section 4.1, "Check Hardware Requirements".
If you are running a volume manager on the cluster to manage the shared storage, refer to the volume manager documentation for steps to create a volume. Once a volume is created, you can create the file system on that volume.
If you do not have a volume manager, you can create a file system on the shared disk directly. Ensure that the hardware vendor supports this, that the file system can be mounted from either node of the OracleAS Cold Failover Cluster, and that the file system is repairable from either node in case of a crash.
To check that the file system can be mounted from either node, do the following steps:
Set up and mount the file system from node 1.
Unmount the file system from node 1.
Mount the file system from node 2 using the same mount point that you used in step 1.
Unmount it from node 2, and mount it on node 1, because you will be running the installer from node 1.
For the OracleAS Cold Failover Cluster solution, you must install both the OracleAS Metadata Repository and the Identity Management components on the same computer at the same time by selecting the Identity Management and OracleAS Metadata Repository option in the Select Installation Type screen. This option creates a new database for the OracleAS Metadata Repository and a new Oracle Internet Directory.
|
Note: For the OracleAS Cold Failover Cluster solution, you must install a new database (for the OracleAS Metadata Repository) and Oracle Internet Directory. You cannot use an existing database or Oracle Internet Directory for OracleAS Cold Failover Cluster solutions. |
Follow this procedure to install OracleAS Infrastructure 10g in an OracleAS Cold Failover Cluster environment:
Table 9-1 Steps for Installing OracleAS Infrastructure 10g in an OracleAS Cold Failover Cluster
|
|
Screen | Action |
|---|---|---|
| 1. | -- | Start up the installer. See Section 5.15, "Starting the Oracle Universal Installer" for details. |
| 2. | Welcome | Click Next. |
| 3. | Specify Inventory Directory | This screen appears only if this is the first installation of any Oracle product on this computer.
Enter the full path for the inventory directory: Enter a full path to a directory where you want the installer to store its files. The installer uses these files to keep track of all Oracle products that are installed on this computer. Enter a directory that is different from the Oracle home directory. Note: You must enter a directory in the file system that can be mounted from either node in the OracleAS Cold Failover Cluster environment. Example: Click OK. |
| 4. | UNIX Group Name | This screen appears only if this is the first installation of any Oracle product on this computer.
Enter the name of the operating system group to have permission to update Oracle software installations on this system. Example: Click Next. |
| 5. | Run orainstRoot.sh
|
This screen appears only if this is the first installation of any Oracle product on this computer.
Run the Click Continue. |
| 6. | Specify File Locations | Destination Name: Enter a name to identify this Oracle home.
Example: Destination Path: Enter the full path to the destination directory. This is the Oracle home. Notes:
Example: Click Next. |
| 7. | Specify Hardware Cluster Installation Mode | Select Single Node or Cold Failover Cluster Installation. Click Next.
If you do not see this screen, the installer was not able to determine that the current node is running a clusterware (see Section 9.1.2, "Check That Clusterware Is Running"). However, you can continue the installation. You just need to select High Availability Addressing in the Select Configuration Options screen in step 12. Also, ensure that your clusterware is running. Note: On Linux, Single Node or Cold Failover Cluster Installation is the only option available on this screen if a certified clusterware for an OracleAS Cold Failover Cluster environment is detected. |
| 8. | Select a Product to Install | Select OracleAS Infrastructure 10g to install an infrastructure.
If you need to install additional languages, click Product Languages. See Section 5.6, "Installing Additional Languages" for details. Click Next. |
| 9. | Select Installation Type | Select Identity Management and OracleAS Metadata Repository. Click Next. |
| 10. | Preview of Steps for Infrastructure Installation | This screen lists the screens that the installer will display. Click Next. |
| 11. | Confirm Pre-Installation Requirements | Verify that you meet all the listed requirements. Click Next. |
| 12. | Select Configuration Options | Select all the components except for OracleAS Certificate Authority.
Check that High Availability Addressing is selected. If the installer displayed the Specify Hardware Cluster Installation Mode screen earlier, this option is greyed out and selected by default. If the installer did not display the Specify Hardware Cluster Installation Mode screen, the High Availability Addressing option will not be greyed out. You must select this option. Click Next. |
| 13. | Specify Namespace in Internet Directory | Select the suggested namespace, or enter a custom namespace for the location of the default Identity Management realm.
Ensure the value shown in Suggested Namespace is valid and meets your deployment needs. If not, enter the desired value in Custom Namespace. See Section 6.15, "What Do I Enter in the "Specify Namespace in Internet Directory" Screen?". Click Next. |
| 14. | Specify High Availability Addressing | Note: This is a critical screen when installing the Infrastructure in an OracleAS Cold Failover Cluster. If you do not see this screen, return to the Select Configuration Options screen and ensure that you selected High Availability Addressing.
Enter the virtual hostname for the OracleAS Cold Failover Cluster environment. Example: Click Next. |
| 15. | Specify Privileged Operating System Groups | This screen appears if you are running the installer as a user who is not in the OSDBA or the OSOPER operating system groups.
Database Administrator (OSDBA) Group: Example: Database Operator (OSOPER) Group: Example: Click Next. |
| 16. | Database Identification | Global Database Name: Enter a name for the OracleAS Metadata Repository database. Append the domain name of your computer to the database name.
Example: SID: Enter the system identifier for the OracleAS Metadata Repository database. Typically this is the same as the global database name, but without the domain name. The SID cannot be longer than eight characters. Example: Click Next. |
| 17. | Set SYS and SYSTEM Passwords | Set the passwords for these database users. Click Next. |
| 18. | Database File Location | Enter or select a directory for database files: Enter a directory where you want the installer to create data files for the OracleAS Metadata Repository database.
Note: You must enter a directory in the file system that can be mounted from either node in the OracleAS Cold Failover Cluster environment. Click Next. |
| 19. | Database Character Set | Select Use the default character set. Click Next. |
| 20. | Specify Instance Name and ias_admin Password | Instance Name: Enter a name for this infrastructure instance. Instance names can contain the $, and _ (underscore) characters in addition to any alphanumeric characters. If you have more than one Oracle Application Server instance on a computer, the instance names must be unique.
Example: ias_admin Password and Confirm Password: Enter and confirm the password for the ias_admin user. This is the administrative user for this infrastructure instance. See Section 5.8, "The ias_admin User and Restrictions on its Password" for password requirements. Example: Click Next. |
| 21. | Choose JDK Home Directory (HP-UX only) | Enter JDK Home: Enter the full path to the HP Java 2 SDK 1.4.1.05 (or higher) for PA-RISC installation.
Click Next. |
| 22. | Summary | Verify your selections. Pay attention to any items listed in red. This indicates an issue that will cause the installation to fail. In particular, check all items within Space Requirements to confirm that sufficient disk is available for the installation.
Click Install. |
| 23. | Install Progress | This screen shows the progress of the installation. |
| 24. | Run root.sh
|
Note: Do not run the root.sh script until prompted.
When prompted, run the Click OK after you have run the script on all nodes. |
| 25. | Configuration Assistants | This screen shows the progress of the configuration assistants. Configuration assistants configure components. |
| 26. | End of Installation | Click Finish to quit the installer. |
Perform the following step after installing OracleAS Cold Failover Cluster:
Section 9.2.3.1, "Edit the oraInst.loc and oratab Files on the Second Node"
Section 9.2.3.2, "Create a Clusterware Agent for Automatic Failover "
After the OracleAS Infrastructure 10g installation is complete, edit the oraInst.loc and oratab files on the second node. The following table shows the location of the oraInst.loc and oratab files for HP-UX and Linux:
| File | Location on HP-UX | Location on Linux |
|---|---|---|
oraInst.loc
|
/var/opt/oracle
|
/etc
|
oratab
|
/etc
|
/etc
|
Edit the oratab file on the second node as follows:
Create or edit a /etc/oratab file.
Copy the oratab entries from the installation node for the Metadata Repository, created during the OracleAS Cold Failover Cluster installation.
For example, copy the following entries from the oratab file on the installation node to the oratab file on the second node where /mnt/app/oracle/OraInfra_904 is the Oracle Home directory:
*:/mnt/app/oracle/OraInfra_904:N asdb:/mnt/app/oracle/OraInfra_904:N
Create the oraInst.loc file on the second node by copying the oraInst.loc file from the installation node to the second node. The oraInst.loc file is not used during runtime by Oracle Application Server. It is used only by the installer.
An OracleAS Cold Failover Cluster environment provides the framework for a manual failover of the OracleAS 10g Infrastructure. To achieve automatic failover, you must set up an agent using the clusterware. An example of automatic failover is setting up the secondary node to monitor the heartbeat of the primary node and when the secondary node detects that the primary node is down, the virtual IP address, shared storage, and all the OracleAS 10g Infrastructure processes are failed over to the secondary node.
For example, an HP Serviceguard Package and a Red Hat Cluster Manager Service could be created to achieve this automatic failover. The procedure to create these agents are not within the scope of this guide but example agents are available from the OracleAS clusterware certification page of OracleMetaLink (http://metalink.oracle.com).
For middle tiers to work with an OracleAS Infrastructure 10g in an OracleAS Cold Failover Cluster, you can install the middle tiers on computers outside the cluster, or on nodes within the cluster.
If you choose to install middle tiers on OracleAS Cold Failover Cluster nodes, either on the local storage or shared storage, note that the middle tiers will not be able to take advantage of any cluster benefits. If the active node fails, the middle tiers will not fail over to the other node. Middle tiers have their own high availability solutions: see the Oracle Application Server 10g High Availability Guide for details.
|
Note: Oracle recommends that you do not install middle tiers on the same shared disk where you installed the OracleAS Infrastructure 10g. The reason is that when this shared disk fails over to the secondary node, the middle tier becomes inaccessible.The best solution is to install and run middle tiers on nodes outside the OracleAS Cold Failover Cluster. But if you want to run a middle tier on either the primary or secondary node, install it on a local disk or on a disk other that the one where you installed the OracleAS Infrastructure 10g. |
If you plan to install a middle tier on an OracleAS Cold Failover Cluster node (primary or secondary), perform these tasks before installing the middle tier:
Ensure that the ports used by the middle tier are not the same as the ports used by the infrastructure. The reason is that the infrastructure can fail over from the primary to the secondary node (and vice versa), and there must not be any port conflicts on either node. The same ports must be reserved for the infrastructure on both nodes.
If the infrastructure is running on the same node where you want to install the middle tier, the installer can detect which ports are in use and select different ports for the middle tier. For example, if the infrastructure is running on the primary node, and you run the installer on the primary node to install the middle tier, then the installer can assign different ports for the middle tier.
However, if the infrastructure is running on a node different from where you want to install the middle tier, the installer cannot detect which ports are used by the infrastructure. For example, if the infrastructure is running on the primary node but you want to install the middle tier on the secondary node, the installer is unable to detect which ports the infrastructure is using. In this situation, you need to set up a staticports.ini file to specify port numbers for the middle tier. See Section 4.4.2, "Using Custom Port Numbers (the "Static Ports" Feature)" for details.
To see which ports the infrastructure is using, view the ORACLE_HOME/install/portlist.ini file, where ORACLE_HOME refers to the directory where you installed the infrastructure.
Set up the environment so that the middle tier will have its own Oracle Installer Inventory directory, instead of using the same inventory directory used by the Infrastructure. To do this, you need to rename the oraInst.loc file to something else so that the installer will prompt you to enter a new inventory directory for the middle tier installation. By default the oraInst.loc file is stored in the /etc directory on Linux and the /var/opt/oracle directory on HP-UX. The following example on Linux renames this file to oraInst.loc.infra.
prompt> su Password: root_password # cd /etc # mv oraInst.loc oraInst.loc.infra
|
Note: On HP-UX, usecd to change to the /var/opt/oracle directory before performing the mv command.
|
When the installer prompts for the inventory directory during the middle tier installation, specify a directory on the local storage or on a disk other than the one where you installed the OracleAS Infrastructure 10g.
When the middle tier installation is complete, rename the newly created oraInst.loc file (for example rename it to oraInst.loc.mt) and restore the oraInst.loc.infra file back to oraInst.loc. Make sure that the correct version of the oraInst.loc file is in place prior to any future Oracle installations on this node. The oraInst.loc file is not used during the Oracle Application Server runtime. The only time you need the file is when you run the installer, for example, to de-install an instance or to expand an instance.
|
Note: In the initial release of Oracle Application Server 10g (9.0.4), OracleAS Active Failover Cluster is a Limited Release feature. Please check OracleMetaLink (http://metalink.oracle.com) for the most current certification status of this feature or consult your sales representative before deploying this feature in a production environment.
|

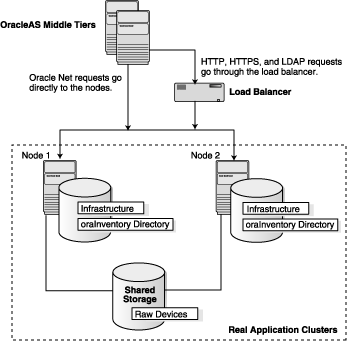

You increase the availability of OracleAS Infrastructure 10g by installing and running it in an OracleAS Active Failover Cluster environment (Figure 9-2). In an OracleAS Active Failover Cluster, the OracleAS Metadata Repository runs on a Real Application Clusters database, and the Identity Management components run on the same nodes in the cluster.
To create this environment, you install the OracleAS Infrastructure 10g components—OracleAS Metadata Repository and Identity Management components—in a clustered environment.
To use OracleAS Active Failover Cluster, you need the following items:
Hardware cluster with two or more nodes
Storage device for each node
Storage device shared by all nodes
Load balancer, to direct HTTP, HTTPS, and LDAP requests from Oracle Application Server middle tiers to the nodes in the cluster
For complete information about Real Application Clusters, see the following books in the database documentation library.
Oracle9i Real Application Clusters Concepts
Oracle9i Real Application Clusters Installation and Configuration
Oracle9i Real Application Clusters Administration
Oracle9i Real Application Clusters Deployment and Performance
You can view these books on the Oracle Technology Network web site (http://otn.oracle.com).
There are some known issues related to OracleAS Active Failover Cluster. These issues are documented in the Oracle Application Server 10g Release Notes.
You need to install OracleAS Infrastructure 10g components on the clustered nodes. This means that you cannot use an existing database, or an existing Oracle Internet Directory. You need to have the installer create a new database and Oracle Internet Directory for you.
On the Select Installation Type screen, you need to select Identity Management and OracleAS Metadata Repository.
After you install OracleAS Infrastructure 10g in an OracleAS Active Failover Cluster, you cannot install it on additional nodes after the initial installation. You must select all the nodes in the cluster where you want to install OracleAS Infrastructure 10g during the initial installation.
You run the installer on any node in the OracleAS Active Failover Cluster where you want to install OracleAS Infrastructure 10g. The installer detects that the node is part of a cluster, and it displays a screen listing all the nodes in the cluster. On this screen, you select the nodes where you want to install OracleAS Infrastructure 10g. The node where you are running the installer is always selected.
The installer writes files on the local storage devices of the selected nodes and also on the shared storage device, as shown in Table 9-2:
Table 9-2 Where the Installer Writes Files in an OracleAS Active Failover Cluster
| File or Directory | Location |
|---|---|
| ORACLE_HOME directory | The installer writes the Oracle home directory on the local storage devices of the selected nodes. The installer uses the same path name, specified in the Specify File Locations screen, for all nodes. |
| oraInventory directory | The installer writes the Oracle Installer Inventory directory on the local storage devices of the selected nodes. The installer uses the same path name, specified in the Specify Inventory Directory screen, for all nodes. |
| Files for OracleAS Metadata Repository | The installer writes the database software files for the OracleAS Metadata Repository on all the selected nodes, but for the data files, the installer invokes the Database Configuration Assistant to write the data files on raw partitions located on the shared storage device. |
The rest of this section describes these procedures:
Section 9.3.1, "Setting Up the OracleAS Active Failover Cluster Environment"
Section 9.3.2, "Installing OracleAS Infrastructure 10g in an OracleAS Active Failover Cluster"
Section 9.3.4, "Installing Middle Tiers Against an OracleAS Active Failover Cluster Infrastructure"
Before you install the OracleAS Infrastructure 10g in an OracleAS Active Failover Cluster environment, perform the following procedures:
Section 9.3.1.2, "Set Up a Virtual Server Name for the Load Balancer"
Section 9.3.1.4, "Configure the Load Balancer to Point to One Node Only"
Section 9.3.1.5, "Create Identical Users and Groups on All Nodes in the Cluster"
Section 9.3.1.7, "Configure Raw Partitions for Server Management (SRVM)"
Section 9.3.1.8, "(optional) Set the SRVM_SHARED_CONFIG Environment Variable"
Section 9.3.1.9, "Configure Raw Partitions for the OracleAS Metadata Repository"
Section 9.3.1.10, "Create a Text File Listing the Raw Partitions"
Section 9.3.1.11, "Set the DBCA_RAW_CONFIG Environment Variable"
Section 9.3.1.12, "Set the Shell Limit for Number of Open File Descriptors (Linux, only) "
Also, ensure that you meet the requirements described in Section 9.1, "Requirements for High Availability Environments".
Each OracleAS Infrastructure 10g component must use the same port number across all nodes in the cluster. To do this, create a staticports.ini file, which enables you to specify port numbers for each component. See Section 4.4.2, "Using Custom Port Numbers (the "Static Ports" Feature)" for details.
|
Note: The installer checks the availability of the ports specified in thestaticports.ini file on the local node only. It does not check that the ports are free on the remote nodes. You must check yourself that these ports are free on all the nodes.
|
You enter the load balancer’s virtual server name, and not the load balancer’s physical hostname, when the installer prompts for the load balancer name. See your load balancer documentation for steps on how to set up a virtual server name.
See the next point, Section 9.3.1.3, "Verify the Load Balancer’s Virtual Server Name Does Not Contain the Names of the Nodes in the Cluster", for guidelines on the virtual server name.
After the virtual server name is set up, check that the name is accessible:
prompt> ping load_balancer_virtual_name
When the installer copies files to different nodes in the cluster, it replaces the current hostname in the files with hostname of the target node. Ensure that the load balancer’s virtual server name does not contain the names of the nodes in the cluster, or the installer might change the virtual server name of the load balancer as well.
Example: if you are installing on nodes named rac-1 and rac-2, be sure that the load balancer virtual server name does not contain "rac-1" or "rac-2". When the installer is installing files to rac-2, it searches for the string "rac-1" in the files and replaces it with "rac-2". If the load balancer’s virtual server name happens to be LB-rac-1x, the installer sees the string "rac-1" in the name and replaces it with "rac-2", thus mangling the virtual server name to LB-rac-2x.
You need to configure the load balancer so that it directs all traffic only to the node where you will be running the installer. After installation, you change the configuration back so that the load balancer directs traffic to all nodes in the cluster.
|
Note: This procedure is required only if you are using local users and groups. It is not required if you are using users and groups defined in a directory service, such as NIS, because the users and groups are already identical. |
Create an operating system user with the same user ID on all nodes in the cluster. This is required for user equivalence to work (see Section 9.3.1.6, "Set Up User Equivalence"). When you run the installer on one node as this user, the installer needs to access the other nodes in the cluster as this user.
If you have already created the oracle user as described in Section 4.6, "Operating System User", determine its user ID so that when you create the oracle user on other nodes, you can specify the same user ID.
To determine the user ID:
prompt> id oracle uid=3223(oracle) gid=8400(dba) groups=8400(dba),5000(oinstall)
The number after "uid" specifies the user ID, and the numbers after "groups" specify the group IDs. In this example, the oracle user must have ID 3223 on all nodes, and the dba and oinstall groups must have IDs 8400 and 5000 on all nodes.
See Section 4.6, "Operating System User" and Section 4.5, "Operating System Groups" for steps on how to create users and groups.
The installer needs user equivalence to be set up for all the nodes in the cluster. You can set up Secure Shell (ssh and scp) or Remote Shell (/usr/bin/rsh on Linux, /usr/bin/remsh on HP-UX, and /usr/bin/rcp on both Linux and HP-UX) for user equivalence. Make sure that this procedure is compatible with your security policy.
To determine which user equivalence type to use, the installer checks if Secure Shell is set up. If so, it uses it. Otherwise, it uses Remote Shell.
Perform the following steps:
On the node where you plan to run the installer, in the following files:
.rhosts file in the home directory of the root user (that is, /.rhosts)
enter a line for each node name in the cluster. Be sure to include the name of the local node itself.
For example, if the cluster has three nodes named node1, node2, and node3, you would populate the .rhosts files with the following lines:
node1 node2 node3
Check that the user equivalence is working:
Log in as the oracle user on the node where you plan to run the installer.
As the oracle user, perform a remote login to each node in the cluster:
prompt> rlogin node2
If the command prompts you to enter a password, then the oracle user does not have identical attributes on all nodes. You need to correct this to enable the installer to copy files to the remote nodes.
|
Tip: If user equivalence is not working, try modifying the.rhosts or the /etc/hosts.equiv files in the following ways to get it to work:
|
If you are using Secure Shell for host equivalency between the nodes of a cluster, make sure that the ssh and scp commands do not prompt for any user response, such as prompting for the password or a Yes/No response, during execution. Also, ensure that no error or warning messages are sent to stderr during execution. After setting up Secure Shell, you can run these commands to check:
To check ssh, run these commands on each node in the cluster where ssh_path is /usr/bin on Linux and /usr/local/bin on HP-UX:
prompt> ssh_path/ssh local_hostname ls /tmp prompt> ssh_path/ssh remote_hostname ls /tmp
In the example, the ssh command runs the "ls /tmp" command on the local node and remote node. Replace local_hostname and remote_hostname with the hostnames of the local and remote nodes, respectively.
To check scp, run these commands on each node in the cluster where scp_path is /usr/bin on Linux and /usr/local/bin on HP-UX:
prompt> touch /tmp/tempfile prompt> scp_path/scp /tmp/tempfile local_hostname:/tmp/tempfile2 prompt> scp_path/scp /tmp/tempfile remote_hostname:/tmp/tempfile2
In the example, the touch command creates a file in the /tmp directory, and the scp commands copy the file to another file on both the local and remote nodes. Replace local_hostname and remote_hostname with the hostnames of the local and remote nodes, respectively.
If the commands prompt for a user response or if the commands cause an error or warning message to be sent to stderr during installation, it means that the Secure Shell is not set up properly, and the installer resorts to using the equivalent rsh and rcp commands. You then need to perform the steps in Section 9.3.1.6.1, "To Set Up User Equivalence for Remote Shell" for the installer to succeed.
This step is required if this is the first installation of an Oracle database on the cluster. SRVM is a component of Real Application Clusters.
The raw partition for SRVM must have these properties:
It must be accessible from all nodes in the cluster.
Its size must be at least 100 MB.
The command to create raw partitions is specific to the volume manager you are using. For example, if you using VERITAS Volume Manager, the command is vxassist.
If OracleAS Infrastructure 10g is the first Oracle product to be installed on the cluster, set the SRVM_SHARED_CONFIG environment variable to the name of the raw partition that you created for the SRVM shared configuration device.
Example (C shell)
% setenv SRVM_SHARED_CONFIG /dev/vx/rdsk/ias_dg/srvcfg
Example (Bourne or Korn shell):
$ SRVM_SHARED_CONFIG=/dev/vx/rdsk/ias_dg/srvcfg; export SRVM_SHARED_CONFIG
If you do not set this environment variable, the installer displays the Shared Configuration File Name screen, where you enter the path for the SRVM configuration device.
In addition to the raw partition for SRVM (see Section 9.3.1.7, "Configure Raw Partitions for Server Management (SRVM)"), you need to configure raw partitions on the shared storage device for the OracleAS Metadata Repository database.
Table 9-3 lists the required tablespaces and system objects, their minimum sizes, and the recommended name for the raw partition:
Table 9-3 Raw Partitions for the OracleAS Metadata Repository
| Raw Partition for | Minimum Size | Recommended Name |
|---|---|---|
| SYSTEM tablespace | 1024 MB | dbname_raw_system_1024m
|
| Server parameter file | 64 MB | dbname_raw_spfile_64m
|
| USERS tablespace | 256 MB | dbname_raw_users_256m
|
| TEMP tablespace | 128 MB | dbname_raw_temp_128m
|
| UNDOTBS1 tablespace | 256 MB | dbname_raw_undotbs1_256m
|
| UNDOTBS2 tablespace | 256 MB | dbname_raw_undotbs2_256m
|
| DRSYS tablespace | 64 MB | dbname_raw_drsys_64m
|
| Three control files | 64 MB for each file | dbname_raw_controlfile1_64m
dbname dbname |
| Three redo log files for each instance | 64 MB for each file | dbname_raw_thread_lognumber_64m
thread specifies the thread ID of the instance. number specifies the log number (1, 2, or 3) of the instance. |
| PORTAL tablespace | 128 MB | dbname_raw_portal_128m
|
| PORTAL_DOC tablespace | 64 MB | dbname_raw_portaldoc_64m
|
| PORTAL_IDX tablespace | 64 MB | dbname_raw_portalidx_64m
|
| PORTAL_LOG tablespace | 64 MB | dbname_raw_portallog_64m
|
| DCM tablespace | 256 MB | dbname_raw_dcm_256m
|
| OCATS tablespace | 64 MB | dbname_raw_ocats_64m
|
| DISCO_PTM5_CACHE tablespace | 64 MB | dbname_raw_discoptm5cache_64m
|
| DISCO_PTM5_META tablespace | 64 MB | dbname_raw_discoptm5meta_64m
|
| DSGATEWAY_TAB tablespace | 64 MB | dbname_raw_dsgatewaytab_64m
|
| WCRSYS_TS tablespace | 64 MB | dbname_raw_wcrsysts_64m
|
| UDDISYS_TS tablespace | 64 MB | dbname_raw_uddisysts_64m
|
| OLTS_ATTRSTORE tablespace | 128 MB | dbname_raw_oltsattrstore_128m
|
| OLTS_BTTRSTORE tablespace | 64 MB | dbname_raw_oltsbttrstore_64m
|
| OLTS_CT_STORE tablespace | 256 MB | dbname_raw_oltsctstore_256m
|
| OLTS_DEFAULT tablespace | 128 MB | dbname_raw_oltsdefault_128m
|
| OLTS_SVRMGSTORE tablespace | 64 MB | dbname_raw_oltssvrmgstore_64m
|
| IP_DT tablespace | 128 MB | dbname_raw_ipdt_128m
|
| IP_RT tablespace | 128 MB | dbname_raw_iprt_128m
|
| IP_LOB tablespace | 128 MB | dbname_raw_iplob_128m
|
| IP_IDX tablespace | 128 MB | dbname_raw_ipidx_128m
|
| IAS_META tablespace | 256 MB | dbname_raw_iasmeta1_256m
|
Create a text file listing the database object and raw partition name in name-value pair format. Place the text file on the node where you plan to run the installer.
The following example shows the contents of the text file for a two-instance OracleAS Metadata Repository. If you have more than two instances, add more lines for "undotbs" and the redo log files.
system1=/dev/vx/rdsk/ias_dg/infra_system_1024m spfile1=/dev/vx/rdsk/ias_dg/infra_raw_spfile_64m users1=/dev/vx/rdsk/ias_dg/infra_raw_users_256m temp1=/dev/vx/rdsk/ias_dg/infra_raw_temp_128m undotbs1=/dev/vx/rdsk/ias_dg/infra_raw_undotbs1_256m undotbs2=/dev/vx/rdsk/ias_dg/infra_raw_undotbs2_256m ..... Create additional lines for "undotbsN" if you have more than 2 instances. drsys1=/dev/vx/rdsk/ias_dg/infra_raw_drsys_64m control1=/dev/vx/rdsk/ias_dg/infra_raw_controlfile1_64m control2=/dev/vx/rdsk/ias_dg/infra_raw_controlfile2_64m control3=/dev/vx/rdsk/ias_dg/infra_ raw_controlfile3_64m redo1_1=/dev/vx/rdsk/ias_dg/infra_raw_1_log1_64m redo1_2=/dev/vx/rdsk/ias_dg/infra_raw_1_log2_64m redo1_3=/dev/vx/rdsk/ias_dg/infra_raw_1_log3_64m redo2_1=/dev/vx/rdsk/ias_dg/infra_raw_2_log1_64m redo2_2=/dev/vx/rdsk/ias_dg/infra_raw_2_log2_64m redo2_3=/dev/vx/rdsk/ias_dg/infra_raw_2_log3_64m ..... Create additional lines for "redoN" log files if you have more ..... than 2 instances. portal1=/dev/vx/rdsk/ias_dg/infra_raw_portal_128m portal_doc1=/dev/vx/rdsk/ias_dg/infra_raw_portaldoc_64m portal_idx1=/dev/vx/rdsk/ias_dg/infra_raw_portalidx_64m portal_log1=/dev/vx/rdsk/ias_dg/infra_raw_portallog_64m dcm1=/dev/vx/rdsk/ias_dg/infra_raw_dcm_256m ocats1=/dev/vx/rdsk/ias_dg/infra_raw_ocats_64m disco_ptm5_cache1=/dev/vx/rdsk/ias_dg/infra_raw_discoptm5cache_64m disco_ptm5_meta1=/dev/vx/rdsk/ias_dg/infra_raw_discoptm5meta_64m dsgateway_tab1=/dev/vx/rdsk/ias_dg/infra_raw_dsgatewaytab_64m wcrsys_ts1=/dev/vx/rdsk/ias_dg/infra_raw_wcrsysts_64m uddisys_ts1=/dev/vx/rdsk/ias_dg/infra_raw_uddisysts_64m olts_attrstore1=/dev/vx/rdsk/ias_dg/infra_raw_oltsattrstore_128m olts_battrstore1=/dev/vx/rdsk/ias_dg/infra_raw_oltsbattrstore_64m olts_ct_store1=/dev/vx/rdsk/ias_dg/infra_raw_oltsctstore_256m olts_default1=/dev/vx/rdsk/ias_dg/infra_raw_oltsdefault_128m olts_svrmgstore1=/dev/vx/rdsk/ias_dg/infra_oltssvrmgstore_64m ip_dt1=/dev/vx/rdsk/ias_dg/infra_raw_ipdt_128m ip_rt1=/dev/vx/rdsk/ias_dg/infra_raw_iprt_128m ip_lob1=/dev/vx/rdsk/ias_dg/infra_raw_iplob_128m ip_idx1=/dev/vx/rdsk/ias_dg/infra_raw_ipidx_128m ias_meta1=/dev/vx/rdsk/ias_dg/infra_raw_iasmeta1_256m
Set the DBCA_RAW_CONFIG environment variable to point to the text file. For example, if you created the file as /opt/oracle/rawdevices.txt, you can set the variable using one of these commands:
Example (C shell):
% setenv DBCA_RAW_CONFIG /opt/oracle/rawdevices.txt
Example (Bourne or Korn shell):
$ DBCA_RAW_CONFIG=/opt/oracle/rawdevices.txt; export DBCA_RAW_CONFIG
Setting the parameter for the number of open file descriptors for an Oracle Application Server installation on Linux is described in Section 4.3.2, "Configuring the Kernel Parameters on Linux". However, installing the OracleAS Infrastructure 10g in an OracleAS Cold Failover Cluster environment requires a higher value. Oracle recommends this value to be set to 32K or higher within the shell of the user that will perform the installation. For example, enter the following commands:
$ ulimit -n 1024 $ ulimit -n 32768 $ ulimit -n 32768
The default and maximum value of this parameter for all user shells on the system is set in the /etc/security/limits.conf file. This file will need to be modified by the root user if the maximum value allowable is less than 32K. The installation user will need to log out and log in again for the change to take effect.
After completing the OracleAS Infrastructure 10g installation, this parameter can be changed back to it's original value.
In an OracleAS Active Failover Cluster, you install the OracleAS Metadata Repository and the Identity Management components in one installation session by selecting the "Identity Management and OracleAS Metadata Repository" option in the Select Installation Type screen. This option creates a new database for the OracleAS Metadata Repository and a new Oracle Internet Directory.
|
Note: In an OracleAS Active Failover Cluster, you must install a new OracleAS Metadata Repository and Oracle Internet Directory. You cannot use an existing database or Oracle Internet Directory. |
Follow this procedure to install OracleAS Infrastructure 10g in an OracleAS Active Failover Cluster:
Table 9-4 Steps for Installing OracleAS Infrastructure 10g in an OracleAS Active Failover Cluster
|
|
Screen | Action |
|---|---|---|
| 1. | -- | Start up the installer. See Section 5.15, "Starting the Oracle Universal Installer" for details. |
| 2. | Welcome | Click Next. |
| 3. | Specify Inventory Directory | This screen appears only if this is the first installation of any Oracle product on this computer.
Enter the full path for the inventory directory: Enter a full path to a directory where you want the installer to store its files. The installer uses these files to keep track of all Oracle products that are installed on this computer. Enter a directory that is different from the Oracle home directory. Example: Click OK. |
| 4. | UNIX Group Name | This screen appears only if this is the first installation of any Oracle product on this computer.
Enter the name of the operating system group to have permission to update Oracle software installations on this system. Example: Click Next. |
| 5. | Run orainstRoot.sh
|
This screen appears only if this is the first installation of any Oracle product on this computer.
Run the Run the script on the node where you are running the installer. The installer will prompt you to run the script on other nodes later, in step 8. Click Continue after you have run the script. |
| 6. | Specify File Locations | Destination Name: Enter a name to identify this Oracle home.
Example: Destination Path: Enter the full path to the destination directory. This is the Oracle home. The installer will use this path as the Oracle home for all nodes. Example: Note: If you are using Oracle Cluster Management Software on Linux:
If you are not using Oracle Cluster Management Software:
Click Next. |
| 7. | Specify Hardware Cluster Installation Mode | Note: This is a critical screen when installing the infrastructure in an OracleAS Active Failover Cluster environment. If you do not see this screen, exit the installer and check that your clusterware is installed and running (see Section 9.1.2, "Check That Clusterware Is Running").
Select Active Failover Cluster Installation, and select the nodes where you want to install OracleAS Infrastructure 10g. You need to install OracleAS Infrastructure 10g on at least two nodes. Note: On Linux, this screen is titled Selected Nodes and will list the cluster nodes without any option to additionally select for an Active Failover Cluster Installation nor add/subtract nodes of the cluster. This is expected behavior due to the detection of the Oracle Cluster Management Software. Reaching this screen confirms that an Active Failover Cluster Installation has been chosen for all nodes of the Oracle Cluster Management Software cluster. Click Next. |
| 8. | Run orainstRoot.sh | Run the orainstRoot.sh script as the root user on the selected nodes. The script is located in the Oracle Installer Inventory directory, which is specified in the Specify Inventory Directory screen, on the selected nodes.
Click Continue after you have run the script on all the selected nodes. |
| 9. | Select a Product to Install | Select OracleAS Infrastructure 10g to install an infrastructure.
If you need to install additional languages, click Product Languages. See Section 5.6, "Installing Additional Languages" for details. Click Next. |
| 10. | Select Installation Type | Select Identity Management and OracleAS Metadata Repository. Click Next. |
| 11. | Preview of Steps for Infrastructure Installation | This screen lists the screens that the installer will display. Click Next. |
| 12. | Confirm Pre-Installation Requirements | Verify that you meet all the listed requirements. Click Next. |
| 13. | Select Configuration Options | Select all the components except for OracleAS Certificate Authority.
Check that High Availability Addressing is selected. It should be greyed out and selected. Click Next. |
| 14. | Specify Namespace in Internet Directory | Select the suggested namespace, or enter a custom namespace for the location of the default Identity Management realm.
Ensure the value shown in Suggested Namespace is valid and meets your deployment needs. If not, enter the desired value in Custom Namespace. See Section 6.15, "What Do I Enter in the "Specify Namespace in Internet Directory" Screen?". Click Next. |
| 15. | Specify High Availability Addressing | Note: This is a critical screen when installing the infrastructure in an OracleAS Active Failover Cluster. If you do not see this screen, return to the Select Configuration Options screen and ensure that you selected High Availability Addressing.
Enter the fully qualified virtual server name of the load balancer. (Do not enter the physical hostname for the load balancer.) Click Next. |
| 16. | Shared Configuration File Name | This screen appears if you did not set the SRVM_SHARED_CONFIG environment variable. See Section 9.3.1.8, "(optional) Set the SRVM_SHARED_CONFIG Environment Variable".
Shared Configuration File Name: Enter the path of the raw partition that you created for the SRVM shared configuration device: Example: Click Next. |
| 17. | Database Identification | Global Database Name: Enter a name for the OracleAS Metadata Repository database. Append the domain name of your computer to the database name.
Example: SID Prefix: Enter the system identifier for the OracleAS Metadata Repository database. Typically this is the same as the global database name, but without the domain name. The SID cannot be longer than eight characters. Example: Click Next. |
| 18. | Set SYS and SYSTEM Passwords | Set the passwords for these database users. Click Next. |
| 19. | Database Character Set | Select Use the default character set. Click Next. |
| 20. | Specify Instance Name and ias_admin Password | Instance Name: Enter a name for this infrastructure instance. Instance names can contain the $, and _ (underscore) characters in addition to any alphanumeric characters. If you have more than one Oracle Application Server instance on a computer, the instance names must be unique.
Example: ias_admin Password and Confirm Password: Enter and confirm the password for the ias_admin user. This is the administrative user for this infrastructure instance. See Section 5.8, "The ias_admin User and Restrictions on its Password" for password requirements. Example: Click Next. |
| 21. | Choose JDK Home Directory (HP-UX only) | Enter JDK Home: Enter the full path to the HP Java 2 SDK 1.4.1.05 (or higher) for PA-RISC installation.
Click Next. |
| 22. | Summary | Verify your selections. Pay attention to any items listed in red. This indicates an issue that will cause the installation to fail. In particular, expand all items within Space Requirements to confirm that sufficient disk is available for the installation.
Click Install. |
| 23. | Install Progress | This screen shows the progress of the installation. |
| 24. | Run root.sh
|
Note: Do not run the root.sh script until prompted.
When prompted, run the Note: You have to run this script on each node where you are installing OracleAS Infrastructure 10g. Click OK after you have run the script on all nodes. |
| 25. | Configuration Assistants | This screen shows the progress of the configuration assistants. Configuration assistants configure components. |
| 26. | End of Installation | Click Finish to quit the installer. |
Before you started the installer, you configured the load balancer so that it directed traffic to the node running the installer only. You can now reconfigure the load balancer so that it directs traffic to all nodes in the cluster.
Required pre-installation step: Configure the load balancer so that it points to only one node in the OracleAS Active Failover Cluster. The node can be any node in the cluster. After you have installed the middle tiers, you can change the load balancer back so that it points to all nodes in the cluster.
Installation: To install Oracle Application Server middle tiers against an OracleAS Infrastructure 10g running in an OracleAS Active Failover Cluster, follow the procedures as documented in Chapter 7, " InstallingMiddleTiers", but with this difference:
In the Register with Oracle Internet Directory screen, enter the load balancer’s virtual server name (not the physical hostname of the load balancer) in the Hostname field. This is the same name that you specified in the Specify High Availability Addressing screen in the OracleAS Infrastructure 10g installation.
Use the OracleAS Disaster Recovery environment when you want to have two physically separate sites in your environment. One site is the production site, and the other site is the standby site. The production site is active, while the standby site is passive; the standby site becomes active when the production site goes down.
Generally, the standby site mirrors the production site: each node in the standby site corresponds to a node in the production site. This includes the nodes running both OracleAS Infrastructure 10g and middle tiers. As a small variation to this environment, you can set up the OracleAS Infrastructure 10g on the production site in a OracleAS Cold Failover Cluster environment. See Section 9.4.1.4, "If You Want to Use OracleAS Cold Failover Cluster on the Production Site" for details.

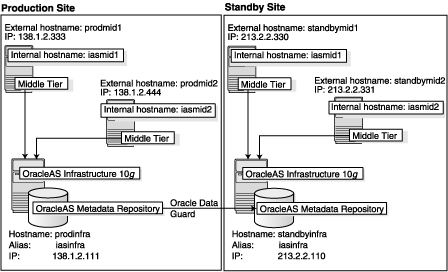

Figure 9-3 shows an example OracleAS Disaster Recovery environment. Each site has two nodes running middle tiers and a node running OracleAS Infrastructure 10g.
For OracleAS Disaster Recovery to work, data between the production and standby sites must be synchronized so that failover can happen very quickly. Configuration changes done at the production site must be synchronized with the standby site.
There are two types of data, and the synchronization method depends on the type of data:
Use Oracle Data Guard to synchronize data in the OracleAS Metadata Repository databases on the production and standby sites. You can configure Oracle Data Guard to perform the synchronization.
Use the backup and recovery scripts to synchronize data outside of the database (such as data stored in configuration files).
See the Oracle Application Server 10g High Availability Guide for details on how to use Oracle Data Guard and the backup and recovery scripts.
This section contains the following subsections:
Section 9.4.1, "Setting Up the OracleAS Disaster Recovery Environment"
Section 9.4.2, "Installing Oracle Application Server in an OracleAS Disaster Recovery Environment"
Before you can install Oracle Application Server on the nodes in an OracleAS Disaster Recovery environment, you have to perform these steps:
Section 9.4.1.1, "Ensure Nodes Are Identical at the Operating System Level"
Section 9.4.1.3, "Set Up Identical Hostnames on Both Production and Standby Sites"
Section 9.4.1.4, "If You Want to Use OracleAS Cold Failover Cluster on the Production Site"
Ensure that the nodes are identical with respect to the following items:
The nodes are running the same version of the operating system.
The nodes have the same operating system patches and packages.
You can install Oracle Application Server in the same directory path on all nodes.
The same component must use the same port number on the production and standby sites. For example, if Oracle HTTP Server is using port 80 on the production site, it must also use port 80 on the standby site. To ensure this is the case, create a staticports.ini file for use during installation. This file enables you to specify port numbers for each component. See Section 4.4.2, "Using Custom Port Numbers (the "Static Ports" Feature)" for details.
The names of the corresponding nodes on the production and standby sites must be identical, so that when you synchronize data between the sites, you do not have to edit the data to fix the hostnames.
For the node running the infrastructure, set up a virtual name. To do this, specify an alias for the node in the /etc/hosts file.
For example, on the infrastructure node on the production site, the following line in /etc/hosts sets the alias to iasinfra:
138.1.2.111 prodinfra iasinfra
On the standby site, the following line sets the node’s alias to iasinfra.
213.2.2.110 standbyinfra iasinfra
When you install OracleAS Infrastructure 10g on the production and standby sites, you specify this alias (iasinfra) in the Specify High Availability Addressing screen. The configuration data will then contain this alias for the infrastructure nodes.
For the nodes running the middle tiers, you cannot set up aliases like you did for the infrastructure nodes because the installer does not display the Specify High Availability Addressing screen for middle tier installations. When installing middle tiers, the installer determines the hostname automatically by calling the gethostname() function. You want to be sure that for each middle tier node on the production site, the corresponding node on the standby site returns the same hostname.
To do this, set up a local, or internal, hostname, which could be different from the public, or external, hostname. You can change the names of the nodes on the standby site to match the names of the corresponding nodes on the production site, or you can change the names of the nodes on both production and standby sites to be the same. This depends on other applications that you might be running on the nodes, and whether changing the node name will affect those applications.
Change the local hostname to the hostname of the respective node on the production site. The string returned by the hostname command should return this new local hostname.
|
Note: The procedure to change the hostname of a system differs between different operating systems. Contact the system administrator of your system to perform this step. Note also that changing the hostname of a system will affect installed software that has a dependency on the previous hostname. Consider the impact of this before changing the hostname. |
Enable the other nodes in the OracleAS Disaster Recovery environment to be able to resolve the node using the new local hostname. You can do this in one of two ways:

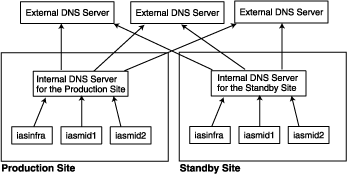

Method 1: Set up separate internal DNS servers for the production and standby sites. This configuration allows nodes on each site (production or standby) to resolve hostnames within the site. Above the internal DNS servers are the corporate, or external, DNS servers. The internal DNS servers forward non-authoritative requests to the external DNS servers. The external DNS servers do not know about the existence of the internal DNS servers. See Figure 9-4.
To use this method, go to step 3.
Method 2: Edit the /etc/hosts file on each node on both sites. This method does not involve configuring DNS servers, but you have to maintain the /etc/hosts file on each node in the OracleAS Disaster Recovery environment. For example, if an IP address changes, you have to update the files on all the nodes, and reboot the nodes.
To use this method, go to step 4.
If you are using the separate internal DNS server method (method 1), set up your DNS files as follows:
Make sure the external DNS names are defined in the external DNS zone. Example:
prodmid1.us.oracle.com IN A 138.1.2.333 prodmid2.us.oracle.com IN A 138.1.2.444 prodinf.us.oracle.com IN A 138.1.2.111 standbymid1.us.oracle.com IN A 213.2.2.330 standbymid2.us.oracle.com IN A 213.2.2.331 standbyinf.us.oracle.com IN A 213.2.2.110
At the production site, create a new zone at the production site using a domain name different from your external domain name. To do this, populate the zone data files with entries for each node in the OracleAS Disaster Recovery environment.
For the infrastructure node, use the virtual name or alias.
For the middle tier nodes, use the local hostname set up in step 1.
The following example uses "iasha" as the domain name for the new zone.
iasmid1.iasha IN A 138.1.2.333 iasmid2.iasha IN A 138.1.2.444 iasinfra.iasha IN A 138.1.2.111
Do the same for the standby site. Use the same domain name that you used for the production site.
iasmid1.iasha IN A 213.2.2.330 iasmid1.iasha IN A 213.2.2.331 iasinfra.iasha IN A 213.2.2.110
Configure the DNS resolver to point to the internal DNS servers instead of the external DNS server.
In the /etc/resolv.conf file for each node on the production site, replace the existing name server IP address with the IP address of the internal DNS server for the production site.
Do the same for the nodes on the standby site, but use the IP address of the internal DNS server for the standby site.
Create a separate entry for Oracle Data Guard in the internal DNS servers. This entry is used by Oracle Data Guard to ship redo data to the database on the standby site.
In the example below, the "remote_infra" entry points to the infrastructure node on the standby site. This name is used by the TNS entries on both the production and standby sites so that if a switchover occurs, the entry does not have to be changed.
Figure 9-5 Entry for Oracle Data Guard in the Internal DNS Servers
On the production site, the DNS entries look like this:
iasmid1.iasha IN A 138.1.2.333 iasmid2.iasha IN A 138.1.2.444 iasinfra.iasha IN A 138.1.2.111 remote_infra.iasha IN A 213.2.2.110
On the standby site, the DNS entries look like this:
iasmid1.iasha IN A 213.2.2.330 iasmid2.iasha IN A 213.2.2.331 iasinfra.iasha IN A 213.2.2.110 remote_infra.iasha IN A 138.1.2.111
If you are using the /etc/hosts method for name resolution (method 2), perform these steps:
On each node on the production site, include these lines in the /etc/hosts file. The IP addresses resolve to nodes on the production site.
|
Note: In the/etc/hosts file, be sure that the line that identifies the current node comes immediately after the localhost definition line (the line with the 127.0.0.1 address).
|
127.0.0.1 localhost 138.1.2.333 iasmid1.mydomain.com iasmid1 138.1.2.444 iasmid2.mydomain.com iasmid2 138.1.2.111 iasinfra.mydomain.com iasinfra
On each node on the standby site, include these lines in the /etc/hosts file. The IP addresses resolve to nodes on the standby site.
|
Note: In the/etc/hosts file, be sure that the line that identifies the current node comes immediately after the loopback definition line (the line with the 127.0.0.1 address).
|
127.0.0.1 localhost 213.2.2.330 iasmid1.mydomain.com iasmid1 213.2.2.331 iasmid2.mydomain.com iasmid2 213.2.2.110 iasinfra.mydomain.com iasinfra
Ensure that the "hosts:" line in the /etc/nsswitch.conf file has "files" as the first item:
hosts: files nis dns
The entry specifies the ordering of the name resolution. If another method is listed first, then the node will use the other method to resolve the hostname.
|
Note: Reboot the nodes after editing these files. |
After making the changes and rebooting the nodes, check that the hostnames are working properly by running the following commands:
On the middle tier nodes on both sites, run the hostname command. This should return the internal hostname. For example, the command should return "iasmid1" if you run it on prodmid1 and standbymid1.
prompt> hostname iasmid1
On each node, ping the other nodes in the environment using the internal hostname as well as the external hostname. The command should be successful. For example, from the first midtier node, prodmid1, you can run the following commands:
prompt> ping prodinfra ping the production infrastructure node PING prodinfra: 56 data byes 64 bytes from prodinfra.mydomain.com (138.1.2.111): icmp_seq=0. time=0. ms ^C prompt> ping iasinfra ping the production infrastructure node PING iasinfra: 56 data byes 64 bytes from iasinfra.mydomain.com (138.1.2.111): icmp_seq=0. time=0. ms ^C prompt> ping iasmid2 ping the second production midtier node PING iasmid2: 56 data byes 64 bytes from iasmid2.mydomain.com (138.1.2.444): icmp_seq=0. time=0. ms ^C prompt> ping prodmid2 ping the second production midtier node PING prodmid2: 56 data byes 64 bytes from prodmid2.mydomain.com (138.1.2.444): icmp_seq=0. time=0. ms ^C prompt> ping standbymid1 ping the first standby midtier node PING standbymid1: 56 data byes 64 bytes from standbymid1.mydomain.com (213.2.2.330): icmp_seq=0. time=0. ms ^C
On the production site of a OracleAS Disaster Recovery system, you can set up the OracleAS Infrastructure 10g to run in a OracleAS Cold Failover Cluster configuration. In this case, you have two nodes in a hardware cluster, and you install the OracleAS Infrastructure 10g on a shared disk. See Section 9.2, "OracleAS Cold Failover Cluster" for details.

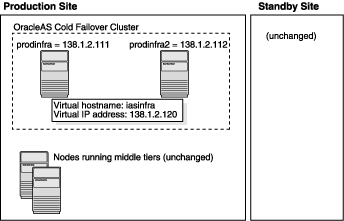

Figure 9-6 Infrastructure in an OracleAS Cold Failover Cluster Configuration
To set up OracleAS Cold Failover Cluster in this environment, use the virtual IP address (instead of the physical IP address) for iasinfra.iasha on the production site. The following example assumes 138.1.2.120 is the virtual IP address.
iasmid1.iasha IN A 138.1.2.333 iasmid2.iasha IN A 138.1.2.444 iasinfra.iasha IN A 138.1.2.120 this is a virtual IP address remote_infra.iasha IN A 213.2.2.110
On the standby site, you still use the physical IP address for iasinfra.iasha, but the remote_infra.iasha uses the virtual IP address.
iasmid1.iasha IN A 213.2.2.330 iasmid2.iasha IN A 213.2.2.331 iasinfra.iasha IN A 213.2.2.110 physical IP address remote_infra.iasha IN A 138.1.2.120 virtual IP address
Install Oracle Application Server as follows:
|
Note: For all of the installations, be sure to use staticports.ini to specify port numbers for the components. See Section 9.4.1.2, "Set Up staticports.ini File". In addition, be sure to specify the correct option name for each installation type (see Table 4-9). |
Install OracleAS Infrastructure 10g on the production site.
Install OracleAS Infrastructure 10g on the standby site.
Install the middle tiers on the production site.
Install the middle tiers on the standby site.
As with OracleAS Cold Failover Cluster and OracleAS Active Failover Cluster, you must install the Identity Management and the OracleAS Metadata Repository components of OracleAS Infrastructure 10g on the same node. You cannot distribute the components over multiple nodes.
The installation steps are similar to that for OracleAS Cold Failover Cluster. See Section 9.2.2, "Installing OracleAS Infrastructure 10g in an OracleAS Cold Failover Cluster" for the screen sequence. Note the following points:
It is OK if the Specify Hardware Cluster Installation Mode screen does not appear. See Table 9-1, step 7.
Be sure you select High Availability Addressing in the Select Configuration Options screen. See Table 9-1, step 12.
In the Specify High Availability Addressing screen, enter an alias as the virtual address (for example, iasinfra.mydomain.com). See Table 9-1, step 14.
You can install any type of middle tier that you like:
For installing J2EE and Web Cache, see Section 7.9, "Installing J2EE and Web Cache with OracleAS Database-Based Cluster and Identity Management Access".
For installing Portal and Wireless or Business Intelligence and Forms, see Section 7.13, "Installing Portal and Wireless or Business Intelligence and Forms".
Note the following points:
When the installer prompts you to register with Oracle Internet Directory, and asks you for the Oracle Internet Directory hostname, enter the alias of the node running OracleAS Infrastructure 10g (for example, iasinfra.mydomain.com).
